DESi Utopic 2 User manual

USER MANUAL
Wireless Motorized Cylinder

!
GENERAL INFORMATIONS and WARNINGS
- We recommend you to put the keys to an accessible place (like car, bag etc.) in an emergancy
condition.
- If there is any problem with door or locking mechanism, first of all, those problems need to be
solved. Door's mechanical parts and locking mechanism should be working properly.
- Replace the batteries, if there is a battery warning. RECYCLE EMPTY BATTERIES!
- All the system need to be protected from water, direct sunlight and shocks.
- Place the batteries after installation of the system to the door. If the batteries are placed before
the installation, auto-rotating parts may cause injuries. WATCH YOUR FINGERS!
- For some doors, even if you remove cylinder screw, you cannot remove cylinder due to cramped
installation of defender. If this is the situation, follow the instructions below:
a- Untighten screws of cylinder defender (don’t remove the screws)
b- Remove cylinder screw and take out the old cylinder.
c- Install the device after disassemble the motozied part from the cylinder. (see p. 4 and 5)
2

3
Controlling Options and Compatible Accessories
Wireless Fingerprint Readers
Wireless Keypad
Wireless Auto-Locking Module
Wireless Home Automation Interface
Remote Controllers
Remote Access Module
BOX CONTENT
(May vary according to model number)
1x Wireless Motorized Cylinder (with keys)
5x Alkaline Batteries
1x Installation screw and Hex key
User Manual
1. FEATURES OF THE DEVICE
Structure
Engraved Aluminum, ABS Plastic, Zamak
Cylinder Length
(outside) 31 mm x 37 mm (inside)
Inside part can extensile up to 43 mm
(Different cylinder lengths are available)
Batteries and Battery Life
5x AA size 1,5 V Alkaline or Lithium Batteries
On a 2 turns lock, with 10 operations per day;
300 days (if RF or Bluetooth is enabled)
200 days (if RF and Bluetooth are enabled)
Communication Capability
Bluetooth Low Energy
ISM RF 434 Mhz

4
2. PARTS OF DEVICE and INSTALLATION
Cylinder
Handle
Handle Screw
Hex Screw
The hole
for hex key
DEMOUNTING OF MOTOR AND CYLINDER
- Open “handle screw” and remove the handle by pulling.
- Remove the batteries.
- Rotate “hex screw” to counter-clock wise by using the
hex key out of the box. You will see the cylinder will be
disassembled from the motorized part.
To assemble two parts, combine cylinder and motorized
part in a proper way and rotate hex screw to clock wise.
Metal Extending Parts
(used if needed)
Plastic Cover Cover Spring

5
Up to 6 mm
EXTENDING INSIDE PART OF THE CYLINDER (if needed)
If the door thickness is not suitable to the cylinder of the device, inside part of the
cylinder may be extended up to 6 mm by 2 mm steps.
To extend the cylinder’s inside part, follow the instructions below:
- Open “handle screw” and remove the handle by pulling.
- Remove the batteries.
- Rotate “hex screw” to counter-clock wise by using the hex key out of the box till the
motorized part is disassembled from the cylinder.
- Add 2 mm metal extending parts as needed.
- Assemble cylinder and motorized part and rotate hex screw to clock wise direction.
- Install the batteries and check the device if it is working properly or not.
26 10 32
26 10 38
1.STEP
Remove
existing
cylinder.
2. STEP
Install
motorized
cylinder and
tighten
the screw
That’s
it!
INSTALLATION OF MOTORIZED CYLINDER

6
MOBILE APPLICATION
In this section, you can find details about usage of
Mobile Application
If there is no controller with your motorized cylinder and
if you enroll your smart phone as first controller,
it will be master controller of your motorized cylinder.
Before you use your motorized cylinder, you should adjust it
properly according to the lock which motorized
cylinder will work together. First, you should adjust
“direction of locking” and than
“number of rotation” (see page 50 and 51)
If you want to change the master controller of motorized
cylinder, check “HOW TO RESET MOTORIZED CYLINDER”
topic on last page.
To use all available features of your device, we recommend you to use
a smartphone as master controller.

7
- After long warning tone, a short warning tone will be heart. Now confirm the pop-up on application and device
recognition process will start. If the matching is successful, you will hear 2 short tones from motorized cylinder and your
device will be master controller of motorized cylinder.
3.1. ENROLLING A MOBILE PHONE AS MASTER CONTROLLER
- Search “Desi Utopic” on stores. Download, install and run the application.
- Choose desired language and define a password.
- Touch “+” on the top left corner to see the list of Utopic motorized cylinders around.
- Touch to UTOPIC line and enter a name for your device and touch to green tick.
- A confirmation pop-up will appear. Before confirming, press/hold “set/reset button”
on motorized cylinder till a long warning tone is heart. After that, a short warning tone
will be heart, than you can release button.
Set / Reset
Button

8
3.2. APPLICATION SETTINGS
If you touch to menu button on the top right corner when it is not connected to motorized cylinder, you will reach to
settings menu of application. Related menu items are as follows:
PASSWORD: You can disable, enable or change the password of application.
LANGUAGES: You can change language of the application.
APPLICATION SETTINGS: You can disable / enable auto-connection
feature which connects to a known motorized cylinder around as soon as
the application is lunched.
APPLICATION INFO: You can see the version of installed application.
Menu
Button

9
3.3. MOTORIZED CYLINDER SETTINGS / ADMINISTRATION MENU
If you touch to menu button on the top right corner when the application is connected to motorized cylinder as master
controller, you will reach to settings menu of connected motorized cylinder. You can change settings of your motorized
cylinder and perform administrative activities via this menu.
Before using your smart cylinder, “locking way” and “number of turns” settings should be adjusted properly. Otherwise, it
would damage the device’s mechanical structure. Those two settings is written in . Please check next 2 pages.RED
Related menu has 4 tabs; Device Info, Knob Settings, Users, Reports

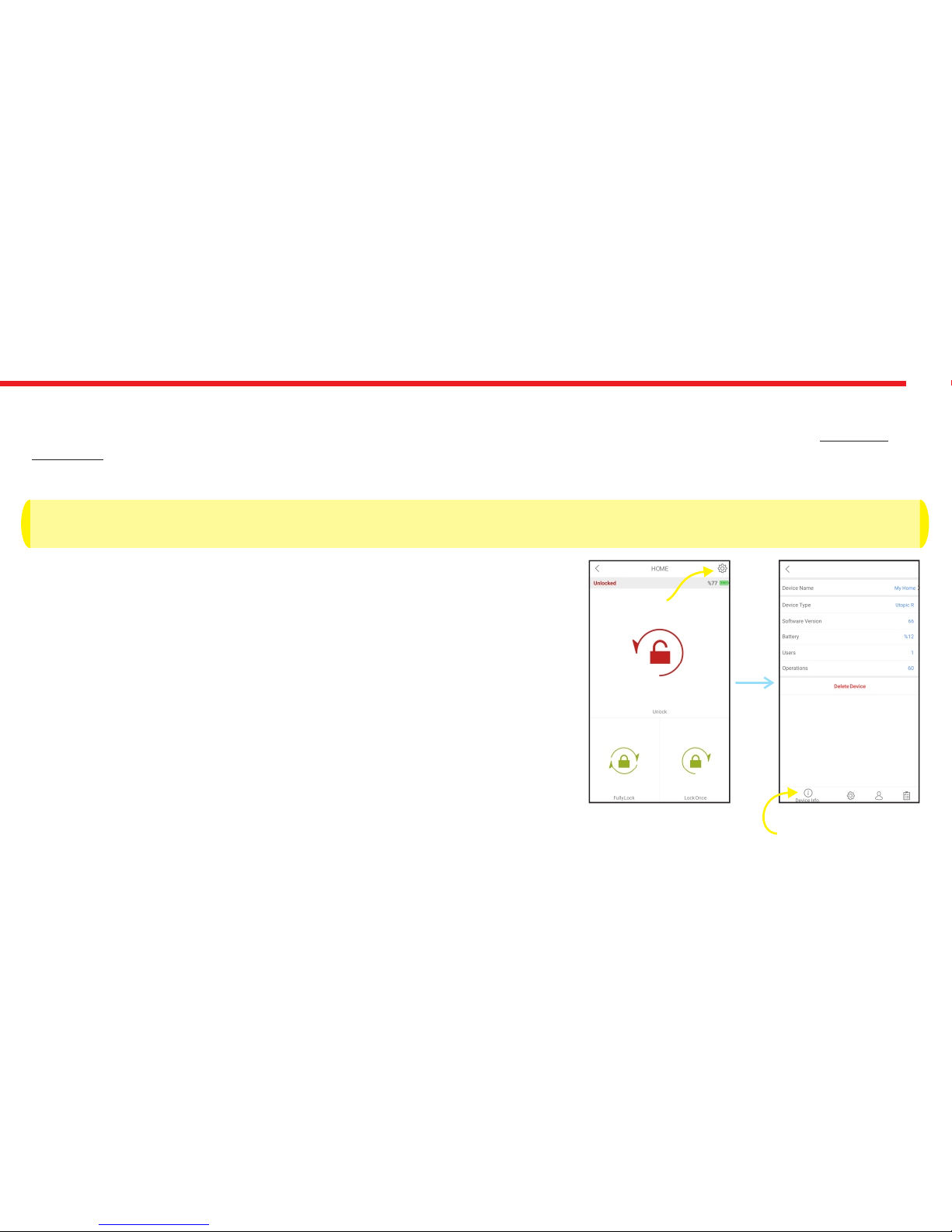

3.3.1. DEVICE INFO TAB
In this tab, you can see following information:
Device Name
Device Type
Device’s Firmware Version
Battery Level
Number of Enrolled Controllers
Number of Operations (Locking or unlocking)
If you want to delete connected device from your mobile application,
touch to “Delete Device” button in this menu.
Menu
Button
Device Info Tab

10

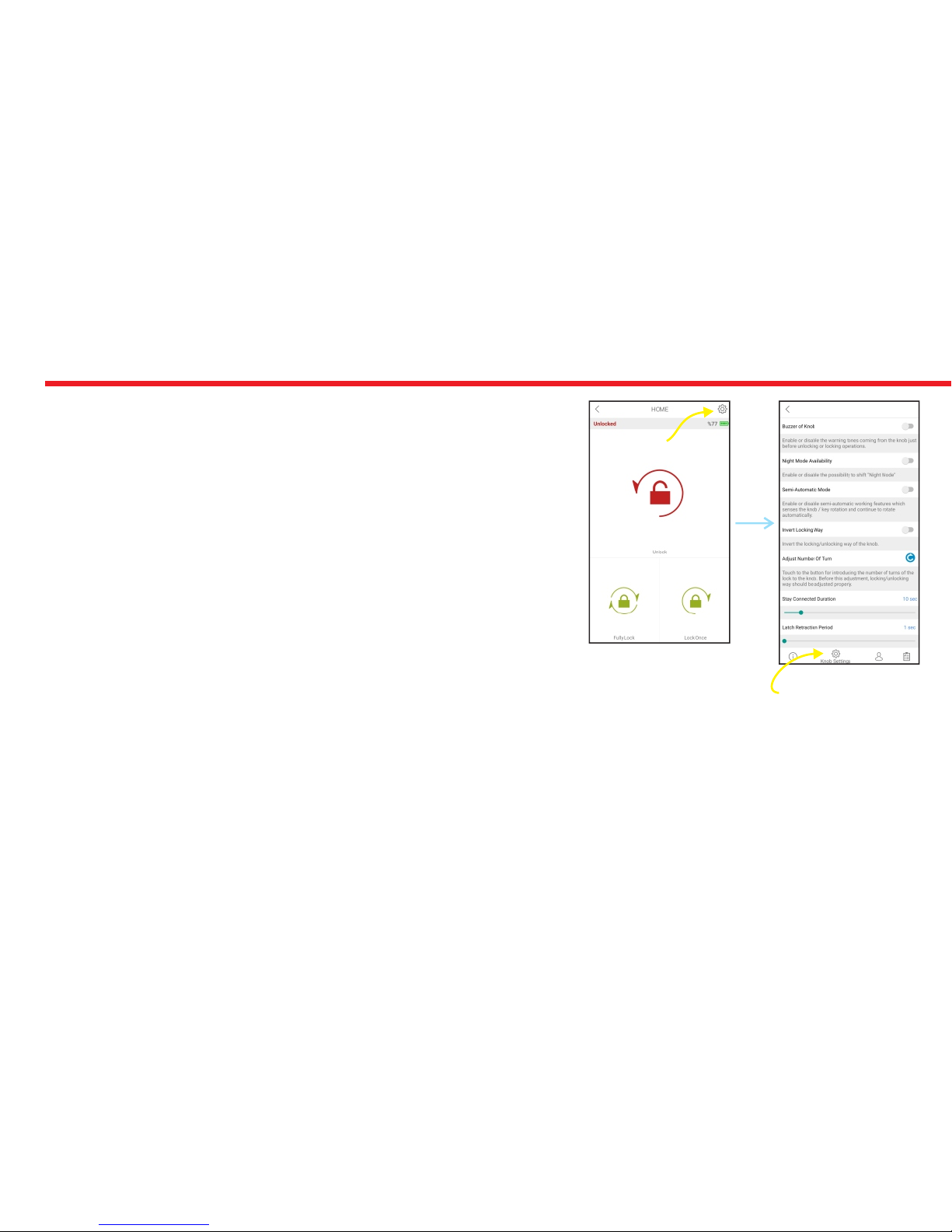

3.3.2. KNOB SETTINGS TAB
In this tab, there are following menu items:
BUZZER OF KNOB: You can enable / disable activation sounds coming
from motorized cylinder.
NIGHT MODE AVAILABILITY: Night mode is a security option which
temporarily disables all controllers of motorized cylinder. In this way,
the door can only be opened by knob or the key. If this feature is enabled,
when you rotate your motorized cylinder through locking way 2 times,
the device will shift to night mode till you rotate the know or key through
unlocking way. On this menu item, you can enable / disable capability to
shift night mode. For shifting to night mode, Semi-Automatic Mode should be enabled.
SEMI-AUTOMATIC MODE: Your device has a semi-automatic feature which senses the knob / key rotation and
continue to rotate automatically. On this menu item, you can enable / disable this feature.
INVERT LOCKING WAY: You may need to change the direction of locking according to the door’s way which you will use
your motorized cylinder. You can invert locking way of device on this menut item.
Menu
Button
Knob Settings
Tab

11
ADJUST NUMBER OF TURNS: Before using your motorized cylinder, you may need to adjust your motorized cylinder
according to lock’s number of rotation, To do this, close the door and than touch to “Blue Rotating Arrow” button.
Motorized cylinder will lock and than unlock the door and learn number of rotation.
AUTO DISCONNECTION TIME: You can adjust (with 5 sec. steps) the time period that application stays connected to
motorized cylinder after it is connected.
LATCH RETRACTION PERIOD: According to type of your lock and usage, you would need to adjust the time period which
the motorized cylinder keeps latch of the lock inside when it unlocks the lock. You can use the slider to adjust latch
retraction period in 4 different way: From left to right; short (around half second), 3 seconds, 6 second and 9 seconds.
Latch Retraction Period adjustment is not available for Utopic 2.

12
3.3.3. USERS TAB
In this tab, you add, edit or delete (except master) controllers including accessories like auto-locking module, home
automation interface, keypad etc.
EDIT / DELETE ENROLLED CONTROLLERS: If you touch to Controllers title, you can see enrolled controllers of
motorized cylinder. If you touch any users, you can reach dedicated page to edit name or delete the controller.
Edit / Delete Enrolled Controller is not available for Utopic 2.
Menu
Button
Users Tab
Touch to user
for dedicated
page

13
ENROLL NEW REMOTE CONTROLLER: Your motorized cylinder may learn up to 40 dierent controllers. To shift your
motorized cylinder to enrolling new controller mode, touch to “Green Plus” button. In this way, motorized cylinder will
shift to enrolling new controller mode with a long warning tone. After that tone, you need to send locking or unlocking
signal via the new controller that you want to enroll to the motorized cylinder in following ways:
- For fingerprint reader, wake it up and touch to lock button.
- For keypad, wake it up and touch to locking button.
- For remote controller, press any button till you hear a warning tone from cylinder.
- For auto-locker, make the magnet closer to
small triangle (look to sides of device) and
wait indicator is lit.
- For enrolling a new mobile phone,
please check page 55.
If enrolling will be succesful, you will hear
two short warning tones from motorized cylinder.
DELETE ALL REMOTE CONTROLLERS: If you
want to delete all the controllers of motorized
cylinder, touch to “Delete All Controllers”.
The master controller cannot be deleted
by using this menu item.
Menu
Button
Users Tab
Touch to shift
motorized
cylinder
to enrolling
new
controller
mode

14
3.3.4. REPORT TAB
In this tab, you can see which user unlocked or locked the device. For
mobile devices, you can see date and time but for controllers like
fingerprint reader, remote controller, keypad etc. you cannot see date
and time.
Reporting feature is not available for Utopic 2.
Menu
Button
Reports Tab

15
- Motorized cylinder will give a long (5 sec.) than a short warning tones. After short warning tone, confirm the pop-up on
NEW MOBILE DEVICE. Device recognition process will start. If the matching is successful, you will hear 2 short tones from
motorized cylinder and your device will be master controller of motorized cylinder.
NOTE: For Android phones, application will ask to reach location services. This is needed for using Bluetooth properly.
3.4. ENROLLING A NEW (USER) MOBILE PHONE VIA MASTER MOBILE PHONE
- With , search “Desi Utopic” on stores. Download, install and run the application. NEW MOBILE PHONE
- Choose desired language and define a password.
- Touch “+” on the top left corner to see the list of Utopic motorized cylinders around.
- Touch to UTOPIC line and enter a name for your device and touch to green tick.
- A confirmation pop-up will appear. Before confirming, connect to motorized cylinder with and MASTER MOBILE PHONE
touch menu button on the top right corner and go to Knob Settings Tab Touch to Green Plus Button next to “ENROLL A
NEW REMOTE CONTROLLER” line.
Shift your
cylinder to
Enrolling
Mode via
MASTER
MOBILE
PHONE and
confirm

16
4. USAGE
4.1. UNLOCKING AND OPENING THE DOOR
If you touch to Unlock button on application screen, system automatically unlocks and opens the door.
You can unlock/open the door by using the knob or the key as well. If semi-automatic working is
enabled, when you rotate the knob or the key to unlocking way, it will sense the movement and
continue automatically.
4.2. LOCKING THE DOOR
If you touch to “Lock Once” button, system will automatically lock the door one turn.
If you touch to “Fully Lock” button, system will automatically lock all the turns.
You can lock the door by using the knob or the key as well. If semi-automatic working is enabled, when you rotate the knob
or the key to locking way, it will sense the movement and lock the door one turn.
4.2.a NIGHT MODE
Night mode is a security option which temporarily disables remote controllers. In this way, the door can only be opened by
knob or the key. To shift the motorized cylinder to night mode:
- Close the door and turn the knob through locking way. The motorized cylinder will lock the door one turn.
- Turn the knob again through locking way. It will lock all the turns.

17
In this way, the motorized cylinder will shift to Night Mode. To exit from night mode, turn the knob through unlocking way.
It will automatically unlock the door and shift to normal working mode. You can shift to or exit from night mode by using
key as well.
To use Night Mode, NIGHT MODE AVAILABILITY and ADJUSTING SEMI-AUTOMATIC WORKING settings need to be
enabled. If any of them is disabled, the motorized cylinder cannot shift to Night Mode.
5. MAINTENANCE
You can clean the surfaces with soft fabric. Do not use water or corrosive chemicals. Do not touch to electronic parts of
the device with a conducting metal or sharp object.
5.1. REPLACING MOTORIZED CYLINDER’S BATTERIES
- The motorized cylinder uses 5x AA size 1,5 V Alkaline or Lithium batteries.
- Do not use old and new batteries or different types of batteries together.
- If you are changing batteries, change them all. Use high quality batteries.

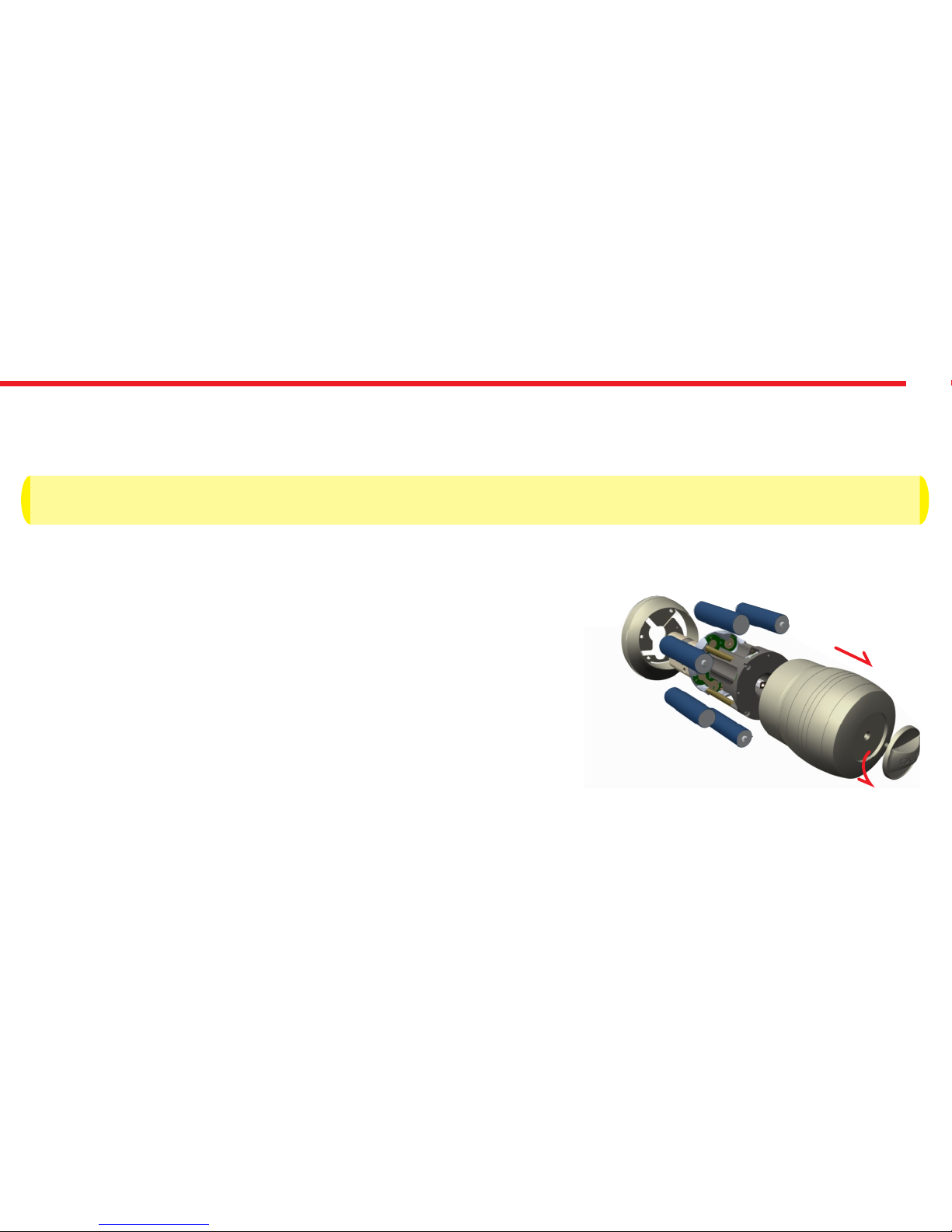

If you hear triple warning tone after any operation (locking/unlocking), or if
the motorized cylinder rotates too slowly, you need to replace the batteries. To change them,
open knob screw and remove knob (pull outward), uninstall old batteries and install new batteries
(watch polarities). Put knob back and tighten knob screw.
1
2

18
Desi Alarm and Security Systems Inc. www.desi.com.tr
Topkapı Maltepe Cd. Anadolu Sk. N:1 Bayrampaşa - İstanbul / TURKEY
5.2. HOW TO RESET MOTORIZED CYLINDER
If you want to change master controller of motorized cylinder, you need to reset motorized cylinder. To do this, follow the
steps below:
- Remove 1 battery of your motorized cylinder and press and hold
“set/reset button”. Put the 5th battery. You will start to hear a long
warning tone from motorized cylinder. Continue to hold the button
till you hear two short tone after long warning tone.
- In this way, motorized cylinder will be reset and all the controllers,
including master controller, enrolled to the device will be deleted.
Set / Reset Button
