AC PRO AUTOMATIC COMPACT – D90 to D200
90 to 200 liters/hour – 230V (or 400V)
ASSEMBLY AND USER MANUAL

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 2
Table of Contents
Table of Contents .................................................................................................................................. 2
Copyright / Disclaimer ............................................................................................................................ 3
List of Components ................................................................................................................................ 4
Assembly ............................................................................................................................................... 7
1) List of supplies necessary for assembly ................................................................................ 7
2) Seawater intlet ....................................................................................................................... 8
3) Motor/Pump Block ............................................................................................................... 10
4) Electric connections ............................................................................................................. 11
5) Membrane Block .................................................................................................................. 12
6) Control Panel ....................................................................................................................... 13
7) Mini-Command (optional) .................................................................................................... 14
Start-Up ............................................................................................................................................... 15
1) Precautions before start-up ................................................................................................. 15
2) Starting-up the watermaker ................................................................................................. 16
3) Stopping the watermaker: without rinsing of the membranes .............................................. 18
4) ............................................................................................................................................. 18
5) Stopping the watermaker : with automatic rinsing of the membranes ................................. 19
6) Using the Mini-Command (optional) .................................................................................... 21
Operation ............................................................................................................................................. 22
Maintenance ........................................................................................................................................ 23
1) Membranes maintenance .................................................................................................... 23
2) Rinsing frequency of the membranes .................................................................................. 23
3) Sterilizing the membranes ................................................................................................... 24
4) High-pressure pump ............................................................................................................ 24
Spare Parts .......................................................................................................................................... 25
Appendix A1: How do watermakers work? .......................................................................................... 26
Appendix A2: Mounting of the DESSALATOR® high-pressure nozzles .............................................. 27
Appendix A3 : Manual Rinsing Procedure ........................................................................................... 28
Appendix A4 : Instructions for the Sterilizing Cartridge ....................................................................... 29
Appendix A5 : Troubleshooting ............................................................................................................ 30
Appendix A6 : Guide of the Indicator Lights of the .............................................................................. 31
Appendix A7 : Circuit diagram of the electronic board ......................................................................... 32
Appendix A8 : Schematic drawing ....................................................................................................... 33

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 3
Copyright / Disclaimer
Dessalator®
ZI des 3 Moulins, 282 rue des Cistes
Bâtiment Euro 92
06600 Antibes, France
www.dessalator.com
[email protected]
[phone]

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 4
List of Components

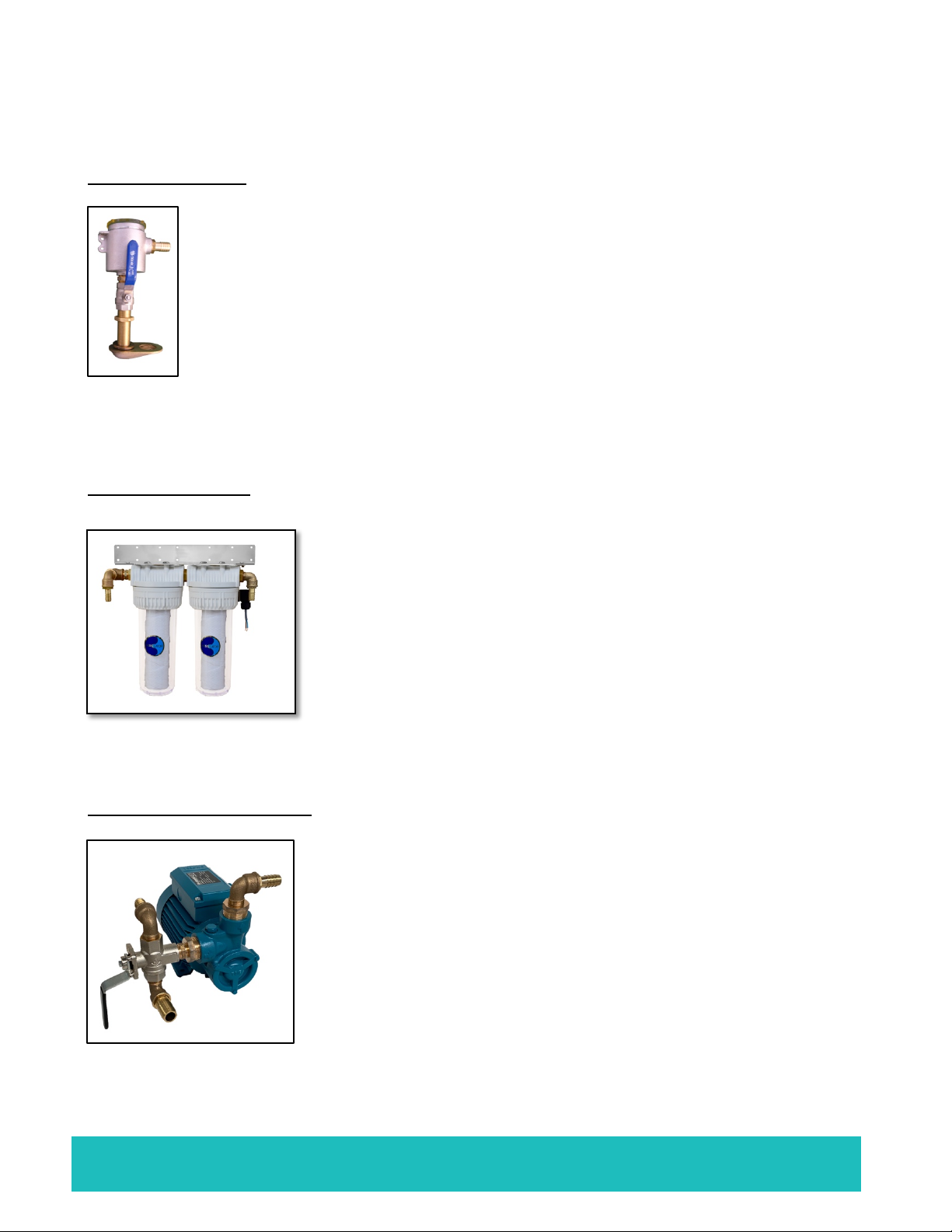

Vanne de coque
Bloc de préfiltres
Pré-pompe eau de mer
Ø Must be placed as low as possible in the boat so as to avoid drawing in
any air.
Ø Must be installed towards the back for a motorboat, or centered near the keel
for a sailboat. The ribs of the strainer should be placed towards the front the
boat to force the entry of water by scooping during navigation.
Ø The strainer of the hull valve helps stop large particles at the entrance of
the system.
Ø The sea water filter is fixed directly on the valve (photo opposite).
Ø Must be placed as close as possible to the hull valve and, if
possible, beneath the waterline to ensure a better
yield/output.
Ø The first cartridge of 25 microns roughens the filtration, then
the second cartridge of 5 microns refines the treatment.
Ø Comes with a tool for screwing / unscrewing the tank.
Ø Comes equipped with a solenoid valve for automated rinsing.
Ø The pre-pump is equipped with a 3-way valve (for manual
rinsing)
Ø Must be placed as close as possible to the hull valve and, if
possible, beneath the waterline to ensure a better
yield/output and must be remain accessible.
Ø On the valve, pressurized fresh water must be connected to
facilitate manual rinsing and sterilization of the watermaker;
see the layout diagram at the beginning of the manual.
Tip: Do not forget the 2 stainless steel clamps at each junction.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 5
DO NOT PLACE THE PUMP WHERE THERE IS A RISK OF WATER SPRAYING

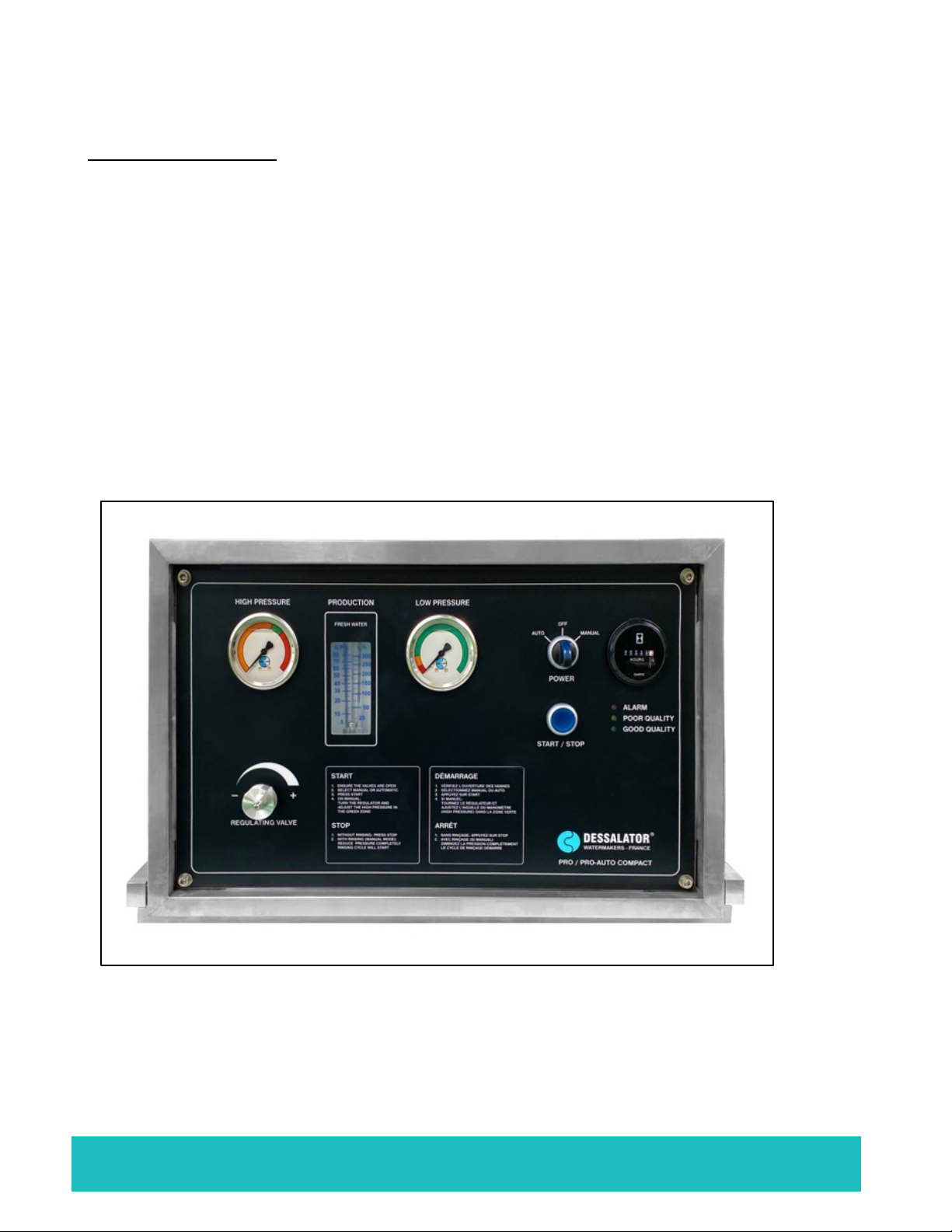

Front Control Panel
The control panel is incorporated into the chassis (COMPACT version).
It is used to manage the operation of the watermaker and is made up of the following
elements :
Ø A high-pressure manometer.
Ø A flowmeter.
Ø A start switch.
Ø A Manual or Automatic mode selection switch
Ø A know for pressur adjustment.
Ø An operating hours countern.
Ø Three indicator lights.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 6
Motor/Pump Block
Membrane Block
The number of membranes depends on the desired production rate : 90 to 200 liters/hour.
1 membrane for a production of
90 liters of water per hour.
(1200x100x120mm).
2 membranes for a production of
160 liters of water per hour.
(1200x190x120mm).
3 membranes for a production of
200 liters of water per hour.
(1200x270x120mm).
Ø The HP motor/pump block allows seawater to be pushed to 60-65 Bars.
Ø Composed of the 230 or 400 Volts motor.
Ø Must be installed in a ventilated space.
Ø The engine block is incorporated in a frame with the integrated control panel for the
COMPACT version.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 7
Piping (supplied by Dessalator®)
Ø High-pressure piping from the pump to the membranes and from the membranes
to the control panel. An 8-meter pipe is provided, it should be cut into two parts.
The length of each part is to be determined according to the distance of the
different element.
Ø 4 special DESSALATOR® fittings* for high-pressure piping (see assembly
procedure in Appendix A2).
§ * Including one 90° elbow fitting for the back of the control panel, which can
swivel 360°.
Ø Fresh water production piping going from the outlet of the membrane block to the
dashboard (6 meters long).
Assembly
1) List of supplies necessary for assembly
Ø Screws (self-tapping and more).
Ø Stainless steel ties Ø 8-16mm, Ø 12-22mm and Ø 16-27mm.
Ø Electrician’ plastic ties.
Ø Loctite 542 liquid or Loctite 577 paste.
Ø Polyurethane sealant, Sicaflex or equivalent.
Ø Corrugated sheath for electric cables and high-pressure tubes.
Ø Braided-core flexible hose, Ø 10mm and Ø 12mm inner diameter (Tricoflex) and 3mm
thick.
Ø Various tools (drills, saws, Ø 21mm hole saws, etc.).

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 8
2) Seawater intlet
Seawater inlet valve
Sea water pre-pump
Ø The strainer should be placed as low as possible beneath the waterline so that it does not
draw in any air. It should be placed far from the discards.
Ø Pierce the hull with a Ø 21mm hole saw.
Ø The streaks of the strainer must be placed towards the front of the boat to allow the water
to naturally enter by scooping during navigation.
Ø Seal the junction with the hull properly using polyurethane sealant or Sicaflex. Do not
forget to paint the submerged part with special underwater paint.
Ø The hull valve must remain accessible for maintenance operations.
Ø Seal the valve/strainer and valve/hose connections with Loctite 577.
Ø The pre-pump must also be installed below the waterline for better production and
must be easy to access.
Ø The pre-pump is equipped (at its suction) with a 3-way valve.
Ø On the 3-way valve : for seawater suction from the pre-pump (seawater inlet
valve side) the connection must be made with Tricoclair-type piping with an
internal Ø19mm and the other side of the 3-way valve (rinsing side) of internal
Ø15mm .
Ø The connection for rinsing with fresh water must be made with water from the
circuit of the pressurized fresh water unit.
Ø The discharge from the pre-pump to the block of pre-filters must be done with
Tricoclair type piping with an internal Ø15 mm.
Ø The valve handle must be swung to the seawater position (see Appendix 3 for
the 3 positions of the 3-way valve
Ø As an option, a fixing bracket is available to fix the pre-pump to a vertical wall..
➥
Note : For manual rinsing, switch the valve handle to the soft water position (see the 3
valve positions below) and follow the instructions in Appendix A3.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 9
Cartridge pre-filter block
Connections
Ø The prefilter must also be installed beneath the waterline to ensure a better
yield/output. It must be easy to access
Ø The fixing bracket is reversible to allow you to adjust the installation height.
Ø Piping connections must be made with Tricoflex Ø15 mm (inside diameter), for the
entire seawater system as well as the pressurized rinsing system
à Do not forget to fasten 2 stainless steel collars on each fitting.
Ø Allow a minimum of 3 cm below the filter body for the clearance of the tank when
opening it. A screw is provided for screwing / unscrewing it.
Ø A solenoid valve is mounted behind the pre-filter for automatic rinsing.
Ø Fasten two stainless steel collars on each connection, with the clamping heads
positioned opposite one another.
Ø This connection can be made by tapping under a sink, a washbasin as well as on the
path of pressurized cold water pipes.
Ø If the pipes are to pass through walls or be in contact with sharp corners, provide
protection against wear and friction by inserting them into a sheath or pipe of greater
diameter.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 10
3) Motor/Pump Block
Ø To ensure optimal production, the assembly of the high-pressure motor block must be
completed as low as possible in the boat, in a horizontal position and in an area protected
from water sprays.
Ø Use the 2 stainless steel legs under the 2 motors to fix the motor block. Leave a
few centimetres of wiggle room around it.
Ø Provide sufficient airflow for the ventilation of the motors.
Ø The connection of the prefilter outlet to the inlet of the pump on the suction-side
pump should be done using Tricoflex piping Ø 12mm (inside diameter) and 2
stainless steel collars at each connection.
Ø The connection of the pump's high-pressure head to the membrane inlet (red mark)
should be done using a high-pressure hose that is cut to size (follow closely the
assembly instructions in Appendix A2).
Ø Put a little liquid Loctite or threadlock on the male and female cones before each
connection.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 11
4) Electric connections
The 230V (or 400V) motor connection:
Pre-pump connection :
WARNING!
Never work with the power on! Turn off the power of your
entire system.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 12
5) Membrane Block
Ø The membrane block should preferably be mounted horizontally (on the base or side).
A vertical position might lead to a yield/output loss over time.
Ø Fastening is done using self-tapping screws in the stainless steel brackets .
Ø It is necessary to sheath the pipe connecting the output of the high pressure pump
to the inlet of the membranes because of the vibrations, which might lead to leaks
if the pipe is attached or in direct contact with something.
Ø The installation of the high-pressure nozzles must be carried out according to their
assembly instructions (see Appendix A2).
Ø Put some Loctite or threadlock on the 2 male and female cones before tightening.
Ø Available as an option: 90° elbow high-pressure nozzle for the inlet and outlet of the
membranes .

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 13
6) Control Panel
The control panel must be mounted on a vertical panel.
Ensure unrestricted access to the back of the control panel, this will make connections
easier. You should place it in a place where the light indicators are visible. Example: below or
on the sides of cupboards, under the chart or centre table, on the front panel of a rear berth
etc.
69 »

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 14
7) Mini-Command
General presentation:
The Dessalator® Mini Remote Control Dessalator allows
you to monitor the watermaker and turn it off.
You can start and shut down the machine simply by
pressing a single button on the Mini Remote Control.
The 3 light indicators on the Mini Remote control have
the same functions as the 3 lights on the watermaker
itself.
You can also program the automatic shutdown of the
watermaker after a given time of operation.
The Mini Remote is very intuitive, which is why this quick
guide only describes the basic functions and is meant to
serve as a convenient reference

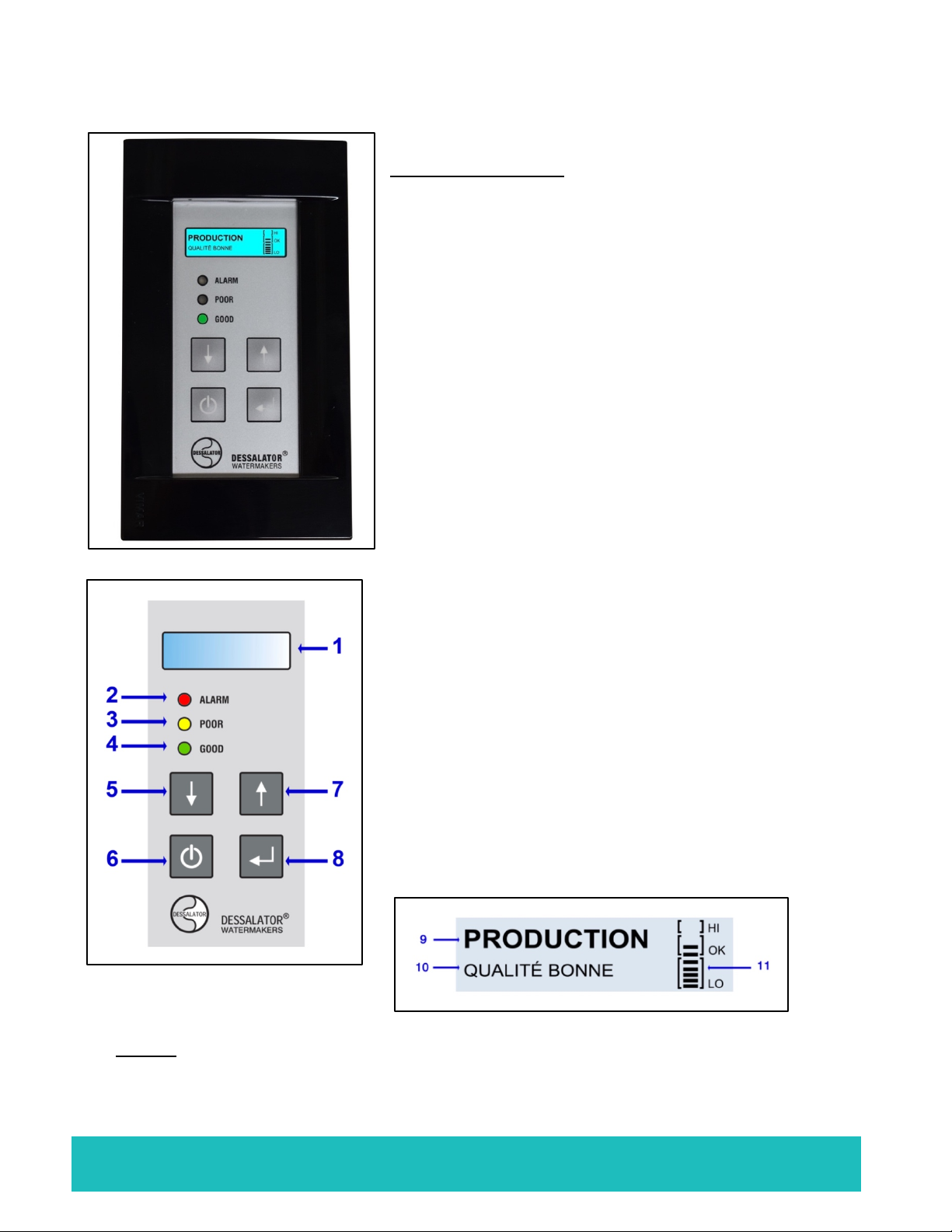

1: DISPLAY
2: RED LIGHT – ALARM
3: YELLOW LIGHT – POOR QUALITY
4: GREEN LIGHT – GOOD QUALITY
5: DOWN BUTTON
6: ON / OFF BUTTON
7: UP BUTTON
8: ENTER / CONFIRM BUTTON
9: DISPLAY TEXT LINE 1 – STATUS/INFO
10: DISPLAY TEXT LINE 2 – STATUS/INFO
11: PRESSURE INDICATOR
➥
Note : in the event of an alarm, the machine must be restarted from the control panel
(and not from the Mini-Command or Micro-Command).

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 15
Start-Up
1) Precautions before start-up
Mandatory:
Ø When using the device for the first time, after changing the filter, after the boat has
been grounded or stopped for a long time, you should flush the system using fresh
water by operating the three-way valve on the prefilter (see Appendix A3).
Purge the system for 1 minute: watermaker must be stopped and the pressure
regulator open (counterclockwise).
Ø Once the system is filled, put the valve back in seawater position (see Appendix A3).
➥
Note: If you are not going to use the watermaker at all for a month or more, we
recommend to either sterilize the membranes for storage (for a maximum duration of 6
months) or to rinse it out at least once a month.
Before starting the system back up, we recommend rinsing it out for two minutes (see
Appendix A3).
WARNING!
Before starting-up, check that the valves are open
.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 16
2) Starting-up the watermaker
➥Note : The fresh water yield depends on the temperature and salinity of the sea water
and the cleanliness of the 5 & 25 micron filters (in the pre-filter).
Automatic mode:
The AUTOMATIC product range is equipped with a motorized knob regulator to adjust the
pressure.
Ø Simply set the switch AUTO and press the START button or on the Mini-Command
remote press button (follow the procedure in paragraph 5).
Ø The pre-pump starts, the needle on the low pressure manometer rises in the green zone.
Ø The engine has started, the pressure regulator knob will automatically run to increase the
pressure to the orange zone of the pressure gauge, then gradually adjust it until it reaches
the green zone on the pressure gauge. This procedure takes about 2 minutes.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 17
➥Note : Too high a pressure setting stops the watermaker and turns on the red light. In
this case, decrease the pressure with the pressure regulation knob and repeat the
startup procedure.
The fresh water yield depends on the temperature and salinity of the sea water and
the cleanliness of the 5 & 25 micron filters (in the pre-filter).
Manual mode:
Follow the procedure below :
Ø Set the switch to MANUAL and press the START button
Ø The pre-pump starts, the needle on the low pressure manometer rises in the green
zone.
Ø Once the engine has started, gradually turn the pressure regulator knob to the right
to increase the pressure towards the middle of the orange zone then continue
gradually increasing the pressure until it reaches the green zone on the pressure
gauge. This procedure takes about 1 minute.
This pressure build-up procedure should last approximately 1 minute.

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 18
3) Stopping the watermaker: without rinsing of the membranes
It is not necessary to rinse your membranes if you use your watermaker regularly.
Mode Automatique :
Follow the procedure below :
Ø Set the switch to OFF or on the Mini-Command remote press on , follow
the procedure on the paragraph 6).
Mode Manual :
Follow the procedure below :
Ø Set the switch to « OFF» or on the Mini-Command press on (optional,
follow the procedure on the paragraph 6).
Ø You can now lower the pressure regulator knob to the left (counterclockwise)
until the needle of the high pressure gauge is at the minimum.
Ø Once the knob has come to a stop, reopen the pressure regulator knob by
only ¼ of a turn (to the right).
Beyond 10 days without use, it is best to rinse the membranes before the
watermaker is started-up again (see manual rinse procedure in Appendix A3).
If watermaker is not used, the rinsing is to be renewed every month.
If the watermaker is not used completely, the membranes must be sterilized for storage
(for a maximum of 6 months).

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 19
4) Stopping the watermaker : with automatic rinsing of the membranes
A rinsing must be carried out if the watermaker is not going to be used for more than
10 days.
Automatic mode:
After using the watermaker, do not turn it off.
Ø While the watermaker is still running, Start turning the knob of the pressure
regulator (counterclockwise) to engage the rinsing mechanism, the pressure of
the manometer will drop.
Ø The watermaker will then start the rinsing procedure. The green and yellow LEDs
on the control panel will light up, indicating that the rinsing procedure has started.
It lasts 30 seconds. When the procedure is complete, the green and yellow LEDs
will lights off and the only remaining indicator will be the flashing blue LED on
the switch . If you don't have a mini-control you can turn the switch OFF .
Automatic rinsing is the best way to rinse your system because it not only replaces
seawater with fresh water, but it also washes your pre-filter and allows discharge to the
sea through the suction through-hull all dirt and debris accumulated in the filters.
Is watermaker is not used, the rinsing is to be renewed every month.
If the watermaker is not used completely, the membranes must be sterilized for
storage (for a maximum of 6 months).
Is watermaker is not used, the rinsing is to be renewed every month.
If the watermaker is not used completely, the membranes must be sterilized for

AC PRO AUTO COMPACT D90 à D200 v3.2 EN Page 20
Manual mode:
Follow the procedure below :
After using the watermaker, do not turn it off.
Ø While the watermaker is still running, Start turning the knob of the pressure regulator
(counterclockwise) to engage the rinsing mechanism, the pressure of the
manometer will drop.
Ø Once you have reached the end stop, reopen the pressure regulator knob by only
¼ turn (to the right).
Ø The watermaker will stop producing water and will start the rinsing procedure. The
green and yellow LEDs on the control panel will light up, indicating that the
rinsing procedure has started. This should last 30 seconds and stop automatically.
The green and yellow LEDs will turn off and the only remaining indicator will be
the flashing blue LED on the ON/OFF switch , you can turn off the system by
position the switch to « OFF ».
Automatic rinsing is the best way to rinse your system because it not only replaces seawater
with fresh water, but it also washes your pre-filter and allows discharge to the sea through
the suction through-hull all dirt and debris accumulated in the filters.
Is watermaker is not used, the rinsing is to be renewed every month.
If the watermaker is not used completely, the membranes must be sterilized for storage
(for a maximum of 6 months).
