Detex ES500W Series User manual

02/28/18
Designed Security, Inc.
www.dsigo.com * [email protected]
Access Control 28
Access Control > Weatherized Battery Operated Exit Alarm > ES500W Series
The ES500W Series Weatherized Exit Alarm is designed for applications that require an alarm
on secured doors, particularly emergency exits that open to the outdoors or wet environments.
The alarm will sound when an unauthorized exit occurs. The redesigned shape and smaller size
combined with its quick and easy installation makes the ES500W your ONLY choice for protecting
emergency exits, interior access controlled doors, and gates from unauthorized use.
• Low cost, self-contained door alarm
with piezo horn that sounds to warn of
unauthorized use of a door or gate
• Weatherized for outdoor environments
• Secure, tamper resistant housing
• Quick, easy installation saves time and
money
•Patented plastic template
allows for foolproof
alignment of internal
magnetic door contact
and accurate installation
•Tapered cover allows for
installation on narrow
stile doors, 2" minimum
•Intelligent circuit senses
the external magnet
location automatically
and sets the correct door
handing
•Patented cam assembly
automatically adjusts
for different sizes of
cylinders without use of
spacers
•Alarm can only be silenced
by proper control key
•Extended bypass allows
alarm to remain bypassed
when door is open and will
automatically rearm
upon door closing
•Modern graphics on
cover to demonstrate key
rotation and operation
•100 dB piezo alarm
•9VDC battery operated
with Low Battery Alert
•LED visual and audible
arming indicators
•Field selectable 2-minute
auto re-arm
•Field selectable status
indicators
•Weatherized electronics
certiÀed to Driving Rain
and Salt Fog Test
•UL Listed (see Listings
and Approvals)
BeneÀts
Shown with mortise cylinder
(cylinder sold separately - add xMC65 to
order the ES500W with mortise cylinder)
02/28/18
Designed Security, Inc.
www.dsigo.com * [email protected]
Access Control > Weatherized Battery Operated Exit Alarm> ES500W Series
Access Control 29
Riser Diagram
Dimensions
Left Side Mounting Right Side Mounting
Technical SpeciÀcations
•approximate 100 dB piezo alarm
•Mortise cylinder key switch arming
•9 VDC battery powered
•Low battery alert
•Manual arming, disarming & rearming
•LED visual arming indicators
•Audible arming indicators
•Outside key control compatible
•Fits 2” narrow stile doors
•Alarm accepts 5, 6 and 7 pin standard
and interchangeable core mortise
cylinders with a standard Yale cam
•Field selectable 2-minute auto rearm
•Field selectable status indicators
Operation
•To arm: Insert and rotate the key counter
clockwise. Red LED will Áash twice
followed by solid green LED. Remove key,
green LED will continue to illuminate for
15 seconds during the arming sequence
followed by 3 chirps indicating the alarm
is armed and ready
•To disarm: Insert and rotate the key
clockwise Green LED Áashes twice. Key
may be removed. Alarm is now disarmed
and will not sound.
Finish
• GY - Grey
“UL Listed Miscellaneous
Fire Door Accessory”
UL1034 - 33 Temperature Section 33
[temperature range -31° F (-35° C) to
150° F (+66° C)]
UL1034 - 53 Dust Section 53
MIL-STD 810F, Method 506.4
(Driving Rain Test)
MIL-STD 810F, Method 509.4
(Salt Fog Test)
ANSI/BHMA
A156.29
Listings and Approvals
Options/accessories
•K5 mortise cylinder
pre-installed at
factory (add xMC65)
•Recessed or surface
mount door contacts
•Cylinder nut wrench

Other Detex IP Access Controllers manuals

Detex ES300W Series User manual

Detex

Detex ES300W Series User manual

Detex ES300 Series User manual

Detex

Detex ES300 Series User manual

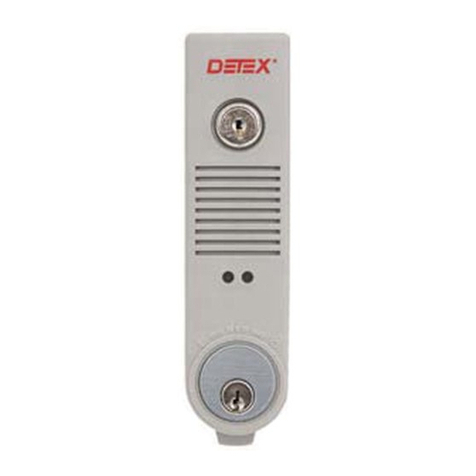

Detex ES500 Series User manual

Detex

Detex ES500 Series User manual

Popular IP Access Controllers manuals by other brands

ACT PRO MIFARE CLASSIC READERS Operating and installation instructions

ACT

ACT PRO MIFARE CLASSIC READERS Operating and installation instructions

Safran MorphoAccess J Series installation guide

Safran

Safran MorphoAccess J Series installation guide

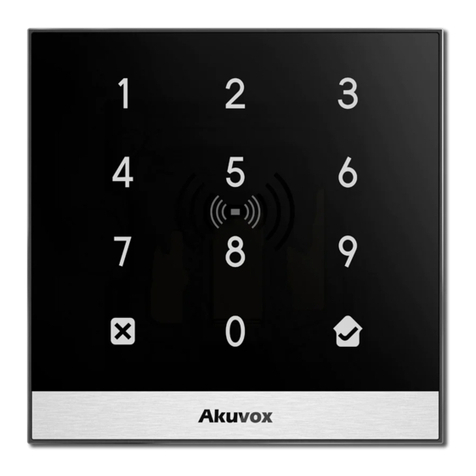

Akuvox A02 Administrator's guide

Akuvox

Akuvox A02 Administrator's guide

Siemens ADE5300 installation manual

Siemens

Siemens ADE5300 installation manual

PNI PB410 user manual

PNI

PNI PB410 user manual

IEI Technology SSW-iLW installation manual

IEI Technology

IEI Technology SSW-iLW installation manual

Omnitronix Data-Link DL100 user manual

Omnitronix

Omnitronix Data-Link DL100 user manual

ACT ACTPRO 3000 ACCESS CONTROL UNITS Operating and installation instructions

ACT

ACT ACTPRO 3000 ACCESS CONTROL UNITS Operating and installation instructions

Progeny Chameleon manual

Progeny

Progeny Chameleon manual

Altronix Trove Series installation guide

Altronix

Altronix Trove Series installation guide

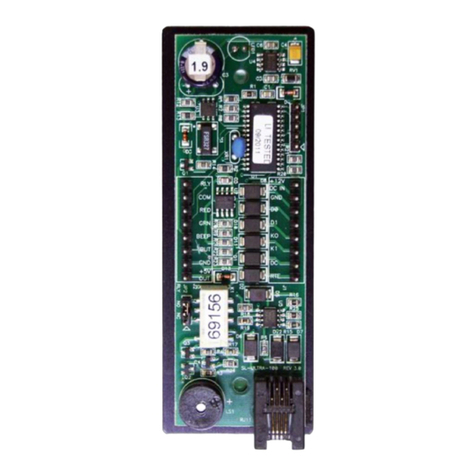

Cansec SmartLock UltraLite Plus installation manual
