DeWalt DXPW2000E User manual

3
English
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to these
symbols.
DANGER: Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS
CONTACT US AT: www.dewaltpw.com or 1 [phone]
WARNING: Please read this entire manual before attempting
to assemble, operate or install the product.
WARNING: This unit was designed for specific applications. It
should not be modified and/or used for any application other than that
which it was designed.
NOTICE: Always store your pressure washer in a location where
the temperature will not fall below 40°F (4°C). freeze damage is not
covered by the warranty.
WARNING: This product contains chemicals known to the State
of California to cause cancer, and birth defects or other reproductive
harm. In addition, some cleaning products and dust contain chemicals
know to the State of California to cause cancer, and birth defects or
other reproductive harm. Wash hands after handling.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using this product basic precautions should
always be followed, including the following:
1. Read all the instructions before using the product.
2. To reduce the risk of injury, do not operate near children or
animals.
3. Know how to stop the product and bleed pressures quickly.
Be thoroughly familiar with the controls.
4. Stay alert - watch what you are doing.
5. Do not operate the product when fatigued or under the
influence of alcohol or drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support. Keep good
footing and balance at all times.
8. Follow the maintenance instructions specified in the manual.
9. This product is provided with a Ground Fault Circuit Interrupter
built into the power cord plug. If replacement of the plug or
cord is needed, use only identical replacement parts.
10. Do not touch plug or outlet with wet hands.
11. Avoid accidental starts. Move switch on unit to OFF position
before connecting or disconnecting cord to electrical outlets.
12. Water spray must never be directed towards any electric wiring
or directly towards the pressure washer machine itself or fatal
electric shock may occur.
13. Never carry your pressure washer by the cord. Do not pull on
the cord to disconnect from the outlet.
14. To prevent damage, the cord should not be crushed, placed
next to sharp objects or near a heat source.
15. Check power cords before using. Damaged cords can reduce
performance of pressure washer or cause a fatal electrical
shock.

4
English
16. The narrow pin point stream is very powerful. It is not
recommended for use on painted surfaces, wood surfaces or
items attached with an adhesive backing.
17. Keep operating area clear of all persons and animals.
18. Always use both hands when operating pressure washer to
maintain complete control of the wand.
19. Do not touch nozzle or water spray while operating. Never
place hands in front of nozzle.
20. Wear safety goggles while operating. Wear protective clothing
and footwear to protect against accidental spraying.
21. Disconnect power plug from the outlet when not in use and
prior to the detaching of the high pressure hose.
22. Never tie knots or kink the high pressure hose as damage
could result. Inspect the high-pressure hose regularly. Replace
the hose immediately if it is damaged, worn or shows any signs
of cracks, bubbles, pinholes, or other leakage. Never grasp a
high-pressure hose that is leaking or damaged.
23. Do not operate or store this product in temperatures below
40°F (4°C). Freeze damage is not covered by the warranty.
24. Carefully observe all chemical instructions and warnings before
using. Use only approved pressure washer cleaners. Do not
use bleach, chlorine, or any cleaners containing acids. Always
follow manufacturer’s label recommendations for proper use
of cleaners. Always protect eyes, skin and respiratory system
from cleaners.
25. The pressure washer should not be used in areas where gas
vapors may be present. An electric spark could cause an
explosion or fire.
26. To minimize the amount of water getting into the pressure
washer, the unit should be placed as far as possible from the
cleaning site during operation.
27. To prevent accidental discharge, the spray gun should be
secured by locking the trigger when not in use.
28. To allow free air circulation, the pressure washer should NOT
be covered during operation.
29. Never touch, grasp or attempt to cover a pinhole or similar
water leak on the high-pressure hose. The stream of water IS
under high pressure and WILL penetrate skin.
30. Use only hoses and accessories rated for pressure higher
than your pressure washer's psi. Never use with any other
manufacturer’s accessories or components.
31. Never defeat the safety features of this product.
32. Do not operate machine with missing, broken or unauthorized
parts.
33. Never spray flammable liquids or use pressure washer in areas
containing combustible dust, liquid, or vapors.
34. DO NOT use an extension cord with this pressure washer.
WARNING: Risk of injection or injury. Do not direct discharge
stream at persons.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
MOTOR OVERLOAD
The electric motor in this pressure washer is equipped with an
overload protection device which will automatically shut off the motor
in the event the motor draws excessive current or overheats. Allow
motor to cool and then reset thermal overload button on pump motor.

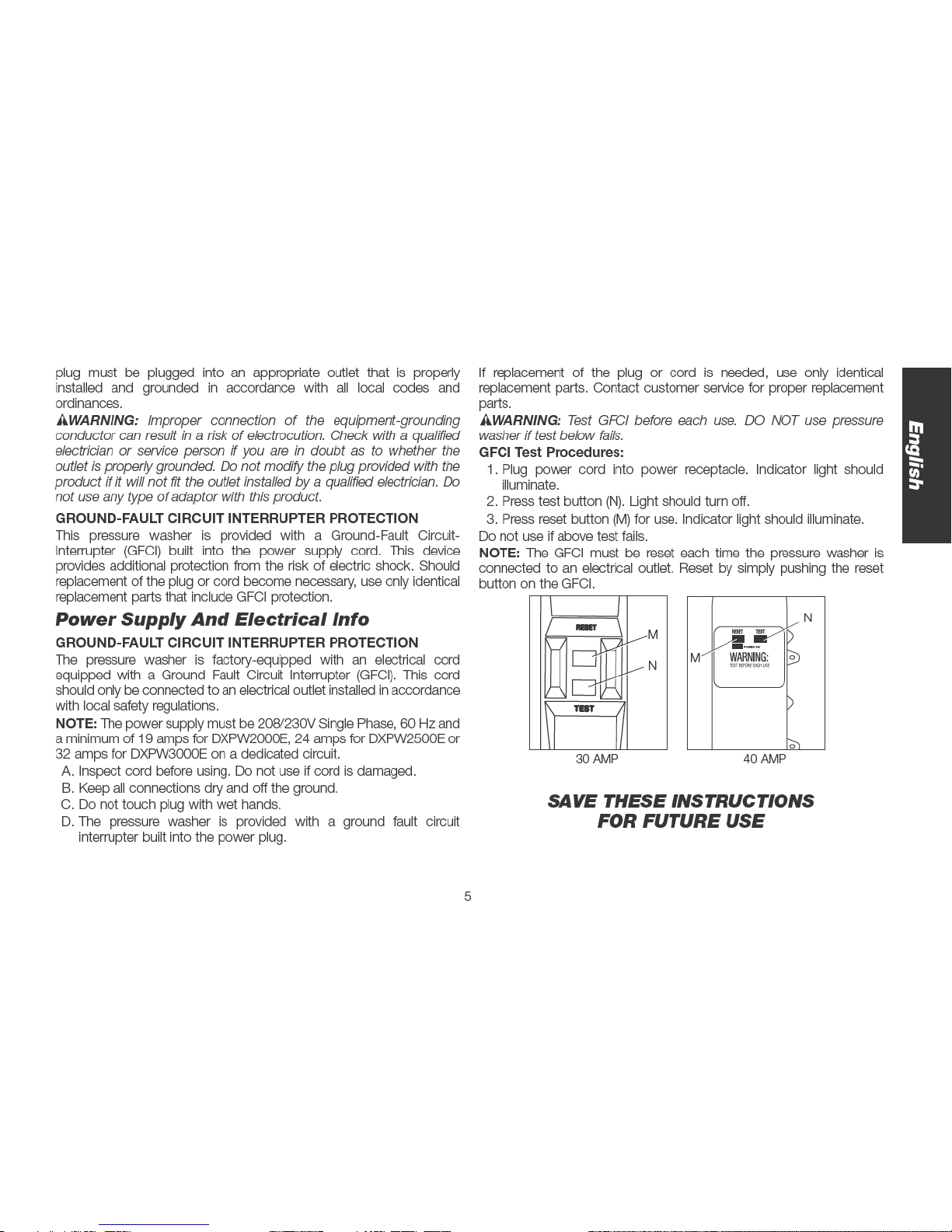

GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a grounding plug. The

10
English
9. Place the motor ON/OFF switch (K) to the ON Position.
K
K
DXPW3000EDXPW2000E
DXPW2500E
10. Depress trigger on gun to start water flow.
WARNING: Risk of unsafe operation. Stand on a stable surface
and grip gun/wand firmly with both hands. Expect the gun to kickback
when triggered.
11. Release trigger to stop water flow.
DANGER: Risk of injury from spray. Engage the X
trigger lock (X) when gun is not in use to prevent
accidental spraying.
12. Adjust spray for the task being performed by
changing quick connect nozzle. Refer to Spray
Wand Nozzles.
Shutting Down
1. If chemicals were applied, place the chemical hose into a container
of clean water and draw clean water through chemical injection
system to rinse system thoroughly.
NOTICE: Risk of property damage Failure to do so could cause
damage to the pump.
2. Place the motor ON/OFF switch (K) to the OFF Position.
KK
DXPW3000EDXPW2000E
DXPW2500E
NOTICE: Risk of property damage. NEVER turn water supply off while
pressure washer is running or damage to pump will result.
3. Turn water source off.
4. Pull trigger on spray gun to relieve any water pressure in hose or
spray gun.
5. Remove both the garden hose and high pressure hose from the
unit.
6. Disconnect the wand from the gun.
7. Turn ON the machine and allow it to run for 5 seconds. (This will
clear out most of the water trapped in the pump).
8. Unplug machine .
9. Refer to Storage for proper storage procedures.
MAINTENANCE
WARNING: Risk of burning. When performing maintenance, you
may be exposed to hot surfaces, water pressure or moving parts that
can cause serious injury or death.
To ensure efficient operation and longer life of your pressure washer,
a routine maintenance schedule should be prepared and followed.
If the pressure washer is used in unusual conditions, such as high
temperatures or dusty conditions, more frequent maintenance checks
will be required.

12
English
NOTE: Using pump guard helps provide proper lubrication to the
internal seals of the pump regardless of temperature or environment.
NOTICE: Risk of property damage. Use only SIMPSON®/
POWERWASHERTM Pump Guard or equivalent. Other products could
be corrosive and/or contain alcohol which may cause pump damage.
1. Turn off pressure washer and disconnect hoses from pump.
2. Unscrew bottle valve from Pump Guard bottle and remove seal.
3. Screw bottle valve back onto bottle.
4. Attach bottle to water inlet of pump.
5. Squeeze bottle to inject contents into pump.
6. With ignition switch off, simultaneously pull starter rope and
squeeze bottle. Repeat until protector fluid exits pump outlet.
NOTE: This step may require two people.
Pressure Washer
1. Drain all water from high-pressure hose, coil it and store it in
cradle of the pressure washer handle.
2. With nozzle pointed down and the spray gun and wand in a
vertical position, squeeze trigger to drain all water from spray gun
and wand. Store in gun holder.
3. Store chemical hose so it is protected from damage.
4. Store the machine and accessories in a dry, climate controlled
environment. Do not store the machine or accessories in a place
where the temperature could drop below 40°F (4°C).
CAUTION: Risk of personal injury. Avoid placing hands between
handle and frame when assembling to prevent pinching.
NOTICE: Risk of property damage. Always store and transport unit
in an upright position.
ACCESSORIES
Recommended accessories for use with your tool are available for
purchase from your local dealer or authorized service center. If you
need assistance in locating any accessory for your tool, please contact
the FNA Group at www.dewaltpw.com, 1825 Greenleaf Avenue, Elk
Grove Village, Il 60007, or call 1 [phone].
DANGER: Risk of fluid injection. When using replacement lances
or guns with this pressure washer, DO NOT use a lance and/or lance/
gun combination that is shorter in length than what was provided with
this pressure washer as measured from the nozzle end of the lance to
the gun trigger.
WARNING: The use of any other accessory not recommended
for use with this tool could be hazardous. Use only accessories rated
equal to or higher than the rating of the pressure washer.
SERVICE INFORMATION
Please have the following information available for all service calls:
Model Number ____________ Serial Number ___________
Date and Place of Purchase ___________________________________
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment should be performed by a FNA factory service center,
a FNA authorized service center or other qualified service personnel.
Always use identical replacement parts.
Limited Warranty
The manufacturer of this product agrees to repair or replace designated
parts that prove defective within the warranty period listed below at the
manufacturer’s sole discretion. Specific limitations/extensions and
exclusions apply.

13
English
This warranty covers defects in material and workmanship and not
parts failure due to normal wear, depreciation, abuse, accidental
damage, negligence, improper use, maintenance, water quality or
storage. To make a claim under the terms of the warranty, all parts said
to be defective must be retained and available for return upon request
to a designated Warranty Service Center for warranty inspection. The
judgments and decisions of the manufacturer concerning the validity
of warranty claims are final.
These warranties pass through to the end user and are non-
transferable. As a factory authorized and trained Warranty Service
Center, the factory will honor the terms of all component warranties
and satisfy claims of the appropriate warranty provisions.
Normal wear items include, but are not limited to, valves and seals,
which are not covered by this warranty.
This warranty replaces all other warranties, express or implied,
including without limitation any warranties of merchantability or fitness
for a particular purpose and all such warranties are hereby disclaimed
and excluded by the manufacturer. The manufacturer’s warranty
obligation is limited to repair and replacement of defective products as
provided herein and the manufacturer shall not be liable for any further
loss, damages, or expenses – including damages from shipping,
accident, abuse, acts of God, misuse, or neglect. Neither is damage
from repairs using parts not purchased from the manufacturer or
alterations performed by non-factory authorized personnel. Failure to
install and operate equipment according to the guidelines put forth in
the instruction manual shall void warranty.
This warranty does not cover the following: machines used for
rental purposes, damage resulting from shipping (claims must be
filed with freighter), accident, abuse, act of God, misuse, or neglect.
Neither is damage from repairs or alterations performed by non-
factory authorized personnel or failure to install and operate equipment
according to the guidelines put forth in the instruction manual.
The manufacturer will not be liable to any persons for consequential
damage, for personal injury, or for commercial loss.
WARRANTY DOES NOT APPLY TO FAILURES DUE TO:
• Freight damage
• Damage due to chemical deterioration, scale build up, rust,
corrosion or thermal expansion
• Freeze damage
• Damage caused by parts or accessories not obtained from an
authorized dealer or not approved by the manufacturer.
• Normal wear of moving parts or components affected by moving
parts.
MOTOR
Covered by motor manufacturer warranty. See motor manual.
HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND
WORKMANSHIP)
Five (5) years from date of purchase.
FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP)
Ten (10) year from date of purchase.
OTHER COMPONENTS (DEFECTS IN MATERIAL AND
WORKMANSHIP)
Includes nozzles, hoses, spray guns, wands, tires, feet
Ninety (90) days from date of purchase.

14
English
Glossary
Bypass mode: Allows water to re-circulate within pump when the gun
trigger is not pulled.
Chemical hose: Feeds cleaning agents into the pump to mix with the
water. Refer to Chemicals and Cleaning Solvents.
Chemical injection system: Mixes cleaners or cleaning solvents with
water to improve cleaning effectiveness.
CU: Cleaning Units. GPM multiplied by psi. (GPM x PSI = CU)
GPM: Gallons Per Minute. The unit of measure for the flow rate of
water.
PSI: Pounds per Square Inch. The unit of measure for water pressure.
Also used for air pressure, hydraulic pressure, etc.
kPa (kilopascal): Metric pressure measurement. 1 kilopascal equal
1000 pascals.
Quick-connect spray wand: Allows the user to quickly change out
high-pressure nozzles. Refer to Spray Wand Nozzles.

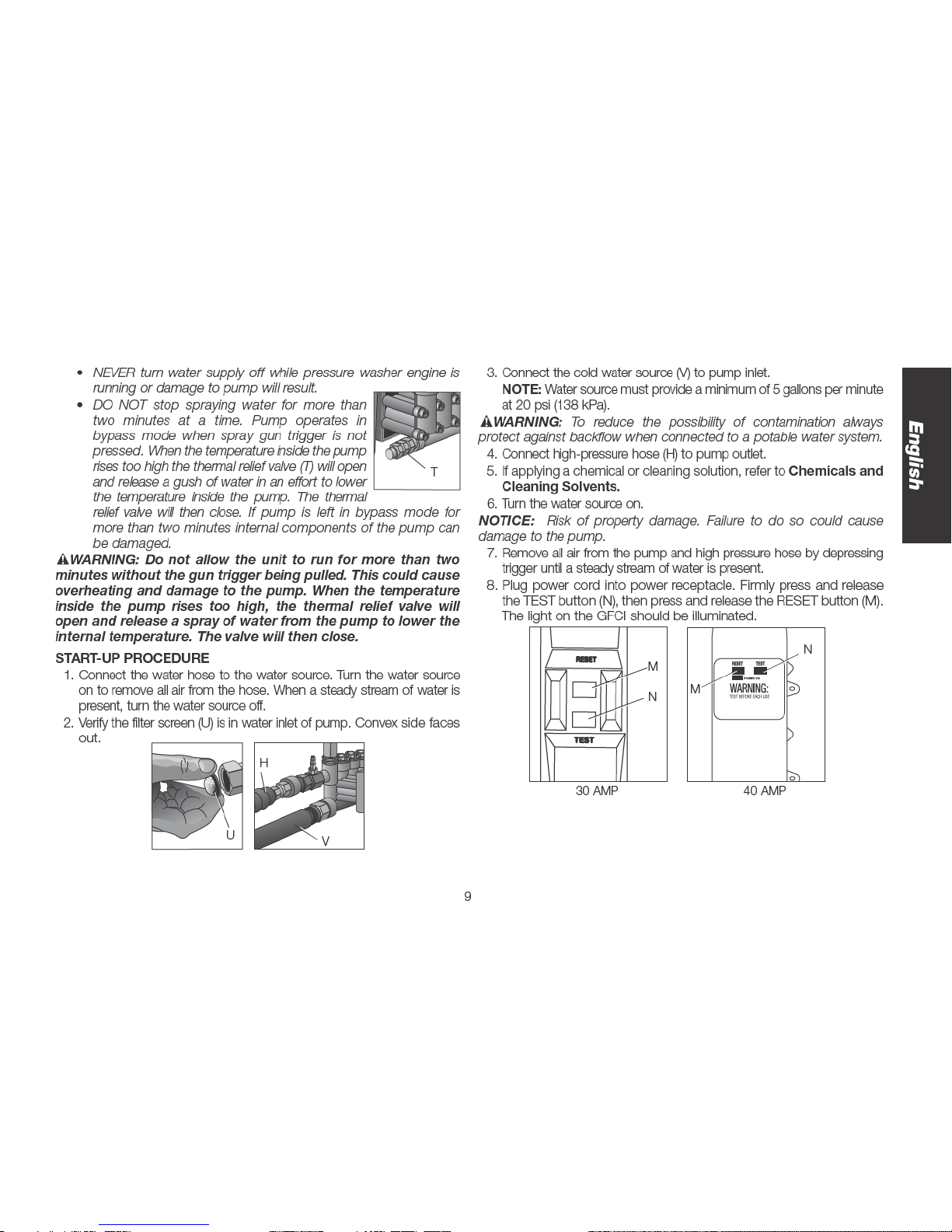

Thermal relief valve: When the temperature inside the pump rises
too high the valve will open and release a gush of water in an effort to
lower the temperature inside the pump. The valve will then close.
Water supply: All pressure washers must have a source of water. The
minimum requirements for a water supply are 20 psi (138kPa) and
5gallons per minute.
Troubleshooting Guide
This section provides a list of the more frequently encountered malfunctions, their causes and corrective actions. The operator or maintenance
personnel can perform some corrective actions, and others may require the assistance of a qualified FNA technician or your dealer.
Problem Code
Motor will not start when switched ON...........................................................................1, 11
When unit is switched ON, the motor hums but does not turn on .................................2, 3
The motor stops .............................................................................................................4
No or low pressure (initial use) ........................................................................................5, 6, 7, 8, 9, 10, 12
Will not draw chemicals ..................................................................................................12, 13, 14, 15, 16, 17, 32
No or low pressure (after period of normal use)..............................................................18, 19, 20
Water leaking at gun/spray wand connection .................................................................21, 22
Water leaking at pump....................................................................................................21, 22, 23, 24
Oil leaking at pump .........................................................................................................25, 26, 27, 28, 29, 30, 31
Pump Pulsates................................................................................................................8

15
English
Troubleshooting Codes
CODE POSSIBLE CAUSE POSSIBLE SOLUTION
1ON/OFF switch in OFF position. Place ON/OFF switch in ON position.
2The main voltage is insufficient, lower than the minimum
required. Check that the main power supply is adequate.
3Extension cord is too long or wire gauge is too small. We do not recommend the use of extension cords with your
pressure washer. If you must use an extension cord, verify that
it meets the minimum requirements listed in the Extension
Cord paragraph under the Power Supply & Electrical Info in
this manual.
4Tripped thermal overload due to overheating. Allow to cool. Reset thermal overload button on pump motor.
5Spray wand not in high pressure. See Spray Wand Nozzles under Operation.
6Low water supply. Water supply must be at least 5 GPM @ 20 psi (138 kPa).
7Leak at high-pressure hose fitting. Repair leak. Apply sealant tape if necessary.
8Nozzle obstructed. See Nozzle Cleaning under Maintenance.
9Water filter screen clogged. Remove and clean filter.
10 Air in hose. Turn off the engine, then the water source. Disconnect the
water source from the pump inlet and turn the water source
on to remove all air from the hose. When there is a steady
stream of water present, turn water source off. Reconnect
water source to pump inlet and turn on water source. Squeeze
trigger to remove remaining air.
11 GFCI Plug is not reset Confirm the GFCI plug is reset and functioning according to
instructions provided in Ground-Fault Circuit Interrupter
Protection paragraph under Power Supply & Electrical info in
this manual.
12 High-pressure hose is too long. Use high-pressure hose under 100 feet (30.48 m). Lengthen
water supply hose instead of high-pressure hose.
13 Spray wand not in low pressure. See Spray Wand Nozzles under Operation.
14 Chemical filter clogged. Clean filter.

16
English
CODE POSSIBLE CAUSE POSSIBLE SOLUTION
15 Chemical screen not in cleaning solution. Make sure end of chemical hose is fully submerged into
cleaning solution.
16 Chemical too thick. Dilute chemical. Chemical should be the same consistency as
water.
17 Worn seal or packing. Have parts cleaned or replaced by authorized service center.
18 Chemical build up in chemical injector. Have replaced by an authorized service center.
19 Worn or obstructed valves. Have replaced by an authorized service center.
20 Worn unloader piston. Have replaced by an authorized service center.
21 Worn or broken o-ring. Check and replace.
22 Loose hose connection. Tighten.
23 Piston packings worn. Have replaced by authorized service center.
24 Pump head or tubes damaged from freezing. Have replaced by authorized service center.
25 Oil seals worn. Have replaced by authorized service center
26 Loose drain plug. Tighten.
27 Worn drain plug o-ring Check and replace.
28 Worn fill plug o-ring. Check and replace.
29 Pump overfilled. Check for correct amount.
30 Incorrect oil used. Drain and fill with correct amount and type of oil.
31 Vent plug is clogged. Clean vent plug; blow air through it to remove any blockage. If
problem persists, replace plug.
32 Detergent adjustment knob is in the closed position. Turn the adjustment knob counterclockwise to set the
detergent adjustment to the MAX setting.
