About this document
This is the users manual for our Battery packs for our data acquisition systems. It includes:
- General information about batteries and battery packs
- Specifications of DS-BP-X accessories
- How to connect one or multiple battery packs, how to charge the batteries within the battery
packs
- Other possibilities and functionalities of battery packs
Legend
The following symbols and formats will be used throughout the document.
Important
It gives you important information about the subject.
Please read carefully!
Hint
It gives you a hint or provides additional information about a subject.
Example
Gives you an example of a specific subject.
Online versions
Device Technical Reference Manual
The most recent version of this manual can be downloaded from our homepage:
https://download.dewesoft.com/list/manuals-brochures/hardware-manuals
In the Hardware Manuals section click the download link for the Device® technical reference manual.
DEWESoft® User Manual
The DEWESoft® User Manual document provides basics and additional information and examples for
working with DEWESoft® and certain parts of the program.
The latest version of the DEWESoft® tutorials can be found here:
https://download.dewesoft.com/list/manuals-brochures/software-manuals
In the Software Manuals section click the download link of the DEWESoft X User Manual entry.
V23-1 3/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
4. DS Battery Packs
Battery packs for our data acquisition systems for stand-alone, in-vehicle or remote test and
measurement applications.
IP30
0°C to +45°C
Shock rating 50g
V23-1 4/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
Main features:
●RUGGED AND RELIABLE: Battery packs are built in rugged aluminum chassis, machined out of a
single brick of aluminum for reliable operation on the field. Only high-quality Li-Ion batteries are
used.
●LARGE CAPACITY: Battery packs ensure enough power for your on-road and field test and
measurement applications so you don't have to worry about losing any data due to lack of power
supply. DS-BP2i total capacity is 192Wh and DS-BP4i total capacity is rated to 384Wh, this will
ensure 3 hours of operation for SBOX data logger with 32 channel SIRIUS DAQ system without
replacing batteries.
●HOT-SWAP FUNCTIONALITY: Internal Li-Ion batteries are hot-swappable, meaning they can be
replaced during the measurement to ensure your data acquisition system never runs out of
power.
●DAISY CHAIN: Battery packs can be daisy chained together to further increase the autonomy.
●ISOLATED POWER SUPPLY: For in-vehicle measurements, an isolated power supply on battery
packs will guard you against unwanted ground loops.
●REVERSE POLARITY PROTECTION: Battery packs are protected against wrong connections to
the input power supply.
●ADAPTIVE CHARGING: Charging current is dynamically adapted, depending on the output load.
When there is no significant load at the output, the batteries are charged with 2 A per battery.
When external load increases and the power of external PSU rises close to the limit, charging
current is reduced to 1 A per battery. If the load is still increasing, the charging of batteries is
stopped. With this feature, we ensure that maximum required power from external supply is
limited.
●STATUS INDICATOR: Battery pack comes with LCD status indicator as well as USB connection to
the DAQ unit so you will always know how much power you have left.
●USB: Battery packs are equipped with a USB connector. It is used to connect the battery pack to
the computer, where it introduces itself as native battery for windows (HID UPS Battery). Icon in
the task bar also appears with the status of batteries. Battery pack information can also be
observed in DEWESoft.
V23-1 5/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
4.1. Specifications overview
General
DS-BP2i
Number of batteries
2
Total capacity at fully charged state
12.5 Ah
Battery life at max. rated power
> 1 h
Input wrong polarity protection
YES
Hot Swap
YES
Recommended Hot swapping at > 15-20% total SOC
Replace one-by-one all batteries with matched SOC
Max Hot Swap Output Power
75 W
Isolation
500 V
Power
Power supply
12 - 36 V DC
Power consumption
Charging power 75 W - 85 W
Power out
Maximum power
160 W
Output Voltage
14.4 V Nominal, 16.8 V Max.
24 V with external supply
Battery Output Current
7.5 A per battery
Output Current
15 A, LEMO 1B 2pin
17 A, LEMO 2B 3pin
Efficiency
85 % Typ.
Interfaces and options
USB
USB-B mini
Data, Battery status information
CAN
NO
Remote-On
In / Out on LEMO 3pin
Display
LCD, status display
Digital inputs
Remote Input low level
< 1 V
Remote Input high level
4 V - 36 V
Remote Input high current
2 mA Typ.
Remote-Out
2 mA CCS
Display
Type
Transflective LCD
Resolution
2 x 16 characters
Displayed information
Temperature, Voltage, Current, Status, Power, Capacity,
Endurance
Display background color
Green @ 100 % State Of Charge
Red @ 0 % SOC
Size
65 x 16 mm
V23-1 6/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
General
DS-BP4i
Number of batteries
4
Total capacity at fully charged state
25 Ah
Battery life at max. rated power
> 1.5 h
Input wrong polarity protection
YES
Hot Swap
YES
Recommended Hot swapping at > 15-20% total SOC
Replace one-by-one all batteries with matched SOC
Max Hot Swap Output Power
220 W
Isolation
500 V
Power
Power supply
12 - 36 V DC
Power consumption
Charging power 150 W - 160 W
Power out
Maximum power
250 W
Output Voltage
14.4 V Nominal, 16.8 V Max.
24 V with external supply
Battery Output Current
7.5 A per battery
Output Current
15 A, LEMO 1B 2pin
25 A, LEMO 2B 2pin
Efficiency
85 % Typ.
Interfaces and options
USB
USB-B mini
Data, Battery status information
CAN
YES
Remote-On
In on CAN D9m
Display
LCD, status display
Digital inputs
Remote Input low level
< 1 V
Remote Input high level
4 V - 36 V
Remote Input high current
< 5 mA
Remote-Out
NO
Display
Type
Transflective LCD
Resolution
2 x 16 characters
Displayed information
Temperature, Voltage, Current, Status, Power, Capacity,
Endurance
Display background color
Green @ 100 % State Of Charge
Red @ 0 % SOC
Size
65 x 16 mm
V23-1 7/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
Important
Expected discharge of battery packs is 3% - 5% per day if in standstill mode only with
the latest firmware performed by the Service department or by contacting
[email protected] for more information.
Battery packs currently have RRC, RRC2024 batteries. Older versions might have had
batteries by Inspired Energy, NL2024HD22. Please make sure not to swap batteries
between older and newer systems as the mechanics and the connectors are not
compatible to avoid any damage.
Batteries
Battery type
RRC2024 Li-Ion (4S/3P)
Compliance Information
IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM /
BIS / TISI / BSMI / UN38.3 / RoHS / REACH
Operating Temperature
0 °C to 45 °C Charge
-20 °C to 60 °C Discharge
Storage Temperature
-20 °C to 50 °C Max.
-20 °C to 25 °C Recommended
Extended storage at temperature >40°C could degraded battery
performance and life
Altitude
No restrictions, battery can be stored, charged and discharged
between 0 – 15000 m
Voltage
14.4 V Nominal
16.8 V Max.
Nominal capacity
6.6 Ah
Discharge current
10 A
Safety
Over Charge: 17.2 V, 5.3 A
Over Discharge: 11 A
Over Temperature @ charging: 55 °C, 45 °C recovery
Over Temperature @ discharging: 70 °C, 60 °C recovery
Short circuit: YES, 35 A threshold (auto reset)
Dimensions
167.2 x 107.2 x 21.5 mm
Weight of single battery
0.6 kg
Environmental
Operating Temperature
0 °C - 40 °C
Storage Temperature
-20 °C - 60 °C
Humidity
10 % to 90 % RH, no dew condensation
IP rating
IP30
Shock & Vibration
Vibration sweep sinus (EN 60068-2-6:2008)
Vibration random (EN 60721-3-2: 1997 - Class 2M2)
Shock (EN 60068-2-27:2009)
MIL-STD-810D
Physical
Dimensions
266 x 139 x 85 mm
Weight
1.6 kg
2.8 kg including batteries
V23-1 8/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
4.1.1. Dimensions

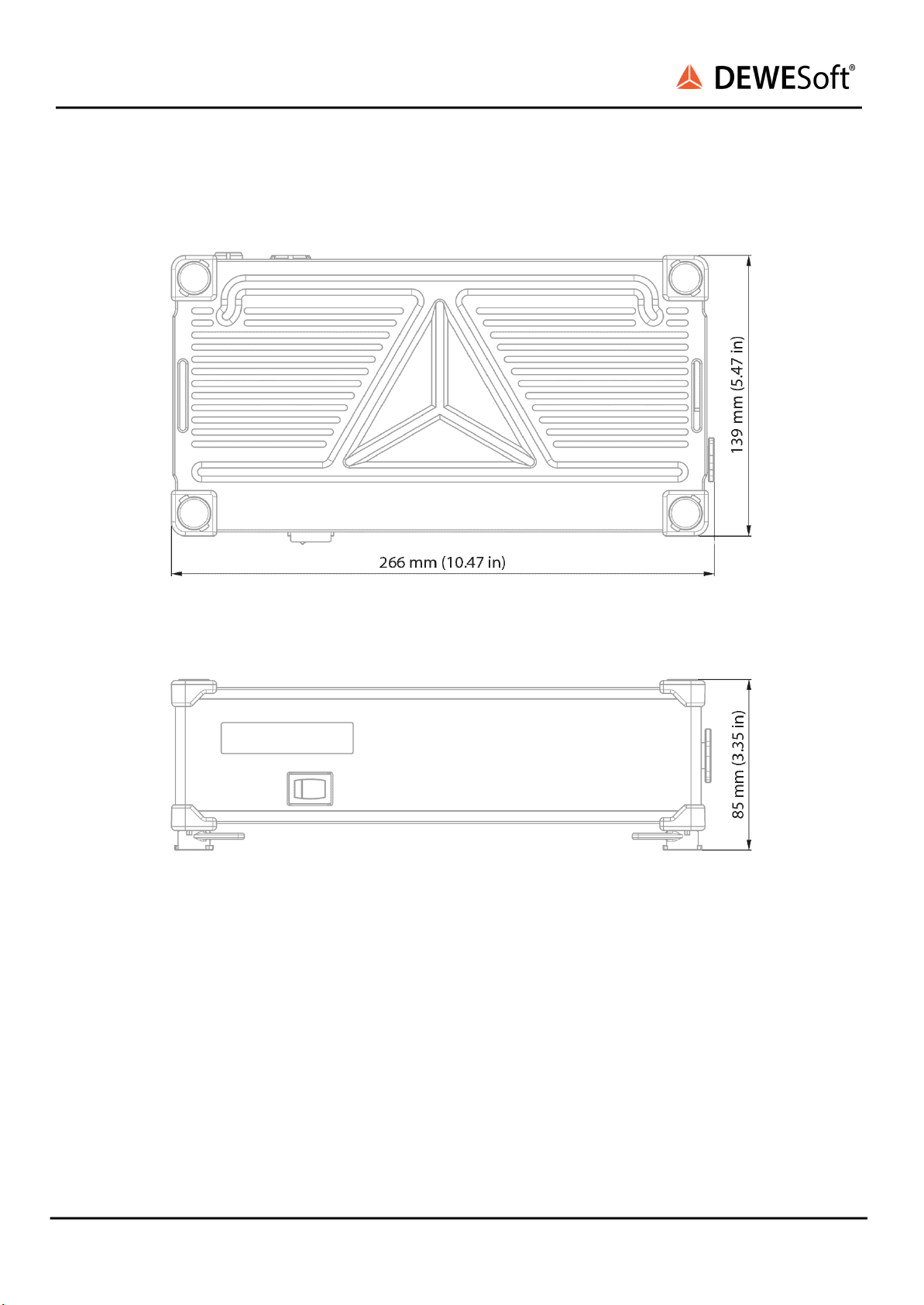

4.1.1. DS-BP2i
Dimensions : DS-BP2i
V23-1 9/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
4.1.2. DS-BP4i
Dimensions : DS-BP4i
V23-1 10/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
4.1.3. General information
Daisy Chain
Battery pack has additional connectors for daisy chain connection of multiple units. Total capacity,
autonomy and power capability is increased.
Please see chapters: “Daisy chain connection” for details:
●Connection diagram
●Cable types
●Capability and limitations
Batteries
Li-Ion rechargeable Smart Battery packs are used. The battery is composed of twelve (12) Lithium Ion
rechargeable 18650 cells, assembled in a 4 series / 3 parallel (4S/3P) design. Each cell has an average
voltage of 3.60V and a nominal capacity of 2200mAh, providing a battery pack of 14.40V and 6600mAh
nominal. The battery is designed to communicate with a host or a charger through the System
Management Bus (SMBus) protocol. The battery is SMBus and SBDS Revision 1.1 compliant. The battery
design includes protection for over charge, over discharge and short circuit. Additional safety measures
are designed into the battery to protect against over temperature and over current situations.
Hot swapping
Battery pack is designed so that batteries can be hot-swapped while still providing output power. When
hot swapping batteries, output voltage and state of charge must be taken into account. When there is
one full battery in the system and another one is empty, the full one takes all the load. To prevent battery
damage, maximum output current from a single battery is limited.
Important
●Recommended Hot swapping at > 15-20% total SOC.
●Replace one-by-one all batteries with matched SOC.
●Single battery will not support full load or long duration between swapping.
Caution
Output current from a single battery is limited to 7.0 A - 7.5 A.
Maximum power out when Hot swapping:
●DS-BP2i: 75 W
●DS-BP4i: 220 W
V23-1 11/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
Isolation
Input and output electrical ground are galvanically isolated. This allows us to use BP on the different
ground potentials and thus protecting from unwanted ground loops.
Warning
Isolation shall be considered as BASIC INSULATION. Basic insulation forms a single level of
insulation that provides basic protection against shock.
Caution
Isolation voltage specification (500 V) should be considered as MINIMUM ISOLATION PEAK TEST
VOLTAGE. Maximum isolation peak test voltage level could be two to four times higher.
Stacking
Hint
Both battery packs - DS-BP2i and DS-BP4i are built in standard SIRIUS form factor, so you can
stack your power supply under your DAQ device. Clever click mechanism will enable the battery
to attach to SIRIUS and/or SBOX instruments. This ensures safe placing into the measurement
environment, to prevent rolling and bouncing around.
V23-1 12/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
LCD information
Important
The LCD screen on the new battery pack is displaying the most important information about the
system.
Example of LCD information
Top row
Info
Details
State Of Charge
(SOC)
0% to 100%
Output Voltage
24 V when plugged in
10.5 V to 16.6 V maximum
when on batteries.
Highest internal measured
temperature
(Battery cells or input DC/DC)
Bottom row
(Toggled)
Info
Details
Estimated time to empty depending on load
>10000 min when plugged in
Info
Details
Top battery is discharging
Second battery is discharging
Info
Details
In BP4 third battery is charging
In BP4 bottom battery is charging
Info
Details
Top battery slot is empty or no battery
detected
Second battery is discharging
V23-1 13/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
Hint
State of charge is also indicated with LCD backlight colour and dimming. When full, the
backlight is bright green and when empty, the LCD backlight is red.
Batteries are full
Batteries are empty
FAN operation
Internal fans will activate if one of the below conditions are met.
Condition
Fan ON
Power
Power supply is plugged in
Temperature
Internal temperature
sensors detected > 35 ℃
Battery 1, Battery 2,
(Battery 3, Battery 4),
input DC/DC
Output
Discharging current from either battery > 600 mA
V23-1 14/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
System Monitor
Connect DS-BP with USB to PC. BP is recognised as: HID UPS Battery.
OS Device manager information
Start DEWESoft and select System monitor in Channel setup screen.
DEWEsoft System monitor information
CAN
Battery pack DS-BP4i has a dedicated CAN connector and Remote-On functionality. See chapter: “CAN
connector” under DS-BP4i for details.
V23-1 15/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL

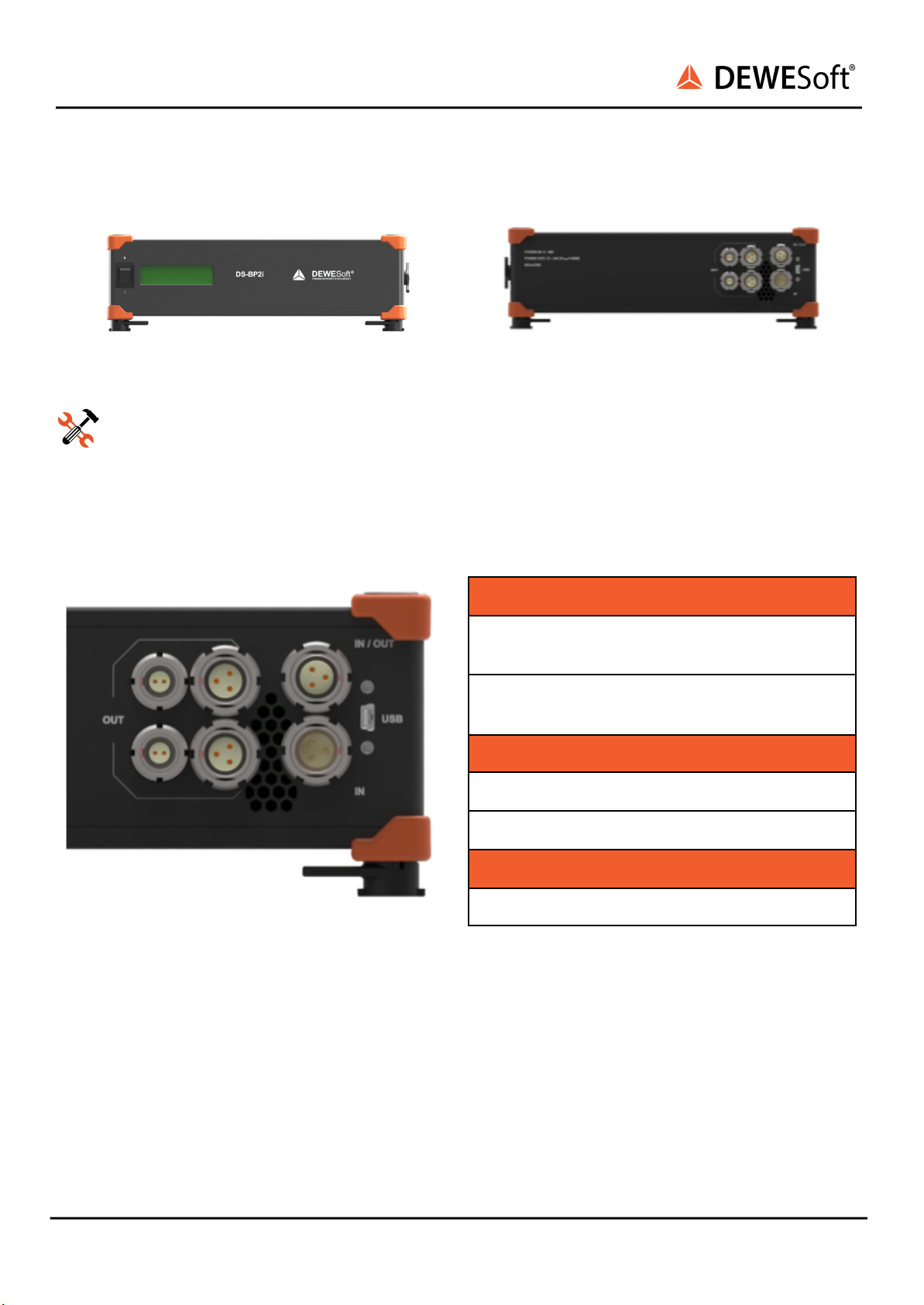

4.2. DS-BP2i: Battery pack
DS-BP2i front side
DS-BP2i rear Side
Example
DS-BP2i autonomy:
●Single ACC+ slice for over 12 hours (e.g. when you use it with an external laptop)
●SBOX and an ACC+ slice for over 2 hours
4.2.1. Rear side
DS-BP2i back connectors
Connector assignment from left to right.
Name
Type
OUT
2x LEMO 1B 2 pin Female
(SIRIUS type)
OUT
2x LEMO 2B 3pin Female
(SBOX type)
Name
Type
IN/OUT
LEMO 2B 3pin Female
IN
LEMO 2B 3pin Male
Name
Type
USB
USB Mini B with side screw locks.
See chapter “Power in connector” and “Power out
connector” for details.
V23-1 16/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL

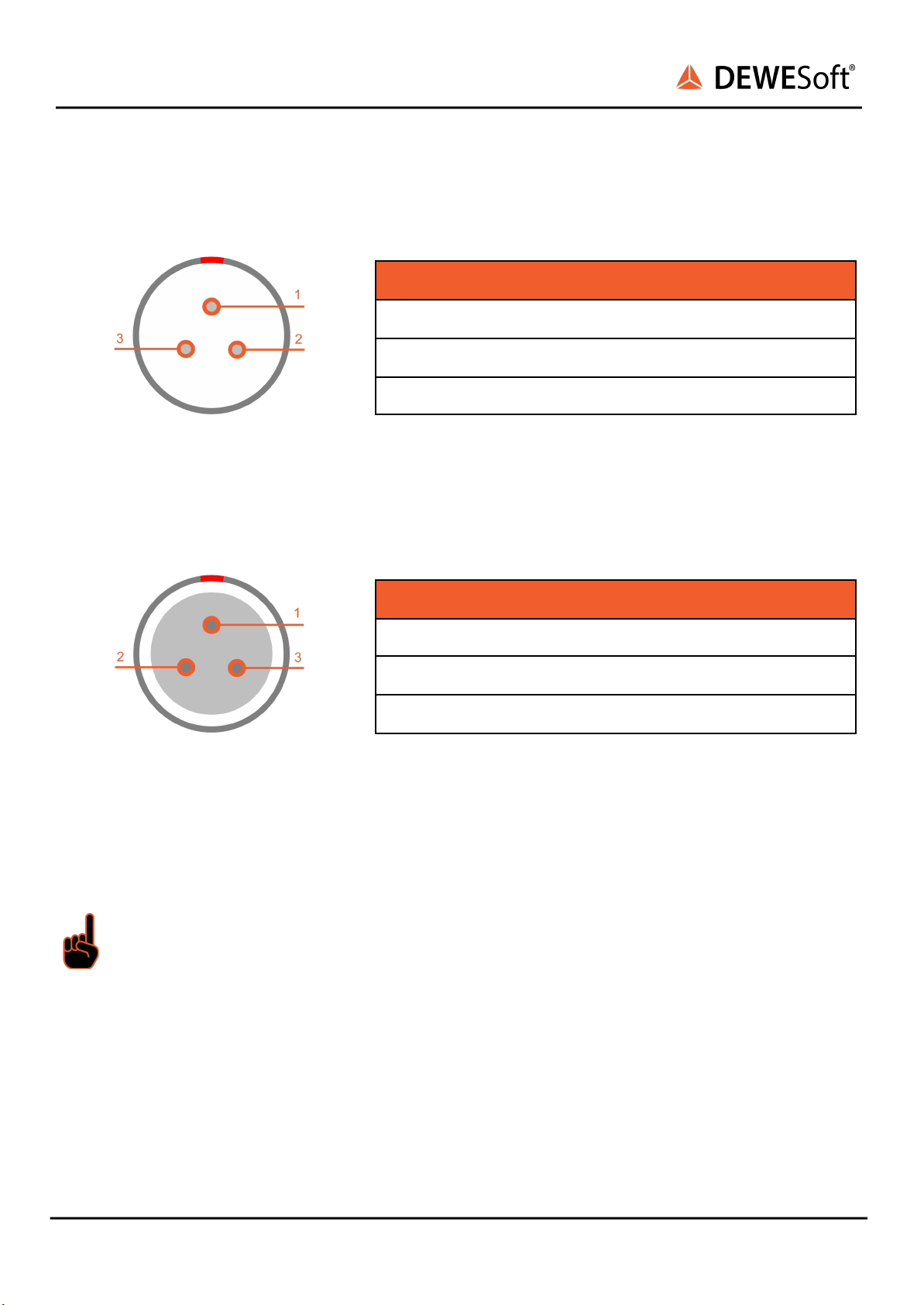

4.2.2. Power IN and IN/OUT connector
Power IN connector: pin-out (3-pin LEMO male)
Pin
Name
Description
1
V +
Supply
2
GND
Ground
3
Remote - In
Remote - In pin
Connector type (on the battery pack): EEJ.2B.303.CLA
Mating connector type (for the cable): FGJ.2B.303.CLL*
* more collets and bend reliefs for cable variant are available
Power IN/OUT connector: pin-out (3-pin LEMO
female)
Pin
Name
Description
1
V +
Supply
2
GND
Ground
3
Remote - In
Remote - In pin
Connector type (on the battery pack): EEG.2B.303.CLL
Mating connector type (for the cable): FGG.2B.303.CLA*
* more collets and bend reliefs for cable variant are available
Important
Supply, Ground and Remote-In are connected together for both connectors.
V23-1 17/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
4.2.3. Power OUT connectors
Power out connector: pin-out (2-pin LEMO
female)
Pin
Name
Description
1
V +
Supply
2
GND
Ground
Connector type (on the battery pack): EEG.1B.302.CLL
Mating connector type (for the cable): FGG.1B.302.CLA*
* more collets and bend reliefs for cable variant are available

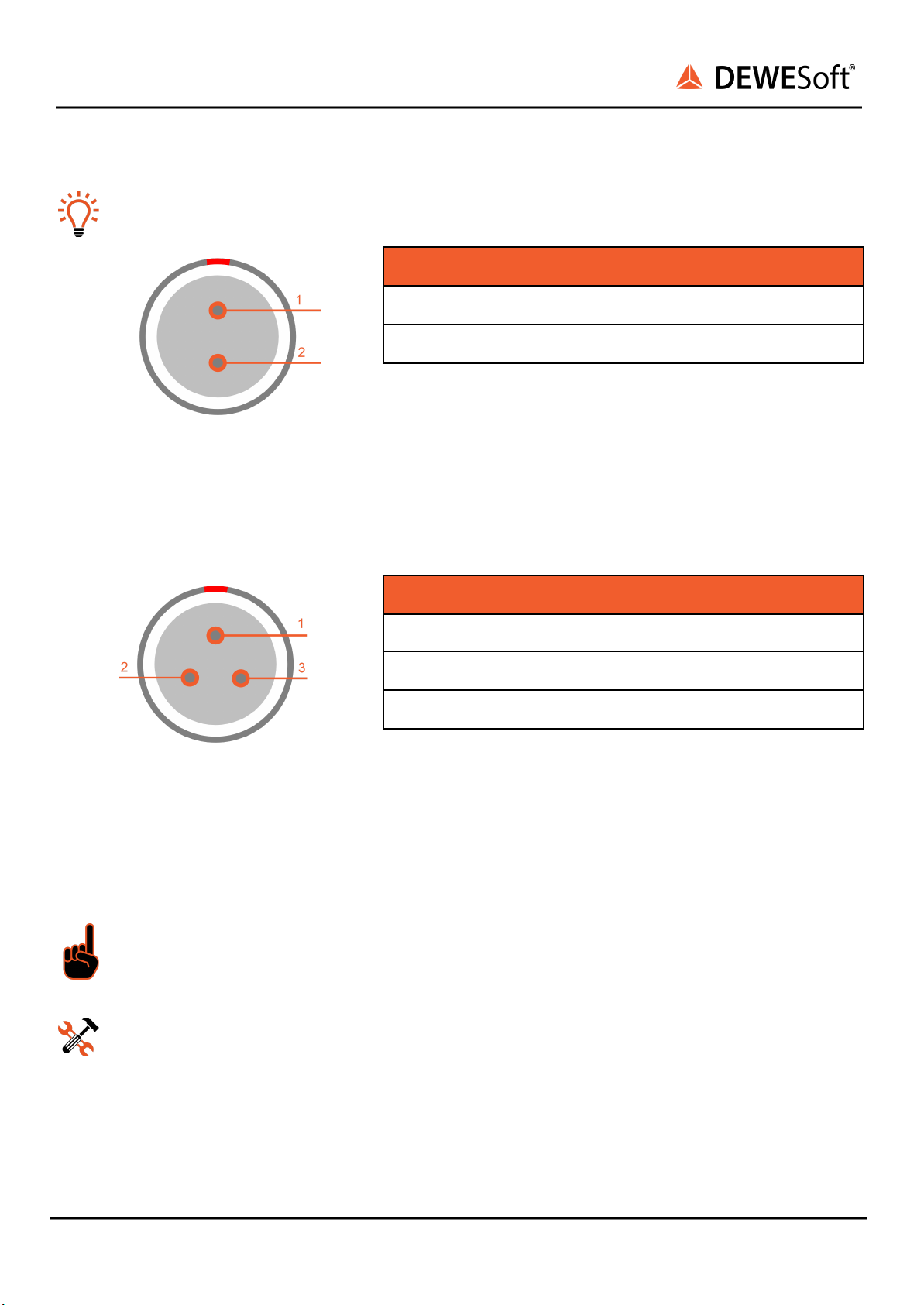

Power out connector: pin-out (3-pin LEMO
female)
Pin
Name
Description
1
V +
Supply
2
GND
Ground
3
Remote - Out
Remote - Out
Connector type (on the battery pack): EEG.2B.303.CLL
Mating connector type (for the cable): FGG.2B.303.CLA*
* more collets and bend reliefs for cable variant are available
Important
Supply, Ground and Remote-Out are connected together for all connectors.
Ground is isolated from IN, IN/OUT Ground!
Example
Use large cross-section and short cables for maximum efficiency. With 1.5mm2(AWG 15) 2 Watts
on every meter of cable (Lead & Return wires) is wasted at 10 A.
V23-1 18/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
Hint
Remote on will not turn on DS-BP2i, only powered DAQ instruments will be controlled.
To power the DAQ system on, press the Power switch OR apply a voltage between 4 V and 36 V
with at least 2 mA to the Remote-In pin. To power off the system press the Power switch or
reduce the voltage on Remote-On below 0.5 V.
Remote-Out output is a 2 mA constant current source that is following the Remote-In state.
Remote-Out is capable of driving the Remote-In of the next daisy chained device. Remote-Out
and Remote-In are isolated.
4.2.4. BP2i Daisy chain connection
Warning
Power off all instruments and battery packs before making and changing connections.
Important
Please follow the connection diagram below. Note that Inputs and Outputs are in parallel. Output
capabilities will increase with daisy chain connection. Input power supply requirements also
double.
V23-1 19/36

BATTERY PACKS
TECHNICAL REFERENCE MANUAL
DS-BP2i daisy chain : Paralel Input & Output
Hint
Output Power Supply Daisy chain may be omitted. Output capabilities will be limited to a single
device.
V23-1 20/36
