Dewesoft Iolite series Product manual



IOLITE® 

TECHNICAL REFERENCE MANUAL 

IOLITE® V20-1 



1 

IOLITE® 
TECHNICAL   REFERENCE   MANUAL 


  Table   of   contents 
  Table   of   contents  2 
  About   this   document  6 
1.   Legend  6 
2.   Online   versions  7 
2.1.   IOLITE®   Technical   Reference   Manual  7 
2.2.   DEWESoft®   User   Manual  7 
  Getting   started  8 
1.   Software   installation  8 
2.   Connecting   IOLITE®  9 
2.1.   DEWESoft®   Settings   IOLITE®  10 
2.2.   Channel   Setup   IOLITE®  11 
3.   Simple   Measurement  12 
3.1.   Help   -   Manual  12 
3.2.   Analogue   channel   setup  13 
3.3.   Sample   rate  14 
3.4.   Measurement   Mode  15 
3.5.   Analyse   Mode  16 
4.   Advanced   conﬁguration  17 
5.   Firmware   upgrade  18 
6.   Licensing  19 
7.   Troubleshooting  19 
7.1.   Additional   instructions   for   troubleshooting   with   EtherCAT   devices  20 
  System   Overview  22 
1.   Main   features  23 
1.1.   Redundant   Bus   Systems  23 
1.2.   Input   Slots   and   Ampliﬁers  24 
1.3.   Redundant   Power   Supply  24 
1.4.   Feedback   Monitoring  25 
2.   System   speciﬁcations  26 
3.   Enclosure   Overview  27 
3.1.   IOLITEr:   Cabinet   Mount   Chassis  27 
3.1.1.   IOLITEr:   Cabinet   Mount   Chassis:   Renders  27 
3.1.2.   IOLITEr:   Cabinet   Mount   Chassis:   Dimensions  28 
3.1.3.   IOLITE-GATE  29 
3.1.3.1.   IOLITE-GATE:   Connectors  30 
3.1.3.1.1.   IOLITE-GATE:   Power   in:   Pinout  31 
3.1.3.1.2.   IOLITE-GATE:   Sync:   Pinout  31 
3.1.3.1.3.   IOLITE-GATE:   RJ45:   Pinout  32 
3.1.4.   IOLITE-GATE:   Connection   of   IOLITEr   standalone   device   to   PC  33 
3.1.5.   IOLITE-GATE:   Connection   of   IOLITEr   and   DEWE-43A   device  34 
3.2.   IOLITEs:   Boxed   Chassis  35 
IOLITE®   V20-1  2 / 101  

IOLITE® 
TECHNICAL   REFERENCE   MANUAL 


3.2.1.   IOLITEs:   Boxed   Chassis:   Renders  35 
3.2.2.   IOLITEs:   Boxed   Chassis:   Dimensions  37 
3.2.3.   IOLITEs:   Boxed   Chassis:   Connectors  38 
3.2.3.1.   IOLITEs:   Boxed   Chassis:   Power   in:   Pinout  38 
3.2.3.2.   IOLITEs:   Boxed   Chassis:   Sync:   Pinout  39 
3.2.3.3.   IOLITEs:   Boxed   Chassis:   BUS   1:   IN:   Pinout  40 
3.2.3.4.   IOLITEs:   Boxed   Chassis:   BUS   1:   OUT:   Pinout  41 
3.2.3.5.   IOLITEs:   Boxed   Chassis:   BUS   2:   RJ45:   Pinout  42 
3.2.4.   IOLITEs:   Boxed   Chassis:   Connection   of   IOLITEs   standalone   device   to   PC  43 
3.2.5.   IOLITEs:   Boxed   Chassis:   Connection   of   IOLITEs   and   KRYPTON®   device  44 
3.2.6.   IOLITEs:   Boxed   Chassis:   Connection   of   IOLITEs   and   SIRIUS®   device  45 
  Module   Overview  47 
1.   DIO:   Digital   Input   /   Output   Module  48 
1.1.   IOLITE   32xDI   Module  48 
1.2.   IOLITE   32xDO   Module  49 
1.3.   IOLITE   8xDI-4xDO   Module  50 
1.4.   DIO:   Speciﬁcations  51 
1.5.   DIO:   Connectors  53 
1.5.1.   IOLITE-32xDI:   Power   Out:   Pinout  54 
1.5.2.   IOLITE-32xDI:   Digital   Input:   Pinout  54 
1.5.3.   IOLITE-32xDO:   Power   Out:   Pinout  55 
1.5.4.   IOLITE-32xDO:   Digital   Output:   Pinout  55 
1.5.5.   IOLITE-8xDI-4xDO:   Power   Out:   Pinout  56 
1.5.6.   IOLITE-8xDI-4xDO:   Power   In:   Pinout  56 
1.5.7.   IOLITE-8xDI-4xDO:   Digital   Input:   Pinout  57 
1.5.8.   IOLITE-8xDI-4xDO:   Power   In:   Pinout  57 
1.5.9.   IOLITE-8xDI-4xDO:   Digital   Output:   Pinout  58 
4.   LV:   Low   Voltage   Module  59 
4.1.   LV:   Speciﬁcations  60 
4.2.   LV:   BNC   Connector  61 
4.2.1.   LV:   BNC   Connector:   Pinout  62 
4.2.2.   LV:   BNC   Connector:   Wiring   diagram  62 
4.2.2.1.   LV:   Voltage  62 
4.3.   LV:   TBLOCK   Connector  63 
4.3.1.   LV:   TBLOCK   Connector:   Pinout  64 
4.3.2.   LV:   TBLOCK   Connector:   Wiring   diagram  64 
4.3.2.1.   LV:   Voltage  64 
5.   RTD:   Resistance   Temperature   Detector   Module  65 
5.1.   RTD:   Speciﬁcations  66 
5.2.   RTD:   LEMO   L0B6f   Connector  68 
5.2.1.   RTD:   LEMO   L0B6f   Connector:   Pinout  69 
5.2.2.   RTD:   LEMO   L0B6f   Connector:   Wiring   diagram  69 
5.2.2.1.   RTD:   Voltage  69 
IOLITE®   V20-1  3 / 101  

IOLITE® 
TECHNICAL   REFERENCE   MANUAL 


5.2.2.2.   RTD:   Resistance  70 
5.2.2.3.   RTD:   Temperature  70 
5.3.   RTD-TBLOCK:   Terminal   block   connector  71 
5.3.1.   RTD-TBLOCK:   Terminal   block   connector:   Pinout  72 
6.   STG:   Strain   Gauge   Module  73 
6.1.   STG:   Speciﬁcations  74 
6.2.   STG:   DSUB-9   Connector  76 
6.2.1.   STG:   DSUB-9   Connector:   Pinout  76 
6.2.2.   STG:   DSUB-9   Connector:   Wiring   diagram  77 
6.2.2.1.   STG:   Voltage  77 
6.2.2.2.   STG:   Potentiometer  77 
6.2.2.3.   STG:   Bridge  78 
6.2.2.4.   STG:   Current  79 
7.   TH:   Thermocouple   Module  80 
7.1.   TH:   Speciﬁcations  81 
7.2.   TH:   Miniature   Thermocouple   Connector  82 
7.2.1.   TH:   Miniature   Thermocouple   Connector:   Pinout  82 
7.2.2.   TH:   Miniature   Thermocouple   Connector:   Wiring   diagram  83 
7.2.2.1.   TH:   Voltage  83 
7.2.2.2.   TH:   Temperature  83 
8.   CNT:   Counter   Module  85 
8.1.   CNT:   Speciﬁcations  86 
8.2.   CNT:   LEMO   L1B7f   Connector  87 
8.2.1.   CNT:   LEMO   L1B7f   Connector:   Pinout  88 
  Accessories  89 
  Appendix  90 
1.   Glossary   and   abbreviations  90 
  Warranty   information  95 
1.   Calibration  95 
2.   Support  95 
3.   Service/repair  95 
4.   Restricted   rights  95 
5.   Copyright  96 
6.   Trademarks  96 
  Safety   instructions  97 
1.   Safety   symbols   in   the   manual  97 
2.   General   Safety   Instructions  97 
2.1.   Environmental   considerations  97 
2.2.   Product   End-of-Life   handling  97 
2.3.   System   and   components   recycling  98 
2.4.   General   safety   and   hazard   warnings   for   all   Dewesoft   systems  98 
IOLITE®   V20-1  4 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



10. Documentation version history 101 



 

IOLITE® V20-1 5 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



2. About this document 



This is the Technical Reference Manual for IOLITE® Systems. 



IOLITE® is an industrial real time data acquisition hardware line that comes in many different form                

factors and can be equipped with a wide range of different ampliﬁers so that you can use it for virtually                    

any measurement task. Each system also includes a professional license for our award-winning             

DEWESoft® data acquisition software. 



The manual is divided into several chapters. You will ﬁnd: 

●A detailed description of the IOLITE® hardware and the main combination and expansion             

options 

●A description of the connection variants and the pin assignments on the inputs and outputs 

●A comprehensive introduction to the conﬁguration of the modules using DEWESoft® 

●Detailed technical data: Speciﬁcations, etc. 



2.1. Legend 



The following symbols and formats will be used throughout the document. 



Important 

Gives you important information about a subject. 

Please read carefully! 



Hint 

Gives you a Hint or provides additional information about a subject. 



Example 

Gives you an example to a speciﬁc subject. 



Safety symbols in the manual: 



Warning 

Calls attention to a procedure, practice, or condition that could cause the body injury or death 



Caution 

Calls attention to a procedure, practice, or condition that could possibly cause damage to              

equipment or permanent loss of data. 



IOLITE® V20-1 6 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



2.2. Online versions 

2.2.1. IOLITE® Technical Reference Manual 

The most recent version of this manual can be downloaded from our homepage: 

https://download.dewesoft.com/list/manuals-brochures/hardware-manuals 

In the Hardware Manuals section click the download link for the IOLITE® technical reference manual . 

2.2.2. DEWESoft® User Manual 

The DEWESoft® User Manual document provides basics and additional information and examples for             

working with DEWESoft® and certain parts of the program. 

The latest version of the DEWESoft® tutorials can be found here: 

https://download.dewesoft.com/list/manuals-brochures/software-manuals 

In the Software Manuals section click the download link of the DEWESoft X3 User Manual entry. 



Important 

Read safety instructions ﬁrst in chapter 6. Safety instructions . 



 

IOLITE® V20-1 7 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3. Getting started 

This chapter will help you to install the software, connect your IOLITE® system to the PC via EtherCAT®                  

and will show you how to conﬁgure DEWESoft®. 



To follow these steps, you need the following items: 

●your brand new SIRIUS system (included in the shipment) 

●your SIRIUS USB stick (included in the shipment) 

●your PC with Windows 10 

●Note: older versions like Windows® 7 may also work 



3.1. Software installation 

For optimal working, we recommend that you install the latest version of Dewesoft. If you already have                 

Dewesoft installed, please check if a newer version is already available. You can either check on the                 

website under Support/Downloads/Dewesoft X3 section or directly in software under the Options/Check            

for updates. In both cases the changelog is included 



Check for updates 



 

IOLITE® V20-1 8 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.2. Connecting IOLITE® 

In this chapter, you can see the basic instructions for connecting IOLITE® devices. Advanced              

connections are described in the following chapters. 



IOLITEr 

First connect the power supply cable (PS-120-L1B2f) to the PWR IN 2-pin LEMO 1B male connector. Then                 

connect a standard ethernet cable to the IN connector of BUS 1 on IOLITE-GATE. Finally connect the                 

other side of the ethernet cable to the LAN port of PC. You can ﬁnd advanced connections in chapter                   

3.3.1.4. Connection of IOLITEr . 



Connection of IOLITEr standalone device to PC 



IOLITEs 

First connect the power supply cable (PS-120-L1B2f) to the PWR IN 2-pin LEMO 1B male connector. Then                 

connect L1T8f-RJ45-1M cable (LEMO side) to IN connector of BUS 1 on IOLITEs back panel. Finally connect                 

the other side of the L1T8f-RJ45-1M cable (RJ45 side) to the LAN port of PC. You can ﬁnd advanced                   

connections in chapter 3.3.2.4. Connection of IOLITEs . 



Connection of IOLITEs standalone device to PC 



IOLITE® V20-1 9 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.2.1. DEWESoft® Settings IOLITE® 

The connected device will show up in the DEWESoft® settings. Click on the Options button at the top                  

right, and then on the Settings item in the pop-up to open the DEWESoft® settings dialogue. 



DEWESoft® settings

In the Devices section, you can see the connected IOLITE® slices. When you select one of them, the                  

properties pane at the right will show the related data e.g. Serial number, Firmware version, etc. 



DEWESoft® settings: Devices

IOLITE® V20-1 10 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.2.2. Channel Setup IOLITE® 

In the channel setup you can see a preview of the connected devices on the left side. 



When you click on a connector in the image the corresponding channel in the Channel setup                

grid will automatically be selected. This also works the other way around: when you select a                

channel (or multiple channels) in the setup grid, the corresponding connectors in the image              

will be highlighted. 



The sampling rate will be set for all connected IOLITE® slices: of course only up to the max. sampling                   

rate of the individual slices. 



Channel setup IOLITEr 



Channel setup IOLITEs 

 

IOLITE® V20-1 11 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.3. Simple Measurement 

This chapter describes measurement basics, how to conﬁgure IOLITE® and gives some details on the               

measurement setup. 

3.3.1. Help - Manual 

Note that this document is just a quick start guide. For detailed information about Dewesoft consult the                 

Manual. To open the manual press the F1 button or click on the Options button ❶ and then select                  

Manual from the pop-up menu ❷ . 



Help - Manual 



When Dewesoft has started up, you will be in the Measure mode and see the Setup ﬁles list or you can                     

create a New setup ❶ . Click on Ch. setup (on the right of Setup ﬁles) to switch to the Channel setup                     

mode ❷ . In the channel setup you can see a preview of the connected devices on the upper left side. 



Setup ﬁles 

 

IOLITE® V20-1 12 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.3.2. Analogue channel setup 

In the analogue channel setup screen you can see all channels of your connected IOLITE® systems. Per                 

default only the ﬁrst channel will be set to used. Unused channels will not show up in measure mode                   

and can thus not be used for display, calculations or storing: thus, we will also set the other channels to                    

the used. You can left-click on the Used column of channel 2 ❶ , hold the mouse button and move the                    

mouse down to channel 8 ❷ : then release the mouse button and all channels will be selected – this is                    

shown by the black rectangle around the buttons. Then you can click into the selected region to toggle                  

Used/Unused for all channels at once. The selected channels will also be highlighted in the small                

preview image of the device ❸ . 

When you press the Setup button of a channel (the column at the right edge of the channel table – not                     

shown in this screen-shot), you can change all the settings of the channel ampliﬁer. 

You can also change the sample rate of the IOLITE® ❹ . 



Channel setup screen

 

IOLITE® V20-1 13 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.3.3. Sample rate 

One of the most important settings is the sample rate. The sample rate deﬁnes how many data points                  

IOLITE® will transfer to DEWESoft®. A higher sample rate also means that more data needs to be                 

transferred via EtherCAT® to your computer. 



The sampling speed mainly depends on your application. To display your signal in a time domain with a                  

good time resolution, you should sample 10 to 20 times faster than the frequency of the signal that you                   

want to measure, e.g. 1 kS/s for a 50 Hz sine-wave. If you have a lot of high frequency components, it may                      

be necessary to sample 100 times faster, e.g. 5 kS/s for the 50 Hz sine-wave, or even more. If you display                     

only the frequency domain (FFT analysis), a 2.5 times faster sampling would be sufﬁcient (125 S/s for the                  

50 Hz sine-wave). The higher the sampling rate, the better the time resolution. But also the ﬁle size will                   

increase. 



Sample rate 

 

IOLITE® V20-1 14 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.3.4. Measurement Mode 

A click on Measure (at the right side of Ch. setup in Illustration below) will take you to the Recorder                    

screen measure mode where you can already see live data. 



Hint 

When switching to Measure mode the data will not be stored automatically. 



Measure mode



In measure mode you can have several measurement screens ❺ . Dewesoft will create 2 default displays:                

Recorder and Custom but you can also create new displays or change the widgets on existing displays                 

as you like. 

The most important sections of the Measure mode are highlighted in screen-shot Illustration “Measure              

mode”: 

❶ shows the live measurement data in different widgets which are depending on the selected              

measurement screen. In this case we see a simple recorder widget where data is presented in the time                  

domain. You can use the channel-selector list ❷ to assign measurement channels to the widgets. Each                

widget has different settings, ❸ shows the settings of the currently selected recorder widget. 

To start storing the data, press the Store button ❹ . When you are done with recording, press the Stop                   

button. 



Now Dewesoft has created a data ﬁle with all the data that you have seen during the recording session.                   

You can now click the Analyse button (on the left-top of the screen to the right of the Measure button) to                     

go to Analyse mode.  

IOLITE® V20-1 15 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



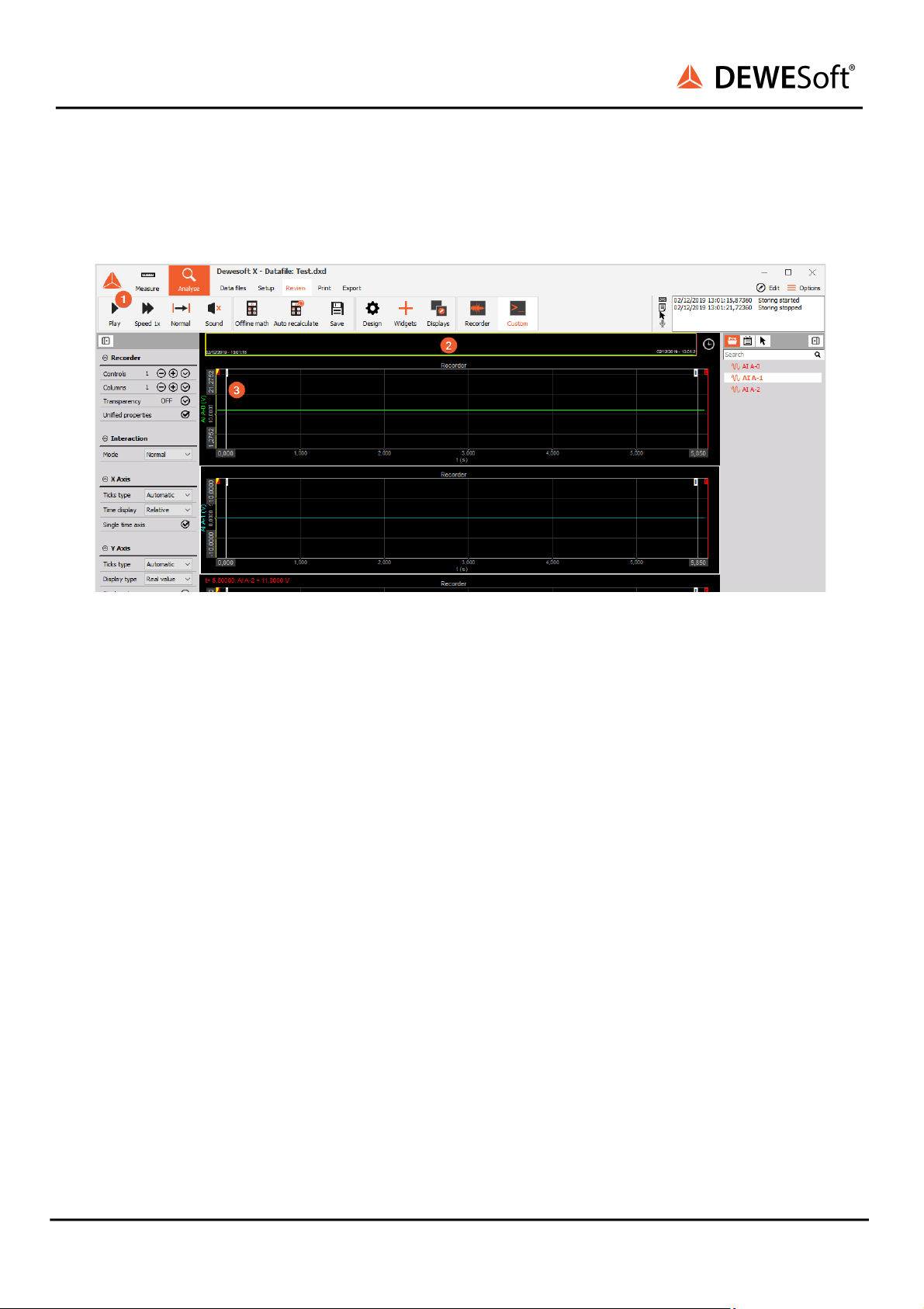

3.3.5. Analyse Mode 

When you have just stopped a measurement, Dewesoft will automatically open the last recorded data               

ﬁle in Review mode, so that you can start the analysis right away. 



Analyse mode 



The Review mode is much like the measurement mode. You will see the same measurement displays,                

the channel-selector list and the properties of the currently selected widget. 

Differences are: 

❶ you have additional tool-buttons 

❷ there is a Signal overview window which will show you the whole data of one selected channel of the                   

data ﬁle 

❸ there are additional cursors (Yellow and two white cursors) 



Now you can use the cursors to analyse your data, zoom in and out of the data, click Ofﬂine math to add                      

computations based on your data, etc. You can also change the design of your measurement displays,                

print reports based on your data and export the data to other ﬁle formats for further analysis. 

 

IOLITE® V20-1 16 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.4. Advanced conﬁguration 

Note, that the Dewesoft launcher has already done the hardware setup for you – you can check this in                   

the Settings dialogue. Click the Options button ❶ – and then click the Settings menu item ❷ . 



Open settings dialogue 



The settings window will appear where all the currently connected devices will be seen. 



If you add a device while this screen is open (or if your device is not shown yet), you can press the                      

Refresh button ❸ to scan for devices. When you select a device from the list you will see all the device                     

details and settings in the right area ❹ . 

Real measurement mode

 

IOLITE® V20-1 17 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.5. Firmware upgrade 

●Download the Dewesoft upgrade package (.dxu ﬁle) from the Dewesoft downloads page under 

the section Drivers. 

●Copy the ﬁle into the Firmwares folder of your Dewesoft installation (e.g. 

D:\DewesoftX\System\X3\Firmwares). 

●Connect the Dewesoft instrument to the PC and run Dewesoft X3. 

●Go to settings under the Update tab:



●If the ﬁrmware package isn’t selected, select it by pressing the button and ﬁnd the folder with 

the ﬁrmware ﬁle in it. 

●Select the device you want to upgrade and start the ﬁrmware upgrade by pressing the 

“Upgrade” button. 

 

IOLITE® V20-1 18 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.6. Licensing 

IOLITE or any other Dewesoft device already comes with an embedded Dewesoft license. You can check                

the license details with all the available options in the Licensing tab ❶ by pressing the three dotted                 

button ❻ . However, if the user decides to upgrade the license with an additional extension, Dewesoft will                 

require a new license registration. The registration can be made online ❷ or ofﬂine by importing an                 

ofﬂine license ❺ in case the system doesn’t have an internet connection. Ofﬂine license can be                

registered on a different PC with the internet connection. If needed, the license can also be written on                  

the actual device ❺ . 



Active and embedded licenses are seen under Active licenses tab ❺ . If the license is recognized as none                  

active, it usually means that the wrong license was entered. 



Active licenses tab 



All licenses regarding IOLITE® will only work when the IOLITE® system is connected to your PC                

and the device has been activated in the hardware setup. 



3.7. Troubleshooting 



If your IOLITE® device is not found by DEWESoft®: 

●If you did not restart Windows after the software installation, restart now 

●Make sure that you have started DEWESoft® version X3 SP8 or higher 

●Make sure that the external power supply is connected and okay 

●Disconnect the EtherCAT® cable and reconnect it. If this does not work, try to connect the                

EtherCAT® cable to another Ethernet port of your PC 

●Try to restart DEWESoft® 

●Try to restart the PC 

●Make sure to connect the data-cable directly to the Ethernet card of your PC. Do not use any                  

switches or hubs  

IOLITE® V20-1 19 / 101  

IOLITE® 

TECHNICAL REFERENCE MANUAL 



3.7.1. Additional instructions for troubleshooting with EtherCAT devices 

If the computer is still having trouble recognizing the Dewesoft EtherCAT devices, here are some               

additional steps: 



●Check if there is an Ethercat DAQ Filter driver installed on your computer like shown on the                 

picture below. If the driver is installed, make sure the checkbox is checked in front of the driver. 



If the driver is not installed, it can be downloaded from our web page .



 

IOLITE® V20-1 20 / 101  

Other manuals for IOLITE Series

This manual suits for next models

Table of contents

Other DEWESOFT Control System manuals

DEWESOFT

DEWESOFT IOLITE Series Product manual

Popular Control System manuals by other brands

Mitsubishi Electric

Mitsubishi Electric AE-200A installation manual

Logosol

Logosol SMART SET user manual

HP HP 4062UX installation manual

Pentatech

Pentatech GA50 instruction manual

Cleveland

Cleveland HA-DE-CC Specifications

Honeywell

Honeywell Experion MX Operator's guide

btsr

btsr MATRIX CUBE operating manual

Vestil

Vestil PRAIL-102 quick start guide

AquaCare

AquaCare Turbo Chalk Reactor Control II instruction manual

LEGRAND

LEGRAND QMotion QzHub3 Guide

AMX

AMX Epica DGX 144 instruction manual

Siemens

Siemens TIASTAR Instruction guide

HEIDENHAIN

HEIDENHAIN ECN 413 2C Mounting instructions

Simco-Ion

Simco-Ion IQ Power Installation and operating instructions

Dynatech

Dynatech SD-BOX Instructions for use and maintenance

Stahl

Stahl 621/1 Series operating instructions

Onstep

Onstep EQ5 GoTo Build instructions

Esu

Esu CabControl DCC System user manual
