DEWESOFT IOLITE Series Product manual
IOLITE®
TECHNICAL REFERENCE MANUAL
V1.0
TECHNICAL REFERENCE MANUAL
IOLITE®
V1.0
2 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
Table of contents
1. About this document 5
1.1. Legend 6
1.2. Online versions 7
1.2.1. IOLITE® technical reference manual 7
1.2.2. DEWESoft® tutorials 7
2. Getting started 8
2.1. Software installation 8
2.2. Connecting IOLITE® 8
2.2.1. DEWESoft® Settings IOLITE® 9
2.2.2. Channel Setup IOLITE® 10
2.3. Simple Measurement 11
2.3.1. Help - Manual 11
2.3.2. Analogue channel setup 12
2.3.3. Sample rate 13
2.3.4. Measurement Mode 14
2.3.5. Analyse Mode 15
2.4. Advanced configuration 16
2.5. Licensing 17
2.6. Troubleshooting 17
3. System Overview 18
3.1. Main features 19
3.1.1. Redundant Bus Systems 19
3.1.2. Input Slots and Amplifiers 20
3.1.3. Redundant Power Supply 20
3.1.4. Feedback Monitoring 21
3.2. System specifications 22
3.3. Enclosure Overview 23
3.3.1. IOLITEr: Cabinet Mount Chassis 23
3.3.1.1. IOLITEr: Cabinet Mount Chassis: Renders/Front panel/Back panel 23
3.3.1.2. IOLITEr: Cabinet Mount Chassis: Dimensions 24
3.3.1.3. IOLITE-GATE 25
3.3.1.3.1. IOLITE-GATE: Connectors 25
3.3.1.3.1.1. IOLITE-GATE: Power in: Pinout 26
3.3.1.3.1.2. IOLITE-GATE: Sync: Pinout 27
3.3.1.3.1.3. IOLITE-GATE: RJ45: Pinout 27
3.3.1.4. IOLITE-GATE: Connection of IOLITEr standalone device to PC 29
3.3.1.5. IOLITE-GATE: Connection of IOLITEr and DEWE-43A device 30
3.3.2. IOLITEs: Boxed Chassis 31
V1.0
3 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
3.3.2.1. IOLITEs: Boxed Chassis: Renders/Front panel/Back panel 31
3.3.2.2. IOLITEs: Boxed Chassis: Dimensions 33
3.3.2.3. IOLITEs: Boxed Chassis: Connectors 34
3.3.2.3.1. IOLITEs: Boxed Chassis: Power in: Pinout 34
3.3.2.3.2. IOLITEs: Boxed Chassis: Sync: Pinout 34
3.3.2.3.3. IOLITEs: Boxed Chassis: BUS 1: IN: Pinout 35
3.3.2.3.4. IOLITEs: Boxed Chassis: BUS 1: OUT: Pinout 36
3.3.2.3.5. IOLITEs: Boxed Chassis: BUS 2: RJ45: Pinout 36
3.3.2.4. IOLITEs: Boxed Chassis: Connection of IOLITEs standalone device to PC 38
3.3.2.5. IOLITEs: Boxed Chassis: Connection of IOLITEs and KRYPTON® device 39
3.3.2.6. IOLITEs: Boxed Chassis: Connection of IOLITEs and SIRIUS® device 40
4. Module Overview 42
4.1. DI: Digital Input Module 43
4.1.1. DI: Specifications 44
4.1.2. DI: Connector version 45
4.1.2.1. DI: Digital Input: Pinout 46
4.1.2.2. DI: Power Out: Pinout 46
4.2. DO: Digital Output Module 47
4.2.1. DO: Specifications 48
4.2.2. DO: Connector version 49
4.2.2.1. DO: Digital Output: Pinout 50
4.2.2.2. DO: Power Out: Pinout 50
4.3. RTD: Resistance Temperature Detector Module 51
4.3.1. RTD: Specifications 52
4.3.2. RTD: LEMO L0B6f Connector 53
4.3.2.1. RTD: LEMO L0B6f Connector: Pinout 54
4.3.2.2. RTD: LEMO L0B6f Connector: Wiring diagram 54
4.3.2.2.1. RTD: Voltage 54
4.3.2.2.2. RTD: Resistance (3-wire) 55
4.3.2.2.3. RTD: Resistance (4-wire) 55
4.3.2.2.4. RTD: Temperature (3-wire) 56
4.3.2.2.5. RTD: Temperature (4-wire) 56
4.4. STG: Strain Gauge Module 57
4.4.1. STG: Specifications 58
4.4.2. STG: DSUB-9 Connector 60
4.4.2.1. STG: DSUB-9 Connector: Pinout 60
4.4.2.2. STG: DSUB-9 Connector: Wiring diagram 61
4.4.2.2.1. STG: Voltage (single-ended) 61
4.4.2.2.2. STG: Voltage (differential) 61
4.4.2.2.3. STG: Full-Bridge 62
4.4.2.2.4. STG: Half-Bridge 62
4.4.2.2.5. STG: Quarter-Bridge 63
V1.0
4 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
4.4.2.2.6. STG: Current (External direct shunt) 63
4.4.2.2.7. STG: Current (External loop powered shunt) 64
4.4.2.2.8. STG: Current (Internal shunt) 64
4.4.2.2.9. STG: Potentiometer 65
4.5. TH: Thermocouple Module 66
4.5.1. TH: Specifications 67
4.5.2. TH: Miniature Thermocouple Connector 68
4.5.2.1. TH: Miniature Thermocouple Connector: Pinout 68
4.5.2.2. TH: Miniature Thermocouple Connector: Wiring diagram 69
4.5.2.2.1. TH: Voltage 69
4.5.2.2.2. TH: Temperature (T-type thermocouple) 69
4.5.2.2.3. TH: Temperature (S-type, R-type thermocouple) 70
4.5.2.2.4. TH: Temperature (N-type thermocouple) 70
4.5.2.2.5. TH: Temperature (K-type thermocouple) 71
4.5.2.2.6. TH: Temperature (J-type thermocouple) 71
4.5.2.2.7. TH: Temperature (E-type thermocouple) 72
4.5.2.2.8. TH: Temperature (B-type thermocouple) 72
4.5.2.2.9. TH: Temperature (C-type thermocouple) 73
5. Accessories 74
6. Safety instructions 75
6.1. General Safety Instructions 75
6.1.1. Environmental Considerations 75
6.1.2. Product End-of-Life Handling 75
6.1.3. General safety and hazard warnings for all Dewesoft systems 76
7. Notice 78
7.1. Warranty Information 78
7.2. Calibration 78
7.3. Support 78
7.4. Service/repair 78
7.5. Restricted Rights 79
7.6. Printing History 79
7.7. Copyright 79
7.8. Trademarks 79
7.9. Documentation version 80
V1.0
5 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
1. About this document
This is the Technical Reference Manual for IOLITE® Version 1.0.0.
IOLITE® is an industrial real time data acquisition hardware line which comes in many different form
factors and can be equipped with a wide range of different amplifiers, so that you can use it for virtually
any measurement task. Each system also includes a professional license for our award-winning
DEWESoft® data acquisition software.
The manual is divided into several chapters. You will find:
●A detailed description of the IOLITE® hardware and the main combination and expansion
options
●A description of the connection variants and the pin assignments on the inputs and outputs
●A comprehensive introduction to the configuration of the modules using DEWESoft®
●Detailed technical data: Specifications, etc.
1.1. Legend
The following symbols and formats will be used throughout the document.
Important
Gives you an important information about a subject.
Please read carefully!
Hint
Gives you a hint or provides additional information about a subject.
Example
Gives you an example to a specific subject.
Safety symbols in the manual:
Warning
Calls attention to a procedure, practice, or condition that could cause the body injury or death
Caution
Calls attention to a procedure, practice, or condition that could possibly cause damage to
equipment or permanent loss of data.
V1.0
6 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
1.2. Online versions
1.2.1. IOLITE® technical reference manual
The most recent version of this manual can be downloaded from our homepage:
https://download.dewesoft.com/list/manuals-brochures/hardware-manuals
In the Hardware Manuals section click the download link for the IOLITE® technical reference manual.
1.2.2. DEWESoft® tutorials
The DEWESoft® tutorials document, provides basics and additional information and examples for
working with DEWESoft® and certain parts of the program.
The latest version of the DEWESoft® tutorials can be found here:
https://download.dewesoft.com/list/manuals-brochures/software-manuals
In the Software Manuals section click the download link of the DEWESoft X3 tutorials entry.
Important
Read safety instructions first in chapter 6. Safety instructions.
V1.0
7 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
2. Getting started
This chapter will help you to install the software, connect your IOLITE® system to the PC via EtherCAT®
and will show you how to configure DEWESoft®.
To follow these steps, you need the following items:
●your brand new IOLITE® system (included in the shipment)
●your IOLITE® EtherCAT® cable (included in the shipment)
●your PC with Windows 10 (older versions like Windows® 7 may also work)
2.1. Software installation
For optimal working, we recommend that you install the latest version of Dewesoft®. If you already have
installed older version Dewesoft® it is recommended that you find the newest version on the website.
The details of software installation can be found on https://download.dewesoft.com.
2.2. Connecting IOLITE®
In this chapter, you can see the basic instructions for connecting IOLITE® devices. Advanced
connections are described in the following chapters.
IOLITEr
First connect the power supply cable (PS-120-L1B2f) to the PWR IN LEMO 1B 2-pin connector. Then
connect standard ethernet cable to IN connector of BUS 1 on IOLITE-GATE. Finally connect the other
side of the ethernet cable to the LAN port of PC. You can find advanced connections in chapter 3.3.1.4.
Connection of IOLITEr.
Illustration 1: Connection of IOLITEr standalone device to PC
IOLITEs
First connect the power supply cable (PS-120-L1B2f) to the PWR IN LEMO 1B 2-pin connector. Then
connect L1T8f-RJ45-1M cable (LEMO side) to IN connector of BUS 1 on IOLITEs back panel. Finally
connect the other side of the L1T8f-RJ45-1M cable (RJ45 side) to the LAN port of PC. You can find
advanced connections in chapter 3.3.2.4. Connection of IOLITEs.
V1.0
8 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®

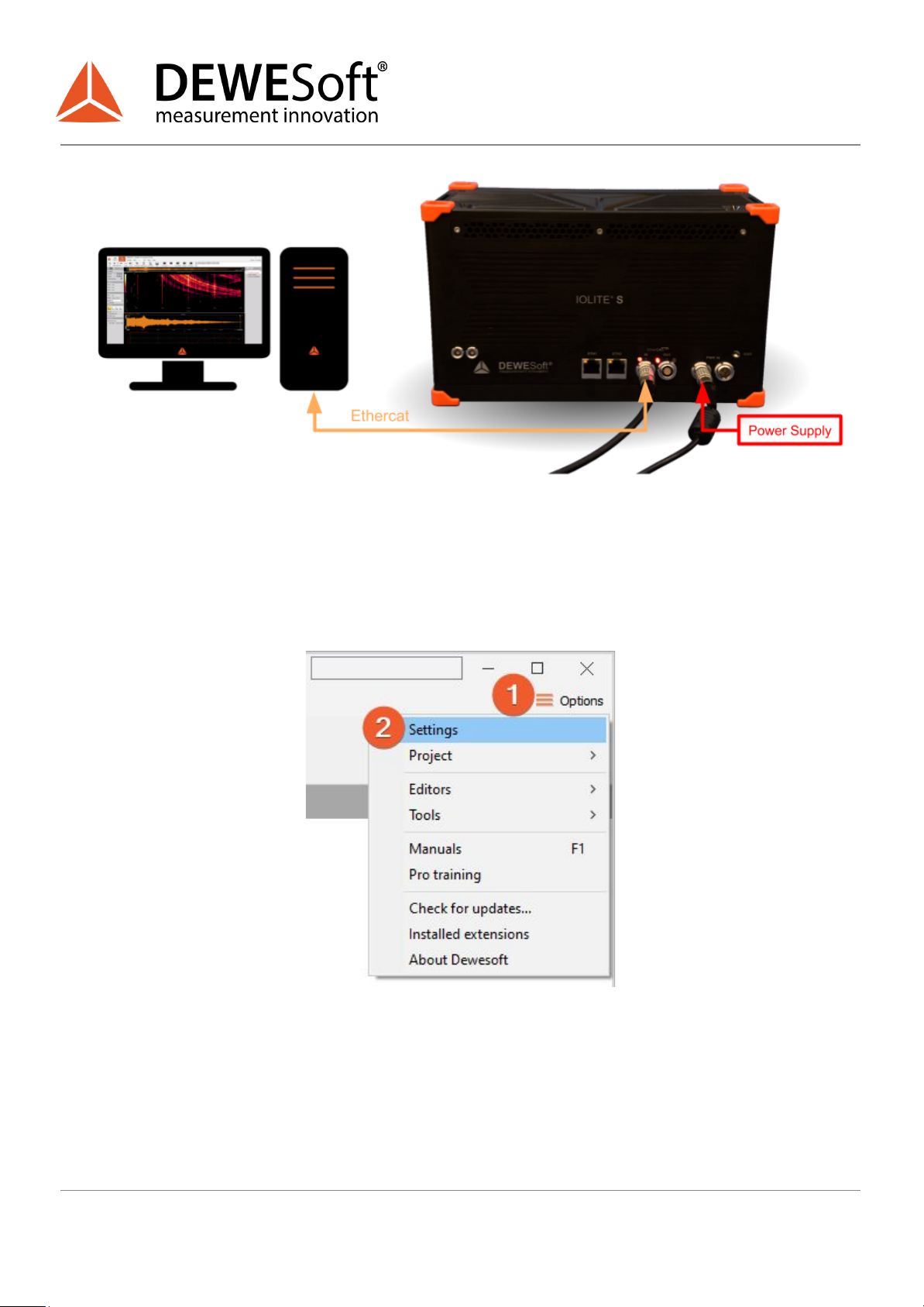

Illustration 2: Connection of IOLITEs standalone device to PC
2.2.1. DEWESoft® Settings IOLITE®
The connected device will show up in the DEWESoft® settings. Click on the Options button at the top
right, and then on the Settings item in the pop-up to open the DEWESoft® settings dialogue.
Illustration 3: DEWESoft® settings
In the Devices section, you can see the connected IOLITE® slices. When you select one of them, the
properties pane at the right will show the related data e.g. Serial number, Firmware version, etc.
V1.0
9 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®

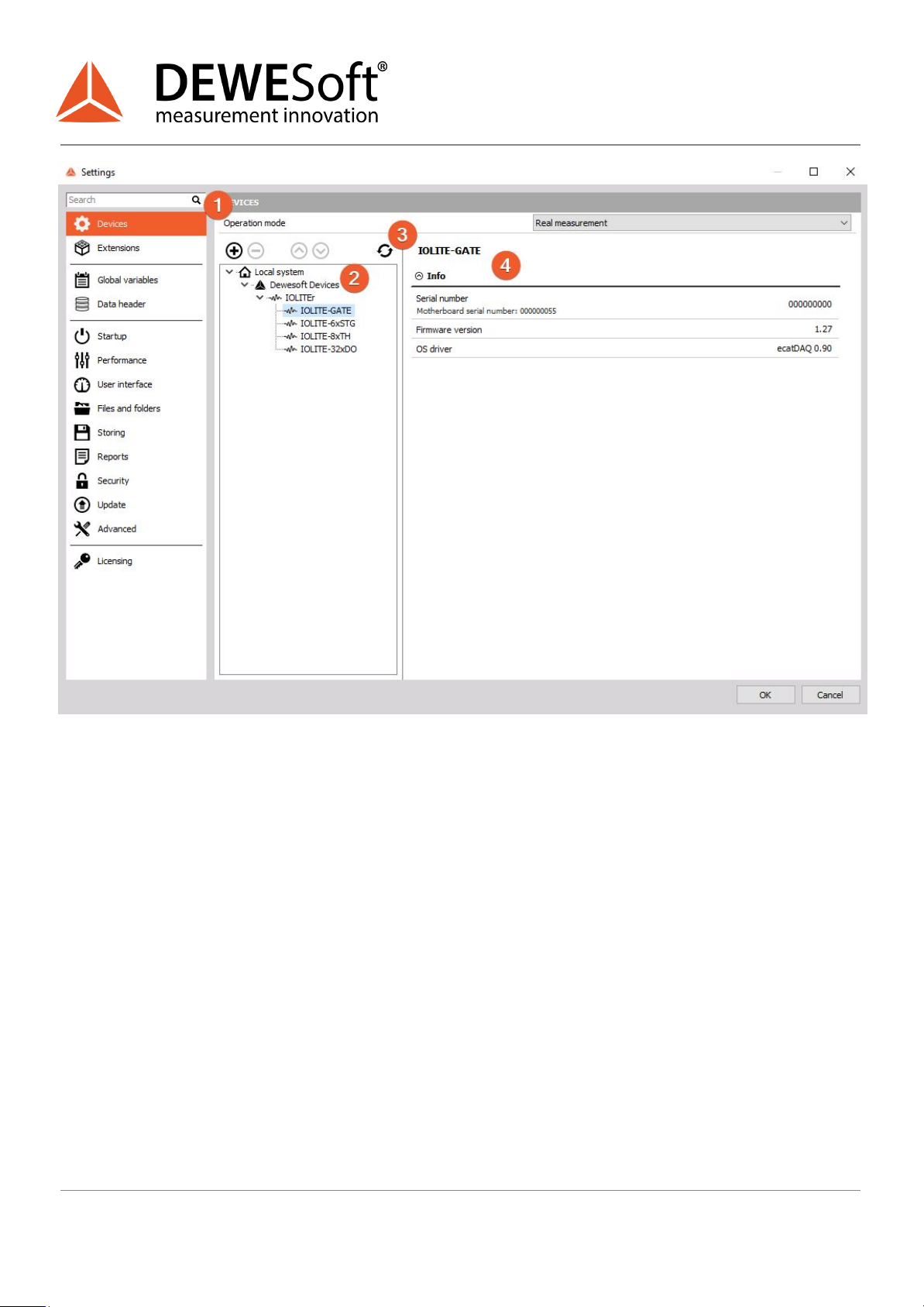

Illustration 4: DEWESoft® settings: Devices
2.2.2. Channel Setup IOLITE®
In the channel setup you can see a preview of the connected devices on the left side.
When you click on a connector in the image the corresponding channel in the Channel setup
grid will automatically be selected. This also works the other way around: when you select a
channel (or multiple channels) in the setup grid, the corresponding connectors in the image
will be highlighted.
The sampling rate will be set for all connected IOLITE® slices: of course only up to the max. sampling
rate of the individual slices.
Illustration 5: Channel setup IOLITEr
V1.0
10 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®

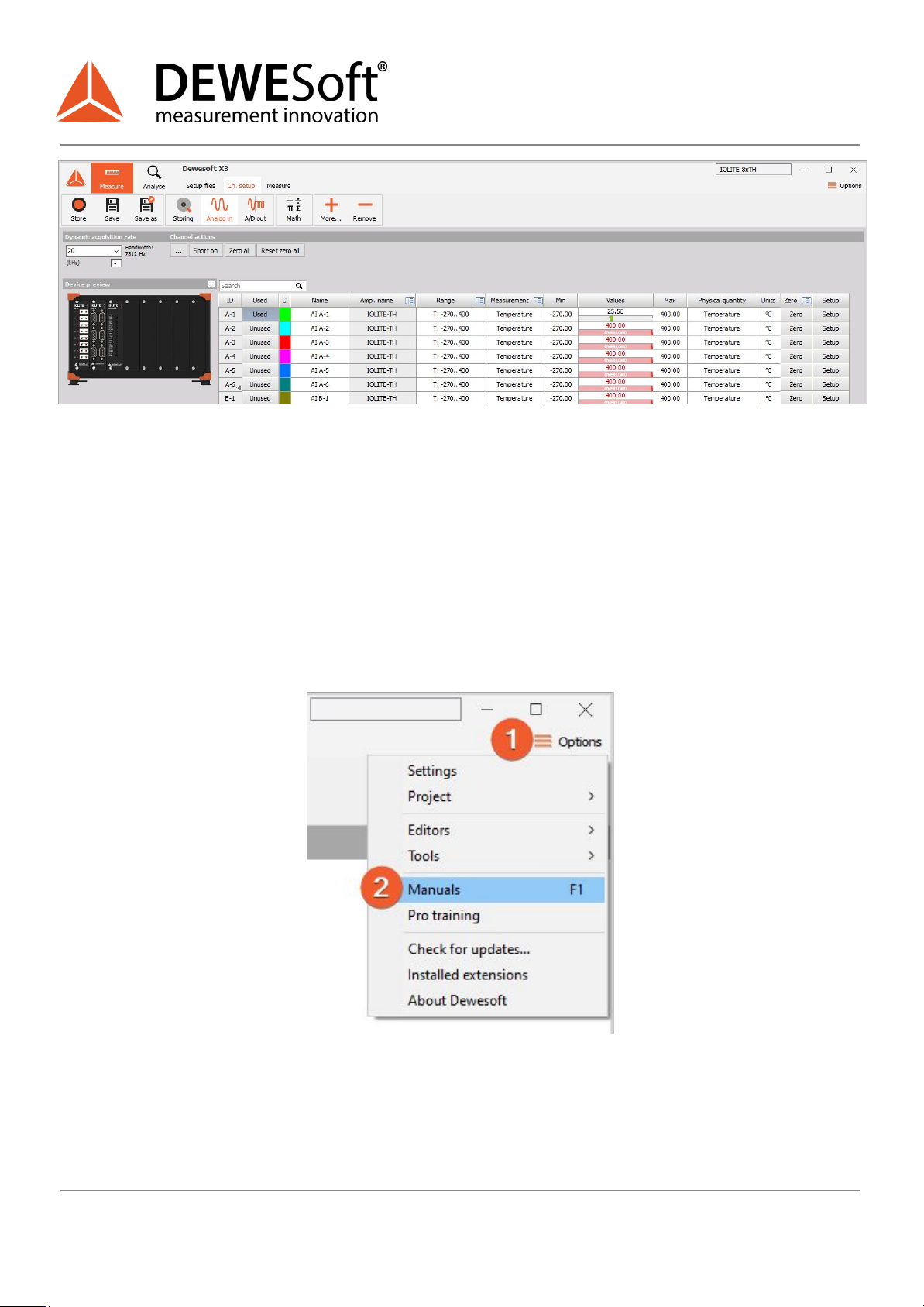

Illustration 6: Channel setup IOLITEs
2.3. Simple Measurement
This chapter describes measurement basics, how to configure IOLITE® and gives some details on the
measurement setup.
2.3.1. Help - Manual
Note that this document is just a quick start guide. For detailed information about DEWESoft® consult
the Manual. To open the manual press the F1 button or click on the Options button and then select
Manual from the pop-up menu.
Illustration 7: Help - Manual
When DEWESoft® has started up, you will be in the Measure mode and see the Setup files list. Click on
Ch. setup (on the right of Setup files) to switch to the Channel setup mode.
V1.0
11 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
Illustration 8: Setup files
2.3.2. Analogue channel setup
In the analogue channel setup screen you can see all channels of your connected IOLITE® systems. Per
default only the first channel will be set to Used. Unused channels will not show up in measure mode
and can thus not be used for display, calculations or storing: thus, we will also set the other channels to
the used. You can left-click on the Used column of channel 2 (1), hold the mouse button and move the
mouse down to channel 8 (2): then release the mouse button and all channels will be selected – this is
shown by the black rectangle around the buttons. Then you can click into the selected region to toggle
Used/Unused for all channels at once. The selected channels will also be highlighted in the small
preview image of the device (3).
When you press the Setup button of a channel (the column at the right edge of the channel table – not
shown in this screen-shot), you can change all the settings of the channel amplifier.
You can also change the sample rate of the IOLITE® (4).
V1.0
12 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®

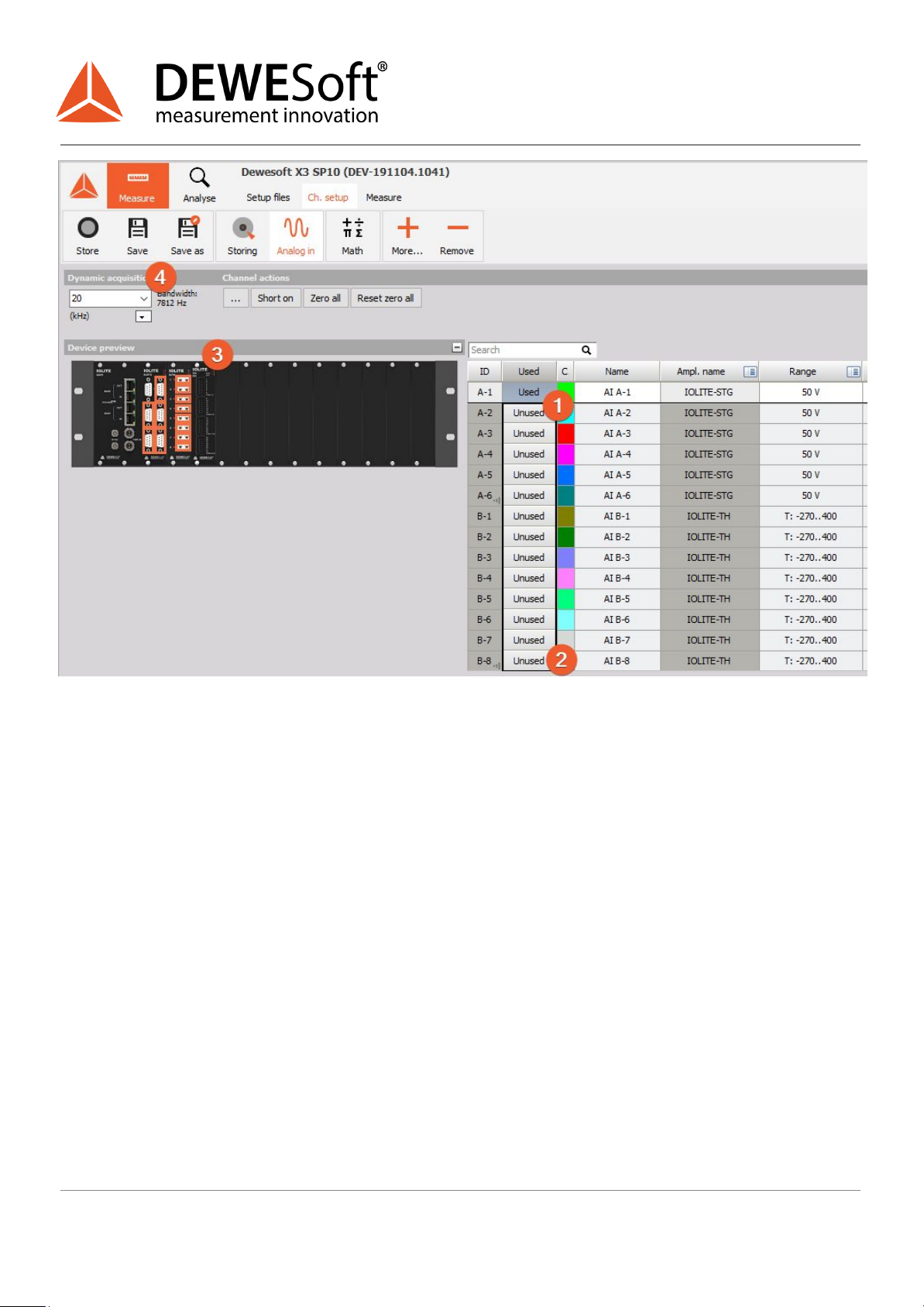

Illustration 9: Channel setup screen
2.3.3. Sample rate
One of the most important settings is the sample rate. The sample rate defines how many data points,
IOLITE® will transfer to DEWESoft®. Higher sample rate also means that more data needs to be
transferred via EtherCAT® to your computer.
The sampling speed mainly depends on your application. To display your signal in time domain with a
good time resolution, you should sample 10 to 20 times faster than the frequency of the signal that you
want to measure, e.g. 1 kS/s for a 50 Hz sine-wave. If you have a lot of high frequency components, it
may be necessary to sample 100 times faster, e.g. 5 kS/s for the 50 Hz sine-wave, or even more. If you
display only the frequency domain (FFT analysis), a 2.5 times faster sampling would be sufficient (125 S/s
for the 50 Hz sine-wave). The higher the sampling rate, the better the time resolution. But also the file
size will increase.
V1.0
13 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
Illustration 10: Sample rate
2.3.4. Measurement Mode
A click on Measure (at the right side of Ch. setup in Illustration 11) will take you to the Recorder screen
measure mode where you can already see live data.
Hint
When switching to Measure mode the data will not be stored automatically.
Illustration 11: Measure mode
In measure mode you can have several measurement screens (5). DEWESoft® will create 2 default
screens: Recorder and Custom but you can also create new screens or change the visual displays of the
existing screens as you like.
The most important sections of the Measure mode are highlighted in screen-shot Illustration 10:
(1) shows the live measurement data in different measurement instruments which are depending on
the selected measurement screen. In this case we see a recorder instrument which displays all your
V1.0
14 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
measurement channels. You can use the channel-selector list (2) to assign measurement channels to
the instruments. Each instrument has different settings. (3) shows the settings of the currently selected
recorder instrument.
To start storing the data to a file, press the Store button (4). When you are done, press the Stop button
to stop recording.
Now DEWESoft® has created a datafile with all the data that you have seen during the recording
session. You can now click the Analysis button (on the left-top of the screen to the right of the Measure
button) to go to Analysis mode.
2.3.5. Analyse Mode
When you have just stopped a measurement, DEWESoft® will automatically open the last recorded
data file in Review mode, so that you can start the analysis right away.
Illustration 12: Analyse mode
The Review mode is much like the measurement mode. You will see the same measurement screens,
the channel-selector list and the properties of the currently selected instrument.
Differences are:
(1) you have additional tool-buttons
(2) there is a Signal overview window which will show you the whole data of one selected channel of the
data file
Now you can use the cursors to analyse your data, zoom in and out of the data, click Offline math to add
computations based on your data, etc. You can also change the design of your measurement screens,
print reports based on your data and export the data to other file formats for further analysis.
V1.0
15 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
2.4. Advanced configuration
Note, that the DEWESoft® launcher has already done the hardware setup for you – you can check this in
the Settings dialogue. Click the Settings button (1) – and then click the Settings Menu item (2).
Illustration 13: Open settings dialogue
In the Analog tab sheet, DEWESoft USB must be selected in order to user you IOLITE® device (see (1) in
the image). All IOLITE® devices will be shown in the device list (2).
If you add a device while this screen is open (or if your device is not shown yet), you can press the
Refresh button (3) to scan for devices. When you select a device from the list you will see all the device
details and settings in the right area (4).
V1.0
16 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
Illustration 14: Real measurement mode
2.5. Licensing
As soon as you activate your IOLITE® system in the hardware setup, DEWESoft® will be licensed and
you are ready to go (the license information is stored in the IOLITE® device). No need for any online or
offline licensing!
Note, that all licenses regarding IOLITE® will only work when the IOLITE® system is connected to your
PC and the device has been activated in the hardware setup.
2.6. Troubleshooting
If your IOLITE® device is not found by DEWESoft®:
●If you did not restart Windows after the software installation, restart now
●Make sure that you have started DEWESoft® version X3 SP8 or higher
●Make sure that the external power supply is connected and okay
●Disconnect the EtherCAT® cable and reconnect it. If this does not work, try to connect the
EtherCAT® cable to another Ethernet port of your PC
●Try to restart DEWESoft®
●Try to restart the PC
V1.0
17 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
3. System Overview
IOLITE
Data acquisition and real-time control front-end system
for industrial applications. All-in-one solution for real-time
control and feedback monitoring
Voltage
Strain / Stress
Quarter Bridge
Half Bridge
Full Bridge
Thermocouple
Digital IO
IEPE
Charge
Current
LVDT
RTD
Resistance
DSI
Compatible
TEDS
Compatible
EtherCAT
IP40
-10 °C to +50 °C
V1.0
18 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
3.1. Main features
●DUAL ETHERCAT: IOLITE uses two EtherCAT buses in parallel. EtherCAT primary bus is used for
full speed buffered data acquisition to a computer. EtherCAT secondary bus is mainly used for
real-time data to any 3rd party control system.
●GREAT SIGNAL CONDITIONING: IOLITE features high-quality amplifiers which offer great signal
quality and up to 20 kHz sampling rate.
●REDUNDANT POWER SUPPLY: Together with dual EtherCAT interface provides maximum
system reliability.
●MULTIPLE CHASSIS OPTION: IOLITE can be configured in the 19-inch cabinet compatible chassis
(IOLITEr) or in more rugged SIRIUS-like compatible chassis (IOLITEs).
●GREAT PRICE/PERFORMANCE: IOLITE offers great price/performance ratio and is suitable for
test-bed and industrial applications.
●SOFTWARE INCLUDED WITH FREE LIFETIME UPGRADES: Easy to use, yet very robust in
functionality, award-winning DEWESoft X3 software is included. The software comes with
lifetime free upgrades and no hidden costs, bringing you intuitive configuration, smart sensors,
advanced storage and analysis capabilities.
3.1.1. Redundant Bus Systems
Each IOLITE system has two fully independent
Ethercat bus systems that work in parallel.
Primary Bus
Primary bus is used for perfectly timed and
synchronized data acquisition via DEWESoft X
software.
Secondary Bus
The secondary bus can be used in two ways:
●low latency front-end interface for
real-time controllers
●redundant data acquisition bus system for
critical applications
V1.0
19 / 80
TECHNICAL REFERENCE MANUAL
IOLITE®
3.1.2. Input Slots and Amplifiers
IOLITE chassis can be configured with up to 12
slots, each featuring high-quality input amplifiers.
Currently, the following amplifiers are available:
●6xSTG: universal analogue and strain gage
amplifiers. Compatible with Dewesoft
smart interface DSI adapters
●8xTH: isolated thermocouple amplifier
●32xDI: 32 channel digital input
●32xDO: 32 channel digital output with
watchdog
●8xRTD: isolated amplifiers for
measurements with resistance
temperature detector
Full technical specifications in 4. Module Overview
3.1.3. Redundant Power Supply
Each IOLITE system is equipped with a redundant
power supply completing the feature set for the
ideal and reliable front-end system.
If the primary power supply fails, the system will
be powered by a secondary power supply without
any interruption or system shutdown/restart.
V1.0
20 / 80
Other manuals for IOLITE Series
1
This manual suits for next models
2
Table of contents
Other DEWESOFT Control System manuals
Popular Control System manuals by other brands
PIKO
PIKO SmartController wlan Quick manual
U-Prox
U-Prox HUB LTE user manual
Rieco-Titan Products
Rieco-Titan Products OSI-433N6 user manual
J.R. Clancy
J.R. Clancy SceneControl 100 operating instructions
Nuvation Energy
Nuvation Energy High-Voltage BMS installation guide
Siemens
Siemens Climatix Series Short manual
