Dexter Laundry T-30 User manual

8514-234-001 REV N page 1
– Do not store or use gasoline or other flammable apors and
liquids in the icinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and ser ice must be performed by a qualified
installer, ser ice agency or the gas supplier.
– Ne pas entreposer ni utiliser d'essence ni d'autres apeurs
ou liquides inflammables dans le oisinage de cet appareil ou de
tout autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas ous ser ir des
téléphones se trou ant dans le bâtiment où ous ous
trou ez.
• É acuez la pièce, le bâtiment ou la zone.
• Appelez immédiatement otre fournisseur de gaz depuis
un oisin. Sui ez les instructions du fournisseur.
• Si ous ne pou ez rejoindre le fournisseur de gaz,
appelez le ser ice des incendies.
– L'installation et l'entretien doi ent être assurés par un
installateur ou un ser ice d'entretien qualifié ou par le
fournisseur de gaz.
POUR VOTRE SÉCURITÉ
Ne pas enteposer ni utiliser d'essence ni d'autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
You, the purchaser, must post in a prominent location
instructions to be followed in the e ent the user smells
gas. Consult your local gas supplier for procedure to
be followed if the odor of gas is present.
AVERTISSEMENT: Assurez-vous de bien suivre
les instructions données dans cette notice pour
réduire au minimum le risque d incendie ou
d explosion ou pour éviter tout dommage matérial,
tout
e blessure ou la mort.
COMMERCIAL DRYER
MODEL T-30, T-50, T-80, T-120 VENDED
C-SERIES CONTROL, NATURAL GAS/LP HEATED
OPERATOR’S MANUAL
INSTALLATION & OPERATION INSTRUCTIONS
The dryer must not be stored or installed where it will be exposed to water and/or weather.
Post the following “For Your Safety” caution in a
prominent location:
It is important that you read this Manual and retain it
for future reference. For ser ice or replacement parts,
contact the distributor in your area or the
manufacturer.
FOR YOUR SAFETY
THIS MACHINE IS FOR DRYING ONLY FABRICS CLEANED IN WATER.
To a oid possibility of fire, including spontaneous combustion, do not dry oiled floor mops, items containing
foam rubber or similarly textured rubberlike materials or any material on which you ha e used a cleaning
sol ent or which contains flammable liquids or solids (such as petrol, kerosene, waxes, etc.) Fabric
softeners, or similar products, should be used per the fabric softener instructions. Remo e all objects from
pockets such as lighters and matches.
This appliance can be used by children aged from 8 years and abo e and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they ha e been gi en super ision or instruction
concerning use of the appliance in a safe way and understand the hazards in ol ed. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children without super ision. Children of less
than 3 years should be kept away unless continuously super ised.
Dexter Laundry, Inc.
2211 West Grimes A enue
Fairfield, Iowa 52556
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death or property damage.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other
appliance.

8514-234-001 REV N page 2
TABLE OF CONTENTS
Page No.
Warnings about use and operation 2
Dryer Specifications 3-6
Dryer Dimensions 7-18
Installation and Operating Instructions 19-23
Dryer Shutdown 23
Operating Instructions 23
Programming the Dryer Control 24-37
Ser icing and Troubleshooting 38
Pre entati e Maintenance Instructions 40
WARNINGS ABOUT USE AND OPERATION
DO NOT MODIFY THIS APPLIANCE. KEEP SHIELDS, GUARDS, AND COVERS IN PLACE. These
safety de ices are pro ided to protect e eryone from injury.
WARNING: Do not stop dryer before end of cycle time unless all items are quickly remo ed and spread out to
dissipate heat.
It is ABSOLUTELY ESSENTIAL that the dryer be grounded to a known earth (zero) ground in accordance
with local codes or, in the absence of local codes, with the latest editions of the National Electric Code, ANSI//NFPA
70 or Standard CSA C22.1 Canadian Electrical Code Part 1. This is not only for personal safety, but is necessary
for proper operation of the controller. Failure to do so will oid the warranty of the controller.
A DRYER SHOULD BE CONNECTED TO POWER FOR THREE (3) MINUTES before it is operated or
before a program change is made. Operation or program changes, which occur during this "power up" period, are
subject to loss in case of power interruption. After the initial three minutes, all programmed data is protected
from power interruptions of any length and the customer's indi idual cycle is protected up to 3 seconds. This is
done without batteries.
LEAVE THE ELECTRICAL POWER TO THE DRYER ON AT ALL TIMES except when necessary for ser ice
or other similar acti ities. The hour meter function adds only full hours to its reading. If the power is shut off e ery night,
any fraction of an hour of time that is on the machine at that time will be lost. Turning the power off e ery night
could also ha e some effect on the long-term life of the memory after a number of years. Turning power off
occasionally won’t affect the unit.
THIS DRYER IS EQUIPPED WITH AN OVER-TEMPERATURE THERMOSTAT located to the right of
the motor on the rear of the cabinet. If the dryer ceases to operate, refer to your “Ser ice Procedure and Parts
Data” book for instructions.
CHECK THIS THERMOSTAT WHEN INSTALLING DRYER to assure it is not tripped. Impacts such as
rough handling in shipment, may trip the thermostat. It may be reset by inserting a wooden pencil or dowel
through the bushing in the co er.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE while in operation.
THIS APPLIANCE SHALL NOT BE USED TO DRY OFF SOLVENTS OR DRY-CLEANING FLUIDS.

8514-234-001 REV N page 3
SPECIFICATIONS
30 lb. Commercial Dryer: T-30
DC0030N_-(10/11/15)EC_X (60 Hz), DC0030N_-39AC_X (50 Hz)
Cabinet Height 72 1/4” 1835 mm.
(Assumes minimum le eling leg adjustment)
Cabinet Width 31 1/2” 800 mm.
Cabinet Depth 41 3/4” 1058 mm.
Floor to Bottom of Door 28 3/4” 730 mm.
Door Opening 22 5/8” 575 mm.
Dry Wt. Capacity 30 lbs. 13.6 kg.
Cylinder Diameter 30” 762 mm.
Cylinder Depth 27 1/2” 699 mm.
Cylinder Volume 11.25 cu. ft. 319 liters
Lint Screen Area 515 sq. in. 3323 sq. cm.
Gas Input (60 hz) 90,000 Btu/hr 95MJ/hr (26.4 kW)
Gas Input (50 hz) 74,000 Btu/hr 78MJ/hr (21.7 kW)
Gas Supply Connection 1/2” 12.7 mm.
Natural Gas Supply (Water Column) 5” - 8” 127 mm. - 203 mm./1.25kPa – 1.99kPa
Natural Burner Manifold
(60 hz Water Column) 3.5” 88.9 mm./0.87kPa
(50 hz Water Column) 3.4” 86.4 mm./0.84kPa
Propane or ULPG Supply (Water Column) 11.5” – 13.5” 292 mm. - 343 mm./2.86kPa - 3.36kPa
Burner Manifold Pressure
Propane (60 hz Water Column) 11” 279 mm./2.75kPa
Propane or ULPG (50 hz Water Column) 10” 254 mm./2.50kPa
Exhaust Size 8” 203 mm.
Make-up Air 1.0 sq. ft. 929 sq. cm.
Example: 1.0 sq. ft = 1 ft. long X 1 ft. wide
Motor Size 1/2 H.P. .373 kW
Airflow (60 hz) 830 CFM 23.5 m^3/min
Airflow (50 hz) 690 CFM 19.5 m^3/min
Electrical Specifications - 120/60/1
Voltage/Hz/Phase 120V/60Hz/1Phase
Running Amps 9.6
Circuit Protection Amps 15
Wire Size 12 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications – 208-240/60/1
Voltage/Hz/Phase 208-240V/60Hz/1Phase
Running Amps 5.1
Circuit Protection Amps 10
Wire Size 14 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications - 220-240/50/1
Voltage/Hz/Phase 220-240V/50Hz/1Phase
Running Amps 5.1
Circuit Protection Amps 10
Wire Size 14 gauge
Electrical Ser ice 2 wire + ground
Shipping Weight 507 lbs. 231 kg.
Net Weight 463 lbs. 210 kg.
Clearance Behind Machines (min.) 18” 457 mm.

8514-234-001 REV N page 4
SPECIFICATIONS

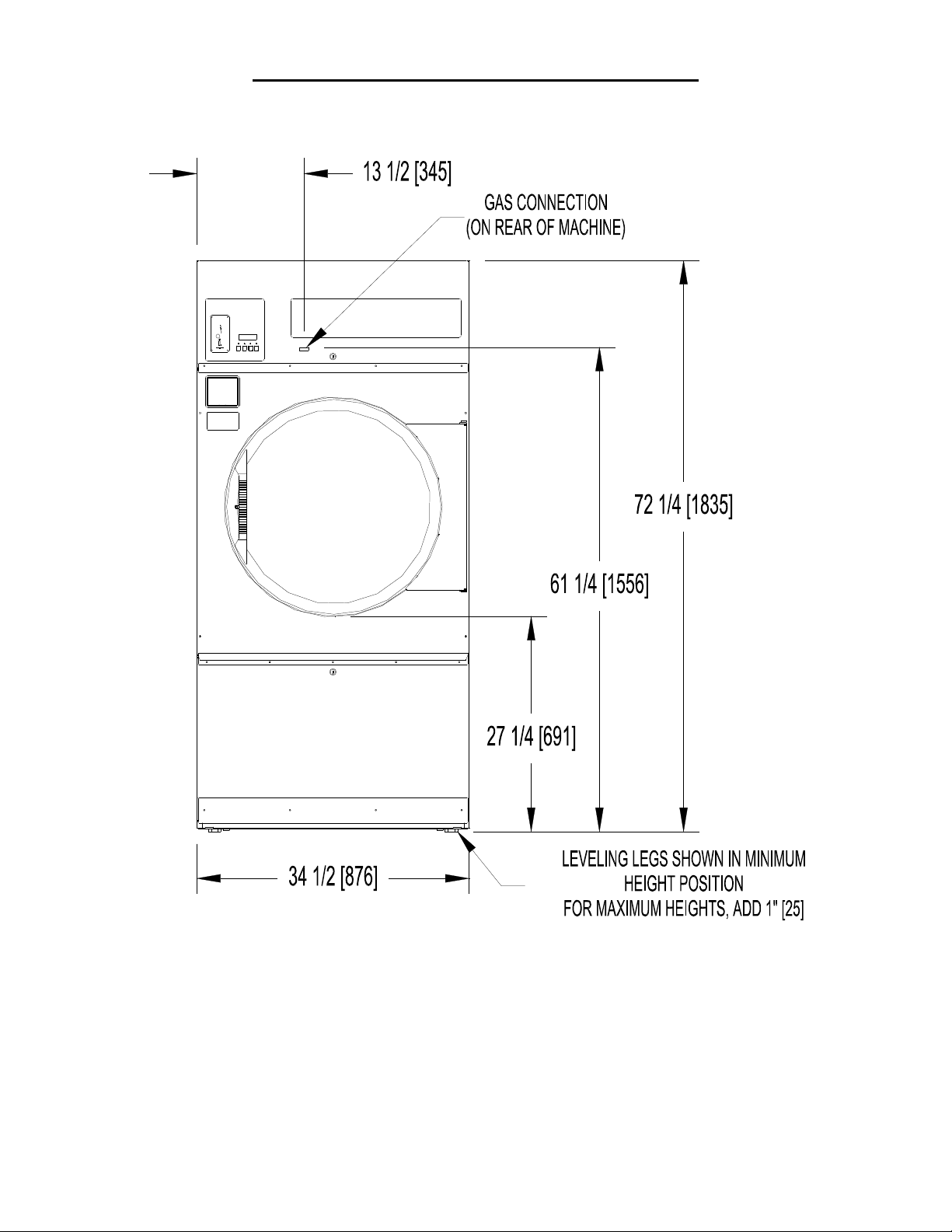

50 lb. Commercial Dryer: T-50
DC0050N_-(10/11/15)EC_X (60 Hz), DC0050N_-39AC_X (50 Hz)
Cabinet Height 72 1/4” 1835 mm.
(Assumes minimum le eling leg adjustment)
Cabinet Width 34 1/2” 875 mm.
Cabinet Depth 48” 1218 mm.
Floor to Bottom of Door 27 1/4” 691 mm.
Door Opening 25 5/8” 653 mm.
Dry Wt. Capacity 50 lbs. 24.9 kg.
Cylinder Diameter 32 1/2” 826 mm.
Cylinder Depth 33” 845 mm.
Cylinder Volume 15.84 cu. ft. 449.5 liters
Lint Screen Area 708 sq. in. 4568 sq. cm.
Gas Input (60 hz) 145,000 Btu/hr 153MJ/hr (42.5 kW)
Gas Input (50 hz) 120,000 Btu/hr 125MJ/hr (35.2 kW)
Gas Supply Connection 1/2” 12.7 mm.
Natural Gas Supply (Water Column) 5” - 8” 127 mm. - 203 mm./1.25kPa – 1.99kPa
Natural Burner Manifold
(60 hz Water Column) 3.5” 88.9 mm./0.87kPa
(50 hz Water Column) 3.5” 88.9 mm./0.87kPa
Propane or ULPG Supply (Water Column) 11.5” – 13.5” 292 mm. - 343 mm./2.86kPa - 3.36kPa
Burner Manifold Pressure
Propane (60 hz Water Column) 11” 279 mm./2.75kPa
Propane or ULPG (50 hz Water Column) 11” 279 mm./2.75kPa
Exhaust Size 8” 203 mm.
Make-up Air 1.25 sq. ft. 1161 sq. cm.
Example: 1.25 sq. ft = 1.25 ft. long X 1 ft. wide
Motor Size (60 Hz) 1 H.P. .746 kW
Motor Size (50 Hz) 3/4 H.P. .560 kW
Airflow (60 hz) 910 CFM 25.8 m^3/min
Airflow (50 hz) 760 CFM 21.5 m^3/min
Electrical Specifications - 120/60/1
Voltage/Hz/Phase 120V/60Hz/1Phase
Running Amps 9.6
Circuit Protection Amps 15
Wire Size 12 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications – 208-240/60/1
Voltage/Hz/Phase 208-240V/60Hz/1Phase
Running Amps 5.1
Circuit Protection Amps 10
Wire Size 14 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications - 220-240/50/1
Voltage/Hz/Phase 220-240V/50Hz/1Phase
Running Amps 5.1
Circuit Protection Amps 10
Wire Size 14 gauge
Electrical Ser ice 2 wire + ground
Shipping Weight 611 lbs. 277 kg.
Net Weight 579 lbs. 263 kg.
Clearance Behind Machines (min.) 18” 457 mm.

8514-234-001 REV N page 5
SPECIFICATIONS

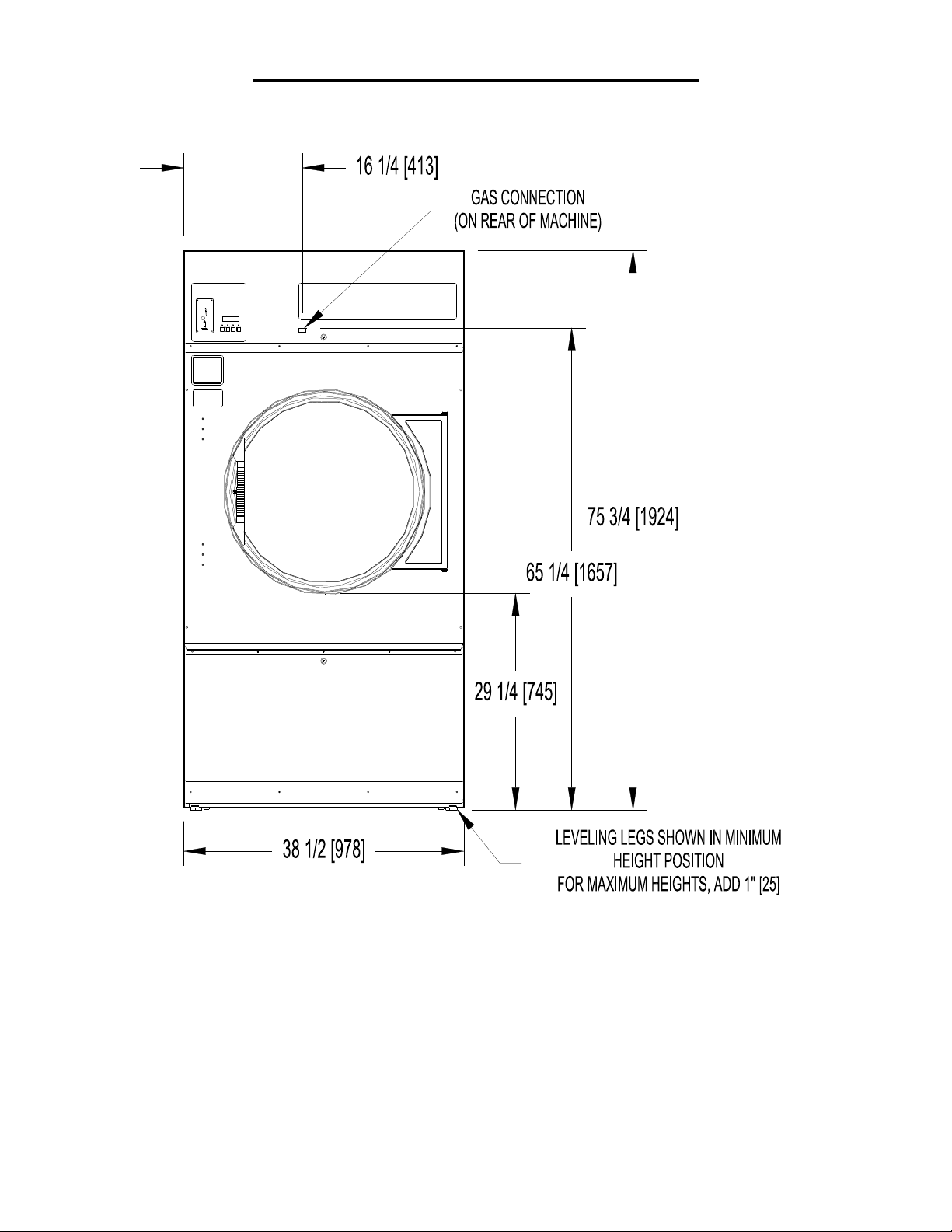

80 lb. Commercial Dryer: T-80
DC0080N_-(10/11/15)EC_X (60 Hz), DC0080N_-39AC_X (50 Hz)
Cabinet Height 75 3/4” 1924 mm.
(Assumes minimum le eling leg adjustment)
Cabinet Width 38 1/2” 978 mm.
Cabinet Depth 51 3/4” 1313 mm.
Floor to Bottom of Door 29 1/4” 743 mm.
Door Opening 25 5/8” 653 mm.
Dry Wt. Capacity 80 lbs. 36.3 kg.
Cylinder Diameter 36 1/2” 927 mm.
Cylinder Depth 38” 965 mm.
Cylinder Volume 23.0 cu. ft. 651.3 liters
Lint Screen Area 823 sq. in. 5310 sq. cm.
Gas Input (60 hz) 215,000 Btu/hr 227MJ/hr (63.0 kW)
Gas Input (50 hz) 195,000 Btu/hr 204MJ/hr (57.1 kW)
Gas Supply Connection 3/4” 19.1 mm.
Natural Gas Supply (Water Column) 5” - 8” 127 mm. - 203 mm./1.25kPa – 1.99kPa
Natural Burner Manifold
(60 hz Water Column) 3.5” 88.9 mm./0.87kPa
(50 hz Water Column) 3.5” 88.9 mm./0.87kPa
Propane or ULPG Supply (Water Column) 11.5” – 13.5” 292 mm. - 343 mm./2.86kPa - 3.36kPa
Burner Manifold Pressure
Propane (60 hz Water Column) 11” 279 mm./2.75kPa
Propane or ULPG (50 hz Water Column) 11” 279 mm./2.75kPa
Exhaust Size 8” 203 mm.
Make-up Air 1.5 sq. ft. 1394 sq. cm.
Example: 1.5 sq. ft = 1.5 ft. long X 1 ft. wide
Motor Size (60 Hz) 1 H.P. .746 kW
Motor Size (50 Hz) 3/4 H.P. .560 kW
Airflow (60 hz) 1200 CFM 34.0 m^3/min
Airflow (50 hz) 1000 CFM 28.3 m^3/min
Electrical Specifications - 120/60/1
Voltage/Hz/Phase 120V/60Hz/1Phase
Running Amps 10.4
Circuit Protection Amps 15
Wire Size 12 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications – 208-240/60/1
Voltage/Hz/Phase 208-240V/60Hz/1Phase
Running Amps 5.2
Circuit Protection Amps 10
Wire Size 14 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications - 220-240/50/1
Voltage/Hz/Phase 220-240V/50Hz/1Phase
Running Amps 5.2
Circuit Protection Amps 10
Wire Size 14 gauge
Electrical Ser ice 2 wire + ground
Shipping Weight 729 lbs. 331.2 kg.
Net Weight 699 lbs. 291.2 kg.
Clearance Behind Machines (min.) 18” 457 mm.

8514-234-001 REV N page 6
SPECIFICATIONS
120 lb. Commercial Dryer: T-120 Reversing Tumbler
DC0120N_-10EC_R (60 Hz), DC0120N_-39AC_R (50 Hz)
Cabinet Height 85 5/16” 2167 mm.
Cabinet Width 46 3/4” 1187 mm.
Cabinet Depth 60 3/16” 1528 mm.
Floor to Bottom of Door 34” 864 mm.
Door Opening 30” 762 mm.
Dry Wt. Capacity 120 lbs. 54.4 kg.
Cylinder Diameter 43” 1092 mm.
Cylinder Depth 43” 1092 mm.
Cylinder Volume 36.1 cu. ft. 1022.2 liters
Lint Screen Area 862 sq. in. 5561 sq. cm.
Gas Input (60 hz) 320,000 Btu/hr 338MJ/hr (93.8 kW)
Gas Input (50 hz) 300,000 Btu/hr 317MJ/hr (87.9 kW)
Gas Supply Connection 3/4” 19.1 mm.
Natural Gas Supply (Water Column) 5” - 8” 127 mm. - 203 mm./1.25kPa – 1.99kPa
Natural Burner Manifold
(60 hz Water Column) 3.5” 88.9 mm./0.87kPa
(50 hz Water Column) 3.5” 88.9 mm./0.87kPa
Propane or ULPG Supply (Water Column) 11.5” - 13.5” 292 mm. - 343 mm./2.86kPa - 3.36kPa
Burner Manifold Pressure
Propane (60 hz Water Column) 11” 279 mm./2.75kPa
Propane or ULPG (50 hz Water Column) 10” 254 mm./2.5kPa
Exhaust Size 10” or 12” 254 or 305 mm.
Make-up Air 2.25 sq. ft. 2090 sq. cm.
Example: 2.25 sq. ft = 2.25 ft. long X 1 ft. wide
Motor Size-Tumbler (50 or 60 Hz) 1 H.P. .746 kW
Motor Size-Blower (60 Hz) 1 H.P. .746 kW
Motor Size-Blower (50 Hz) 3/4 H.P. .560 kW
Airflow – 12” Outlet (60 hz) 1450 CFM 41.1 m^3/min
Airflow – 10” Outlet (60 hz) 1250 CFM 35.4 m^3/min
Airflow – 10” or 12” Outlet (50 hz) 1000 CFM 28.3 m^3/min
Electrical Specifications - 120/60/1
Voltage/Hz/Phase 120V/60Hz/1Phase
Running Amps 15.0
Circuit Protection Amps 25
Wire Size 12 gauge
Electrical Ser ice 2 wire + ground
Electrical Specifications - 230/50/1
Voltage/Hz/Phase 230V/50Hz/1Phase
Running Amps 10.0
Circuit Protection Amps 20
Wire Size 3.5 mm2
Electrical Ser ice 2 wire + ground
Shipping Weight 1090 lbs. 494.4 kg.
Net Weight 950 lbs. 431 kg.
Clearance Behind Machines (min.) 18” 457 mm.

8514-234-001 REV N page 7
T-30 DRYER DIMENSIONS- FRONT VIEW

8514-234-001 REV N page 8
T-30 DRYER DIMENSIONS- SIDE VIEW

8514-234-001 REV N page 9

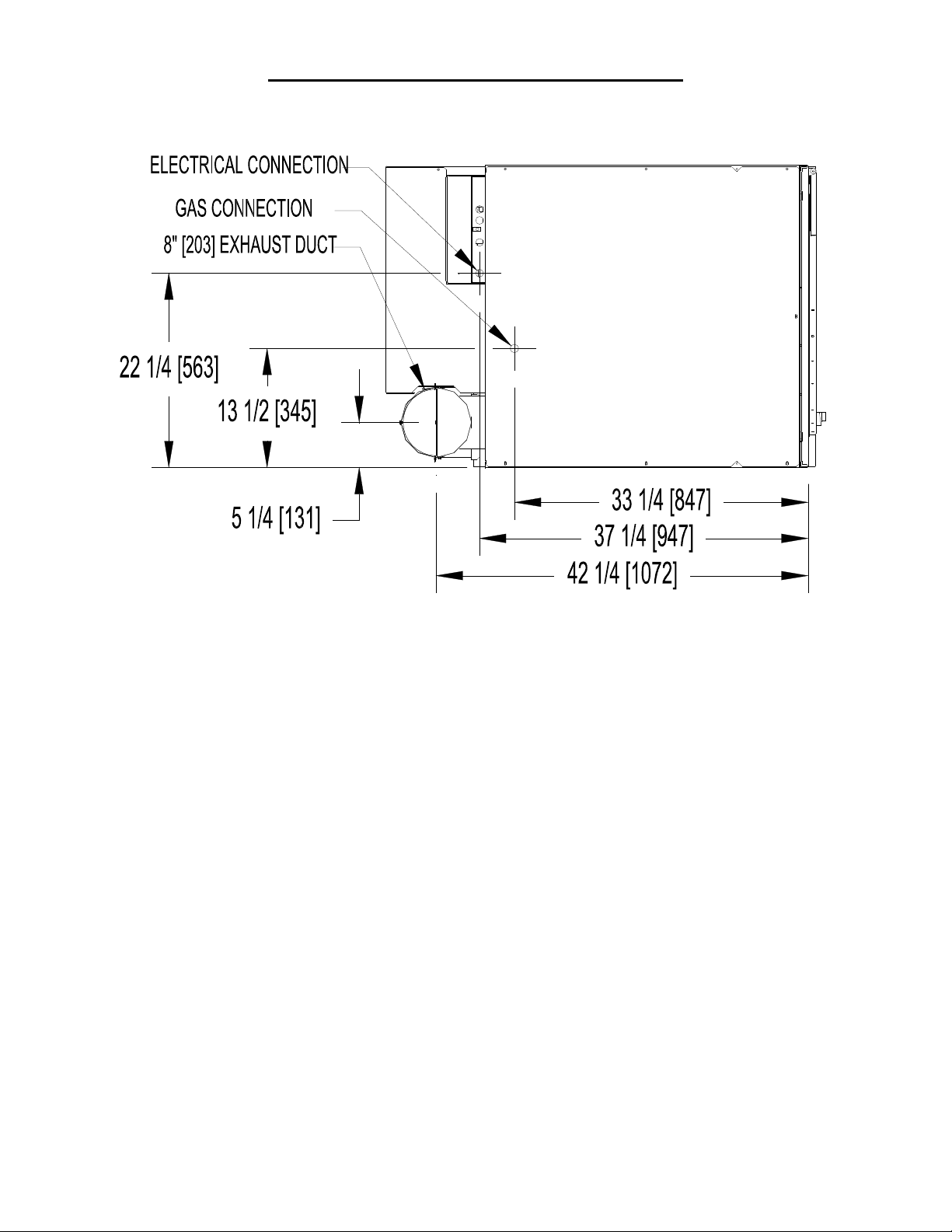

T-30 DRYER DIMENSIONS- TOP VIEW

8514-234-001 REV N page 10
T-50 DRYER DIMENSIONS- FRONT VIEW

8514-234-001 REV N page 11
T-50 DRYER DIMENSIONS- SIDE VIEW

8514-234-001 REV N page 12
T-50 DRYER DIMENSIONS- TOP VIEW

8514-234-001 REV N page 13
T-80 DRYER DIMENSIONS- FRONT VIEW

8514-234-001 REV N page 14
T-80 DRYER DIMENSIONS- SIDE VIEW

8514-234-001 REV N page 15
T-80 DRYER DIMENSIONS- TOP VIEW

8514-234-001 REV N page 16
T-120 DRYER DIMENSIONS- FRONT VIEW

8514-234-001 REV N page 17
T-120 DRYER DIMENSIONS- SIDE VIEW

8514-234-001 REV N page 18
T-120 DRYER DIMENSIONS- SIDE VIEW

8514-234-001 REV N page 19
INSTALLATION AND OPERATING INSTRUCTIONS
UNCRATING AND PLACING DRYER
Tools Required: 3/4" (19 mm) hex socket & ratchet dri er, wood block 4" (100 mm) or 5" (125 mm) thick, a knife
and a groo e joint pliers, which will open to 1 3/8" (35 mm).
1. Remo e and discard packaging.
2. The crate base is attached to the dryer by (4) cap screws dri en upward from below the crate base. Remo e
crate base from dryer, by tipping dryer sidewise and place block under crate base rail in center of dryer.
Using a ratchet and 3/4" hex socket, remo e and discard (2) crating bolts from side, which is raised.
Remo e block from under crate base. Repeat for other side. Sa e the bolts for use if the dryer is e er
mo ed again.
3. With a walking motion mo e dryer completely off crate base. Sa e the crate base for use if the dryer is
e er mo ed again.
4. Slide unit into position where it will be installed. Adjust le eling legs, using the groo e joint pliers, to le el and
align dryer with adjacent units.
Note: If the dryer is e er mo ed again, the dryer should be re-mounted on its crate base and its crating bolts re-
inserted and tightened, in the re erse order as abo e.
DRYER INSTALLATION
1. CODE CONFORMITY: All commercial dryer installations must conform with local codes, or in the absence of
local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. Canadian installations must
comply with the current Standard CAN/CGA-B149 (.1 or .2) Installation Code for Gas Burning Appliances or
Equipment, and local codes if applicable. Australian installations must meet installation requirements and pipe
sizing requirements of AS/NZA 5601. The appliance, when installed, must be electrically grounded in
accordance with the latest edition of the National Electric Code, ANSI/NFPA70, or, when installed in
Canada, with Standard CSA C22.1 Canadian Electrical Code Part 1.
To connect the dryer to the supply piping, use a listed connector in compliance with the Standard for
Connectors for Gas Appliances, ANSI Z21.24 • CSA 6.10.
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the
opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is
restricted.
2. INSTALLATION CLEARANCES: This unit may be installed at the following alco e clearances:
I. Left Side 0"
II. Right Side 0"
III. Back 18" (457 mm) (Certified for 1" (25 mm) clearance; howe er, 18" (457 mm) clearance is
necessary behind the motors to allow ser icing and maintenance.)
IV. Front 48" (1220 mm) (to allow use of dryer)
V. Top Refer to figure labeled “Vertical Clearance Dimensions”.
AB. Certification allows 0" clearance for wall framing at the top up to 18" (456 mm)
back from the front.
C. Howe er, a 1/4" (6 mm) clearance should be allowed so that the upper door can
be opened.
VI. Floor This unit may be installed upon a combustible floor.
Do not obstruct the flow of combustion and entilation air.
Maintain minimum of 1" (25 mm) clearance between duct and combustible material.
Refer to the label attached to the Belt Guard on the rear of the dryer for other installation information and
start-up instructions.

8514-234-001 REV N page 20
VERTICAL CLEARANCE DIMENSIONS
3. MAKE-UP AIR: Adequate make-up air must be supplied to replace air exhausted by dryers on all types of
installations. Refer to specifications for the minimum amount of make-up air opening to outside for each dryer.
This is a net requirement of effecti e area. Screens, grills or lou ers, which will restrict the flow of air, must be
considered. Consult the supplier to determine the free area equi alent for the grill being used. The source of
make-up air should be located sufficiently away from the dryers to allow an e en airflow to the air intakes
of all dryers. Multiple openings should be pro ided.
The sources of all make-up air and room entilation air mo ement to all dryers must be located away
from any dry cleaners. This is necessary so that sol ent apors will not be drawn into the dryer inlet
ducts. Dry cleaner sol ent apors will decompose in contact with open flame such as the gas flame present
in clothes dryers. The decomposition products are highly corrosi e and will cause damage to the dryer(s)
ducts and clothes loads.
The operation of this appliance may affect the operation of other types of gas appliances, which take
their air for safe combustion from the same room. Adequate entilation must be pro ided to a oid back
flow of gasses from other appliances in the same room. All other gas appliances should be tested with
the Dexter dryer in operation and all the windows and doors closed. If in doubt consult the appliance
manufacturer(s).
4. ELECTRICAL REQUIREMENTS. The electrical power requirements necessary to operate the unit satisfactorily
are listed on the serial plate located on the back panel of each dryer and in the specifications section of
this manual. The electrical connection should be made to the terminal board, on the rear of the unit. It is
absolutely necessary that the dryer be grounded to a known ground. Indi idual circuit breakers for each
dryer are required.
The installer must pro ide a disconnect switch which will interrupt both lines. It may be a local or national
requirement to pro ide an electrical interruption switch isible and accessible from the room in which the
dryer is installed. The wiring diagram is located on the belt guard on back of the dryer.
5. GAS REQUIREMENTS. The complete gas requirements necessary to operate the dryer satisfactorily are
listed on the serial plate located on the back panel of the dryer and in the specifications section of this
manual. The inlet gas connection to the unit is 1/2-inch [12.7] pipe thread for T-30 and T-50 and 3/4-inch
[19.1] for T-80 and T-120. Howe er, the size of the piping to supply the dryer should be determined by
reference to the National Fuel Gas Code ANSI Z223.1A and consultation with the local gas supplier.
