Chapter 1 Introduction
KS211/212
7” Touch Panel PC
User’s Manual
A27010427

www.dfi.com
2
Chapter 1 Introduction
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
© 2014. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.d.com
3
Chapter 1 Introduction
Table of Contents
Copyright �����������������������������������������������������������������������������������������������������������2
Trademarks �������������������������������������������������������������������������������������������������������2
FCC and DOC Statement on Class B ���������������������������������������������������2
About this Manual ����������������������������������������������������������������������������������������� 4
Warranty ������������������������������������������������������������������������������������������������������������4
Static Electricity Precautions ��������������������������������������������������������������������4
Safety Measures ��������������������������������������������������������������������������������������������4
About the Package ��������������������������������������������������������������������������������������� 5
Chapter 1 - Introduction ���������������������������������������������������������������������������6
Overview �������������������������������������������������������������������������������������������������������6
Key Features ������������������������������������������������������������������������������������������������6
Specifications �����������������������������������������������������������������������������������������������7
Getting the Know the KS211/212 ����������������������������������������������������������9
Mechanical Dimensions ��������������������������������������������������������������������������� 10
Chapter 2 - Installation �������������������������������������������������������������� 11
Connecting Cables to Terminal Blocks ����������������������������������������������� 11
Removing the Chassis Cover ������������������������������������������������������������������12
Chapter 3 - Hardware Installation �������������������������������������������� 13
Board Layout ��������������������������������������������������������������������������������������������� 13
System Memory ���������������������������������������������������������������������������������������� 13
Jumper Settings ���������������������������������������������������������������������������������������� 13
Top Panel I/O Port ����������������������������������������������������������������������������������� 16
Side Panel I/O Port ���������������������������������������������������������������������������������� 16
Bottom Panel I/O Ports �������������������������������������������������������������������������� 17
Chapter 4 - Mounting Options �������������������������������������������������������������� 22
Wall Mount ������������������������������������������������������������������������������������������������� 22
Panel Mount ����������������������������������������������������������������������������������������������� 23
Appendix A - BSP User Guide ��������������������������������������������������������������� 22
Appendix B – Android BSP Known Issue ���������������������������������������� 35

www.dfi.com
4
Chapter 1 Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper in-
stallation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Important:
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Electrostatic discharge (ESD) can damage your processor, disk drive and other components.
Perform the upgrade instruction procedures described at an ESD workstation only. If such a sta-
tion is not available, you can provide some ESD protection by wearing an antistatic wrist strap
and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish
and maintain contact with the system chassis throughout any procedures requiring ESD protec-
tion.

www.dfi.com
5
Chapter 1 Introduction
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 7” Touch Panel PC
• 3 Terminal blocks
• 1
24V power adapter
• 1 CD disk includes: Manual
• 1 Quick Installation Guide
Optional Items
• Wall Mount kit
• Panel Mount kit
• Power Cord
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

www.dfi.com
6
Chapter 1 Introduction
Chapter 1 - Introduction
Chapter 1

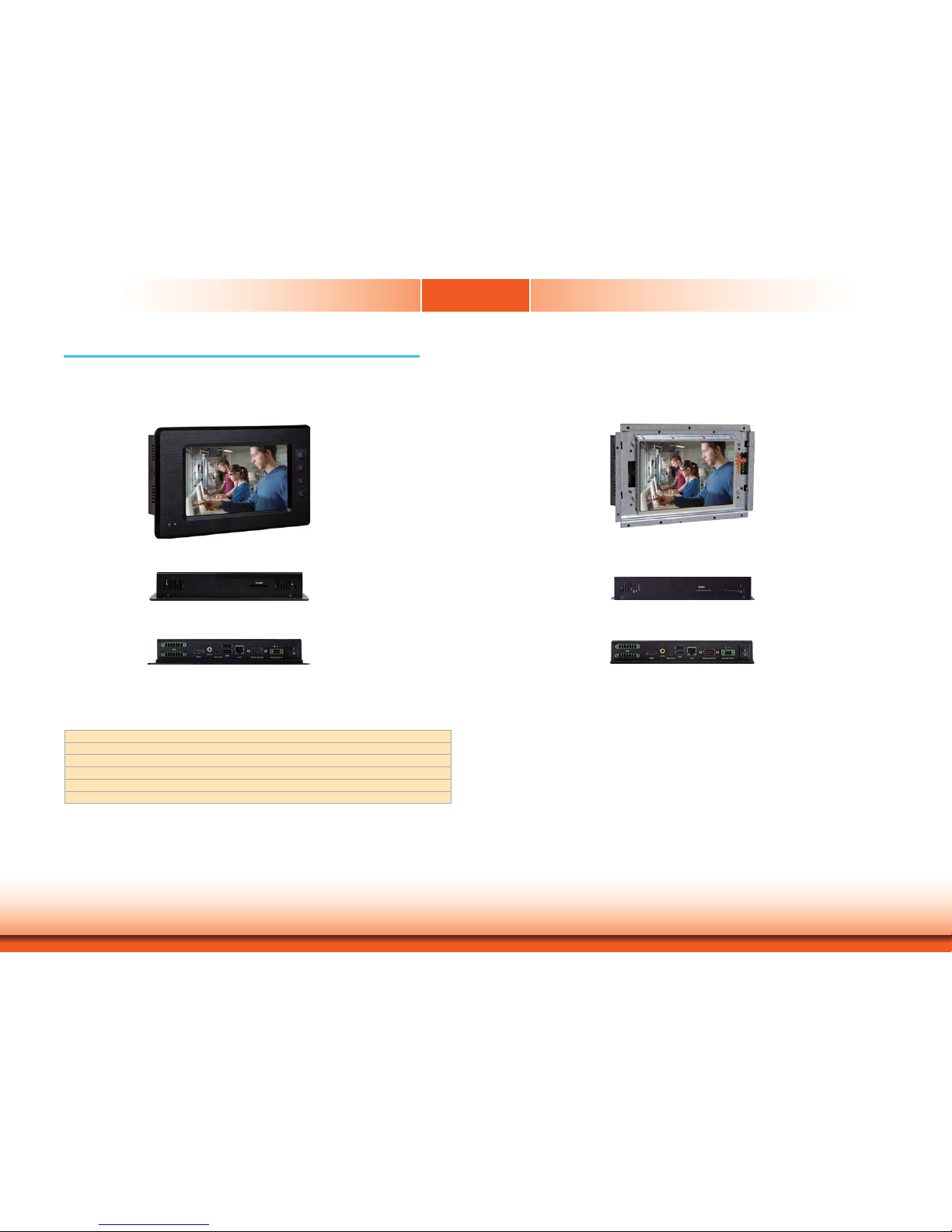

Overview
KS211 KS212
Top View
Bottom View
Side View
Top View
Bottom View
Side View
Key Features
• 7" WVGA Touch Screen Fanless Panel PC
• 1GB DDR3 onboard
• 4GB eMMC onboard
• 4 customizable function keys (KS211)
• 1 SD/MMC socket
• 1 HDMI, 2 USB 2.0, 1 Mini USB, 1 LAN, 1 COM, 12-bit GPIO

www.dfi.com
7
Chapter 1 Introduction
EXPANSION
SLOTS • 1 Mini PCIe slot (DFI Proprietary) - Supports half size Mini PCIe card
- Supports USB interface for 3G module
• 1 SIM card slot
POWER • 9~30Vdc (+/-10%) power input voltage
FRONT PANEL
PROTECTION
• IP65 (Dust Tight; Water Proof protection)
CONSTRUCTION
• Aluminum front bezel, rugged metal housing
MOUNTING • Wall mount (VESA 75x75)
• Panel mount (Mounting clamp)
ENVIRONMENT • Temperature
- Operating: -15oC ~ 60oC
- Storage: -30oC ~ 80oC
• Relative Humidity
- 95% RH at 60oC
DIMENSIONS • 235mm x 150mm x 40.80mm (W x H x D)
WEIGHT •
2.10 kg
OS SUPPORT • Android 2.3
• LTIB Linux 2.6.35.3
Specifications
KS211
PROCESSOR • Freescale i.MX535
- ARM Cortex-A8 core
- Processor speed: up to 1GHz
SYSTEM MEMORY • DDR3 onboard
• Onboard memory
- 1GB: standard
- 2GB: option
LCD and
TOUCH SCREEN • 7” (800x480) WVGA TFT touch screen LCD • Supports touch screen
- TI®TSC2004 touch screen controller
• 400 NITS
• 4-Wire Resistive touch screen
STORAGE • 8Mbit EEPROM (option)
• 1 SD/MMC socket
• Supports 4GB (standard), 8GB and 16GB eMMC onboard
ONBOARD LAN
FEATURES • SMSC 8710 10/100 Ethernet transceiver
AUDIO • SGTL5000 2-channel audio codec
• 2 built-in 2W speakers (left and right sides)
• 1 Line-out
GPIO • 1 12-bit GPIO connector (6 bit in/6 bit out, with power)
I/O PORTS • Front
- 1 Power LED
- 4 function keys
• Bottom
- 1 DB-9 RS232/422/485 serial port
- 1 HDMI port
- 1 Mini USB port (device Type B)
- 2 USB 2.0/1.1 ports (Type A)
- 1 Line-out jack
- 12-bit GPIO (2 7-pole terminal blocks)
- 1 2-pin 9-30V DC-in jack
- 1 power switch
- 1 LAN port
• Side
- 2 built-in 2W speakers (left and right sides)
• Top
- 1 SD/MMC card socket
Chapter 1

www.dfi.com
8
Chapter 1 Introduction
Chapter 1
Specifications
KS212
EXPANSION
SLOTS • 1 Mini PCIe slot (DFI Proprietary) - Supports half size Mini PCIe card
- Supports USB interface for 3G module
• 1 SIM card slot
POWER • 9~30Vdc (+/-10%) power input voltage
CONSTRUCTION • Aluminum front bezel, rugged metal housing
FRONT PANEL
PROTECTION
• IP65 (Dust Tight; Water Proof protection)
MOUNTING • VESA 75x75
ENVIRONMENT • Temperature
- Operating: -15oC ~ 60oC
- Storage: -30oC ~ 80oC
• Relative Humidity
- 95% RH at 60oC
DIMENSIONS • 230.40mm x 142.32mm x 35.80mm
WEIGHT •
1.90 kg
OS SUPPORT • Android 2.3
• LTIB Linux 2.6.35.3
PROCESSOR • Freescale i.MX535
- ARM Cortex-A8 core
- Processor speed: up to 1GHz
SYSTEM MEMORY • DDR3 onboard
• Onboard memory
- 1GB (standard)
- 2GB: option
LCD and
TOUCH SCREEN • 7” (800x480) WVGA TFT touch screen LCD
• Supports touch screen
- TI®TSC2004 touch screen controller
• 400 NITS
• 4-Wire Resistive touch screen
STORAGE • 8Mbit EEPROM (option)
• 1 SD/MMC socket
• Supports 4GB (standard), 8GB and 16GB eMMC onboard
ONBOARD LAN
FEATURES • SMSC 8710 10/100 Ethernet transceiver
AUDIO • SGTL5000 2-channel audio codec
• 2 built-in 2W speakers (left and right sides)
• 1 Line-out
GPIO • 1 12-bit GPIO connector (6 bit in/6 bit out, with power)
I/O PORTS • Bottom
- 1 DB-9 RS232/422/485 serial port
- 1 HDMI port
- 1 Mini USB port (device Type B)
- 2 USB 2.0/1.1 ports (Type A)
- 1 Line-out jack
- 12-bit GPIO (2 7-pole terminal blocks)
- 1 2-pin 9-30V DC-in jack
- 1 power switch
- 1 LAN port
• Side
- 2 built-in 2W speakers (left and right sides)
• Top
- 1 SD/MMC card socket

www.dfi.com
9
Chapter 1 Introduction
Getting to Know the KS211/212
Chapter 1

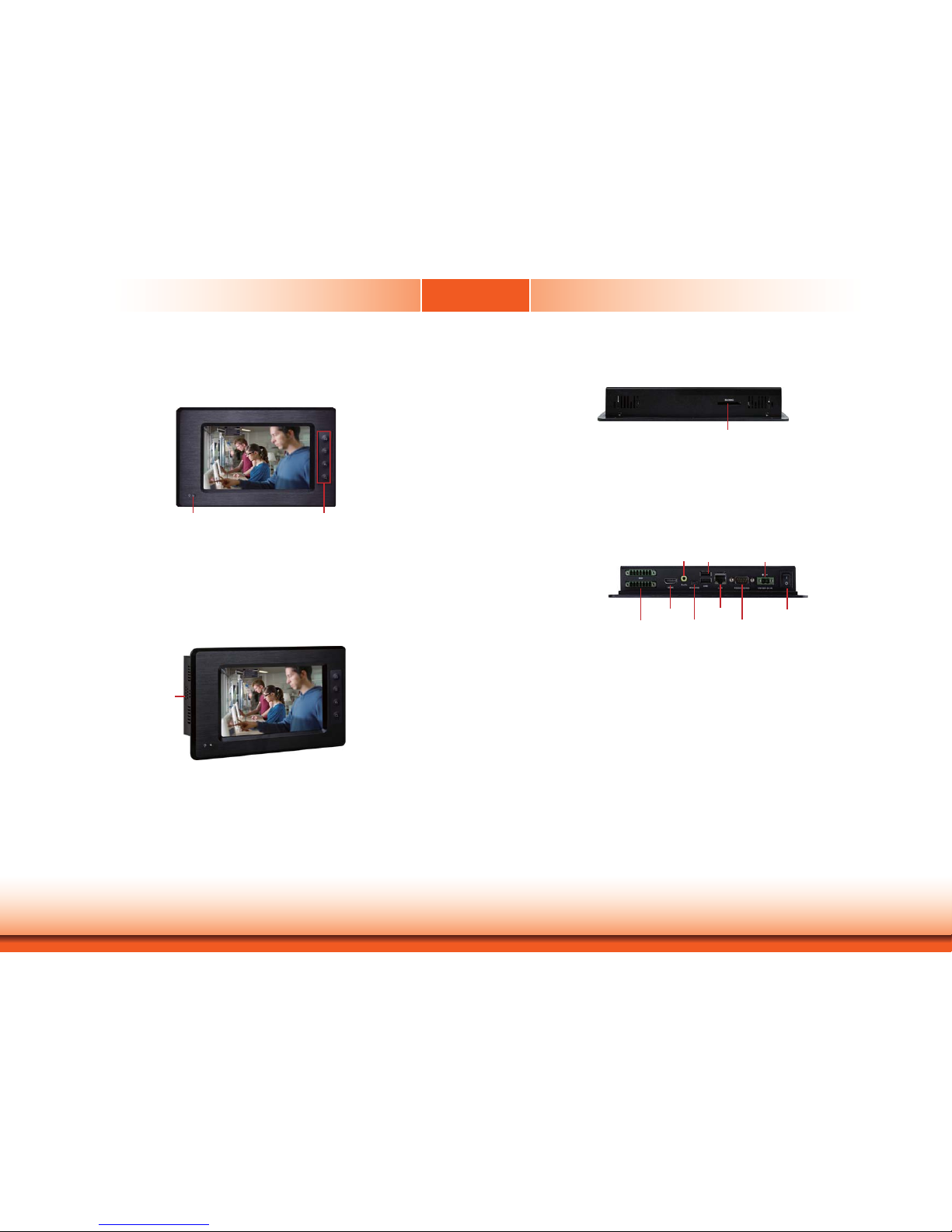

Front View
Power LED
Indicates the power status of the system.
Function Keys (KS211)
Used to navigate through the pages.
Top View
SD/MMC
Indicates to insert and SD and MMC.
Bottom View
COM
Used to connect a serial device.
Mini USB
Used to connect a Mini USB device (only as client).
USB
Used to connect USB 2.0/1.1 devices.
LAN
Used to connect the system to a local area network.
GPIO
Supports 6-bit input and 6-bit output GPIO connector (with power).
Line-out
Used to connect to a speaker.
DC-in
Used to plug a power adapter.
Power Switch
Press to power-on or power-off the system.
HDMI
Used to connect an HDMI device.
Power LED Function Keys
SD/MMC
2W built-in speaker
Side View
Speaker
Bult-in with 2W speaker in the right and left sides.
Power Switch
Line-out USB 9-30V DC-in
HDMI RS232/422/485 COM
12-bit GPIO Mini USB LAN

www.dfi.com
10
Chapter 1 Introduction

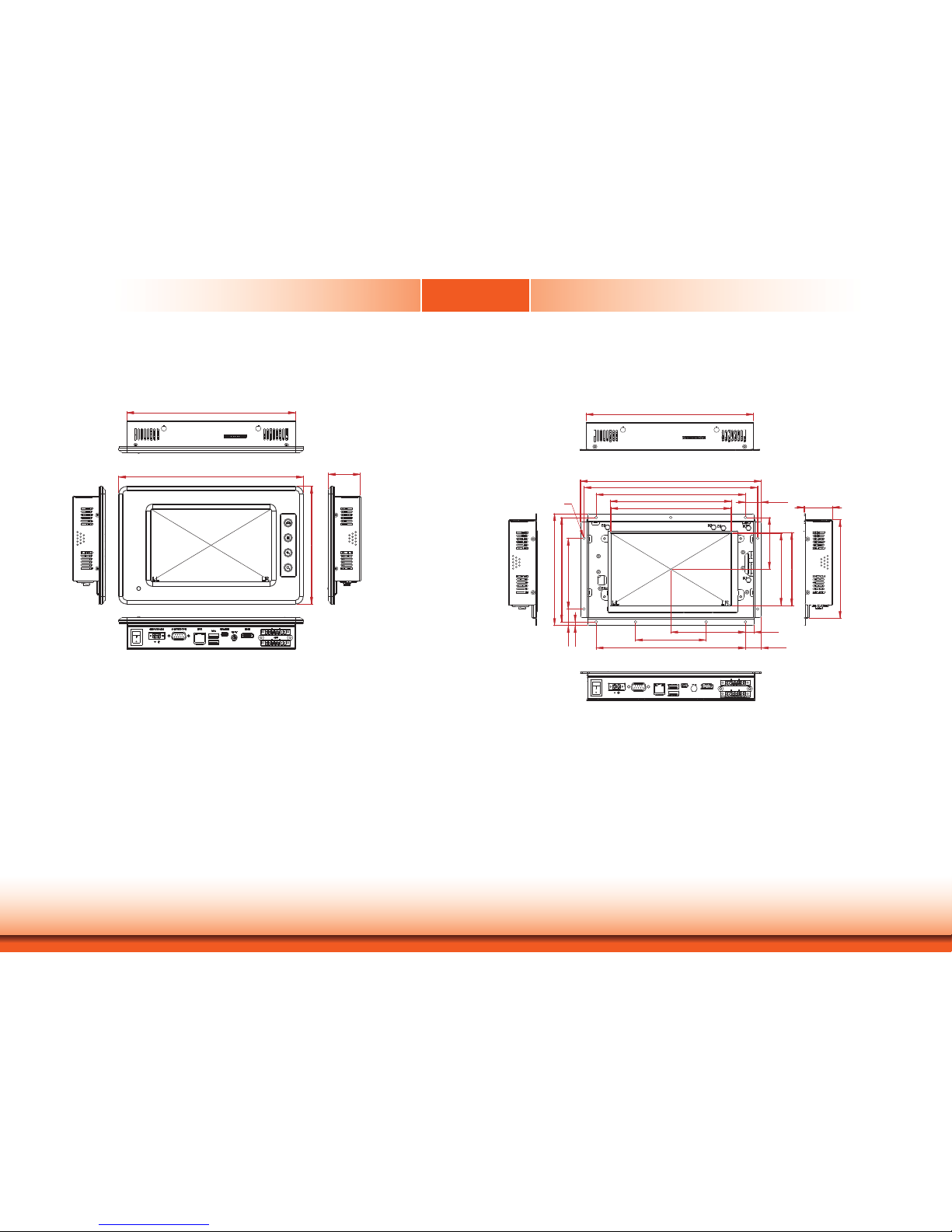

Mechanical Dimensions
KS211 KS212
Chapter 1
Left View
214.60
235.00
150.00
40.80
Bottom View
Right View
Top View
Front View
125.60
35.80
90.00
20.99
4.49
133.00
142.32
11.2095.00
20.20190.00
90.00
153.00(A,A FOR T/P)
154.40(V,A FOR T/P)
190.00
221.00
230.40
20.20
65.85
92.04 93.40
214.60
(A,A FOR T/P)
(V,A FOR T/P)
Ø3.50
Bottom View
Right View
Top View
Front ViewLeft View

www.d.com
11
Chapter 2 Installation
Chapter 2 - Installation
Chapter 2

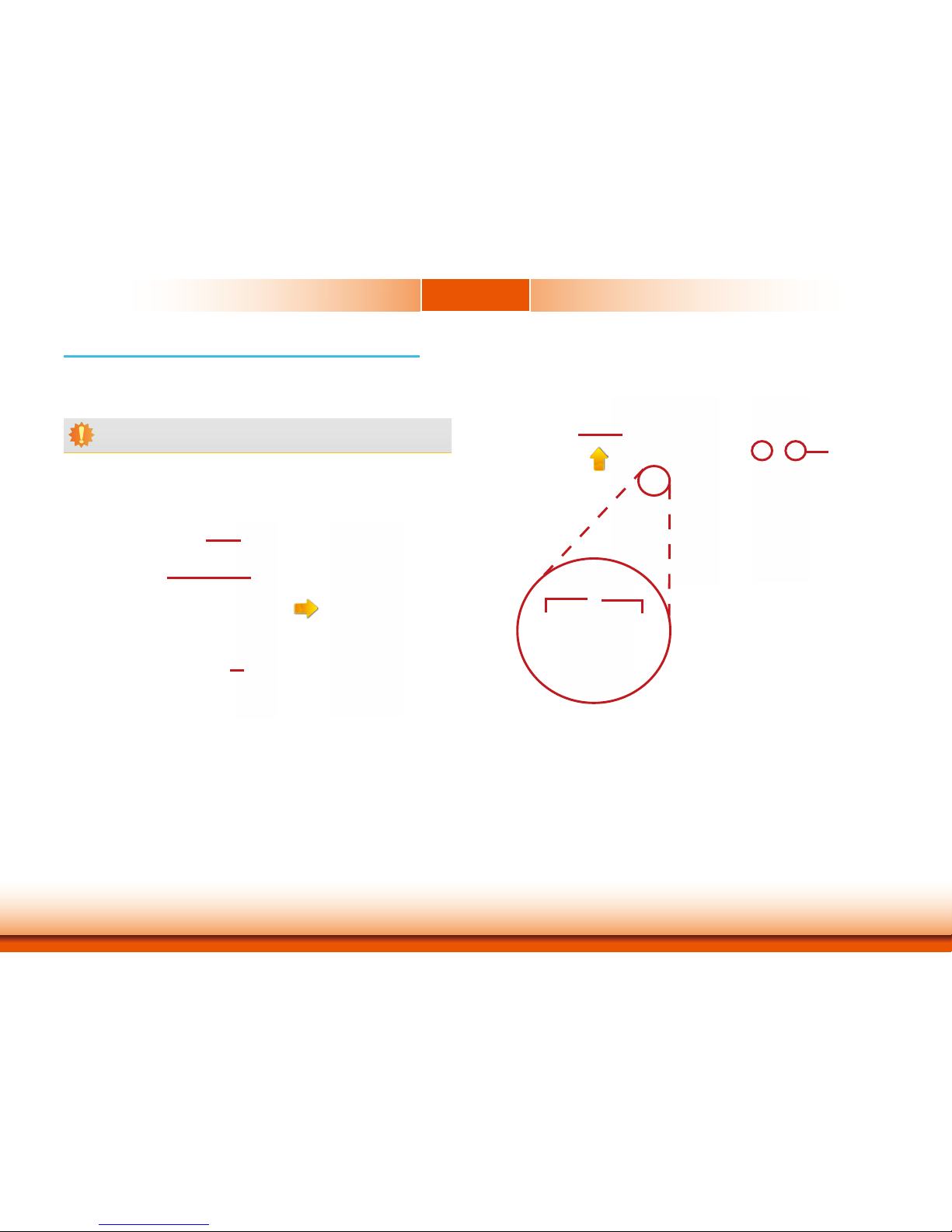

Connecting Cables to Terminal Blocks
Important:
When installing the touch panel PC, make sure the power is off. Failure to turn off, may cause
severe damage to the system.
1. Insert the cable end of the power adaptor to the terminal block. To firmly fix the cable into
the terminal block, use a screwdriver to clamp down the wires to the screw that is in the
terminal block.
2. Plug the terminal block into the DC-in connector and then tighten the screws to secure the
terminal block in place.
Terminal block
Wire
Power adapter cable
DC-in
connector
Screws
White Wire Black Wire
+ -

www.d.com
12
Chapter 2 Installation
1. Make sure the system and all other peripheral devices connected to it has been powered-
off.
2. Disconnect all power cords and cables.
3. The 8 mounting screws on the rear side of the system are used to secure the cover to the
chassis. Remove these screws and then put them in a safe place for later use.
Removing the Chassis Cover
Mounting Screw
4. After removing the mounting screws, lift the cover up.
5. The Mini PCIe slot and SIM card slot are readily accessible after removing the chassis
cover.
Lift the Cover Upward
Mini PCIe Slot
SIM card slot
Mounting Screw
Chapter 2

www.d.com
13
Chapter 3 Hardware Installation
Chapter 3
Chapter 3 - Hardware Installation
Board Layout
1
ON
23456
SW4
110
3
COM1
debug
port
1
109
2
Power LED
Chassis Intrusion
Freescale
i.MX535
DDR3
1
Clear CMOS
(JP1)
RTC_Battery
DDR3
1
39
LVDS 2
40
1
AMP_R
VGA
1
15
2
16
Reset
Power Button
JTAG
1
2
11
12
SW28 SW29
456 1
ON
2378
456 1
ON
2378
3G LED
MIC
AMP_L
SIM
1
13
14 2DIO
USB 6-7
3G_Modem
1
2
9
10
HDMI Chip
Sil9022
Audio Chip
SGTL5000
LAN Chip
SMSC 8710
Panel Power
Select
(J11)
UART 2 Chip
SP338
PMIC
DA9053
COM2 RS232/422/485
HW/SW Mode Select(JP7)
1
1
2
2
12 1
1
1
+-
MMC/SD
HDMI
Line-out
Mini USB
LAN
USB 4-5
COM2
DC-in
System Memory
DDR3
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lit red, it indicates that there is power on the system
board. Power-off the PC then unplug the power cord prior to installing any devices.
Failure to do so will cause severe damage to the motherboard and components.
•DDR3onboard
•Onboardmemory
- 1GB: standard
- 2GB: optional
Power LED
Features
DDR3 DDR3
eMMC
Touch
Screen
5
1
Android Hot Key Connector
Top View
Bottom View

www.d.com
14
Chapter 3 Hardware Installation
Chapter 3
Jumper Settings
Clear CMOS Data
If you encounter the following,
a) CMOSdatabecomescorrupted.
b) You forgot the supervisor or user password.
youcanreconfigurethesystemwiththedefaultvaluesstoredintheROMBIOS.
ToloadthedefaultvaluesstoredintheROMBIOS,pleasefollowthestepsbelow.
1. Power-off the system and unplug the power cord.
2. SetJP1pins2and3toOn.WaitforafewsecondsandsetJP1backtoitsdefaultsetting,
pins1and2On.
3. Now plug the power cord and power-on the system.
JP1
2-3On:
ClearCMOSData
1-2On:
Normal (default)
3
1
2
3
1
2
COM RS232/RS422/RS485 Select
SW4(forCOM2)isusedtoconfiguretheCOMporttoRS232,RS422(FullDuplex)orRS485.
JP7isusedtoconfiguretheCOMportsetviathehardwaremodeorsoftwaremode.
Note:
IfyouusetheSW4toselectRS232/RS422/RS485,makesureJP7issetviathe
“Hardware Mode”.
12
10
3
1
1-4-7-10,2-5-8-11On:
Software Mode (default)
2-5-8-11,3-6-9-12On:
Hardware Mode
12
10
3
1
RS232/RS422/RS485 Select: COM (SW4)
RS232 1On,2-3Off
RS422 1,2On,3Off
RS485 2On,1,3Off
SW4
JP7
COM:
RS232/422/485

www.d.com
15
Chapter 3 Hardware Installation
Chapter 3
Panel Power Select MMC/SD Mode Select
2-3On:
+3.3V (default)
1-2On:+5V
J11 is used to select the power that supplies with the LVDS panel.
Important:
Before powering-on the system, make sure J11’s setting matches the LVDS panel’s
specification. Selecting the incorrect voltage will seriously damage the LVDS panel.
J11
3
1
2
3
1
2
SW28 SW29
MMC/SD Mode SW29 SW28
Program Mode All off 5,6On
eMMC Boot 2,3,4,7On 1On
SD Boot 2On All off
SW28andSW29areusedtosettheMMC/SDCardsocketviatheselectionsofProgramMode,
eMMC Boot, or SD Boot.

www.dfi.com
16
Chapter 3 Ports and Connectors
Ports and Connectors
Top Panel I/O Port
Chapter 3
SD/MMC
The front panel I/O port consist of the following:
• 1 SD/MMC card socket
SD/MMC
SD/MMC
card socket
This expansion port is used to insert a Secure Digital (SD) or Multimedia Card (MMC) device.
Aside from storing data files, an SD card is also capable of storing powerful software applica-
tions.

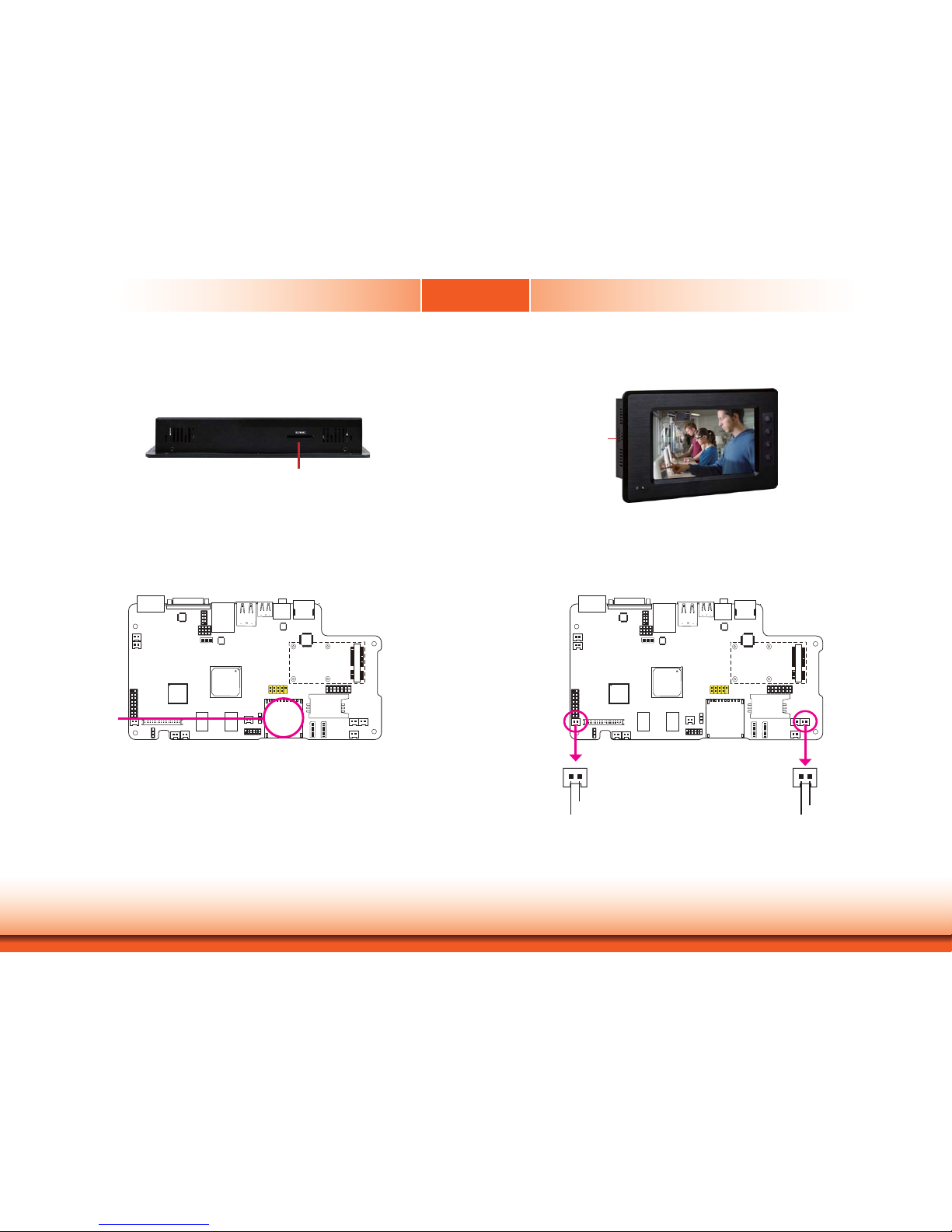

Side Panel I/O Port
2W built-in speaker
The side panel I/O port consist of the following:
• 2 2W built-in speaker (right and left sides)
Built-in Speaker
1
AOUT_R+
AOUT_R- AOUT_L+ AOUT_L-
The amplify connectors right/left which have amplifying feature are used to connect external
speakers. Using the same signal cable to connect with external speaker.
1
AMP_R AMP_L

www.dfi.com
17
Chapter 3 Ports and Connectors
Chapter 3
Bottom Panel I/O Ports
The bottom panel I/O ports consist of the following:
• 1 12-bit GPIO (6-bit in/6-bit out)
• 1 HDMI port (Type B)
• 1 Mini USB port
• 1 Line-out jack
• 1 RS232/422/485 COM port
• 1 LAN port
• 2 USB 2.0/1.1 ports (Type A)
• 1 DC-in
GPIO
17
8 14
Power Switch
Line-out USB 9-30V DC-in
HDMI RS232/422/485 COM
12-bit GPIO Mini USB LAN
1
8
The 12-bit Digital I/O (6-bit input and 6-bit output) connector provides powering-on function
to external devices that are connected to these connectors. The pin functions of the digital I/O
connector are listed below:
GPIO Connector
Pins Function Pins Function
1DIO_OUT-1 8DIO_IN-4
2DIO_IN-1 9DIO_OUT-5
3DIO_OUT-2 10 DIO_IN-5
4DIO_IN-2 11 DIO_OUT-6
5DIO_OUT-3 12 DIO_IN-6
6DIO_IN-3 13 DC_5V_BB
7DIO_OUT-4 14 GND

www.dfi.com
18
Chapter 3 Ports and Connectors
HDMI
The HDMI interface which carries both digital audio and video signals is used to connect a LCD
monitor or digital TV that has the HDMI port.
HDMI
Note:
The graphics features are controlled by CPU. When HDMI and LVDS displays
simultaneously, the system board transmits video signals from HDMI port only. The
LVDS works on the system board will make the screen dark.
Mini USB
Mini USB
The Mini USB is a device that can act as client role. It indicates the concept of one-to-one
connection between two devices which are connected directly in order to transfer data
bilaterally.
Chapter 3

www.dfi.com
19
Chapter 3 Ports and Connectors
Chapter 3
Line-out
The line-out jack is used to connect a headphone or external speakers.
Line-out
COM (Serial) Port
COM:
RS232/422/485
The pin function of COM port will vary according to JP7/SW4’s settings. Refer to “COM RS232/
RS422/RS485 Select” in this chapter for more information.
The serial COM port is an asynchronous communication port with 16C550A-compatible UARTs
that can be used with modems, serial printers, remote display terminals, and other serial
devices.

www.dfi.com
20
Chapter 3 Ports and Connectors
Chapter 3

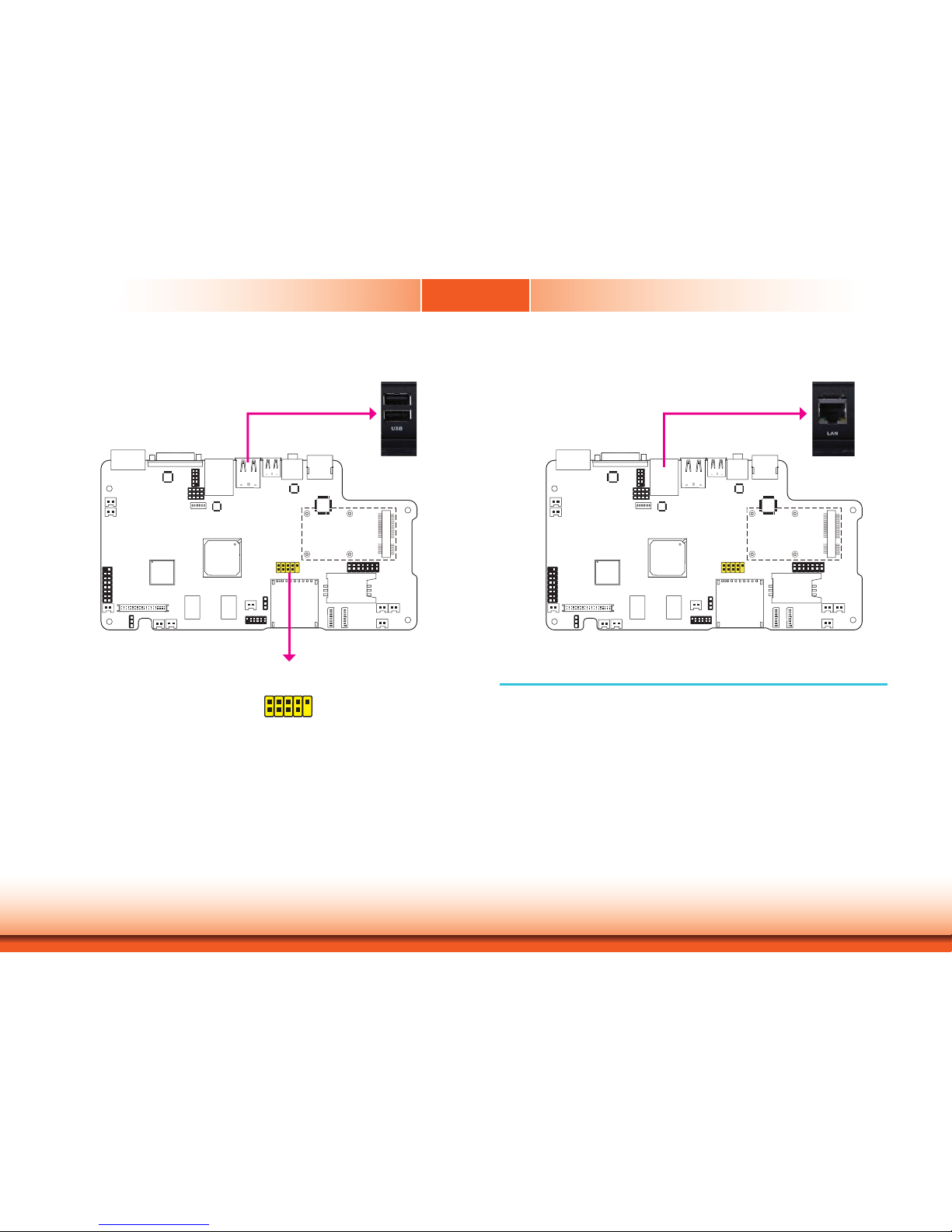

USB 2.0/1.1 Ports
USB allows data exchange between your computer and a wide range of simultaneously acces-
sible external Plug and Play peripherals.
The system board is equipped with two onboard USB 2.0/1.1 ports (USB 4-5). The 10-pin con-
nector allow you to connect two additional USB 2.0/1.1 ports (USB 6-7). The additional USB
ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available
slot at the rear of the system chassis and then insert the USB port cables to a connector.
LAN Port
The LAN port allows the system board to connect to a local area network by means of a
network hub.
Features
• SMSC 8710 10/100M Ethernet transceiver
LAN
10
VCC
-Data
+Data
GND
Key
VCC
-Data
+Data
GND
N.C.
9
1
2
USB 2.0
USB 6-7
USB 2.0
