DFI KT600-AL User manual

KT600-AL
Rev.A+
System Board
User’s Manual
78700345

Copyright
This publication contains information that is protected by copy-
right. No part of it may be reproduced in any form or by any
means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with re-
spect to the contents or use of this manual and specifically dis-
claims any express or implied warranties of merchantability or
fitness for any particular purpose. The user will assume the entire
risk of the use or the results of the use of this document. Further,
the manufacturer reserves the right to revise this publication and
make changes to its contents at any time, without obligation to
notify any person or entity of such revisions or changes.
© 2003. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE, Windows®ME, Windows®200 and Windows®
XP are registered trademarks of Microsoft Corporation. AMD,
AthlonTM XP, AthlonTM and DuronTM are registered trademarks of
Advanced Micro Devices, Inc.VIA is a registered trademark of VIA
Technologies, Inc. Award is a registered trademark of Award Soft-
ware, Inc. Other trademarks and registered trademarks of prod-
ucts appearing in this manual are the properties of their respec-
tive holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servic-
ing, cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend
by the manufacturer.
• Dispose of used batteries according to the battery manufac-
turer’s instructions.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential installation. This equipment generates, uses and can ra-
diate radio frequency energy and, if not installed and used in ac-
cordance with the instruction manual, may cause harmful interfer-
ence to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the re-
ceiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's author-
ity to operate the equipment.
2. Shielded interface cables must be used in order to comply
with the emission limits.

Notice
This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user’s manual, insert the CD into a CD-ROM drive.
The autorun screen (Mainboard Utility CD) will appear. Click the
“TOOLS” icon then click “Manual” on the main menu.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications.................................................................................
1.2 Package Checklist...........................................................................................................
Chapter 2 - Hardware Installation

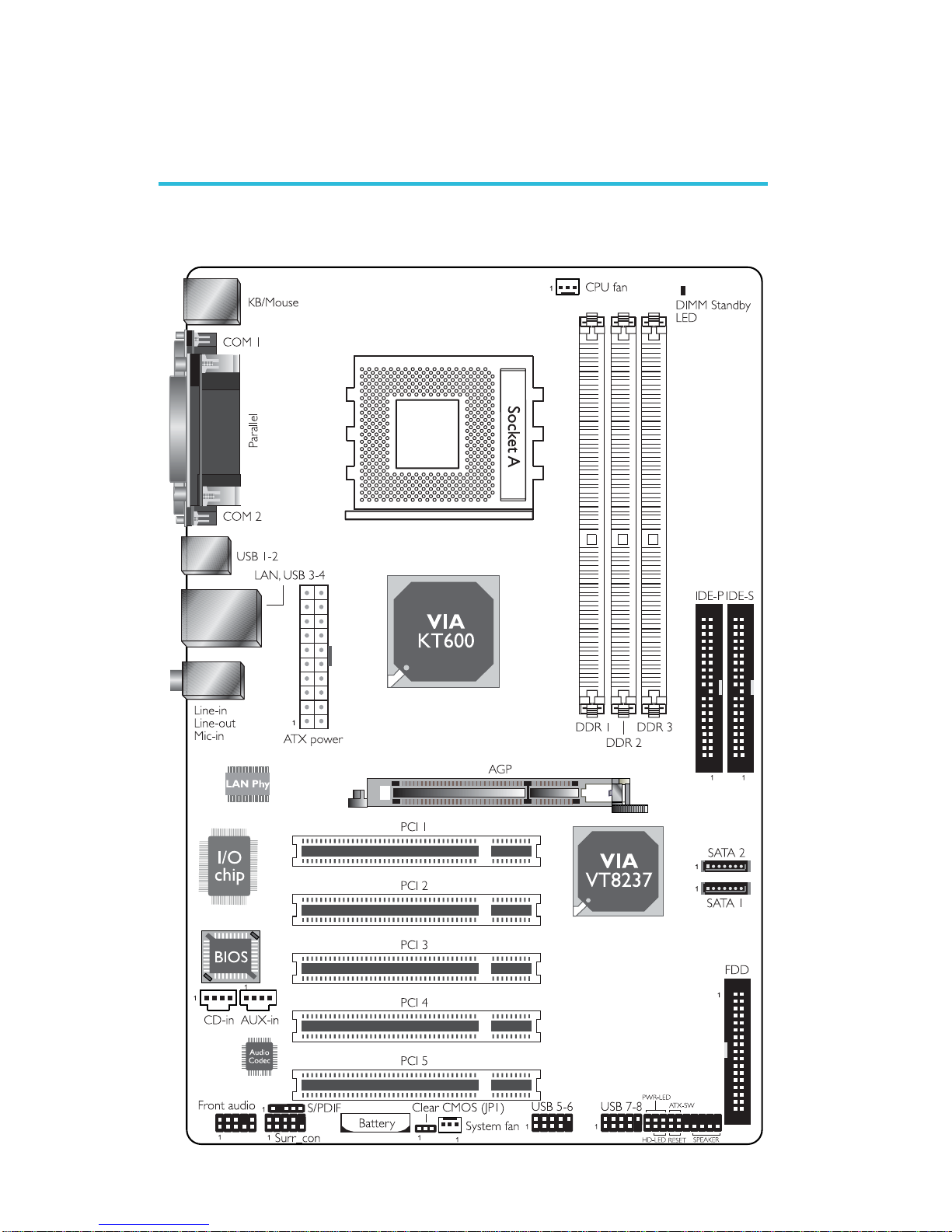

2.1 System Board Layout ..............................................................................................
2.2 System Memory..............................................................................................................
2.3 CPU................................................................................................................................................
2.4 Jumper Settings.................................................................................................................
2.5 Rear I/O Panel..................................................................................................................
2.6 I/O Connectors...............................................................................................................
Chapter 3 - BIOS Setup
3.1 Award BIOS Setup Utility....................................................................................
3.2 VIA RAID BIOS................................................................................................................
3.3 Updating the BIOS.......................................................................................................
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface....................................................................
4.2 Drivers and Utilities Installation Notes................................................
4.3 3D Audio Configuration.........................................................................................
4.4 Installation Notes...........................................................................................................
7
15
16
17
19
23
25
34
45
86
87
89
92
102
104

Introduction
1
6
Appendix A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function......................................................
Appendix B - System Error Messages
B.1 POST Beep.......................................................................................................................
B.2 Error Messages..............................................................................................................
Appendix C -Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
109
109
105
111

1
Introduction
7
1.1 Features and Specifications
1.1.1 Features
Chipset
• VIA®chipset
- North bridge:VIA®KT600
- South bridge:VIA®VT8237
Processor
The system board is equipped with Socket-A for 462-pin PGA
processor. It is also equipped with a switching voltage regulator
that automatically detects 1.100V to 1.850V.
• AMD AthlonTM XP 266/333/400MHz FSB
• AMD AthlonTM 200/266MHz FSB
• AMD DuronTM 200/266MHz FSB
Important:
To ensure proper boot up and operation of your system, you
must power-off the system then turn off the power supply’s
switch or unplug the AC power cord prior to replacing the CPU.
System Memory
• Three 184-pin DDR SDRAM DIMM sockets
• Supports up to 3GB memory (unbuffered DIMM)
• Supports PC1600 (DDR200), PC2100 (DDR266), PC2700
(DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V
type
Chapter1 - Introduction
DIMMs
2MBx64
4MBx64
8MBx64
Memory Size
16MB
32MB
64MB
DIMMs
16MBx64
32MBx64
64MBx64
Memory Size
128MB
256MB
512MB

Introduction
1
8
Expansion Slots
• 1 AGP slot
• 5 PCI slots
AGP (Accelerated Graphics Port)
AGP is an interface designed to support high performance 3D
graphics cards. It utilizes a dedicated pipeline to access system
memory for texturing, z-buffering and alpha blending. The univer-
sal AGP slot supports AGP 8x with up to 2.13GB/sec. bandwidth
and AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics
applications. AGP in this system board will deliver faster and bet-
ter graphics to your PC.
Onboard LAN Features
• VIA 6103 LAN Phy
• Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible
PHY
• 32-bit PCI master interface
• Integrated power management functions
• Full duplex support at both 10 and 100 Mbps
• Supports IEEE 802.3u auto-negotiation
• Supports wire for management
Onboard Audio Features
• AC’97 2.2 S/PDIF extension compliant codec
• Supports Microsoft®DirectSound / DirectSound 3D
• AC’97 supported with full duplex, independent sample rate
converter for audio recording and playback
• S/PDIF-in/out compressed digital output
• 6-channel audio output

1
Introduction
9
S/PDIF
S/PDIF is a standard audio file transfer format that transfers digital
audio signals to a device without having to be converted first to
an analog format. This prevents the quality of the audio signal
from degrading whenever it is converted to analog. S/PDIF is usu-
ally found on digital audio equipment such as a DAT machine or
audio processing device. The S/PDIF connector on the system
board sends surround sound and 3D audio signal outputs to am-
plifiers and speakers and to digital recording devices like CD re-
corders.
6-channel Audio
The 6-channel audio output function is supported by using the
surround connector, the audio jacks at the rear panel and
configuring the audio driver and utility. Please refer to chapters 2
and 4.
SATA IDE Interface with RAID
• Supports two SATA (Serial ATA) interfaces which are compli-
ant with SATA 1.0 specification (1.5Gbps interface)
• Supports RAID 0, RAID 1 and JBOD
Serial ATA (SATA) is a storage interface that is compliant with
SATA 1.0 specification. With speed of up to 1.5Gbps, it improves
hard drive performance even in data intensive environments such
as audio/video, consumer electronics and entry-level servers.

Introduction
1
10
PCI Bus Master IDE Controller
• Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
• UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate
up to 133MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-120 and ZIP
USB Ports
The system board supports USB 2.0 and USB 1.1. USB 1.1 sup-
ports 12Mb/second bandwidth while USB 2.0 supports 480Mb/
second bandwidth providing a marked improvement in device
transfer speeds between your computer and a wide range of si-
multaneously accessible external Plug and Play peripherals.
BIOS
• Award BIOS, Windows®95/98/2000/ME/XP Plug and Play
compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI 2.0 function
• 2Mbit flash memory
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS.The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in
the DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on
using the DMI utility.

1
Introduction
11
Rear Panel I/O Ports (PC 99 color-coded connectors)
• One mini-DIN-6 PS/2 mouse port
• One mini-DIN-6 PS/2 keyboard port
• Two DB-9 serial ports
• One DB-25 parallel port
• Four USB ports
• One LAN port
• Three audio jacks: line-out, line-in and mic-in
Connectors
• Two connectors for 4 additional external USB 2.0/1.1 ports
• One front audio connector for external line-out and mic-in
jacks
• Two internal audio connectors (AUX-in and CD-in)
• One surround connector
• One S/PDIF-in/out connector
• Two SATA connectors
• Two IDE connectors
• One floppy connector
• One ATX power supply connector
• 2 fan connectors
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following “system
health” conditions.
• Monitors CPU/system temperature and overheat alarm
• Monitors ±12V/+5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages
• Monitors CPU/system fan speed
• Read back capability that displays temperature, voltage and fan
speed

Introduction
1
12
1.1.3 Intelligence
CPU Temperature Protection
The CPU Temperature Protection function has the capability of
monitoring the CPU’s temperature during system boot-up. Once
it has detected that the CPU’s temperature exceeded the “shut-
down temperature” defined in the BIOS, the system will auto-
matically power-off after 5 warning beeps.
CPU Fan Protection
The CPU Fan Protection function has the capability of monitoring
the CPU fan during system boot-up and will automatically power-
off the system once it has detected that the CPU fan did not
rotate. This preventive measure has been added to protect the
CPU from damage and insure a safe computing environment.
CPU Overclocking
The CPU Overclocking function allows you to adjust the proces-
sor’s bus clock. However, overclocking may result to the proces-
sor’s or system’s instability and are not guaranteed to provide
better system performance.
Overvoltage
The Overvoltage function allows you to manually adjust to a
higher core voltage that is supplied to the CPU, AGP and/or
DRAM. Although this function is supported, we do not recom-
mend that you use a higher voltage because unstable current
may be supplied to the system board causing damage.
Dual Function Power Button
Depending on the setting in the “Soft-Off By PWRBTN” field of
the Power Management Setup, this switch will allow the system
to enter the Soft-Off or Suspend mode.

1
Introduction
13
Wake-On-Ring
This feature allows the system that is in the Suspend mode or
Soft Power Off mode to wake-up/power-on to respond to calls
coming from an external modem or respond to calls from a
modem PCI card that uses the PCI PME (Power Management
Event) signal to remotely wake up the PC.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥ 720mA.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft
Power Down (Soft-Off) PC. It is supported via the onboard LAN
port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal.. However, if your system is in the Suspend
mode, you can power-on the system only through an IRQ or
DMA interrupt.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
Wake-On-PS/2 Keyboard/Mouse
This function allows you to use the PS/2 keyboard or PS/2
mouse to power-on the system.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
Wake-On-USB
This function allows you to use a USB device to wake up the
system.
Important:
• If you are using the Wake-On-USB function for 2 USB ports,
the 5VSB power source of your power supply must support
≥ 1.5A.

Introduction
1
14
• If you are using the Wake-On-USB function for 3 or more
USB ports, the 5VSB power source of your power supply
must support ≥ 2A.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
AC Power Failure Recovery
When power returns after an AC power failure, you may choose
to either power-on the system manually or let the system
power-on automatically.
ACPI
The system board is designed to meet the ACPI (Advanced Con-
figuration and Power Interface) specification. ACPI has energy sav-
ing features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows®®
®®
®98/2000/ME/XP
supports the ACPI function allowing you to use the Suspend to
RAM function.
With the Suspend to RAM function enabled, you can power-off
the system at once by pressing the power button or selecting
“Standby” when you shut down Windows®®
®®
®98/2000/ME/XP with-
out having to go through the sometimes tiresome process of
closing files, applications and operating system. This is because the
system is capable of storing all programs and data files during the
entire operating session into RAM (Random Access Memory)
when it powers-off. The operating session will resume exactly
where you left off the next time you power-on the system.
Important:
The 5VSB power source of your power supply must support
≥ 1A.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table
of your hard disk drive.

1
Introduction
15
1.2 Package Checklist
The system board package contains the following items:
!The system board
!A user’s manual
!One Serial ATA cable
!One IDE cable for ATA/33/66/100/133 IDE drives
!One 34-pin floppy disk drive cable
!One I/O shield
!One “Main Board Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

16
2Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation

17
2
Hardware Installation
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board, proces-
sor, disk drives, add-in boards, and other components. Perform the
upgrade instruction procedures described at an ESD workstation only.
If such a station is not available, you can provide some ESD protection
by wearing an antistatic wrist strap and attaching it to a metal part
of the system chassis. If a wrist strap is unavailable, establish and
maintain contact with the system chassis throughout any procedures
requiring ESD protection.
The system board supports DDR SDRAM DIMM. Double Data
Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles
the data rate through reading and writing at both the rising and
falling edge of each clock. This effectively doubles the speed of
operation therefore doubling the speed of data transfer.
Refer to chapter 1 (System Memory section) for detailed specifi-
cation of the memory supported by the system board.
BIOS Setting
Configure the system memory in the Advanced Chipset Features
submenu (“DRAM Clock/Drive Control” section) of the BIOS.
.
.
.
.
.
.
.
.
DDR 1
DDR 2
DDR 3

18
2Hardware Installation
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of
the socket.
1. Pull the “tabs” which are at the ends of the socket to the
side.
2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab Tab

19
2
Hardware Installation
2.3 CPU
2.3.1 Overview
The system board is equipped with a surface mount Socket A
CPU socket. This socket is exclusively designed for installing an
AMD CPU.
2.3.2 Installing the CPU
1. Make sure the PC and all other peripheral devices connected
to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate Socket A on the system board.
4. Unlock the socket by pushing the lever sideways, away from the
socket, then lifting it up to a 90oangle. Make sure the socket is
lifted to at least this angle otherwise the CPU will not fit in
properly.
Lever

20
2Hardware Installation
5. Position the CPU above the socket then align the gold mark
on the corner of the CPU (designated as pin 1) with pin 1 of
the socket.
Important:
Handle the CPU by its edges and avoid touching the pins.
6. Insert the CPU into the socket until it is seated in place. The
CPU will fit in only one orientation and can easily be inserted
without exerting any force.
Important:
Do not force the CPU into the socket. Forcing the CPU into
the socket may bend the pins and damage the CPU.
Gold mark Pin 1
