DFI NS36-TC User manual

NS36-TC
NS36-TL
Rev.A+
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Tablero Electrónico del Sistema Manual del Usuario
935-NS3601-100
63000232
63000232 1.pmd 9/13/02, 1:35 PM1

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Windows®98, Windows®98 SE, Windows®ME, Windows®2000,
Windows NT®4.0 and Windows®XP are registered trademarks of
Microsoft Corporation. Intel®and Pentium®4 are registered
trademarks of Intel Corporation. SiS®is a registered trademark of
Silicon Integrated Systems Corporation. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties
of their respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
63000232 1.pmd 9/13/02, 1:35 PM2

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.
63000232 1.pmd 9/13/02, 1:35 PM3

4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
26
43
62
82
Note:
This user’s manual is for the NS36-TC and NS36-TL system boards.
The only difference between these boards is the NS36-TL system
board supports onboard LAN.
63000232 1.pmd 9/13/02, 1:35 PM4

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Rear Panel I/O Ports...................................................................................................
1.4 I/O Connectors................................................................................................................
1.5 Award BIOS Setup Utility.......................................................................................
6
8
10
15
21
63000232 1.pmd 9/13/02, 1:35 PM5

6
Quick Setup Guide
1
Quick Setup
Guide

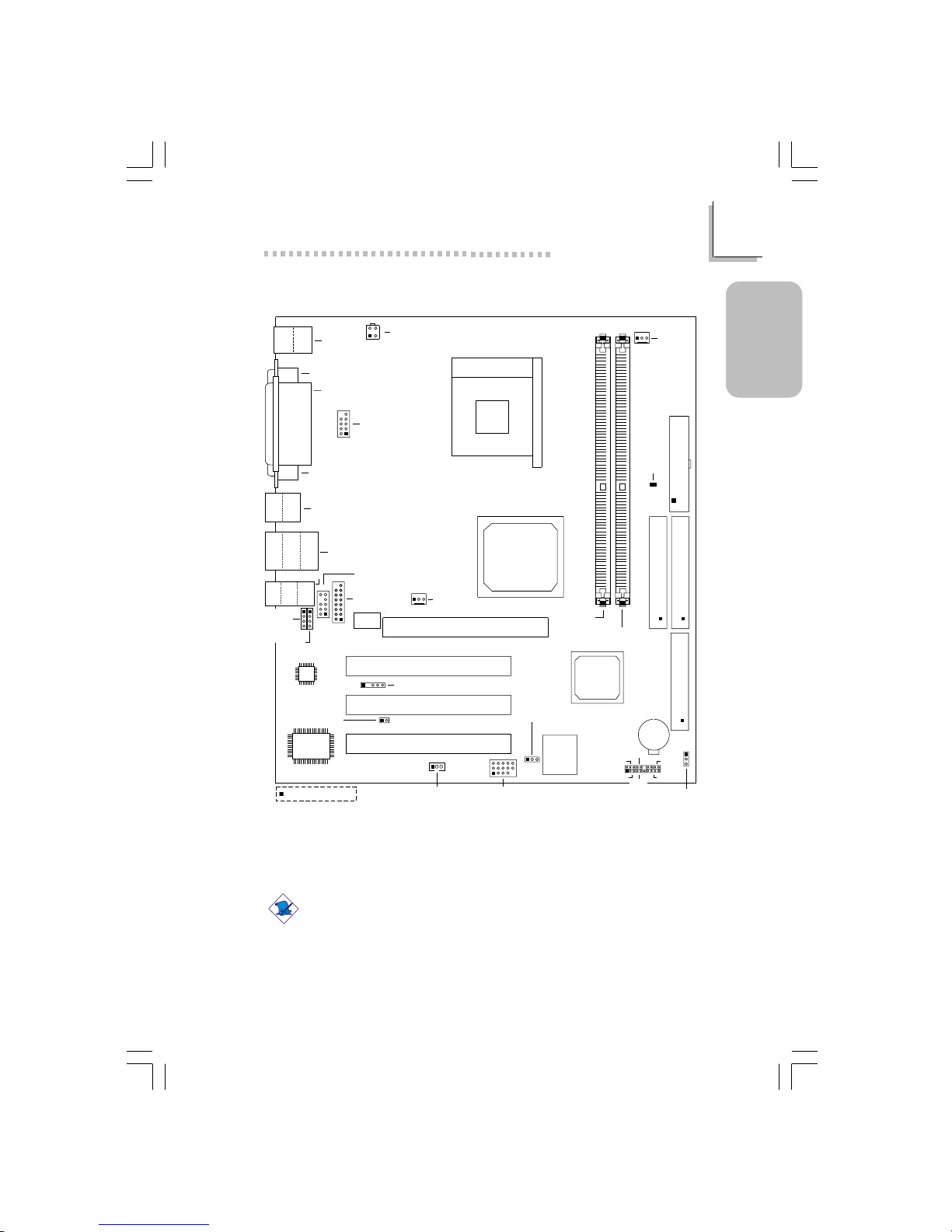

1.1 System Board Layout
NS36-TC
Clear CMOS (JP5)
FDD (J22)
SiS
651
SiS
962L
J2
KB
Mouse
COM 1 (J4)
Parallel (J5)
ATX Power
21
10 9
Front audio
(J10)
AC’97
3.3VSB standby
for PCI (JP6)
J3
15
11 15
USB5&6(J25)
BIOS
CPU fan
(J1)
DIMM
standby
power
LED
PCI1Slot
PCI2Slot
PCI3Slot
Socket 478
AGP Slot
+12V power
(ATXP1)
34
12
I/O
chip
System fan
(J12)
IrDA (J20)
J8
PWR-LED
HD-LED
J27
ATX-SW
G-SW
SPEAKER
Battery
RESET
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
Primary IDE (J18)
Seconary IDE (J17)
VGA (J7)
Square denotes pin 1
Wake-On-LAN (J23)
USB 1
USB 2
Line-
out
Line-
in
Mic-
in
CN1
CN3
1615
21
CD-in
(J16)
Game/MIDI
(J13)
AUX-in
(J15)
Power select
for USB 5/6 (JP3)
10 9
21
COM 2 (J6)
USB 3
USB 4
63000232 1.pmd 9/13/02, 1:35 PM6

7
1
Quick Setup Guide
Quick Setup
Guide
Note:
The illustrations on the following pages are based on the system
board that supports onboard LAN.
NS36-TL
(Supports onboard LAN)
Clear CMOS (JP5)
FDD (J22)
SiS
651
SiS
962L
J2
KB
Mouse
LAN
COM 1 (J4)
Parallel (J5)
ATX Power
21
10 9
Front audio
(J10)
AC’97
3.3VSB standby
for PCI (JP6)
J3
15
11 15
USB5&6(J25)
BIOS
CPU fan
(J1)
DIMM
standby
power
LED
USB 3
USB 4
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
Socket 478
AGP Slot
+12V power
(ATXP1)
34
12
I/O
chip
System fan
(J12)
IrDA (J20)
J8
PWR-LED
HD-LED
J27
ATX-SW
SPEAKER
Battery
RESET
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
Primary IDE (J18)
Seconary IDE (J17)
VGA (J7)
Square denotes pin 1 Wake-On-LAN (J23)
USB 1
USB 2
Line-
out
Line-
in
Mic-
in
CN1
CN3
1615
21
Phy
CD-in
(J16)
Game/MIDI
(J13)
AUX-in
(J15)
Power select
for USB 5/6 (JP3)
10 9
21
COM 2 (J6)
G-SW
63000232 1.pmd 9/13/02, 1:35 PM7

8
Quick Setup Guide
1
Quick Setup
Guide

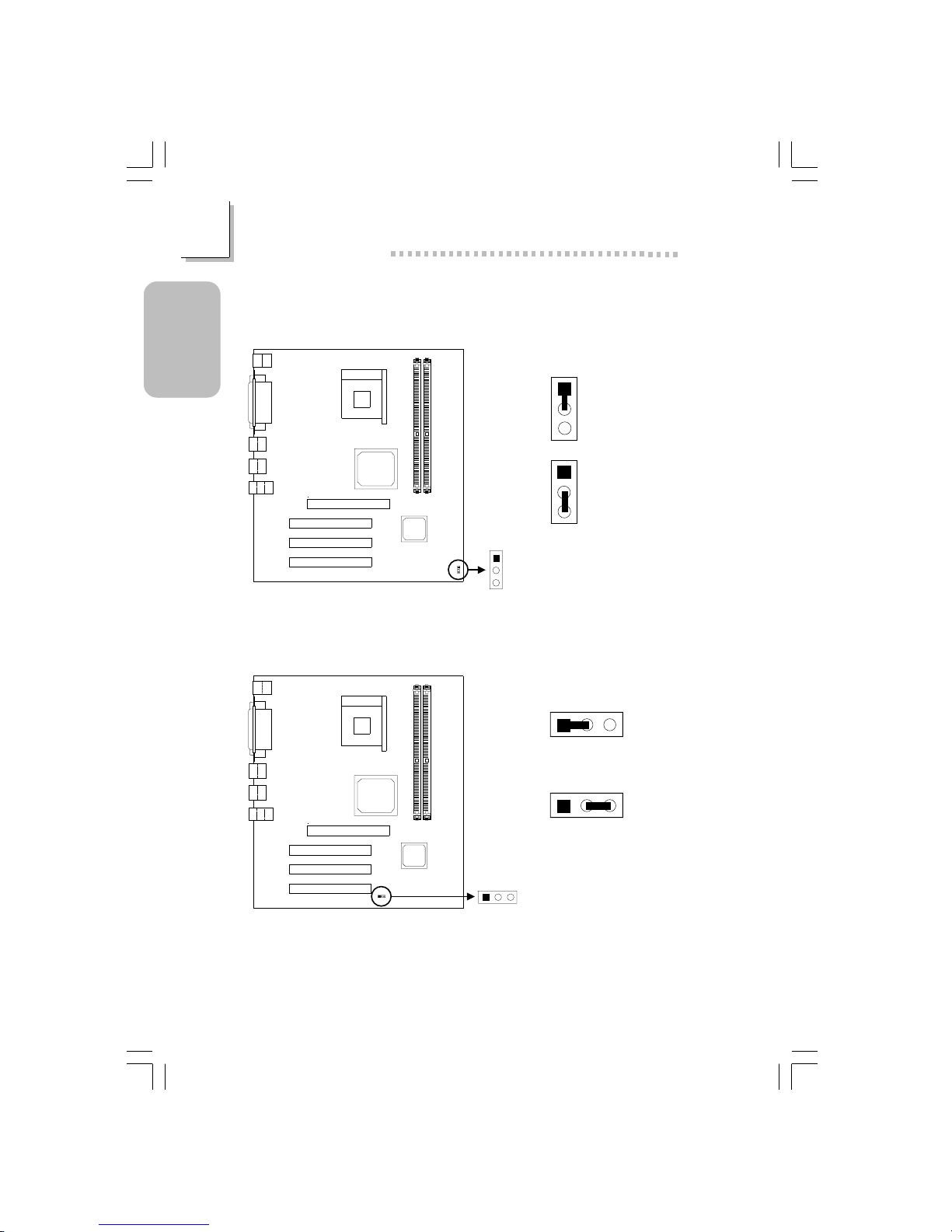

1.2.1 Clear CMOS Data - JP5
1.2 Jumpers
1
2
3
1
2
3
1-2 On:
Clear CMOS Data
2-3 On: Normal
(default)
1.2.2 Jumper Settings for Selecting the USB 5/6 Power - JP3
123
1-2 On: Disabled - VCC
123
2-3 On: Enabled -
5V_DUL
(default)
If you wish to use the Wake-On-USB Keyboard/Mouse function, make sure
this jumper is set to Enabled. “USB Port Wake Up Control” (“PM Wake Up
Events” field) in the Power Management Setup submenu of the BIOS must
also be set to Enabled.
Clear CMOS
(JP5)
1
2
3
Power select
for USB 5/6 (JP3)
123
63000232 1.pmd 9/13/02, 1:35 PM8

9
1
Quick Setup Guide
Quick Setup
Guide

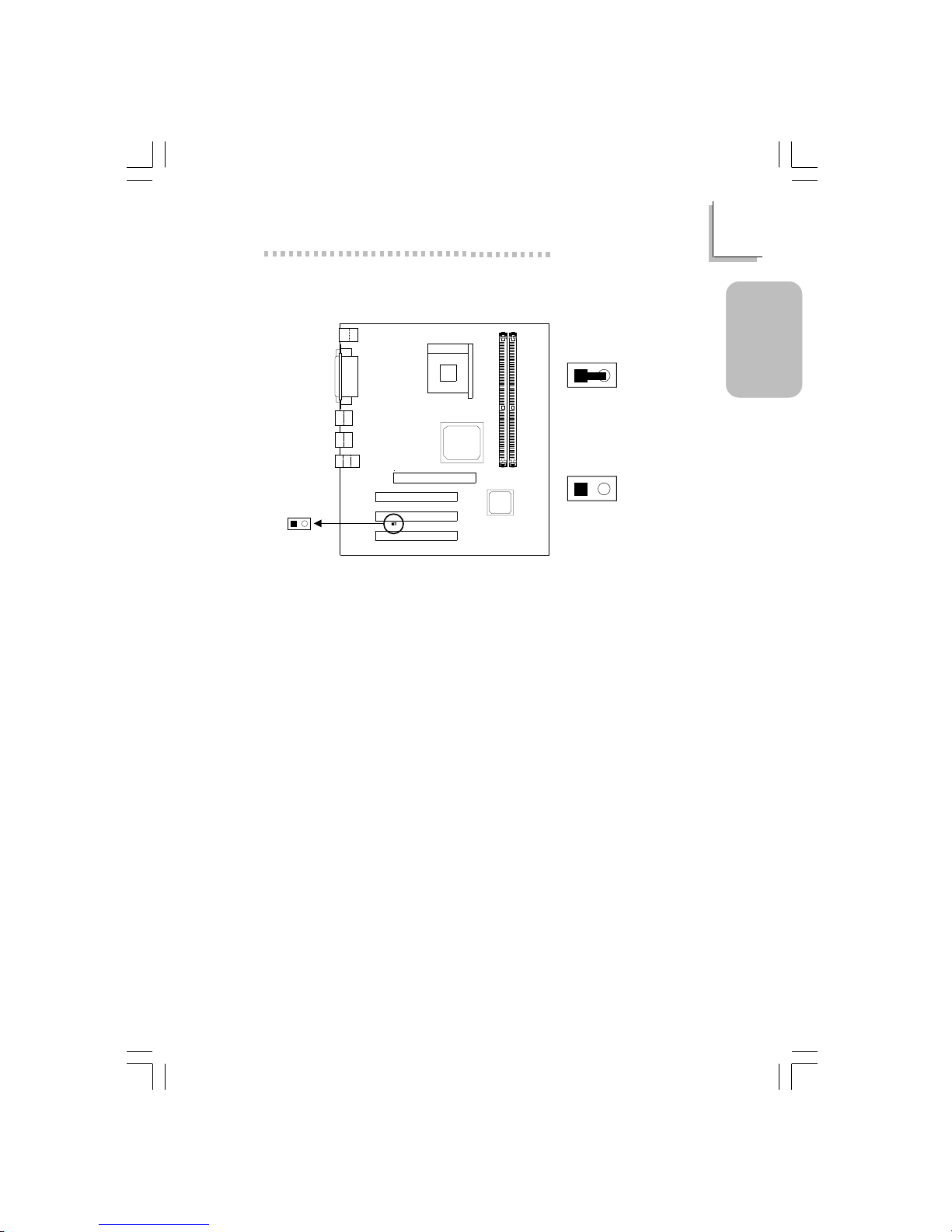

1.2.3 Jumper Settings for 3.3VSB Standby for PCI - JP6
On: Default
3.3VSB Standby Power to
PCI Slots - PCI 2.2 spec.
Off: Non-PCI 2.2 spec.
3.3VSB standby
for PCI (JP6)
21
12
12
63000232 1.pmd 9/13/02, 1:35 PM9

10
Quick Setup Guide
1
Quick Setup
Guide
1.3 Rear Panel I/O Ports
PS/2
K/B
ATX Double Deck Ports on NS36-TL
PS/2
Mouse Parallel RJ45
LAN
USB 4/3COM 1 VGA
Line-out
Line-in
Mic-in
USB 1
USB 2
PS/2
Mouse Parallel
USB 1
USB 2
USB 3
USB 4
Line-out
Line-in
Mic-in
PS/2
K/B COM 1 VGA
ATX Double Deck Ports on NS36-TC
63000232 1.pmd 9/13/02, 1:36 PM10

11
1
Quick Setup Guide
Quick Setup
Guide
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
PS/2 Mouse
PS/2 Keyboard
1.3.2 Serial Port
J2
Make sure to turn off your computer prior to connecting or disconnecting
a mouse or keyboard. Failure to do so may damage the system board.
J4
COM 2
(J6)
21
9
COM 1
Serial Port
63000232 1.pmd 9/13/02, 1:36 PM11

12
Quick Setup Guide
1
Quick Setup
Guide

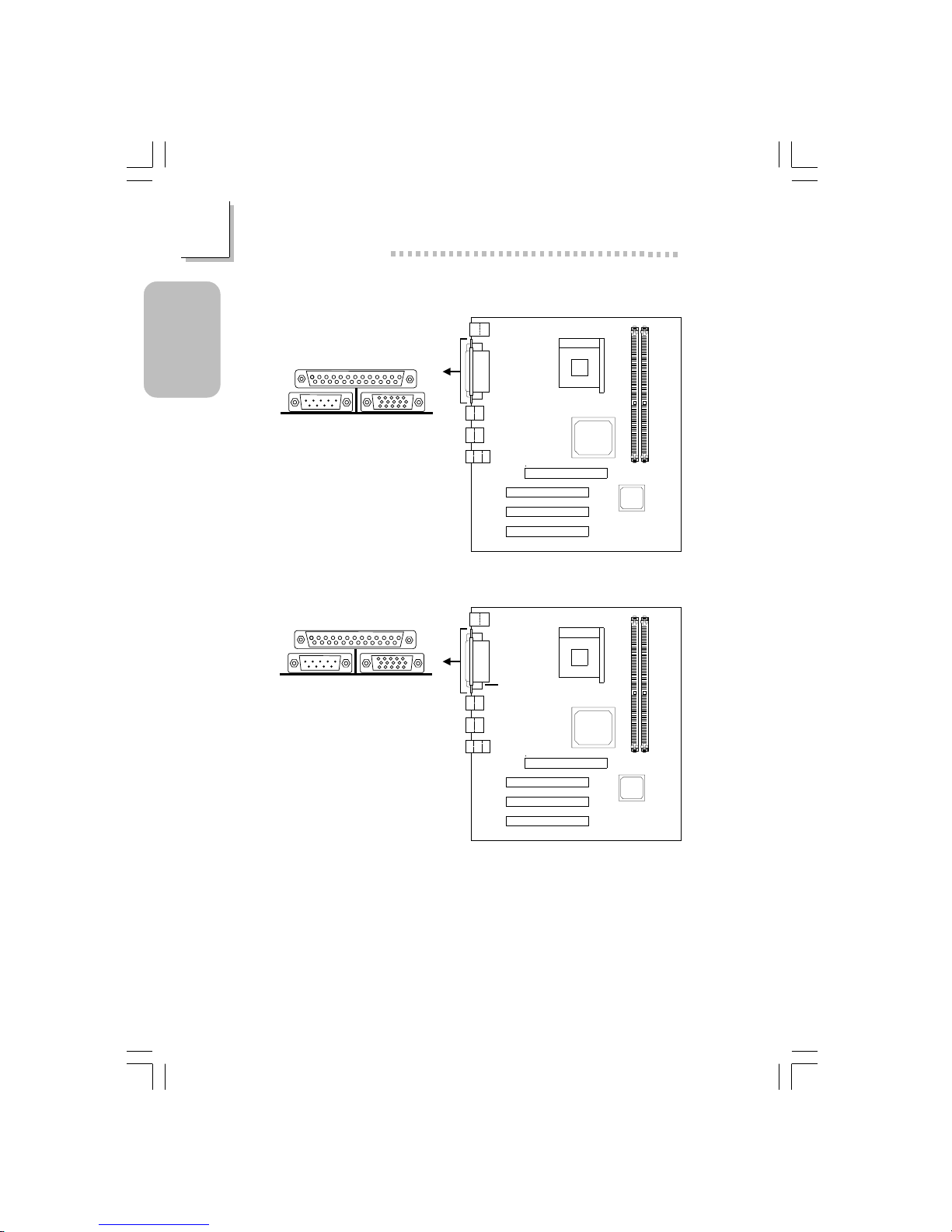

1.3.4 VGA Port
VGA Port
1.3.3 Parallel Port
Parallel Port
J5
J7
63000232 1.pmd 9/13/02, 1:36 PM12

13
1
Quick Setup Guide
Quick Setup
Guide
1.3.5 Universal Serial Bus Ports
Additional USB Ports (USB 5 and USB 6)
1 VCC 6 VCC 11 Ground
2 UP5- 7 UP6- 12 Ground
3 UP5+ 8 UP6+ 13 UP5+
4 Ground 9 Gruond 14 UP5-
5 Key 10 N. C. 15 VCC
CN1
J3
USB5&6(J25)
5
15
11
1
USB 2
USB 1
USB 4
USB 3
63000232 1.pmd 9/13/02, 1:36 PM13

14
Quick Setup Guide
1
Quick Setup
Guide

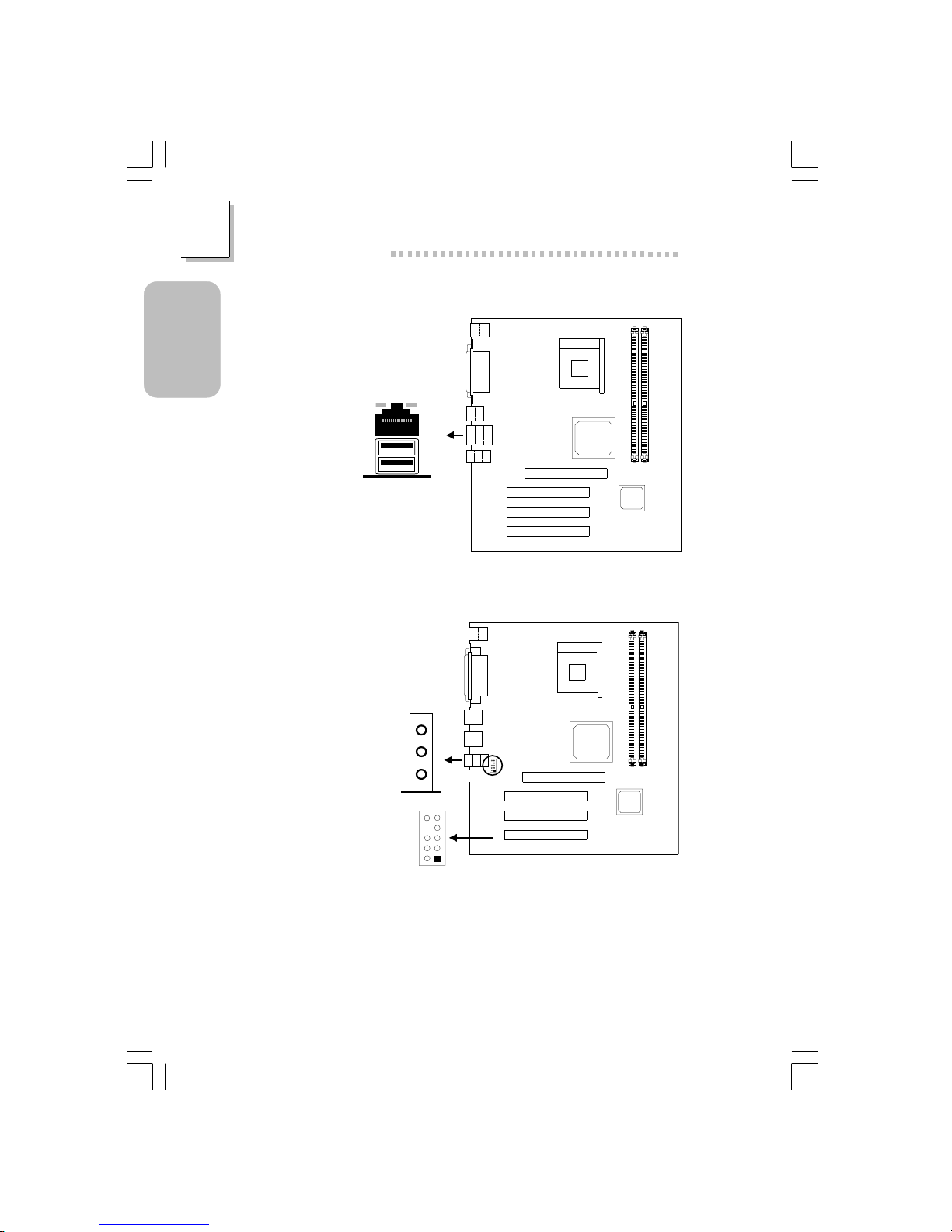

1.3.6 RJ45 Fast-Ethernet Port (NS36-TL only)
RJ45 LAN
1.3.7 Audio Jacks
1 Mic+
2 Ground
3 N.C.
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 N.C.
7 N.C.
8 Key
9 AuD_L_Out
10 N.C.
J3
FrontAudio (J10)
CN3
Front audio
(J10)
10 9
21
Line-out
Line-in
Mic-in
63000232 1.pmd 9/13/02, 1:36 PM14

15
1
Quick Setup Guide
Quick Setup
Guide
1.4 I/O Connectors
1.4.1 Game/MIDI Port
1.4.2 Internal Audio Connectors
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
CD-in / AUX-in
Game/MIDI
(J13)
2
15
1
CD-in
(J16)
AUX-in
(J15)
1
2
3
4
63000232 1.pmd 9/13/02, 1:36 PM15

16
Quick Setup Guide
1
Quick Setup
Guide
1.4.4 IrDA Connector
1 VCC
2 Key
3 IRRX
4 Ground
5 IRTX
1.4.3 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
Primary
IDE (J18)
Secondary
IDE (J17)
1
2
40 39
1
2
40 39
FDD (J22)
1
2
33
34
IrDA (J20)
12345
63000232 1.pmd 9/13/02, 1:36 PM16

17
1
Quick Setup Guide
Quick Setup
Guide

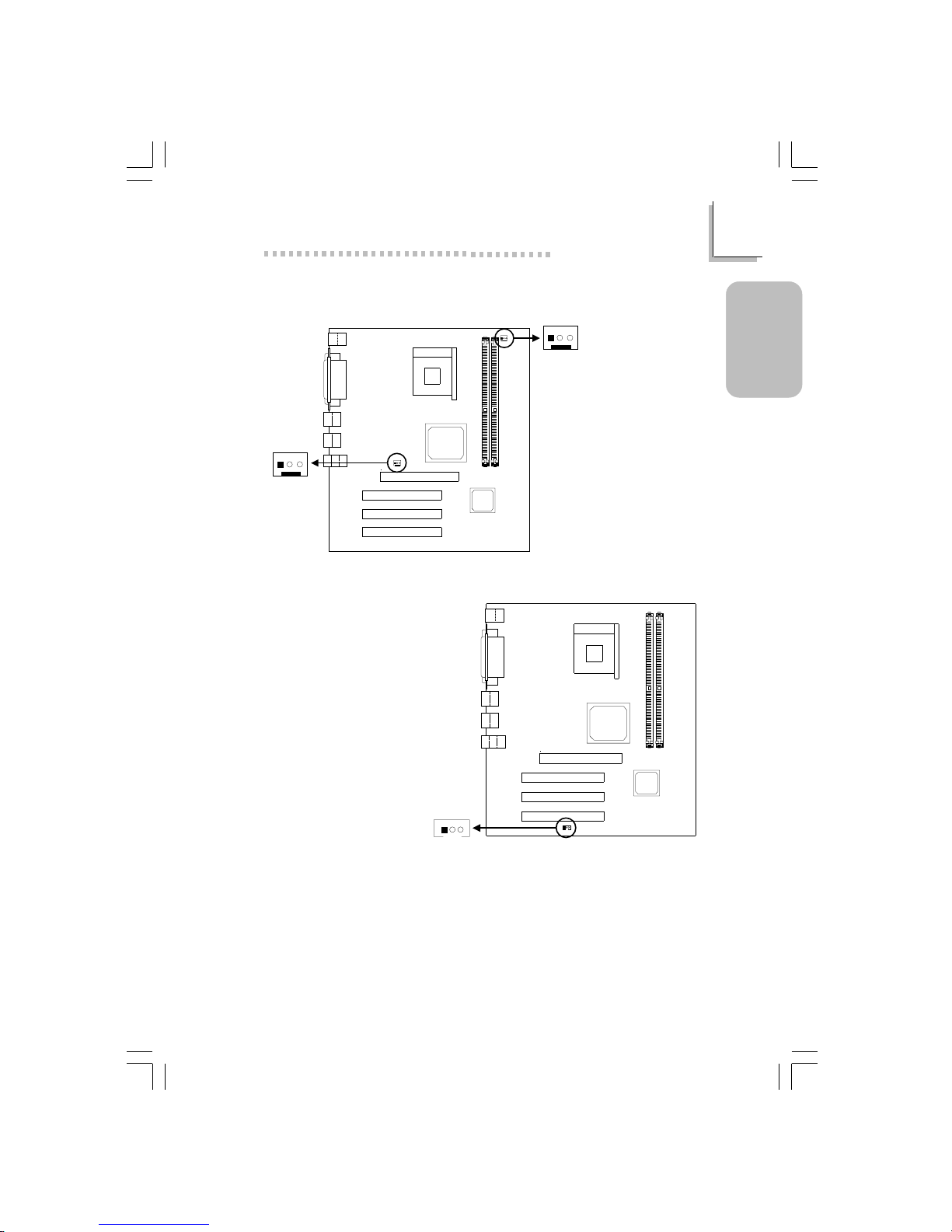

1.4.5 Fan Connectors
1 Ground
2 Power
3 Sense
1 Ground
2 Power
3 Sense
CPU Fan
System Fan
1.4.6 Wake-On-LAN Connector
The 5VSB power source of your power supply must support ≥720mA.
1 +5VSB
2 Ground
3 WOL
System fan
(J12)
3
2
1
CPU fan
(J1)
3
2
1
Wake-On-LAN
(J23)
3
21
63000232 1.pmd 9/13/02, 1:36 PM17

18
Quick Setup Guide
1
Quick Setup
Guide
Lighted LEDs serve as a reminder that you must power-off the system
then turn off the power supply’s switch or unplug the power cord prior to
installing any memory modules or add-in cards.
1.4.7 DIMM Standby Power LED
DIMM standby
power LED
63000232 1.pmd 9/13/02, 1:36 PM18

19
1
Quick Setup Guide
Quick Setup
Guide
1.4.8 Power Connector
ATX Power
(J8)
+12V power
(ATXP1)
34
12
2
1
34
1
10
11
20
Pin
1
2
3
4
5
6
7
8
9
10
Function
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+12V
Pin
11
12
13
14
15
16
17
18
19
20
Function
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
+5V
ATX Main Power Connector
Pin
1
2
3
4
Function
Ground
Ground
+12V
+12V
+12V Power Connector
63000232 1.pmd 9/13/02, 1:36 PM19

20
Quick Setup Guide
1
Quick Setup
Guide
1.4.9 Front Panel Connectors
If a system did not boot-up and the Power/Standby LED did not light
after it was powered-on, it may indicate that the CPU or memory module
was not installed properly. Please make sure they are properly inserted
into their corresponding socket.
PWR-LED
HD-LED
ATX-SW G-SW
RESET
SPEAKER
2
1
20
19
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
Ground
Green switch
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
63000232 1.pmd 9/13/02, 1:36 PM20
