DFI CM64-AL User manual

935-CM64A1-000G
90200548
CM64-AL
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî Ïîëüçîâàòåëÿ

2
Quick Setup Guide
1
Quick Setup
Guide
Copyright
This publication contains information that is protected by copyright. No part of it
may be reproduced in any form or by any means or used to make any
transformation/adaptation without the prior written permission from the copyright
holders. This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to the
contents or use of this manual and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. The user will
assume the entire risk of the use or the results of the use of this document.
Further, the manufacturer reserves the right to revise this publication and make
changes to its contents at any time, without obligation to notify any person or
entity of such revisions or changes. © 2005. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification
purpose only and are the properties of the respective owners.
Caution
To avoid damage to the system, use the correct AC input voltage range.....
To reduce the risk of electric shock, unplug the power cord before removing the
system chassis cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery: 1. Danger of explosion if battery incorrectly replaced. 2. Replace only
with the same or equivalent type recommend by the manufacturer. 3. Dispose of
used batteries according to the battery manufacturer’s instructions.
Notice
The system board and accessories you receive in the package may not come
similar to the information stated in this manual. This may differ in accordance to
the sales region or models in which it was sold. For more information about the
standard package in your region, please contact your dealer or sales
representative.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accord-
ance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

3
1
Quick Setup Guide
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français....................................................................
Chapter 4
Deutsch...............................................................................
Chapter 5
Español............................................................................
Chapter 6
Ðóññêèé.......................................................................
Chapter 7
Japanese........................................................................
4
17
19
21
23
25
The user’s manual in the provided CD contains detailed information about the system board. If, in some
cases, some information doesn’t match those shown in this manual, this manual should always be re-
garded as the most updated version.
Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte de système. Si,
en quelque cas, quelque renseignement n’appareille de ce que dit dans ce manuel, ce manuel doit
toujours être considéré comme la plus nouvelle version.
Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die Hauptplatine.
Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen dargestellt in diesem
Handbuch entsprechen, soll dieses Handbuch als die meist aktualisierte Ausgabe gelten.
El uso explicativo contene información detalle sobre la sistema board en el CD preparativo. Si en algún
caso, la información no es igual con el uso explicativo, necesita ver el uso explicativo, esque es más
nuevo.
 ðóêîâîäñòâå ïîëüçîâàòåëÿ íà ïðåäîñòàâëÿåìîì CD äèñêå ñîäåðæèòñÿ ïîäðîáíàÿ
èíôîðìàöèÿ î ìàòåðèíñêîé ïëàòå. Èíîãäà íàïå÷àòàííîå ðóêîâîäñòâî ìîæåò íå
ñîâïàäàòü ðóêîâîäñòâîì íà CD, òàê êàê ïîñëåäíåå íàèáîëåå ÷àñòî îáíîâëÿåòñÿ è
ÿâëÿåòñÿ ñàìûì ñâåæèì.
27

4
Quick Setup Guide
1
Quick Setup
Guide
System Board Layout
Chapter 1 - Quick Setup Guide

5
1
Quick Setup Guide
Quick Setup
Guide
System Memory
Jumpers
DIMM 1
DIMM 2
DIMM Power LED
Warning:
When the DIMM Power LED lit red, it indicates that power is
present on the DIMM sockets. Power-off the PC then unplug the
power cord prior to installing any memory modules. Failure to do so
will cause severe damage to the motherboard and components.
.
.
.
.
.
.
.
.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP3
Clear CMOS Data
312 312

6
Quick Setup Guide
1
Quick Setup
Guide

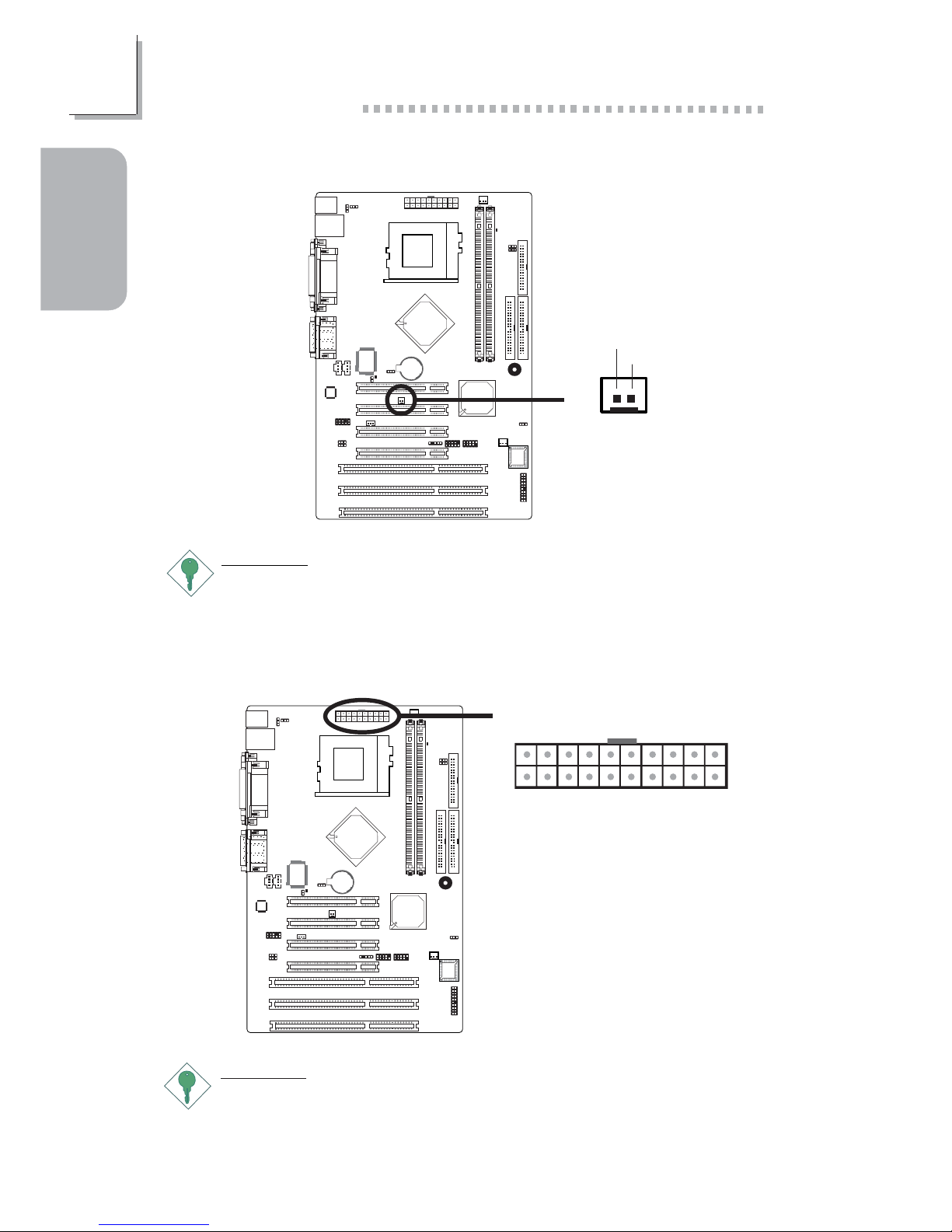

Important:
The 5VSB power source of your power supply must support
≥ 720mA.
PS/2 Power Select
X
JP11
2-3 On: 5VSB
1-2 On: 5V
(default)
1
3
2
1
3
2
Onboard Audio Codec Select
312
312
2-3 On:
Onboard Audio
Codec Disabled
1-2 On:
Onboard Audio
Codec Enabled
(default)
X
JP4
JP6
JP4
JP6

7
1
Quick Setup Guide
Quick Setup
Guide
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support ≥ 1.5A. For 3 or more USB ports, the 5VSB power source of
your power supply must support ≥ 2A.
USB Power Select
X
USB 1-2
(JP1)
2-3 On: 5VSB1-2 On: 5V
(default)
2-3 On: 5VSB1-2 On: 5V
(default)
X
USB 3-4
(JP10) 312 312
132 132

8
Quick Setup Guide
1
Quick Setup
Guide

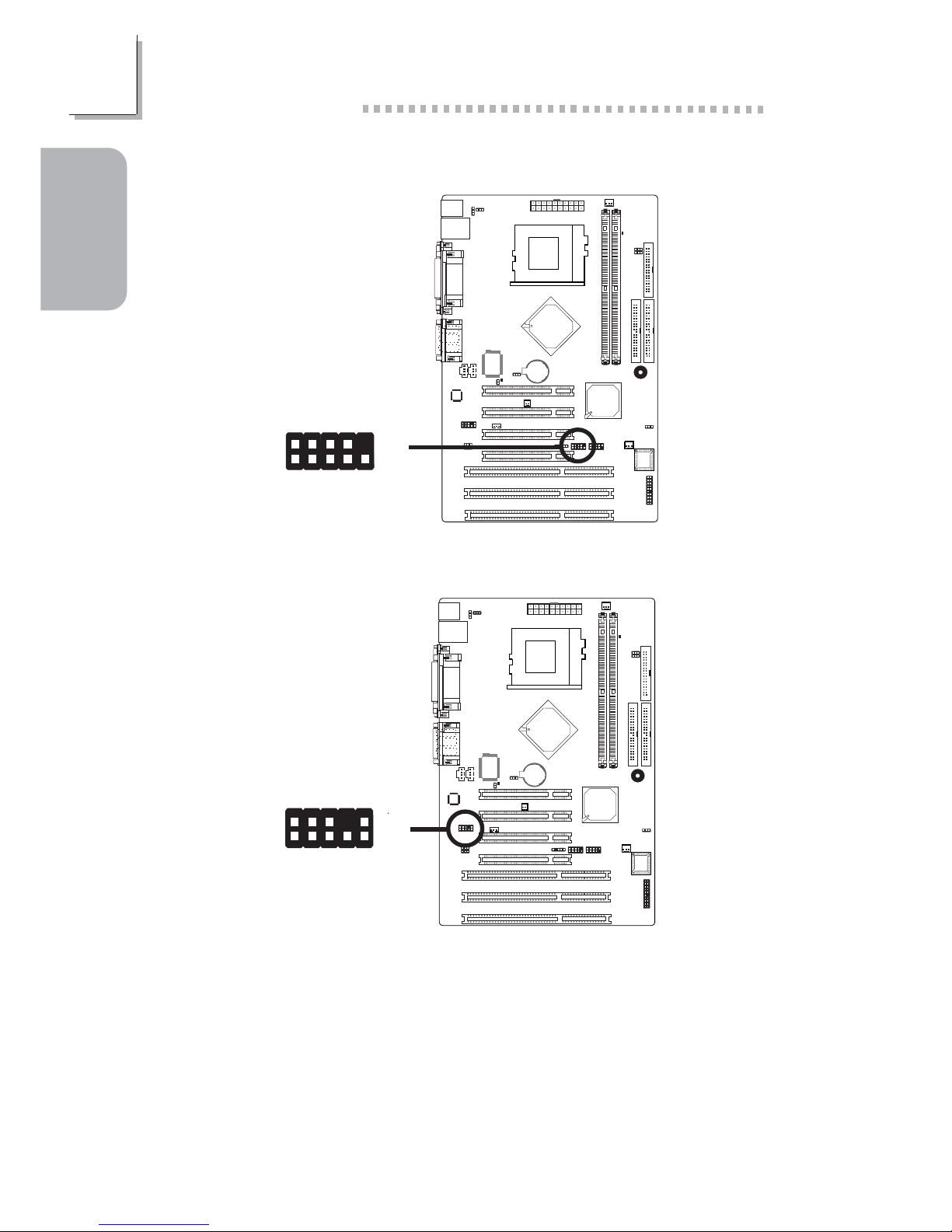

JP8 and JP9 are used to select the front side bus of the CPU. The
default setting is Auto. The system will run according to the front
side bus of the CPU installed on the system board.You can also set
the FSB fixed at 100MHz or 133MHz.
Important:
• If you are using a CPU whose frequency has been locked
by the manufacturer, overclocking will have no effect.
• Overclocking may result to the CPU’s or system’s instability
and are not guaranteed to provide better system
performance. If you are unable to boot your system due to
overclocking, make sure to set these jumpers back to their
default settings.

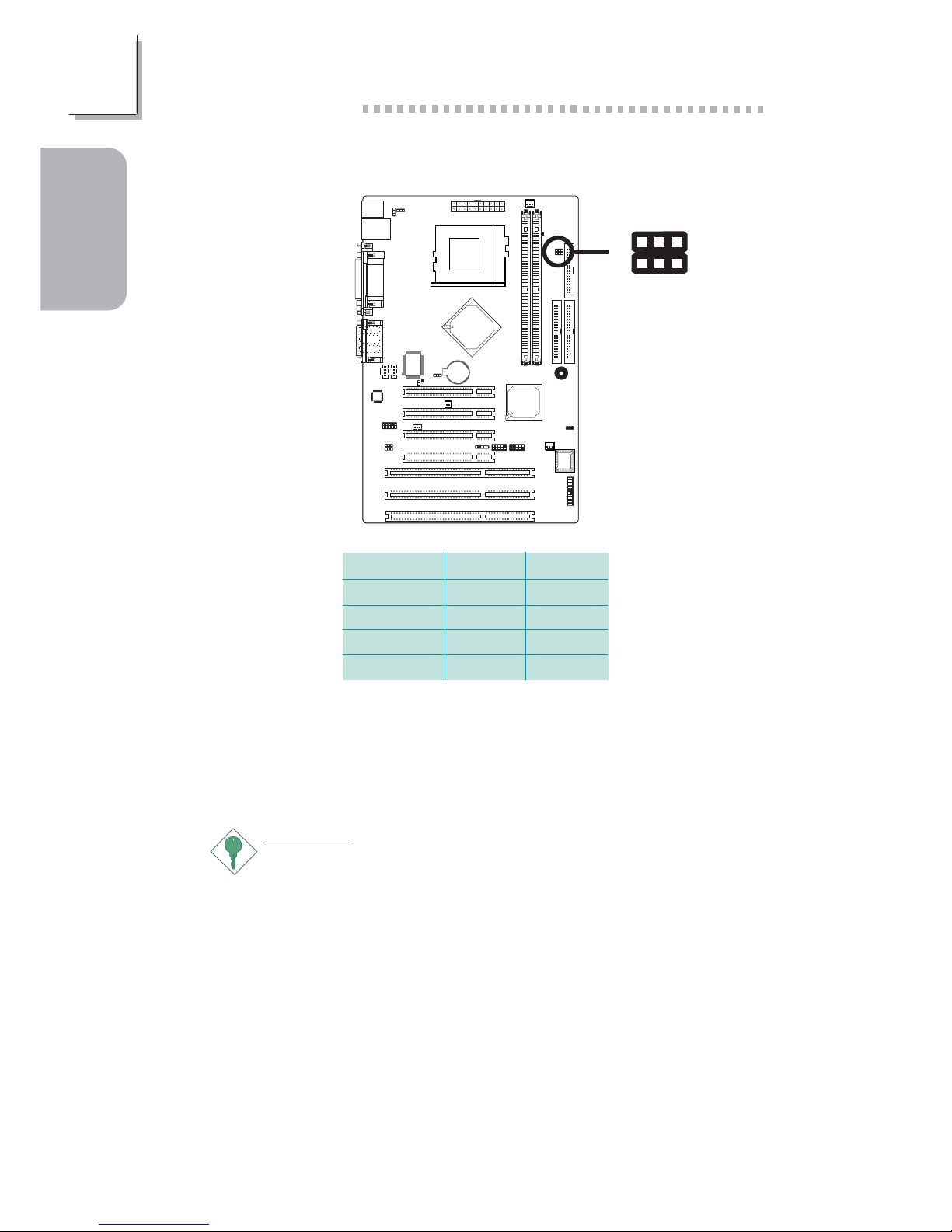

CPU FSB Select
X
13 2
JP8
JP9
FSB
Auto
66MHz
100MHz
133MHz
JP8
1-2 On
2-3 On
2-3 On
All Off
JP9
1-2 On
2-3 On
All Off
All Off

9
1
Quick Setup Guide
Quick Setup
Guide
Internal I/O Connectors
Rear Panel I/O Ports
PS/2
Mouse LAN Parallel GAME/MIDI
USB 1-2 COM VGA
Line-
out Line- in Mic- in
PS/2
K/B
USB (Universal Serial Bus)
USB 3-4
W
1
VCC
-Data
+Data
GND
Key
VCC
-Data
+Data
GND
N. C.
210
9

10
Quick Setup Guide
1
Quick Setup
Guide
COM (Serial) Port
W
19
2
CD
TD
RD
DTR
GND
RTS
DSR
CTS
RI
Front Audio
W
1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return

11
1
Quick Setup Guide
Quick Setup
Guide
Internal Audio Connectors
W
Right audio channel
Left audio channel
Ground
Ground
1
4
1
4
CD-in AUX-in
Floppy Disk Drive Connector
X
34 33
21

12
Quick Setup Guide
1
Quick Setup
Guide
IDE Disk Drive Connectors
X
40 39
21
Primary
IDE
40 39
21
Secondary
IDE
IrDA Connector
W
15
VCC
N. C.
IRRX
Ground
IRTX
Note:
The sequence of the pin functions on some IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the IR connector according to
their pin functions.

13
1
Quick Setup Guide
Quick Setup
Guide
Cooling Fan Connectors
X
X
CPU fan
13
Ground
Power
Sense
Chassis fan
13
Ground
Power
Sense
Wake-On-LAN Connector
13
WOL
Ground
+5VSB
X
Important:
The 5VSB power source of your power supply must support
≥ 720mA.

14
Quick Setup Guide
1
Quick Setup
Guide
Important:
To ensure that adequate power is provided, we strongly recommend
that you use a minimum of 300 Watt (or greater) power supply.
Wake-On-Ring Connector
X21
Ground
RI#
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
Power Connector
X
+12V
11
1
10
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+5V
3.3V
-12V
Ground
PS-ON
Ground Ground Ground
-5V
+5V
20

15
1
Quick Setup Guide
Quick Setup
Guide
DIMM Power LED and PCI Standby Power LED
DIMM Power LED
PCI Standby Power LED
On: Default
3.3VSB Standby
Power to PCI slots
PCI 2.2 spec.
Off:
Non-PCI 2.2 spec.
2
1
2
1
X
JP2
Warning:
When the DIMM Power LED and/or PCI Standby Power LED lit red, it
indicates that power is present on the DIMM sockets and/or PCI
slots. Power-off the PC then unplug the power cord prior to installing
any memory modules or add-in cards. Failure to do so will cause
severe damage to the system board and components.
.
.
.
.
.
.
.
.

16
Quick Setup Guide
1
Quick Setup
Guide
Front Panel Connector
X
J21
12
PWR-LED
HD-LED
RESET
SPEAKER G-LED
G-SW
20
19
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
Reserved
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
Green LED Power
Ground
N. C.
N. C.
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal

17
2
English
English
Chapter 2 - English
Processor
Chipset
System Memory
Expansion Slots
BIOS
Power Management
Hardware Monitor
Graphics
Audio
Pentium®III
- FCPGA2 133MHz FSB (1.13GHz-1.26GHz on 0.13µ)
- FCPGA 133MHz FSB (533EB-1GHz)
- FCPGA 100MHz FSB (500E-1.1GHz)
CeleronTM
- FCPGA2 100MHz FSB (≥1.2GHz on 0.13µ)
- FCPGA 100MHz FSB (800MHz-1.1GHz)
VIA®chipset
- North bridge: VIA®Apollo PLE133T 8601T
- South bridge: VIA®82C686B
Supports up to 1GB using VCM (Virtual Channel Memory) or
PC SDRAM DIMM (unbuffered or registered)
Two 168-pin DIMM sockets
Uses x64 PC SDRAM, 3.3V
- PC-100 SDRAM DIMM for 100MHz FSB processors
- PC-133 SDRAM DIMM for 133MHz FSB processors
4 PCI slots
3 ISA slots
Award BIOS
2Mbit flash memory
ACPI and OS Directed Power Management
ACPI STR (Suspend to RAM) function
Wake-On-PS/2 Keyboard/Mouse
Wake-On-USB Keyboard/Mouse
Wake-On-LAN
Wake-On-Ring
RTC timer to power-on the system
AC power failure recovery
Monitors CPU/system temperature and overheat alarm
Monitors VCORE/3.3V/5V/12V voltages and failure alarm
Monitors CPU/chassis fan speed and failure alarm
CPU Overheat Protection function monitors CPU temperature
during system boot-up
Integrated Trident 2D/3D video accelerator
Realtek ALC202A AC’97 audio CODEC
2-channel audio output

18
English
2
English
Package Checklist
The system board package contains the following items:
;The system board
;A user’s manual
;One IDE cable
;One floppy cable
;One “Main Board Utility” CD
If any of these items are missing or damaged, please contact your dealer or sales
representative for assistance.
LAN
IDE
Rear Panel I/O
Internal I/O
PCB
Realtek RTL8100C PCI LAN
Fully compliant to IEEE 802.3 (10BASE-T) and 802.3u
(100BASE-TX) standards
Supports two IDE connectors that allows connecting up to four
UltraDMA 100Mbps hard drives
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 RJ45 LAN port
2 USB 1.1 ports
1 parallel port
1 COM port
1 VGA port
1 game port
Line-out, line-in and mic-in jacks
1 connector for 2 additional external USB 1.1 ports
1 connector for 1 external COM port
1 front audio connector for external line-out and mic-in jacks
1 CD-in internal audio connector
1 AUX-in internal audio connector
1 IrDA connector
2 IDE connectors
1 floppy connector
1 Wake-On-LAN connector
1 Wake-On-Ring connector
1 20-pin ATX main power connector
1 front panel connector
2 fan connectors
ATX form factor
20.1cm (7.92") x 30.5cm (12")

19
3
Français
Français
Chapter 3 - Français
Processeur
Chipset
Mémoire Système
Logements
d’Extension
BIOS
Gestion de
Puissance
Fonctions de
Moniteur de
Matériel
Graphiques
Audio
Pentium®III
- FCPGA2 133MHz FSB (1.13GHz-1.26GHz sur 0.13µ)
- FCPGA 133MHz FSB (533EB-1GHz)
- FCPGA 100MHz FSB (500E-1.1GHz)
CeleronTM
- FCPGA2 100MHz FSB (≥1.2GHz sur 0.13µ)
- FCPGA 100MHz FSB (800MHz-1.1GHz)
VIA®chipset
- Pont nord: VIA®Apollo PLE133T 8601T
- Pont sud: VIA®82C686B
Supporte jusqu’à 1Go de mémoire utilisant VCM (Virtual
Channel Memory) ou PC SDRAM DIMM (tampon ou
enregistrées)
2 sockets DIMM 168 broches
Utilisation de x64 PC SDRAM, 3.3V
- PC-100 SDRAM DIMM pour la mémoire bus de 100MHz
- PC-133 SDRAM DIMM pour la mémoire bus de 133MHz
4 PCI slots
3 ISA slots
Award BIOS
Mémoire Flash 2Mbit
ACPI et OS Directed Power Management
ACPI STR (Suspend to RAM) fonction
Réveil-Sur-PS/2 Clavier/Souris
Réveil-Sur-USB Clavier/Souris
Eveil Sonnerie
Réveil Par Le Réseau
Minuterie RTC pour allumer le système
Récupération après Défaillance d’Alimentation CA
Gère l’alarme de température et de surchauffe de CPU/système
Gère l’alarme de voltage et d’échec de VCORE/3.3V/5V/12V
Gère la vitesse de ventilateur du ventilateur
Protection du CPU - supporte la mise hors circuit automatique
en cas de surchauffage du système
Accélérateur vidéo integrée Trident 2D/3D
Realtek ALC202A audio CODEC
2-canaux audio

20
Français
3Français
Français
LAN
IDE
Panneau Arrière I/O
Interne I/O
PCB
Realtek RTL8100C PCI LAN
Entièrement conforme IEEE 802.3 (10BASE-T) et 802.3u
(100BASE-TX) standard
Supporte des disques durs jusqu’à UltraDMA 100Mbps
1 port souris PS/2
1 port clavier PS/2
1 port RJ45 LAN
2 ports USB 1.1
1 port parallèle DB-25
1 port de DB-9 série
1 port de DB-15 VGA
1 port jeu
Line-out, line-in et mic-in prises audio
1 connecteur pour 2 ports USB 1.1 supplémentaires
1 connecteur pour 1 série
1 connecteur audio de l’avant pour la sortie ligne/l’entrée micro
1 connecteur CD-in audio internes
1 connecteur AUX-in audio internes
1 connecteur IrDA
2 connecteurs IDE
1 connecteur de FDD
1 connecteur de Wake-On-LAN
1 connecteur de Wake-On-Ring
1 connecteur d’alimentation ATX 20-pin
1 connecteur devant panneau
2 connecteurs de ventilateurs
Facteur de forme de ATX
20.1cm (7.92") x 30.5cm (12")
Liste de Vérification de l’Emballage
L’emballage de la carte système contient les éléments suivants:
;1 carte système
;1 manuel utilisateur
;1 câble IDE
;1 câble FDD
;1 CD “Mainboard Utility”
Si l’un de ces éléments n’était pas dans l’emballage ou s’il était endommagé, veuillez
contacter votre revendeur ou votre représentant.
