DFI G586VPA User manual

G586VPB
Rev. 0
System Board
User’s Manual
-D26850410-

vCopyright1995byDFI,Inc.
All rights reserved.
No part of this document may be copied, reproduced in
any form or by any means or used to make any trans-
formation/adaptation without the prior written consent
of DFI, Inc.
DFI, Inc. makes no warranties with respect to this
documentation and disclaims any implied warranties of
merchantability, quality, or fitness for any particular
purpose. The information in this document is subject to
change without notice. DFI, Inc. reserves the right to
make revisions to this publication and to make changes
to any and/or all parts of its content, at any time,
without obligation to notify any person or entity of such
changes. Further, DFI, Inc. assumes no responsibility
for any errors that may appear in this document.
DFI is a registered trademark, and G586VPB is a
trademark of Diamond Flower, Inc. All other product
names mentioned are trademarks or registered trade-
marks of their respective companies.

vFCC Statement on Class B
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence when the equipment is operated in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
the receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio TV
technician for help.
Notice:
1. The changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to
comply with the emission limits.

v Table of Contentsv
Introduction ................................................................................
Features and Specifications .................................................
Package Checklist .................................................................
Installation Overview .................................................................
Preparing the Area ................................................................
Handling the System Board ..................................................
Tips in Handling the System Board ...............................
Hardware Installation ............................................................
Memory Installation ........................................................
Installing the Modules .............................................
Board Configuration .......................................................
Jumper Settings ......................................................
Jumper Settings for PS/2 Mouse, Flash
EPROM and CMOS Clean ................................
Jumper Settings for VESA VL-Bus Add-On
Boards .................................................................
Jumper Settings for PCI Slots ...........................
Cache Configuration ...............................................
Jumper Settings for Cache Memory .................
CPU Installation ..............................................................
Jumper Settings for CPU ........................................
Installing Upgrade CPU's ........................................
Installing Expansion Cards ...................................................
Installing the PS/2 Mouse Port .............................................
Installing the System Board ..................................................
1-1
1-2
1-4
2-1
2-1
2-2
2-2
2-2
2-2
2-6
2-7
2-8
2-8
2-11
2-13
2-15
2-16
2-18
2-19
2-21
2-27
2-29
2-30

Initial Setup Program ................................................................
Award BIOS CMOS Setup Utilities ......................................
Standard CMOS Setup ..................................................
BIOS Features Setup ....................................................
Chipset Features Setup .................................................
Power Management Setup ............................................
PCI Configuration Setup ................................................
Load BIOS Defaults .......................................................
Load Setup Defaults ......................................................
Password Setting ...........................................................
IDE HDD Auto Detection ...............................................
Save and Exit Setup ......................................................
Exit Without Saving ........................................................
Troubleshooting Checklist ......................................................
Appendix A:Types of Modules ..............................................
Appendix B:System Error Report .........................................
Appendix C:Memory & I/O Maps ...........................................
Appendix D:PCI I/O Pin Assignments ..................................
Appendix E:VL-Bus I/O Pin Assignments ...........................
Appendix F:16-bit ISA I/O Pin Assignments .......................
Appendix G:Connector Pin Assignments ............................
Appendix H:Award BIOS Hard Disk Table ..........................
3-1
3-2
3-2
3-5
3-7
3-8
3-9
3-15
3-15
3-16
3-17
3-17
3-18
4-1
A-1
B-1
C-1
D-1
E-1
F-1
G-1
H-1

GreenPCI/ISASystemBoard
vIntroduction
The G586VPB is an Energy Star Compliant system
board that supports the Environmental Protection
Agency’s Green PC requirements. It reduces energy
consumption by automatically turning off peripherals, or
the entire system, when not in use.
The G586VPB system board offers several advanced
features integrated into the system board. Its design is
based on the Peripheral Component Interconnect (PCI)
and Industry Standard Architecture (ISA) standards.
The G586VPB supports a 320-pin Zero Insertion Force
(ZIF) CPU socket. The board supports Flash EPROM,
a memory chip for the storage of BIOS which can be
erased in bulk or modified using a software utility. The
ZIF socket allows users to easily upgrade the CPU.
The G586VPB is equipped with three dedicated PCI
slots, one shared PCI/ISA slot and three dedicated 16-bit
ISA slots.
The G586VPB can be configured to several different
sizes of memory up to 128MB using 256Kx36,
512Kx36, 1Mx36, 2Mx36, 4Mx36 and 8Mx36 SIM
modules.
1-1 uIntroduction

G586VPB
Features and Specifications
Introduction u1-2
Processor
•Intel Pentium™ (3.3V) 75/90/100/120MHz
Chipset
•VIA - VT82C575MV: system and cache
controller
VT82C576MV: PCI bus controller
VT82C416MV: integrated clock
generator, real time clock, keyboard
controller and PS/2 mouse
VT82C577MV: data buffer
Architecture
•PCI/ISA
Power Management
•Normal, Doze, Sleep and Suspend modes
•System event monitoring with two event classes
and two idle timers
•Predefined and user programmable I/O range
•Primary and secondary interrupt differentiation
for individual channels
•Two extended peripheral timers and one general
purpose timer
•Clock stretching, clock throttling and clock stop
control
•Multiple internal and external SMI sources for
flexible power management
•Microsoft APM 1.1 compliant
BIOS
•Award Plug & Play BIOS
•Flash EPROM for easy BIOS upgrades

GreenPCI/ISASystemBoard
1-3 uIntroduction
Enhanced PCI IDE Interface
•Supports fast Mode 3 and Mode 4 hard drivers
•Two IDE connectors to control four drives (e.g.
two HDDs, one tape drive and one CD-ROM
drive)
Super I/O Interface
•Two NS16C550A-compatible enhanced serial
ports
•One parallel port with ECP/EPP support
•Supports 360KB, 720KB, 1.2MB and 1.44MB
floppy drives
•Software configurable
•Uses UMC UM8663AF super-I/O controller
Cache Memory
•256KB, 512KB, 1MB or 2MB direct map
write-back cache
•Uses 32Kx8, 64Kx8 or 128Kx8 SRAM:
pure 3.3V or 3.3/5V mixed voltage SRAM
Memory
•Normal and EDO DRAM support
•Up to 128MB
•Four 72-pin SIMM sockets, two banks
•Supports single and/or double density SIMMs
•256Kx36, 512Kx36, 1Mx36, 2Mx36, 4Mx36 or
8Mx36 SIMMs
•Supports 60ns or 70ns page mode DRAM
Expansion Slots
•Three dedicated PCI slots
•One shared PCI/ISA slot
•Three dedicated 16-bit ISA slots

G586VPB
Introduction u1-4
ZIF Socket
•320-pin ZIF socket (Intel Socket 5)
Board Dimensions
•33cm (13") x 22cm (8.66")

GreenPCI/ISASystemBoard
Package Checklist
The G586VPB package contains the following items:
•The G586VPB system board
•The G586VPB user’s manual
•... driver diskette(s)
•One 34-pin floppy disk drive cable
•Two 40-pin IDE hard disk cables
•One 25-pin printer port cable for chasis mounting
•One card-edge bracket with serial and mouse port
cables
If any of these items are missing or damaged, please
contact your dealer or sales representative for assistance.
1-5 uIntroduction

G586VPB
InstallationOverview u2-1
vInstallation Overview
This chapter summarizes the steps in installing the
G586VPB system board into your system unit. It also
includes a description of the area in which you must
work and directions for memory installation. Before
installing the system board, obtain the memory you plan
to install. Please refer to the memory chart on page 2-4
and 2-5 for the number and type of HSIM modules
needed for the amount of memory you require.
Preparing the Area
Before unpacking the system board, make sure the
location you have selected is relatively free of dust and
static. Excessive exposure to dust, static electricity,
direct sunlight, excessive humidity, extreme cold, and
water can damage the operational capabilities of your
system board. Avoid placing the unit on soft surfaces
such as beds and carpeted floors which can hinder air
circulation. These areas also attract static electricity
which can damage some circuits on your system board.
Be sure that the power source has a properly grounded,
three-pronged socket. It is essential that the power
connection be properly grounded for correct functioning
of your system board. For further protection, we recom-
mend that you use a surge protection socket. This will
protect the system board from damage that may result
from a power surge on the line.
Move items that generate magnetic fields away from
your system board, since magnetic fields can also dam-
age your system board. Once you have selected the ideal
location, unpack the G586VPB system board carefully.

GreenPCI/ISASystemBoard
2-2 uInstallation Overview
Handling the System Board
It is quite easy to inadvertently damage your system
board even before installing it in your system unit.
Static electrical discharge can damage computer compo-
nents without causing any signs of physical damage. You
must take extra care in handling the system board to
ensure against electrostatic build-up.
Tips in Handling the System Board
1) To prevent electrostatic build-up, leave the board in
its anti-static bag until you are ready to install it.
2) Do all preparation work on a static-free surface with
components facing up.
3) Hold the system board by its edges only. Be careful
not to touch any of the components, contacts or
connections, especially gold contacts on the board.
4) Avoid touching the pins or contacts on all modules
and connectors. Hold modules and connectors by
their ends.
Warning:
Electrostatic discharge (ESD) can damage your
processor, disk drives, add-in boards, and other
components. Perform the upgrade instruction
procedures described at an ESD workstation only. If
such a station is not available, you can provide some
ESD portection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis. If a
wrist strap is unavailable, establish and maintain
contact with the system chassis throughout any
procedures requiring ESD protection.

G586VPB
InstallationOverview u2-3
Hardware Installation
Memory Installation
The G586VPB system board can support up to 128MB
of memory using HSIM modules. HSIM is an acronym
for High Density Single In-line Memory.
An HSIM module consists of several RAM chips sol-
dered onto a small circuit board. An HSIM module
connects to the system board via a 72-pin card-edge
connector.
The SIMM sockets are divided into two banks. Bank 0
consists of SIM3 and SIM4 SIMM sockets, and Bank 1
consists of SIM1 and SIM2 SIMM sockets. Please note
that you can use either Bank 0 or Bank 1 to boot your
system.
The G586VPB system board uses 256Kx36, 512Kx36,
1Mx36, 2Mx36, 4Mx36 and 8Mx36 SIM modules.
The table on the next page summarizes the bank loca-
tions and modules needed for the corresponding memory
sizes.
Note:
Make sure that the SIMM sockets belonging to the same
Bank (e.g. SIM3 and SIM4 - Bank 0) contain the same
type of DRAM. If you instal two different types of
DRAM in one bank, the system will not boot.

GreenPCI/ISASystemBoard
2-4 uInstallation Overview
Bank0Bank1MemorySize
2MB
4MB
4MB
6MB
6MB
8MB
8MB
10MB
10MB
12MB
12MB
16MB
16MB
18MB
18MB
20MB
20MB
24MB
24MB
32MB
32MB
34MB
34MB
36MB
36MB
40MB
40MB
48MB
48MB
64MB
64MB
66MB
66MB
68MB
68MB
72MB
72MB
256Kx36
256Kx36
512Kx36
256Kx36
512Kx36
512Kx36
1Mx36
256Kx36
1Mx36
512Kx36
1Mx36
1Mx36
2Mx36
256Kx36
2Mx36
512Kx36
2Mx36
1Mx36
2Mx36
2Mx36
4Mx36
256Kx36
4Mx36
512Kx36
4Mx36
1Mx36
4Mx36
2Mx36
4Mx36
4Mx36
8Mx36
256Kx36
8Mx36
512Kx36
8Mx36
1Mx36
8Mx36
-
256Kx36
-
512Kx36
256Kx36
512Kx36
-
1Mx36
256Kx36
1Mx36
512Kx36
1Mx36
-
2Mx36
256Kx36
2Mx36
512Kx36
2Mx36
1Mx36
2Mx36
-
4Mx36
256Kx36
4Mx36
512Kx36
4Mx36
1Mx36
4Mx36
2Mx36
4Mx36
-
8Mx36
256Kx36
8Mx36
512Kx36
8Mx36
1Mx36

G586VPB
Bank1MemorySizeBank0
80MB
80MB
96MB
96MB
128MB
2Mx36
8Mx36
4Mx36
8Mx36
8Mx36
8Mx36
2Mx36
8Mx36
4Mx36
8Mx36
InstallationOverview u2-5
Locations of the SIMM Sockets on the System Board
ISA ISA ISA ISA
PCI 1 PCI 2 PCI 3
PCI 4
SIM3 SIM2 SIM1
[ [
Bank 0 Bank 1
SIM4
Pin 1 of the socket

GreenPCI/ISASystemBoard
Installing the Modules
An HSIM module simply snaps into a socket on the
system board. Pin 1 of the HSIM module must corre-
spond with Pin 1 of the socket.
1. Position the HSIM module above the socket with the
“notch” in the module aligned with the “key” on the
socket.
2. Seat the module at a 45oangle into the bank. Make
sure it is completely seated. Tilt the module upright
until it locks in place in the socket.
2-6 uInstallation Overview

G586VPB
Board Configuration
InstallationOverview u2-7
ISA Slot ISA Slot
ISA Slot ISA Slot
PCI 1
PCI 2
PCI 3
PCI 4
SIM 4
SIM 3 SIM 2 SIM 1
VIA
VT82C576MV
VIA
VT82C575MV
VIA
VT82C577MV
VIA
VT82C577MV
VIA
VT82C416
System
BIOS
Bank 0
Bank 1

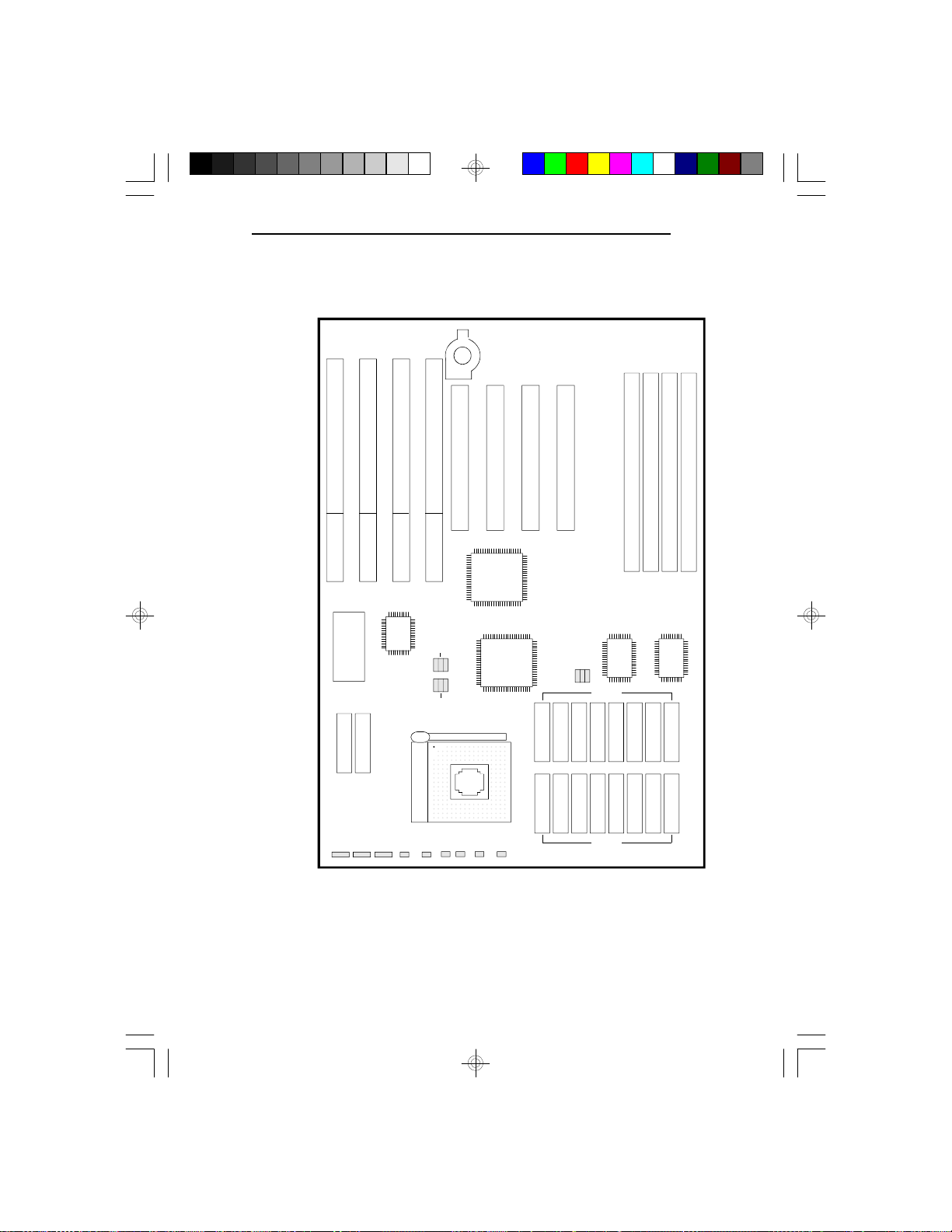

Locations of Jumpers and Connectors
on the G586VPB System Board
TAG
TAG
CN13CN14
CN15
CN16CN17J23J22CN12CN11
J15J17
J16
J9J7
J8
J10J12J11

GreenPCI/ISASystemBoard
Jumper Settings
Jumper Settings for Internal Battery/CMOS Clean Select
PCI1
PCI2
PCI3
PCI4
SIM1
SIM2
SIM3
SIM4
ISA
ISA
ISA
ISA
J1
J2
LocationsofJumpersJ1andJ2ontheG586VPB
SystemBoard
2-8 uInstallation Overview

G586VPB
InstallationOverview u2-9

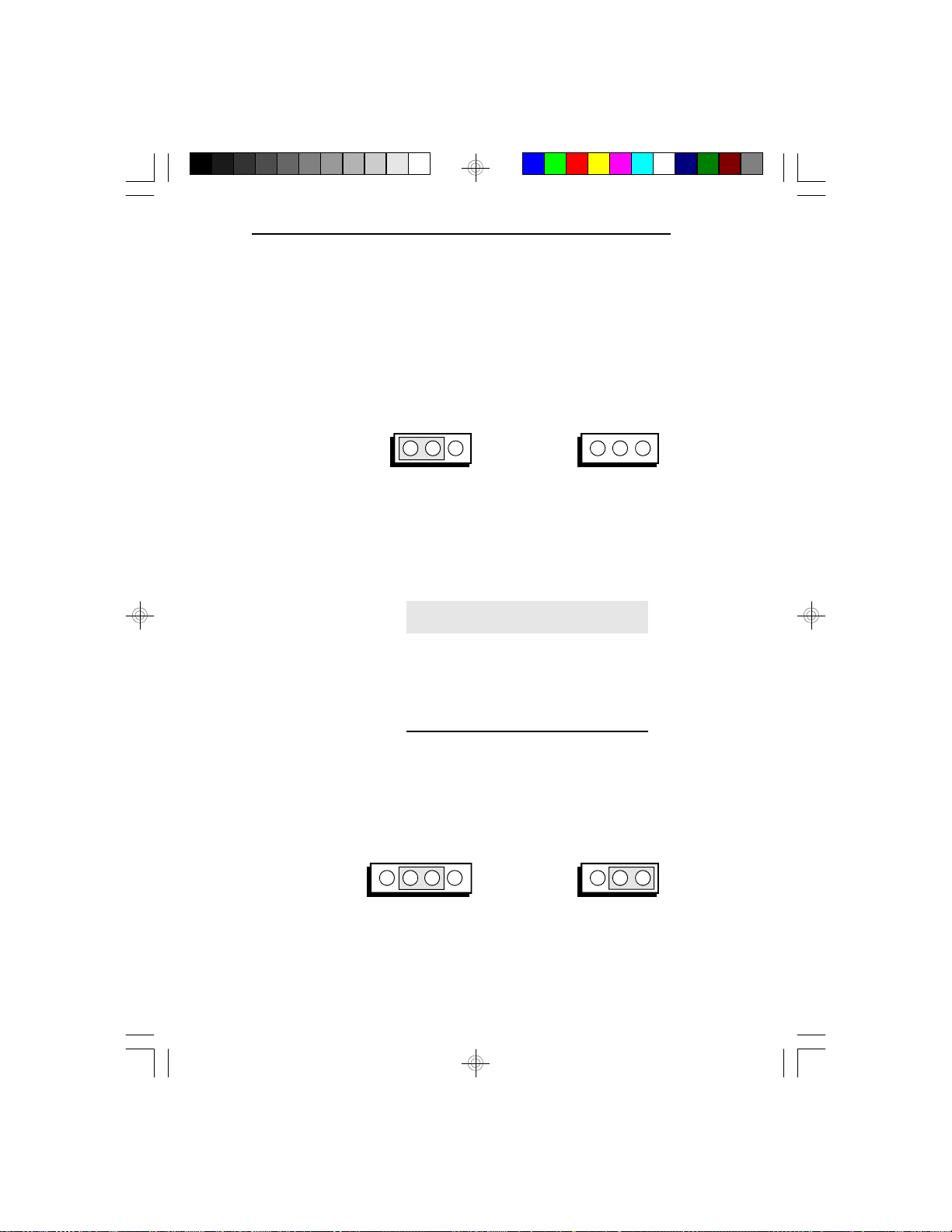

Jumpers/Connectors J1 and J2
Internal Battery/CMOS Clean Select
The G586VPB comes with an internal battery. If you
experience difficulty with the internal battery, or you
prefer to connect an external battery, set Jumper J2 to
Off and connect an external battery to Connector J1.
321
J2Off:External
BatteryEnabled
321
J2:InternalBattery
Enabled(Default)
Connector J1
External Battery Connector
Pin
1
2
3
4
Function
Ext. Bat. Input
N. C.
GND
GND
If the CMOS becomes corrupted, the system can be
configured with the default values stored in the ROM
chips. To load the default values, change the setting of
Jumper J2 to pins 2-3 On. Set Jumper J1 pins 2-3 to On.
321 4321
J2pins2-3On:CMOS
Clean
J1pins2-3On:CMOS
Clean

GreenPCI/ISASystemBoard
2-10 uInstallation Overview
Note:
After the CMOS has been reset, you must set Jumper J2
to Internal or External Battery Enable. If you set the
jumper to External Battery Enable, make sure you
connect an external battery to Connector J1.
Summary:
Off
On*
2-3On
1-2On
Off
2-3On
J1J2
InternalBattery
ExternalBattery
CMOSClean
* External battery must be connected to Connector J1.
Caution:
The G586VPB system board uses 3V Lithium internal
battery. Battery may explode if mistreated. Do not
recharge, disassemble or dispose of in fire.
Cache Configuration
The G586VPB system board can be configured to four
different cache sizes: 256KB (Default size), 512KB,
1MB and 2MB. Either 32Kx8, 64Kx8 or 128Kx8 SRAM
chips are used for cache depending on the size of cache
desired. The G586VPB supports both pure 3.3V and
3.3/5V mixed voltage SRAM. The brands of SRAM that
passed a factory testing are shown on the next page.
