DFI LanParty KT400A User manual

LANPARTY
KT400A
Rev.A+
System Board
User’s Manual
70900310

Copyright
This publication contains information that is protected by copy-
right. No part of it may be reproduced in any form or by any
means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2003 All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE, Windows®ME, Windows®2000, Windows NT®
4.0 and Windows®XP are registered trademarks of Microsoft
Corporation. AMD, AthlonTM XP, AthlonTM and DuronTM are
registered trademarks of Advanced Micro Devices, Inc. VIA is a
registered trademark of VIA Technologies, Inc. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties
of their respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Notice
This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user’s manual, insert the CD into a CD-ROM drive.The
autorun screen (Main Board Utility CD) will appear. Click “User’s
Manual”.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications.................................................................................
1.2 Package Checklist...........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .......................................................................................
2.2 Installing the CPU in a Socket A...........................................................
2.3 System Memory........................................................................................................
2.4 Jumper Settings for Clearing CMOS Data.................................
2.5 Switch Settings for Selecting the CPU’s Front Side
Bus.............................................................................................................................................
26 Jumper Settings for Serial ATA.................................................................
27 Ports and Connectors........................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1.2 Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features .....................................................
3.1.4 Integrated Peripherals........................................................................
3.1.5 Power Management Setup..........................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Genie BIOS Setting.............................................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.12 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving.............................................................................
3.2 Updating the BIOS.......................................................................................................
7
15
50
50
55
60
67
74
81
83
86
89
89
90
90
91
91
92
16
17
17
20
22
23
24

Introduction
1
6
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface..................................................................
4.2 Drivers, Utilities and Software Applications..................................
4.3 CMedia Audio Sofware Application......................................................
4.4 Installation Notes.........................................................................................................
AppendixA - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function..................................................
Appendix B - System Error Messages
B.1 POST Beep.........................................................................................................................
B.2 Error Messages.............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist...................................................................................
94
97
105
107
112
112
108
114

1
Introduction
7
1.1 Features and Specifications
1.1.1 Features
Chipset
• VIA®KT400A andVT8235CD
Processor
The system board is equipped with Socket-A for PGA processor.
It is also equipped with a switching voltage regulator that auto-
matically detects 1.100V to 1.850V.
• AMD AthlonTM XP 266/333MHz FSB
• AMD AthlonTM 200/266MHz FSB
• AMD DuronTM 200MHz FSB
Important:
To ensure proper boot up and operation of your system, you
must power-off the system then turn off the power supply’s
switch or unplug the AC power cord prior to replacing the CPU.
System Memory
• Supports up to 3GB memory (unbuffered DIMM)
• Uses PC1600 (DDR200), PC2100 (DDR266), PC2700
(DDR333) or PC3200 (DDR400) DDR SDRAM DIMM, 2.5V
type
• Three184-pin DDR SDRAM DIMM sockets
• L2 cache memory
- DuronTM processor: built-in 64KB Level 2 pipelined burst
cache
- AthlonTM XP / AthlonTM processor: built-in 256KB Level 2
pipelined burst cache
Chapter 1 - Introduction

Introduction
1
8
Expansion Slots
The system board is equipped with 1 AGP slot and 5 PCI slots.
AGP is an interface designed to support high performance 3D
graphics cards. It utilizes a dedicated pipeline to access system
memory for texturing, z-buffering and alpha blending.The AGP slot
supports AGP 8x with up to 2132MB/sec. bandwidth and AGP 4x
with up to 1066MB/sec. bandwidth for 3D graphics applications.
AGP in this system board will deliver faster and better graphics to
your PC.
Onboard Audio Features
• AC’97 2.2 S/PDIF extension compliant codec
• Supports Microsoft®DirectSound/DirectSound 3D
• AC’97 supported with full duplex, independent sample rate
converter for audio recording and playback
• 6-channel audio output
Onboard Dual LAN Features
• Uses VIA VT6103 Phy and Realtek 8101L controllers
• Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible
PHY
• Integrated power management functions
• Full duplex support at both 10 and 100 Mbps
• Supports IEEE 802.3u auto-negotiation
• Supports wire for management
ATA RAID - Redundant Array of Inexpensive Disk
• RAID 0, 1, 0+1 and 1.5
• Two independent IDE channels support 4 hard disk drives
(UDMA modes 33/66/100/133 or EIDE)
• Supports PIO modes 0/1/2/3/4, DMA modes 0/1/2 and
UDMA modes 0/1/2/3/4/5/6
DIMMs
2MBx64
4MBx64
8MBx64
Memory Size
16MB
32MB
64MB
DIMMs
16MBx64
32MBx64
64MBx64
Memory Size
128MB
256MB
512MB

1
Introduction
9
PCI Bus Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
• UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate
up to 133MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-120 and ZIP
Serial ATA IDE Interface
• Uses Marvell 88i8030 chip
• Supports one SATA (Serial ATA) interface which is compliant
with SATA 1.0 specification (1.5Gbps interface)
Serial ATA is a storage interface that is compliant with SATA 1.0
specification. With speed of up to 1.5Gbps, it improves hard drive
performance even in data intensive environments such as audio/
video, consumer electronics and entry-level servers.
IEEE 1394a Interface
• Uses VIA VT6306 chip
• Supports three 100/200/400 Mb/sec ports
The VIA VT6306 controller is a complete single chip IEEE 1394a
solution. It is fully compliant with the 1394a OHCI (Open Host
Controller Interface) 1.1 specification. 1394a is a fast external bus
standard that supports data transfer rates of up to 400Mbps. In
addition to its high speed, it also supports isochronous data transfer
which is ideal for video devices that need to transfer high levels of
data in real-time. 1394a supports both Plug-and-Play and hot
plugging allowing devices to be attached or removed from the
system, even with the power on.
S/PDIF
The system board is equipped with the S/PDIF (Sony/Philips Digital
Interface) digital audio interface. S/PDIF is a standard audio file trans-
fer format that transfers digital audio signals to a device without
having to be converted first to an analog format.This prevents the
quality of the audio signal from degrading whenever it is converted
to analog.

Introduction
1
10
IrDA Interface
The system board is equipped with an IrDA connector for wire-
less connectivity between your computer and peripheral devices.
USB Ports
The system board supports USB 2.0 and USB 1.1 ports. USB 1.1
supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/
second bandwidth providing a marked improvement in device
transfer speeds between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals..
BIOS
• Award BIOS, Windows®95/98/2000/ME/XP Plug and Play
compatible
• Genie BIOS provides:
- CPU/DRAM overclocking in 1MHz stepping
- CPU/AGP/DRAM/Chipset overvoltage
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI 2.0 function
• 4Mbit flash memory
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS.The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
Rear Panel I/O Ports (PC 99 color-coded connectors)
• Four USB 2.0/1.1 ports
• Two RJ45 LAN port
• Two NS16C550A-compatible DB-9 serial ports
• One SPP/ECP/EPP DB-25 parallel port
• One mini-DIN-6 PS/2 mouse port

1
Introduction
11
• One mini-DIN-6 PS/2 keyboard port
• Three audio jacks: line-out, line-in and mic-in
I/O Connectors
• One connector for 2 additional external USB 2.0/1.1 ports
• Three connectors for 3 external IEEE 1394a ports
• One connector for 1 external game/MIDI port
• One connector for external line-out and mic-in jacks
• Two internal audio connectors (AUX-in and CD-in)
• One 4-channel audio output connector
• One S/PDIF-in/out connector
• One connector for IrDA interface
• Two RAID IDE connectors
• One connector for serial ATA interface
• Two IDE connectors
• One floppy drive interface supports up to two 2.88MB floppy
drives
• One ATX power supply connector
• One Wake-On-LAN connector
• One Wake-On-Ring connector
• CPU, chassis and second chassis fan connectors
1.1.2 Damage Free Inteligence
The system board is capable of monitoring the following “system
health” conditions.
• Monitors CPU/system temperature
• Monitors ±12V/±5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages
• Monitors CPU/chassis fan speed
• Automatic chassis fan on/off control
• Read back capability that displays temperature, voltage and fan
speed
• CPU Fan Protection function monitors the CPU fan during
system boot-up
• CPU Temperature Protection function monitors CPU tem-
perature during system boot-up
Refer to the “PC Health Status” section in chapter 3 and the
“Winbond Hardware Monitor” section in chapter 4 for more in-
formation.

Introduction
1
12
CPU Temperature Protection
The CPU Temperature Protection function has the capability of
monitoring the CPU’s temperature during system boot-up. Once
it has detected that the CPU’s temperature exceeded the CPU
temperature limit defined in the BIOS, the system will automati-
cally power-off after 5 warning beeps. Refer to “CPU Temp. Prot.
Function and CPU Temp. Prot. Alarm” in the PC Health Status
section in chapter 3 for more information.
CPU Fan Protection
The CPU Fan Protection function has the capability of monitoring
the CPU fan during system boot-up and will automatically power-
off the system once it has detected that the CPU fan did not
rotate. This preventive measure has been added to protect the
CPU from damage and insure a safe computing environment. Re-
fer to “CPU Fan Connector with CPU Fan Protection Function”
in chapter 2 and “CPU Fan Protection” in the PC Health Status
section in chapter 3 for more information.
Over Voltage
The Over Voltage function allows you to manually adjust to a
higher core voltage that is supplied to the CPU. Although this
function is supported, we do not recommend that you use a
higher voltage because unstable current may be supplied to the
system board causing damage. Refer to “OverClocking Control”
in the Genie BIOS Setting section in chapter 3 for more informa-
tion.
CPU Overclocking
The CPU Overclocking function allows you to adjust the proces-
sor’s bus clock. However, overclocking may result to the proces-
sor’s or system’s instability and are not guaranteed to provide
better system performance. Refer to “OverClocking Control” in
the Genie BIOS Setting section in chapter 3 for more informa-
tion.
Automatic Chassis Fan Off
The chassis fan will automatically turn off once the system enters
the Suspend mode.

1
Introduction
13
Dual Function Power Button
Depending on the setting in the “Soft-Off By PWRBTN” field of
the Power Management Setup, this switch will allow the system
to enter the Soft-Off or Suspend mode.
1.1.3 Energy Efficient Design
• Supports ACPI specification and OS Directed Power Manage-
ment
• Supports ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
- Wake-On-Ring (through internal or external modem)
- Wake-On-LAN
- RTC timer to power-on the system
• System power management supported
• CPU stopped clock control
• Hardware supports SMI green mode
• Microsoft®/Intel®APM 1.2 compliant
• Soft Power supported - ACPI v1.0a specification
• AC power failure recovery
ACPI STR
The system board is designed to meet the ACPI (Advanced Con-
figuration and Power Interface) specification. ACPI has energy sav-
ing features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows®®
®®
®98/2000/ME/XP
supports the ACPI function allowing you to use the Suspend to
RAM function.
With the Suspend to RAM function enabled, you can power-off
the system at once by pressing the power button or selecting
“Standby” when you shut down Windows®®
®®
®98/2000/ME/XP with-
out having to go through the sometimes tiresome process of
closing files, applications and operating system. This is because the
system is capable of storing all programs and data files during the
entire operating session into RAM (Random Access Memory)
when it powers-off. The operating session will resume exactly
where you left off the next time you power-on the system. Refer
to “Using the Suspend to RAM Function” in appendix A for more
information.

Introduction
1
14
Important:
The 5VSB power source of your power supply must support
≥ 1A.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or
Soft Power Off mode to wake-up/power-on to respond to calls
coming through an internal or external modem. Refer to “Wake-
On-Ring Connector” in chapter 2 and “Resume On LAN/Ring”
(“Wake Up Events” field) in the Power Management Setup sec-
tion in chapter 3 for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥ 720mA.
Wake-On-LAN
The Wake-On-LAN function allows the network to remotely
wake up a Soft Power Down (Soft-Off) PC. Your LAN card must
support the remote wakeup function. Refer to “Wake-On-LAN
Connector” in chapter 2 and “Resume On LAN/Ring” (“Wake
Up Events” field) in the Power Management Setup section in
chapter 3 for more information.
Important:
The 5VSB power source of your power supply must support a
minimum of ≥ 720mA.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to
“Resume By-Alarm” (“Wake Up Events” field) in the Power Man-
agement Setup section in chapter 3 for more information.

1
Introduction
15
AC Power Failure Recovery
When power returns after an AC power failure, you may choose
to either power-on the system manually, let the system power-on
automatically or return to the state where you left off before
power failure occurs. Refer to “PWR Lost Resume State” in the
Power Management Setup section in chapter 3 for more infor-
mation.
1.2 Package Checklist
The system board package contains the following items:
!The system board
!Two user’s manual
!Two IDE round cables for ATA/33, ATA/66, ATA/100 or ATA/
133 IDE drives
!One 34-pin floppy disk drive round cable
!One card-edge bracket mounted with 3 1394a ports
!One serial ATA cable
!One card-edge bracket mounted with 2 USB 2.0/1.1 ports
"One card-edge bracket mounted with 1 S/PDIF-in port and
1 S/PDIF-out port (optional)
"One card-edge bracket mounted with a 4-channel audio
output connector (optional)
"One card-edge bracket mounted with a front audio output
connector (optional)
!One FrontX I/O port assembly kit
!One “RAID Driver” floppy diskette
!One “Main Board Utility” CD
!One “WinDVD/WinRIP Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
16
Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation
6
5
7
8
123
98
7
123
98
7
A2
B1
A66
B65
2
93183
92
2
93183
92
2
93183
92
2
20
+
402
391
402
391
1
2
10
9
1
2
10
9
10
9
1
2
10
9
1
216
15
10
9
1
7
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
J24:SATA Disable:On
J23:Master Only:On
RAID IDE2
Clear
CMOS
SATA
JP2: RST BTN
JP3: PWRBTN
J14
1394-1
(J13)1394-2
J12
1394-3
IrDA
-12V-5V
12V
5VSB
PWRGD
VCC
VCC3
2nd Fan
CPU Fan
IDE1
USB 5/6
WOL
COM2
J8
Aux-in
S/PDIF-in/out
GamePort
Mic-in
Line-in
Line-out
Battery
SW1: CPU FSB Select
CN9
CN8
J5
CN2
BT1
CN4
CN3CN1
CN5
CN7
CN6
DIMM1
J25
J2
J1
J11
J17: Chassis Fan
J10
J16
J20
J19
J15
J9
J6
J22:
JP1
COM1
USB 1
USB 2
LAN1
USB 3
USB 4
LAN2
(PS/2)
KB
Mouse
Parallel Port
Front Audio
4-ch Audio
J7
CD-in
PCI Slot 1
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
AGPSlot
ATX Power Connector
Socket A
DIMM3
DIMM2
IDE2
FDD
RAID IDE1
HD-LED SPEAKER
RESET
PWR- LED
PWR-SW
F-Panel
J18:
ATX12V Power Connector
VIA
KT400A
VIA
VT8235CD

2
Hardware Installation
17
2.2 Installing the CPU in a Socket A
Warning:
• Before you install or remove any component, ensure that
the power supply is switched off or the power cord is de-
tached from the power supply. Failure to do so may cause
severe damage to the systemboard, peripherals, and/or com-
ponents.
• Use a grounded wrist strap or touch a safely grounded ob-
ject or to any metal object, , before handling components to
avoid damaging them due to static electricity.
1. Pull the lever sideways away from
the socket. Make sure to raise the
lever up to a 90 degree angle.
2. Look for a golden triangle marked
on the top surface of the CPU close
to one of it’s corners. These
markings indicate Pin 1 of the CPU.
The CPU can only fit in the correct
orientation.
3. Gently insert the CPU with Pin 1 at
the same corner of Socket that
contains the end of the lever.Allow
the weight of the CPU to push itself
into place. Do not apply extra
pressure as doing so may result in
damaging your CPU and or
systemboard. Snap the lever back
into place.
Important:
Installing a heat sink with cooling fan is necessary for proper heat
dissipation from your CPU. Apply a thin layer of thermal paste on
top of CPU to dissipate the heat more effectively. Failing to do so
may result in overheating and possible burnout of your CPU.
Snap the lever
back into place
!
!
Insert and
press gently
Open Lever
Golden
Triangle
"90 degree
angle

2
18
Hardware Installation
2.3 System Memory
Warning:
• To ensure proper boot up and operation of your system, you
must power-off the system then turn off the power supply’s
switch or unplug the AC power cord prior to altering the setting
of a jumper or replacing the CPU.
• Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components.
Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis. If a wrist
strap is unavailable, establish and maintain contact with the
system chassis throughout any procedures requiring ESD
protection.
The system board is equipped with three 184-pin DDR SDRAM
DIMM (Dual In-line Memory Module) sockets that support 2.5V
DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is
a type of SDRAM that doubles the data rate through reading and
writing at both the rising and falling edge of each clock. This
effectively doubles the speed of operation therefore providing two
times faster data transfer.
6
5
7
8
12
3
98
7
123
9
8
7
A2
B1
A66
B65
2
93183
92
2
93183
92
2
93183
92
2
20
+
40 2
391
402
391
1
2
10
9
1
2
10
9
10
9
1
2
10
9
1
216
15
10
9
1
7
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
J24:SATA Disable:On
J23:MasterOnly:On
RAID IDE2
Clear
CMOS
SATA
JP2:RSTBTN
JP3:PWRBTN
J14
1394-1
(J13)1394-2
J12
1394-3
IrDA
-12V-5V
12V
5VSB
PWRGD
VCC
VCC3
2ndFan
CPUFan
IDE1
USB5/6
WOL
COM2
J8
Aux-in
S/PDIF-in/out
GamePort
Mic-in
Line-in
Line-out
Battery
SW1:CPUFSBSelect
CN9
CN8
J5
CN2
BT1
CN4
CN3CN1
CN5
CN7
CN6
DIMM1
J25
J2
J1
J11
J17:Chassis Fan
J10
J16
J20
J19
J15
J9
J6
J22:
JP1
COM1
USB1
USB2
LAN1
USB3
USB4
LAN2
(PS/2)
KB
Mouse
ParallelPort
FrontAudio
4-chAudio
J7
CD-in
PCISlot1
PCISlot5
PCISlot4
PCISlot3
PCISlot2
AGPSlot
ATXPowerConnector
Socket A
DIMM3
DIMM2
IDE2
FDD
RAID IDE1
HD-LEDSPEAKER
RESET
PWR-LED
PWR-SW
F-Panel
J18:
ATX12VPowerConnector
VIA
KT400A
VIA
VT8235CD
#
DIMM 1DIMM 1
DIMM 1DIMM 1
DIMM 1
DIMM 2DIMM 2
DIMM 2DIMM 2
DIMM 2
DIMM 3DIMM 3
DIMM 3DIMM 3
DIMM 3

2
Hardware Installation
19

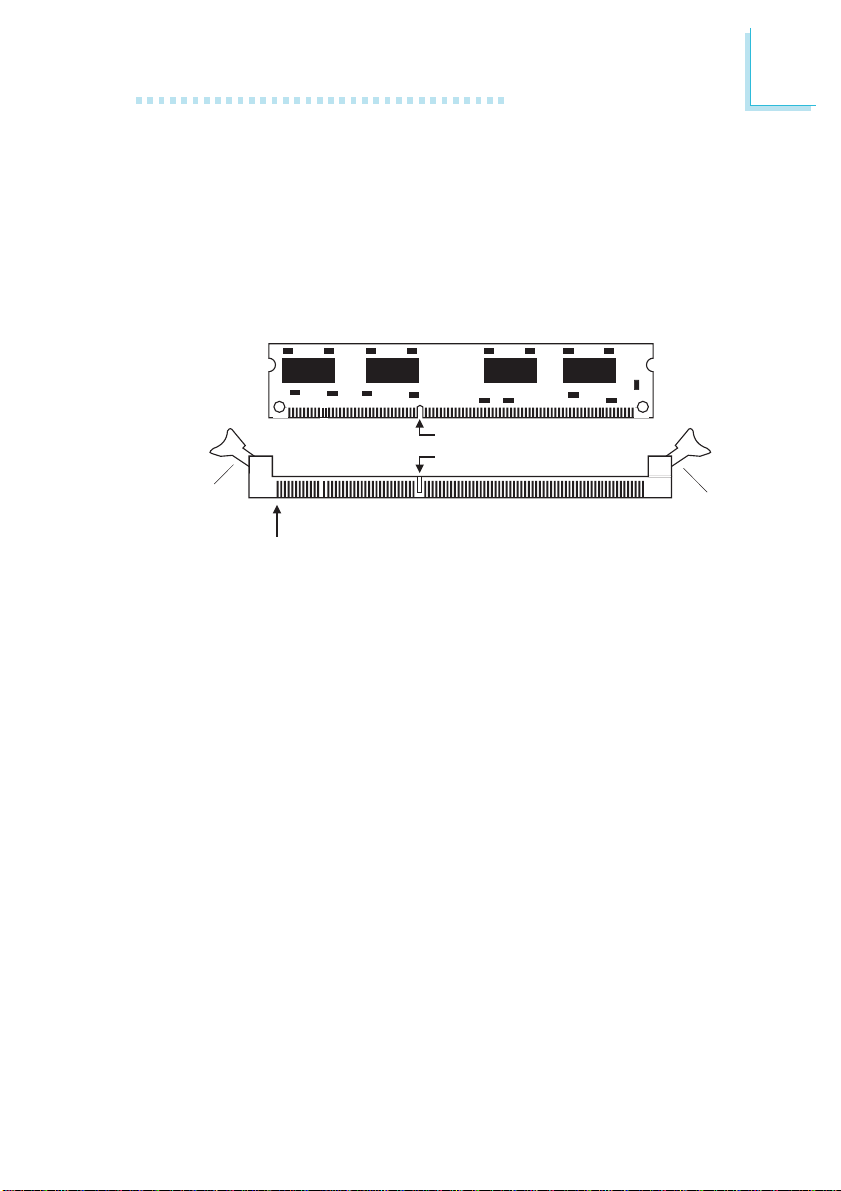

1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the DIMM in place.
2.3.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of
the socket.
Refer to chapter 1 (System Memory section) for detailed
specification of the memory supported by the system board.
Pin 1
Notch
Key
Tab Tab

2
20
Hardware Installation
2.4 Jumper Settings for Clearing CMOS Data
Clear CMOS Data - Jumper JP1
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
c) You are unable to boot-up the computer system because the
processor’s bus clock was incorrectly set in the BIOS.
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP3 pins 2 and 3 to On.Wait for a few seconds and set JP3
back to its default setting, pins 1 and 2 On.

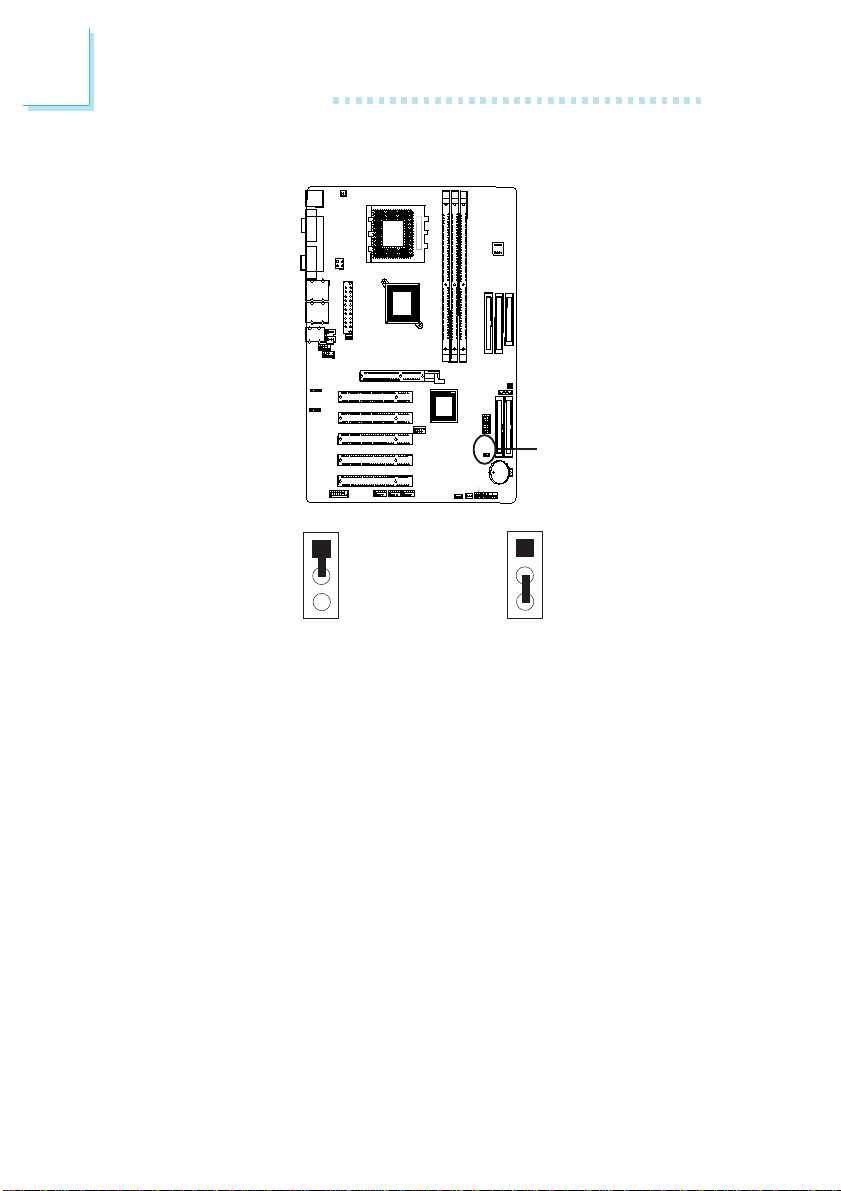

2-3 On:
Clear CMOS Data
1-2 On:
Normal (default)
1
2
3
1
2
3
(JP1)
Clear CMOS Data
6
5
7
8
12
3
98
7
123
98
7
A2
B1
A66
B65
2
93183
92
2
93183
92
2
93183
92
2
20
+
40 2
391
402
391
1
2
10
9
1
2
10
9
10
9
1
2
10
9
1
216
15
10
9
1
7
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
A1
B2
A61
B62
J24:SATA Disable:On
J23:MasterOnly:On
RAID IDE2
Clear
CMOS
SATA
JP2:RSTBTN
JP3:PWRBTN
J14
1394-1
(J13)1394-2
J12
1394-3
IrDA
-12V-5V
12V
5VSB
PWRGD
VCC
VCC3
2ndFan
CPUFan
IDE1
USB5/6
WOL
COM2
J8
Aux-in
S/PDIF-in/out
GamePort
Mic-in
Line-in
Line-out
Battery
SW1:CPUFSBSelect
CN9
CN8
J5
CN2
BT1
CN4
CN3CN1
CN5
CN7
CN6
DIMM1
J25
J2
J1
J11
J17:Chassis Fan
J10
J16
J20
J19
J15
J9
J6
J22:
JP1
COM1
USB1
USB2
LAN1
USB3
USB4
LAN2
(PS/2)
KB
Mouse
ParallelPort
FrontAudio
4-chAudio
J7
CD-in
PCISlot1
PCISlot5
PCISlot4
PCISlot3
PCISlot2
AGPSlot
ATXPowerConnector
Socket A
DIMM3
DIMM2
IDE2
FDD
RAID IDE1
HD-LEDSPEAKER
RESET
PWR-LED
PWR-SW
F-Panel
J18:
ATX12VPowerConnector
VIA
KT400A
VIA
VT8235CD
$
