DFI P2XBL/D User manual

P2XBL/D
Rev. A+
System Board
Users Manual
36100820

Copyright
This publication contains information that is protected by copyright. No
part of it may be reproduced in any form or by any means or used to
make any transformation/adaptation without the prior written permission
from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any express
or implied warranties of merchantability or fitness for any particular purpose.
The user will assume the entire risk of the use or the results of the use of
this document.Fur ther,the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation
to notify any person or entity of such revisions or changes.
© 1998.All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM and Windows®95 are registered
trademarks of Microsoft Corporation. Intel and Pentium are registered
trademarks of Intel Corporation. Cyrix, 6x86, 6x86L and 6x86MX are
registered trademarks of Cyrix Corporation. AMD, K5 and K6 are
registered trademarks ofAdvanced Micro Devices,Inc. IBM is a registered
trademark of International Business Machine Corporation. Award is a
registered trademark of Award Software, Inc. Other trademarks and
registered trademarks of products appearing in this manual are the
properties of their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to tr y to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .............................................................................................
2.2 System Memory.............................................................................................................
2.3 Processor..............................................................................................................................
2.4 Jumper Settings for Clearing CMOS Data..........................................
2.5 Jumper Settings for the Ratio...........................................................................
2.6 Connecting the Ribbon Cables and Wires of the Ports
and Connectors.............................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Setup....................................................................
3.1.2 BIOS Features Setup..........................................................................
3.1.3 Chipset Features Setup....................................................................
3.1.4 Power Management Setup............................................................
3.1.5 PNP/PCI Configuration....................................................................
3.1.6 Load Fail-Safe Settings......................................................................
3.1.7 Load Optimal Settings......................................................................
3.1.8 Integrated Peripherals.........................................................................
3.1.9 Supervisor Password..........................................................................
3.1.10 User Password.........................................................................................
3.1.11 IDE HDD Auto Detection...........................................................
3.1.12 Save & Exit Setup.................................................................................
3.1.13 Exit Without Saving..............................................................................
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4.2 Hardware Doctor Utility........................................................................................
4.3 IDE Drivers and Patch Utility...........................................................................
6
9
26
26
29
33
37
42
43
44
44
47
48
48
49
49
10
11
11
13
14
15
50
53
55

56
56
58
Appendix A - System Error Messages
A.1 POST Beep.......................................................................................................................
A.2 Error Messages..............................................................................................................
Appendix B - Troubleshooting
B.1 Troubleshooting Checklist....................................................................................

Introduction
1
6
1.1 Features and Specifications
1.1.1 Features
Chipset
 Intel

440BX AGPset
Processor
The system board is equipped with dual 242-pin Intel

Slot 1
processor slots for installing Intel Pentium

II processors that are
packaged in an SEC (Single Edge Contact) cartridge. It is also
equipped with two switching voltage regulators that automatically
detect 1.8V to 3.5V.
 233/66MHz, 266/66MHz, 300/66MHz, 300/100MHz,
333/66MHz, 350/100MHz, 400/100MHz or 450/100MHz
Pentium

II processor
System Memory
 8MB to 512MB memory using unbuffered DIMMs
 8MB to 1GB memory using registered DIMMs
 Four 168-pin DIMM sockets
 Uses x64 or x72 SDRAM DIMM, 3.3V
- PC-66 SDRAM DIMM for 66MHz FSB processors
- PC-100 SDRAM DIMM for 100MHz FSB processors
 EC and ECC supported (uses x72 SDRAM DIMM)
DIMMs
1MBx64/x72
2MBx64/x72
4MBx64/x72
8MBx64/x72
16MBx64/x72
32MBx64/x72
Memory Size
8MB
16MB
32MB
64MB
128MB
256MB
Chapter 1 - Introduction

1
Introduction
7
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 4
dedicated PCI slots, 1 dedicated 16-bit ISA slot and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to Chapter 4 for instructions on
using the DMI utility.
ATX Double Deck Ports
 2 USB ports
 Two NS16C550A-compatible DB-9 serial ports
 One SPP/ECP/EPP DB-25 parallel port
 One mini-DIN-6 PS/2 mouse port
 One mini-DIN-6 PS/2 keyboard port
Connectors
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two 2.88MB floppy
drives
 One 20-pin ATX power supply connector
 One 3-pin WOL (Wake-On-LAN) connector
 One SB-LINK connector
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Ultra DMA/33 supported (Synchronous Ultra DMA mode -
data transfer rate up to a maximum of 33MB/sec.)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)

Introduction
1
8
 Bus mastering reduces CPU utilization during disk transfer
 ATAPI CD-ROM, LS-120 and ZIP supported
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS, Windows

95 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
 Includes NCR 810 SCSI BIOS
 Monitors System Health status and failure alert
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors processor/system temperature and overheat alarm
 Monitors +3.3V/±12V/±5V/processor voltages and failure alarm
 Monitors processor/system fan speed and failure alarm
 Automatic fan on/off control
 Read back capability that displays accurate temperature, voltage
and fan speed
 Opened chassis alarm
 Failure alert when using Pentium®II processors with different
Front Side Bus (FSB)
1.1.3 Intelligence
Dual Function Power Button
Depending on the setting in the BIOS setup, this switch will allow
your system to enter the Soft-Off or Suspend mode.

1
Introduction
9
RTC Timer to Power-On the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
External Modem Ring-on
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls.
Note:
This feature supports external modem only.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þOne 40-pin IDE hard disk cable
þOne 34-pin floppy disk drive cable
þOne CD
þOne P2TC GTL+ bus terminator card
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
10
Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation

2
Hardware Installation
11

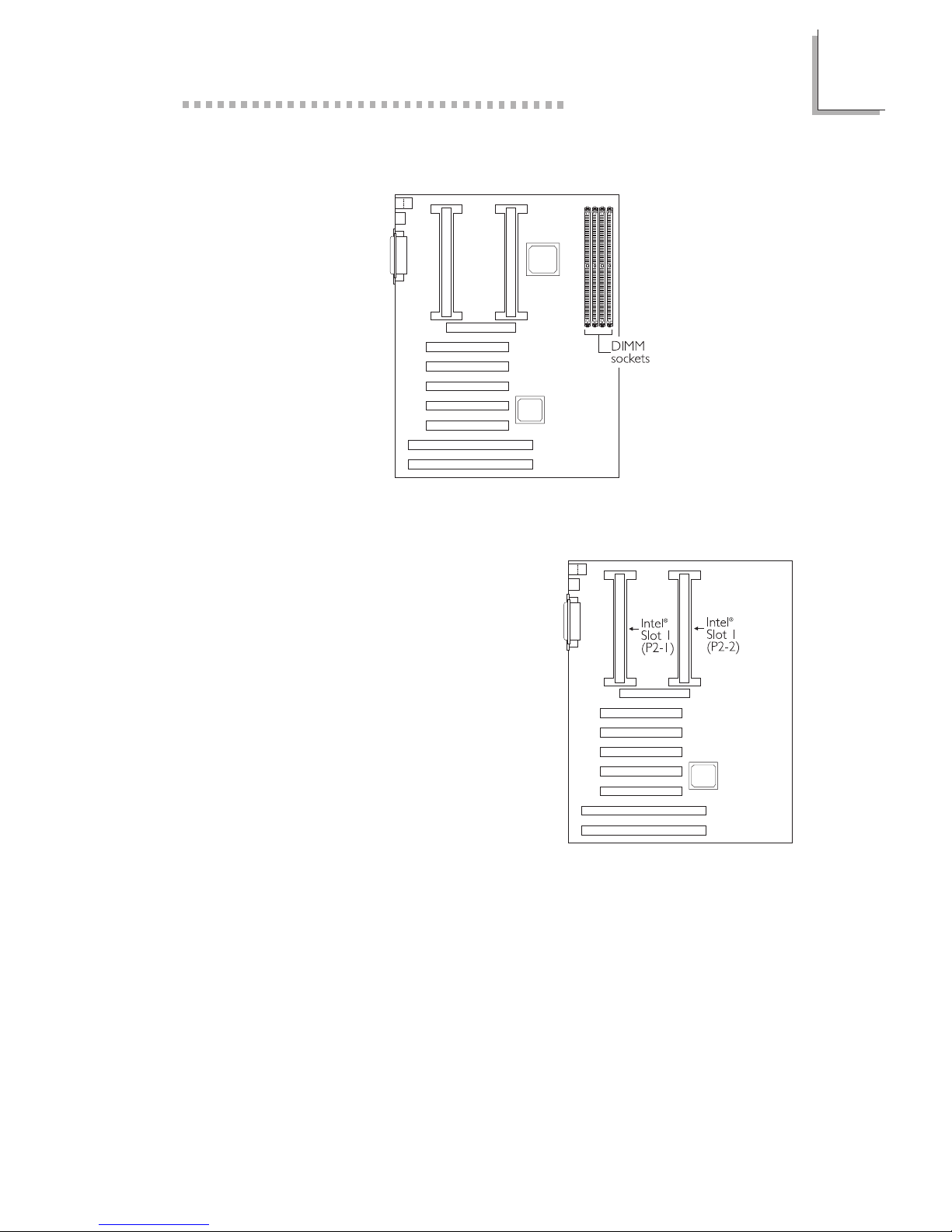

2.2 System Memory
2.3 Processor
2.3.1 Using One Processor
If you are using one processor only,
please take note of the following:
1. Make sure to install the processor
into the P2-1 slot. If it is installed
in the other slot (P2-2), the
following will occur.
 The system health conditions
will be inaccurately monitored
thus causing unreliable warning
messages to appear.
 You will encounter problems with some operating systems.
2. Install the P2TC GTL+ bus terminator card (included in the
system board package) into the P2-2 slot. You will not be able
to boot the system without the terminator card.
2.3.2 Using Two Processors
If you are using two processors, make sure to install processors with
similar Front Side Bus (FSB) frequency, otherwise the warning
message 2 CPUs with different Front Side Bus frequency will
appear on the screen.

2
12
Hardware Installation
2.3.3 Setting the CPU Frequency
Everytime you replace or install a new processor, make sure to set
its CPU frequency in the CPU Frequency field of the CPU/Chipset
Setup. If you fail to do so, the message CPU not setup yet will
appear.
If the frequency set in the CPU Frequency field is incorrect, the
following circumstances may occur :
1. The warning message CPU frequency doesnt match SETUP
value will appear. Reset the frequency in the CPU Frequency
field for the system to work properly.
2. The system will not boot. Follow the steps in section 2.5 (Jumper
Settings for Ratio) to boot-up the system with the correct
settings.
The BIOS also allows you to manually set the Front Side Bus
frequency and core ratio of the processor in the CPU/Chipset Setup.
However, if these settings are incorrect, your system will not boot.
Please follow the steps below to boot-up the system.
1. Power-off the system.
2. Now power-on the system and press the <Ins> key at the
same time. This should allow you to boot-up the system. If it fails
to boot-up, please follow steps 1 to 9 in section 2.5 (Jumper
Settings for Ratio) of this chapter.
For more information on setting the processor, please refer to the
CPU/Chipset Setup section in Chapter 3 of this manual.

2
Hardware Installation
13
2.4 Jumper Settings for Clearing CMOS Data
Jumper JP6
Clear CMOS Data
If, for some reason, the CMOS
data becomes corrupted, the
system can be reconfigured with
the default values stored in the
ROM BIOS. To load the default
values, power-off your system and
unplug the power cord. Set JP6
pins 2 and 3 to On. Wait for a
few seconds and set JP6 back to
its default setting, pins 1 and 2
On.You may now plug the power
cord and power-on your system.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3

2
14
Hardware Installation

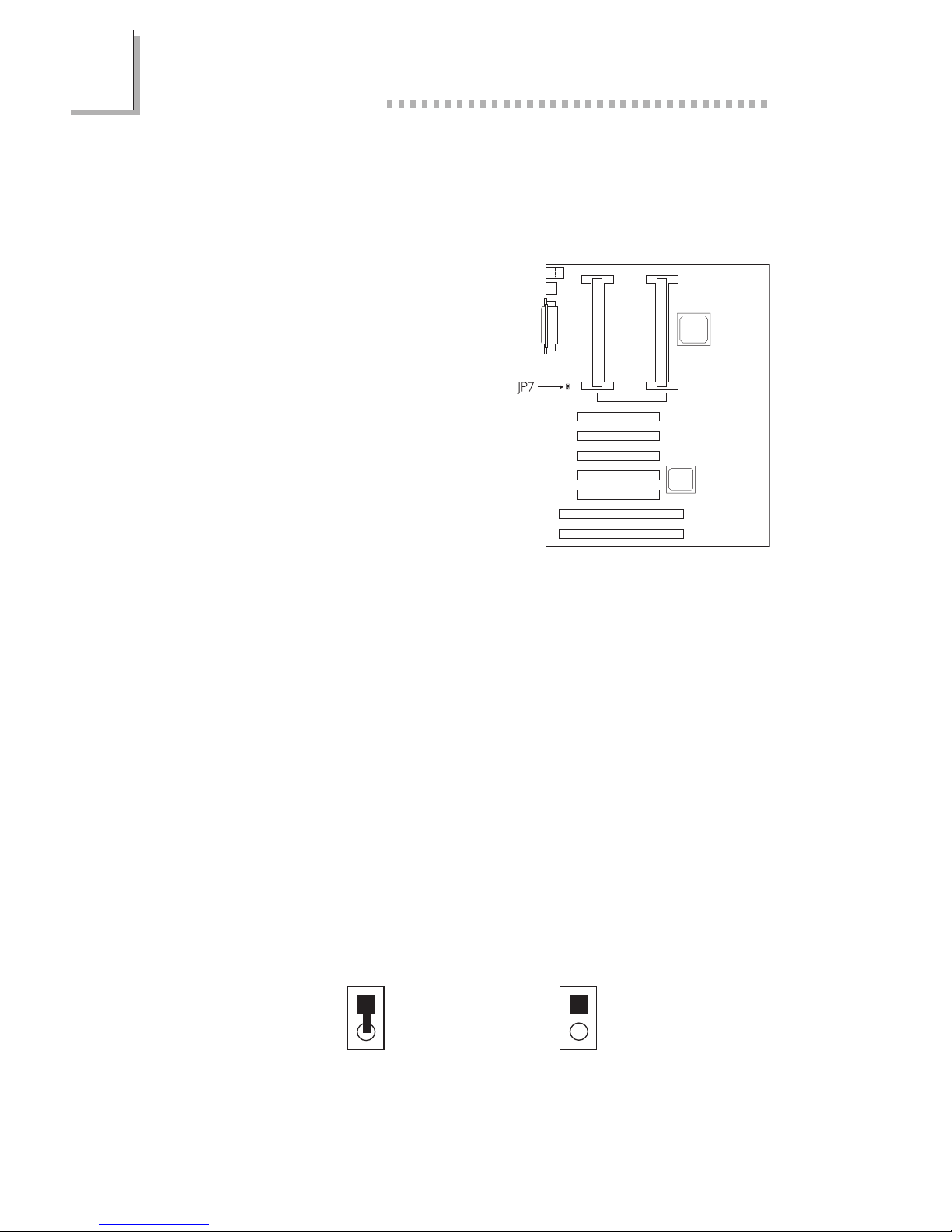

2.5 Jumper Settings for the Ratio
Jumper JP7
Setting the Ratio
If you are unable to boot-up your
computer system, it may be that
the processors speed/ratio was
incorrectly set in the BIOS. Please
follow the steps below to boot-up
the system with the correct
settings.
1. Power-off your system.
2. Set JP7 to On.
3. Now power-on your system.
After the memory test, press <Del> to enter the Award BIOS
setup utility.
4. Select CPU/Chipset Setup and press <Enter>.
5. Set the appropriate speed of the processor in the CPU
Frequency field. Refer to the CPU/Chipset Setup section in
Chapter 3 of this manual for more information.
6. Press <Esc> to return to the main menu of the Award BIOS
setup utility. Select Save & Exit Setup and press <Enter>.
7. Type <Y> and press <Enter>.
8. Power-off your system.
9. Set JP7 back to its default setting (Off) and power-on the
system.
On
Ratio set at 2x
Off
Ratio is set in the
BIOS setup
(default)

2
Hardware Installation
15
2.6 Connecting the Ribbon Cables and Wires of
the Ports and Connectors

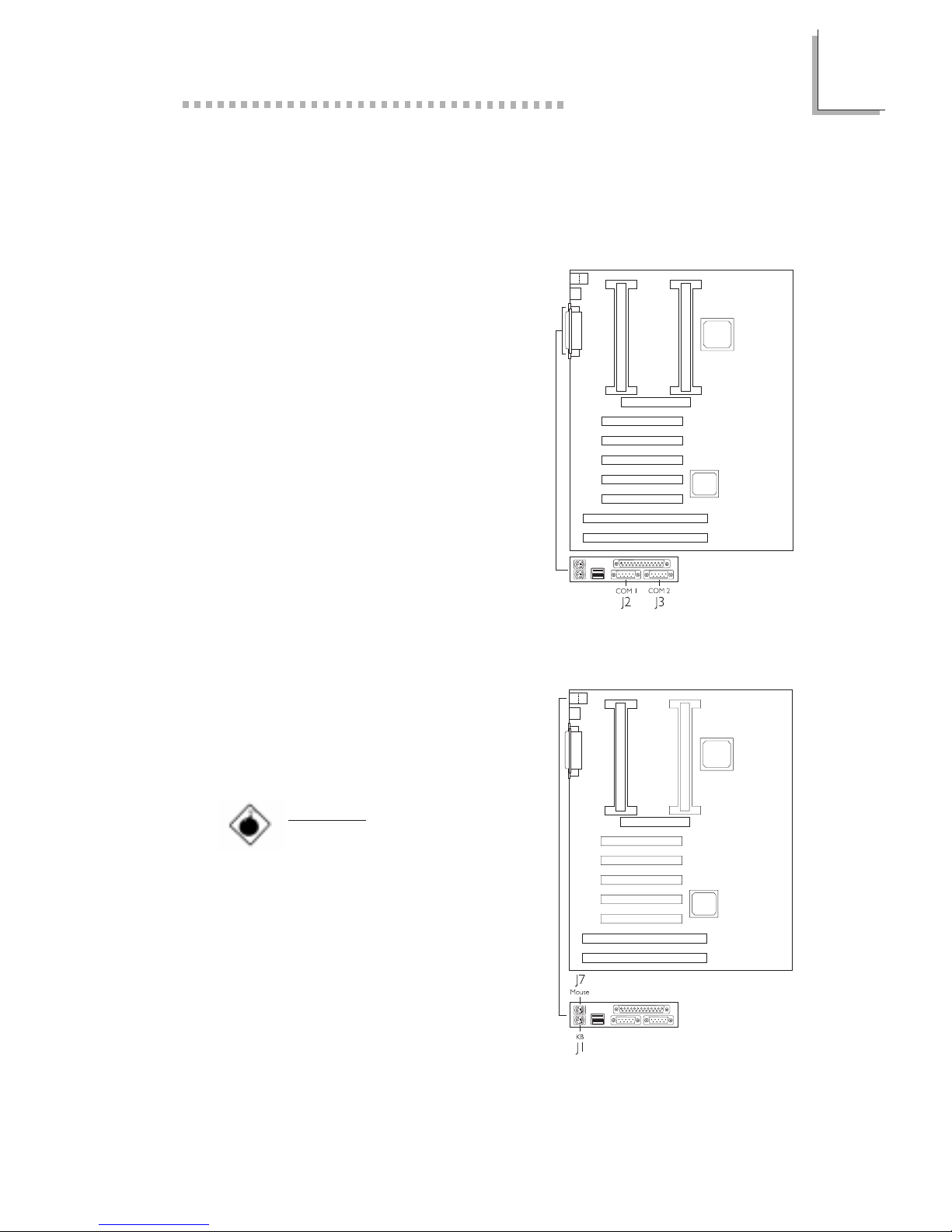

2.6.1 Serial Ports
The built-in serial ports are RS-
232C asynchronous com-munication
ports with 16C550A-compatible
UARTs that can be used with
modems, serial printers, remote
display terminals, and other serial
devices.You can set the serial ports
I/O address in the Integrated Periph-
erals setup of the Award BIOS.
2.6.2 PS/2 Mouse and Keyboard Ports
The PS/2 mouse port uses IRQ12. If
a mouse is not connected to this
port, the system will reserve IRQ12
for other expansion cards.
Warning:
Make sure to turn off your
computer prior to connecting
or disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.

2
16
Hardware Installation

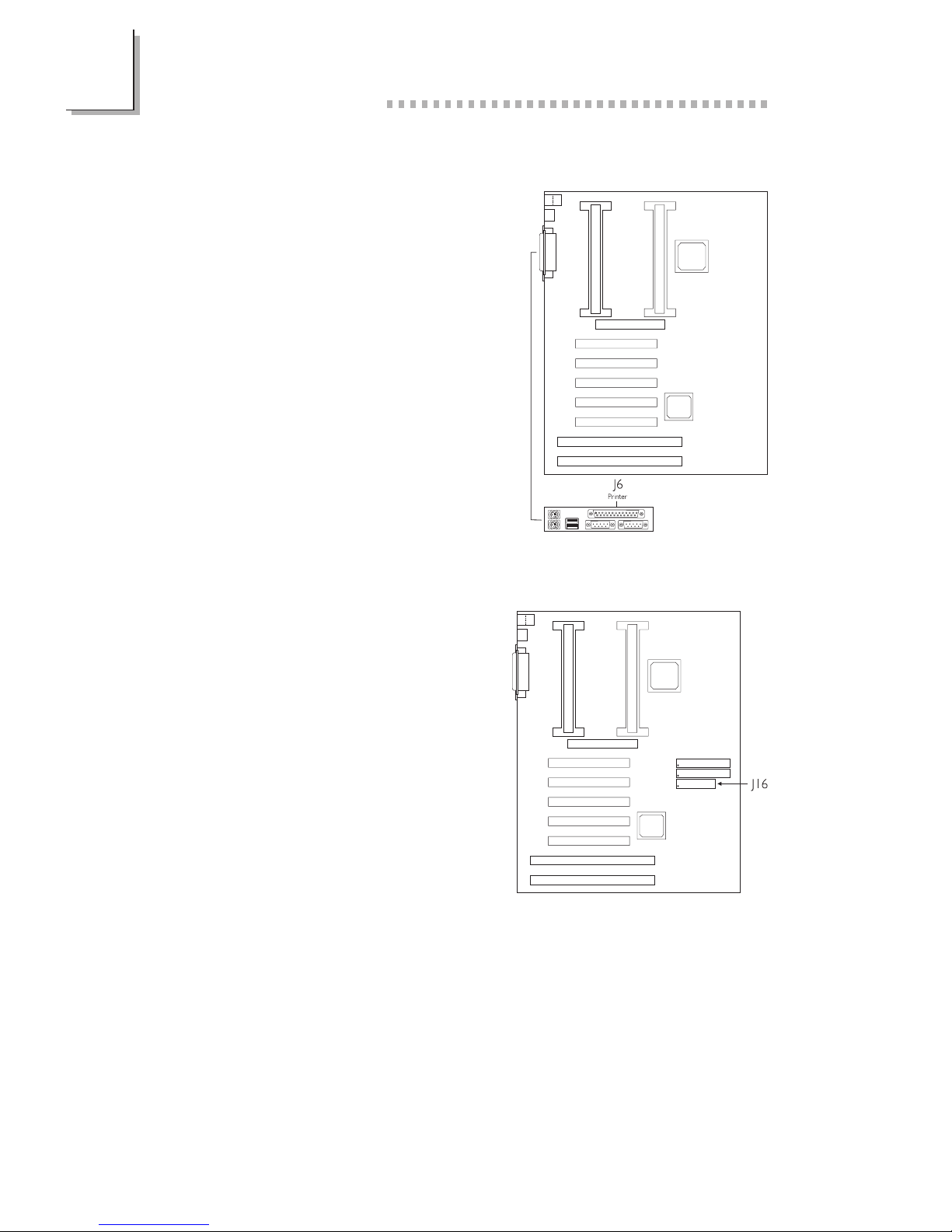

2.6.3 Parallel Ports
The system board has a standard
printer port for interfacing your PC
to a parallel printer. It supports SPP,
ECP and EPP modes. You can set
the ports mode in the Integrated
Peripherals setup of the Award
BIOS.
2.6.4 Floppy Disk Controller
1. Install the 34-pin header
connector into the shrouded
floppy disk header (J16) on
the system board. The colored
edge of the ribbon should be
aligned with pin 1 of J16.
2. Install the other 34-pin header
connector(s) into the disk
drive(s). Align the colored edge
of the daisy chained ribbon
cable with pin 1 of the drive
edge connector(s). The end-
most connector should be attached to the drive you want to
designate as Drive A.

2
Hardware Installation
17

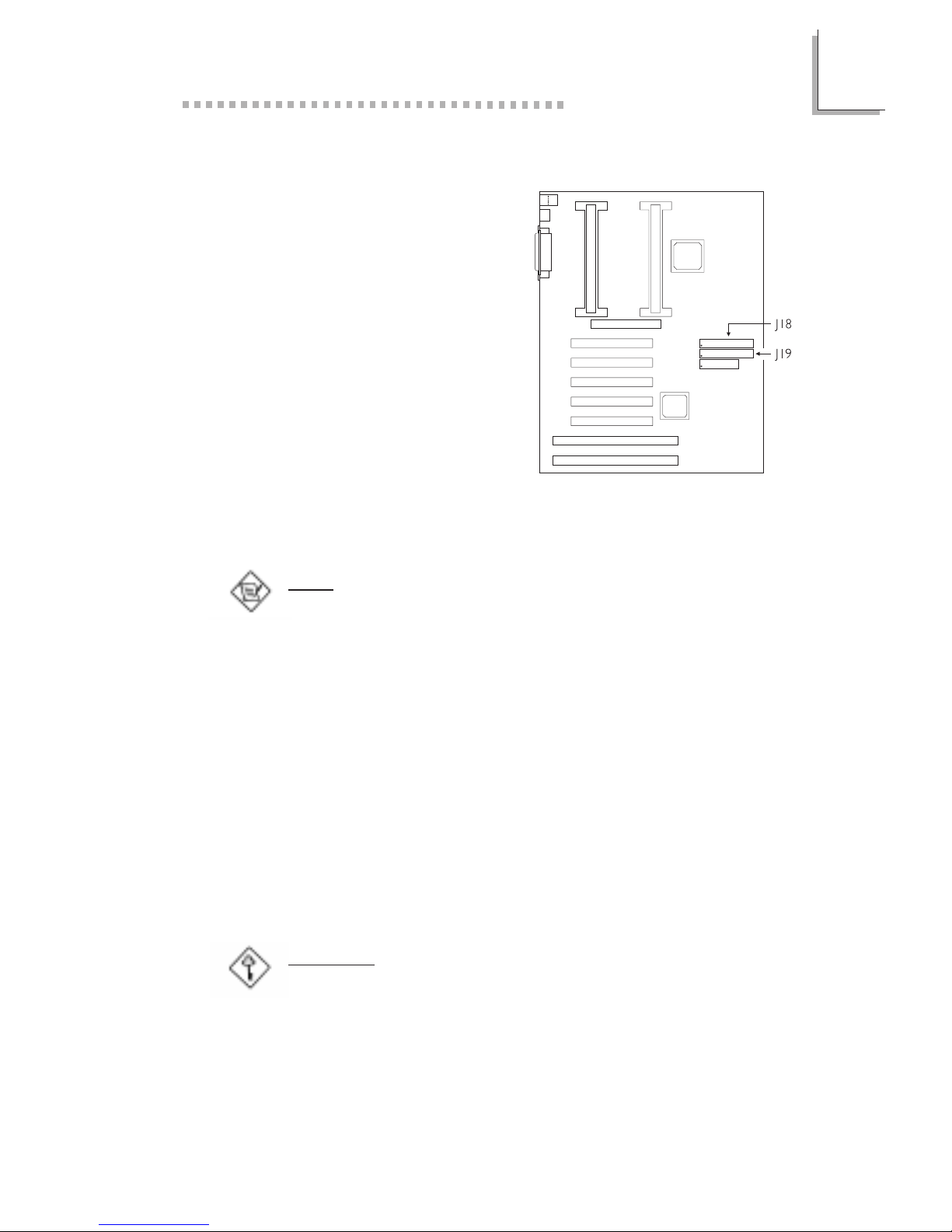

2.6.5 IDE Hard Disk Interface
1. If you are connecting two hard
drives, install the 40-pin
connector of the IDE cable
into the primary shrouded IDE
header (connector J18). If you
are adding a third or fourth
IDE device, install the 40-pin
connector of the other IDE
cable into the secondary
shrouded IDE header
(connector J19).
2. Install the other 40-pin header
connector(s) into the device with the colored edge of the ribbon
cable aligned with pin 1 of the drive edge connector(s).
Note:
Refer to your disk drive users manual for information about
selecting proper drive switch settings.
Adding a Second IDE Hard Drive
When using two IDE drives, one must be set as the master and the
other as the slave. Follow the instructions provided by the drive
manufacturer for setting the jumpers and/or switches on the drives.
We recommend that you use Enhanced IDE or ATA-2, ATA-3 and
Ultra DMA hard drives be from the same manufacturer. In a few
cases, drives from two different manufacturers will not function
properly when used together. The problem lies in the hard drives, not
the system board.
Important:
If you encountered problems while using an ATAPI CD-ROM
drive that is set in Master mode, please set the CD-ROM drive
to Slave mode. Some ATAPI CD-ROMs may not be recognized
and cannot be used if incorrectly set in Master mode.

2
18
Hardware Installation
2.6.6 USB Ports
You must have the proper drivers
installed in your operating system to
use these ports. Refer to your
operating systems manual or
documentation.
2.6.7 IrDA Connector
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. The
IRDA (Infrared Data Association) specification suppor ts data
transfers of 115K baud at a distance of 1 meter. Connect your IrDA
cable to connector J15 on the system board. Set UART2 Mode
Select in the Integrated Peripherals setup of the Award BIOS to the
type of IrDA standard supported by your device. You must have the
proper drivers installed in your operating system to use this
connector. Refer to your operating systems manual or
documentation.
Pin
1
2
3
4
5
Function
IRTX
Ground
IRRX
IRR3
VCC

2
Hardware Installation
19
2.6.8 CPU Fan Connectors
The processor must be kept cool by using a fan with heatsink.
Connect the fan of the processor installed in P2-1 to location J12
and the fan of the processor installed in P2-2 to location J14.
Pin
1
2
3
Function
Ground
+12V
Sense
2.6.9 Chassis Fan Connector
The system board is equipped with a chassis fan connector. If you
are installing a fan in the system unit, connect the fans connector to
location J20 on the system board. The fan will provide adequate
airflow throughout the chassis to prevent overheating the processor.
Pin
1
2
3
Function
Ground
+12V
Sense

2
20
Hardware Installation

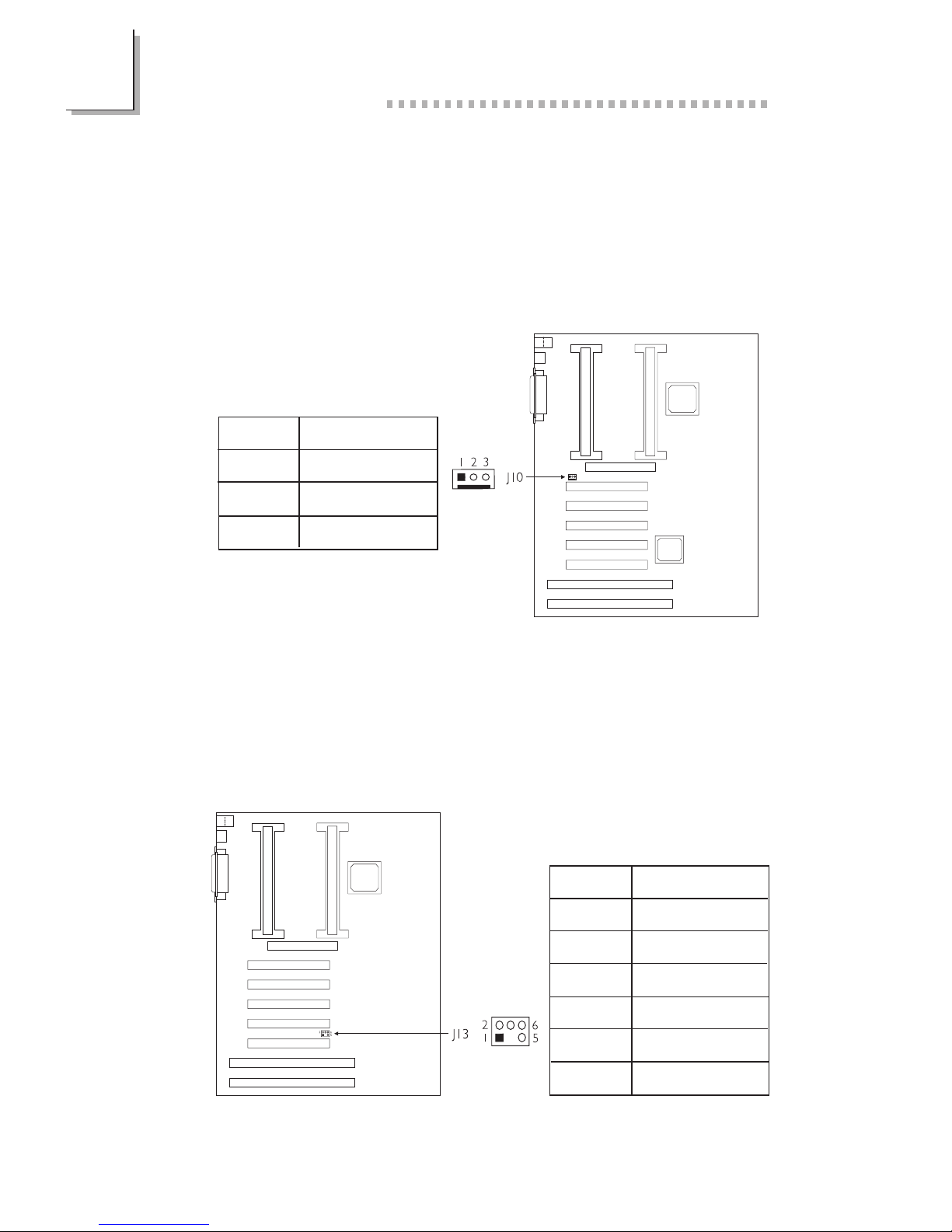

2.6.10 AGP Fan Connector
The system board is equipped with an AGP fan connector. If the
system board is installed with an AGP add-in card and you wish to
install a fan on the add-in card, connect the fans connector to
location J10 on the system board. Refer to the add-in cards manual
for instructions on installing the fan.
Pin
1
2
3
Function
Ground
+12V
N. C.
2.6.11 SB-LINK Connector
If the system board is installed with a Creative sound card that
requires connecting the card to the SB-LINK connector, connect the
cable that came with the sound card to connector J13. Refer to the
sound cards manual for more information.
Pin
1
2
3
4
5
6
Function
PC-PCI-GNTx
DGND
Key
PC-PCI-REQx
DGND
SERIRQ
