dg casa SOLOMAN 12050-Q User manual

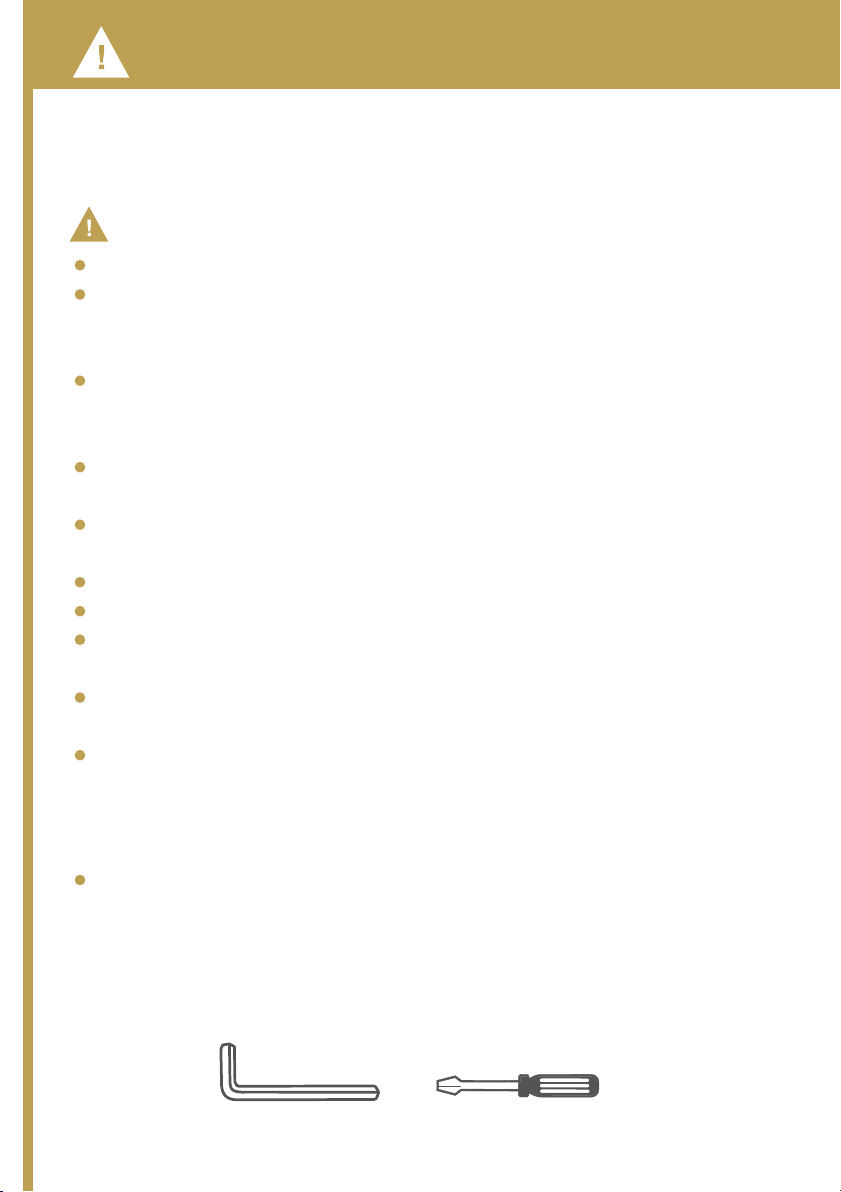

WARNING
Seller and Manufacturer disclaim all and any liability for
property damage, personal injury, or loss, direct, indirect, or
incidental, resulting from the incorrect assembly, inadequate
maintenance, improper use, or neglect of this product.
Request a replacement by logging into the marketplace
account in which the purchase was made and sending a
message to the seller. To assist in expediting the request
attach applicable images relevant to the request and/or
part number and quantity.
• Keep these assembly instructions for future reference.
• Do not use this product if there are missing parts,
damaged, or broken until repairs are made and/or factory
replacement parts are installed.
• Check all packing material carefully for small hardware
that may have become loose inside the carton
during shipment.
• Identify and count all hardware and parts to compare with
parts and hardware list.
• Follow assembly instructions closely. Improper assembly
can result in personal or property damage.
• Secure all bolts and screws before use.
• Every 90 days check all bolts and screws are secured.
• Some parts may have sharp corner or edges and may
be heavy.
• Do not use or store this product near open flames or
around flammable chemicals.
• When placing contents on non-carpeted flooring, it’s
recommended to use floor protection such as an area rug
or furniture pads. These are not included with the purchase.
NOTICE
REPLACEMENT PART OR HARDWARE REQUEST:
TOOLS REQUIRED:
ALLEN WRENCH
(PROVIDED)
PHILLIPS SCREWDRIVER
(NOT PROVIDED)
12050-Q

HARDWARE
i j
gh
ba c
d
FLAT WASHER M6
16 PCS
M6 x 50
16 PCS
M4 x 32MM
26 PCS
ef
ALLEN KEY M4
1 PC
ALLEN KEY M5
1 PC
M8 x 50
8 PCS
M8 x 20
8 PCS
M6 x 60
3 PCS
FLAT WASHER M8
8 PCS
ADJUSTER SCREW
3 PCS

SOLOMAN PLATFORM BED PARTS
A
B
C
D
E
F
G
HEADBOARD 1 PC
FOOTBOARD 1 PC
SIDE RAIL 2 PCS
SLAT 13 PCS
LEG 4 PCS
CORNER BLOCK 4 PCS
SUPPORT LEG 3 PCS
CENTER RAIL
SLAT SUPPORT 1 PC

STEP 1
STEP 2
ASSEMBLY INSTRUCTION
E
h
C
d
f
j
D
c
a
i
ASSEMBLE LEG TO CORNER BRACKET:
USING PART (J) TO ATTACH PART (d) AND
PART (f) TO THE CORNER BRACKET PART (D)
AND THE LEG PART (C). REPEAT, AS
NECESSARY.
ASSEMBLE SUPPORT LEG TO SUPPORT LEG
ADJUSTER:
SCREW THE SUPPORT LEG ADJUSTER PART
(h) INTO EITHER END SCREW SUPPORT LEG
PART (E). REPEAT, AS NECESSARY.
ATTACH THE ASSEMBLED CORNER BRACKET PART (D) AND
LEG PART (C) TO THE SIDE RAIL WITH PART (a) AND PART (c).
REPEAT, AS NECESSARY.

STEP 3
je
c
a
i
FOOTBOARD AND SIDE RAIL ASSEMBLY:
ATTACH THE FOOTBOARD TO THE PREASSEMBLED SIDE RAIL BY INSTALLING PART (a) AND
PART (c) THROUGH THE PRE DRILLED HOLES ON THE FOOTBOARD BRACKET INTO THE
CORNER BRACKET PART (D), THEN INSTALL PART (e) THROUGH THE PREINSTALLED SIDE RAIL
BRACKET INTO THE FOOTBOARD. REPEAT FOR THE OPPOSITE SIDE RAIL TO COMPLETE THE
FOOTBOARD AND SIDE RAIL ASSEMBLY.

STEP 4
i
a
j
c
e
HEADBOARD AND SIDE RAIL ASSEMBLY:
ATTACH THE HEADBOARD TO THE PREASSEMBLED SIDE RAIL BY INSTALLING PART (a) AND
PART (c) THROUGH THE PRE DRILLED HOLES ON THE HEADBOARD BRACKET INTO THE
CORNER BRACKET PART (D), THEN INSTALL PART (e) THROUGH THE PREINSTALLED SIDE RAIL
BRACKET INTO THE HEADBOARD. REPEAT FOR THE OPPOSITE SIDE RAIL TO COMPLETE THE
HEADBOARD AND SIDE RAIL ASSEMBLY.

STEP 5
E
F
b
i
G
g
ATTACH SLAT PART (G) ONTO THE SIDE RAIL WOODEN
SUPPORT WITH PART (g). REPEAT THIS FOR EACH OF
THE SLAT END.
h
ROTATE PART (h) CLOCKWISE OR COUNTER
CLOCKWISE TO ADJUST SLAT HEIGHT FOR
PROPER MATTRESS SUPPORT
ATTACH PREASSEMBLED SUPPORT LEG FROM
STEP 1 TO CENTER SUPPORT RAIL PART (F).
REPEAT AS NECESSARY.
