Digigram IQOYA TALK User manual

IQOYA TALK User manual
IQOYA TALK
Portable IP audio codec
Applies from firmware version 01.03d
V 1.0
February 2020

2
Important Safety and Warranty Information
Follow these instructions and keep them in a safe place! Keep in mind that damages due to failure to observe the
instructions contained in this manual are not covered by warranty.
GENERAL WARNINGS
Use the codec only under the specified environmental conditions. Avoid installation in extreme weather conditions
and exposure to direct sunlight or heating equipment. Avoid moist or humid locations.
Do not open the codec, as there are no user-serviceable components inside. Opening the cabinet may present a
shock hazard, and any modification to the product will void your warranty. Refer all servicing to qualified service
personnel.
Power supply
The device is to be connected to a power supply as specified in this manual and marked on the equipment.
Make sure the power cord is not damaged. Do not route the power cord where it may be crushed, bent,
exposed to heat or damaged in any way.
BATTERY
This device contains a lithium-ion battery. When shipped to the customer for the first time, the battery is delivered
in shipping mode. To enter "use" mode, the battery must first be placed in the external charger for a few minutes.
The equipment is supplied with replaceable batteries. If used with an incompatible battery, an explosion may occur.
CLEANING
Clean only with a soft, dry cloth. If necessary, after disconnecting the unit’s cables, wipe it with a soft cloth
dampened with mild soapy water, then with a fresh cloth with clean water. Wipe dry immediately with a dry cloth.
NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile cleaning agent. Do not use abrasive
cleaners, which may damage the finish of metal or other parts.
CONNECTING 3rd PARTY EQUIPMENT
This codec can provide high voltages on the inputs, so the broadcasting equipment must be suitable. Digigram
declines all responsibility for any damage to equipment connected to the codec.
RADIO FREQUENCY (RF) SAFETY INFORMATION:
Radio frequency (RF) energy from cellular devices can interact with certain electronic devices and cause
electromagnetic interference (EMI). To meet the requirements for compliance with exposure to radio frequencies,
follow all regulations regarding the use of radio equipment.

IQOYA TALK
Portable IP audio codec
3
Using your device near other electronic equipment may cause interference if the equipment is not properly
protected. Follow all manufacturers' instructions and recommendations.
In general, observe the restrictions for any environment in which you use the device.
Do not cover the device.
To satisfy radio frequency exposure compliance requirements, the antenna and transmitter in the IQOYA TALK must
be at least 20 cm from all persons and must not be used in conjunction with any other antenna or transmitter.
WIFI
This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part
15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is not guarantee that interference will not occur in particular installation.
If this equipment does cause harmful interference to radio and television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the interference by one of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver to be connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any charges or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radio Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
VEHICLE

4
When using your device in a vehicle: If installed incorrectly in a vehicle, the operation of the wireless device may
interfere with vehicle electronics. To avoid such problems, use qualified personnel to install the device. The installer
must check that the vehicle electronics are protected against interference.
END OF LIFE DECLARATION
Digigram hereby declares that all materials, components and products supplied are in compliance with RoHS & WEE
directives. This product should be disposed of in accordance with local laws and regulations. As the product contains
a battery, it must be disposed of separately from household waste and must not be incinerated. It must be
deposited in a recycling center or workshop.
GUARANTEE AND DISCLAIMER
This equipment manufactured by Digigram is guaranteed against defects in materials and workmanship for two
years from the date of original purchase. During the warranty period, we will repair or, at our option, replace a
product which turns out to be defective free of charge to Digigram, provided that return authorization has been
granted.
For return authorization, contact the relevant Digigram unit (see http://www.digigram.com/Contact). This warranty
does not apply if the product has been damaged by accident or misuse or as a result of service or modification
made by a person other than a Digigram member.
With the exception of the guarantees set out above, Digigram does not offer any other guarantee express or
implicit. Digigram can in no way be held liable for indirect damage resulting from the use of this product. The use
of this codec is subject to the LICENSE and GUARANTEE conditions of Digigram, which can be found on http:
//www.Digigram.com/ before using this product.
BATTERY WARRANTY
Digigram expressly disclaims any warranty on the battery. The manufacturer's warranty applies. Contact the battery
manufacturer for any warranty claims. To contact the battery manufacturer, visit their website at https://www.rrc-
ps.com .

IQOYA TALK
Portable IP audio codec
5
TABLE OF CONTENTS
1. IMPORTANT INFORMATION 8
2. ONE IP AUDIO SOLUTION 9
3. BEFORE STARTING 11
CONTENTS OF THIS PACKAGE 11
BATTERY 12
FRONT PANEL 13
BACK PANEL 14
TOP PANEL 15
NAVIGATION CONTROL KNOB 15
ESC KEY 15
GAIN CONTROL KNOB 16
Rotation: 16
Push: 16
HELP KEY 17
ON AIR BUTTON 17
TB1/TB2 KEYS 17
4. HOME MENU 18
HEADER 19
TOP 19
HEADER SHORTCUTS 19
SYSTEM STATUS 20
FIRST STEPS 20
FIND NETWORK 21
SIGN IN TO IQOYA CONNECT (optional) 21
CONNECTION SETTINGS 21
AUDIO SETTINGS 22
GO TO LIVE SESSION 22
5. CONFIGURATION MENUS 23
CONNECTION 23
NETWORK 23
Parameters for the Eth1 and Eth2 interfaces: 23
Parameters for the Wi-Fi interface: 25
Settings for the Cell1 and Cell2 interfaces: 25
IQOYA CONNECT 26
Identification 27
Attach the codec to an organization (Role: CODEC FLEET MANAGER): 27
Connection to an organization (Role: CONTRIBUTOR): 28
STREAM 31
Program and Talkback settings: 31

6
SIP 33
Registration: 33
Advanced Settings: 34
SIP CONFIGURATION: 35
AUDIO SETTINGS 36
INPUTS 36
OUTPUTS 37
MIXERS 39
ROUTING OF AN INPUT SOURCE 39
ADJUSTING THE SOURCES’INPUT LEVEL 39
SETTING THE MASTER MIX LEVEL 39
Chaining the sources: 39
TV MODE 41
RADIO MODE 41
ADVANCED SETTINGS 44
BRIGHTNESS 45
CLOCKS 45
SYSTEM PROPERTIES 45
LOGS 47
NTP SERVER 48
AUTOMATIC MODES 49
DEVICE AND TALENT NAMING 50
HEADPHONES 51
RETURN TO FACTORY SETTINGS 51
AUDIO FILES 52
6. OPERATING MENUS 53
LIVE 53
Live Contact and Profile 54
Contact 54
New Contact 55
Profile 56
New Profile 56
RECORD 59
7. SPECIFICATIONS 60
8. APPENDIX 61
APPENDIX A 61
Firmware update 61
Step 1: 61
Step 2: 61
Step 3: 61
Step 4: 61
Step 5: 62
Step 6: 62
Step 7: 62
Step 8: 62
Step 9: 62
APPENDIX B 63

IQOYA TALK
Portable IP audio codec
7
Typical Latency Values 63
Network impact on latency 63
Impact of additional features on latency. 63
APPENDIX C 64
Available FEC 64
FEC requiring no additional stream 64
FEC requiring an additional stream 64
APPENDIX D 65
Redundant dual streaming 65
Spatial diversity 65
Time diversity 65

8
You have just acquired a Digigram IQOYA TALK audio IP codec and we congratulate you!
IQOYA TALK is a portable IP codec and part of the ONE IP Audio Solution.
This manual will guide you through installation, configuration and operation.
1.IMPORTANT INFORMATION
Certification under progress.
Declaration of ROHS conformity available upon request to DIGIGRAM.
Electrical safety:
Electromagnetic compatibility:
International:
EC 60950 1 (2005)
Europe:
European Directive 2006/95 / EC “Low Voltage
Directive”
EN60950 1 (2006)
International:
CISPR22 (2005) Class B + A1 / 2005 + A2 / 2006
United States:
FCC rules Part 15 Class B
Europe:
European Directive: EMC 2004/108 / EC
Europe:
Disturbance Emissions: EN55022 (2006) + A1 / 2007
Requirements for Information Technology Equipment (ITE)
Immunity: EN55024 (1998 + A1 / 2001 + A2 / 2003) (ITE)
Harmonics: EN61000-3-2 (2006)
RoHS:
European directive 2002/95 / EC aka “RoHS”
Note: In order to guarantee compatibility with standard
EN55024, please use shielded network cables!
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Copyright →2020 Digigram. All rights reserved.
No part of this manual may be reproduced without the prior consent of Digigram. This reserve includes the photocopying, translation and/or
editing of the information contained in this manual.
Although everything has been done to ensure utmost precision, Digigram cannot be held responsible for any error, typo or omission and
reserves the right to make modifications and improvements without notice.
Digigram, the DIGIGRAM logo and IQOYA are registered trademarks or trademarks of Digigram.. HE-AAC and AAC-ELD are registered
trademarks of Fraunhofer IIS. All other brands are property of the respective companies.

IQOYA TALK
Portable IP audio codec
9
2.ONE IP AUDIO SOLUTION
Digigram One IP is a complete solution for an easy management of live remote broadcasting operations. It is based
around a secure SIP infrastructure, IP audio codecs for journalists/reporters and studios, and web applications for
centralized control and monitoring.

10
The following Digigram IP audio codecs are part of the One IP Audio solution.
IQOYA TALK is a portable audio codec dedicated to remote live operations with
multi-guest contribution, and allows for reliable requiring high reliability audio
transmission and broadcast audio quality.
IQOYA SERV LINK & IQOYA X/LINK are ranges of 1U rack IP audio codecs designed
for use in studios and OB Vans, and covering the needs from one stereo (or two
mono) live contributions up to 64 simultaneous live contributions, and offering
various audio connectivities (analog, Ravenna/AES67, MADI, Dante).
To conduct on-field interviews, Q-MIC is a powerful battery-free microphone preamp for smartphones (1 mic/line
input, 1 headset output).
ONE IP also comes with an intelligent infrastructure that enables interconnectivity between all IP codecs. IQOYA
CONNECT is both a SIP infrastructure allowing successful and secure SVP communications and a web application
allowing radio engineers to:
-Centralize contact list and call profile management , and centralize the configuration of codecs,
-Discover codecs automatically,
-Send invitations allowing one-click connections to reporters and guests,
-Place or accept calls from any codec of the fleet.
The complete ONE IP Audio solution was designed to work independently, but its real strength lies in its unified
application.
The user interface of all remote broadcast codecs will remain the same, making it easier for the user to switch
between them. In the studio, content from OB vans, portable codecs or smartphone applications will be received,
controlled and managed through a single interface.

IQOYA TALK
Portable IP audio codec
11
3.BEFORE STARTING
CONTENTS OF THIS PACKAGE
The package consists of the following components:
1 x IQOYA TALK portable codec
1 x Lithium / Ion battery
1 x external power supply with cable
4 x cellular antennas
1 x Wi-Fi / Bluetooth antenna
1 x USB-C Cable
1 x external battery charger with cable
1 x extraction tool for SIM card drawer

12
BATTERY
On each side of the IQOYA TALK there is a compartment to accommodate a battery (the second battery is supplied
as an accessory).
To insert battery 1, carefully unscrew the cover on the left side of the device, battery 2 is located on the right side
of the device.
IQOYA TALK does not charge the battery, to do so please use the external battery charger supplied. Connect the
battery charger to the mains and plug the battery following the picture below.
For the shipment of the product, the battery is put into "shipping" mode by the manufacturer. To enter "use"
mode, the battery must first be placed in the external charger for a few hours (until the LED become green).

IQOYA TALK
Portable IP audio codec
13
FRONT PANEL
The front panel allows connecting three microphones (XLR) and four headsets (6.35 mm jack socket).
The three zones provide independent management of the journalist ('TALENT 1'), a partner ('TALENT 2') and two
guests ('GUEST') with a headset each and a shared microphone.

14

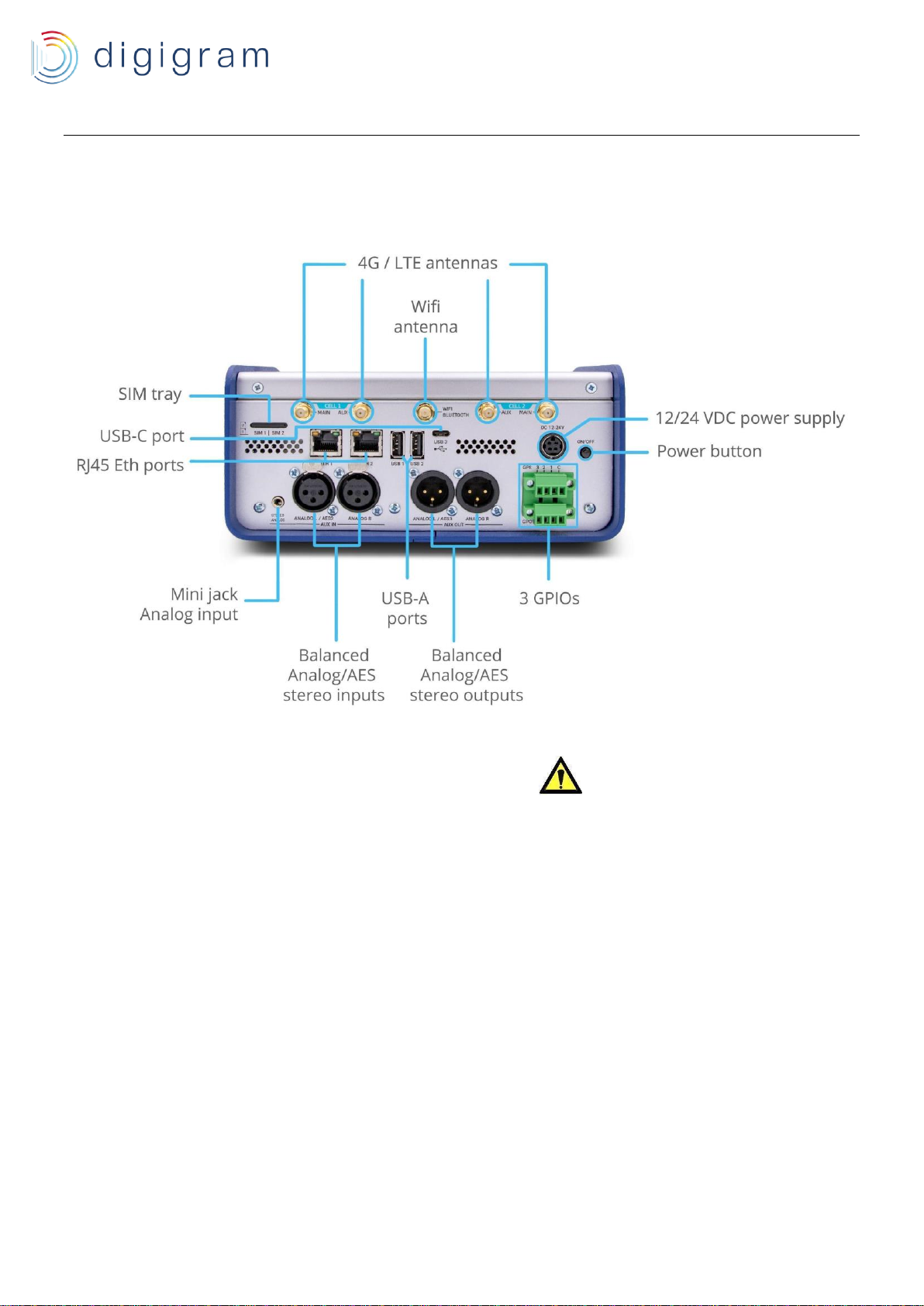

BACK PANEL
Power
Before plugging in the power cord, make sure it is not damaged.
ON/OFF
The power button has 2 functions:
If codec off:
-Codec starts up regardless of the duration of the push and the state of the codec (off or Standby).
If codec already powered on:
-A short press launches a pop-up window offering the choice between 'Power OFF' or 'Reboot'.
-A long push (> 3-5 s) turns off the equipment ('hard shut-down').
You can exit the pop-up window by clicking on the cross.

IQOYA TALK
Portable IP audio codec
15
TOP PANEL
Push buttons and rotary knobs:
NAVIGATION CONTROL KNOB
All parameters of IQOYA TALK are accessible through the main control knob, two types of action are available:
-Rotation: scan the clickable or input fields of the displayed menu
-Short press on one of the fields: validation of the field
ESC KEY
Return to the previous page and validation. ESC does not cancel the action that was performed on the page, except
for the pages that explicitly request the validation of a setting by clicking onto the green 'Apply' button.

16
GAIN CONTROL KNOB
IQOYA TALK has three small rotary knobs, two types of action are possible:
Rotation:
Opens a pop-up window to view the headphone level (active fader) and adjusts the headphone volume control (this
volume can also be configured from Audio Settings/Outputs).
Push:
Opens a pop-up window which allows to make adjustments depending on the mode activated in Advanced settings
> Headphones (default mode: Radio).
-In Radio mode: allows to adjust the balance between the TX Program bus (Mix master of the sources
selected in the Mixer Program TX screen) and RX Program (Mix of sources: PGM RX Left - Right + TB1 - TB2).
In the case shown above for headphones 1, the user modifies the balance of the TX / RX mix in order to increase
the TX mix in his headphones over the RX mix.

IQOYA TALK
Portable IP audio codec
17
-In TV mode: Adjusts the level of each input source selected on the HP Mixer page (this level can also be
configured from Mixers HP1).
Pressing the selected icon gives access to the source level setting.
HELP KEY
For the time being, this feature is not activated. The HELP key will be available after a firmware upgrade.
ON AIR BUTTON
The ON AIR button allows to mute or active its dedicated Mic/Line input.
Remember: Check your Mixer tab to configure your Mic/Line output path (TX Program, Headphones, and AUX).
TB1/TB2 KEYS
Work only on “TALENT 1” and “TALENT 2” zone.
In communication, pressing the TB1 or TB2 pushbutton:
-Mutes the corresponding Mic/Line input on the AUX, Program TX and REC outputs.
-Routes this input to the selected TB output with a “Push to talk” behaviour. If both the same TB buttons
are pressed, then the inputs are mixed.
For outputs, HP1 & HP2 can only monitor RX Talkback channels according to the settings made in the mixer
menu (for both TV and Radio modes).

18
4.HOME MENU
The HOME screen is the main menu of the codec. It is divided into two horizontal areas:
-An upper zone intended for the technician. This area lists the icons for the parameter setting of the codec
by order of importance.
-A lower zone intended for the journalist/presenter. This area includes the Live and Record icons. These
menus enable access to the operating functions.

IQOYA TALK
Portable IP audio codec
19
HEADER
TOP
The top area of the screen is a status bar displayed at all times. The following information is displayed from right to
left:
Time of day. To set up the time go to NTP server.
Battery presence (Batt 2 on right side; Batt 1 on left side) and battery charge level:
oIf a battery is present: the battery pictogram displays a color corresponding to its current charge
level.
oIf no battery is inserted: the battery pictogram is gray.
Mains power status (grey power plug if plugged in, otherwise no logo)
CELL 2 network status and quality (if module activated, otherwise no logo)
CELL 1 network status and quality (if module activated, otherwise no logo)
Wi-Fi network status and quality (if module activated, otherwise no logo)
ETH 2 presence (green Ethernet socket, otherwise no logo)
ETH 1 presence (green Ethernet socket, otherwise no logo)
Connection status to the TB SIP infrastructure (green or red depending on the registration status, or nothing
if disabled)
Connection status to the PGM SIP infrastructure (green or red depending on the registration status, or
nothing if disabled)
Menu name (e.g.: Home)
HEADER SHORTCUTS
Thanks to this sliding menu, access to all the configuration menus quickly by clicking on the wanted icon. Brief
information on the system status are visible for a best global view.

20
SYSTEM STATUS
The Header is clickable, it displays status/presence information on the various network interfaces, batteries and
internal storage.
FIRST STEPS
The First Steps menu had been created to help set up all the TALK menus, in the right order.
By following the instructions, the device will display what to carry out through all the configuration process, step
by step.
To use this menu:
-Select “Display this screen at startup” to have this page at each system restart
-Scroll the header down at any moment and click on “FIRST STEPS”
To enter in a menu and modify its set up, click on:
To get information about a step, click on:
