Micro
Fibre Optic Lightsource
User Manual

Micro - Fibre Optic Lightsource
User Manual
1.0 - 6 August 2021
digilin.com.au Page 2 of 5
[phone]
Table Of Contents
Notes.....................................................................................................................................................................................................................................................................................................2
Introduction..................................................................................................................................................................................................................................................................................2
Specifications .............................................................................................................................................................................................................................................................................3
Physical.......................................................................................................................................................................................................................................................................................3
Inputs............................................................................................................................................................................................................................................................................................3
Optical.........................................................................................................................................................................................................................................................................................3
Installation ......................................................................................................................................................................................................................................................................................4
Mounting .................................................................................................................................................................................................................................................................................4
Using Mounting Plate.......................................................................................................................................................................................................................................4
Without Mounting Plate...............................................................................................................................................................................................................................4
Fibre ...............................................................................................................................................................................................................................................................................................4
Wiring...........................................................................................................................................................................................................................................................................................5
Operation.........................................................................................................................................................................................................................................................................................5
Dimming....................................................................................................................................................................................................................................................................................5
Scintillation Wheel Speed...................................................................................................................................................................................................................................5
Appendix A - Troubleshooting...............................................................................................................................................................................................................................5
Notes
•Install in a dry sheltered position
•Interior use only
•Ensure adequate ventilation
•Installation should only be performed by a qualified professional
•Install in accordance with all appropriate wiring standards
•TYPE Y ATTACHMENT: If the external flexible cable or cord of this luminaire or associated
PSU/driver is damaged. It shall be exclusively replaced by the manufacturer or his service agent or a
similar qualified person to avoid a hazard.
•The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
than 0.33 m is not expected.
•Lightsource is not mains dimmable.
Introduction
A range of small, quiet fibre optic light sources powered by LED technology. Manufactured from durable
ABS and supplied as standard in a black finish. White and grey enclosures are available to special order. This
light source range utilises a white light LED array and is suitable for use with either glass or PMMA fibre. An
inbuilt decorative wheel allows for the creation of twinkling and/or colour change effects. These light
sources are also dimmable. Manual control is provided for dimming and varying the effects wheel speed.

Micro - Fibre Optic Lightsource
User Manual
1.0 - 6 August 2021
digilin.com.au Page 3 of 5
[phone]
Specifications
Physical
U n i t s
Dimensions
137 x 114 x 73
mm
Weight
0.4
kg
IP Rating
20
Ambient Temperature
-10 –45
°C
Fibre Port Diameter
30
mm
Inputs
U n i t s
Voltage
12
VDC
Current
1
A
Optical
U n i t s
CCT
4000
K
Lumens
126
lm
Effects Wheel
Scintillation

Micro - Fibre Optic Lightsource
User Manual
1.0 - 6 August 2021
digilin.com.au Page 4 of 5
[phone]
Installation
Mounting
•Do not locate this luminaire closer than 200mm from any flammable surface.
•It is imperative that a gap of 200mm is left around the unit. This is to allow air to circulate and
prevent overheating. The location must have free ventilation and must not have a ambient
temperature higher than that specified for the luminaire.

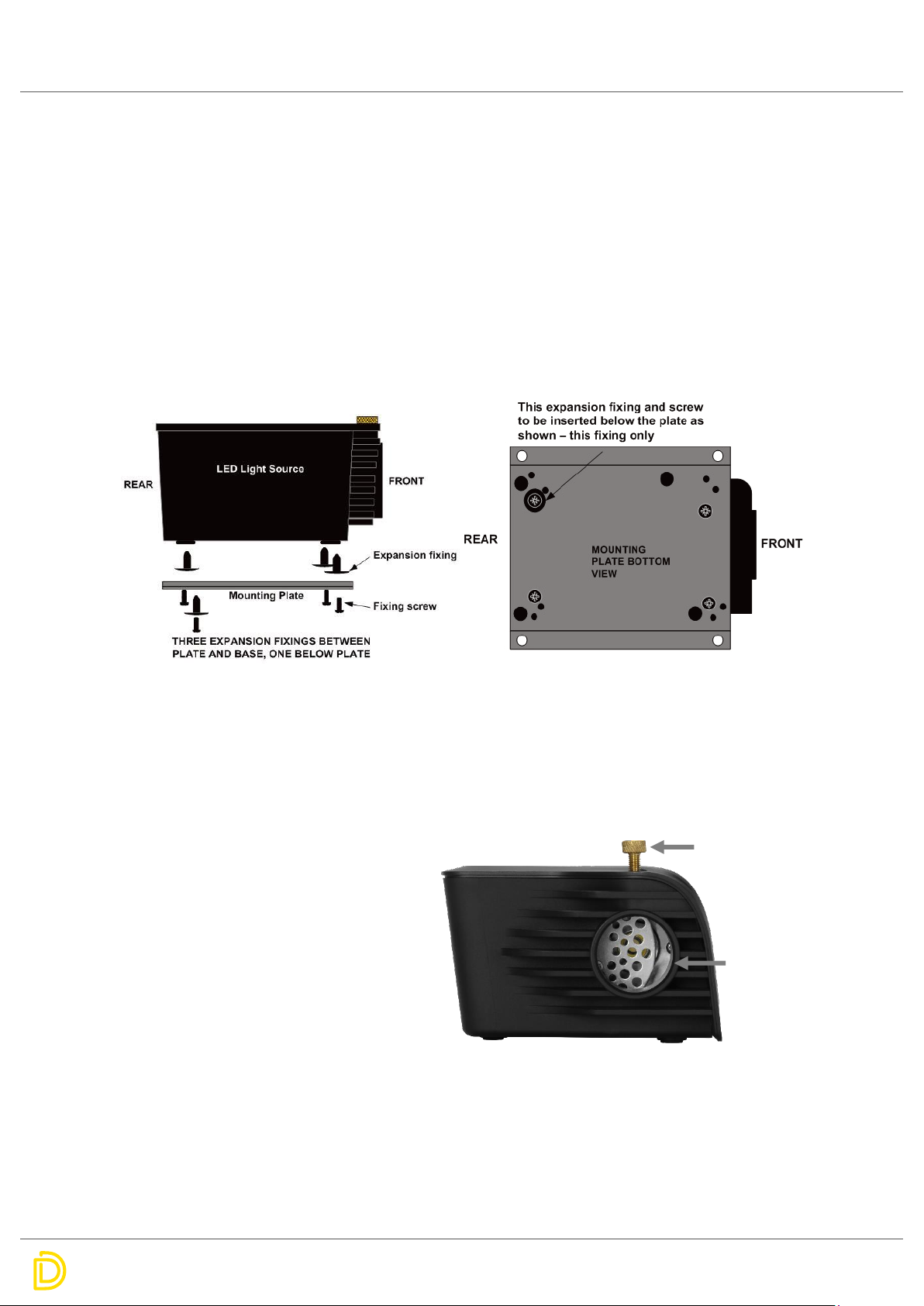

Using Mounting Plate
1. Remove the rubber feet from the bottom of the lightsource.
2. Push fit 3 of the expansion fittings into the holes vacated by the feet as shown. DO NOT fit an
expansion fitting into the foot hole at the rear below the push buttons.
3. Place the mounting plate on the base ass shown and push the remaining expansion fitting through
the plate into the hole that does not have one fitted.
4. Fit all 4 screws and tighten. Do not over tighten.
5. Secure lightsource to desired mounting surface using suitable fasteners.
Without Mounting Plate
Simply locate the light source on a flat surface with adequate ventilation.
Fibre
1. Completely loosen the locking screw
from the fibre port.
2. Slide the fibre optic common end into
the fibre port.
3. Tighten the lock screw to secure the
common end in place.
Fibre port
Locking Screw

Micro - Fibre Optic Lightsource
User Manual
1.0 - 6 August 2021
digilin.com.au Page 5 of 5
[phone]

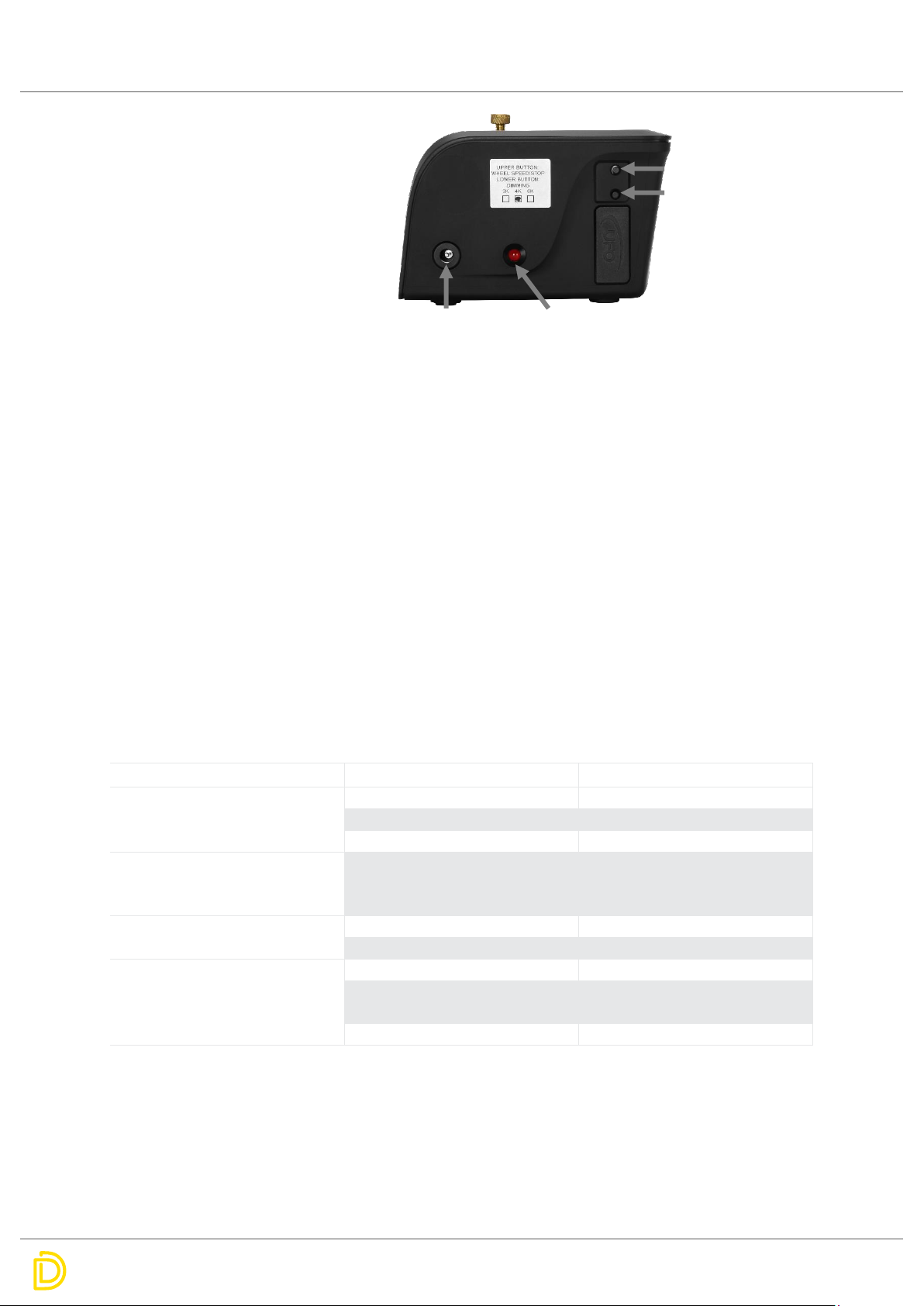

Wiring
Unit is supplied with a 12VDc plug
pack.
1. Connect jack into the socket
on the back of the
lightsource.
2. Plug the plug pack into
electrical supply. Power
indicator should now
illuminate.
Operation
Unit begins operating once power is properly connected.
Dimming
Light level can be dimmed by pressing the Dimming control button on the rear of the lightsource. Each
press will take the light level a step brighter. Pressing the button again once at full brightness will cycle the
level back down to minimum.
Scintillation Wheel Speed
Rotation speed of the Scintillation wheel can be controlled using Wheel Speed button on the rear of the
lightsource. Each press will make a small increase in rotation speed. Pressing the button again once at
maximum speed will the cycle the speed to off.
Appendix A - Troubleshooting
P r o b l e m
P r o b a b l e C a u s e
Remedy
Unit is dead - LED power indicator is
not illuminated
Mains supply off
Check supply and re-instate
Loose mains plugs
Check plugs
PSU failed
Replace PSU
Unit is dead - no light output but
LED power indicator is still
illuminated
LED array failure
Replace Led unit
Unit is not twinkling
Motor speed push button at stop
Press button to start motor
Twinkle wheel motor failure
Replace unit
Poor light output on fibre
Dimming push button at minimum
Press button to increase brightness
Fibre port common end not plugged
in correctly
Ensure plugged in correctly and
secured with locking screw
Unit needs cleaning
Carefully clean fibre common end
Wheel Speed
Dimming Control
DC Power Socket
Power Indicator
