Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
2
Contact
Digiray Corp.
#825, Unitech Venture Town, 142, Ilsan-ro,
Ilsandong-gu,Goyang-si, Gyeonggi-do,
10442 Republic of Korea
Tel : [phone]
Fax : [phone]
Website : www.digiray.co.kr
E-mail : [email protected]

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
3
Warnings and Used Symbols
To ensure the safety of patients, staff and other persons, any changes to software and hardware
delivered by Digiray Corp. may only be made with prior written permission from Digiray Corp.
Please read the respective manuals of the connected software, such as acquisition and
diagnostic software, before starting to use the system.
The following symbols will be used throughout this manual:
DANGER
General prohibition indication.
The functionality of the system can be destroyed in the case of
incorrect use.
If unauthorized changes have been made to delivered system and
accessories, the warranty by Digiray Corp. becomes void.
Digiray Corp. will not accept any responsibility or liability for
the proper functioning of the product in such a case.
DANGER
General mandatory action manual.
The functionality of the system can be destroyed in the case of
incorrect use.
If unauthorized changes have been made to delivered system and
accessories, the warranty by Digiray Corp. becomes void.
Digiray Corp. will not accept any responsibility or liability for
the improper functioning of the product in such a case.
WARNING
The functionality of the system can be limited in the case of
incorrect use. Hints that require special attention.
NOTE
Notes represent information that is important to know but which do
not affect the functionality of the system.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
4
General Safety Guidelines
All the safety and operating instructions should be read carefully before this device is operated.
This device has been designed and tested to meet strict safety requirements applicable to
medical equipment, and has been supplied in a safe condition. To ensure personnel and
patient safety, the device shall be operated and serviced in compliance with all procedures,
warnings and precautions during all phases of operation and service of this device. Failure to
comply to with safety guidelines may result in injury to service personnel, operator, or patient.
Digiray Corp. assumes no liability for failure to comply.
If this device is not used as specified, the protection provided by the device could be impaired.
This device must be used in a normal condition only.
Installation, service and operation of this device should only be undertaken by qualified trained
personnel. The operator should study instructions and precautions carefully before starting to
use the device listed here and throughout the manual.
There are no user serviceable parts inside this device. The device should only be opened and
serviced by qualified service personnel. Failure to heed this warning may result in injury to
service personnel or damage to equipment, and void any and all warranties. If there is a
service problem, please contact Digiray Corp. or authorized dealer.
Do not spill liquids on the device, and never operate the device in a wet environment.
Keep the device from radiators and heat sources.
Use the device only with accessories supplied with this device.
This device is intended to be grounded. Plug power cord into properly grounded electrical
outlets. This cord is equipped with three-prong plugs to help ensure proper grounding.
This device contains static sensitive components. Proper static handling procedures and
equipment must be used when servicing this device.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
5
Do not look inside of the device.
If any of the following conditions occur, unplug the device from the electrical outlet and contact
authorized service personnel.
The power cord or power adapter is damaged.
An object has fallen into the device.
The device has been exposed to water.
The device has been dropped or damaged.
The device does not operate correctly when the operating instructions are followed.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
6
1. Veterinary Dental Cassette
Supporting multi imaging plates on a moving plate.

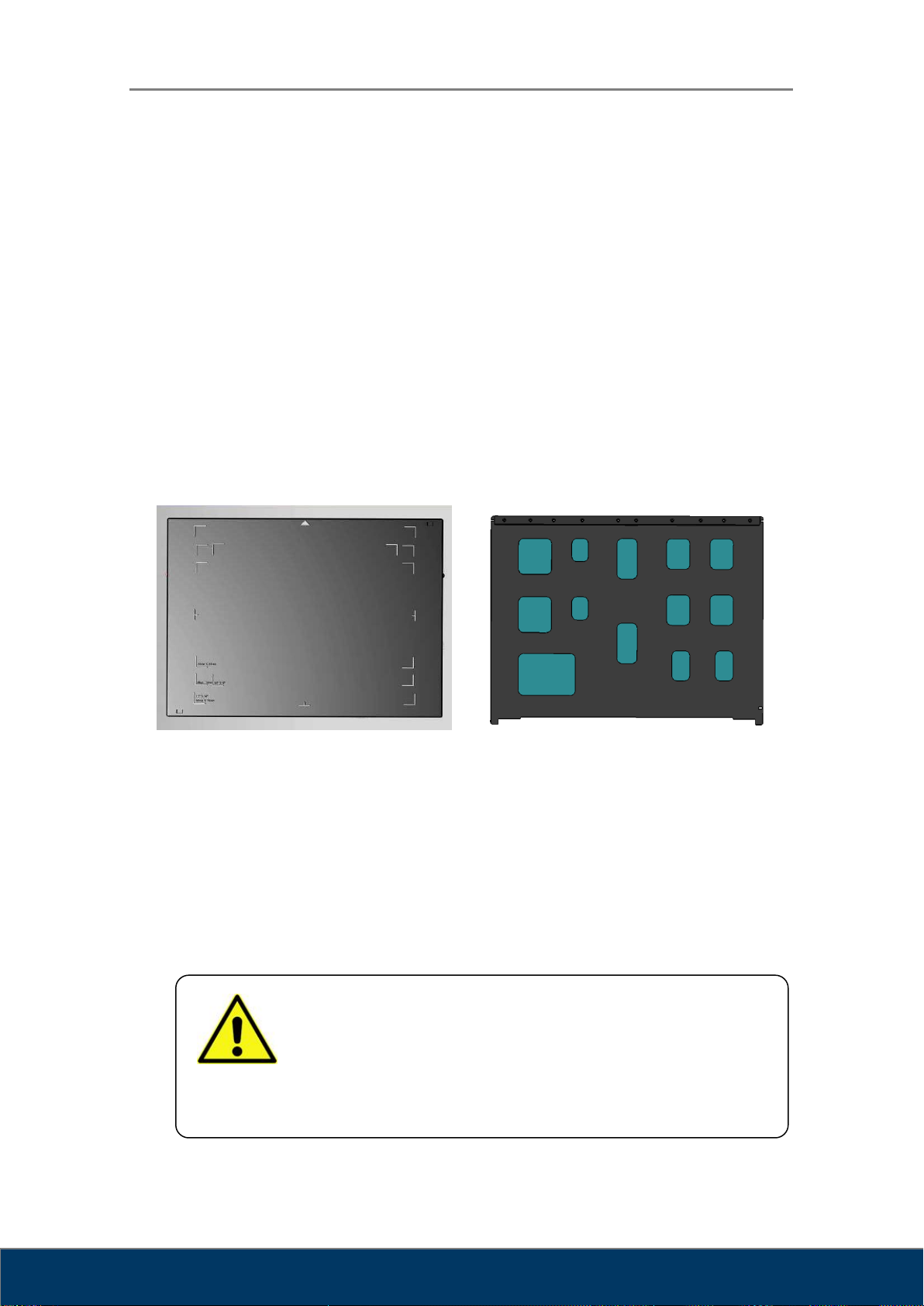

Veterinary Dental Cassette
- Imaging plate size : Each of imaging plate size is marked on the moving plate
(1) Size 0 (22x31 mm) - 2ea,
(2) Size 1 (24x40 mm) –2ea,
(3) Size 2 (31x41 mm) –4ea,
(4) Size 3 (27x54 mm) –2ea
(5) Size 4c (48x54 mm) - 2ea,
(6) Size 4 (76x57 mm) –1ea
Veterinary Dental Cassette Moving Plate
2. Imaging Plate Cleaning
Protect your investment
Dust and dirt are piled up on CR imaging plate, leading to image artifacts. To avoid
contamination, plates need cleaning at regular intervals.
WARNING
As CR imaging plates are highly sensitive to water based cleaning
fluids, we strongly recommend an ethanol-based plate cleaner.
If possible, use a cleaner that is specially designed for CR imaging
plates. This will help to ensure the longest possible service life.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
7
2.1. Service Life
Imaging plates in the following condition cannot be used.
Scratches on the surface of the protective layer and they appear on the image.
The phosphor layer has peeled away from the support layer.
2.2. Imaging Plate Cleaning Tools
Moving plate extracting tool
Imaging plate cleaner
Use ethanol based cleaner : ethanol > 99.5%
Soft lint free dry cotton (nonabrasive cloth)
2.3. Imaging Plate Cleaning Process
2.3.1.Moving Plate Pull Out

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
8
There are 2 buttons on each side of cassette for unlocking the moving plate. See the red arrows.
To release the Moving Plate from the Cassette, the Cassette Lock Releaser should be linked up
with the Cassette. The the Cassette Lock Releaser are pressing those buttons during it is linked
up with the Cassette correctly
Stand the Cassette on the side and press the buttons using the Cassette Lock Releaser. Make
sure both of buttons are pressed when you want to release the Imaging Plate from the Cassette.
Hook and pull the moving plate out.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
9
2.3.2.Cleaning Process
Using the dry cleaning cloths listed previously, clean the imaging plate surface as
illustrated below.
Use ethanol dampened cleaning cloths to clean stains that do not come off with the
above method.
When the imaging plate surface has been cleaned using ethanol dampened cloth,
slightly wipe it off with the listed dry cloths.
WARNING
Do not pour ethanol directly on to the imaging plate.
Make sure the imaging plate surface is completely dry before using
the imaging plate.
WARNING
Be sure not to damage the imaging plate.
Do not scratch the imaging plate with your fingernails.
Never use erasures or any other solvents.
Never use hand lotions or sunblock cosmetics prior to handling
the imaging plate.
Do not bend or crack the imaging plate during use or cleaning.
Do not stack other objects on the image plate.
Do not let the imaging plate stand under direct rays (ultraviolet
rays).
WARNING
Imaging plates must be discarded according to laws and
regulations applicable in each country.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
10
2.3.3.Insert Moving Plate
Stand the cassette on the side and press the buttons with the Cassette Lock Releaser. Make
sure both of buttons are pressed. Insert moving plate into the cassette
WARNING
Do not put the imaging plate upside down when it is inserted.
Do not insert the moving plate in wrong direction.
Do not lean the moving plate when it is inserted, the Imaging Plate
can be scratched by the Cassette.
WARNING
Make sure both of buttons keep pressed firmly.

Maintenance Guide
Veterinary Dental Cassette Kit TM-723-EN
11
DANGER
Never press push buttons of the cassette with upside down
position. A crash will cause the damage of the imaging plate and
moving plate which can affect X-ray image quality.
Always carry the cassette with the slot side up.
