Installation Manual

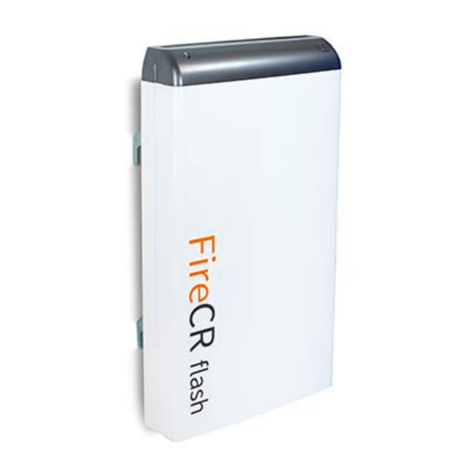

FireCR Flash
Computed Radiography Reader
Doc No.: TM-XXX
Rev: Nov 2014
Part No.: XX-XXX-XX-XXX
Digiray, FireCR, FireCR Flash and Quantor are trademarks of
Digiray Corp,South Korea, and its affiliates.
All other trademarks areheld by their respective owners and are
used in an editorial fashion with no intention of infringement.
The data in this publication are for illustration purposes only and
do not necessarily represent standards or specifications, which
must be met by Digiray Corp.
All information contained herein is intended for guidance
purposes only, and characteristics of the products and services
described in this publication can bechanged at any time without
notice. Products and services may not be available in your local
area. Please contact your local sales representative for availability
information.
Digiray Corp. strives to provide as accurate information as
possible, but shall not be responsible for any typographical error.
©Copyright 2019Digiray Corp,allrights reserved, printed, and
published in South Korea by Digiray Corp.
2
FireCR Flash Installation Manual

Table of contents
Components ......................................................................5
Recommended Computer Requirements...............................6
Installation........................................................................7
Software installation .....................................................................7
Positioning .....................................................................................8
Tabletop installation .................................................................8
Wall mount installation .............................................................9
Connections ................................................................................. 10
3
FireCR Flash Installation Manual

Dear Customer
Thank you for choosing the Digiray FireCR Flash scanner as your
new solution.
The advanced CR technology ofthe FireCR Flash scanner enables
you to produce high-quality digital images for diagnosing the
patients in your facility. The reader can be used as a central
scanner,which distributes images throughout your facility, oras
an exam-room based solution.
The scanner is DICOM 3.0 compatible with existing systems and
uses afull range of low-cost, reusable bitewings and intraoral
imaging plates. The design features a built-in erase function
and three different size of cassettes whereof two are included.
Please read and follow the instructions given in this ‘Installation
Manual’ carefully prior to using the FireCR Flash scanner and keep
this manual within reach for future reference.
The purpose of this manual is to direct you through the
installation process before using the equipment.
Guides on howto use the scanner is described in the ‘User
Manual’ for the product.
4
FireCR Flash Installation Manual

Components
Please ensure that the following list of components are present in
the box prior to installation.
Item Qty
FireCR Flash Computed Radiography Scanner 1
FireCR Flash User Manual 1
Power cord 1
USB 2.0 interface cable 1
RJ45 CAT.5E FTP Cable 2m (Cross type) 1
43x35 Cassette including IP 1
24x30 Cassette including IP 1
IP Extractor 1
5
FireCR Flash Installation Manual

Recommended Computer Requirements
The following requirements are what we recommend, if your
computer have different specifications the system may still work,
but some processes may be slower.
Operating
system
Microsoft Windows 7 or Windows 8 (32 bit or
64 bit version)
CPU Dual core 1.5GHz or better with at least 2MB
L2 cache
RAM 4GB or more
Free HDD space 300GB or more
Network
adaptor 100Mbps Ethernet or faster
USB connection Version 2.0 High speed
6
FireCR Flash Installation Manual

Installation
Software installation
Before connecting the FireCR Flash reader, please ensure that the
imaging software is installed on your computer, connecting the
reader prior to the software installation may cause the USB hub to
allocate a wrong driver making the installation more difficult. –if
this happens, remove the wrong driver manually and connect the
reader after the software is installed.
If another image acquisition software than Quantor is used, install
only the HASP drivers.
7
FireCR Flash Installation Manual

Positioning
Tabletop installation
The reader must be positioned on a rigid, flat surface with at least
50 cm (20”) of free space to the rear and 20 cm (8”) of free space on
the front to allow access for imaging plate insertion as illustrated
below and adjust the feet underneath to ensure stability.
20 cm (8”)
50 cm (20”)
8
FireCR Flash Installation Manual

Wall mount installation
The wall mount must be fastened to a rigid, solid surface that has
a carrying capacity over 25kg (55lbs) with at least 4 screws, and
the lowest end of the wall mount bracket at least 77 cm (30 5/16”)
from the floor.
Ensure that there is at least 50 cm (20”) of free space above the
scanner.
77 cm
(30 5/16”)
50 cm
(20”)
20 cm
(8”)
9
FireCR Flash Installation Manual

Connections
Connecting the scanner with USB cable
Insert the USB cable into the socket on the back of the scanner (1),
insert the other end into an available USB port in the computer.
Insert the power cable into the power inlet (2), insert the other end
into a power outlet and switch this on.
Switch the scanner on (3) and allow the computer to setup drivers
as needed.
The first time the scanner is connected to your software it
synchronize calibration data which may take a few minutes, once
this is finished you will be ready to scan images.
For wall mounted units, select wall mount in the IP calibration
menu under settings.
1. USB socket
2. Power inlet
3. Power switch
Off
On
10
FireCR Flash Installation Manual

Go to the Device Calibration menu under options and select auto
alignment to allow the laser to position itself after transport.
Close the calibration window using the cancel button, and the
system is now ready for use.
1
2
3
4
11
FireCR Flash Installation Manual

Digiray Corp.
#825, Unitech Venture Town, 142, Ilsan-ro,
Ilsandong-gu,Goyang-si, Gyeonggi-do,
10442 Republic of Korea
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
