PS-2000B Series
Installation Guide
Follow the instructions given below to ensure the correct and safe use of the PS-B.
• If the screen becomes dirty or smudged, moisten a soft cloth with diluted neutral deter-
gent, wring the cloth well, and wipe the display. Do not use thinner or organic solvents.
• Avoid storing and operating the PS-B in direct sunlight, high temperatures and
humidity, and in areas where excessive dust and vibration will occur.
• Avoidusing the PS-Binareaswhere sudden,extreme changesintemperature canoccur.
This may cause condensation to form inside the unit, possibly leading to an accident.
• To prevent the PS-B from overheating, be sure its air circulation vents are clear
and clean, and keep the unit’s operation area well-ventilated.
• Avoid operating or storing the PS-B near chemicals, or where chemicals can
come into contact with the unit.
• The Digital Electronics Corporation cannot be held responsible or provide any
compensation for damage(s) caused by the loss of data stored in the PS-B unit’s
hard disk drive (HDD). It is therefore strongly suggested that all important data
and software be backed up regularly to an external data backup device.
• After turning OFF the PS-B's power, wait until the internal HDD stops spinning
before turning the power ON again (approx. 5 seconds).
To Prevent Accidents
Follow the instructions given below to ensure the correct and safe use of the PS-
2000B Series unit, hereafter referred to as the “PS-B”.
• To prevent an electrical shock, be sure to connect the power cord to the PS-B
before connecting it to the main power supply.
• A fire or electrical shock may result if voltages are used with the PS-B that are
beyond the specified range. Be sure to only use the specified voltage.
• Before opening the PS-B’s protective cover, be sure to turn the unit’s power OFF.
This is because the PS-B’s internal parts carry high voltages.
• If metal particles, water or other types of liquids contact any of the PS-B’s internal
parts, immediately turn the unit’s power OFF, unplug the power cord, and contact
your local PS-B distributor.
• Read and understand Chapter 4 “Installation and Wiring” thoroughly in order to
select an appropriate installation location for the PS-B.
• Before either plugging in or unplugging an expansion board or interface connec-
tor, be sure to turn the PS-B’s power OFF.
• To prevent a possible explosion, do not install the PS-B inareas containing flammable
gases.
• The PS-B is not appropriate for use with aircraft control devices, aerospace equip-
ment, central trunk data transmission (communication) devices, nuclear power
control devices, or medical life support equipment, due to these devices’ inher-
ent requirements of extremely high levels of safety and reliability.
• When using the PS-B with transportation vehicles (trains, cars and ships), disas-
ter and crime prevention devices, various types of safety equipment, non-life
support related medical devices, etc. redundant and/or failsafe system designs
should be used to ensure the proper degree of reliability and safety.
WARNINGS

2
The PS2000B-41 units are UL/c-UL 60950 recognized products. (UL File No. E171486). Please
pay special attention to the following instructions when applying for UL/c-UL (CSA) approval
for machinery which includes any of these PS-B units.
The PS-B conforms as a component to the following standards:
UL 60950, Third Edition (Standard for Safety of Information Technology Equipment, includ-
ing Electrical Business Equipment)
CSA-C22.2 No. 950-95 (Standard for Safety of Information Technology Equipment, includ-
ing Electrical Business Equipment)
PS2000B-41 (UL Registration Model No.: 3080005-01)
- Equipment with a PS-B mounted in it requires UL/c-UL (CSA) evaluation for the combination
of the PS-B and the equipment.
- The PS-B must be used as a built-in component of an end-use product.
- Use the PS-B indoors only.
- When connecting the PS-B’s power cord, be sure to use a cord that is appropriate for the
current and voltage used and that has conductive wires that are 0.75 mm2or larger.
- When using the PS-B in an end-use product, be sure to install the PS-B unit's power cut-off
switch where the operator can easily reach it.
- Danger of explosion if backup battery is incorrectly replaced. The PS-B unit’s battery should
be replaced only with same or equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer’s instructions.
- Be sure the unit the PS-B is built into uses a UL60950 compatible equipment structure.
The PS2000B-41 units are CE marked, EMC compliant products.
<Complies with the following Standards>
• Safety
EN60950
• EMI
EN55011 (Group1 Class A), EN61000-3-2, EN61000-3-3
• EMS (EN61000-6-2)
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8,
EN61000-4-11
If the following requirements are not met, the PS-B may fail to meet EN60950 standard require-
ments.
• Equipment with a PS-B mounted in it requires UL/c-UL (CSA) evaluation for the combination
of the PS-B and the equipment.
• The PS-B must be used as a built-in component of an end-use product.
• Use the PS-B indoors only.
• When connecting the PS-B’s power cord, be sure to use a cord that is appropriate for the
current and voltage used and that has conductive wires that are 0.75 mm2or larger.
• When using the PS-B in an end-use product, be sure to install the PS-B unit's power cut-off
switch where the operator can easily reach it.
• There is a danger of explosion if the backup battery is incorrectly replaced. The PS-B unit’s
battery should be replaced only with the same or equivalent type recommended by the manu-
facturer. Dispose of used batteries according to the manufacturer’s instructions.
• Be sure the PS-B unit's enclosure is an EN60950 approved sheet steel structure.
UL/c-UL (CSA) Application Notes
CE Marking Notes

3
Package Contents
The PS-B package should include the following items:
• Be careful when installing the PS-B not to damage the built-in HDD.
• This cord is designed only for AC100/115V use. Any other voltage
will require a different cable.


Power Cord (1)


PS-B Unit (1)
(PS-2000B-41) 

Installation Brackets (1 set)
and attachment screws (4)


CD-ROM (1)
PS-2000B Series User
Manual & Driver CD


Installation Guide (1)
(English and Japanese)
This
Guide
When you order a PS-B unit built to your specifications, the PS-B unit’s
package should include an optional item Installation Guides. Be sure
to check each optional item’s package.
The CD-ROM contains the User Manual, RAS-API Reference Manual and
PS-2000B Series Utility and Driver files. For CD-ROM content details, refer
to the User Manual.


Expansion Boad Stays (3)
Stay Screws (6) 

USB Cable Clamp Holder (1)
Cable Clamp (2)
Holder Screws (2)

4
The PS-B unit’s CD-ROM contains the following PDF manual files.
- PS-2000B Series User Manual
- PS-2000B Series RAS-API Reference Manual
Reading a PDF file requires installation of the Adobe Corporation’s Acrobat®Reader.
Acrobat®Reader Installation:
To install the Acrobat®Reader software, follow the steps given below.
1) This software, in the form of a self-extracting file, is located in this CD-ROM in the folder
titled [reader]. Use the Explorer software to find the file [Reader\Eng\ar505enu.exe], and
double-click on the file icon to begin the Reader installation.
2) After installation begins, follow the instructions given.
Viewing the PDF manual:
To view the PDF manual contained in this CD-ROM, follow the steps given below.
1) Use the Explorer software to locate the file [Manual\Eng\ps2000be.pdf or
psbapie.pdf] in the folder titled [Manual].
2) Double-click on the PDF file's icon. Acrobat®Reader will automatically start and the
first page of the PDF manual will appear.
About The Manual

5

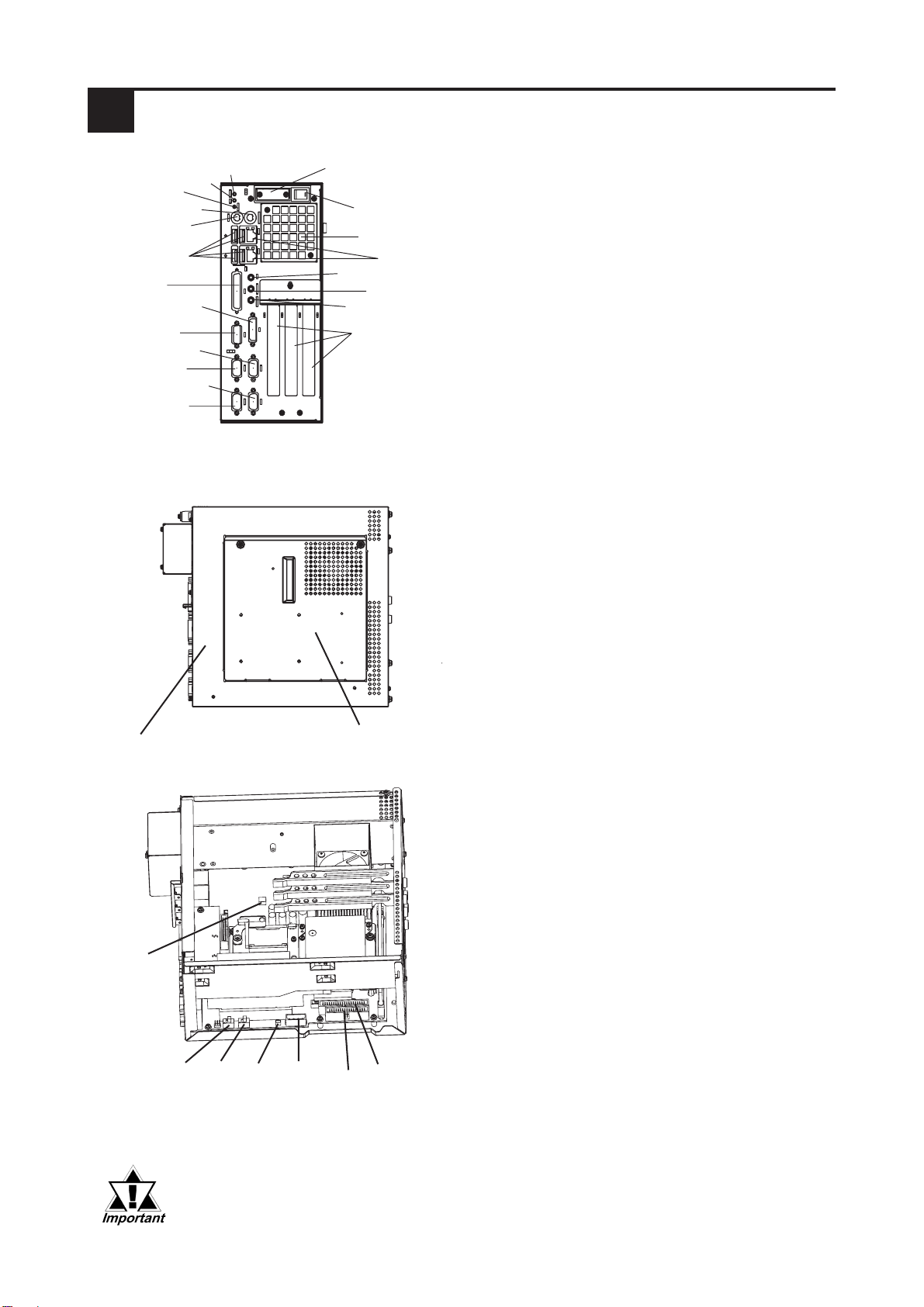

1PS-B External Features
• To prevent an electrical shock, be sure to disconnect the PS-B’s power cord
from the power supply before connecting the cord’s power terminals or any
peripheral devices to the PS-B.
1 : Power Switch
2 : Power Terminal Block
3 : Power LED (POWER)
4 : Hard Disk LED (HDD)
5 : Hardware Reset Switch (RESET)
6 : Keyboard Connector (KEYBOARD)
7 : Mouse Connector (MOUSE)
8 : USB Connector (USB)
9 : RAS Connector (RAS)
10: Standard Display Connector (DVI)
11: Analog RGB Connector (VGA)
12: RS-232C Connector (COM1)
RI/+5V Changeover
13: RS-232C Connector (COM2)
14: RS-232C Connector (COM3)
RI/+5V Changeover
15: RS-232C Connector (COM4)
16: Expansion Slots
17: Speaker Output (SPEAKER)
18: Line Input (LINE IN)
19: Mike Input (MIC)
20: LAN Connector (LAN1/LAN2)
10BASE-T/100BASE-TX
Auto Changeover
21: Cooling FAN
22: Cover
23: Maintenance Cover
24: +5V/RI Changeover Switch (COM1)
25: +5V/RI Changeover Switch (COM3)
26: CD-ROM Sound Input Connector
27: CD-ROM/FDD Drive Unit Power
Connector
28: FD Drive Connector
29: CD-ROM Drive Connector
30: Standard Display ON/OFF Dip Switch
Side View
22
24 25 26 27 28
Front View
1
29
23
2
3
4
56
7
8
910
1112
13 14
15
16
17 18
19 20
21
Internal View
30

6

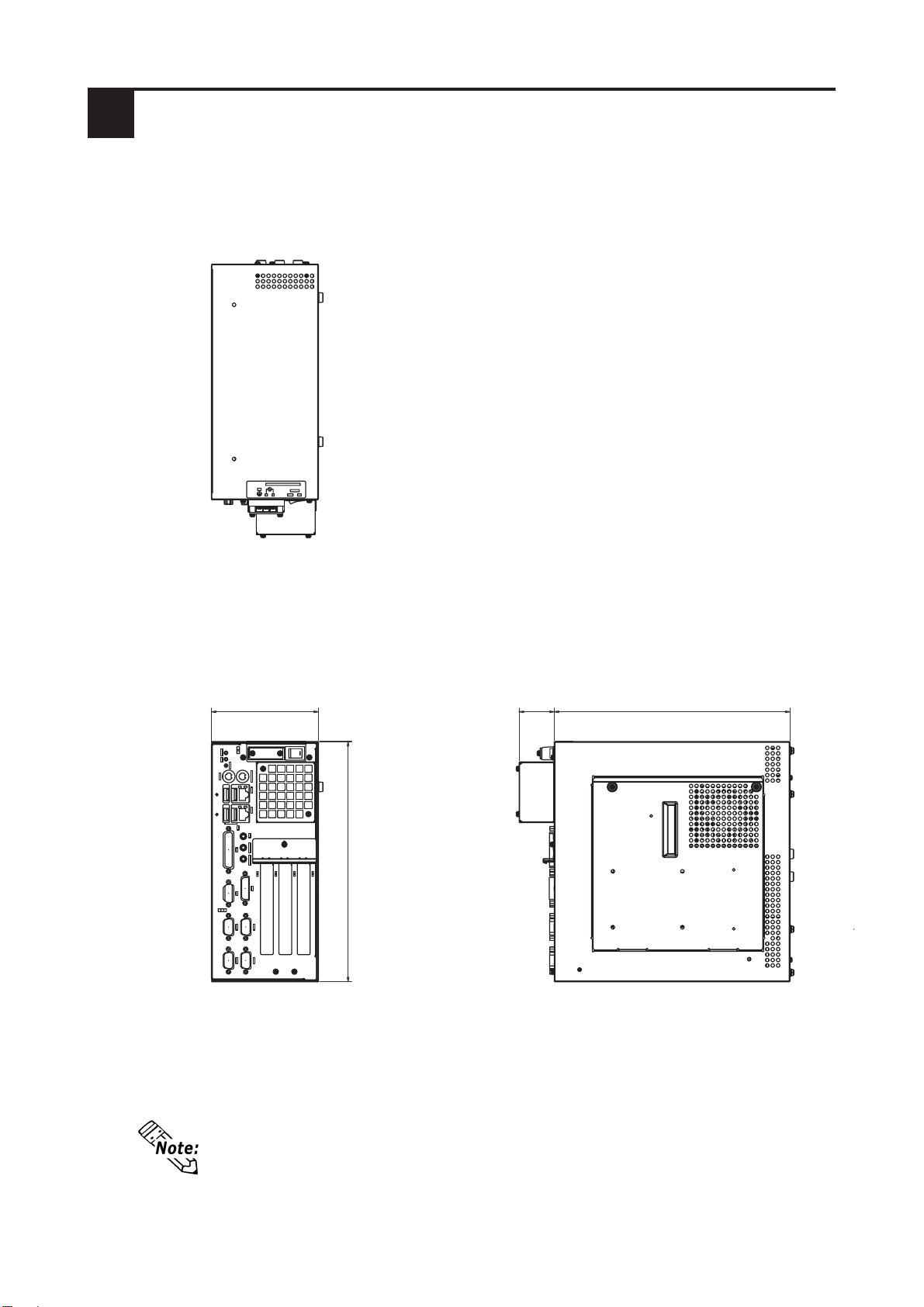

2PS-B Dimensions
(Unit: mm [in.]- excluding projections)
Side View
Top View
Front View
118 [4.65]
265 [10.43]
260[10.24]
39
[1.54]
Dimensions including option units (CD-ROM/FD Drive Unit,
RS-232C/RS-485 Conversion Unit), see “PS-2000B Series User
Manual”

7
Electrical
Environmental
3General Specifications
Rated Voltage AC 100V/AC 240V
Allowable Voltage
Range AC 85V to AC 265V
Rated Frequency 50/60Hz
Allowable Voltage Drop 1 cycle or less
(however, pause occurrences mustbe more than 1 second apart)
Power Consumption 110VA or less
AC 1500Vat20mAfor 1 minute
(between charging and FG terminals)
10MΩor higher atDC 500V
(between charging and FG terminals)
Voltage Endurance
Insulation Resistance
Ambient Operating
Temperature
(Cabinet Interior)
5oC to 50oC (With HDD attached)
0oC to 50oC (WithoutHDD)
Storage Temperature -10 oC to 60oC
Ambient Humidity 10%RH to 85%RH
(Non condensing, wetblub temperature : 29oC)
Air Purity Level Free ofdust
Pollution Degree Pollution Degree 2
Atmosphere Free ofcorrosive gas
Noise Voltage: 1500V
Pulse Duration: 50ns, 500ns, 1µs
Rise Time : 1ns
(via noise simulator)
Electrostatic Discharge
Immunity 6kV IEC 61000-4-2
Noise Immunity
(First transient burst
noise)
Power Line : 2kV IEC 61000-4-4
COM Port: 1kVIEC6100-4-4
Vibration Resistance 9.8m/s2at10Hz to 25Hz in X, Y, Z directions for 30 minutes
With HDD attached : 4.9m/s2
Noise Endurance
(Impulse Noise)

8
Structural
Grounding Exclusive grounding only.
Less than 100Ω, or your country’s applicable standard.
Installation Method Inside a solid
Cooling Method via main unitfan or CPU fan
Weight Less than 4.5 kg (9.9 lb)
(excluding projections)
External Dimensions W118 mm [4.65 in.] x H265 mm [10.43 in.] xD299 mm [11.77 in.]
(excluding projections)
Dimensions Including
CD-ROM/FD Drive Unit
W159 mm [6.26 in.] x H265 mm [10.43 in.] xD299mm
[11.77 in.]
(excluding projections)
Dimensions Including
RS-232C/RS-485
Conversion Unit
W139.5 mm [5.49 in.] xH265 mm [10.43 in.] xD299 mm
[11.77 in.]
(excluding projections and cable)

9
4Interface Specifications

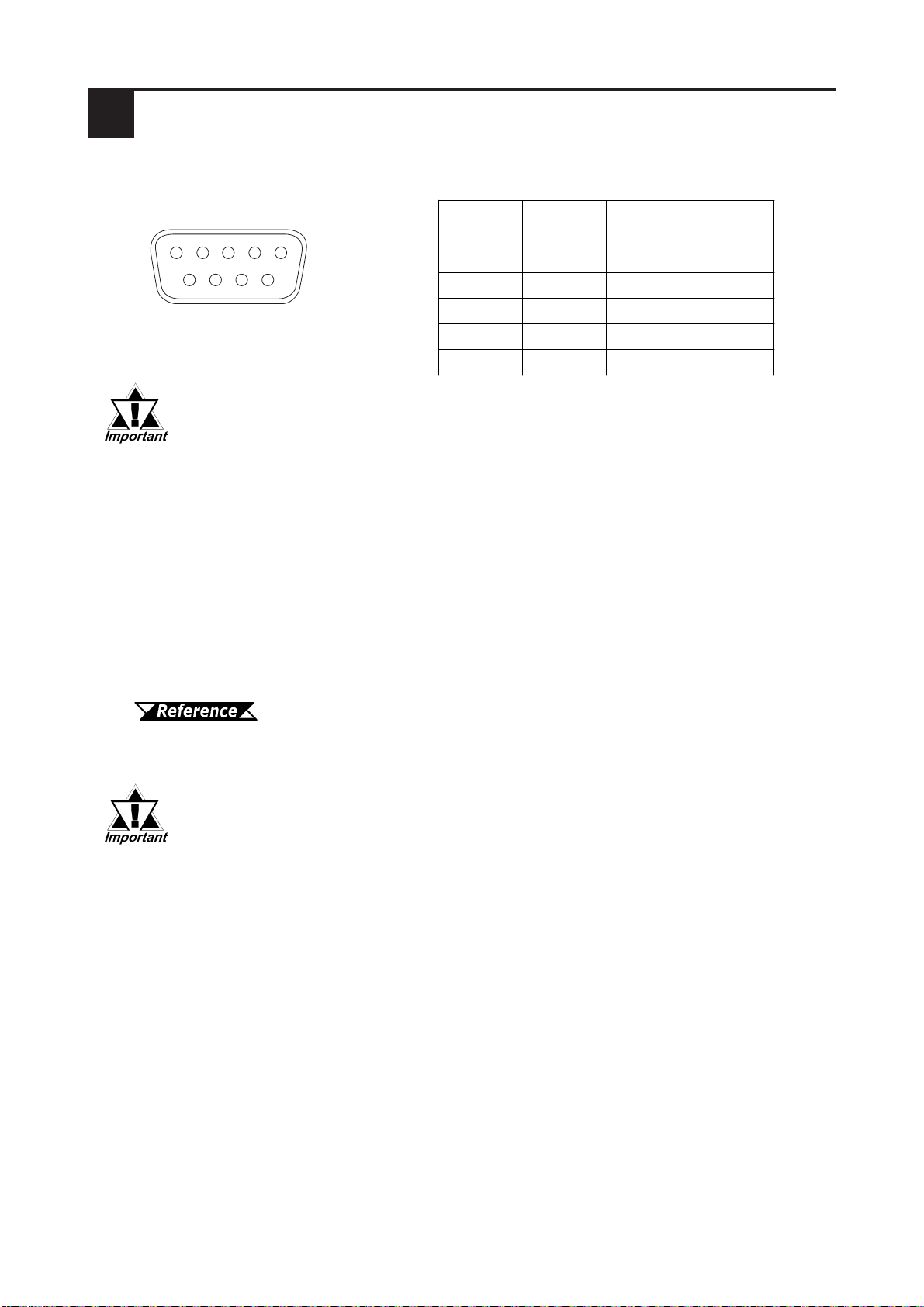

RS-232C Interface (COM1/COM2/COM3/COM4)
Pin No. Signal
Name Pin No. Signal
Name
1CD6DSR
2RXD7RTS
3TXD8CTS
4DTR9RI/+5V
5GND
Dsub 9 pin (Male)
Screw Size: (4-40): Inch Type
1 2 3 4 5
6 7 8 9
Changing number 9 pin’s [+5V/RI] can only be done for COM1, or COM3.
With COM2 and COM4, only [RI] is available. To change the COM1 or COM3
[+5V/RI] setting, remove the PS-B unit’s cover and locate the changeover
switch on the side of the main circuit board. The factory setting is to [RI].
• Be sure to confirm what settings will be used by the other device
and set the dip switches accordingly. Failure to do so can result in
a unit malfunction or damage.
• Whenever changing the PS-B changeover switches, be sure to
first turn the PS-B’s power supply OFF. Failure to do so can cause
a PS-B malfunction.
PS-2000B Series User Manual 1.4.1 RS-232C Interface
• The GND terminal is the signal ground. Be sure to connect the PL
unit’s GND terminal to the other unit’s SG (signal ground).
• FG and SG terminals are internally connected in the PS-B. When
connecting to another device, be sure to create an SG shorting
loop in your system.

10


External Input Signal (Dual use of DIN, RST Input Port)
• General Purpose Input (DIN)’s input level must be 1.5 seconds or longer to
be detected.
• Be sure the voltage value between terminals is controlled via the input volt-
age, so that the PS-B is operated within its recommended range. If the input
voltage exceeds this range, a malfunction or PS-B damage may occur.
• With Sink/Source input, even if DIN(-), and RST(-) are positive, and
DIN(+), RST(+) are negative, no problems are created. Be sure to oper-
ate the unit within the recommended voltage range.
Input Voltage DC12V to DC24V
Input Current 7mA
Operating Voltage ON voltage: 9V (min), OFF voltage:3V(max)
Isolation Method Via photocoupler

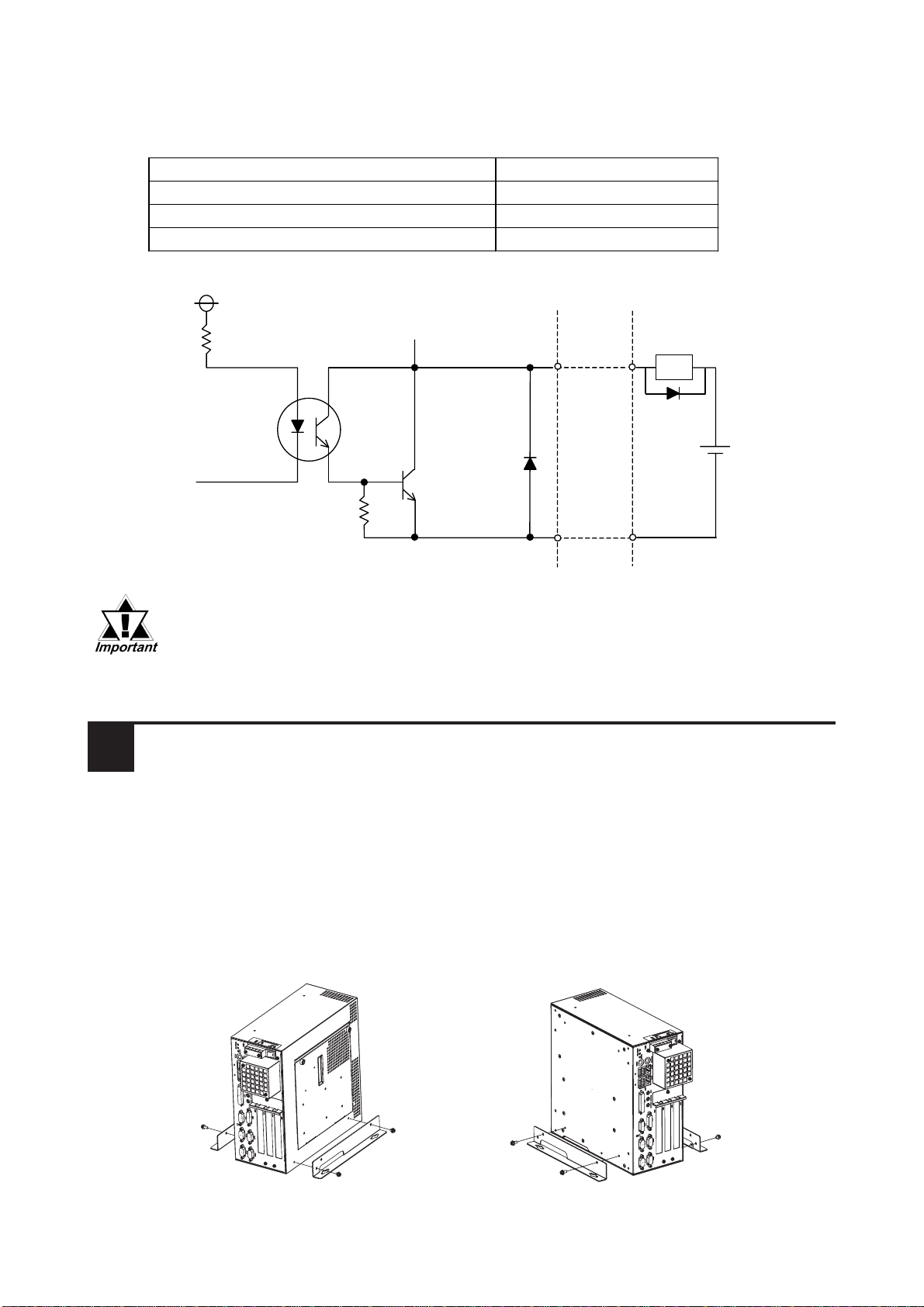

(Interface Circuit) (Connection Example)
+5V
R
PC357
1.8kΩ
1/10W
D-sub 25 pin Connector
DC12V to
DC24V
DIN0(+), DIN1(+)
DIN2(+), DIN3(+)
RST(+)
Cable
1.8kΩ
1/10W
R
switch or switching
device
No polarity - for Sink/
Source input
Pin No. Signal Name Pin No. Signal Name
1GND14GND
2 +5V(MAX.100mA) 15 +5V
3 +12V(MAX.100mA) 16 DIN3(+)
4 NC 17 DIN3 (-)
5 DIN2 (+) 18 RST (+)
6 DIN 0 (+) 19 DOUT1 (-)
7 DOUT2 (-) 20 DOUT1 (+)
8 DOUT2 (+) 21 DOUT3 (-)
9 DOUT0 (-) 22 DOUT3 (+)
10 DOUT0 (+) 23 RST (-)
11 DIN2(-) 24 DIN1(-)
12 DIN0 (-) 25 NC
13 DIN1(+)
RAS Interface
Dsub 25 pin (Male)
Screw Size: (4-40): Inch Type
When using No.2 (+5V) and No.3 (+12V) External Power Output, be
sure to use only the designated level of current. Not doing so could
couse a damage or a unit malfunction.
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
DIN0(-), DIN1(-)
DIN2(-), DIN3(-)
RST(-)

11
5Installing the PS-B
1) Use the four (4) attachment screws included in the PS-B’s packing box to
attach the mounting brackets to the PS-B main unit. Be careful that each
bracket is attached to the correct side.
Use the following procedures to install the PS-B into a solid panel.


External Output Signal (DOUT Port)
Be sure to operate the unit within its maximum load current. If the maxi-
mum load current exceeds this range, a malfunction or PS-B damage may
occur.
Rated Load Voltage DC12V to DC24V
MaximumLoad Current 100mA/point
MaximumVoltage Drop between Terminals 1.5V(at100mA load current)
Isolation Method Via photocoupler
DOUT0(+), DOUT1(+)
DOUT2(+), DOUT3(+)
(Interface Circuit) (Connection Example)
+5V
R
Cable
D-sub 25 pin Connector
4.7kΩ
PC357
SSTA06 DC12 to DC24V
*1
Load
DOUT0(-), DOUT1(-)
DOUT2(-), DOUT3(-)
When Installing the PS-B vertically

12

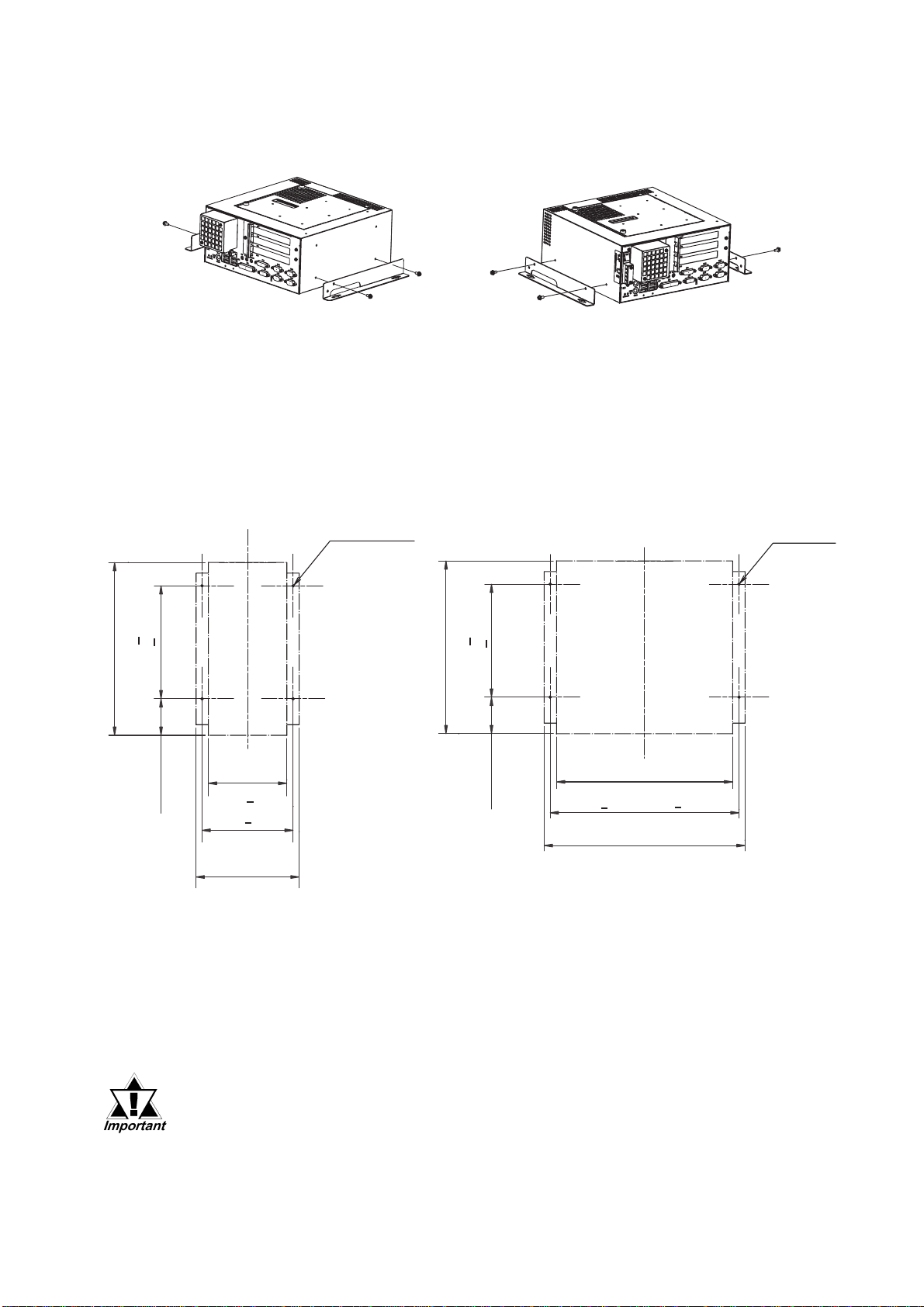

2) Drill the attachment holes in the panel. Be sure to follow the dimensions
given for the attachment holes.
(Unit : mm [in.] - excluding projections)
• Depending on the panel’s material and design, the panel’s instal-
lation surface may need to be strengthened. If high levels of vibra-
tion are expected and the PS-B’s installation surface (i.e. an op-
eration panel’s door, etc.) can move (i.e. open or close) due con-
sideration should be given to the PS-B’s weight.
When Installing the PS-B horizontally
Vertical Installation
260[10.24]
(55[2.17])
(155[6.10])
(118[4.65])
137+0.5
[5.39+0.02]
260[10.24]
170+0.5
[6.69+0.02]
(55[2.17])
284+0.5[11.18+0.02]
(302[11.89])
(265[10.43])
4-M4 4-M4
Horizontal Installation
170+0.5
[6.69+0.02]

13
6Wiring the PS-B
WARNINGS
• To prevent electric shocks, be sure to turn the PS-B's power supply
OFF before connecting the power cord.
• To avoid the dangers of fire, electric hazards and equipment damage,
be sure to use only the specified power supply voltage when operat-
ing the PS-B.


Connecting the Power Cord
3) Attach the PS-B to the Installation Panel with M4 screws.
First, insert the main unit attachment screws into the Installation Panel’s
holes, but do not tighten them. Then, place the PS-B main unit on the panel so
that the bracket holes and the screw heads align. Next, slide the PS-B down so
that the main unit is supported by these attachment screws. Last, tighten the
screws until the PS-B is secured in place.
Do not use excessive force when tightening the main unit attach-
ment screws. The torque required is from 1.0 to 1.2N•m.
Attach-
ment
Screws
Attach-
ment
Screws
Vertical Installation Horizontal Installation
Attach-
ment
Screws
(Front View)

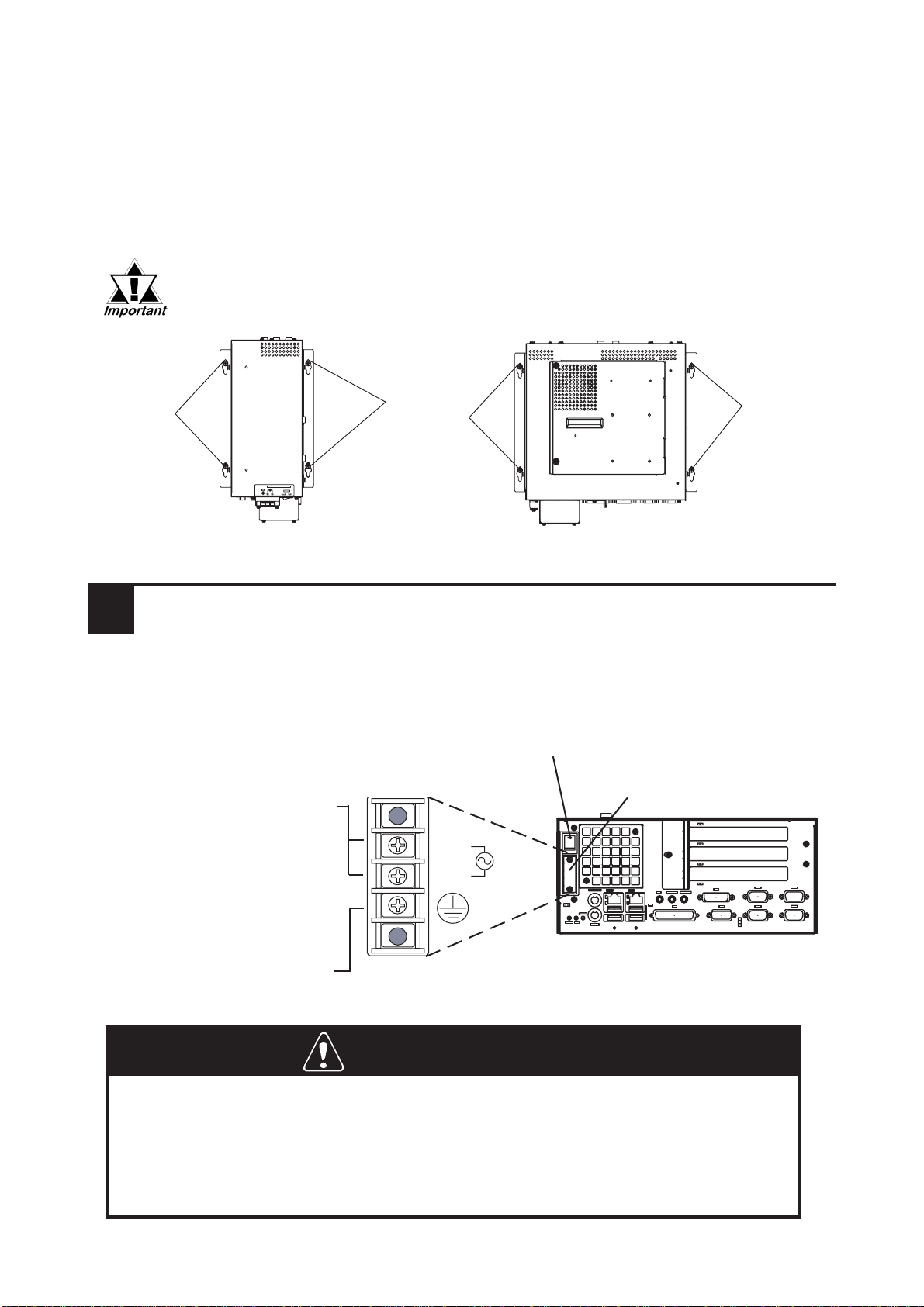

Power Terminals
Power Switch
Power Input Terminals
Connecting these two termi-
nals provides AC100V/
AC240V.
L= Live and N= Neutral
This terminal is connected
to the PS-B’s frame (chas-
sis).
(screw size: M3)
PS-2000B
L
N
FG

14
1)Confirm that the PS-B unit’s power supply is turned OFF.
2)Use a screwdriver to remove the Power Input Terminal Block’s clear plastic
cover.
3)Unscrew the screws from the middle three(3) terminals, align the Ring Termi-
nals*1 and reattach the screws.
• Confirm that the wires are connected correctly.
• The torque required to tighten these screws is 0.5N•m.
• To prevent the possibility of a Ring Terminal short, use a Ring Terminal
that has an insulating sleeve.
4)Replace the Power Input Terminal Block’s clear plastic cover.
Use the following steps when connecting the power cord to the PS-B’s power
terminals.
φφ
φφ
φ3.2 mm or larger
Max. 6.0 mm
Black
White
Green/
Yellow
L
N
FG
*1 Suggested Ring Terminal : RAV1.25-3 <made by JST>

15
7Power Supply Cautions
• If voltage fluctuations are expected to vary
beyond the specified range, connect a constant
voltage transformer.
• Use a low-noise power supply both between
the lines and between the PS-B and its ground.
If there is still excess noise, connect an insulat-
ing transformer (noise-prevention type) .
• Wire the power cords of the PS-B, I/O devices,
and power supply devices separately.
• To improve noise immunity, Pro-face is
recommends attaching a ferrite core to the
power cord.
• Isolate the main circuit (high voltage, large
current) line, I/O signal lines, and power cord,
and do not bind or group them together.
• To prevent damage from lightning, connect a
lightning surge absorber.
Constant
voltage
transformer
Twisted-pair
cord PS-B
FG
Insulating
transformer
Twisted-pair
cord PS-B
FG
Main power
source
PS-B
power
source T1
I/O power
source
PS-B
I/O
device
Main circuit
power source
Power
device
AC 200V
• Ground the lightning surge ab-
sorber (E1) and the PS-B (E2)
separately.
• Select a lightning surge absorber
which will not exceed the allow-
able circuit voltage, even when
the voltage rises to the maximum.
AC100V
PS-B
power
source
I/O power
source
PS-B
I/O device
Main power
source
When connecting the PS-B unit’s AC power terminals, please be aware of the
following:
Be sure any constant or insulating
transformer used has a capacity of
200VA or more.
Twisted-pair
cable
PS-B
FG
Lightning surge absorber
AC
E1 E2
I/O
device
T2

16
8Grouding Cautions
9Cautions When Connecting I/O Signal Lines
PS-B Other
device
Other
device
Other
device

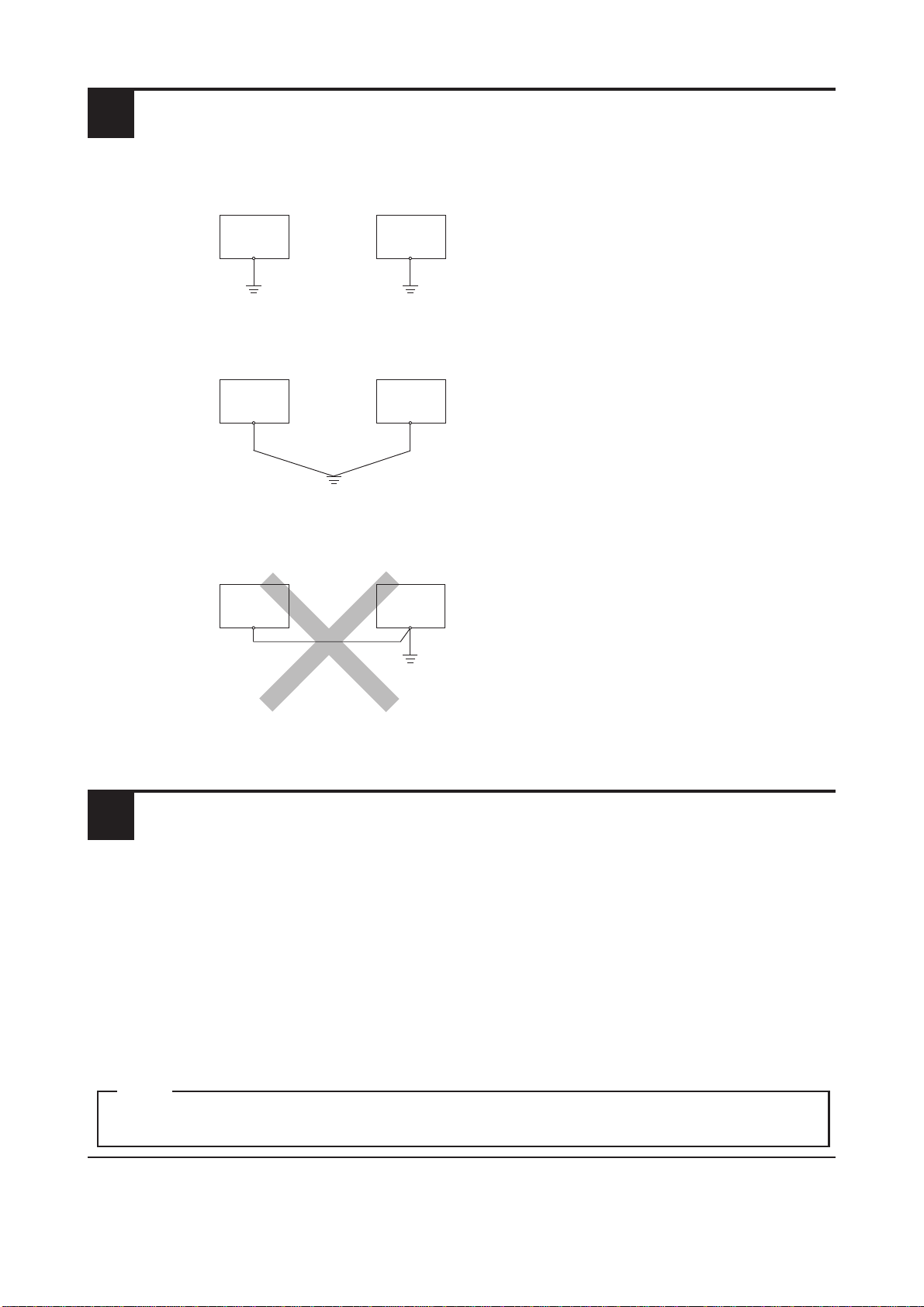

• Set up a dedicated ground when
using the front panel’s FG termi-
nal.
• The grounding point must be as
close to the PS-B as possible, and
the grounding wires must be as
short as possible. If the wires must
be long, use thick, insulated wires
and run them through conduits.
• If a dedicated ground is not pos-
sible, use a shared ground, as
shown in figure (b).
(c) Shared ground - not allowed
(a) Dedicated Ground
(b) Shared Ground - allowed
• I/O signal lines must be wired separately from the power circuit cable. If the
power cord needs to be wired together with the input/output (I/O) signal lines
for any reason, use shielded cord and ground one end of the shield to the PS-
B’s FG terminal.
• To improve noise immunity, it is recommended to attach a ferrite core to the
power cord.
© 2002 Digital Electronics Corporation. All rights reserved.
057470H .PS2000B-MT01-BTHE 2002.10. JM/A
Be aware that the Digital Electronics Corporation shall not be held liable for any real or
estimated damages or losses, or third party claims resulting from the use of this product.
Note
PS-B
PS-B
• FG and SG terminals are internally
connected in the PS-B. When
connecting to another device, be
sure to create an SG shorting loop
in your system.
