Aaeon PFM-550S User manual

PC/104 Module PFM-550S
PFM-550S
VIA Mark Processor
PC/104 CPU Module
With LCD, Ethernet,
COM, USB Ports
PFM-550S Manual Rev. A 1st Ed.
FEB. 2006

PC/104 CPU Module PFM-550S
i
Copyright Notice
This document is copyrighted, 2006. All rights are reserved. The
original manufacturer reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated,
or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable.
However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third
parties that may result from its use.
The material in this document is for product information only
and is subject to change without notice. While reasonable
efforts have been made in the preparation of this document to
assure its accuracy, AAEON assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein.
AAEON reserves the right to make changes in the product
design without notice to its users.

PC/104 CPU Module PFM-550S
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 Intel®, Pentium®and Celeron®are trademarks of Intel®
Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Please be notified that all other products’ name or trademarks
not be mentioned above are properties of their respective
owners.

PC/104 CPU Module PFM-550S
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• Cable Kit
Keyboard/ Mouse cable x 1
COM Port Cable x 2
VGA Cable x 1
Parallel Port Cable x 1
IDE Cable x 1
USB Port Cable x 2
Ethernet Cable x 1
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
• 1 PFM-550S CPU Module
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

PC/104 CPU Module PFM-550S
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-7
2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers ......................................................2-10
2.7 Clear CMOS Selection (JP1) ..................................2-11
2.8 COM1, 2 Ring/ VCC5 Selection (JP2) ....................2-11
2.9 Auxiliary Power Connector (JP3)............................2-11
2.10 PC104 plus VIO Voltage Selection (JP4)..............2-11
2.11 LVDS Voltage Selection (JP5)..............................2-12
2.12 TFT ODCK Normal/Inverted Selection (JP6)........2-12
2.13 IDE Connector (CN1)............................................2-12
2.14 10/100Base-TX Ethernet Connector (CN3) .......... 2-13
2.15 RS-232 Serial Port Connector (CN4)....................2-13
2.16 RS-232/485 Serial Port Connector (CN5).............2-14
2.17 Audio Connector (CN6).........................................2-14

PC/104 CPU Module PFM-550S
v
2.18 USB2 Connector (CN7).........................................2-14
2.19 USB1 Connector (CN8).........................................2-15
2.20 Battery Connector (CN9).......................................2-15
2.21 AT Power Connector (CN10)................................2-15
2.22 Front Panel Connector (CN13) .............................2-15
2.23 Keyboard & Mouse Connector (CN15) .................2-16
2.24 VGA Display Connector (CN16)............................2-16
2.25 LVDS Connector (CN17).......................................2-16
2.26 TTL_LCD Connector (CN18) ................................2-17
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming ............................................................A-2
Appendix B I/O Information
B.1 I/O Address Map.......................................................B-2
B.2 1st MB Memory Address Map ...................................B-2
B.3 IRQ Mapping Chart...................................................B-3
B.4 DMA Channel Assignments......................................B-3

PC/104 CPU Module PFM-550S
Chapter 1 General Information 1 - 1
General
Chapter
1
Information

PC/104 CPU Module PFM-550S
Chapter 1 General Information 1 - 2
1.1 Introduction
AAEON Technology, the inventor and leading supplier of PC/104
boards, has announced PFM-550S, an ideal replacement for
end-of-life modules using None-RoHS compliant components and
is the most effective one among choices you have. PFM-550S with
VIA Mark 533MHz Processor enables performing low power
applications at a real affordable price!
The PFM-550S offers a choice of proven, long life 533MHz VIA
Mark processor. It includes popular embedded features such as
10/100Base-TX Fast Ethernet port, one RS-232 port and one
RS-232/485 port, USB, a SDRAM-SODIMM socket for up to 512
MByte is a standard feature and PC/104-Plus expansion included.
The PFM-550S supports 36-bit TTL & 18/36-bit dual LVDS LCD
panel, it has a watchdog timer and is Lead-free for RoHS
compliance.
The PFM-550S features fanless reliability with a standard operating
temperature of 0 to +60 degree Celsius, supporting fully ISA and
CFD, WinCE, Linux, WinXPe in terms of embedded OS
applications. Overall, this powerful CPU card is a high-end
computer board for implementation.

PC/104 CPU Module PFM-550S
Chapter 1 General Information 1 - 3
1.2 Features
 Supports VIA Mark Processor
 SODIMM SDRAM up to 512MB
 Supports ATA33 and CFD storage
 One 10/100 Base-TX Fast Ethernet
 Supports 18-bit TTL & 18/36-bit dual channel LVDS LCD
Panel
 4 USB1.1 ports / Parallel Port / 2 Serial Ports / IrDA Port
 Supports AC97 Audio via Audio Daughter Board
 PC/104 Plus Socket
 Watchdog Timer
 Lead-free & ROHS Compliance

PC/104 CPU Module PFM-550S
Chapter 1 General Information 1 - 4
1.3 Specifications
System
 CPU: VIA Mark Processor
 Memory: SODIMM SDRAM up to 512MB
 Chipset: VIA VT82C686B
 BIOS: AWARD Plug & Play ISA BIOS
256KB ROM
 Ethernet: Realtek RTL8100BL,
10/100Base-TX RJ-45
connector x 1
 Watchdog Timer: Generates a time-out system
Reset; 1~255 sec.
 H/W Status Monitoring: VT82C686B, supports power
supply voltage and temperature
monitoring
 SSD: Type I CompactFlash™ Slot x 1
 Expansion Interface:PC/104+
 Battery: Lithium battery
 Power Requirement: AT power connector, +5V only
input
 Board Size: 4.53”(L) x 3.78”(W) (115mm x
96mm)
 Gross Weight: 0.66 lb (0.3 kg)
 Operating Temperature:32oF~140oF(0oC~60oC)

PC/104 CPU Module PFM-550S
Chapter 1 General Information 1 - 5
Display
 Chipset Mark + VT82C686B
 VGA Controller Integrated on Mark, 32MB frame
buffer share system memory
 Memory size: Shared system memory up to 32
MB
I/O
 MIO: EIDE (UDMA33) x 1, Keyboard
+ Mouse x 1, Parallel x 1
RS-232 x 1 (COM1),
RS-232/485 x 1 (COM2)
 IrDA: One IrDA Tx/Rx header
 IDE Interface: P-ATA-33 x 1
 Audio: Supports AC97 Audio via Audio
Daughter Board
 USB: Four USB 1.1 ports

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007550S10 Printed in Taiwan FEB. 2006

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide
2 - 3
2.2 Location of Connectors and Jumpers
Component Side
CN1
CN2
CN3CN4CN5CN6CN7
CN8
CN9
JP1
CN12
JP4
JP5
CN17
CN18
CN16
JP6
CN11
CN13 CN20
CN15CN10JP3
JP2

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide 2 - 4

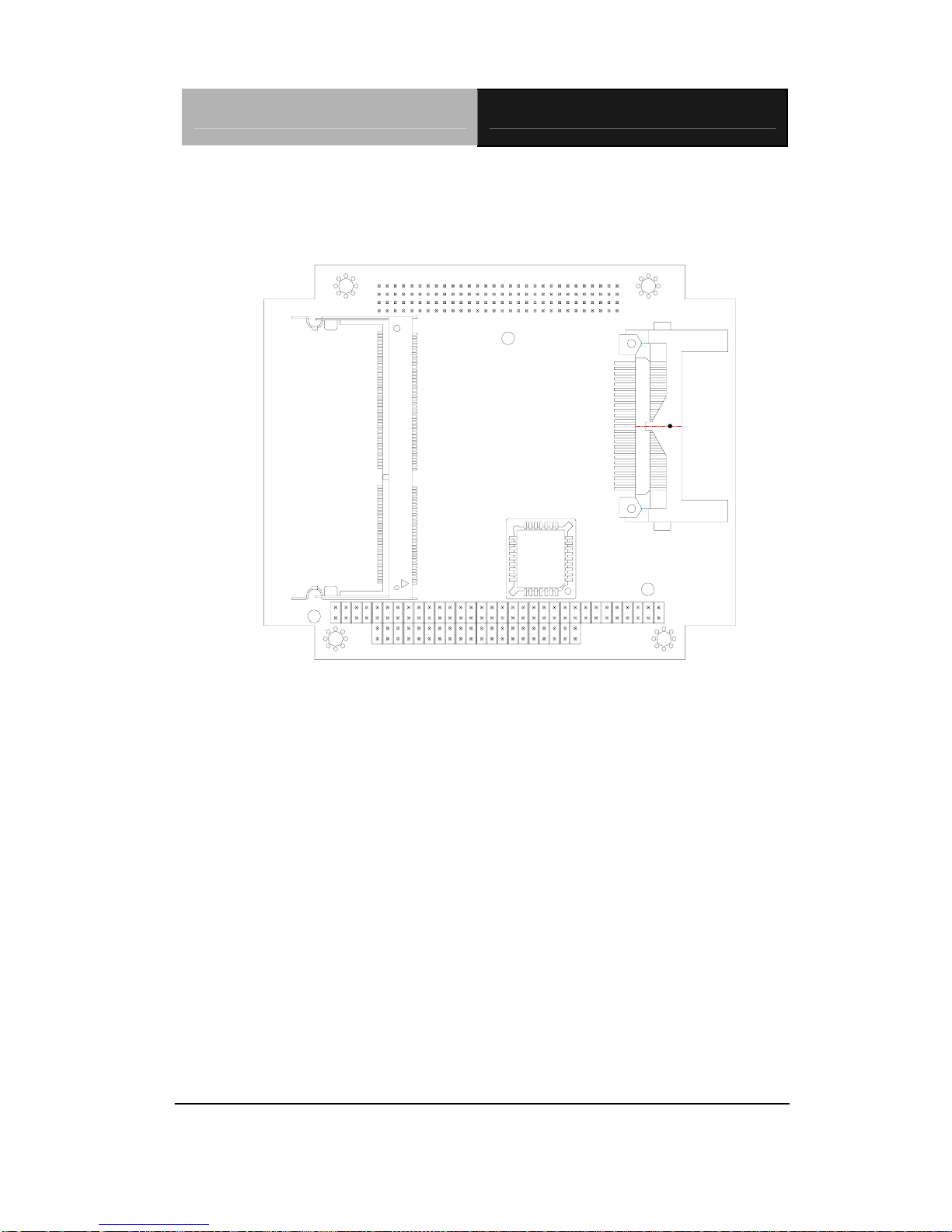

Solder Side
BIOS
DIMM1
CN19

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide
2 - 5
2.3 Mechanical Drawing
Component Side
0.00 4.97
11.87
7.10 1.27
5.11
4.79
14.07
17.51
21.59
75.31 80.01
85.09 85.23 97.48
91.98
91.08
0.96
0.00
5.44
3.20
19.17
23.86
52.88
78.45
82.40
89.39
90.80
85.70
94.11 83.84 85.09 97.44 77.47
15.83
8.78
11.43
3.81
4.03
5.11
85.70
89.74
90.80
80.43
77.88
68.37
82.50
56.30
44.24
32.17
29.13
12.05
4.43
3.20
0.00
5.10
1.38
5.08
20.24
0.55
37.99
85.45
89.46
79.70 73.01
3.95
O3.10
O3.56 11.00 10.60
12.90 10.60
6.84
3.53
14.07

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide 2 - 6
Solder Side
BIOS
71.75
85.70
0.000.00
5.44
12.42
85.70
90.80
82.50
3.20
5.10
97.49 85.23 85.09
80.01
0.00
5.11
17.51
3.20
4.90
3.81
77.47
85.09 5.11
65.07
13.42
51.67
43.92
73.01
37.99
12.05
3.95
O3.10

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide
2 - 7
2.4 List of Jumpers
There are a number of jumpers in the board that allow you to
configure your system to suit your application.
The table below shows the function of each jumper in the board:
Jumpers
Label Function
JP1 Clear CMOS Select
JP2 COM1, 2 Ring/+5V Selection
JP3 Auxiliary Power Connector
JP4 PC104 plus VIO Voltage Selection
JP5 LVDS Voltage Selection
JP6 TFT ODCK Normal/ Inverted Selection

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide 2 - 8
2.5 List of Connectors
There are a number of connectors in the board that allow you to
configure your system to suit your application. The table below
shows the function of each connector in the board:
Connectors
Label Function
CN1 IDE Connector
CN2 LPT PORT Connector
CN3 10/100 Base-TX Ethernet Connector
CN4 RS-232 Serial Port Connector
CN5 RS-232/485 Serial Port Connector
CN6 Audio Connector
CN7 USB2 Connector
CN8 USB1 Connector
CN9 Battery Connector
CN10 AT Power Connector
CN11 PC104+ Connector
CN12 PC/104 Connector
CN13 Front Panel Connector
CN15 Key Board/Mouse Connector
CN16 VGA Display Connector
CN17 LVDS Connector
CN18 TTL_LCD Connector

PC/104 CPU Module PFM-550S
Chapter 2 Quick Installation Guide
2 - 9
CN19 CompactFlash Slot
DIMM1 SODIMM Slot
