Digital Equipment Pro-face GP-377R Series User manual

i
GP-377R Series Users Manual
<Note>
1) It is forbidden to copy the contents of this manual, in whole or in part,
except for the user's personal use, without the express permission of the
Digital Electronics Corporation of Japan.
2) The information provided in this manual is subject to change without
notice.
3) This manual has been written with care and attention to detail; however,
should you find any errors or omissions, please contact Digital Elec-
tronics and inform them of your findings.
4) Please be aware that we are not responsible for any damages resulting
from the use of our products, regardless of article 3 above.
5) The GP377R-TC41-24V is UL/c-UL(CSA) approved and CE marked
unit. However, installing an expansion unit in the GP that is not UL/c-
UL(CSA) approved and CE marked will cause the GP377R-TC41-24V
to lose its UL/c-UL(CSA) approval and CE marking.
All Company/Manufacturer names used in this manual are the registered
trademarks of those companies.
© Copyright 1999, Digital Electronics Corporation
Congratulations on purchasing Digital’s Pro-face GP-377R Series Graphic
Control Panels (hereafter referred to as "the GP").
This GP unit, with its expanded functionality and improved overall perfor-
mance, is an upgrade of Digital's GP70 series panels. Also, instead of using
the optional 2-Port Adapter, the Mitsubishi Electric Corporation's GPP
software package and the GP's rear face tool connector can now be used to
provide 2-Port feature communication.
Please read this manual carefully as it explains, step by step, how to use the
GP correctly and safely.
Also, in this manual's examples, the Mitsubishi MELSEC-AnA Series PLC
is used whenever possible, connected in a one-to-one relationship with a GP.
Preface

ii GP-377R Series Users Manual
Preface
Table of Contents
Preface...............................................................................................i
Table of Contents..............................................................................ii
Essential Safety Precautions ............................................................v
UL/c-UL(CSA) Approval................................................................. viii
CE Marking .................................................................................... viii
About GP-377R Series Models........................................................ix
What is IP65f? ................................................................................. ix
Package Contents ............................................................................x
Separately Sold Manual....................................................................x
Documentation Conventions............................................................xi
Chapter 1 Introduction
1.1 Prior to Operating the GP...................................................... 1-1
1.2 System Design ...................................................................... 1-2
1.3 Optional Items ....................................................................... 1-4
1.4 2-Port Feature Overview ....................................................... 1-6
Chapter 2 Specifications
2.1 General Specifications .......................................................... 2-1
2.1.1 Electrical .................................................................................2-1
2.1.2 Structural ................................................................................2-1
2.1.3 Environmental.........................................................................2-2
2.2 Performance Specifications................................................... 2-3
2.2.1 Display Features.....................................................................2-3
2.2.2 Screen Memory ......................................................................2-3
2.2.3 Touch Panel / Clock Accuracy ................................................2-4
2.2.4 External Interfaces..................................................................2-4
2.3 Interface Specifications ......................................................... 2-5
2.3.1 Serial Interface .......................................................................2-5
2.4 Names and Functions of GP Parts....................................... 2-7
2.5 Graphic Panel Dimensions.................................................... 2-8
2.5.1 GP-377R Series - External Dimensions .............................2-8
2.5.2 Installation Fasteners .............................................................2-9
2.5.3 GP Panel Cut Out Dimensions ...............................................2-9

iii
GP-377R Series Users Manual
Preface
Chapter 3 Installation and Wiring
3.1 Installation ............................................................................. 3-1
3.1.1 Installation Procedures ...........................................................3-1
3.2 Wiring Cautions..................................................................... 3-4
3.2.1 Connecting the GP's Power Cord...........................................3-4
3.2.2 Grounding the GP...................................................................3-5
3.2.3 Placement of I/O Signal Lines ................................................3-5
3.3 GP Tool Connector ................................................................ 3-6
Chapter 4 OFFLINE Mode
4.1 Entering OFFLINE Mode...................................................... 4-1
4.1.1 When Turning the GP's Power ON.........................................4-1
4.1.2 From Forced Reset.................................................................4-2
4.2 OFFLINE Mode's Main Menu ................................................ 4-3
4.3 INITIALIZE—Standard Operation.......................................... 4-4
4.4 SELF-DIAGNOSIS—Standard Operation ............................. 4-6
4.5 Transferring Screen Data ...................................................... 4-8
Chapter 5 Initializing the GP
5.1 Initialization Screen ............................................................... 5-1
5.2 Initialization Items.................................................................. 5-2
5.3 SYSTEM ENVIRONMENT SETUP ....................................... 5-3
5.3.1 SYSTEM SETUP....................................................................5-3
5.3.2 SYSTEM AREA SETUP .........................................................5-4
5.3.3 GLOBAL WINDOW SETUP ...................................................5-6
5.3.4 CHARACTER STRING DATA SETUP ...................................5-7
5.4 SET UP I/O.......................................................................... 5-10
5.4.1 SET UP SIO .........................................................................5-10
5.4.2 COMMUNICATION SETUP..................................................5-11
5.4.3 SET UP TOUCH PANEL ......................................................5-12
5.5 PLC SETUP ........................................................................ 5-14
5.5.1 SET UP OPERATION SURROUNDINGS (1:1/n:1) .............5-14
5.5.2 STATION SETUP (n:1) .........................................................5-15
5.5.3 CUSTOMIZE SETUP (n:1) ...................................................5-17
5.6 INITIALIZE INTERNAL MEMORY..................................... 5-19
5.7 SET UP TIME...................................................................... 5-19
5.8 SET UP SCREEN ............................................................... 5-20
5.9 FONT SETTING .................................................................. 5-21

iv GP-377R Series Users Manual
Preface
Chapter 6 GP RUN Mode and Errors
6.1 GP RUN Mode ..................................................................... 6-1
6.1.1 After Powering Up the GP ......................................................6-1
6.1.2 Via OFFLINE Mode ................................................................6-1
6.2 Troubleshooting..................................................................... 6-3
6.2.1 Possible Types of Trouble ......................................................6-3
6.2.2 Troubleshooting Checklists ....................................................6-4
6.2.3 No GP/Host Communication ..................................................6-7
6.2.4 Touch Panel Does Not Respond ............................................6-9
6.3 SELF-DIAGNOSIS .............................................................. 6-10
6.3.1 GP SELF-DIAGNOSIS Item List ..........................................6-10
6.3.2 SELF-DIAGNOSIS - Details ..............................................6-11
6.4 Error Messages ................................................................... 6-13
6.4.1 Error Message List ...............................................................6-13
6.4.2 Error Message Details .........................................................6-15
Chapter 7 Maintenance
7.1 Regular Cleaning................................................................... 7-1
7.1.1 Cleaning the Display...............................................................7-1
7.1.2 Moisture Resistant Gasket Replacement ...............................7-1
7.2 Periodic Check Points ........................................................... 7-2
7.3 Changing the Backlight ......................................................... 7-3
Index

v
GP-377R Series Users Manual
Preface
This manual includes procedures that must be followed to operate the GP
correctly and safely. Be sure to read this manual and any related materials
thoroughly to understand the correct operation and functions of this unit.
Usage of Icons
To allow you to use the GP correctly, throughout this manual, the following
icons are provided next to operations requiring special attention. The opera-
tions described with these icons contain essential safety information. The
following is an example of these icons and their meanings:
Indicates situations where severe bodily
injury, death or major equipment damage
can occur.
Indicates situations where slight bodily
injury or machine damage can occur.
Essential Safety Precautions
Design Precautions
• Do not create switches used to control machine safety operation, such as
an emergency stop switch, as a GP touch screen icon. Be sure to install
these switches as separate hardware switches otherwise bodily injury or
damage can occur.
• Please design your system so that the machine will not malfunction due to
a communication fault between the GP and its host controller. This is to
prevent any possibility of personal injury or material damage.
Installation Precautions
• High voltage runs through the GP. Except for replacing the backlight,
never disassemble the GP, otherwise an electric shock can occur.
• Do not modify the GP unit. Doing so may cause a fire or an electric
shock.
• Do not use the GP in an environment where flammable gasses are present,
since operating the GP may cause an explosion.
Wiring Precautions
• Prior to installing the GP or when connecting any cables or lines to it, be
sure to confirm that the GP's power cord is not connected to the main
power to avoid the possibility of an electric shock.
• Do not use power beyond the GP's specified voltage range. Doing so may
cause a fire or an electric shock.
Start-up and Maintenance Precautions
• The GP uses a lithium battery for backing up its internal clock data. If the
battery is incorrectly replaced, the battery may explode. To prevent this,
please do not replace the battery yourself. When the battery needs to be
replaced, please contact your local GP distributor.
Caution
Warning
Warning

vi GP-377R Series Users Manual
Preface
Installation Precautions
• Be sure to use the attachment screws given (included with the GP) to attach an
expansion unit to the GP. If the expansion unit is not attached correctly, incorrect
GP operation may be caused, or the expansion unit may malfunction or fall off the
GP unit.
• Be sure to securely connect all cable connectors to the GP. A loose connection may
cause incorrect input or output.
Wiring Precautions
• Ground the GP's FG line separately from other units’ FG lines. Putting these FG
lines too close may cause an electric shock or unit malfunction. Be sure to use a
grounding resistance of 100Ωor less and a 2mm2or thicker wire, or your country’s
applicable standard.
• When wiring the GP, be sure that the rated voltage and terminal layout are within the
designated range. If the voltage supplied differs from the rated voltage, or incorrect
wiring or grounding is performed, it may cause a fire or unit malfunction.
• Use only the designated torque to tighten the GP's terminal block screws. If these
screws are not tightened firmly, it may cause a short-circuit, fire, or GP malfunc-
tion.
• Be careful that metal filings and wiring debris do not fall inside the GP, since they
can cause a fire, GP malfunction, or incorrect operation.
GP Start-up and Maintenance Precautions
• Prior to attaching or removing an expansion unit, be sure that the GP’s power cord is
not connected. If the attachment or removal of an expansion unit is performed
while the GP's power cord is connected, an expansion unit or a GP malfunction
may occur.
• The liquid crystal panel contains a powerful irritant and if for any reason the panel is
damaged and this liquid contacts any part of your body, be sure to wash that area with
running water for 15 minutes. If any of this liquid enters your eye, flush your eye for
15 minutes with running water and contact a physician.
GP Disposal Precautions
• When this unit is disposed of, it should be processed according to your country's
regulations for similar types of industrial waste.
■ ■
■ ■
■ To Prevent Damage to the GP
• Never strike the touch panel with a hard or heavy object, or push on the
touch panel with too much force since it may damage the unit.
• If the GP is used in an environment with temperatures and humidity in
excess of the allowed range, the GP may malfunction and/or its useful life
may be shortened.
• Avoid restricting the GP’s naturally occurring ventilation, or storing or using
the GP in an environment that is too hot.
• Do not use this unit in areas where large, sudden temperature changes can
occur thereby causing condensation to form inside the unit. This can cause
the unit to malfunction.
Caution

vii
GP-377R Series Users Manual
Preface
• Do not allow water, liquids, metal particles, or charged particles to enter
inside the GP’s chassis, since they can cause either a GP malfunction or an
electrical shock.
• Avoid using or storing the GP in direct sunlight, or in excessively dusty or
dirty environments.
• Because the GP is a precision instrument, do not store or use the GP where
a large shocks or excessive vibration can occur.
• Do not store or use the GP where chemicals (such as organic solvents, etc.) and
acids can evaporate, or where chemicals and acids are present in the air.
• Do not use paint thinner or organic solvents to clean the GP.
• Do not store or operate the LCD display in areas receiving direct sunlight,
since the sun’s strong UV rays may cause the LCD display’s quality to
deteriorate.
• Storing this unit in areas at a temperature lower than is recommended in this
manual’s specifications may cause the LCD display’s liquid to congeal, which
may damage the panel. Conversely, if the storage area’s temperature becomes
higher than the allowed level, the LCD’s liquid will become isotropic, which is
irreversible. To avoid problems like these, be sure to store the panel only in
areas where temperatures are within those specified in this manual.
Due to the danger of unforeseen accidents, be sure to back up
the GP’s screen data regularly.
About the GP's Display Panel
• The Display Panel contents, the power voltage and brightness affect the
intensity of Contouring*1. (i.e, when some parts of the screen are brighter
than others, creating a wavelike pattern)
• There are minute grid-points (dark and light) on the Display Panel's
surface. This is part of the GP's design and not a defect.
• Shadows may appear at the top of the LCD. This is normal for an LCD
display.
• Sometimes the display area may look as if the display colors have
changed. This is a common attribute of LCD's and is not a defect.
• Displaying a single image for long periods can cause an afterimage to
remain when the display is changed to another screen.
To prevent this effect:
Set the unit to "Stand-by Mode", which automatically turns the screen
OFF when there is no input for a specified period of time.
5.3.1 System Setup
• When a single screen will be constantly displayed, write "FFFFh" to
the System Data area's [Screen Display OFF] area*2, which will turn
the screen display off.
Do not display any single screen for a long period of time. Try to
always change the screen display periodically.
*1 Even if the operating voltage is within the specified range, if it becomes too low, the
backlight may create contouring.
*2 When the Direct Access method is used, the corresponding system data area word
address is +9. With the Memory Link method is used, it is address 12. (Assuming the
System Data Area's settings are all entered)
PLC Connection Manual (included with screen editor software)

viii GP-377R Series Users Manual
Preface
UL/c-UL(CSA) Approval
The GP377R-TC41-24V unit is a UL/c-UL listed product. (UL file No.E182139)
This unit conforms to the following standards:
!!
!!
!UL508
Industrial Control Equipment
!!
!!
!UL1604
For use with Electrical Equipment in Class I and II, Division 2 and Class III Hazard-
ous (Classified) Locations in industrial control applications.
CAN/CSA-C22.2, Nos. 142 and 213-M1987
Standard for Safety of Information Technology Equipment, including Electrical
Business Equipment
GP377R-TC41-24V (UL Registration Model: 2880037)
<Cautions>
• The GP must be used as a built-in component of an end-use product.
• This unit should be installed in the front face of a metal panel.
• If this unit is installed so as to cool itself naturally, be sure to install it in a vertical
panel. Also, be sure that the GP is mounted at least 100 mm away from any adja-
cent structures or equipment. If these requirements are not met, the heat generated
by the GP's internal components may cause the unit to fail to meet UL/cUL stan-
dard requirements.
UL1604 Conditions of Acceptability and Handling Cautions:
1. Power, input and output (I/O) wiring must be in accordance with Class I, Division
2 wiring methods - Article 501- 4(b) of the National Electrical Code, NFPA 70
within the United States, and in accordance with Section 18-52 of the Canadian
Electrical Code for units installed within Canada.
2. Suitable for use in Class I, Division 2, Groups A, B, C and D, Hazardous Locations.
3. WARNING: Explosion hazard - substitution of components may impair suitabil-
ity for Class I, Division 2.
4. WARNING: Explosion hazard - when in hazardous locations, turn power OFF
before replacing or wiring modules.
5. WARNING: Explosion hazard - do not disconnect equipment unless power has
been switched OFF, or the area is known to be non-hazardous.
CE Marking
The GP377R-TC41-24V is a CE marked product that conforms to EMC directives
EN55011 class A and EN50082-2.
* For detailed CE marking information, please contact your local GP distributor.

ix
GP-377R Series Users Manual
Preface
This unit's protection rating of IP65f is actually a composite code, consisting
of the internationally recognized British "Ingress Protection" standard (BS
EN 60529:1992) - "IP65", and the standard developed by the Japanese
Electronics Manufacturer's Association (JEM) - "f". This code is used in this
manual to identify a given product's degree of structural resistance to a
variety of environmental elements and thus, prevent problems or accidents
related to the inappropriate use of a product.
The individual meaning of each character of this code is explained below.
This code indicates the degree of ingress protection provided from the front
face of the GP, and assumes that the GP is securely mounted into a metal
panel.
IP 6 5 f
(1) (2) (3) (4)
(1) Designates the type of protection provided.
(2) Indicates the degree of protection provided to the human body by the
unit, and the degree of protection provided by the unit's front face from par-
ticles/dust intrusion into the interior of the unit.
Here, "6" indicates that the unit is completely protected from dust intrusion.
(3) Indicates the degree of protection provided by the unit's front face from
water intrusion into the interior of the unit.
Here, "5" indicates that the unit is protected from water intrusion from a
direct water jet.
(4) Indicates the degree of protection provided by the unit's front face from
oil particle intrusion into the interior of the unit.
Here, "f" indicates that the unit is completely protected from oil intrusion via
either oil particles or oil splashes from any direction (to the front panel).
What is IP65f?
About GP-377R Series Models
The GP-377R Series refers to the following GP model numbers:
Series Model Name Model Type Comments
GP377R-TC11-24V Standardunit *1
GP377R-TC41-24V UL/c-UL(CSA)approved
andCEmarkedunit
GP-377R GP-377RT
*1 This unit is not UL/c-UL(CSA) approved or CE marked.

xGP-377R Series Users Manual
Preface
The GP's packing box contains the items listed below. Please check to
confirm that all items shown below have been included.
■ ■
■ ■
■ Installation fasteners (4/set)
■ ■
■ ■
■ Installation Guide (1)
Package Contents
Installation
Guide
GP-377R
Series Unit
This unit has been carefully packed, with special attention to quality. How-
ever, should you find anything damaged or missing, please contact your
local GP distributor immediately for prompt service.
■ ■
■ ■
■ GP Unit
GP377R-TC11-24V
GP377R-TC41-24V
Separately Sold Manual
This manual (GP-377R Series Users Manual) is sold separately.
■ ■
■ ■
■ GP-377R Series Users Manual (1)
GP-377R Series
Users Manual

xi
GP-377R Series Users Manual
Preface
Documentation Conventions
Symbol Meaning
Indicates important information or procedures that must be followed
for correct and risk-free software/device operation.
Indicates procedures that must be followed.
Indicates actions that must not be performed.
Provides useful orimportant supplemental information.
*1 Indicates useful or important supplemental information.
Refers to usefulor important supplemental information
1) , 2) Indicates stepsin aprocedure. Be sure toperform these steps in the
order given.
GP Abbreviation for Graphic Panel.
PLC Abbreviation forProgrammable Logic Controller
Screen Editor
Software Abbreviation for the GP-PRO/PBIII for Windows Ver. 4.0 ML
software.
The list below describes the documentation conventions used in this manual.

xii GP-377R Series Users Manual
Preface
Memo

GP-377R Series Users Manual 1-1
Be sure to follow these steps when creating projects for the GP unit.
1 Preparation Before using the GP, check that all required
hardware is present and read all specification,
wiring, and installation information.
2 Screen Design Create a sample screen and design a Tag layout,
with the Screen layout sheets and Tag lists
provided in the Editor software.
3 Select GP and Using the input areas provided, select the GP
PLC types and the PLC types to be used.
4 Create Screen/ Run Setup the screen and tags in your screen editing
Screen Setup software according to your Screen Design.
5 Transfer Screen Data Transfer the data from the Screen editor software on
yourPCtotheGPunitusingtheDownloadingCable.
6 GP/Host Connection Set up the GP so that it can receive data from
the Host (PLC).
7 Operate the GP Link the GP with the host (PLC) using the
appropriate connection cable (different cables
may be necessary for different hosts), and then
run the unit.
Chapter 1 Introduction
1. Prior to Operating the GP
2. System Design
3. Optional Items
4. 2-Port Feature Overview
Chapter2, "Specifications", and
Chapter 3, "Installation and Wiring"
GP-PRO/PBIII for Windows
Operation Manual (included with the screen
creation software)
GP-PRO/PBIII for Windows
Operation Manual (included with the screen
creation software)
GP-PRO/PBIII for Windows
Operation Manual and Tag Reference Manual
(included with the screen creation software)
GP-PRO/PBIII for Windows
PLC Connection Manual (included with the
screen creation software)
1.1 Prior to Operating the GP
GP-PRO/PBIII for Windows
Operation Manual (included with the screen
creation software)
Chapter 4-3, "Initialize", and
PLC Connection Manual

Chapter 1 - Introduction
GP-377R Series Users Manual1-2
Bar Code Reader
(Recommended Units*3)
RS-232C Cable*4
GP410-IS00-O
RS-422 Cable
GP230-IS11-O
GP230-IS12-O (for Multi-
link cable)
RS-422 Connector
Terminal Adapter
GP070-CN10-O
Mitsubishi PLC FX-Series
Program Port I/F Cable
GP430-IP11-O
Mitsubishi PLC A-Series
Program Port I/F Cable
GP430-IP10-O
Host Controller
GPUnit
Memory Loader II
GP070-LD01-O
(Rev.E or later)
Mitsubishi PLC A,
Q, C, FX Series'
2 Port Adaptor II
GP070-MD11
PLC etc.
2 Port Adaptor II
Cable
GP070-MDCB11
GP377R-TC11-24V
GP377R-TC41-24V
"
#
$
%
1.2 System Design
The diagrams on the following pages illustrate the peripheral equipment
available for the GP unit. Screen Editing Environment
GP Operating Environment
Ethernet
(10BASE-T)
#
#
Expansion I/F Unit
GP377R-MLTE41
CF Card
GP077-CF10
GP077-CF20
Printer
(Commercially
available type)
&
Host Controller
Data Transfer Cable
GPW-CB02
'
Personal
Computer *1
Printer
(Commercially
available type)
(
GPP Feature
Software
Package
(Mitsubishi Co.) *5 Personal
Computer
Screen
Editor
Software*2

Chapter 1 - Introduction
GP-377R Series Users Manual 1-3
*1 For range of compatible PCs, refer to the following manual.
GP-PRO/PBIII for Windows Operation Manual (included with the
screen creation software)
*2 GP-PRO/PBIII for Windows Ver. 4.0 or later.
*3 Recommended Bar Code Reader Units:
*4 Certain types and models of PLCs cannot be connected.
GP-PRO/PBIII for Windows PLC Connection Manual (included with
the screen creation software)
*5 For corresponding PLCs and software,
GP-PRO/PBIII for Windows PLC Connection Manual (included with
the screen creation software)
GP Interfaces PLC Interfaces
cTool Connector fRS-232C Port
dSerial Interface gRS-422 Port
eExpansion I/F (GP rear face connector) hProgramming Port
Personal Computer Interface
iPrinter Interface
Aimex
Corporation
BR-331 PC2
(Pen type) Reading Width Touch Scanner Type Keyboard Connection Type Reading Width Touch Scanner Type
60mm OPT-1125-WL 98 OPT-1125-WD 98 65mm TCD-5510M
80mm OPT-5125-WL 98 OPT-5125-WD 98 82mm TCD-5510L
100mm LT-2125-WL 98 LT-2125-WD 98 105mm TCD-5510W
TohkenOPT Electronics

Chapter 1 - Introduction
GP-377R Series Users Manual1-4
All optional equipment listed below is produced by the Digital Electronics Co.
*1 For detailed information about range of connectable PLCs.
GP-PRO/PBIII for Windows PLC Connection Manual
(included with the screen creation software)
Product Name Model No. Description
GP-PRO/PBⅢ
ⅢⅢ
Ⅲfor
Windows Ver.4.0 or
later
GPW-PB01M-V40 <CD-ROM> Software to be used to create the GP's
screen data using a personal computer.
Product Name Model No. Description
Screen data transfer
cable set GPW-CB02 Connects the GP to a personal computer.
Transfers screen data and user program(s).
MemoryLoader II GP070-LD01-O Copies data (system and screen data) from
the GP to GP. Rev. E or later
■ Screen Editor Software
■ Tool Connector
■ Serial Interfaces
Product Name Model No. Description
RS-232Ccable *3 GP410-IS00-O
RS-422 cable *3 GP230-IS11-O
GP230-IS12-O(forMulti-link)
RS-422 cable
Connector terminal
block conversion
adapter
GP070-CN10-O Conversion adapter to convertserial data to
RS-422 format.
2 Port Adapter II GP070-MD-11 Interface unitthatallows use ofboth GP and
Mitsubishi A,Q,C and FXseries equipment
in the same location.
2 Port Adapter II
Cable GP070-MDCB11 Connects the GP to 2 Port Adapter II.
MitsubishiASeries
Programming Port
I/Fcable
GP430-IP10-O
MitsubishiFX Series
Programming Port
I/Fcable
GP430-IP11-O
Interface cable between the host(PLC) and
GP.
Connects directlyto Mitsubishi's PLC I/F
Programming Console.Simultaneous use
ofprogram console,however,is not
possible.
1.3 Optional Items

Chapter 1 - Introduction
GP-377R Series Users Manual 1-5

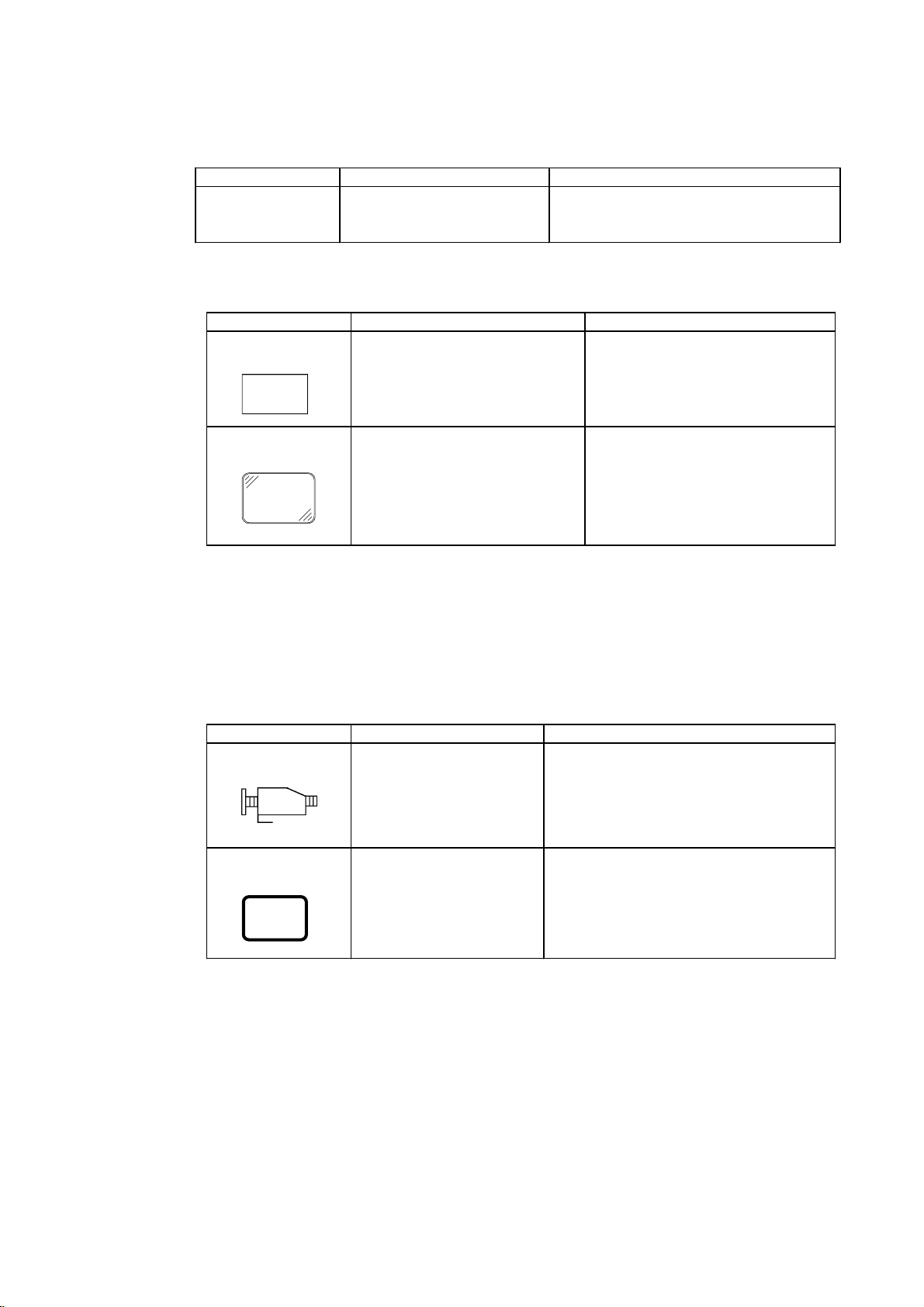

Product Name Model No. Description
Screen Protection
Sheet Soft type: GP370-COVER-20P
Hard type: GP370-DF10-0 Disposable protective and dirt- resistantsheetfor the GP's screen.
The GP's touch panel can be used
with this cover sheet attached.
Screen Protection
Cover GP370-DC11 Asilicon gum cover which protects
GP's screen from condensation and
chemicals.
■ Screen Protection Options
■ Maintenance Options
These optional items were included in either the GP itself or in its packing box.
These items are sold separately as optional maintenance items.
Product Name Model No. Description
Installation
Fastener GP070-AT00-MS Fasteners to attach the GP to a panel.
Moisture Resistant
Gasket GP370-WP10-MS Provides a moisture resistantseal when
installing the GP. Same as the seal included
in the GP's original equipmentpackage.
■ Expansion Unit Installation Slot Options
Product Name Model No. Description
Multi Unit E GP377R-MLTE11 This Ethernetinterface unitallows the GP to
save data to a CFCard,orproduce printer
output.

Chapter 1 - Introduction
GP-377R Series Users Manual1-6
1.4 2-Port Feature Overview
You can now use Mitsubishi’s GPP software (ladder programming software) on
your PC while you connect the Mitsubishi PLC to the GP and the GP to your PC.
You can send ladder logic data to and from the PLC, via the GP’s Internal 2 port-
feature.With the GP377 Series unit, you can use the 2-Port feature by simply
connecting the GP and your PC via the data transfer cable (GPW-CB02) without
using the external 2-Port Adapter.
GP
Digital's 2-Port Adapter II (GP070-MD11)
For information about PLC types and GP compatibility with GP-377 Series units,
refer to GP-PRO/PBIII for Windows PLC Connection Manual (in-
cluded with the GP screen creation software)
))
))
)When Using GP-377 Series unit’s Internal 2-Port feature *1
Connected to the Serial I/F via
the Programmer I/F Cable Connect to the tool connector via Data Transfer Cable (GPW-CB02)
Connect to Programmer Port
PC with Mitsubishi’s GPP soft-
ware installed
Mitsubishi PLC
(compatible types only)
GP
Connected to GP’s Serial I/F
))
))
)When Using the External 2-Port Adapter *2
PC with Mitsubishi’s GPP software installed, or
a Programming Console
or
Connect to Programmer Port
*1 The Device Monitor feature can also be used at the same time. For details about the device
monitor function, refer to GP-PRO/PBIII for Windows PLC Connec-
tion Manual (included with the GP screen creation software)
*2 GP-377 Series units can also use the 2-Port Adapter II.
Mitsubishi PLC
(compatible
types only)

Chapter 1 - Introduction
GP-377R Series Users Manual 1-7
)*)*
)*)*
)*Internal 2-Port Feature Usage Notes
•To use the Internal 2-Port feature, you will need to adjust your GP’s settings.
For information about these settings, refer to GP-PRO/PBIII
for Windows PLC Connection Manual (included with the GP Screen creation
software)
•This feature can be used only while the GP is in ONLINE mode.
•Since the internal 2-Port feature uses the GP’s single tool connector, you will
not be able to use equipment which requires the tool connector (i.e. a Barcode
Reader, Optional Items, etc.)
•If you transfer screen data while the GP is in ONLINE mode, the screen
will not change to the data transfer screen automatically. Thus, you will
need to change the screen manually to the OFFLINE mode's [Main Menu/
Transfer] screen. 4.5 Transferring Screen Data
•Peripheral equipment which cannot be connected to the GP's tool connector
(such as a Programming Console) is not compatible with the GP's Internal 2-
Port feature. To use this type of equipment, you will need to use the external 2-
Port Adapter II.

Chapter 1 - Introduction
GP-377R Series Users Manual1-8
MEMO
