Quick Start Guide
WHAT’S IN THE BOX
Blackjack Tower™
server 1Keyboard and mouse 1 set
Quick start guide 1Power cable 1
DW-BJT71xxT/LX DW-BJTR715xxT/LX/S DW-BJTR716xxT/LX/S
Default Login Information for DW Spectrum® IPVMS
Username: admin Password: admin12345
Default login information for the server’s OS
Username: dwuser Password: Dw5pectrum

SPECIFICATIONS
2
BLACKJACK® TOWER™ FULL-SIZE

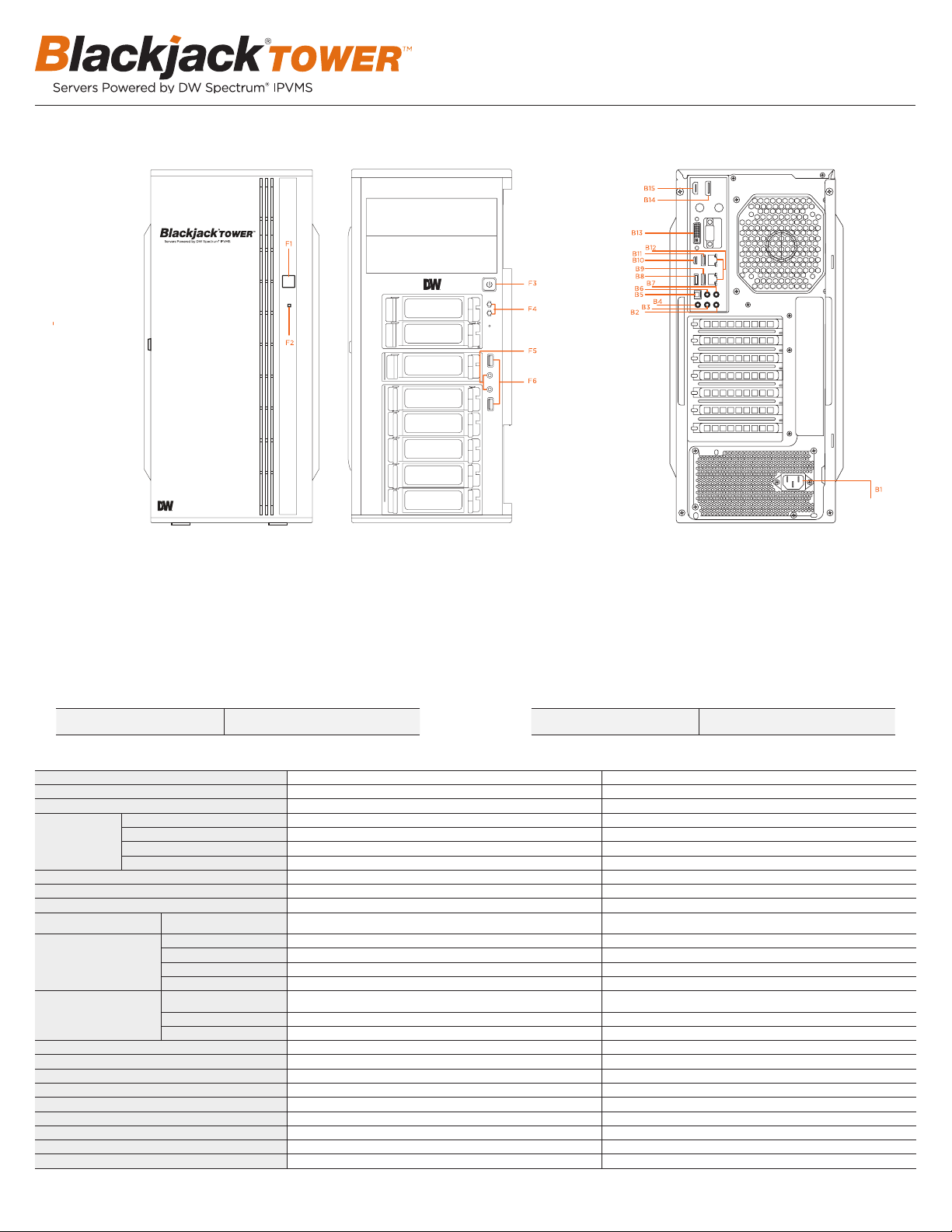

B1 Power - SMPS
B2 Line in
B3 Line out
B4 Mic in
B5 SPDIF out
B6 Surround out
B7 Center/LFE out
B8 USB Type C port
F1 Power button
F2 Power LED
F3 Internal power button
F4 Drive status LED
F5 Audio input and output
F7 2x USB 2.0 ports
* For 10TB HDD – RAID5 Configuration reduces raw storage size by the equivalent of one (1) HDD size
* For 10TB HDD – RAID6 Configuration reduces raw storage size by the equivalent of two (2) HDD size
** UPS recommended
B9 USB 3.0 ports
B10 1x mini DisplayPort
B11 1x USB port
B12 2x network ports
B13 DVI output
B14 1x USB 2.0 port
B15 True HD output
Default Login Information for DW Spectrum® IPVMS
Username: admin Password: admin12345
Default login information for the server’s OS
Username: dwuser Password: Dw5pectrum
Front Panel Back Panel
PART NUMBER DW- BJT7 1x xT DW-BJTR715xxT / DW-BJTR716xxT
Included IP licenses 4 4
Form factor Full Tower Full Tower
Operating
system
Windows® 10 DW- BJT7 1x xT DW-BJTR715xxT/DW-BJTR716xxT
Linux Ubuntu® OS DW- BJT7 1x xTL X DW-BJTR715xxTLX/DW-BJTR716xxTLX
Windows Server® N/A DW-BJTR715xxTS/DW-BJTR716xxTS
OS on SSD 240GB SSD 240GB SSD
CPU Intel® Core™ i7 processor Intel® Core™ i7 processor
Memory 16GB 16GB
Ethernet port 2x 1G Ethernet 2x 1G Ethernet
System Max video storage rate
(Mbps) 600Mbps RAID5: 600Mbps RAID6: 420Mbps
Storage
Maximum HDD 7 x 3.5 SATA HDD, Hot-Swappable 7 x 3.5 SATA HDD, Hot-Swappable
Maximum storage 140TB 140TB raw storage (120TB RAID5, 100TB RAID6)
RAID options N/A RAID5, RAID6
USB interface Yes Yes
Video-out
Outputs 1x true HD, 1x DVI, 1x DisplayPort, for system configuration.
Maximum 1 display output at a time. 1x true HD, 1x DVI, 1x DisplayPort, for system configuration. Maximum 1 display output at a time.
Video card on-board Intel Graphics on-board Intel Graphics
Resolution 1920 x 1080 1920 x 1080
Pre-loaded VMS software DW Spectrum® IPVMS DW Spectrum® IPVMS
Remote clients Cross-platform - Windows®, Linux Ubuntu® and Mac® Cross-platform - Windows®, Linux Ubuntu® and Mac®
Keyboard and mouse Included Included
Power supply 500W** 500W**
Operating temperature 41°F~104°F (5°C~40°C) 41°F~104°F (5°C~40°C)
Operating humidity 20~90% RH 20~90% RH
Dimension (WxDxH) 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm)
Other certification UL, FCC, CE, NDAA, TAA UL, FCC, CE, NDAA, TAA
Warranty 5 year limited 5 year limited

SETTING UP THE SERVER
Quick Start Guide
3
STEP 1: Connect external devices, power and network.
1. Connect a monitor, USB keyboard, USB mouse
and network cable to one of the Ethernet ports (B9
on the diagram). Configure the camera’s network
first, then configure the server’s local network.
2. Connect the server to an appropriate power
source. It is recommended to use a UPS system.
* 3000VA or higher is recommended.
3. Power up the server if the server does not turn
on automatically by pressing the power button on
the front of the server. (F1 on the diagram).
* Connecting the power cable to the
live power source may turn on the server
automatically.
STEP 2: Configure date and time
Windows®
1. Double-click on the date and time icon on the desktop.
2. Change time zone if it is not correct
SETTING UP THE E-RACK
STEP 1: Connect Peripherals, power and network
1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the ethernet ports (B8 on the diagram) Configure the camera network first
then will configure local network later.
2. Connect the server to an appropriate power source. Recommend to use UPS system
*recommend to use 3000VA or higher.
3. Turn on the server if the server does not turn on automatically.
(Press the Power Button on the front of the P-RACK. F2 on the diagram).
* Connecting the power cable to the live power source may turn on the serverautomatically
STEP 2: Configure Date and Time
Windows
1. Double click Date and Time icon on the Desktop.
2. Change Time zone if not correct (default is UTC-08:00 Pacific Time)
Press OK after selecting the correct Time zone.
Click Change date and time… to update the date and time if they are not correct.
* Verify the Time zone before updating the date and time. Time may show 2 or 3 hours off due to incorrect Time zone.
(default is UTC-08:00 Pacific Time).
SETTING UP THE E-RACK
STEP 1: Connect Peripherals, power and network
1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the ethernet ports (B8 on the diagram) Configure the camera network first
then will configure local network later.
2. Connect the server to an appropriate power source. Recommend to use UPS system
*recommend to use 3000VA or higher.
3. Turn on the server if the server does not turn on automatically.
(Press the Power Button on the front of the P-RACK. F2 on the diagram).
* Connecting the power cable to the live power source may turn on the serverautomatically
STEP 2: Configure Date and Time
Windows
1. Double click Date and Time icon on the Desktop.
2. Change Time zone if not correct (default is UTC-08:00 Pacific Time)
Press OK after selecting the correct Time zone.
Click Change date and time… to update the date and time if they are not correct.
* Verify the Time zone before updating the date and time. Time may show 2 or 3 hours off due to incorrect Time zone.
3. Press OK after selecting the correct time zone.
4. Click “Change date and time…” to update the date and time if they are not correct.
SETTING UP THE E-RACK
STEP 1: Connect Peripherals, power and network
1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the ethernet ports (B8 on the diagram) Configure the camera network first
then will configure local network later.
2. Connect the server to an appropriate power source. Recommend to use UPS system
*recommend to use 3000VA or higher.
3. Turn on the server if the server does not turn on automatically.
(Press the Power Button on the front of the P-RACK. F2 on the diagram).
* Connecting the power cable to the live power source may turn on the serverautomatically
STEP 2: Configure Date and Time
Windows
1. Double click Date and Time icon on the Desktop.
2. Change Time zone if not correct (default is UTC-08:00 Pacific Time)
Press OK after selecting the correct Time zone.
Click Change date and time… to update the date and time if they are not correct.
* Verify the Time zone before updating the date and time. Time may show 2 or 3 hours off due to incorrect Time zone.
• Verify the time zone before updating the date and time. Time may show 2 or 3 hours o due to an incorrect time zone.
Press OK after adjusting to the correct date and/or time.
4. Press OK to close Date and Time when done.
Linux

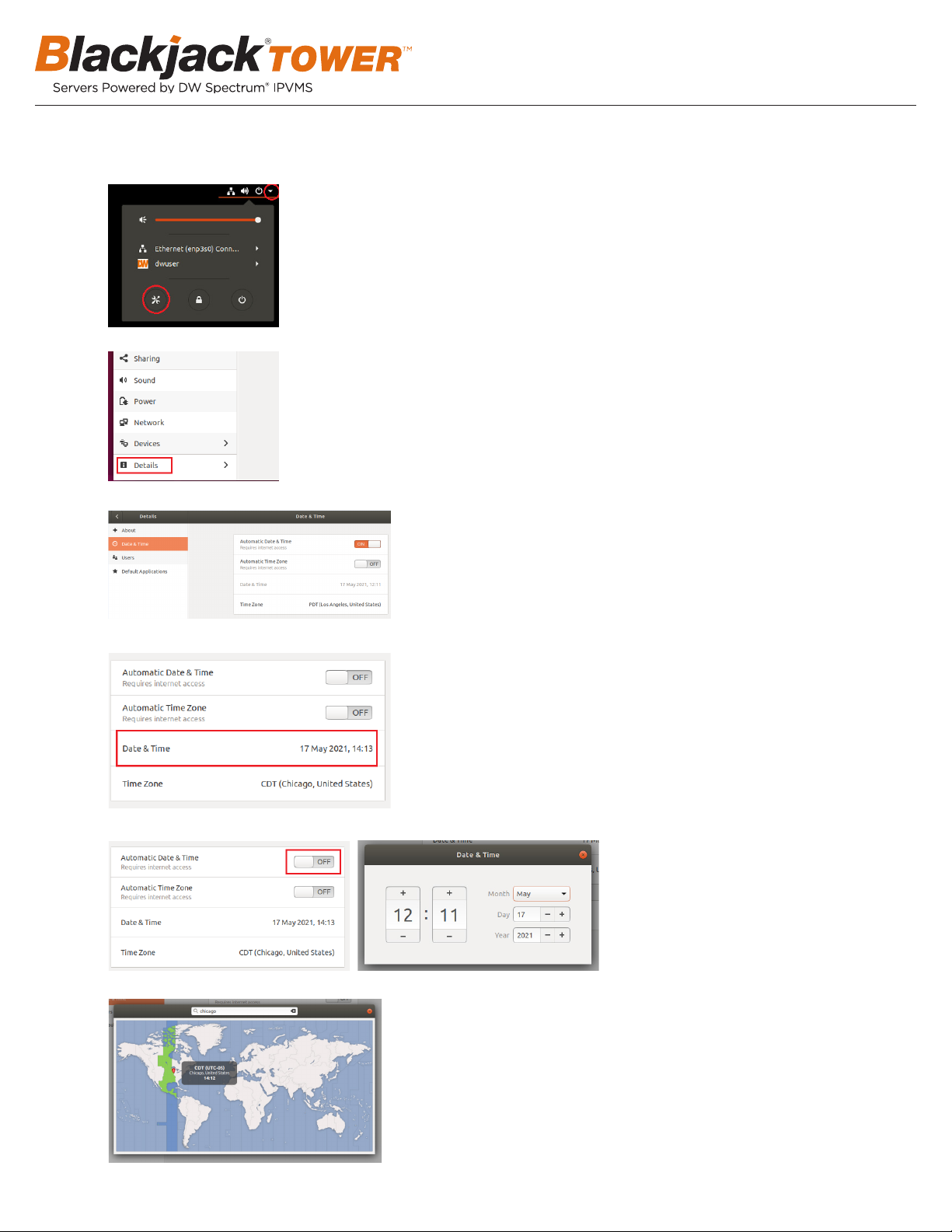

1. Update Date and Time by clicking on the time on the upper right-hand corner then click “Time & Date settings…”
2. If the server will be connected to the Internet, leave Set the Time to “Automatically from the Internet” and update the Location to the correct
Time Zone. Enter the nearest major city to select the correct Time Zone. If it shows multiple cities in the list, select the correct city. (e.g.,
New York for EST, Chicago for CST, Denver for MST, and Los Angeles for PST)
5. Press OK after adjusting to the correct date and/or time. Press OK to close the date and time when done.

4
Linux®
1. Open Settings
3. Click Date &Time
4. Turn OFF Automatic Date & Time and Automatic Time Zone
5. Click Date & Time and set correct date and time
6. Click Time Zone and set to correct Time zone. (type one of the largest cities in the time zone)
7. Close Settings.
2. Click Details

STEP 3: Configure network
Please have the following information ready before starting the network configuration.
* The camera network and local network cannot be on the same network.
Windows®

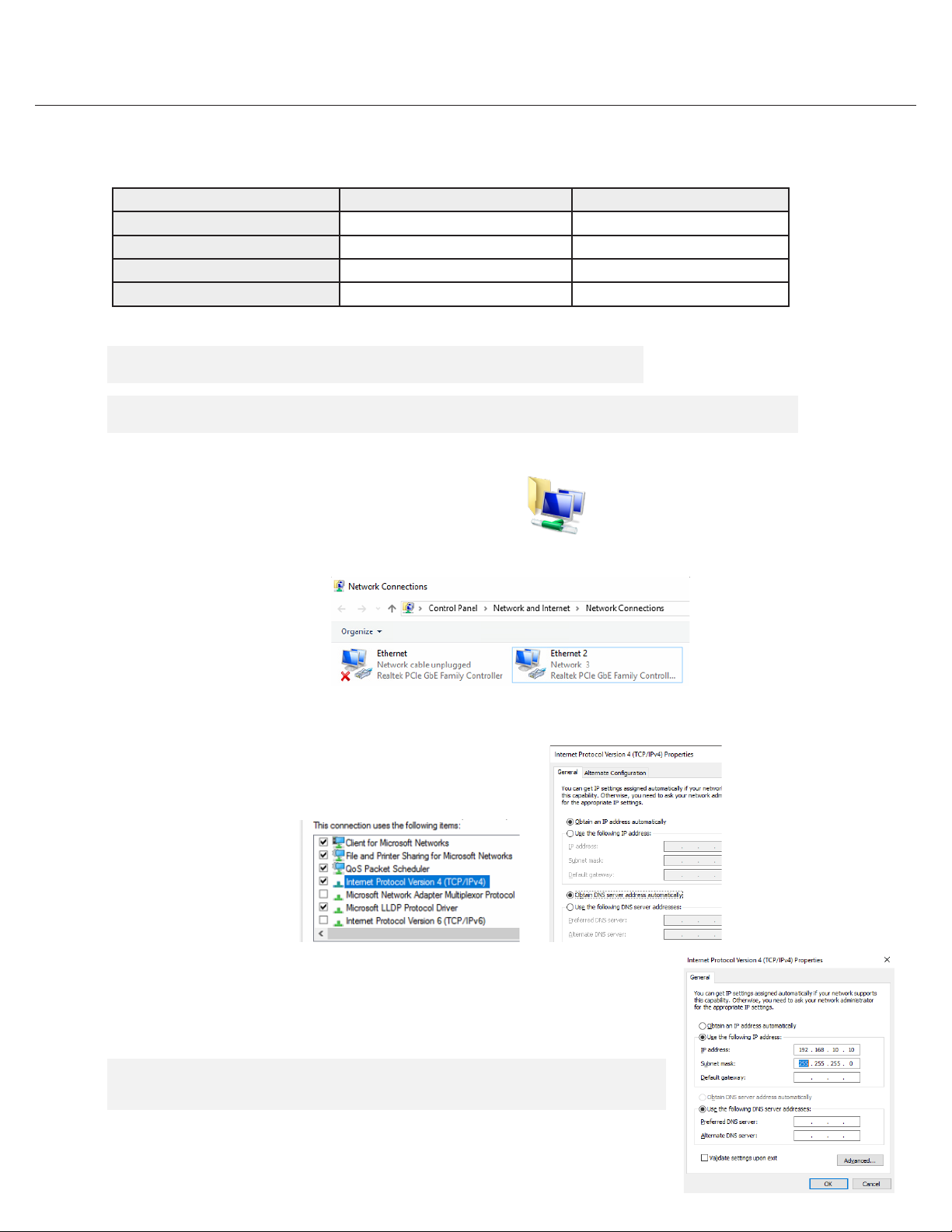

1. Double click on the “Network Connections” on the desktop.
2. Right-click on “Ethernet with cable connected” and click “Properties”.
3. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
4. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
5. Enter IP address and Subnet mask of the camera network. (do not enter anything for the Default gateway, Preferred DNS server and Alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same network as the local network.
Contact your network administrator for more information.
3. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”.
3. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
4. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
5. Enter IP address and Subnet mask of the camera network. (do not enter anything for the Default gateway, Preferred DNS server and Alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same network as the local network.
Contact your network administrator for more information.
3. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
4. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
5. Enter IP address and Subnet mask of the camera network. (do not enter anything for the Default gateway, Preferred DNS server and Alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same network as the local network.
Contact your network administrator for more information.
Camera network Local network (LAN)
IP address
Subnet mask / Netmask
Default gateway / Gateway Not applicable
DNS servers Not applicable
NOTE The Blackjack® server’s network settings are set to DHCP as default.
NOTE If you are not sure what information to enter, contact your Network Administrator or Internet
Service Provider for the information.
5
Quick Start Guide
4. Select “Use the following IP address” (Use the following DNS server
addresses will be selected automatically).
5. Enter the IP address and Subnet mask of the camera network. (Do not
enter anything for the default gateway, preferred DNS server and alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same
network as the local network. Contact your network administrator for
more information.
6. Click OK to close then click Close to go back to Network Connections.
Local Network
7. Right click on the other Ethernet, the one with network cable unplugged, and click Properties.
8. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
9. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
10. Enter IP address and Subnet mask of the camera network.

6
6. Click OK to close then click Close to go back to Network Connections.
Local Network
7. Right click on the other Ethernet, the one with network cable unplugged, and click Properties.
8. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
9. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
10. Enter IP address and Subnet mask of the camera network.
6. Click OK to close then click Close to go back to Network Connections.
Local Network
7. Right click on the other Ethernet, the one with network cable unplugged, and click Properties.
8. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
9. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
10. Enter IP address and Subnet mask of the camera network.
6. Click OK to close then click close to go back to network connections.
Local Network
7. Right-click on the other Ethernet, the one with network cable unplugged, and click “Properties”.
8. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”.
9. Select “Use the following IP address” (Use the following DNS server addresses will be selected automatically).
10. Enter IP address and subnet mask of the camera network.
* Consult with your IT department if you do not know what IP address to use.
11. Click OK to close then click Close to go back to Network Connections.
12. Connect a network cable to the Ethernet port B8 on the diagram (page 2) to the switch on the local network.
13. Close the Network Connections by clicking X on the upper right corner of Network Connections.
Linux
1. Double-click the Network icon on the Desktop
2. Select ‘Wired’ that has arrows pointing up and down from the list (If neither of the “wired” are showing arrows up and downs, then make
sure the network cable is connected to the PoE switch on the camera network from STEP 1)
3. Click ‘Options’ at the bottom of the window.
4. Click on the ‘IPv4 Settings’ tab.
5. From the drop-down menu, select connection type (“Method”) as Manual.
6. Click ‘Add’ next to Addresses.
NOTE The Blackjack Cube’s network settings are set to DHCP as default.
* Consult with your IT department if you do not know what IP address to use.
11. Click OK to close then click Close to go back to Network Connections.
12. Connect a network cable to the Ethernet port B8 on the diagram (page 2) to the switch on the local network.
13. Close the Network Connections by clicking X on the upper right corner of Network Connections.
Linux
1. Double-click the Network icon on the Desktop
2. Select ‘Wired’ that has arrows pointing up and down from the list (If neither of the “wired” are showing arrows up and downs, then make
sure the network cable is connected to the PoE switch on the camera network from STEP 1)
3. Click ‘Options’ at the bottom of the window.
4. Click on the ‘IPv4 Settings’ tab.
5. From the drop-down menu, select connection type (“Method”) as Manual.
6. Click ‘Add’ next to Addresses.
NOTE The Blackjack Cube’s network settings are set to DHCP as default.
11. Click OK to close then click close to go back to network connections.
12. Connect a network cable to the Ethernet port B10 on the diagram (page 2) to the switch on the local network.
13. Close the network connections dialog.

Quick Start Guide
7
Linux®
1. Open Settings > Network
NOTE If you are not connecting to the Blackjack®from the same network, you may be required to perform
port forwarding on your router to access the server. Contact your Network Administrator or Installer for
additional information
8. Click Apply to save
9. Connect the network cable and verify the connection.
6. Click Settings of the Ethernet not connected.
5. Restart the connection by switching OFF then turn ON.
4. Click Apply to save
7. Change to Manual then enter Address, Netmask, Gateway then DNS.
2. Click Setting of the Ethernet that is Connected
3. Change to Manual then enter Address, Netmask , Gateway.
* Do not enter Gateway information if there is no Gateway in this network.

8
OPTION 1: Double-click the DW Spectrum®
desktop icon.
OPTION 2: Go to ‘Start’
on the bottom left and
select DW Spectrum®
in the Digital Watchdog
folder
WINDOWS-BASED SOFTWARE MANUAL LAUNCH
To launch the DW Spectrum® software on the Windows-based server:
OR
Configure Cameras using DW IP Finder
Refer to the camera’s QSG to configure Digital Watchdog camera’s IP address using DW IP finder.
Spectrum Client
OR
OPTION 2: Go to the dashboard on the top left side.
Search ‘DW’. Click the DW icon.
LINUX-BASED SOFTWARE MANUAL LAUNCH
To launch the DW Spectrum®
Software on the Linux-Based Cube:
Linux OS OPTION 1: Double-click the DW Spectrum
®
desktop icon.
OPTION 2: Go to ‘Start’ on
the bottom left and select
DW Spectrum
® in the
Digital Watchdog folder
OR
WINDOWS-BASED SOFTWARE MANUAL LAUNCH
To launch the DW Spectrum®
Software on the Windows-Based Cube:
Windows OPTION 1: Double-click the DW Spectrum
®
desktop icon.
Windows
Login: admin
Password: admin12345
SETTING UP DW SPECTRUM® MEDIA SERVER
CONFIGURE CAMERAS USING DW® IP FINDER™
Refer to the camera’s QSG to configure any DW® IP camera’s IP address using DW®IP finder™.
DW Spectrum® IPVMS client
LINUX-BASED SOFTWARE MANUAL LAUNCH
To launch the DW Spectrum® software on the Linux-based server:
OPTION 1: Double-click the DW Spectrum®
desktop icon.
OPTION 2: Go to the dashboard on the top
left side. Search ‘DW’. Click the DW icon.
OR
Linux OS
STEP 1: Initial run from the Blackjack®server
1. Open the DW Spectrum®client by double click on the DW Spectrum®icon.
2. Click on the pre-configured server.
3. Enter the password and click connect.
*Default password: admin12345 (case sensitive).

Quick Start Guide
9

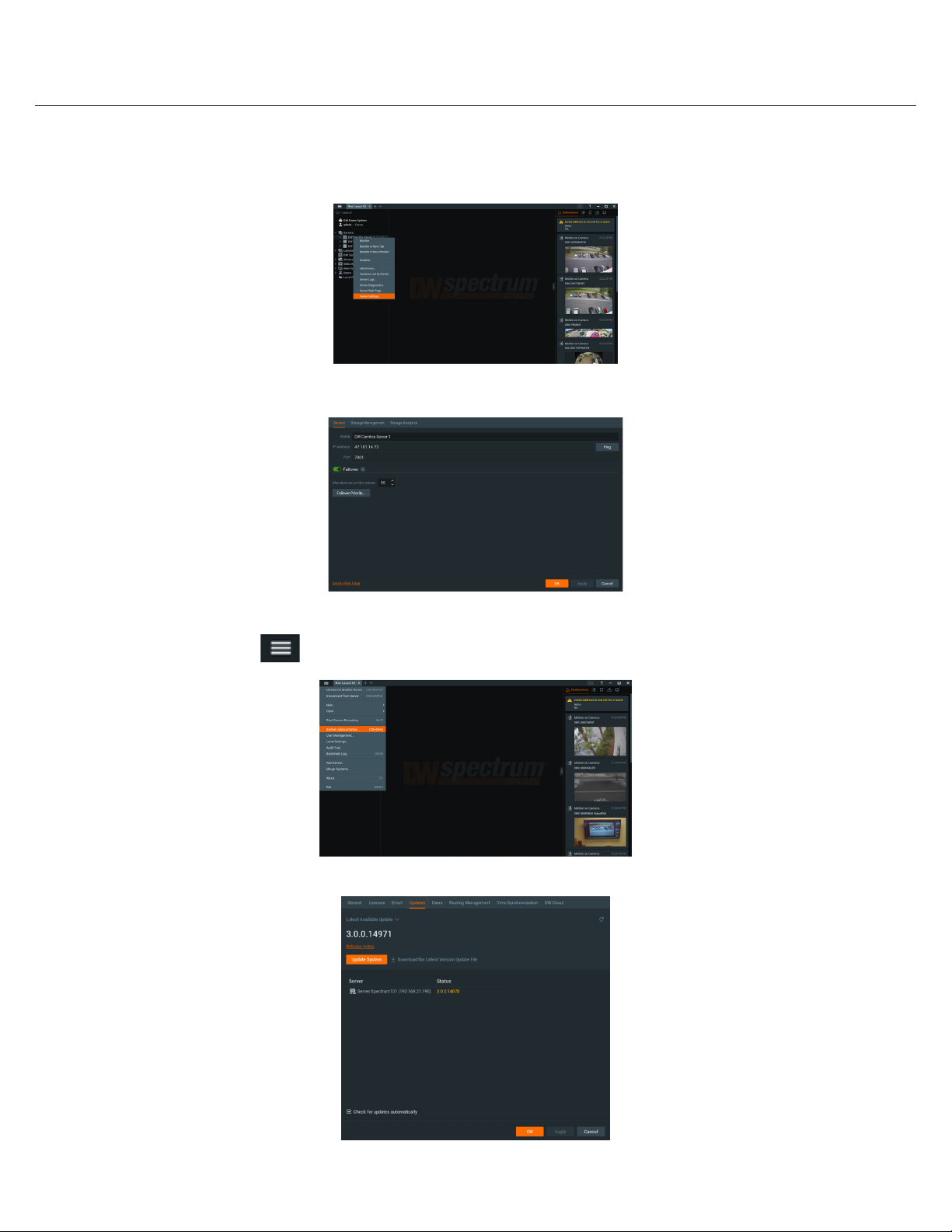

STEP 2: To rename the server
1. Right-click on the server name listed on the resources then click server settings.
2. Go to the general tab and enter the new server name in the name field. Click OK.
STEP 3: To check for updates
1. Click on the menu then click “System Administration”.
2. Go to the updates tab. If the system requires updating, click on the update system button.

10
*If you are on the latest version, it will say “You have the latest version installed” and the Update System button will be
disabled.
3. Click OK when the update is completed.
STEP 4: Enter and activate licenses
1. Go to the system administration window and click on the license tab.
2. Enter the license key and click “Activate License”. An Internet connection is required.
*Click on “Activate Trial License” if you have not purchased a valid license key.
3. Click OK to when the license key is activated.
STEP 5: Configure recording
1. Right-click on a camera in the resource tree to setup recording. Click on camera settings from the context menu.
2. Go to the recordings tab.

11
Quick Start Guide
3. Click to turn on recording.
4. Configure the camera’s schedule settings for quality, FPS and recording type.
5. Click and drag the mouse over the recording schedule to apply the settings to multiple days and times.
*Click “All” to apply the recording settings to the entire schedule.
6. A red dot will appear next to the camera in the resource tree once recording is started.
STEP 6: Backup database
1. Go to the system administration window and click on the general tab.
2. Click “Create Backup…”.
3. Navigate to the folder you want to save the database and enter a name for the backup file. Click save.
*It is strongly recommend to backup your data to an external storage media as well.
NOTE: More information and instructions are available in the
DW Spectrum® IPVMS user manual.
NOTE: This products is covered by one or more
claims of the HEVC Patents listed at
patentlist.accessadvance.com.

Recommended specs for the full client
DW SPECTRUM SYSTEM REQUIREMENTS
* Except Storage Server version
Important: OS not listed will be not be supported by DW® Tech Support
www.digital-watchdog.com
[e-mail]
Rev: 02/24
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
Tel: [phone]
Fax: [phone]
TROUBLESHOOTING TIPS
Problem Possible solutions
My camera does not
auto-discover
1. Is the camera in the same LAN network as the media server?
2. Is your camera compatible with DW Spectrum®? (Refer to our website for full list of supported cameras.)
3. Is the camera updated to its latest firmware?
4. If your camera is integrated with DW Spectrum® via ONVIF, make sure ONVIF is enabled on your camera.
5. Try adding the camera manually.
6. Try rebooting the server after installation. Allow up to 2 minutes for the server to map your network and detect
all supported devices.
Videos are slow 1. Are you accessing the same cameras from multiple clients? (LAN and WAN)
2. Do you have a Gigabit network? Check your network speed.
My camera appears
disconnected
1. Under camera settings, make sure the user name and password are correct.
2. Under the camera settings, use the ‘Ping’ button to make sure the camera is connected to the network properly.
3. If you can connect to the camera’s web viewer, try rebooting the camera and/or restore it to factory default.
4. Make sure your camera is using the latest firmware available.
5. Make sure that the camera is connected to the same network as the server.
6. If you are connecting to a camera that is integrated with DW Spectrum® via the ONVIF protocol (see list), make
sure ONVIF is enabled.
7. Make sure your user has permissions to view that specific camera.
I cannot get playback
video from my camera
1. Do you have network connection between client and server (in case server and client are not on the same machine)?
2. Make sure your user has playback viewing permissions for the selected channel.
3. Make sure the camera is set to a recording mode that would provide recorded video for the selected time and
environment.
4. On the server side, check the media server log to make sure the camera you are trying to watch has not been
unexpectedly disconnected.
I get an ‘unauthorized’
message on my camera
1. Make sure the camera’s user name and password are properly entered in the camera’s general information under
the camera settings menu.
2. If necessary, try rebooting the camera to apply the camera’s user name and password.
Single-monitor DW Spectrum
workstation
Dual-monitor DW Spectrum
workstation
Quad-monitor DW Spectrum
workstation
Processor Intel i5 8th gen or AMD Ryzen 5
3000 Quad-Core or better
Intel i7 8th gen or AMD Ryzen 7
3000 Quad-Core or better
Intel i9 or AMD Ryzen 9 Quad-Core
or better
Video card Intel HD Graphics onboard GPU or
better
Intel HD Graphics onboard GPU or
better GeForce GTX 1650 or better
RAM 8 GB DDR3 1600 MHz or better 16 GB DDR3 1600 MHz or better 32 GB or better
NIC 1Gbps or better 2 x 1 Gbit or better 2 x 1 Gbit or better
Storage Dedicated SSD or NVME disk for the
OS, 128 GB or larger
Dedicated SSD or NVME disk for the
OS, 128 GB or larger
Dedicated SSD or NVME disk for the
OS, 128 GB or larger
OS
supported
Microsoft Windows OS
• Windows 8 – Released: October 2012 | EoS: 01/2023
• Windows 8.1 – Released: October 2013 | EoS: 01/2023
• Windows 10 – Released: July 2015
• Windows Server 2012 – Released: August 2012 | EoS: 10/2023
• Windows Server 2012 R2 – Released: October 2013 | EoS: 10/2023
• Windows Server 2016 – Released: October 2016 | EoS: 01/2027
• Windows Server 2019 – Released: October 2018 | EoS: 01/2029
Ubuntu (Debian-based Linux) OS
Ubuntu 16.04 LTS “Xenial Xerus” – Released: April 2016 | EoS: 04/2024
Ubuntu 18.04 LTS “Bionic Beaver” – Released: April 2018 | EoS: 04/2028
Macintosh OS
• macOS 10.14 “Mojave” – Released: September 2018
• macOS 10.15 “Catalina” – Released: October 2019
• macOS 11.0, 11.1, 11.2 “Big Sur” – Released: November 2020
**NOTE: DW Spectrum IPVMS for macOS is only supported by the DW Spectrum Client.
