Digitus DA-70011-1 User manual

USB DATA Link Cable
USER MANUAL
(Model: DA-70011-1)
GO! Suite Quick Start Guide
-GO! Suite Introduction
-GO! Bridge Introduction
-Remote Share Introduction
-Folder Sync
-Outlook Sync
GO! Bridge for Mac Quick Start Guide
-GO! Bridge for Mac Introduction

DATA Link Cable User Manual
2
GO! Suite
Quick Start Guide
V1.7

GO! Suite Quick Start Guide 2208-V1.7
1
Launch GO! Suite
Before you use GO! Suite, you have to launch GO! Suite application. If you
only use GO! Finder, you can connect the USB device to this computer to
launch this application. If you want to use other applications of GO! Suite, you
have to connect to both PCs via the USB device and transfer cable. Follow the
ways to launch GO! Suite under the operation system of your computer.
WINXP: When the device is inserted, it will launch GO! Suite automatically. If
not, users have to double click the GO! Suite icon of the removable device on
“My Computer” to launch the program.
Vista: When the device is inserted, users have to click “Launch GO! Suite” on
auto-play window to launch GO! Suite. If User Account Control window pops
up, click on "Allow" to continue it. If auto-run is not launched, users have to
double click the GO! Suite icon of the removable device on “My Computer” to
launch the program.

DATA Link Cable User Manual
2
Go! Suite Introduction
Go! Suite is a program integrated data search in the Flash Device, transfer,
synchronization of data and Internet/CD Drive share. It provides users the
simplest and most efficient way to meet the need of data transfer of their life.
System Requirements
Microsoft Windows 2000 SP3/ Win XP 32-bit/ Vista/ Win 7 32-bit or 64-bit
Intel® Pentium®II Processor or later
512MB RAM or higher
Hard disk space requirement of at least 100 MB
Built-in USB port 1.1 or 2.0
Below are the quick start Guides of each application.

DATA Link Cable User Manual
3
GO! Bridge Introduction
GO! Bridge is a user-friendly and simple operation. Data transmission via USB
cable to connect two PCs, which combines high speed transmission and
non-technical requirement can easily transfer and share data between two
PCs.
Below are the brief of each function of GO! Bridge. If you wish to know more
about the details, please read the user manual of GO! Bridge.
Screenshot of GO! Bridge
Window Mode
It allows users to simply check and transfer the files/folders of the
other PC.
View:
Simply press on window mode to browse the folders and files in
the disk drives of the other PC. Users can simply open the view menu
and browse the files and folders on the other PC. User can simply
transfer files via drag-and-drop.
Desktop
of the
other PC
Active
Information Option Minimize
Exit
File List
Add a
Folder

DATA Link Cable User Manual
4
Dock
Dock area allows users to copy, paste, and remove/select all data on
Dock which helps users easily manage file transfer between two
PCs.
Drag and drop files to Dock area and paste batch files once between
two PCs.
Add a new folder
Click “ ”to quickly add a new folder on the file list.
File List
Right click on the file of File list to open, add to Dock, copy, paste,
and delete the files selected on the file list
Desktop of the other PC
The desktop of the other PCs displays on the window mode for users
to recognize the PC they are in used.
Icon Mode of the other PC
Icon mode not only saves the space of the window but also allows
users to transfer files to the root directory of the other PC by simply
drag and drop steps.

DATA Link Cable User Manual
5
Remote Share Introduction
Remote Share is a user-friendly application which allows you to share and use
Internet or data on the CD Drive with the other computer via a simple
high-speed USB transfer cable connecting to both computers.
How to use Remote Share
After GO! Suite is connected successfully to both PCs, you can simply click
“Remote Share” on the operation panel of GO! Suite. A warning window will
pop up to remind you to close the antivirus program of your computer first and
then execute “share and use Internet or data on the CD/ DVD-ROM with the
other computer”. The steps are as followings:
1. Press “Remote Share” to start the communication with the other computer
and waiting for the response.
2. Once Remote Share is connected to both PCs, you can press use CD Drive
or share/use Internet of the other computer.

DATA Link Cable User Manual
6

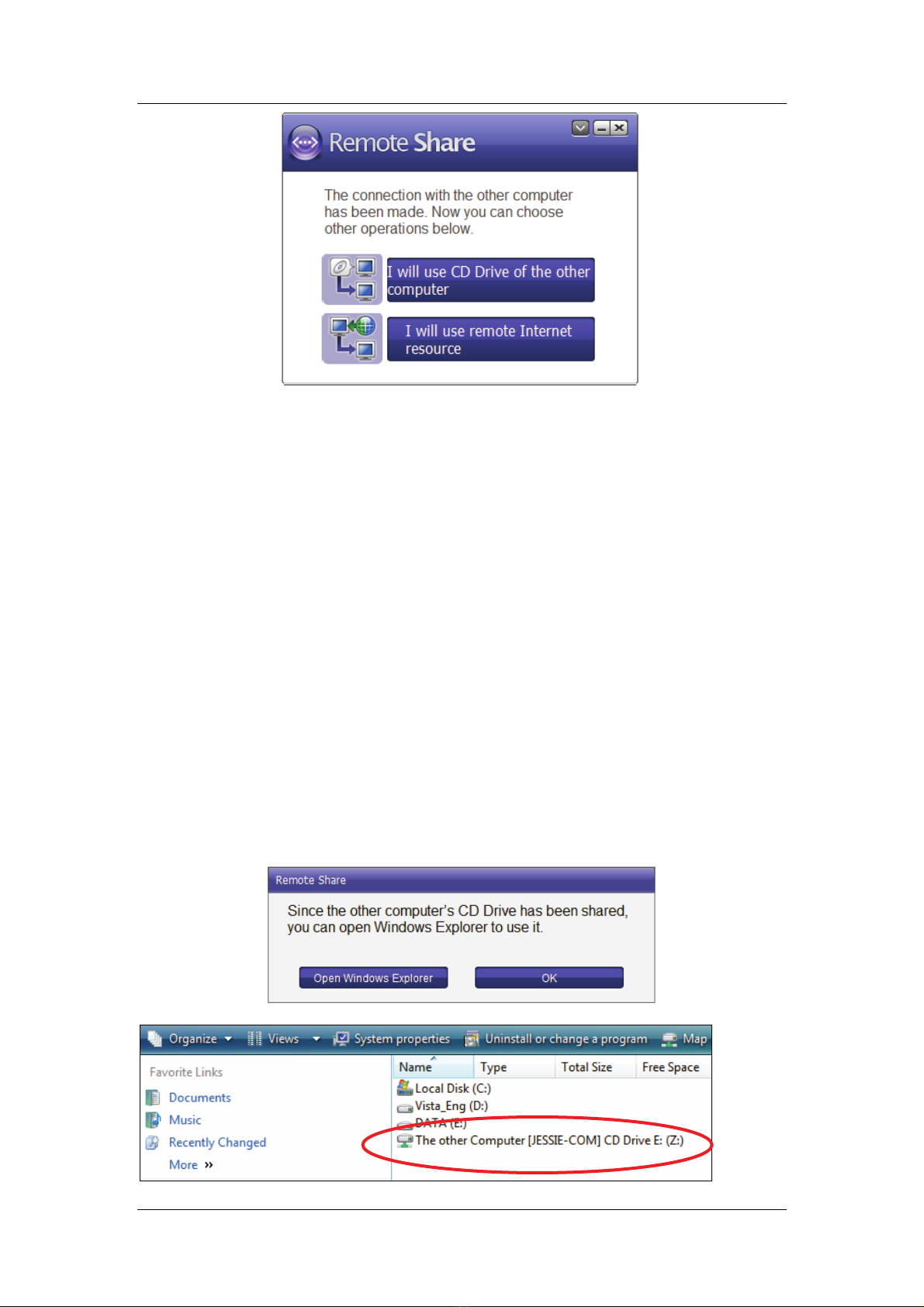

Remote Share Main Panel
3. Powerful function of Remote Share
a. Use CD Drive: Click “I will use CD Drive of the other computer” to open
the data such as movies, music, photos, etc of the remote CD Drive by “ Open
Windows Explorer“ where shows as “The other computer’s CD Drive” on
my computer. If remote PC doesn’t have CD Drive, this selection won’t be
shown on the main panel of Remote Share.
E.g. :The light- weighted, easy to carry Netbook hits the traditional NB market.
But, one of the disadvantages is that it doesn’t have CD Drive, therefore you
can utilize the powerful function of “CD Drive Share” of “Remote Share” to
use the CD Drive of the computer which has CD Drive

DATA Link Cable User Manual
7
b. Share Internet :
If your computer is connected to Internet, you can press “I will share my
Internet” to share Internet with the other computer which disconnects to
Internet.
If your computer doesn’t connect to Internet, the other computer is connected
to Internet, and its OS is higher than Windows 2000, press “I will use remote
Internet resource” to use Internet of the other PC which is connected to
Internet.
If the computer which is connected to Internet is Windows 2000，it doesn’t
support Internet share, so that the other computer cannot use Internet share
feature, either.
When Internet is sharing, the system tray will show the status of Internet
sharing. Once Internet share is launched successfully, the selection of
“Internet resource” will disappear.
E.g.: If you travel with your NB and wish to use Internet without wireless
services nor LAN cable, Internet Resource Share of Remote Share can help
you easily use the other computer’s Internet resource via the connection
between two PCs.
4. About Remote Share
Click on the top right corner of the main panel of Remote Share, the
version of Remote Share is shown here.
5. Minimize
Click on the top right corner of the main panel of Remote Share, Remote
Share will be hided to system tray to standby. You can click its icon to launch it
again.

DATA Link Cable User Manual
8
6. Exit Remote Share
Click “X” on the the top right corner of the main panel of Remote Share, a
dialogue window will pop up” Do you want to exit Remote Share?”. Click
“Yes” to close Remote Share. Then, both computers will switch to GO! Suite
main panel; meanwhile, a dialogue window will pop up “You are ready to use
GO! Suite now”. If the main panel of GO! Suite does not open automatically,
please re-plug in the cable or open “My Computer” and double click “GO
Suite” drive to start it.
7. Supplementary
7.1 If both computers have connected to each other, unplug USB transfer
cable, Remote Share will close promptly.
7.2
If both computers haven’t connected successfully, re-plug in the USB transfer
cable, a pop-up window of “Try to recover the connection with the other
computer” will remind you.
7.3 If it fails to connect to both PCs, Remote Share will ask you to re-plug in the
USB transfer cable. Make sure the panel of Remote Share disappear first and
then re-plug in the USB transfer cable to both PCs.
7.4 If either of or both computers are restarted or re-logged in, two conditions
may occur:
a. The USB transfer cable still connects to both computers; a warning window
“resume connection” will pop up.
b. If the transfer cable disconnects to both computers, Remote Share will exit
automatically.

DATA Link Cable User Manual
9
Folder Sync Introduction
Folder Sync is an application for two PCs to synchronize data in the shortest
time via a USB Cable.
The followings are the brief of each function of Folder Sync. If you wish to
know more about the details, please read the user manual of Folder Sync.
How to execute Folder Sync?
Below are the features of Folder Sync which helps you quickly understand the
functions of Folder Sync and use it easily.
Screenshot of Folder Sync
Powerful Functions of Folder Sync
Add Task
Press “ ” to create a task to synchronize.
Task Items
Sync All
Add Task
Task List
Settings Close
Minimize

DATA Link Cable User Manual
10
In “Task items”, user can name for the Task, and assign folder path,
select task type and sync direction.
Task Types:
Task types include “Folder Sync” and “IE My Favorites Sync”.
Sync Contents: Include sync directions and folder paths of both PCs.
Sync Directions:
Press “Sync directions” to designate the priority of the sync task to
synchronize data between two PCs including three options for users
to select. The descriptions are as followings.
Keep the contents consistent in both folders. If there are any two files
with the same name, synchronize the latest one to the other.
Copy all the files from the local folder to the remote folder. If there are
any two files with the same name, overwrite the remote file with the
local one.
Copy all the files from the remote folder to the local folder. If there
are any two files with the same name, overwrite the local file with the
remote one.
Folder Path:
Click “ ” to browse the folder path you wish to sync folders on both
PCs.
Sync Items:
Sync items include “Sync all” and “Sync this Task”.
Press to sync all the tasks on the task lists for one time.

DATA Link Cable User Manual
11
Press “ ” on main window of Folder Sync to
synchronize single task only.
Remove this task:
Select “ ”to remove the synchronized task directly.

DATA Link Cable User Manual
12
Outlook Sync Introduction
Outlook Sync is an application for two PCs to synchronize Outlook mail and
folders including “Contact”, “Inbox”, “Calendar”, “Journal”, “Tasks”,
“Notes” and “Sent Items” via a USB Cable. By Outlook Sync, users can
synchronize mail and other selected items between two PCs in a shortest time.
To follow the advantage of easy to use of GO! Suite series, Outlook Sync not
only allows the beginners easily to use this program but also meets the need of
advanced users.
The followings are the brief of each function of Outlook Sync. If you wish to
know more about the details, please read the user manual of Outlook Sync.
How to execute Outlook Sync?
Below are the features of Outlook Sync which helps you quickly understand
the functions of Outlook Sync and use it easily.

DATA Link Cable User Manual
13
Screenshot of Outlook Sync
Powerful Functions of Outlook Sync
Set up an E-mail Account
In “Set up an e-mail account”, press “ ” to define “The
configuration of this PC’s Mail Server”. If you use “Microsoft
Exchange Server”, on your first time to open Outlook Sync, you
have to set up mail sync to designate Microsoft Exchange Server and
input user account information before executing mail sync. If you use
“POP/SMTP server”, all you have to do is select this item and ignore
the setup of server.
Sync Directions
Setting
s
Minimize
Default Sync
Close

DATA Link Cable User Manual
14
Sync directions allow users to select either “Sync data from the
other PC” or “Sync data from this PC”.
Mail Items
Mail Items include “Contact”, “Inbox”, “Calendar”, “Task”,
“Notes” and “Sent Items” and “Sync other folder”. Simply select
the folders above you wish to sync outlook folders.
Select “Sync other folder” to manually assign and sync your
own and additional Outlook items. Click to browse the
folder you wish to sync on both PCs to sync other mail folder.
Set up the contents of the mail to sync
.
Sync Rule includes “To replace the existing items from the source
PC or not”, “The configuration of this PC’s Mail Server”, “Set up
Sync Time” and “Mail Type”..
Select “Don’t replace existing items from the other PC” to
keep the name of the target item. Moreover, the target item will
create a new item with the same item’s name as the source item
but different contents from the source item.
Select “Except for mail items, replace existing items from the
other PC” the source items in Microsoft Outlook, will replace the
contents of the target items, except for mail items.
Set up the Time Rule of this Synchronization
Select the time you wish to synchronize the folders to save your sync

DATA Link Cable User Manual
15
time and the quantity of data
Set up mail type for this synchronization
Select “only sync unread mail” to sync the unread mail only so as
to decrease the quantities of synced mail efficiently.
Start Sync
After the steps above, press “ ” to start Outlook Sync.
Note: The time zone and time of both PCs should be identical to each
other. Otherwise, time error may occur or the warning of “Cannot
execute Outlook Sync” will pop up on Mail Sync.

DATA Link Cable User Manual
16
GO! Bridge for Mac
Quick Start Guide
V1.2

DATA Link Cable User Manual
17
System Requirements
System Requirements on Mac:
Mac OS X 10.4 or later
PowerPC G4 processor or later
RAM: 512 Mbytes or higher
Hard disk space: at least 100 MB
Built-in USB port 1.1 or 2.0
System Requirements on Windows:
Microsoft Windows 2000 SP3/ Win XP 32-bit/ Vista/ Win 7 32-bit or 64-bit
Intel® Pentium®II Processor or later
512MB RAM or higher
Hard disk space requirement of at least 100 MB
Built-in USB port 1.1 or 2.0

DATA Link Cable User Manual
18
GO! Bridge for Mac Introduction
GO! Bridge for Mac is a user-friendly and simple data transmission (Windows
to Mac or Mac to Mac) application via a USB transfer cable to connect two
computers. It combines high speed transmission and non-technical
requirement which help easily transfer and share data between two computers.
Before using GO! Bridge
1. Connect to both computers via the USB transfer cable before using
GO! Bridge
2. Execute GO! Bridge according to the operation system of your
computer.
On Mac operation system:
Open GO! Suite CD on desktop and then double click GO! Bridge icon to
execute the application.
On Windows operation system:
Follow the ways below to launch GO! Suite under the Windows operation
system of your computer.
