Dimplex AC3RE User manual

08/53942/0 ISSUE: 1
INSTRUCTION MANUAL
Installation and Operating
Over Door Heater - Remote Control
Model: AC3RE
This product is supplied and operated with a wireless remote control handset

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
IMPORTANT SAFETY ADVICE
DO NOT COVER OR OBSTRUCT the air inlet or outlet grille
ENSURE THE APPLIANCE IS EARTHED
Do not use this heater in areas where excessive dust exists
This heater must not be located immediately above or below a fixed socket
outlet or connection box.
Always disconnect supply before working on the product.
This product should be mounted safely to solid wall or ceiling surfaces only.
Ensure the supply cables are of adequate current carrying capacity and are
protected by a suitable fuse.
If the appliance is mounted in a toilet or washroom an isolating switch must be
provided outside the washroom adjacent to the entrance door.
This appliance can be used by children ages from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept away unless continuously
supervised. Children ages from 3 years and less than 8 years shall only switch
on/o the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children aged from 3 years and less than 8 shall not plug in,
regulate and clean the appliance or perfrom user maintenance.
CAUTION - Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
2

Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision is
provided.
DO NOT COVER OR OBSTRUCT the air inlet/outlet ceiling grille.
WARNING: ENSURE THIS PRODUCT IS EARTHED
A suitable isolator to the fixed wiring of the premises must be provided
adjacent to the final position of the Switch Panel. An Isolator must be fitted
close to the heater to allow for servicing.
This product must not be subjected to water spay or immersion and should be
mounted such that no part of it can be touched by a person using a fixed bath
or shower.
The ceiling can be either of a plasterboard (or similar) construction, or of
suspended ceiling tiles.
DO NOT store or use any flammable materials or sprays in the vicinity of the
heater - FIRE HAZARD.
Risk of injury, electric shock or damage to the heater may occur.
Ensure proper manual handling procedures are observed at all times.
ATTENTION: IN ORDER TO AVOID OVERHEATING DO NOT COVER
3

Model Identifier(s): AC3RE
Nominal heat output Pnom 3.0 kW
Height (mm) 200
Width (mm) 605
Depth (mm) 135
Minimum heat
output (indicative) Pmin 1.5
Maximum continuous heat output Pmax,c 3.0
Auxiliary electricity Consumption
At nominal heat output elmax 0.00
At minimum heat output elmin 0.00
In standby mode elSB <0.0005
This product meets the Ecodesign requirements for an electric fixed local space
heater. Commission Regulation (EU) 2015/1188.
Energy Related Product Directive
Technical Details
Type of heat output/ room temperature control
Electronic room temperature control plus week timer Yes
With open window detection No
With adaptive start control Yes
4

All Models
Controls
Digitally controlled, Electronic Thermostat
Timer modes:
7 Day Programmable User Timer
Continuous heat modes:
Manual, Runback, Fan Only, O
Controller UI O-board control only. Requires pairing with wireless remote.
Controller Functions
• Heat Selection: High, Low, Fan Only
• Adaptive-Start
• Advance time period
• Adjustable SP range (7-30°C)
• Wireless control
Construction Steel case with plastic mouldings
Installation Supplied with wall mounting bracket
Safety 2 x electrical hold reset cut-outs
IP Rating IP21
Battery Backup
None. Time and date must be re-programmed in event of power loss to
the product
Supply
Requires: 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz
Class I, with earth wire
Colour / Finish Pressed steel case with powder coat finish. Trac White (RAL9016)
Approvals CE
Warranty 2 years
Country of Origin British Isles
Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)
5

Fig. 1
Fig. 2 Fig. 3
50
f
e
d
b
a
c
135
a
4
200
45
155
50
f
e
d
b
a
c
135
a
4
200
45
155
50
f
e
d
b
a
c
135
a
4
200
45
155
50
f
e
d
b
a
c
135
a
4
200
45
155
50
f
e
d
b
a
c
135
a
4
200
45
155
4
a
‘C’
‘B’
212
‘A’
50
f
e
d
b
a
c
135
a
4
200
45
155
50
135
155
200
45
6

‘A’
‘B’
‘B’
‘A’
Fig. 4 Fig. 5
Fig. 6 Fig. 7a
50
f
e
d
b
a
c
135
a
4
200
45
155
Fig. 7b
50
f
e
d
b
a
c
135
a
4
200
45
155
e
f
cb
ad
7

Fig. 8
Key Table
Black Solid Line Live Wires
Blue Dashed Line Neutral Wires
Green Dotted Line Earth Wires
8

Solid brick or concrete block walls must be drilled and plugged (using a spirit level
as a guide ensure bracket is level), due to dierent types of wall constructions
fixings are not included, ensure the correct fixings are used. The plug must be
located in the solid part of the wall, not just in the plaster layer.
For panelled internal walls or ceilings, it is best to locate the studding, position the
heater fixing bracket accordingly and use screws supplied. If it is not possible to
locate the studding, use type M5 Rawlplug inserts, making the 10mm holes with a
drill rather than a bradawl or a screwdriver.
Locate the heater on the mounting bracket ensuring that the pozi- head screws are
fully engaged in the slots of the bracket.
It is important that the serrated metal washer (a) is located between the heater
holding bracket (b) and the wall mounting bracket (c). Adjust heater to the required
angle then firmly tighten the fixing screw (d) inside the endcap (e) using a cross-
head screwdriver (f) as shown in Fig. 4.
Wall or Ceiling Mounting
This appliance may be either wall-mounted or fixed to a ceiling - see Fig. 2 for
various fixing positions and ‘Installtion’ see section below, for details on fixing.
Heaters may be mounted end to end for wide doorways.
Installation
Using the wall mounting bracket as a guide (see ‘a’ in Fig. 3) mark o the hole
positions on the wall or ceiling (see ‘B’ in Fig. 1). A minimum height of 1.8 metres
is required from floor to bracket. Fix the bracket in position by following steps as
described under the heading ‘Wall or Ceiling Mounting’.
Electrical
The installation of this appliance should be carried out by a competent electrician
and be in accordance with the current IEE wiring regulations.
Electrical Connection
Ensure that the heater is securely fastened and that the supply cable is firmly
clamped before operating the appliance.
9

NOTE:
If the cut-out operates, the fan may continue to run impairing the performance of
the heater. If this occurs, turn o unit immediately and follow the reset procedure
below.
Procedure for Resetting Cut-Out(s)
Follow the steps below to reset cut-out(s)
1. Disconnect power supply.
2. Determine what has caused the cut-out to operate and rectify.
3. After a short period of time (allowing the heater to cool down) the cut-out will
reactivate allowing electrical supply to be returned to the heater thus permitting
normal operation.
NOTE:
This should only be undertaken by competent persons with experience
of repairing electrical appliances and in full knowledge of the possible
hazards involved.
3. Blower unit stalls.
The power supply to the heating elements will be interrupted if one or a
combination of the following abnormal events occurs.
1. Air inlet or outlet grilles are obstructed.
2. Internal ventilation is impaired due to build up of dust and flu.
Thermal Safety Cut-Outs
Release the screws at either end of the air-outlet grille (see Fig.5) to gain access to
the terminals for connection of the supply cable - see Fig. 6.
Insert the mains cable down the outside of the back panel (not on inside) and
through the rear entry cable clamp and make connection as shown in Fig. 6 (see
also Fig. 7 for detailed views of cable clamp).
Fig. 7 shows the AC3RE cable clamp detail
Connection to fixed wiring should be made through the 3 way terminal block
mounted in between the element banks.
Re-secure the outlet grille.
10

The product is supplied with a bluetooth remote control, the remote control should be
contained in the carrier bag along with these instructions. This remote control is required
to operate the appliance. When paired with the remote control various operational modes
and features can be accessed.
IMPORTANT NOTE:
The remote control is required to operate the appliance. It is important
that the remote control remains near the appliance at all times.

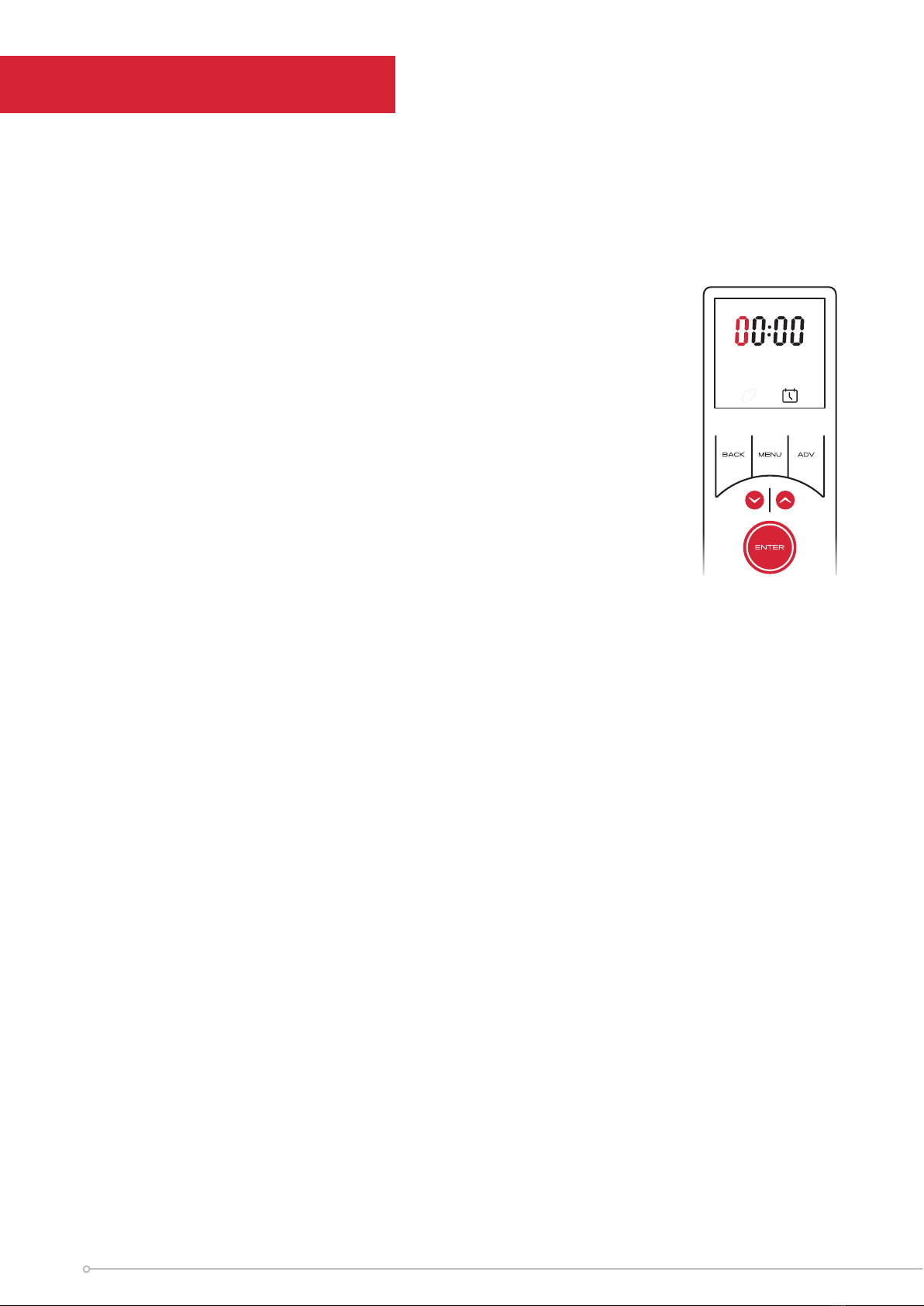

Remote Control
1Display Screen
2‘Menu’ Button
3‘Back’ Button
4‘Advance’ Button
5‘Up and Down’ Arrows
6‘Enter’ Button
1
3
6
2
4
5
11

Fitting the Batteries:
The remote requires two AA batteries, these are supplied with the product contained
in the bag along with the instructions and remote.
To fit the batteries:
1. On the rear of the remote, remove the
battery cover by pushing the catch
downwards and pulling outwards in one
motion.
2. It should be possible to completely remove
the battery cover to reveal the battery
cavity.
3. Carefully insert the new batteries, ensuring
the polarity is correct. Ensure the ‘+’ and
‘-‘ signs on the batteries match the signs
marked inside the battery cavity.
4. Once the batteries are in place, replace the cover, ensuring the clip has engaged fully.
Once the batteries have been successfully fitted the remote control will immediately
start scanning for a product to control. At this stage it is necessary to complete the
pairing process, see Remote Pairing Instructions.
Remote control cradle:
The remote control is supplied with a wall
mounting cradle. If desired, mount the
cradle in a suitable location. The cradle can
be mounted using suitable screws and the
appropriate wall fixing solution, not supplied.
Mark and drill the wall accordingly to mount
the remote control cradle. The remote control
can also be fixed to the cradle using the
bottom fixing screw. The use of this screw
is optional, particularly if the remote will be
used as a portable device.
NOTE:
If the remote cradle is not initially required, please store in a suitable
location in case of future use. The bottom fixing screw should also be
stored with the cradle.
12

To pair the product to the remote:
1. The product, once installed and turned on, will emit a beep and begin to broadcast
a signal to be paired with.
2. Wake the remote by briefly holding the ENTER
button.
Once awake the remote will then immediately
search for the product. This is indicated by the
rotating loading graphic and flashing connectivity
icon on the remote followed by the pairing
sequence.
NOTE:
The remote will attempt to pair with the first product it finds. Please
ensure that no other products are broadcasting within the vicinity to
prevent pairing to the incorrect product.
3. The remote will search for devices for 1 minute. If no product can be found, the
remote will display ‘NO PROD’ before returning to a sleep state. If this happens,
please repeat steps 1 and 2.
4. If connection is successful the product will emit a second beep and the remote
screen will show a solid connectivity icon for 4 seconds then revert to the home
screen.
NOTE:
After initial pairing the Time and Date must be set before the remote
will revert to the home screen.
Solid icon
Remote Pairing Instructions
NOTE:
If no remote pairs within 2 minutes, the product will stop broadcasting.
flashing icon
loading
graphic
13

Setting Time & Date
After initial remote control start up and after replacing the batteries it is required to
set the time and date. It is not possible to navigate to the home screen and product
settings until the time and date have been set.
It is possible to modify these settings at any stage from within the menu structure,
see page 19.
Setting Time
It is required to set the hour and minute digits independently.
1. The first digit of the Hour setting will be blinking. Use the
arrow key to set the first digit of the time.
2. Confirm the selection by pressing the ENTER button, the
second digit of the Hour can then be set.
3. Once the hour digits have been set and confirmed, step 1
& 2 should be repeated to set the minute.
Setting Date
Once the time has been set the remote will automatically move to the date setting.
1. After confirming the last time digit ‘Day’ will blink three times and then change to
a two digit-number with the first digit blinking. This two-digit number represents
the day of the month.
2. Use the arrow key to set the first digit of the date and confirm using the ENTER
button.
3. The second digit will then blink and can be set as per step 2.
4. After the day has been confirmed it is necessary to set the month, this is indicated
by ‘1-12’ blinking on the screen.
5. A numerical value for the month can be set using steps 2 & 3 above.
6. Once the month has been set the year can be set. Each digit must be set and
confirmed individually.
7. Finally the remote will oer an option to turn on or o day light saving (dSt) settings.
‘On’ and ‘O’ can be selected using the arrow keys and confirmed by pressing enter.
Once the time and date have been set the remote will revert to the home screen and
normal operation can resume.
14

After initial remote control start up and after replacing the batteries it is required to
set the time and date. It is not possible to navigate to the home screen and product
settings until the time and date have been set.
It is possible to modify these settings at any stage from within the menu structure,
see page 19.
Setting Time
It is required to set the hour and minute digits independently.
1. The first digit of the Hour setting will be blinking. Use the
arrow key to set the first digit of the time.
2. Confirm the selection by pressing the ENTER button, the
second digit of the Hour can then be set.
3. Once the hour digits have been set and confirmed, step 1
& 2 should be repeated to set the minute.
Setting Date
Once the time has been set the remote will automatically move to the date setting.
1. After confirming the last time digit ‘Day’ will blink three times and then change to
a two digit-number with the first digit blinking. This two-digit number represents
the day of the month.
2. Use the arrow key to set the first digit of the date and confirm using the ENTER
button.
3. The second digit will then blink and can be set as per step 2.
4. After the day has been confirmed it is necessary to set the month, this is indicated
by ‘1-12’ blinking on the screen.
5. A numerical value for the month can be set using steps 2 & 3 above.
6. Once the month has been set the year can be set. Each digit must be set and
confirmed individually.
7. Finally the remote will oer an option to turn on or o day light saving (dSt) settings.
‘On’ and ‘O’ can be selected using the arrow keys and confirmed by pressing enter.
Once the time and date have been set the remote will revert to the home screen and
normal operation can resume.
15

Operation
The product is controlled using the remote control. The remote consists of a display
screen and six touch sensitive buttons. The function of each button and the meaning of
each screen icon is explained in the graphic below. The remote oers fully programmable
time and temperature control with a host of additional useful control features.
It is possible to control the appliance in various operational modes including Manual
operation mode, User timer and frost protection mode. There are also advanced
operating modes such as a runback mode and also a landlord PIN protected function.
Button Functions
1. MENU - enters the main product
menu.
2. ENTER - used to confirm
selections & settings.
3. BACK - returns to the previous
screen. If held for 2 seconds,
the heater will enter Comfort
O mode.
4 & 5. Arrow keys - used to
navigate through the menus and
adjust the room temperature
set-point.
6. ADV - use depends on the active
mode and settings, typically
used to advance the program
in timer mode or to initiate a
runback period in Manual/ PIN
mode.
Advanced button functions & Shortcut keys
Comfort O - Press and hold for 2 seconds
Temp Settings - Press and hold for 2 seconds
Heating Settings - Press and hold for 2 seconds
Service Info - Press and hold for 2 seconds
Advance Menu - Press and hold both and for 2 seconds
Factory Reset - Press and hold both and for 5 seconds
Heating On
Heating O
Adaptive Start
Timer Schedule
Manual Mode
Frost Protection
Connectivity
Pin Lock
Advance
Set Time & Date
Days of the week
Time Numerals
Symbol Key
NOTE:
All setting changes and communications between the remote control and the
appliance are signified with an audible ‘beep’ from the appliance. This beep
signifies that connection is successful and the appliance has received a command
from the remote control.
16

Waking from Standby Mode
When in standby mode, holding ENTER for two seconds will wake the remote and
attempt to reconnect to the product, this will be signified by the connectivity icon
and loading graphic appearing on the screen.
The remote control provides the option of a number of standard control modes,
• Timer Mode: provides the greatest flexibility to the user. Four heating periods are
available throughout each day and these can be customised for every day of the
week. The desired temperature can be set for each time slot independently.
• Manual Mode: Maintains the displayed temperature for an undetermined period.
The default ‘comfort’ temperature in manual mode is set to 21°C however this can
be adjusted to suit.
• Frost Protect: maintains a room temperature of 7°C. This mode should be used to
provide protection against frost.
• Comfort O: no room temperature control
There are also a number of advanced control options and features available
• Runback Mode: This is an additional feature available to manual mode, with this
mode active the manual mode will operate for a determined time period and then
revert to Comfort O mode.
• Setback Mode: This is an additional feature available to timer mode, with this mode
active the appliance will control the room to a pre-set temperature during timer
‘o’ periods.
• Adaptive start Mode: This is a predictive mode that functions alongside the timer
mode. When activated it will automatically calculate when the appliance needs
to switch on so that the desired room temperature has been achieved from the
start of a heat on time period. If not active the appliance will only switch on at the
programmed on time.
• PIN Lock Mode: This mode will lock the appliance in the existing mode and will only
allow some basic functions to operate. Once activated, in order to change settings
the user must input a pre-set PIN. This is ideal where it is desired to limit the use
and functionality of the appliance.
Operating Modes
17

Typically, the Home Screen will display the active operational mode, the desired room
temperature set-point and the heating status. Any of the Advance function which are
active will also be displayed on the home screen. Pressing ENTER while on the Home
screen will display the current time.
Target room temperature (set-point)
display, this is not an actual room
temperature display.
Product heating status display, this
indicates when the appliance is actively
heating or maintain a room temperature,
‘ON’ will be displayed. Otherwise, ‘OFF’
will be displayed
Active mode display, the active mode of
operation is displayed at the bottom of
the screen
Sleep mode, when the remote is left
inactive, the remote display will sleep,
turning the screen o. Briefly hold ENTER
to wake the remote back up.
The remote control will enter sleep mode if left idle for the following intervals
Home Screen – Sleep after 10 seconds
Menu Screens – Sleep after 15 seconds
Settings – Sleep after 30 seconds
NOTE:
When the remote wakes, it must search for and re-connect with the heater. This
happens automatically and is indicated by the connectivity icon and the pairing
graphic. Once pairing is complete the product will beep and the remote home
screen is visible.
Home Screen
18

The remote control and menus are navigated using the six button keypad. In order to
select/change operational mode, press the MENU button. The remote will then enter
the basic menu structure, this menu provides the option to quickly select the following
options, each option is represented by an icon.
• Timer Mode: Activate mode or set/alter the
program times and temperatures.
• Manual Mode: Activate manual heating mode.
• Frost Protect: Activate frost protection mode.
• Time & Date: change the time and date settings.
• OFF: Activate Comfort o mode.
The primed mode for selection will be indicated by the flashing icon, use the Arrow
keys to navigate to the desired icon and confirm selection using the ENTER key.
Depending on the mode selected you may be prompted for further action, see relevant
section relating to this mode.
The heater is fitted with an adjustable electronic thermostat enabling the room
temperature to be controlled in all the operational modes. The minimum controllable
room temperature available is 7°C and the maximum temperature is 30°C.
A temperature of 21°C represents a normal ‘Comfort’ room temperature and this is set
as default in manual mode. Frost protect has a default value of 7°C. Temperatures in
Timer mode can be set to suit the application.
The temperature set point can be adjusted at any stage by using the Up & Down
arrows when the home screen is active.
Thermostat Control
Navigation and Selecting Modes
Timer
Schedule
Manual
Mode
Frost
Protect
Time/Date
Comfort
O
19

The remote control oers the facility to select the heat output from the appliance
between ‘HI’, ‘LO’ heat and ‘FAN’ settings. ‘HI’ heat is set by default. This is a global
heat setting and once set all other operational modes will operate with this setting.
In order to set/change the heat setting,
• From the home screen press and hold the ADV button for 2 seconds. The remote
will enter the heat selection screen.
• Use the arrow keys to navigate to the desired setting and confirm using the
ENTER key. The ‘FAN’ is on a separate screen that is accessed by continuously
pressing the arrow keys.
• The remote will return to the home screen and all heating modes will function
with the selected heat output.
NOTE:
If FAN output is selected FAN will be visible on the home screen instead of time.
Heat Output Selection
NOTE:
The HI temperature setting will modulate the heat output to optimise the eciency
of the product. As the room temperature approaches the set-point the heater will
automatically switch to the LO heat setting.
20
