Dimplex DF2690 User manual

Owner’s Manual
Model
DF2690
6904411000
7208680200R08
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this replace.
!NOTE: Procedures and
techniques that are considered
important enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations ...................3
IMPORTANT INSTRUCTIONS .................4
Fireplace Installation ........................7
Operation .................................11
Maintenance ..............................14
Warranty .................................17
Replacement Parts .........................20

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your replace.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
S E R IAL No.
MODE L
MOD.

4 www.dimplex.com
IMPORTANT INSTRUCTIONS
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
using the electric replace.
② The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
③ Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the electric
replace when not in use.
⑤Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by a
reputable electrician before reus-
ing.
⑥ Do not operate any unit with
a damaged cord or plug, or if the
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦ Do not use outdoors.
⑧ Never locate heater where it
may fall into a bathtub or other
water container.
⑨ Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from traf-
c area and where it will not be
tripped over.
⑩ Do not locate the heater
immediately below a xed socket-
outlet.
⑪ To disconnect the unit, turn
the controls off, then remove the
plug from the outlet.
⑫Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑬ To prevent a possible re, do
not block air intake or exhaust in
any manner.
⑭ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.

5
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
⑮ Do not modify the electric
replace. Use it only as described
in this manual. Any other use not
recommended by the manufactur-
er may cause re, electric shock
or injury to persons.
⑯ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑰ Do not burn wood or other
materials in the electric replace.
⑱ Do not strike the replace
glass.
⑲ Always use a certied electri-
cian should new circuits or outlets
be required.
⑳Always use properly ground-
ed, fused and polarized outlets.
㉑ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
㉒When transporting or storing
the unit and cord, keep in a dry
place, free from excessive vibra-
tion and store so as to avoid dam-
age.
WARNING: Remote control
contains small batteries. Keep
away from children. If swallowed,
seek medical attention immedi-
ately.
WARNING: Do not install bat-
tery backwards, charge, put in re
or mix with used or other battery
types - may explode or leak caus-
ing injury.
!NOTE: Changes or modica-
tions not expressly approved by
the party responsible for compli-
ance could void user's authority to
operate the equipment.

6 www.dimplex.com
!NOTE: This equipment has been
tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee
that interference will not occur in a
particular installation. If his equipment
does cause harmful interference to
radio or television reception, which
can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and the receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause
interference and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
IMPORTANT INSTRUCTIONS

7
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
CAUTION: Clearance for air
circulation beneath the re-
place insert is provided by two
rubber feet.
Do not install the replace
insert directly on carpet or
similar surfaces which may
restrict air circulation.
CAUTION: If installing the
replace in a carpeted area, place
a one-piece, solid, at surface
under the replace. Ensure that
both of the feet rest securely on
this surface.
!NOTE: The dimensions of the
replace with the trim are 27 ⅜"
(695 mm) wide X 23 ½" (596 mm)
high X 8 3/4" (222 mm) deep.
Dimensions without trim are
26 ¼" (663 mm) wide X 22 ⅞"
(580 mm) high X 8 ¾" (222 mm)
deep. The replace does not
require any additional venting
(Figure 1).
Figure 1 27 ⅜”
(695 mm)
22 ⅞”
(580 mm)
23 ½”
(596 mm)
8 ¾”
(222 mm)
26 ¼”
(663 mm)

8 www.dimplex.com

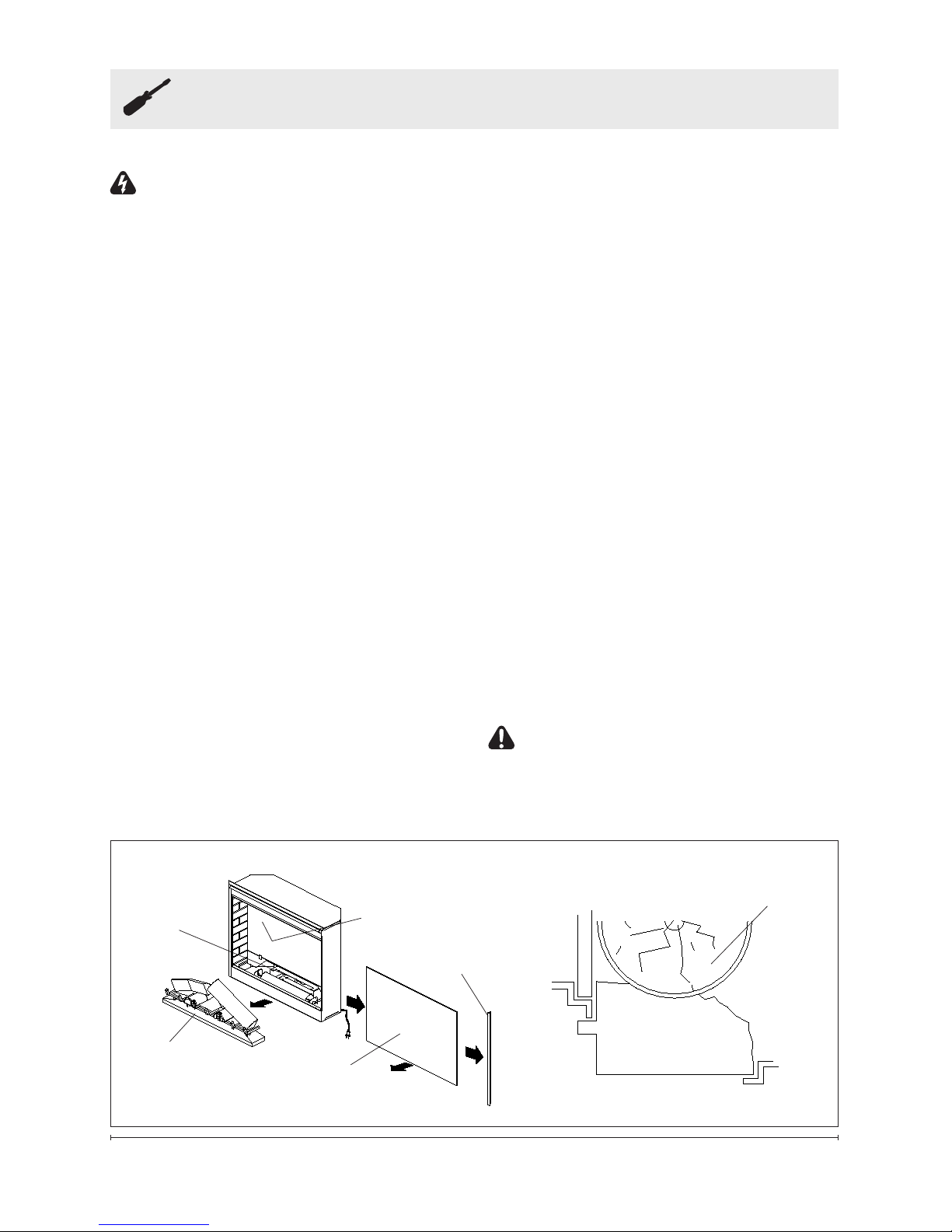

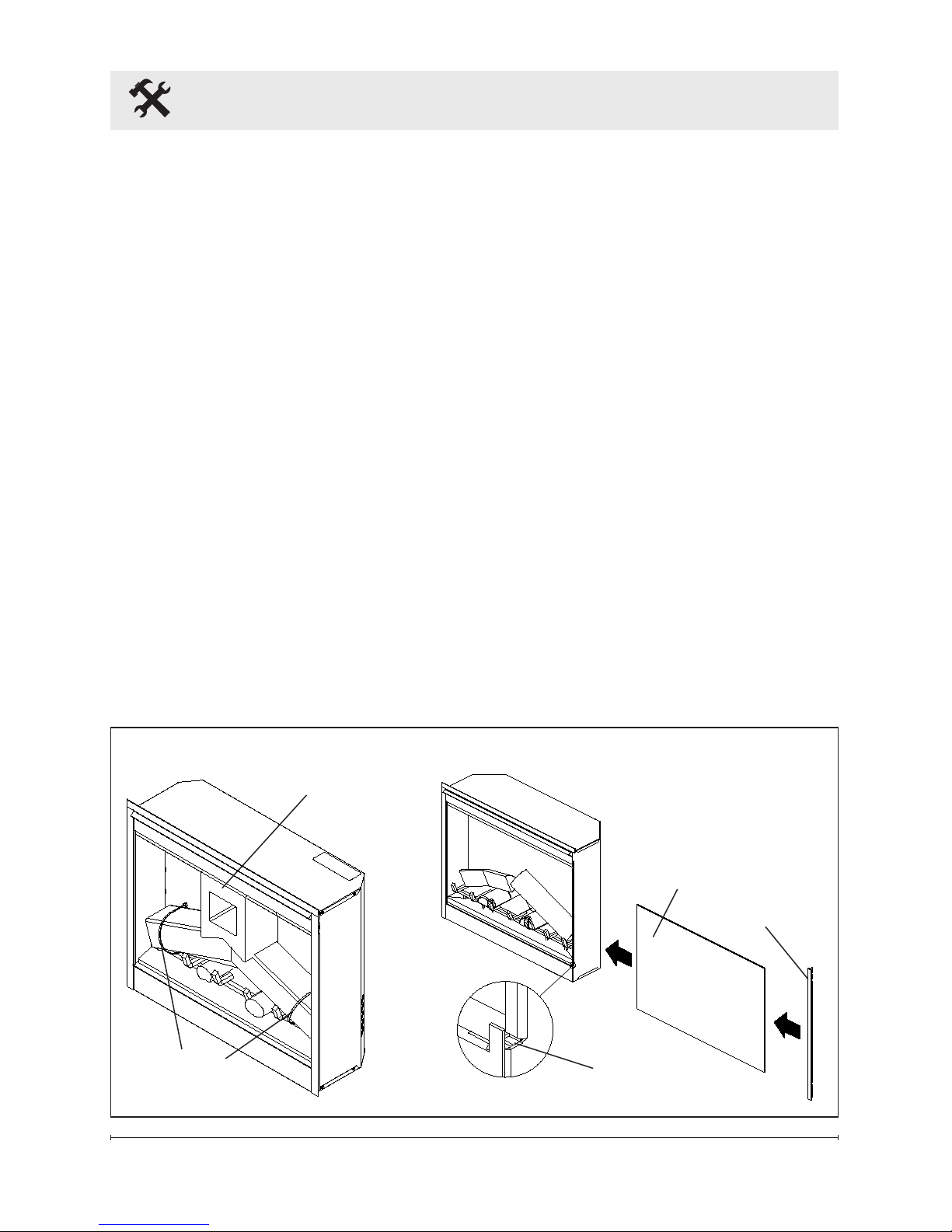

Figure 3Figure 2
Foam
Block
Cable
Ties
Front
Glass
Trim
Track
Fireplace Installation
Fireplace Assembly
Depending on the unit, the front
glass will come packaged sepa-
rately or installed in the rebox.
1. Remove replace and glass
(if not already installed) care-
fully from the carton, discard
the plastic bag and foam
packaging.
2. Remove the right hand side
trim by removing four Phillips
screws at the side of the re-
place. (Figure 3)
3. Remove the front glass, if
necessary
4. Remove the foam block from
within the replace (Figure 2).
5. Using side cutters or scissors,
cut and remove the two cable
ties as shown in Figure 2 and
remove the cardboard that
protects the log set.
6. Place the Front Glass onto
the track of the replace (Fig-
ure 3) and slide it along the
front until it reaches the far
left of the unit.
7. Re-attach the right hand trim
piece using the four Philips
screws from step 4.
Mantel Installation
Install the replace assembly into
the mantel (refer to mantel as-
sembly instructions).
!IMPORTANT: If not using a
Dimplex mantel, the replace

9
Fireplace Installation
must be installed in an enclo-
sure with the following MINI-
MUM dimensions
(Figure 4).
New Wall Construction
8. Mark the desired location on
the oor.
9. Use studs to frame an open-
ing of 26 ¾" (679 mm) wide
X 23 ⅛" (587 mm) high X 9"
(229 mm) deep.
10. Plug the unit into a 15 Amp,
120 Volt outlet.
Option #1: The power cord can
be run from behind the trim and
along the wall to an outlet near
the replace.
Option #2: A new outlet can be
installed inside the framing con-
26 ¾”
(679 mm)
23⅛”
(587mm)
9”
(229 mm)
Figure 4 struction.
!NOTE: A 15 Amp, 120 Volt
circuit is required. A dedicated
circuit is preferred but not
essential in all cases. A dedi-
cated circuit will be required
if after installation the circuit
breaker trips or fuse blows
on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating
of the circuit breaker.
Existing Fireplace
1. Seal all drafts and vents with
a non-brous insulation mate-
rial to prevent any chimney
debris from falling onto the
replace. Do not install into
an existing replace that is
prone to dampness.
2. Cap the top of the chimney
ue to prevent rain from
entering.
3. Plan your electric power sup-
ply.
4. The power cord can run along
the front of the hearth to an
outlet near the replace.
For Bathroom Use
If this unit is installed in a bath-
room it must be protected by

10 www.dimplex.com
Fireplace Installation
a GFI receptacle or circuit. If
receptacle is used it must be
readily accessible. To prevent
electrical shock this unit is an
electrical appliance that is not
watertight and must be installed
as to prevent water from entering
unit. This must be installed away
from showers, tubs, etc. Never
locate replace where it may fall
into a bathtub or other water con-
tainer. High temperatures may be
generated under certain abnormal
conditions. Do not partially or fully
cover or obstruct the front of this
heater.
MM
SPEED
CONTROL
3 STAGE RECEIVER
ELEMENTS
BLOWER
MOTOR
LOWER
LIGHTS
UPPER
LIGHTS
DIMMER
FLICKER
MOTOR
CUT-OUT
THERMOSTAT
STAGE 1
STAGE 2
STAGE 3
L
N
Wiring

11
Operation
WARNING: This electric
rebox must be properly installed
before it is used.
Manual Controls
To access the controls, ip open
the control panel cover towards
the bottom of the replace. (Fig-
ure 5)
A. On/Off Switch
The On/Off Switch supplies power
to all replace functions (Heater/
Flame).
B. Flame Action Control
Turn the Flame Action Control
knob to adjust the ame speed to
the desired level.
C. Interior Light Control
Turn the Interior Light Control
knob to increase or decrease the
brightness of the upper lights.
D. Thermostat Control
To adjust the temperature to your
individual requirements, turn the
Figure 5
thermostat control clockwise all
the way to turn on the heater.
When the room reaches the
desired temperature, turn the
thermostat knob counter clock-
wise until you hear a click. Leave
thermostat in this position to
maintain the room temperature at
this setting. For additional heat,
turn clockwise until you hear the
click again and the heater will turn
on.
!NOTE: The heater on your
replace may emit a slight, harm-
less odor when rst used. This
odor is a normal condition caused
by the initial heating of internal
heater parts and will not occur
again.
E. LED Indicators
Indicates the current function of
the replace.
!NOTE: When the rebox is
changing from Low heat to High
heat the speed of the fan does
ABFE
D
C

12 www.dimplex.com
re-initializing after turning the
power off.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and call Dim-
plex North America Limited at
1-888-346-7539 for technical
support. Please have your
model and serial number
ready when calling.
Remote Control
The replace is supplied with a
radio frequency remote control.
This remote control has a range
of approximately 50 feet (15.25
m), it does not have to be pointed
at the replace and can pass
through most obstacles (including
walls). It is supplied with one of
Operation
not change just the amount of
heat being emitted.
F. 3-Position Switch
Pressing the switch up "I" toggles
sequentially through the three lev-
els of the replace.
Level 1: The ame effect is
turned on and the rst red indica-
tor light ashes momentarily.
Level 2: The ame effect remains
on, the heater is activated to the
low heat setting, and the rst and
second red indicator lights ash
momentarily.
Level 3: The ame effect remains
on, the heater is set to the high
heat setting, and all three red indi-
cators ash momentarily.
Pressing the switch down "II" will
turn the unit Off.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the
replace off and it will not come
back on without being reset. It
can be reset by switching the On/
Off Switch to Off and waiting ve
minutes before switching the unit
back on.
If operating the unit with a remote
control, the remote may require

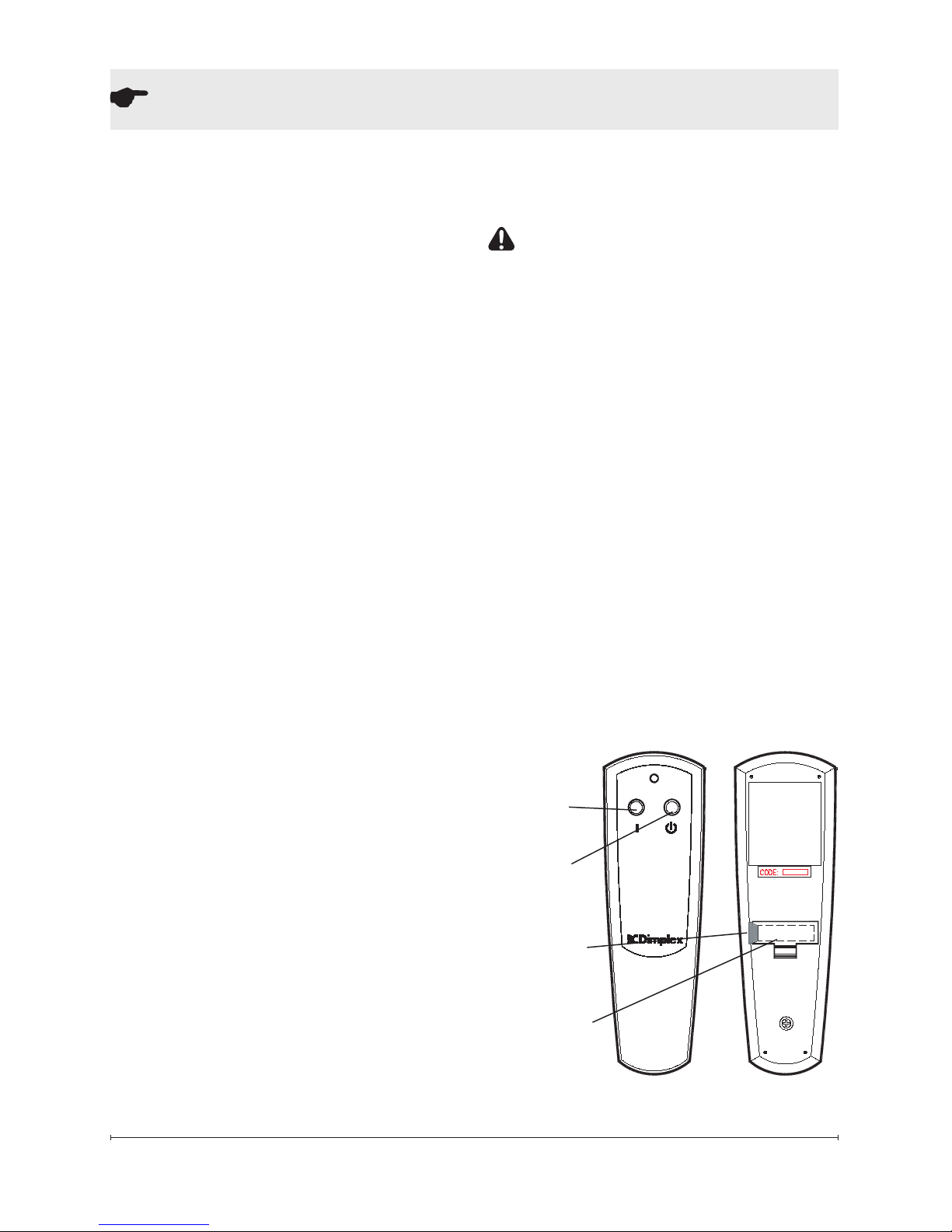

Figure 6
Off
Button
On
Button
Battery
cover
Plastic
strip

13
Remote Control Usage
The remote control operates the
replace levels sequentially. The
level is increased every time the
“ON” button on the remote control
is pressed. The replace can be
turned off at any point by pressing
the “OFF” button on the remote
control.
Battery Replacement (Figure 6)
To replace battery:
1. Slide battery cover open on
the remote control.
2. Install one 12-volt (A23) bat-
tery in the battery holder.
3. Close the battery cover.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.
Operation
hundreds of independent frequen-
cies to prevent interference with
other units.
!NOTE: Before attempting any
operation with the remote control,
pull the plastic insulator strip out
from between the remote casing
and battery cover.
Remote Control Initialization/
Reprogramming
This procedure is required every
time there is a loss of power to
the remote control in the re-
place. (i.e. power failure, breaker
tripped, On/Off switch is turned
off.)
1. Ensure that power is supplied
through main service panel.
2. Locate manual controls.
3. Activate On/Off switch. (Fig-
ure 5A)
4. Press and hold the 3-Position
Switch in the “I” position for
5-10 seconds until the second
indicator light begins to ash.
(Figure 5E)
5. Press the ON button located
on the remote control. (Figure
6)
This will synchronize the remote
control and receiver.

14 www.dimplex.com
Maintenance
 WARNING: Disconnect power
before attempting any main-
tenance or cleaning to reduce
the risk of re, electric shock or
damage to persons.
!NOTE: The replace should
not be operated with an accumu-
lation of dust or dirt on or in the
unit, as this can cause a build up
of heat and eventual damage. For
this reason the heater must be
inspected regularly, depending
upon conditions and at least at
yearly intervals.
Light Bulb Replacement
The light bulbs need to be re-
placed when you notice a dark
section of the ame or when the
clarity and detail of the log ember
bed exterior reduces. There are
three bulbs under the log set,
which generate the ames and
embers, and two bulbs above the
log that illuminate the log exterior.
Helpful Hints: It is a good idea to
replace all light bulbs at one time
if they are close to the end of their
rated life. Group replacement will
reduce the number of times you
need to open the unit to replace
light bulbs. Care must be taken
when removing the log set as the
log set contains LED’s and wires.
Lower Light Bulb Requirements
Quantity of three clear chandelier
or candelabra bulbs with an E-12
(small) socket base, 60 Watt rat-
ing. Example: GE 60BC or Philips
60 CTC. Do not exceed 60
Watts per bulb.
To access the lower light bulb
area:
CAUTION: Allow at least ve
minutes for the light bulbs to cool
before touching them to avoid ac-
cidental burning of the skin.
Lower
Bulbs
Upper
Bulbs
Trim
Front
Glass
Log set
Figure 7
Back
Ledge
Log
Ember bed
Rear
Tab Front
Edge
Side Section
Figure 8

15
1. Slide replace out of mantel.
2. Lay unit on it’s back for safe
removal of front glass.
3. Remove four Phillips screws
from the right side of trim.
4. Slide glass to right side of
replace to remove (Figure
7).
5. Pull the front edge of the
plastic ember bed or plastic
grate up and forward until the
rear tab releases from the
ledge located at the bottom
of the partially reective glass
(Figure 8).
6. Remove icker rod by slid-
ing icker rod to the left away
from the icker motor and
lifting out.
7. Remove light bracket for
easier access to light bulbs.
!IMPORTANT: Only handle the
log set by the ember bed.
!NOTE: Log set ts tightly into
rebox, some force may be nec-
essary to remove.
8. Set log set in front of re-
place.
9. Unscrew bulbs counter clock-
wise.
10. Insert new bulbs.
Maintenance
11. Replace the log set by insert-
ing the front edge of the
replace and push down on
the rear edge of the ember
bed until it snaps into place
(Figure 8).
12. Lay unit on it’s back and slide
front glass back into position
and attach trim.
!NOTE: Ensure the log set is
installed tightly under the back
ledge to prevent light leakage.
Upper Light Bulb Requirements
Quantity of two clear chandelier
or candelabra bulbs with an E-12
(small) socket base, 15 Watt rat-
ing. Do not exceed 15 Watts per
bulb.
To access the upper light bulb
area:
CAUTION: Allow at least ve
minutes for the light bulbs to cool
before touching them to avoid ac-
cidental burning of the skin.
1. Slide replace out of mantel.
2. Lay unit on it’s back for safe
removal of front glass.
3. Remove four Phillips screws
from right side of trim.
4. Remove trim.
5. Slide glass to the right side of

16 www.dimplex.com
the replace to remove.
6. Upper bulbs located in the
upper left and upper right
corners of replace.
7. Remove upper light block by
removing the four (4) mount-
ing screws.
8. Unscrew bulbs counter clock-
wise.
9. Insert new bulbs.
10. Re-install upper light bracket.
11. Lay unit on it’s back slide
front glass back into position
and attach trim.
Maintenance
Glass Cleaning
The glass is cleaned in the factory
during the assembly operation.
During shipment, installation,
handling, etc., the glass may col-
lect dust particles; these can be
removed by dusting lightly with a
clean dry cloth.
To remove ngerprints or other
marks, the glass can be cleaned
with a damp cloth. To prevent
scratching, do not use abrasive
cleaners or spray liquids on the
any surface.
Fireplace Surface Cleaning
Use a cloth dampened with warm
water only to clean painted sur-
faces of the electric replace. Do
not use abrasive cleaners.

17
Warranty
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex electric replace. This
limited warranty applies only to purchases
made in any province of Canada except
for Yukon Territory, Nunavut, or Northwest
Territories or in any of the 50 States of the
USA (and the District of Columbia) except
for Hawaii and Alaska. This limited war-
ranty applies to the original purchaser of
the product only and is not transferable.
Products excluded from this limited war-
ranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products purchased
in Yukon Territory, Nunavut, Northwest
Territories, Hawaii, or Alaska are not cov-
ered by this limited warranty. Products
purchased in these States, provinces, or
territories are sold AS IS without warranty
or condition of any kind (including, without
limitation, any implied warranties or condi-
tions of merchantability or tness for a
particular purpose) and the entire risk of
as to the quality and performance of the
products is with the purchaser, and in the
event of a defect the purchaser assumes
the entire cost of all necessary servicing
or repair.
What this limited warranty covers and for
how long
Products, other than replace surrounds
(mantels) and trims, covered by this
limited warranty have been tested and
inspected prior to shipment. Subject to
the provisions of this warranty, Dimplex
warrants such products to be free from
defects in material and workmanship for a
period of 2 years from the date of the rst
purchase of such products as follows: (a)
a repair or replacement warranty on defec-
tive products or parts, including in-home
services, for the rst year following the
date of rst purchase; and (b) thereafter, a
replacement of parts warranty on defective
products and parts (with no in-home ser-
vices) for the 1 year period commencing
on the rst anniversary of rst purchase
and ending on the second anniversary of
the date of rst purchase.
Dimplex replace surrounds (mantels) and
trims covered by this limited warranty have
been tested and inspected prior to ship-
ment and, subject to the provisions of this
warranty, Dimplex warrants such products
to be free from defects in material and
workmanship for a period of 1 year from
the date of rst purchase of such products.
Warranty services do not include in-home
services.
The limited 2 year warranty period for
products other than replace surrounds
(mantels) and trims and the limited 1 year
warranty period for replace surrounds
(mantels) and trims also applies to any
implied warranties that may exist under
applicable law. Some jurisdictions do not
allow limitations on how long an implied
warranty lasts, so the above limitation may
not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service rep-
resentatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation, im-
proper maintenance or handling, or opera-
tion with an incorrect power source.

18 www.dimplex.com
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-
7539), or 1367 Industrial Road, Cam-
bridge Ontario, Canada N1R 7G8. Please
have proof of purchase, catalogue/model
and serial numbers available when calling.
Limited warranty service requires a proof
of purchase of the product.
What Dimplex will do in the event of a
defect
In the event a product or part covered by
this limited warranty is proven to be defec-
tive in material or workmanship during (i)
the 2 year limited warranty period for prod-
ucts other than replace surrounds (man-
tels) and trims, and (ii) the 1 year limited
warranty period for surrounds (mantels)
and trims, you have the following rights:
• Limited warranty service will be per-
formed solely by dealers or service
agents of Dimplex authorized to pro-
vide limited warranty services.
• For products (other than surrounds
(mantels) and trims) for the period
ending at midnight on the rst anni-
versary of the date of rst purchase,
Dimplex will in its sole discretion either
repair or replace such defective prod-
uct or part without charge. If Dimplex
is unable to repair or replace such
product or part, or if repair or replace-
ment is not commercially practicable or
cannot be timely made, Dimplex may,
in lieu of repair or replacement, choose
to refund the purchase price for such
product or part. This limited warranty
entitles the purchaser to on-site or
in-home warranty services. Accord-
ingly, Dimplex will be responsible for all
labour and transportation costs associ-
ated with the repair or replacement of
the product or part except as follows: (i)
charges may be levied for travel costs
incurred to travel to the purchaser’s
site where the product is located if the
purchaser’s site is beyond 30 miles (48
km) from the closest service depot of
Dimplex’s dealer or service agent; and
(ii) the purchaser is solely responsible
for providing clear access to all service-
able parts of the product.
• For products (other than surrounds
(mantels) and trims) for the period
commencing at 12:01 a.m. on the
day after the rst anniversary of the
rst purchase and ending at mid-
night on the second anniversary of
the date of rst purchase,this limited
warranty entitles the purchaser to re-
placement parts only without charge. If
Dimplex is unable to replace such part,
or if replacement is not commercially
practicable or cannot be timely made,
Dimplex may, in lieu of replacement,
choose to refund the purchase price
for such part. The purchaser shall not
be entitled to on-site or in-home war-
ranty services. The purchaser shall be
responsible for all expenses incurred
for the removal of the part and installa-
tion of the replacement part including,
without limitation, all shipping costs and
transportation costs to and from the
authorized dealer’s or service agent’s
place of business and all labour costs.
Such costs shall not be the responsibil-
ity of Dimplex.
• For surrounds (mantels) and trims
for the period ending at midnight on
the rst anniversary of the date of
Warranty

19
rst purchase, Dimplex will in its sole
discretion either repair or replace such
defective surrounds (mantels) and
trims or part thereof without charge. If
Dimplex is unable to repair or replace
such product or part, or if repair or re-
placement is not commercially practica-
ble or cannot be timely made, Dimplex
may, in lieu of repair or replacement,
choose to refund the purchase price
for such product or part. The purchaser
shall not be entitled to on-site or in-
house services. The purchaser is re-
sponsible for all expenses incurred for
repair or replacement of such product
or part including, without limitation, all
shipping costs and transportation costs
to and from the authorized dealer’s or
service agent’s business and all labour
costs. Such costs shall not be the
responsibility of Dimplex.
• On-site or in-home services not
provided under this warranty may be
performed at the purchaser’s specic
request and expense at Dimplex’s
then-current rates for such services.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY. WHETHER IN CON-
TRACT, IN TORT, OR ON ANY OTHER
BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS, COST,
OR DAMAGE ARISING OUT OF OR IN
CONNECTION WITH THE SALE, MAIN-
TENANCE, USE, OR INABILITY TO USE
THE PRODUCT, EVEN IF DIMPLEX
OR ITS DIRECTORS, OFFICERS, OR
AGENTS HAVE BEEN ADVISED OF
Warranty
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE FOR
ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PUR-
CHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAM-
AGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE
PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to juris-
diction. The provisions of the United Na-
tions Convention on Contracts for the Sale
of Goods shall not apply to this limited
warranty or the sale of products covered
by this limited warranty.

20 www.dimplex.com
© 2013 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
Replacement Parts
Log set .....................................0437960100RP
Flicker Motor ................................3000240200KIT
Flicker Rod .................................5901250100RP
Heater Assembly (with Cutout) ..................2000330100RP
Thermostat .................................2300150100RP
On/Off Switch ...............................2800070700RP
3-Position Switch .............................2800070500RP
Flame Action Control w Potentiometer ............3000240500RP
Light Dimmer Control w Potentiometer ............3000250100RP
Power Cord .................................4100040200RP
Single Lamp holder (Center Lower). . . . . . . . . . . . . . . 2500150300RP
Double Lamp holder (Upper & Lower) .............2500400300RP
Partially Reective Glass .......................5901210100RP
Front Glass .................................5901220100RP
Control Knob ................................8800000200RP
Remote Control ..............................3000370600RP
Remote Control Receiver ......................3000430800RP
Trim Replacement Kit .........................9600260100RP
