INSTRUCTION MANUAL
For domestic household use only.
Huxley & Sherwood
2kW Revillusion Suites
Model: SWD20-AU, HXY20-AU
8/54150/0 Issue 7
OCN 11905

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your product for
the first time and keep them in a safe place.
• When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electrical shock and injury to persons,
including the following:
• If the appliance is damaged, check with the supplier before installation and
operation.
- Do not use outdoors.
- Do not use in the immediate surroundings of a bath, shower or a
swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface, or fix it to the
wall, as applicable.
• Do not locate the appliance immediately below a fixed socket outlet or
connection box.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Do not use this appliance in series with a thermal control, a program
controller, a timer or any other device that switches on the heat
automatically, since a fire risk exists when the appliance is accidentally
covered or dis-placed.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is only intended for INDOOR RESIDENTIAL applications only.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
cord away from traffic areas and where it will not be a tripping hazard.
• This appliance must not be used in a bathroom.
2

• Although this appliance complies with safety standards, we do not
recommend its use on deep pile carpets or on long hair type of rugs
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged it must be replaced by the manufacturer or
service agent or a similarly qualified person in order to avoid a hazard.
• Keep the supply cord away from the front of the appliance.
• Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision is
provided.
• To reduce the risk of fire, keep textiles, curtains and or flammable material a
minimum distance of 1m from the air outlet.
• In order to avoid overheating, DO NOT COVER the appliance. Do not place
material or garments on the appliance, or obstruct the air circulation around
the appliance, for instance by curtains or furniture, as this could cause
overheating and a fire risk.
• This Heater carries the warning symbol indicating that it must not
be covered.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-
out, this appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched
on and off by the utility.
• CAUTION Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and vulnerable
people are present.
• Children shall not turn on/off the appliance.
• Ensure that furniture, curtains or other combustible material are positioned
no closer than 1 metre from the appliance.
• Unplug the appliance when not required for long periods.
• Keep the supply cord away from the front of the appliance.
• This product is only suitable for well insulated rooms or occasional use.
3

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery
immediately call the 24-hour Poisons Information Centre on 13 11 26 (in
Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can
still be dangerous.
CAUTION: No obvious symptoms
Unfortunately, it is not obvious when a button or coin battery is stuck in a
child's oesophagus (food pipe).
There are no specific symptoms associated with this. The child might:
• cough, gag or drool a lot
• appear to have a stomach upset or virus
• be sick
• point to their throat or stomach
• have a pain in their abdomen, chest or throat
• be tired or lethargic
• be quieter or more clingy than usual or otherwise 'not themselves'
• lose their appetite or have a reduced appetite
• not want to eat solid food/be unable to eat solid food
These types of symptoms vary or fluctuate. with the pain increasing and then
subsiding.
A specific symptom to button and coin battery ingestion is vomiting fresh
(bright red) blood. If the child does this seek immediate help. The lack of clear
symptoms is why it is important to be vigilant with 'flat' or spare button or
coin batteries in the home and the products that contain them.
4

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension leads or
power boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
5

Model no. SWD20-AU HXY20-AU
Colour/Finish White
Wattage 2000
Heat Settings 2
Thermostat Control Y
Remote Control Y
Warranty 2 years
Dimensions (w x d x h) 1380 x 415 x 1245 1400 x 415 x 1225
Specifications
For greater precision, please always refer to the rating label placed on the product.
6

Product Dimensions
7

Operating Temperature
-20°-40°C
Fixed Wiring
In some jurisdictions this appliance is supplied without a plug. This is to comply with
local regulations. In such instances, this appliance must be installed by a suitably
qualified installer and the means for disconnection must be incorporated in the fixed
wiring in accordance to the local wiring rules.
WARNING: Electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of fire, electric shock or injury.
Note: A 10 Amp circuit is required. A dedicated circuit is preferred, but not essential
in all cases. A dedicated circuit will be required if, after installation, the circuit breaker
trips or the fuse blows on a regular basis when the heater is operating. Additional
appliances on the same circuit may exceed the current rating of the circuit breaker.
Unpacking the Unit
The unit comes packed with a protective sheet covering the front of the unit. This sheet
is intended to prevent dust and debris from entering during construction. This sheet
is designed so that it can be partially removed to complete the wiring and unpacking
and can be reinstalled until the final installation is complete.
The log set was installed on the grate and the grate permanently fixed to the firebox
at the factory.
Carefully remove the packaging from around the log set. Make sure the wires from
the log set are connected securely to the grate box.
CAUTION: The Realogs contain LEDs to create a unique pulse and glow effect. Handle
the log set carefully. They are fragile and can crack or break if dropped.
Setup
8

WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF
YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND
ON THIS PRODUCT.
WARNING: THIS APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT. THIS
RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS
RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE. DO NOT
ALLOW CHILDREN TO CLIMB ON FURNITURE. FAILURE TO DETACH THIS RESTRAINT
BEFORE MOVING FURNITURE MAY RESULT IN INJURY AND DAMAGE.
Tipping Restraint Kit
This product is provided with a 'Tipping Restraint Kit,' to prevent the product
accidentally tipping over. Fitting instructions are supplied with this kit. Please follow
these instructions carefully.
Thermal Safety Cut-out
A thermal safety cut-out is incorporated in the fan heater to prevent damage due
to overheating. This can happen if the heat outlet was restricted in any way. If the
cut-out operates, unplug the heater from the socket outlet and allow approximately
10 minutes before reconnecting. Before switching the heater back on remove any
obstruction that may be restricting the heat outlet, then continue normal operation.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-
out, this appliance must not be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly switched on and off by the utility.
Setup
Tipping restraint kit
9

WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY
RESULT IN INJURY AND/OR DAMAGE.
WARNING: The Revillusion Built-in Electric Firebox must be installed properly before
usage.
CAUTION: Except for installation and cleaning described in the manual, an authorised
service representative should perform any other servicing.
The manual controls for the Revillusion Built-in Electric Firebox are located on the
front panel. Touch an icon to activate. The selected setting displays on the left side of
the panel.
Remote control
The maximum range of use is ~ 9 metres.
WARNING: It takes time for the receiver to respond to the transmitter. Do not press
the buttons more than once within two seconds for correct operation.
NOTE: The receiver for the remote control is located in the display, aim the remote
control in this direction when inputting demands.
1. To activate the remote control remove the battery isolation strip, which is used to
ensure your remote control reaches you fully charged.
2. To replace the remote control battery, turn over the remote control, and follow the
diagram embossed on the remote control
3. Only use CR2032 size batteries.
Control Panel & Remote
A B C D E F G
10

Control Panel & Remote
To replace the battery:
1. Remove the screw, push down on the battery cover located on the back side of the
remote control. Slide the battery cover open.
2. Install 3V (CR2032) Lithium battery in the battery holder. The positive side (+) of
the battery faces up.
3. Close the battery cover and replace the screw.
Discard leaking batteries:
Dispose of batteries in the proper manner according to provincial and local regulations.
Any battery may leak electrolyte if mixed with a different battery type, if inserted
incorrectly, if all batteries are not replaced at the same time, if disposed on a fire, or if
an attempt is made to change a battery not intended to be recharged.
11

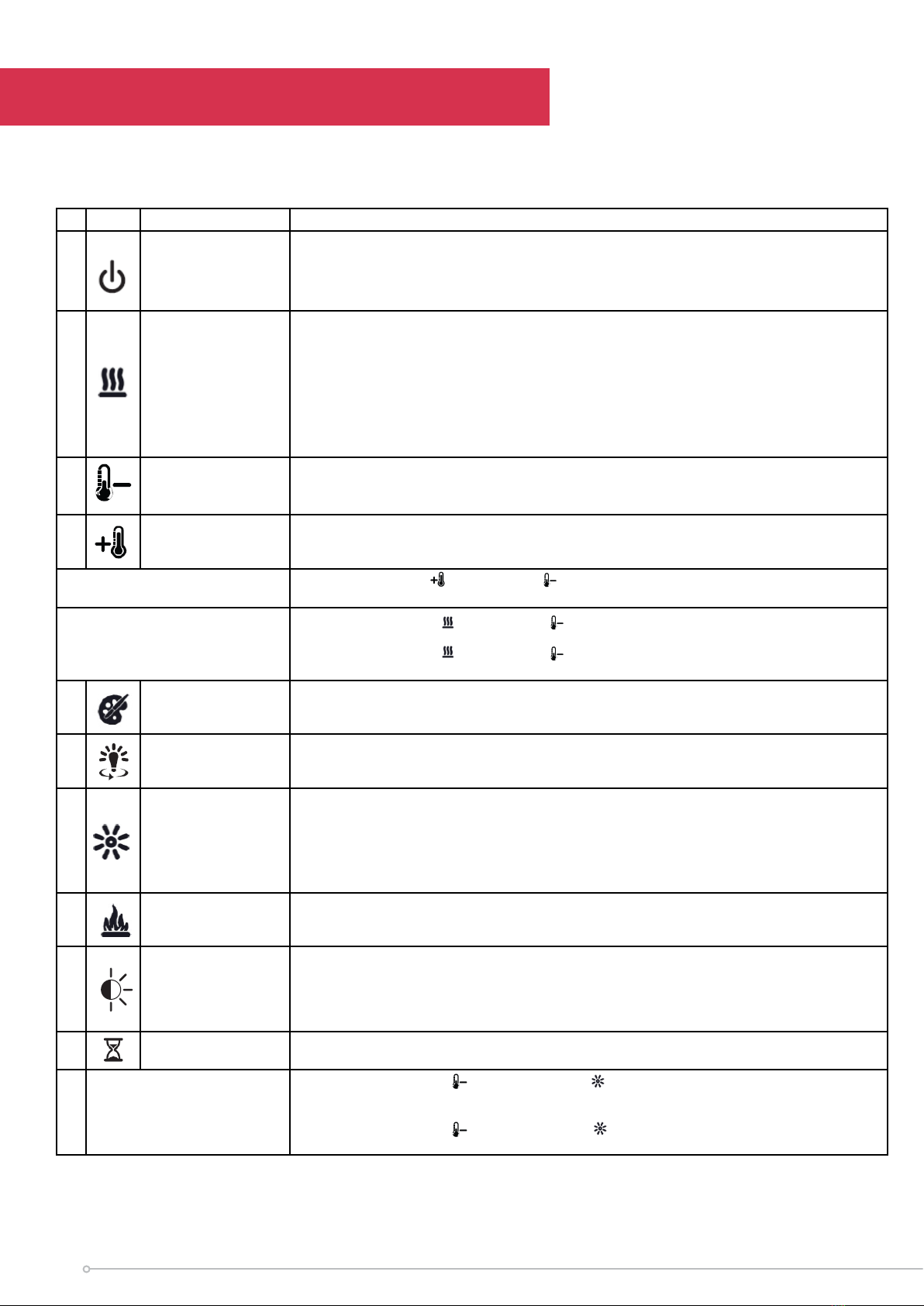

Operation
Operating Instructions
Icon Function Description
A Power/Standby
Press to turn the unit on or put it in Standby mode.
When the unit is turned back on, it will retain the previously used settings (except
timer).
B Heat
Heat On
Press to turn heat On (indicated by 1 short beep and the icon appearing on the
display). The display will show the current heater temperature setting. Use the Temp
Up/Down icon to change the heater temperature setting.
Heat Off
Press to turn heat Off (indicated by 1 short beep).
Note: After the heater is switched off, the fan will continue on for 60 seconds before
turning off.
CTemperature Down Press multiple times to lower the heater temperature in 1°F (1°C) increments. The
display will show the current temperature; the lowest temperature is 41°F (5°C). This
feature is active whenever the heat is enabled.
D Temperature Up
Press multiple times to raise the heater temperature in 1°F (1°C) increments. The display
will show the current temperature; the highest temperature is 99°F (37°C). This feature
is active whenever the heat is enabled.
Change Fahrenheit (°F) to
Celsius (°C)
Press both Temp+ ( ) and Temp- ( ) on the unit.
Heat Enable
Heat Disable
• Hold both Heat ( ) and Temp- ( ) on the unit for 2 seconds. Temperature dis-
plays on the screen.
• Hold both Heat ( ) and Temp- ( ) on the unit for 2 seconds. When the tem-
perature is adjusted "---" displays on the screen.
E Colour Themes
Press multiple times to change the flame base colours from Red-Blue-Off (The first
segment on the display will change from "r" to "b" to blank). This feature is active
only when the fame effect is on.
F 360° Light
Press multiple times to change the LEDs on the sides and back of the unit from
Midnight mode to white to yellow to red (the middle segment on the display will
change through 0-3 respectively). This feature is only active when flame is ON.
G Brightness
Press to change the LED lights from High to Low (the last segment on the display
will change from "H" to "L"). The Realog LEDs remain On when the heater is ON and
the flame effect is OFF.
Note: When the light sensor is activated, High and Low flickering brightness settings
are also available (flashing "H" and "L").
H Flame
Press to light the log set and start the fame effect. Press again to turn this feature off.
I Light Sensor
Press to activate (ALS ON) the ambient light sensor. Press again to turn the sensor
OFF (ALS OFF).
Note: The light sensor will adjust the brightness of the fireplace based on the
ambient light in the room.
J Timer Press multiple times to change the sleeper timer in 0.5 hour increments from 0.5 to 8
hours before turning off. The remaining time on the sleep timer displays.
Control Lock
Control Unlock
• Hold both Temp- ( ) and brightness ( ) on the unit for 2 seconds to disable
the manual controls.
• Hold both Temp- ( ) and Brightness ( ) on the unit for 2 seconds to enable
the manual controls.
12

User Modes:
Mode Name /Description Action (Actions cannot be input by remote control)
Change Celsius (0C) to Fahrenheit (0F) Press both Temp down ( ) and Temp up ( )
on the unit and hold until beep is heard and display
flashes. (To revert back to Celsius repeat this action)
Disable/Enable Heat Options Hold both Flame cycle ( ) and Heat cycle ( ),
on the product, for 5 seconds, when the heater has
been disabled the product will beep. This will disable
heat control functions on the product only. To enable
heat repeat this action. Note: the remote control will
still be able to operate heat functions.
Operation
13

Maintenance
Inspect the built-in firebox regularly depending on conditions and at a minimum,
yearly intervals. Remove dust and clean the logs, grate and base as required.
WARNING: Disconnect power and allow heater to cool before attempting any
maintenance or cleaning to reduce the risk of fire, electric shock or injury.
CAUTION: Except for installation and cleaning described in this manual, an authorized
service representative should perform any other servicing.
Clean Logs and Base
The built-in electric firebox set should not be operated with an accumulation of dust
or dirt on or in the firebox, as this can cause a build up of heat and eventual damage.
Dust and vacuum the firebox as needed. Use a damp cloth and a mild detergent to
clean painted surfaces of the built-in electric firebox. Never use abrasive cleaners.
Clean Reflector Screen
The reflector screen is cleaned in the factory during the assembly operation. During
shipment, installation, handling etc., the screen may collect dust particles. These can
be removed by dusting lightly with a clean dry cloth.
To remove fingerprints or other marks, clean the reflector screen with a damp cloth.
Never use abrasive cleaners. Dry the screen completely with a lint free cloth to prevent
water spots.
Cleaning
14

Recycling: Do not dispose of electrical appliances as unsorted municipal
waste. Use separate collection facilities. Contact your local government
for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances
can leak into the ground water, polluting the food chain and damaging
health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
15

Customer Care: 1300 556 816
[e-mail]
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
SWD20-AU & HXY20-AU v7
16
