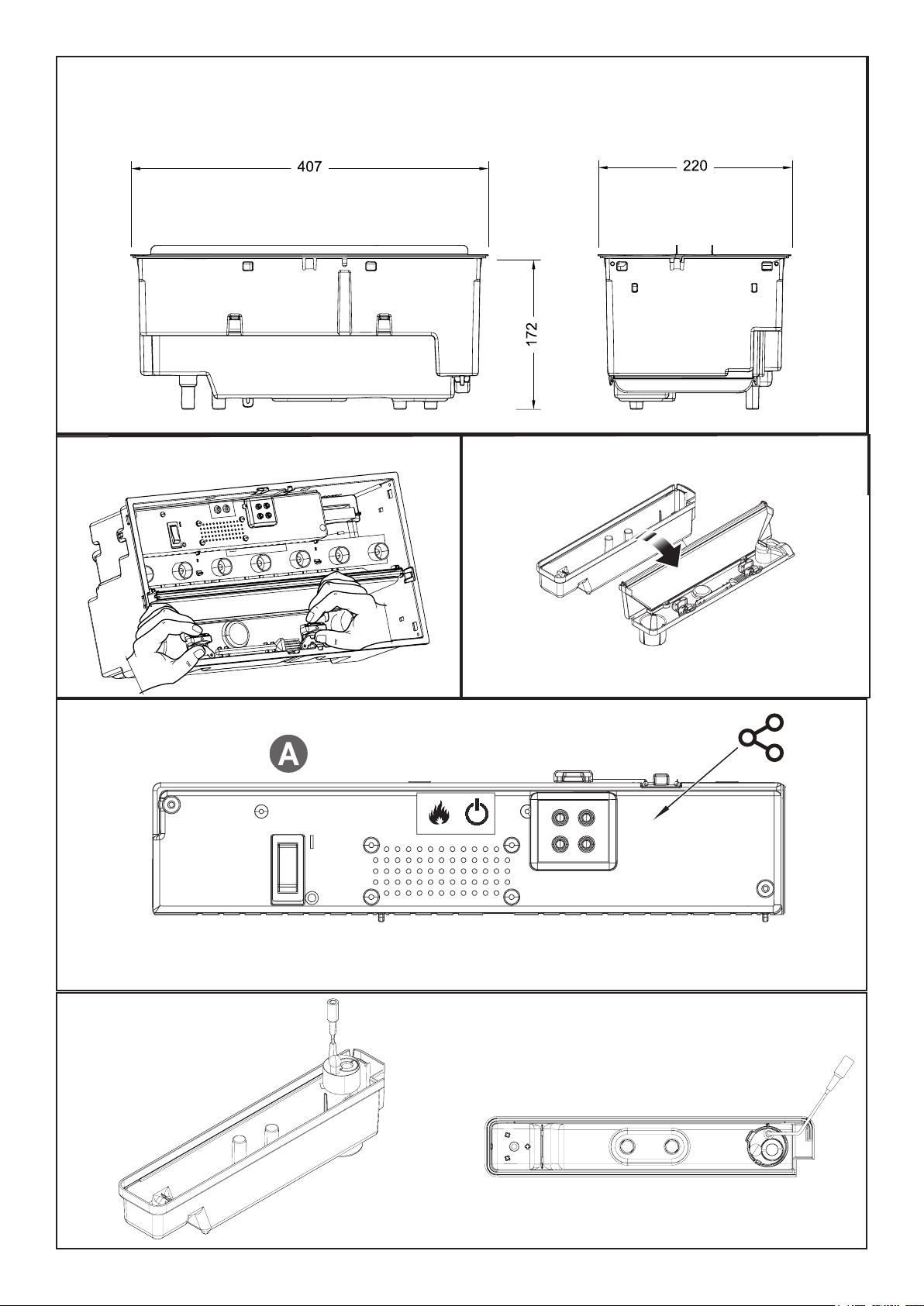

Fig. 1
Fig. 2 Fig. 3
Fig. 5
Fig. 4

Fig. 6 Fig. 7
Fig. 8
Fig. 9
A
B
C
>100cm2
>100cm 2
>100cm 2
Fig. 10

1
Dimplex OPTIMYST CAS400L
Introduction
Thank you for choosing this Dimplex electric re. Please read this information guide carefully to
be able to safely install, use and maintain your product.
Important Safety Advice
When using electrical appliances, basic precautions should always be followed to reduce the
risk of re, electrical shock and injury to persons, including the following:
1. WARNING
Do not place material or garments on, or obstruct the air circulation around the appliance.
This appliance carries a DO NOT COVER warning
2. DAMAGE
Do not use this appliance if it has been dropped
If the appliance is damaged, check with the supplier before installation and operation.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a
similarly qualied person in order to avoid a hazard.
3. LOCATION
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the re immediately below a xed socket outlet or connection box.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1
metre from the appliance.
Use this appliance on a horizontal and stable surface, or x it to a wall, if applicable.
4. PLUG POSITIONING
The appliance must be positioned so that the plug or point of isolation is accessible.
Keep the supply cord away from the front of the appliance.
5. UNPLUGGING
In the event of a fault unplug or isolate the device.
Unplug or isolate the device when not required for long periods.
6. OWNER/USER
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by Children without supervision.
Children of less than 3 years should be kept away unless continuously supervised. Children
aged from 3 years and less than 8 years shall only switch on/o the appliance provided that it
has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understanding the
hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate
and clean the appliance or perform user maintenance.
7. ELECTRCITY
WARNING - THIS APPLIANCE MUST BE EARTHED.
This appliance must be used on an AC ~ supply only and the voltage marked on the appliance
must correspond to the supply voltage. Before switching on, please read the safety advice and
operating instructions.
CAUTION - Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
WARNING - In order to avoid overheating, do not cover the appliance.
GB

2
General Information
Only use ltered water in this appliance.
Always ensure that the appliance is sitting on a level surface.
Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is
related to the operation of the ame eect. This is normal and should not be a cause for concern.
If this product experiences a power surge for whatever reason the product may cut-out. This is a normal safety feature
and the product will resume operation after 30 seconds.
Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the
sump.
The water tank, sump, sump lid, tank cap and air lters must be cleaned once every two weeks, particularly in hard
water areas.
The sump and the water tank in this product are treated with a biocidal product, Silver Biocide. This conforms with the
latest relevant ISO standard
Installation Instructions
BEFORE YOU START
1. Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible
future use e.g. in the event of moving house or returning the appliance to your supplier.
2. Before connecting to the mains supply, check that the supply voltage is the same as that stated on the appliance.
INSTALLATION
This appliance has been designed to be housed in separately designed structures – e.g. furniture, replace surrounds etc.
To incorporate this appliance into another structure, it should be securely tted, following these guidelines:
ESSENTIAL VENTING
A suitable air vent is essential to ensure that air can circulate into the appliance - otherwise the Opti-myst ame
eect will not operate correctly. A cavity of at least 100cm² is required for this air vent. This pathway for air must
not be obstructed. For examples of air vents see (Fig 10) The air vent should be free from drafts.
3. Construct an opening for the appliance LxWxH 390x205x170mm (+3-0mm)
4. Ensure that there is sucient room to thread through the mains cable
5. A cavity of at least 100cm² is required to ensure air can circulate into the appliance. - See ESSENTIAL VENTING.
6. Lower the appliance into the opening.
7. Remove the water sump, to enable access to the screw holes.
8. Screw the appliance into the structure by using suitable screws, not supplied.
Filling the Water Tank
1. Place Water Tank in sink and remove cap (turn anti-clockwise to open)
2. Fill Water Tank with ltered tap water only. This is necessary to prolong the life of the ame and smoke eect
producing unit. The water should be ltered through a conventional domestic water lter unit and the lter should
be replaced regularly. Distilled water must not be used.
3. Screw the cap back on – do not overtighten.
4. Place the Water Tank in the Sump, with the tank cap facing down and the at side of the tank facing outward
5. Place the Fuelbed on top of the Water Tank
Connect the power cable to the appropriate power connector at the back of the appliance and
Plug the power cable into a 13amp/240volt outlet. The appliance is now ready for use.

3
Operating the Fire
This section describes how to activate your re using either the manual controls or remote control.
MANUAL CONTROLS
The manual controls are located beneath the fuelbed
(See Fig.4 for Manual Control layout)
Switch‘A’:- Controls the electricity supply to the Fire.
Note: This switch must be in the‘ON’( I ) position for the Fire to operate.
Switch‘B’:- Press to turn on the ame eect. This will be indicated by an audible beep. Although the main lights
operate immediately it will take a further 30 seconds before the ame eect starts.
Press to put re in to standby mode. This will be indicated by one beep.
1
2
6
3 4
5

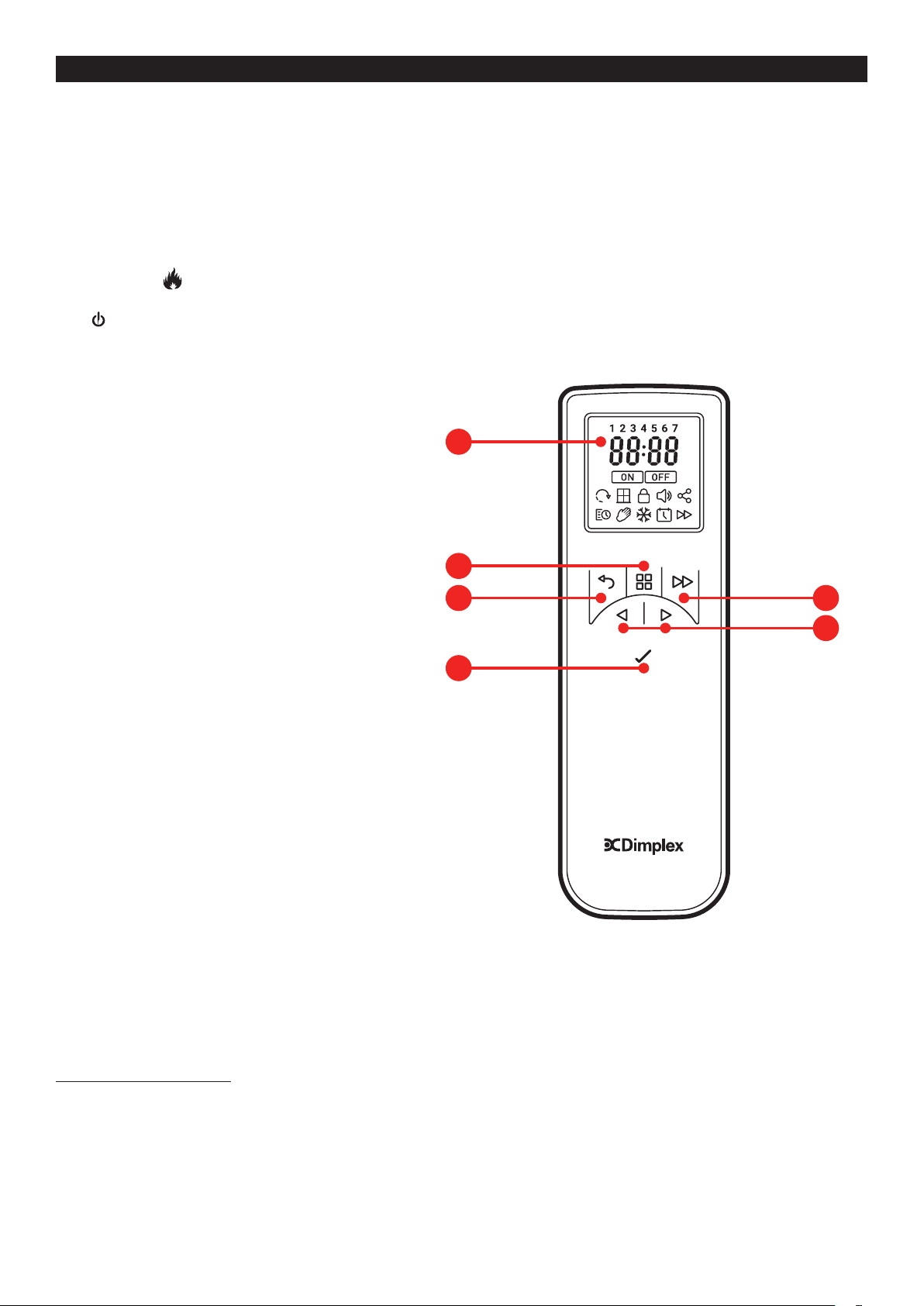

REMOTE CONTROL OPERATION
1. Display Screen
2.‘Menu’Button
3.‘Back‘ Button
4.‘Advance‘ Button
5.‘Arrow‘ Buttons
6.‘Enter‘ Button
The remote control is supplied with 2xAA batteries. Remove the battery cover from the underside of the remote control
and t them into place, taking note of the correct orientation of the batteries. Replace the battery cover, once the
batteries have been inserted. The remote control has already been paired to your product during factory assembly. In
the unlikely event that the remote control disconnects from the product, or you obtain a spare remote control, you will
need to complete the pairing process. Follow the steps below to pair the remote control to the product.
Pairing the Remote Control
Please follow the steps below to pair the remote control with the product.
1. Switch on the main switch of the product (Fig 4A). An audible beep will be heard and the product will start advertising
its Bluetooth signal for a period of 30 seconds.
2. Within this 30 second period, press and hold ‘Button 6 - Enter’ on the remote until ‘Pair’ appears on the display
(Fig A, below).
3. Bring the remote near the product and the product will begin ashing its lights and beeping. If this does not
happen, the 30 second advertising period may have elapsed. This can be started again by switching the product’s
main switch (Fig 4A) o for 15 seconds and back on again.

4
4. While the product is ashing and beeping, press ‘Button 6 - Enter’ to pair the remote to the product. When paired,
the product will stop ashing and beeping and you will be presented with the time setup screen on the remote (Fig
B, below). Please follow the steps below to set up the time and date for the remote. This is important for the correct
functioning of the 7-day 24-hour timer.
Fig A Fig B
Setting the Date and Time for the First Time
When rst setting up the remote control, you will be presented with the time and date set up screen before you can
begin to use the remote control. Follow the steps below to set up the time and date for the remote control. (Note, the
time on the remote control will be represented in the 24-hour clock format and cannot be changed.)
1. Press and hold ‘Button 6 - Enter’ on the remote until the‘00:00’is shown on the display (Fig A).
2. The rst ‘0’ of the time will be ashing. Using ‘Button 5 - Arrows’, navigate to the correct number for the rst digit
of the current time. When the correct number is ashing on the display, press‘Button 6 - Enter’.
3. Once the rst digit of the time has been set, the second ‘0’ of the time will begin to ash. Navigate to the correct
number for the second digit of the time. When the correct number is ashing on the display, press‘Button 6 - Enter’.
4. (Note, if an incorrect number is selected for a particular time digit, press ‘Button 3 - Back’ to return to the previous
digit).
5. Complete the same steps for the third and four digits of the time.
6. Once the time is set, you will be presented with the menu to set the correct date (Fig B).
7. ‘Day’ will ash on the screen for two seconds and then you will be presented with the default day gure of ‘01’.
Using the same process as above, navigate and select the correct number corresponding to the rst digit of
today’s day number in the calendar month (eg.‘3’for the 30th day of the month).
8. Complete the same steps for the second digit of today’s day number in the calendar month (eg ‘0’ for the 30th day
of the month).
9. Once the day has been set, you will be presented with the menu to set the correct month (Fig C).
10. ‘1 – 12’ will ash on the screen for two seconds and you will then be presented with the default month gure of
‘01’. Using the same process as above, navigate and select the correct number corresponding to the rst digit of
the current month number (eg. ‘0’for January to September and‘1’for October to December).
11. Once the day and month are set, ‘Year’ will ash for two seconds and you will be presented with the menu to set
the correct year (Fig D).
12. Select the correct four digits of the year using the same steps as the ones above.
13. Once the year has been set, you will be presented with the menu to select whether your region observes Daylight
Savings Time.
14. ‘DST’will be shown on the screen with a ashing‘OFF’beneath it (Fig E). Using‘Button 5 - Arrows’toggle between‘OFF’and
‘ON’and press‘Button 6 - Enter’to conrm your selection.
15. Once the date and time has been set up, you will be presented with the ‘Fire’ menu which can be used to switch
the product on (Fig F). Press‘Button 6 - Enter’to switch on the product.
If you wish to access the date and time setup menu at a later date.
1. Ensure the product is switched on and operating (ie. not in standby mode).
2. Press and hold ‘Button 6 - Enter’ on the remote until the main‘Fire’menu appears on the display (Fig G).
3. The‘O’option will be ashing on the display. Using‘Button 5 – Arrows’navigate to the Calendar Icon.
4. Once selected, follow steps 2-14 above to set the day and time.

5
Fig A Fig B Fig C Fig D
Fig E Fig F Fig G
Operating the Remote Control
Note, in order to lengthen battery life, the remote control will enter sleep mode if no button is pushed for 15 seconds.
In order to‘wake’ the remote, press and hold‘Button 6 - Enter’ for two seconds.
- Switching the Product On/O
1. When the product’s main switch (Fig 4A) is switched on, the product will be in standby mode.
2. To turn the product on using the remote control, wake the remote and select the ashing ‘On’ icon from the on-
screen menu (Fig A, below).
3. When the product is operating, you will be presented with the default home screen (Fig B, below).
4. Select the ashing ‘O’icon using‘Button 6 - Enter’ from the on-screen menu to switch the product o.
Fig A Fig B
- Setting the Flame Height
1. When on the home screen, push‘Button 5 – Arrows’to navigate up to the ‘Fire’icon at the top of the screen (Fig A).
2. When the‘Fire’icon is ashing, press‘Button 6 - Enter’to enter the ame height adjustment menu (Fig B).
3. The ame height can be adjusted from F1-F6 using the ‘Button 5 – Arrows’.
Note, once the ame height setting has been changed, the command will automatically be sent to the product and a
conrmation beep will be heard. Give the product time to react to changes you may make.
Fig A Fig B

6

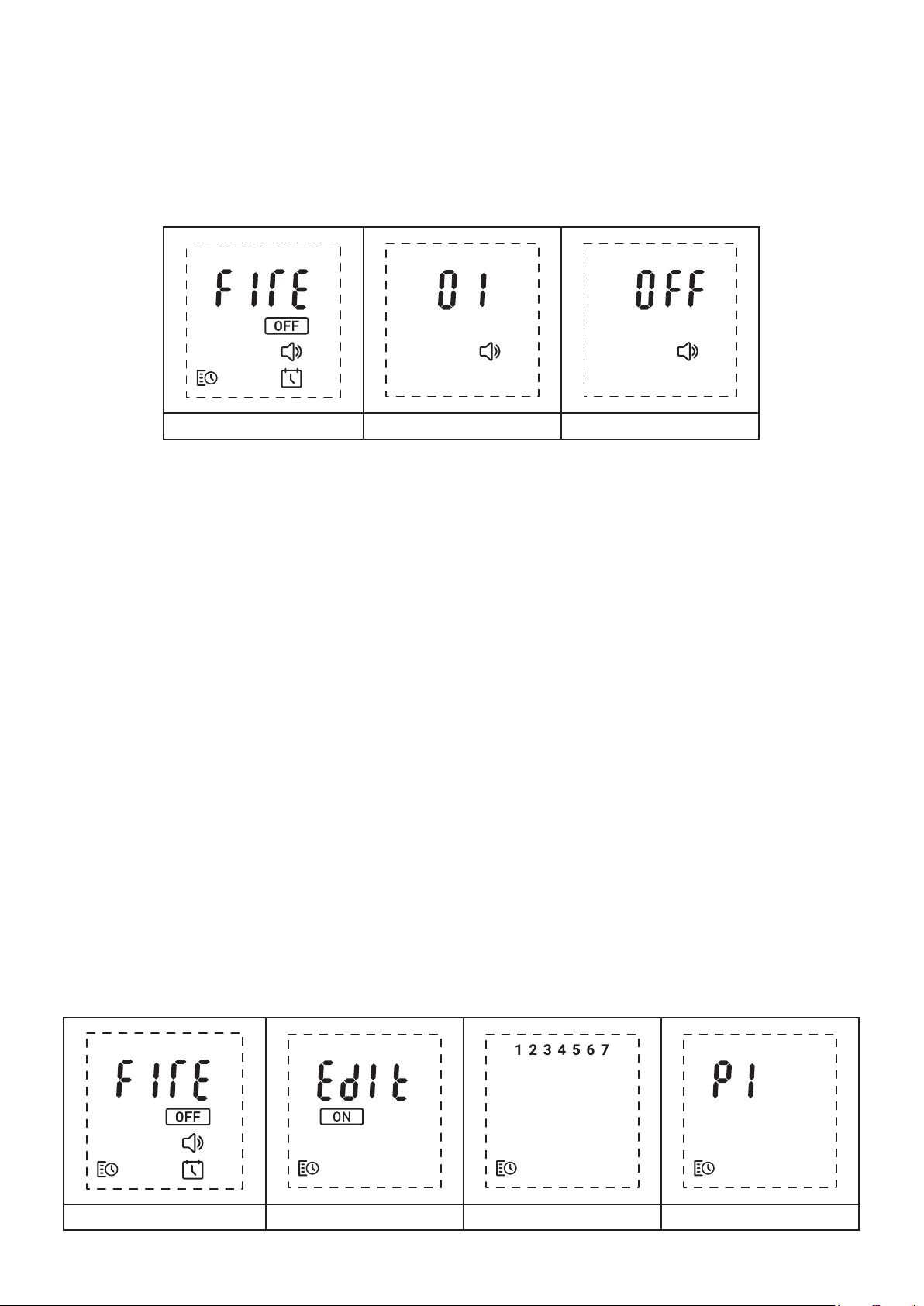

- Setting the Volume Level
1. When on the home screen, push ‘Button 5 – Arrows’ to navigate down to the Speaker icon at the bottom of the
screen (Fig A).
2. When the Speaker icon is ashing, press‘Button 6 - Enter’ to enter the volume level adjustment menu (Fig B).
3. The volume level can be adjusted from ’01 - 06’using the ‘Button 5 – Arrows’.
4. The product can be muted by pushing the left hand ‘Button 5 – Arrows’ when the volume level is at setting ‘01’.
‘O’ will display on the screen to conrm that the volume has been muted (Fig C).
Note, once the volume setting has been changed, the command will automatically be sent to the product and a
conrmation beep will be heard.
Fig A Fig B Fig C
- Setting up the 7-day timer
The product can be set up to turn on/o over four dierent time periods over seven days of the week.

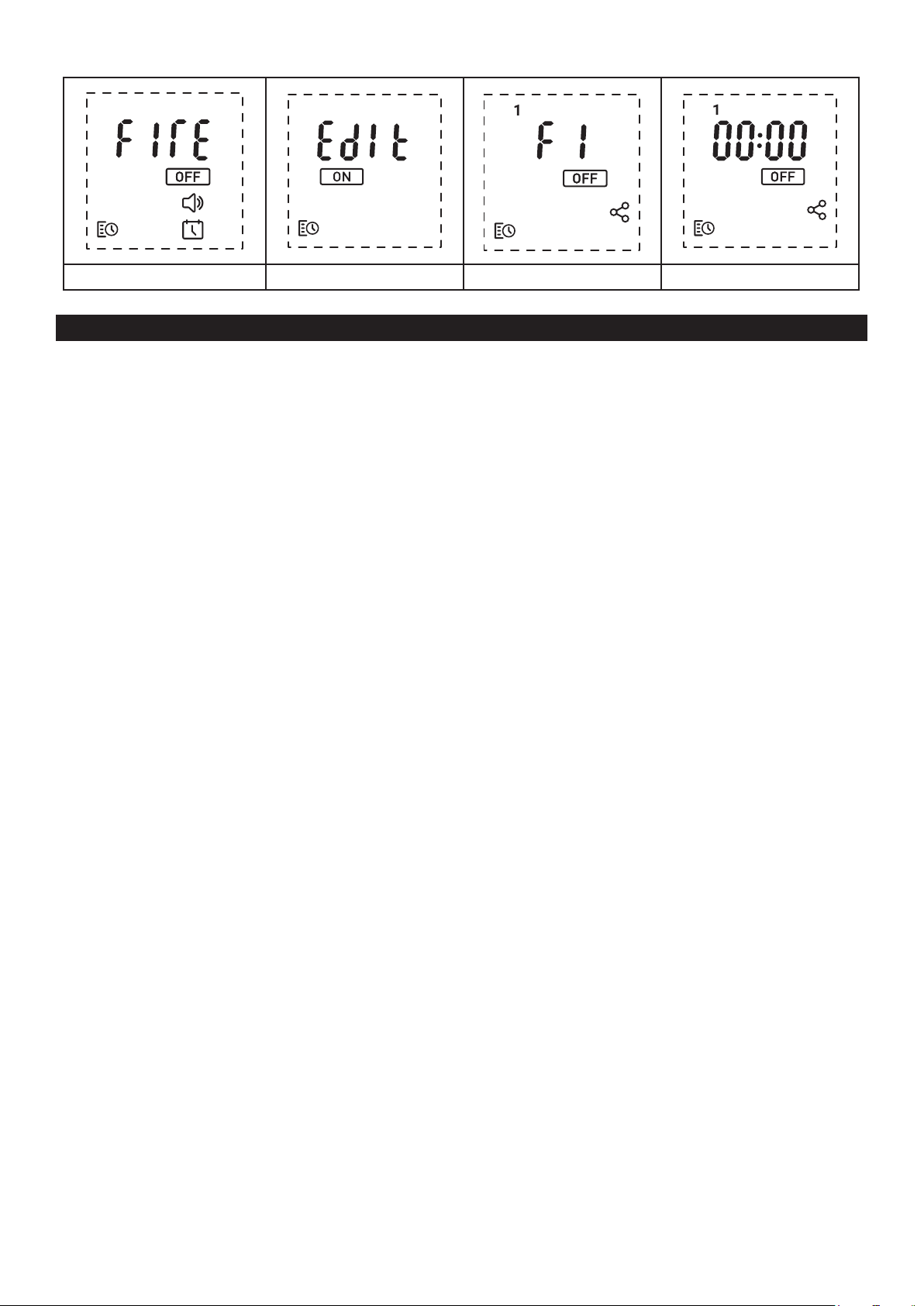

1. When on the home screen, push ‘Button 5 – Arrows’ to navigate to the Timer icon at the bottom left of the screen
(Fig A).
2. When the Timer icon is ashing, press‘Button 6 - Enter’to enter the timer menu
3. Push‘Button 5 – Arrows’to navigate to the ‘Edit’ icon at the top of the screen (Fig B).
4. You will be presented with the numbers 1-7 at the top of the screen which represent the days of the week (1=Monday,
7=Sunday) (Fig C).
5. Using‘Button 5 – Arrows’navigate to the day of the week that you want to edit.
6. When the number at the top of screen is ashing, press‘Button 6 - Enter’to edit this day.
7. You will be presented with the option to edit four time periods within that one day, P1-P4 (Fig D).
8. Using‘Button 5 – Arrows’navigate to the time period you wish to edit and press‘Button 6 - Enter’ to select it.

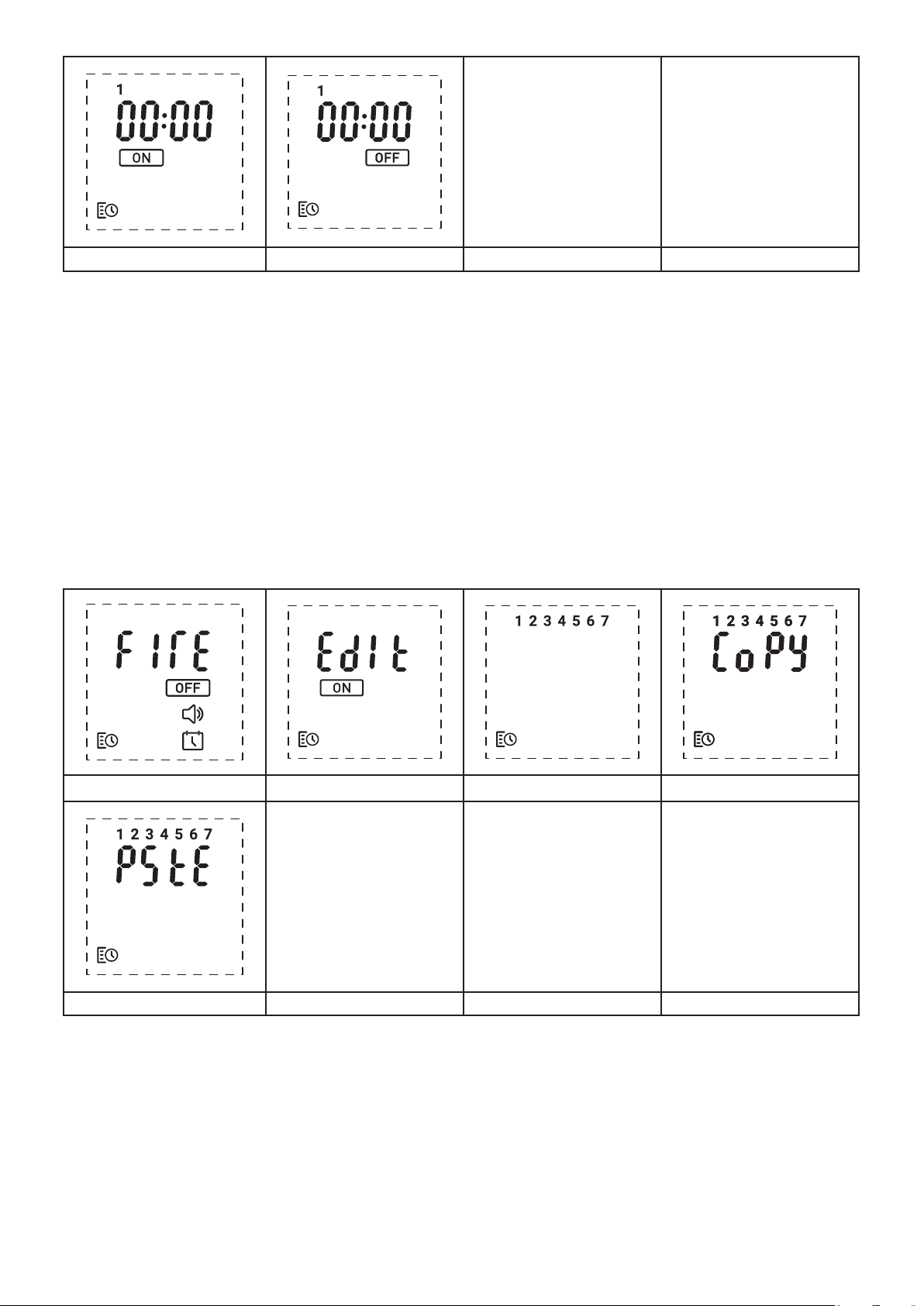

9. The rst ‘0’ of the ‘On’ time for the selected time period will be ashing (Fig E). Using ‘Button 5 – Arrows’, navigate
to the correct number for the rst digit of the ‘On’ time for the selected time period. When the correct number is
ashing on the display, press ‘Button 6 - Enter’.
10. Once the rst digit of the time has been set, the second ‘0’ of the time will begin to ash. Navigate to the correct
number for the second digit of the ‘On’ time for the selected time period. When the correct number is ashing on
the display, press ‘Button 6 - Enter’.
11. (Note, if an incorrect number is selected for a particular time digit, press ‘Button 3 - Back’ to return to the previous
digit).
12. Complete the same steps for the third and four digits of the ‘On’time for the selected time period.
13. When the four digits of the ‘On’ time for the selected time period have been set, you will be then given the option
to select the ‘O’ time for the selected time period (Fig F).
14. Repeat steps 9, 10 & 11 to set the‘O’time for the selected time period.
15. An audible beep will be heard when the‘On’and ’O’times have been written to the product’s memory.
16. Repeat steps 7-13 to set the ‘On’ and ‘O’ times for the remaining time periods for that day. If only one ‘On/O’
time period is required for a particular day, set up the single time period using above steps and leave the remaining
time periods set to ’00:00’ as both their ‘On’ and ‘O’ times. This will ensure the product will only follow the single
time period that was set up.
Fig A Fig B Fig C Fig D
