Dimplex RLG20BR User manual

Service Manual
Model
RLG20
RLG20BR
RLG20FC
RLG25
RLG25BR
RLG25FC
Part Number
6909740159
6909740400
6909740500
6909760159
6909760200
6909760300
7400950000R01
IMPORTANT SAFETY INFORMATION: Always read this manual rst before attempting to service this log grate. For your
safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or prop-
erty damage.

2 www.dimplex.com
Always use a qualied technician or service agency to repair this log grate.
!NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re, serious
injury, or death.
Operation ...........................................................3
RLG20, RLG20BR, RLG20FC, RLG25BR, RLG25FC .....................3
RLG25 ..........................................................4
Maintenance.........................................................5
Exploded Parts Diagrams
RLG20, RLG20BR, RLG20FC .......................................6
RLG25 ..........................................................7
RLG25BR, RLG25FC ..............................................8

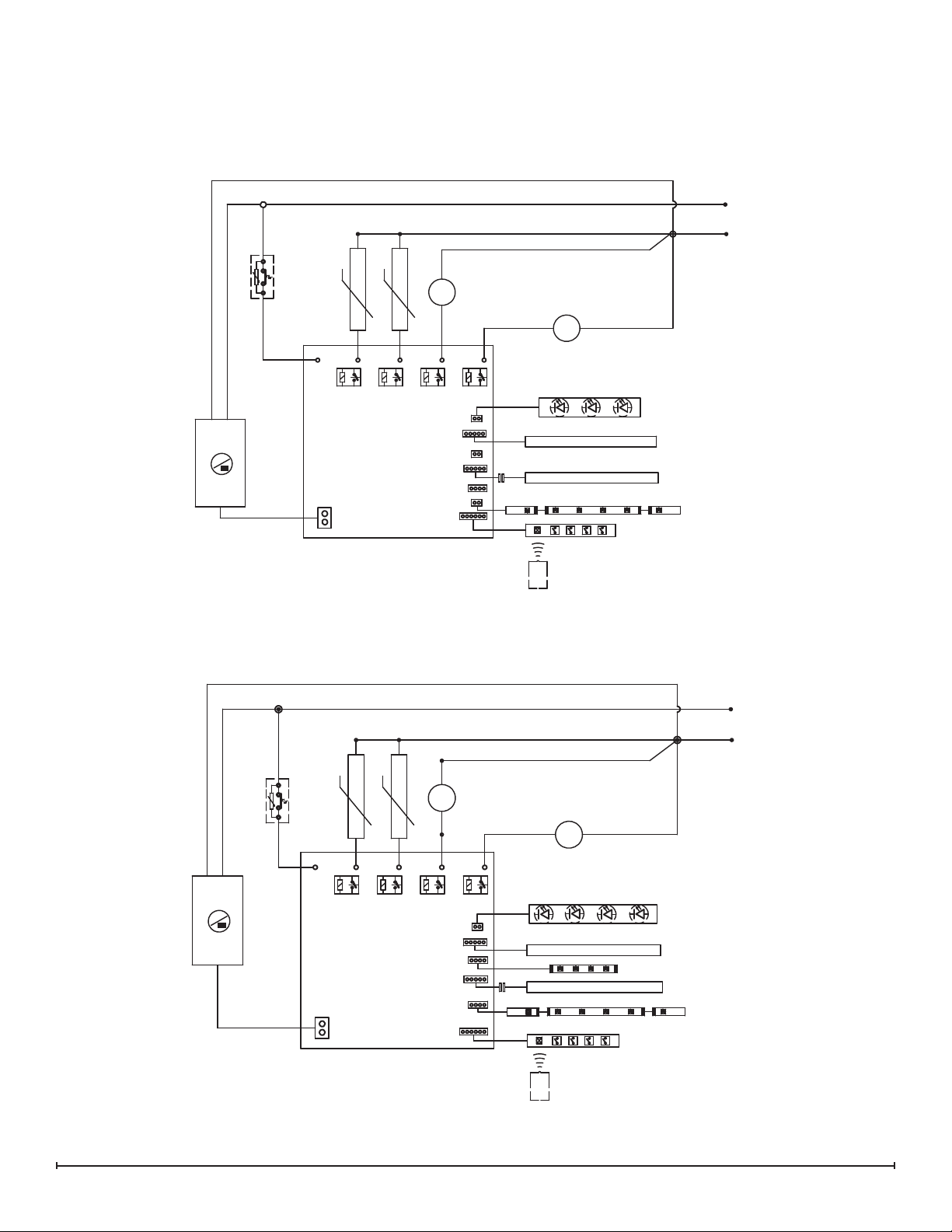

Wiring Diagram ......................................................9
RLG20 ..........................................................9
RLG25 ..........................................................9
RLG20BR, RLG20FC .............................................10
RLG25BR, RLG25FC .............................................10

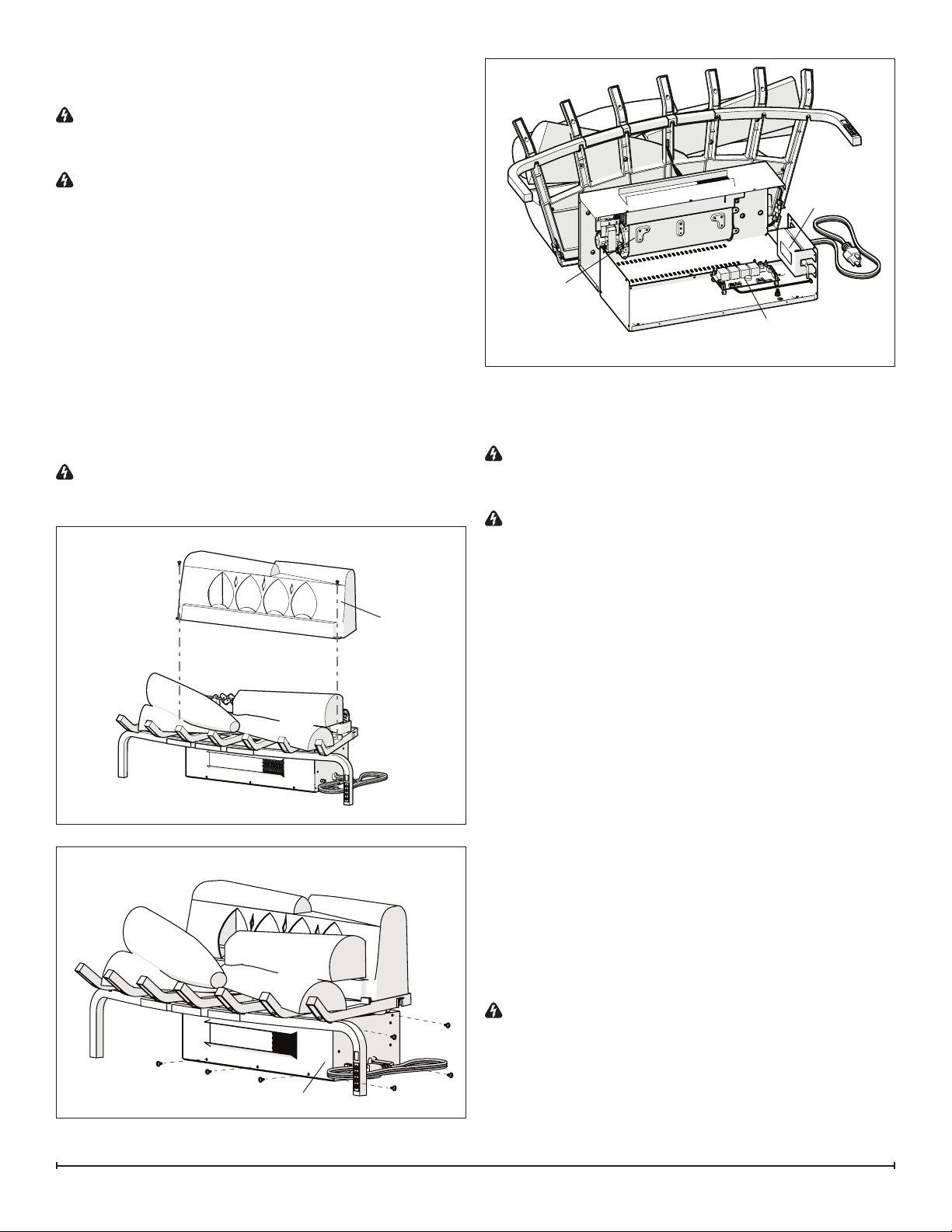

Back Log Replacement...............................................11
Log Set Replacement ................................................11
Flame LED Strip and Coloured LED Strip Replacement ....................12
Back Light Assembly Replacement.....................................12
Main Control Board Replacement ......................................12
Power Supply Replacement ...........................................13
IR Key Board Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power Cord Replacement.............................................13
Flicker Motor Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Heater Assembly Replacement ........................................14
Troubleshooting Guide ...............................................16
TABLE OF CONTENTS

3
Power
Press to activate the current standby state (On/O󰀨).
• Standby State On
Press to turn everything O󰀨. Press again to active the
previous ame e󰀨ect state.
• Standby State O󰀨
Press to activate the previous ame e󰀨ect state.
- If the ame e󰀨ect was On, the previous heat setting
will be activated (High, Low, or O󰀨).
- If the ame e󰀨ect was O󰀨, the previous heat setting
will be activated (High or Low).
Press again to turn everything O󰀨.
Flame
Press to light the back log, grate log, and ember mat
(optional), and start the ame e󰀨ect.
Heat
• Heat On
Press to set the heat to Low (indicated by 1 short
beep). Press again to set the heat to High (indicated
by 2 short beeps).
• Heat O󰀨
Press to turn heat O󰀨 (indicated by 1 long beep).
NOTE: After the heater is switched o󰀨, the fan will
continue on for 60 seconds before turning o󰀨. The log
LEDs remain On when the heater is ON and the ame
e󰀨ect is O󰀨.
360oLight
Press multiple times to change the LEDs on the
sides and back of the unit from white ickering to
white solid to O󰀨. (This feature is active only when
the ame e󰀨ect is On.)
Brightness
Press multiple times to toggle the log set LEDs
!
Operation
RLG20
Manual Control
The manual controls for the Revillusion are located on the
right-front leg of the log grate.
Power
Press to turn the ame e󰀨ect on and activate the
previous heat setting (O󰀨, Low, or High). Press again
to put the unit in standby mode.
Heat
• Heat On
Press to set the heat to Low (indicated by 1 short
beep). Press again to set the heat to High (indicated
by 2 short beeps).
• Heat O󰀨
Press to turn heat O󰀨 (indicated by 1 long beep).
NOTE: After the heater is switched o󰀨, the fan will
continue on for 60 seconds before turning o󰀨. The
log LEDs remain On when the heater is ON and the
ame e󰀨ect is O󰀨.
360oLight
Press multiple times to change the LEDs on the
sides and back of the unit from white ickering to
white solid to O󰀨. (This feature is active only when
the ame e󰀨ect is On.)
Brightness
Press multiple times to toggle the log set LEDs
through its four brightness settings.
Remote Control
The replace is supplied with a multi-function remote con-
trol.
The remote control has a range of approximately 30 ft (9
m). To operate correctly, the remote control must be pointed
toward the front of the unit.
!

4 www.dimplex.com
RLG25
Manual Control
The manual controls for the Revillusion are located on the
right-front leg of the log grate.
Power
Press to turn the ame e󰀨ect on and activate the
previous heat setting (O󰀨, Low, or High). Press again
to put the unit in standby mode.
Heat
• Heat On
Press to set the heat to Low (indicated by 1 short
beep). Press again to set the heat to High (indicated
by 2 short beeps).
• Heat O󰀨
Press to turn heat O󰀨 (indicated by 1 long beep).
NOTE: After the heater is switched o󰀨, the fan will
continue on for 60 seconds before turning o󰀨. The
log LEDs remain On when the heater is ON and the
ame e󰀨ect is O󰀨.
Color Themes
Press multiple times to change the LED lights from:
ame base yellow, ame base blue, ame base
yellow with yellow 360 LEDs, ame base blue with
360 LEDs. (Feature is active only when the ame
e󰀨ect is On.)
Brightness
Press multiple times to toggle the log set LEDs
through its four brightness settings.
Remote Control
The replace is supplied with a multi-function remote con-
trol.
The remote control has a range of approximately 30ft (9m).
To operate correctly, the remote control must be pointed
toward the front of the unit.
!
Power
Press to activate the current standby state (On/O󰀨).
• Standby State On
Press to turn everything O󰀨. Press again to active the
previous ame e󰀨ect state.
• Standby State O󰀨
Press to activate the previous ame e󰀨ect state.
- If the ame e󰀨ect was On, the previous heat setting
will be activated (High, Low, or O󰀨).
- If the ame e󰀨ect was O󰀨, the previous heat setting
will be activated (High or Low).
Press again to turn everything O󰀨.
Flame
Press to light the back log, grate log, and ember mat,
and start the ame e󰀨ect.
Heat
Heat On
Press to set the heat to Low (indicated by 1 short
beep). Press again to set the heat to High (indicated
by 2 short beeps).
• Heat O󰀨
Press to turn heat O󰀨 (indicated by 1 long beep).
NOTE: After the heater is switched o󰀨, the fan will
continue on for 60 seconds before turning o󰀨. The
log LEDs remain On when the heater is ON and the
ame e󰀨ect is O󰀨.
360oLight
Press multiple times to change the LEDs on the
sides and back of the unit from natural yellow
ickering to yellow solid to white ickering to white
solid to O󰀨. (Feature is active only when the ame
e󰀨ect is On.)
Brightness
Press multiple times to toggle the log set LEDs
through its four brightness settings.
Color Themes
Press multiple times to change the ame base colors
from Yellow to Blue to O󰀨. (Feature is active only
when the ame e󰀨ect is On.)
!

5
Operation
RLG20BR, RLG20FC, RLG25BR,
RLG25FC
Manual Control
The manual controls for the Revillusion are located on the
right-front leg of the log grate.
Power
Press to turn the ame e󰀨ect on and activate the
previous heat setting (O󰀨, Low, or High). Press again
to put the unit in standby mode.
Heat
• Heat On
Press to set the heat to Low (indicated by 1 short
beep). Press again to set the heat to High (indicated
by 2 short beeps).
• Heat O󰀨
Press to turn heat O󰀨 (indicated by 1 long beep).
NOTE: After the heater is switched o󰀨, the fan will
continue on for 60 seconds before turning o󰀨. The
log LEDs remain On when the heater is ON and the
ame e󰀨ect is O󰀨.
NOTE: The heater will only turn on when the ame
e󰀨ect is on.
360oLight
Press multiple times to change the LEDs on the
sides and back of the unit from white ickering to
white solid to O󰀨. (This feature is active only when
the ame e󰀨ect is On.)
Brightness
Press multiple times to toggle the log set LEDs
through its four brightness settings.
!
!
Remote Control
The replace is supplied with a multi-function remote con-
trol.
The remote control has a range of approximately 30 ft (9
m). To operate correctly, the remote control must be pointed
toward the front of the unit.
Power
Press to turn the ame e󰀨ect on and activate the
previous heat setting (O󰀨, Low, or High). Press again
to put the unit in standby mode.
Flame
Press to light the back log, grate log, and ember mat,
and start the ame e󰀨ect.
Heat
• Heat On
Press to set the heat to Low (indicated by 1 short
beep). Press again to set the heat to High (indicated
by 2 short beeps).
• Heat O󰀨
Press to turn heat O󰀨 (indicated by 1 long beep).
NOTE: After the heater is switched o󰀨, the fan will
continue on for 60 seconds before turning o󰀨. The
log LEDs remain On when the heater is ON and the
ame e󰀨ect is O󰀨.
NOTE: The heater will only turn on when the ame
e󰀨ect is on.
360oLight
Press multiple times to change the LEDs on the
sides and back of the unit from white ickering to
white solid to O󰀨. (This feature is active only when
the ame e󰀨ect is On.)
Brightness
Press multiple times to toggle the log set LEDs
through its four brightness settings.
!
!

6 www.dimplex.com
Maintenance
General Maintenance
Inspect the log set regularly, depending upon conditions,
and at a minimum yearly intervals. Remove dust and clean
the logs, mat, grate, and base as required.
Except for installation and cleaning described in this manu-
al, an authorized service representative should perform any
other servicing.
WARNING: Disconnect power and allow heater to cool
before attempting any maintenance or cleaning to reduce
the risk of fire, electric shock, or injury.
Clean Logs and Base
The log set should not be operated with an accumulation of
dust or dirt on or in the unit, as this can cause a build up of
heat and eventual damage.
Dust and vacuum the log set as needed. Use a damp cloth
and a mild detergent to clean painted surfaces of the fire-
place. Never use abrasive cleaners.
Clean Mirage™ Flame Panel
The Mirage™ Flame Panel is cleaned in the factory during
the assembly operation. During shipment, installation, han-
dling, etc., the screen may collect dust particles; these can
be removed by dusting lightly with a clean dry cloth.
To remove fingerprints or other marks, clean the Mirage™
Flame Panel reflector screen with a damp cloth. Never use
abrasive cleaners. Dry the screen completely with a lint free
cloth to prevent water spots.
Battery Replacement
To replace the battery:
1. Push the release tab toward the center and slide the
battery cover open.
2. Install 3V Lithium battery in the battery holder. The
positive (+) side of the battery faces up.
3. Close the battery cover.
CR2025/2032
RELEASE
OPEN
OPEN ---- OUVRIR
PUSH ---- POUSSER
RELEASE ---- DÉGAGER
Lithium Battery--Batterie au lithium
PUSH
Battery must be recycled or disposed of properly.
Check with your Local Authority or Retailer for
recycling advice in your area.

7
Exploded Parts Diagram - RLG20, RLG20BR, RLG20FC
Replacement Parts List - RLG20, RLG20BR, RLG20FC
1. Logset RLG20 ........................0441910100RP
RLG20BR. . . . . . . . . . . . . . . . . . . . . . 0442780100RP
RLG20FC . . . . . . . . . . . . . . . . . . . . . . 0442770100RP
2. Flame LED Strip RLG20. . . . . . . . . . . . . . . . . 3001760100RP
3. Back Log RLG 20. . . . . . . . . . . . . . . . . . . . . . 0441920100RP
RLG20BR .....................0442740100RP
RLG20FC .................... 0442730100RP
4. Mirage™ Flame Panel ..................5902930100RP
5. Flicker Motor. . . . . . . . . . . . . . . . . . . . . . . . . . 2000500900RP
6. Back Light Assembly ...................3001770100RP
7. Heater-Blower Assy with Cutout. . . . . . . . . . . 2203730100RP
8. Main Control Board ....................3001740100RP
RLG20BR & RLG20FC ...........3001740300RP
9. IR Key Board .........................3001750100RP
10. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2100250100RP
11. Cordset, 3-prong ......................4100190300RP
12. Remote Control .......................6700580100RP
13. Ash Mat (RLG20BR & RLG20FC) ..............REM-KIT
Accessory
14. Ash Mat ..................................REM-KIT
6
1
2
3
4
5
7
89
10
11
12

8 www.dimplex.com
Exploded Parts Diagram - RLG25
10
1
2
3
4
5
11
8
Replacement Parts List - RLG25
1. Logset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441940100RP
2. Flame LEDs, 4x1W ....................3001760200RP
3. Back Log ............................0441950100RP
4. Mirage™ Flame Panel ..................5902880100RP
5. Flicker Motor, 18RPM, CCW .............2000500900RP
6. Back Light Assembly ...................3001780100RP
7. Coloured Light Assembly (RLG25 only) .....3001570400RP
8. Heater-Blower Assy with Cutout ...........2203730100RP
9. Main Control Board ....................3001740200RP
10. IR Key Board .........................3001750100RP
11. Power Supply .........................2100250100RP
12. Cordset, 3-prong ......................4100190300RP
13. Remote Control .......................6700580200RP
14. Ash Mat ..................................REM-KIT
7
9
6
13
12
14

9
Exploded Parts Diagram RLG25BR, RLG25FC
1. Logset RLG25BR ......................0442610100RP
RLG25FC ......................0442600100RP
2. Flame LEDs, 4x1W ....................3001760200RP
3. Back Log RLG25BR ....................0442760100RP
RLG25FC ....................0442750100RP
4. Mirage™ Flame Panel ..................5902880100RP
5. Flicker Motor, 18RPM, CCW .............2000500900RP
6. Back Light Assembly ...................3001770100RP
7. Heater-Blower Assy with Cutout ...........2203730100RP
8. Main Control Board ....................3001740400RP
9. IR Key Board .........................3001750100RP
10. Power Supply .........................2100250100RP
11. Cordset, 3-prong ......................4100190300RP
12. Remote Control .......................6700580100RP
13. Ash Mat ..................................REM-KIT
Replacement Parts List - RLG25BR, RLG25FC
4
1
13
12
7
2
9
11
10
8
3
5
6

10 www.dimplex.com
Wiring Diagram
M
+T°+T°
120V / 12V
~
AC / DC
M
360 LIGHTS
IR EYE/KEY BOARD
BLOWER
MOTOR
4-7 x 0.20mA LED STRIP
4 PIECES
LOGSET ASSEMBLY
CONTROL BOARD
4-7 x 0.20mA LED STRIP
2 PIECES
CUTOUT
FLAME LIGHTS
REMOTE
N
FLICKER
MOTOR
3 x 1W LEDs
ASH MAT ASSEMBLY
6 x 0.20mA LEDs
L
120V / 12V
~
AC / DC
+T°
M
M
+T°
4-7 x 0.20mA LED STRIP
4 PIECES
BLOWER
MOTOR
LOGSET ASSEMBLY
4 x 1W LEDs
360° COLOUR LIGHTS
CONTROL BOARD
FLAME BASE COLOUR LIGHTS
FLAME LIGHTS
REMOTE
N
IR EYE/KEY BOARD
4 x 0.20mA RGB STRIP
L
6 x 0.20mA RGB HARNESS
4-7 x 0.20mA LED STRIP
2 PIECES
CUTOUT FLICKER
MOTOR
ASH MAT ASSEMBLY
RLG25
RLG20

11
M
120V / 12V
~
AC / DC
+T°
M
+T°
FLAME LIGHTS
6 x 0.20mA LEDs
L
REMOTE
3 x 1W LEDs
360 LIGHTS
FLICKER
ASH MAT ASSEMBLY
MOTOR
CONTROL BOARD
IR EYE/KEY BOARD
N
CUTOUT
4-7 x 0.20mA LED STRIP
2 PIECES
RLG20BR, RLG20FC
120V/ 12V
~
AC / DC
+T°
M
M
+T°
BLOWER
MOTOR
4 x 1W LEDs
360° LIGHTS
CONTROL BOARD
FLAME LIGHTS
REMOTE
N
IR EYE/KEY BOARD
L
6 x 0.20mA LEDs
4-7 x 0.20mA LED STRIP
2 PIECES
CUTOUT FLICKER
MOTOR
ASH MAT ASSEMBLY
RLG25BR, RLG25FC

12 www.dimplex.com
Back Log Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit (if applicable).
3. Remove the two screws at the front of the back log.
(Figure 3)
4. Install the replacement log and secure with the two
screws that were previously removed.
5. Reinstall the ame panel.
6. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
Figure 3
Figure 4
Log Set Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit.
3. Remove the 3 screws along the bottom of the front and
back of the bottom assembly and the four screws from
each corner on both ends. (Figure 4)
4. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
5. Remove the two screws in the bottom of the second
and fourth prongs of the grate to release the logs.
6. Trace the wire from the logs to the main control board
and disconnect the wire, noting the location on the
board.
7. Run the wire from the new logs, following the same
path as the wire that was removed. Attach the new wire
to the board.
8. Install the replacement logs and secure with the two
screws that were previously removed.
9. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
Back Log
Bottom Assembly
Figure 5
Blower
Assembly
Main Control
Board
Power Supply

13
Flame LED Strip and Coloured LED
Strip Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit (if applicable).
3. Remove the two screws at the front of the back log.
(Figure 3)
4. Place the back log to the side, trying not to strain the
wires (if applicable).
5. Lift the LED strip out of the holder.
6. Gently pull the connector at the end of the strip out of
the plug.
7. Connect the new LED strip to the connector and rein-
stall.
8. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
Back Light Assembly Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit (if applicable).
3. Locate the three sections of lights that are located
along the bottom edge of the grate. (Figure 6)
4. Depress each of the tabs and gently pull the light strips
forward and down to remove them from the unit.
5. Gently pull the connector at the end of the strip out of
the plug.
6. Connect the new LED strip to the connector and rein-
stall.
7. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
Main Control Board Replacement
Tools Required: Philips head screwdriver
Needle-nose pliers
Flat Head Screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit.
3. Remove the 3 screws along the bottom of the front and
back of the bottom assembly and the four screws from
each corner on both ends. (Figure 4)
4. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
5. Transfer the wire connectors from the terminals on the
original board to the same location on the replacement
board.
!NOTE: Use a at head screwdriver to gently pry
between the end of the connector and the remote control
receiver to release the wires.
6. Squeeze the mounting tabs located on the corners of
Figure 6
Flame LED
Strip
Coloured LED Strip
(RLG25 only)
Back Light
Assembly

14 www.dimplex.com
Figure 7
IR Key Board
the board with the needle-nose pliers, to release the
tabs and lift the board o󰀨.
7. Position the new board over the tabs and gently press
down to engage the tabs.
8. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
Power Supply Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit.
3. Remove the 3 screws along the bottom of the front and
back of the bottom assembly and the four screws from
each corner on both ends. (Figure 4)
4. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
5. Remove the four remaining screws from the right end
pane to release the bracket that supports the power
supply.
6. Trace the wires to the main control board and the wire
nuts and replace the old connections with the new con-
nections.
7. Reinstall the support bracket over the new power sup-
ply.
8. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
IR Key Board Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit.
3. Remove the two screws securing the IR key board to
the back side of the right leg. (Figure 7)
4. Remove the 3 screws along the bottom of the front and
back of the bottom assembly and the four screws from
each corner on both ends. (Figure 4)
5. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
6. Trace the wire from the IR key board to the main con-
trol board and disconnect the wire, noting the location
on the board.
7. Run the wire from the IR key board, following the same
path as the wire that was removed. Attach the new wire
to the board.
8. Install the replacement key board and secure with the
two screws that were previously removed.
9. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.

15
Power Cord Replacement
Tools Required: Philips head screwdriver
Needle-nose pliers
Flat Head Screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit.
3. Remove the 3 screws along the bottom of the front and
back of the bottom assembly and the four screws from
each corner on both ends. (Figure 4)
4. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
5. Follow the wiring from the power cord to the wire nuts,
removing any tie wraps and remove the connections,
taking note of the original locations.
6. Disconnect the ground wire from the screw on the bot-
tom pane.
7. With needle nosed pliers, squeeze and push the grom-
met securing the power cord out of the casing.
8. Insert the new power cord and grommet, reattaching
the wire with new tie wraps.
9. Reconnect the wires according in their original congu-
ration.
10. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
Flicker Motor Replacement
Tools Required: Philips head screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit (if applicable).
3. Remove the two screws at the front of the back log and
set it aside, ensuring that the wires are not strained (if
applicable). (Figure 3)
4. IRemove the 3 screws along the bottom of the front
and back of the bottom assembly and the four screws
from each corner on both ends. (Figure 4)
5. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
6. Remove the two screws that secure the motor support
to the base of the grate (verticle). (Figure 8)
7. Disconnect the icker rod and rubber grommet from the
icker motor.
8. Remove the two screws that secure the motor from the
motor support (horizontal). (Figure 8)
9. Trace the wires from the motor to the main control
board and disconnect the wire, noting the location on
the board.
10. Run the wire from the new motor, following the same
path as the wire that was removed. Attach the new wire
to the board.
11. Re-assemble the remainder of the log grate in reverse
order from the instructions above.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
Figure 8
Flicker Motor
Flicker Rod

16 www.dimplex.com
Figure 9
Connecting
Screws
Plastic
Spacer
Heater Assembly Replacement
Tools Required: Philips head screwdriver
Flat Head Screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for the heating elements to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Lift the ame panel from the unit and put it aside in a
safe place.
2. Remove the ember mat by disconnecting it from the
right side of the unit.
3. Remove the 3 screws along the bottom of the front and
back of the bottom assembly and the four screws from
each corner on both ends. (Figure 4)
4. Gently tilt the unit onto the back and lower the bottom
assembly so that the electrcial can be easily accessed.
5. Remove the four screws in the top assembly - two on
either end of the heater.
6. Turn the logs and log grate on its side, to the right, to
access the four screws that secure the heater assem-
bly to the top assembly.
7. On the heater assembly, there is a plastic spacer that
channels the air from the heater assembly out of the
unit, remove the two screws on either end that hold the
plastic spacer to the heater. (Figure 9)
8. Install the plastic spacer to the new heater, transfer the
wires from the old heater to the new heater and re-as-
semble the remainder of the log grate in reverse order
from the instructions above.
!NOTE: Use a at head screwdriver to gently pry
between the end of the connector and the heater assem-
bly to release the wires.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.

17
PROBLEM CAUSE SOLUTION
General
Circuit breaker trips or fuse
blows when unit is turned on
Short in unit wiring. Trace wiring in unit.
Improper circuit current rating
Additional appliances may exceed the current rating
of the circuit breaker or fuse. Plug unit into another
outlet or install unit on a dedicated 15 amp circuit.
Lights dim in room while the unit
is on
Unit is drawing close to circuit current
rating
Move the unit to another outlet or install unit on a dedi-
cated 15 amp circuit
Power cord gets warm Normal Operation The power cord may get slightly warm to the touch
when the heater is on
Defective power cord Replace power cord if cord gets hot to the touch.
Appearance
Log grate does not turn on in
Manual Mode
Improper operation Refer to cperation section
No incoming power from the electrical
wall socket Check fuse/breaker panel
Defective IR key board Replace IR key board
Defective main control board Replace main control board.
Log grate does not turn on in
Remote Mode
Improper operation Refer to operation section
Loose wiring Check wiring connections
Remote Control not working Install new battery into the remote control. Reinitialize
remote control where necessary
Defective main control board Replace main control board.
One or all logs in log set dim, not
glowing (only applicable for the
RLG20 & RLG25)
Loose connection Check wiring connections
Defective log set wiring Replace log set assembly
Ash mat dim or not glowing
Loose connection of ash mat Check wiring connections
Defective ash mat Replace ash mat
Defective main control board Replace main control board
Flame dim or not appearing
Improper operation Refer to operation section
Loose connection of ame LEDs Check wiring connections
Defective ame LED wiring Replace ame LED assembly
Defective main control board Replace main control board.
Flame Frozen Loose wiring Check wiring connections
Defective Flicker Motor Replace icker motor
Flame Shudder Defective Flicker Motor Replace icker motor
Back lighting dim or not
appearing
Improper operation Refer to operation section
Loose connection of back light LEDs Check wiring connections
Defective back light LED wiring Replace back light LED assembly
Defective main control board Replace main control board.
Colour themes dim or not ap-
pearing (only applicable for the
RLG25)
Improper operation Refer to operation section
Loose connection of coloured LEDs Check wiring connections
Defective coloured LED wiring Replace coloured LED assembly
Defective main control board Replace main control board.
Troubleshooting Guide

18 www.dimplex.com
PROBLEM CAUSE SOLUTION
Heater
Heater is not turning O󰀨 Improper operation Refer to operation section
Defective main control board Replace main control board.
Heater is not turning On
Improper operation Refer to operation section
Loose wiring Check wiring connections
Defective heater assembly Replace heater assembly
Heater is turning o󰀨 after a
couple of minutes of operation
Build up of dirt/dust in heater assembly Ensure that exterior intake louvers and log grate cavity
are free of dirt/dust.
Defective Heater Assembly Replace heater assembly
Heater emits an odor Normal Operation
Normal operation is when the heater emits an odor
for a brief period after the heater is initially turned on.
The heater is burning o󰀨 any dust accumulated during
manufacturing or operation.
Defective heater assembly Replace heater assembly
Heater fan turns on but heater
lacks heat
Improper operation Refer to operation section
Loose wiring Trace wiring in unit
Defective heater assembly Replace heater assembly
Heating element is glowing red
Normal Operation Small glowing sections of the element are considered
normal.
Defective heater assembly
If larger glowing sections are causing the heater to trip
the thermal cutout, unplug unit, discontinue use and
replace heater assembly.
Heater fan runs continuously Loose wiring Trace wiring in unit
Defective heater assembly Replace heater assembly
Noise
Excessive noise with the heater
on
Dirty heater assembly Ensure that exterior intake louvers and log grate cavity
are free of dirt/dust.
Defective heater assembly Replace heater assembly
REV PCN DATE
00 - 19-OCT-16
01 15450 17-JUL-19
1-888-346-7539 | www.dimplex.com
In keeping with our policy of continuous product improvement,
we reserve the right to make changes without notice.
© 2019 Glen Dimplex Americas
