Dimplex ELECTRALOG DF203A User manual

7209520200R01
Owner’s Manual
Model
DF203A
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied techni-
cian or service agency to repair
this stove.
!NOTE: Procedures and
techniques that are considered
important enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures and
techniques which, if not care-
fully followed, will expose the
user to the risk of re, serious
injury, or death.
Welcome & Congratulations ..........................3
IMPORTANT INSTRUCTIONS ........................4
Fireplace Installation ...............................7
Operation ........................................11
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Warranty ........................................15
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
S E R IAL No.
MODE L
MOD.

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
using this heater.
② This heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 feet (0.9 m) from the front
of the heater and keep them away
from the sides and rear.
③ Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the heater when
not in use.
⑤Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by a
reputable electrician before reus-
ing.
⑥ Do not operate any unit with
IMPORTANT INSTRUCTIONS
a damaged cord or plug, or if the
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦ Do not use outdoors.
⑧ This heater is not intended for
use in bathrooms, laundry ar-
eas and similar indoor locations.
Never locate this heater where
it may fall into a bathtub or other
water container.
⑨ Do not run cord under carpet-
ing. Do not cover cord with throw
rugs, runners, or the like. Arrange
cord away from trafc area and
where it will not be tripped over.
⑩ To disconnect heater, turn
controls to off, then remove plug
from outlet.
⑪ Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage the heater.
⑫ To prevent a possible re, do
not block air intakes or exhaust in
any manner.
⑬ All electrical heaters have
hot and arcing or sparking parts

5
SAVE THESE INSTRUCTIONS
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.
⑭ Do not modify the heater. Use
it only as described in this man-
ual. Any other use not recom-
mended by the manufacturer may
cause re, electric shock, or injury
to persons.
⑮This unit may have a polarized
plug (one blade is wider than the
other). The plug will t in a polar-
ized outlet only one way. If the
plug does not t fully in the outlet,
reverse the plug. If it still does not
t, contact a qualied electrician
to install the proper outlet.
⑯ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑰ Do not burn wood or other ma-
terials in the Compact Fireplace.
⑱ Do not strike the front glass.
⑲ Always use a certied electri-
cian should new circuits or outlets
be required.
⑳ Always use properly grounded,
fused and polarized outlets.
㉑ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
heater.
㉒When transporting or storing
the heater and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
WARNING: To avoid over-
heating, do not cover heater.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
IMPORTANT INSTRUCTIONS
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.
!NOTE: This equipment has been
tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules.These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and the receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
Operation is subject to the following
two conditions: (1) this device may
not cause interference and; (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.

7
Fireplace Installation

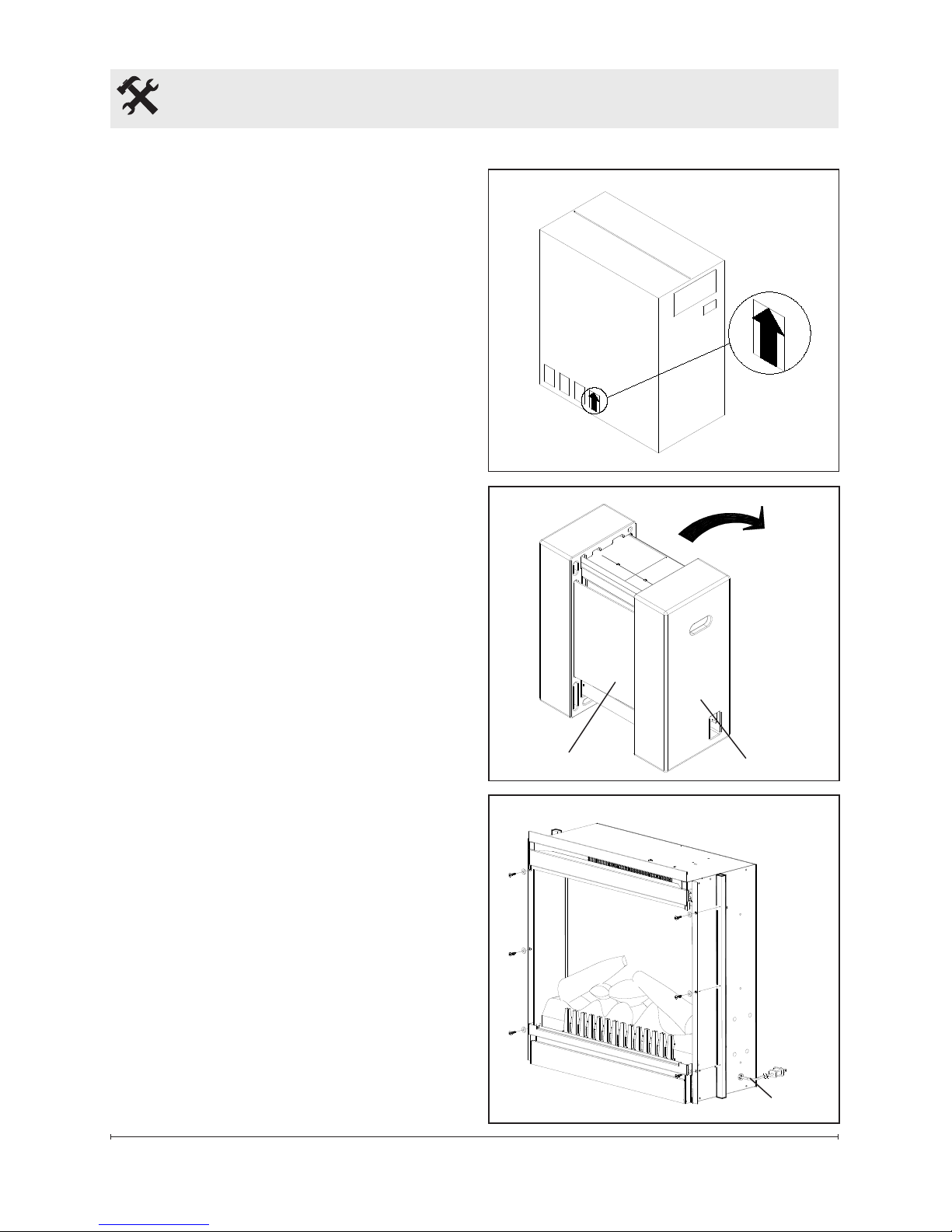

Unpacking Instructions
The replace insert is packed with
the front glass panel separated
and uninstalled from the replace.
Care must be taken to unpack the
replace so as not to damage the
front glass.
1. Stand the packaged replace
upright as indicated on the
carton (Figure 1).
2. Open the top of the carton
and locate which side the
glass is placed.
3. Remove remote control and
all plastic bags containing
hardware etc.
4. Lay carton at on a level sur-
face so that the glass panel
faces up (Figure 2).
5. Supporting the glass panel,
remove one of the styrofoam
end caps.
6. Remove glass panel from
styrofoam packaging.
7. Remove glass and replace
from all packaging and plastic
wrap.
8. Remove the temporary wood
frame from the rebox by
removing the six screws and
washers as shown in Figure
3.
Figure 2
Glass End Cap
Figure 1
Figure 3
Wood Frame

8 www.dimplex.com
!NOTE: Although the wood
frame can be discarded, the
screws and washers should be
kept to attach the rebox to a
Dimplex mantel or surround (if
applicable).
Fireplace Assembly
The only assembly required is to
place the front glass assembly
onto the replace and install hard-
ware to keep it in place.
1. With the replace laying on
a at and level surface from
Step 3 of the Unpacking
Instructions, turn the glass
retaining brackets into a verti-
cal position.
2. Place the bottom of the glass
panel onto the glass support
track located just in front of
and below the ember bed
(Figure 4A).
3. As shown in Figure 4B, lay
the top of the glass panel
into the corresponding glass
support track at the top of the
viewable replace.
4. Turn the glass retaining
brackets back into the origi-
nal position and secure them
with the supplied screws (1
per side of glass) as shown
in Figure 5. Refer to Figure 6
for an assembled view.
5. Using a at head or Philips
screwdriver, fasten screws
through chassis bracket and
into glass retaining bracket.
6. Repeat for other upper cor-
ner.
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
Figure 4 A
B
Bottom of
Fireplace
Top of
Fireplace
Fireplace Installation
Glass Retaining
Bracket

9
Figure 5
Figure 6
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
Fireplace Installation
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
CAUTION: High temperature,
risk of re, keep electrical
cords, drapery, furnishings,
and other combustibles at
least 3 ft (0.9 m) from the front
of the heater.
!NOTE: A 15amp, 120-volt cir-
cuit is required. A dedicated cir-
cuit is preferred but not essential
in all cases. A dedicated circuit
will be required if, after installa-
tion, the circuit breaker trips or
the fuse blows on a regular basis
Figure 7
x6

10 www.dimplex.com
L1
N
N
SWITCH OUT
CUTOUT THERMOSTAT
M
M
L
HEAT ON/OFF
SWITCH
LIGHT HARNESS
ASSEMBLY
FLICKER
MOTOR
CAPACITOR
BLOWER
MOTOR
ELEMENT
Fireplace Installation
when the heater is operating. Ad-
ditional appliances on the same
circuit may exceed the current
rating of the circuit breaker.
Make sure the units 3-Position
switch is switched OFF (refer to
operating instruction section).
Plug the unit into a 15 Amp/120
VAC outlet.
Mantel Installation
For use with a new or existing
mantel, insert replace as shown
in Figure 7 and anchor in place
with supplied screws.
If not installing the unit into a Dim-
plex mantel the required open-
ing dimensions of the replace
are: 20.4" (517mm) wide x 21.1"
(536mm) high.
(See Figure 8 for all dimensions)
21.9 [555]
20.4 [517]
21.1 [537]
9 [229]
21.1 [536]
22.1 [561]
Figure 8
WIRING

11
Figure 9

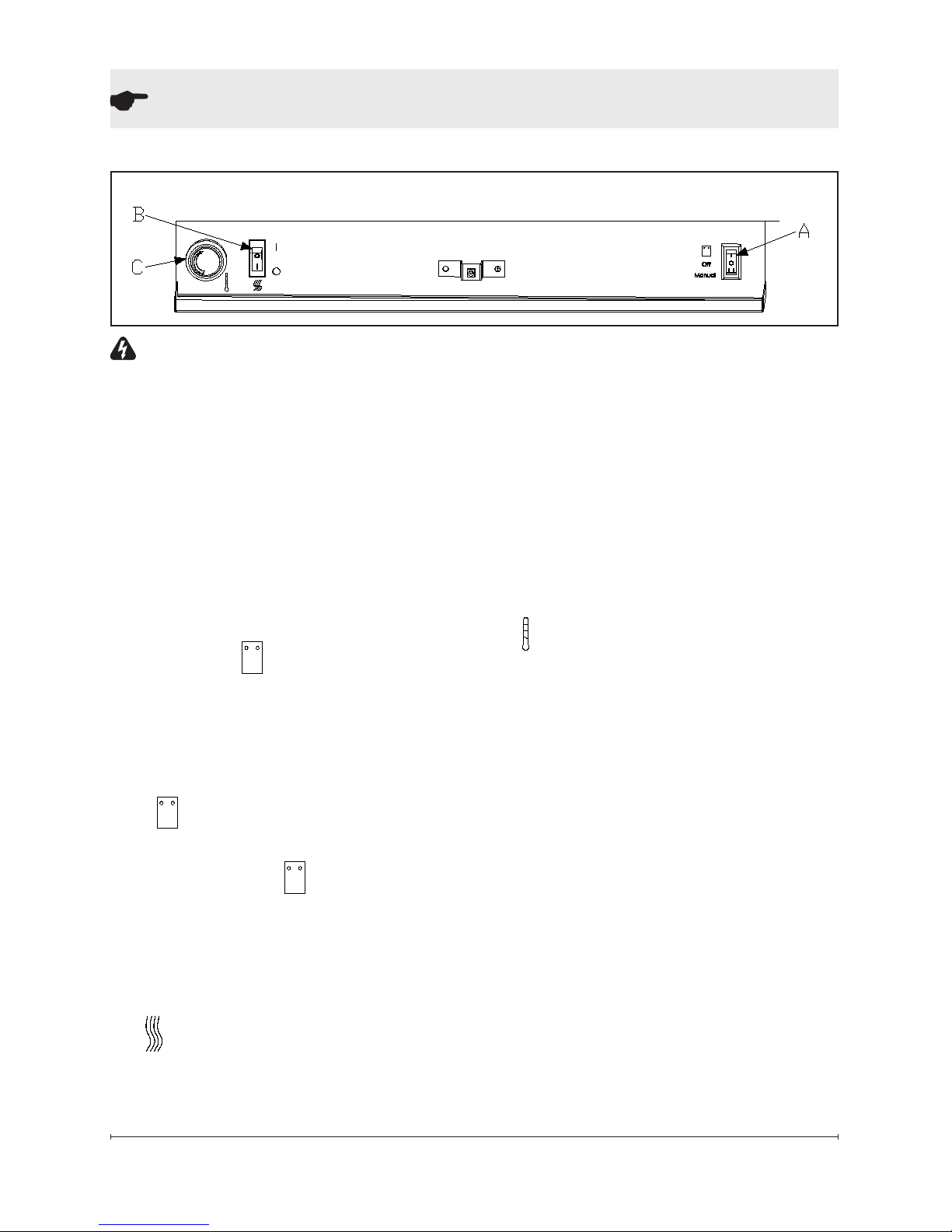

Operation
WARNING: This electric
rebox must be properly installed
before it is used.
Manual Controls
To access the controls, swing
down the front cover panel
located on the lower front of the
replace. (Figure 9)
A. 3-Position Switch
The switch has two ON positions
marked with and “Manual”.
The “Manual“ position is for
manual operation. In this posi-
tion the built-in remote control is
by-passed.
The position is for operating
the unit with the provided remote
control. When in position the
unit is operated with the ON and
OFF buttons of the remote con-
trol. When the switch is in the
center position the unit is off.
B. Heater ON/OFF Switch
The Heater ON/OFF Switch sup-
plies power to the heater fan and
the heater element. When the
switch is in the ON position the
heater operates if the thermostat
calls for heat.
!NOTE: The heater may emit
a slight, harmless odor when rst
used. This odor is a normal con-
dition caused by initial heating of
internal heater parts and will not
occur again.
C. Heater Thermostat Control
To adjust the temperature to your
individual requirements, turn the
thermostat control clockwise all
the way to turn on the heater.
When the room reaches the
desired temperature, turn the
thermostat knob counter clock-
wise until you hear a click. Leave
in this position to maintain the
room temperature at this setting.
For additional heat, turn clockwise
until you hear the click again and
the heater will turn on.
Resetting The Temperature
Cutoff Switch
Should the heater overheat, an

12 www.dimplex.com
Figure 10
Operation
automatic cut out will turn the
heater off and it will not come
back on without being reset. It
can be reset by switching the
3-Position Switch to OFF and
waiting 5 minutes before switch-
ing the unit back on.
CAUTION: If you need to con-
tinuously reset the heater, unplug
the unit and call technical support
at 1-888-346-7539.
Remote Operation
The replace is supplied with an
integrated On/Off remote control.
!NOTE: Ensure that the re-
place 3 position switch is set to
the remote control setting. To
operate, push the ON button to
turn replace on, push the OFF
button to turn the replace off.
!NOTE: Before attempting any
operation with the remote control,
pull the plastic insulator strip out
from between the remote casing
and battery cover.
Remote Control Initialization/
Reprogram
In the event that your remote
control ceases to operate your
replace, follow these steps to
reinitialize the remote control and
the remote control receiver in the
replace:
1. Place the 3-Position Switch
(Figure 9A) in the OFF (“O”)
position.
2. Wait a minimum of 5 seconds
and then place the 3-Position
Switch in the Remote Control
position.
3. Within 10 seconds of chang-
ing the switch position, press
the ON button located on the
remote control (Figure 10).
This will synchronize the re-
mote control and the replace
receiver.
!NOTE: You will have only 10
seconds to perform this last step.
Failure to do so will result in these
steps needing to be followed
again.
Off
Button
On
Button
Battery
cover
Plastic
strip

13
 WARNING: Disconnect power
and heater has cooled before
attempting any maintenance or
cleaning to reduce the risk of
re, electric shock or damage
to persons.
!NOTE: The replace should
not be operated with an accumu-
lation of dust or dirt on or in the
unit, as this can cause a build up
of heat and eventual damage. For
this reason the heater must be
inspected regularly, depending
upon conditions and at least at
yearly intervals.
Light Bulb Replacement
Light bulbs need to be replaced
when you notice a dark section of
the ame or when the clarity and
detail of the log exterior disap-
pears. There are two bulbs under
the log set which generate the
Operation
Battery Replacement
To replace the battery:
1. Slide battery cover open on
the remote control (Figure 10).
2. Correctly install one 12 Volt
(A23) battery in the battery
holder.
ames and embers.
Helpful Hints: It is a good idea to
replace all light bulbs at one time
if they are close to the end of their
rated life. Group replacement will
reduce the number of times you
need to open the unit to replace
light bulbs.
Bulb Requirements
Quantity of 2 clear chandelier or
candelabra bulbs with an J-12
(small) socket base, 60 watt rat-
ing. Example GE 60BC or Philips
60 CTC. Do not exceed 60 Watt
per bulb.
To Replace The Light Bulbs
CAUTION: Allow at least 5
minutes for light bulbs to cool off
before touching bulbs to avoid ac-
cidental burning of skin.
1. Unplug the unit from power
outlet.
Maintenance
3. Close the battery cover.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area

14 www.dimplex.com
2. On the back of the Compact
Fireplace remove the screws
from the light access cover
(Figure 11)
3. Remove the light access
cover.
4. Reach into the opening,
locate and examine the bulbs
to determine which bulb(s)
require replacement.
5. Unscrew the bulb(s) counter
clockwise.
6. Insert new bulb(s).
7. Install the light access cover
and install the screws.
Glass Cleaning
The glass is cleaned in the factory
during the assembly operation.
During shipment, installation, han-
dling, etc., the front glass panel
may collect dust particles; these
can be removed by dusting lightly
with a clean dry cloth.
To remove ngerprints or other
marks, the front glass panel can
be cleaned with a damp cloth.
The front glass panel should be
completely dried with a lint free
cloth to prevent water spots. To
prevent scratching, do not use
abrasive cleaners or spray liquids
on the clear door surface.
Compact Fireplace Surface
Cleaning
Use warm water only to clean
painted surfaces of the Compact
Fireplace. Do not use abrasive
cleaners.
Servicing
Except for light bulb replacement
and cleaning described above, an
authorized service representative
should perform any other servicing.
Maintenance
Figure 11
Light Bulbs
Screws
Light Access
Cover

15
One Year Limited Warranty
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex electric compact
replace. This limited warranty applies
only to purchases made in any province
of Canada except for Yukon Territory,
Nunavut, or Northwest Territories or in
any of the 50 States of the USA (and the
District of Columbia) except for Hawaii
and Alaska. This limited warranty applies
to the original purchaser of the product
only and is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited
warranty and are the sole responsibil-
ity of the owner/purchaser. Products
purchased in Yukon Territory, Nunavut,
Northwest Territories, Hawaii, or Alaska
are not covered by this limited warranty.
Products purchased in these States,
provinces, or territories are sold AS IS
without warranty or condition of any kind
(including, without limitation, any implied
warranties or conditions of merchant-
ability or tness for a particular purpose)
and the entire risk of as to the quality and
performance of the products is with the
purchaser, and in the event of a defect
the purchaser assumes the entire cost of
all necessary servicing or repair.
What this limited warranty covers and for
how long
Products covered by this limited warranty
have been tested and inspected prior to
shipment and, subject to the provisions
of this warranty, Dimplex warrants such
products to be free from defects in mate-
rial and workmanship for a period of 12
months from the date of the rst purchase
of such product.
The limited 12 month warranty period also
applies to any implied warranties that may
exist under applicable law. Some jurisdic-
tions do not allow limitations on how long
an implied warranty lasts, so the above
limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service rep-
resentatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention
of Dimplex Technical Service by contact-
ing Dimplex at 1-888-346-7539, or 1367
Industrial Road, Cambridge Ontario,
Canada N1R 7G8. Please have proof
of purchase, catalogue/model and serial
numbers available when calling. Limited
warranty service requires a proof of pur-
chase of the product.
What Dimplex will do in the event of a
defect
In the event a product or part covered by
this limited warranty is proven to be defec-
tive in material or workmanship during the
12 month limited warranty period you have
the following rights:
• Dimplex will in its sole discretion either
repair or replace such defective prod-
uct or part without charge. If Dimplex
is unable to repair or replace such
product or part, or if repair or replace-
Warranty

16 www.dimplex.com
ment is not commercially practicable
or cannot be timely made, Dimplex
may, in lieu of repair or replacement,
choose to refund the purchase price
for such product or part.
• Limited warranty service will be
performed solely by dealers or service
agents of Dimplex authorized to pro-
vide limited warranty services.
• The purchaser is responsible for
removal and transportation of such
product or part (and any repaired or
replacement product or part) to and
from the authorized dealer’s or service
agent’s place of business.
• This limited warranty does not entitle
the purchaser to on-site or in-home
services. On-site or in-home services
may be performed at the purchaser’s
specic request and expense at
Dimplex’s then-current rates for such
services.
• Dimplex will not be responsible for,
and the limited warranty services shall
not include, any expense incurred for
installation or removal of the product
or part (or any replacement product
or part) or any labour or transporta-
tion costs. Such costs shall be the
purchaser’s responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY, WHETHER IN CON-
TRACT, IN TORT, OR ON ANY OTHER
BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS, COST,
OR DAMAGE ARISING OUT OF OR
IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO
USE THE PRODUCT, EVEN IF DIMPLEX
OR ITS DIRECTORS, OFFICERS, OR
AGENTS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE FOR
ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PUR-
CHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT AL-
LOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to
jurisdiction. The provisions of the United
Nations Convention on Contracts for
the Sale of Goods shall not apply to this
limited warranty or the sale of products
covered by this limited warranty.
Warranty

17
Replacement Parts
© 2013 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
Log Set Assembly ............................ 0487550100RP
Flicker Motor ................................ 2000220100RP
Heater Assembly (with Cutout) .................. 2200490800RP
Thermostat ................................. 2300150100RP
3 Position Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2800071100RP
Heater On/Off Switch. . . . . . . . . . . . . . . . . . . . . . . . . . 2800070200RP
Capacitor ................................... 3200030100RP
Cord Set ................................... 4100090100RP
Flicker Rod ................................. 5900340100RP
Partially Reective Glass ....................... 5900620100RP
Front Glass ................................. 5900420100RP
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000370800RP
Remote Control Reciever . . . . . . . . . . . . . . . . . . . . . . . . 3000380200RP
Thermostat Knob. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8800000600RP
Light Wire Harness ........................... 2500170300RP
