Owner’s Manual
Model
XLF60

2 www.dimplex.com
Table of Contents
Always use a qualied technician or
service agency to repair this replace.
!NOTE: Procedures and techniques
that are considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures and
techniques which, if not carefully
followed, will expose the user to the
risk of re, serious injury, or death.
Welcome & Congratulations ...................... 3
IMPORTANT INSTRUCTIONS .....................4
Quick Reference Guide ......................... 6
Fireplace Installation ........................... 7
Framing ..............................................7
Permanent Heat Disable ................................9
Electrical ............................................10
Bathroom Use ........................................13
Final Assembly .......................................13

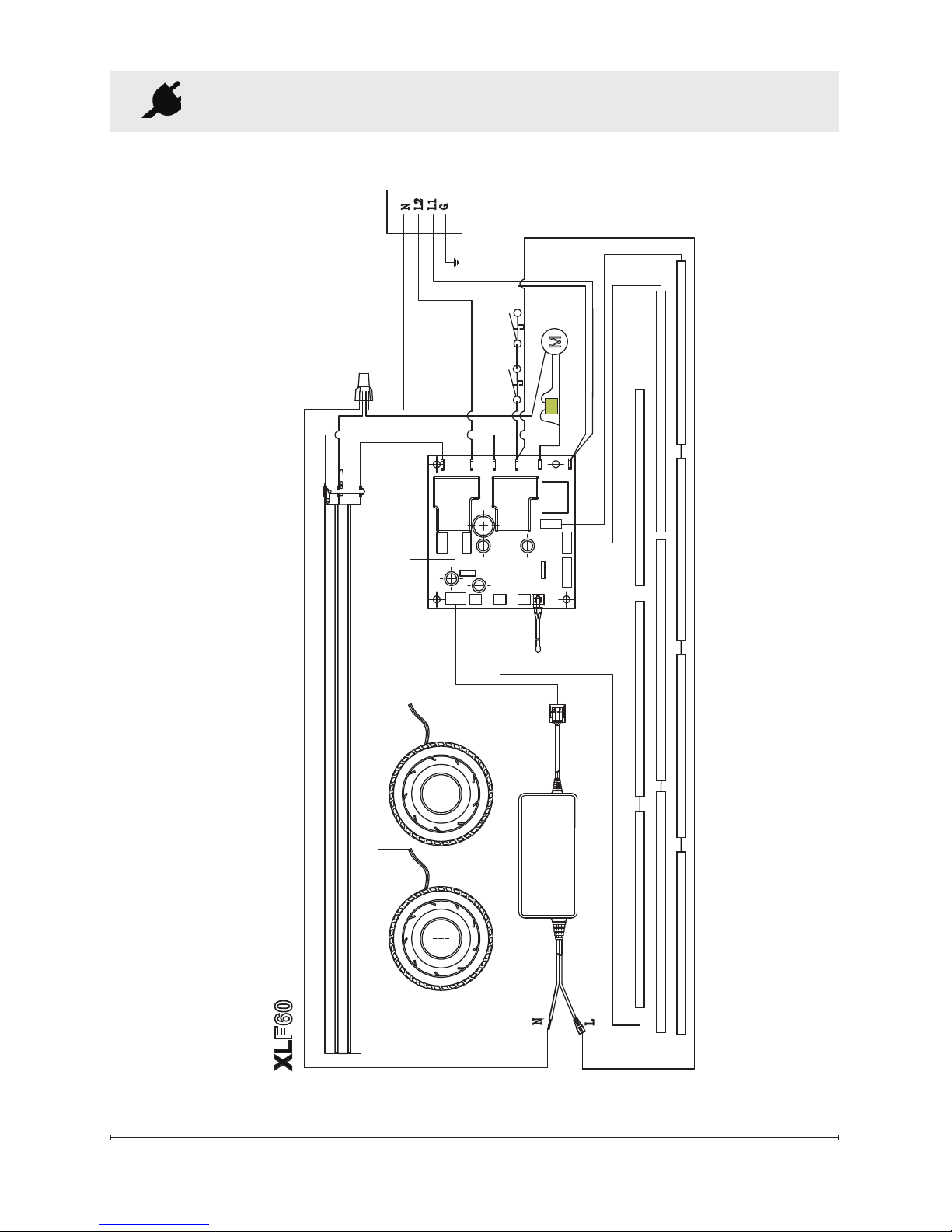

Wiring Diagram ............................... 16
Operation ................................... 17
Maintenance ................................. 22
Warranty .................................... 23
Technical Support ............................. 25

3
Welcome & Congratulations
Thank you and congratulations for purchasing an electric replace from
Dimplex. Please use our convenient online registration page to record
your model and serial numbers for future reference at
www.dimplex.com/register
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
In order to better serve you, please have your model and serial number
ready or register your product online before calling (See above)
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in
a possible electric shock, re hazard and will void the warranty.
Model and Serial
Number Label

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
installing or using this electric
replace.
② This replace is hot when in
use. To avoid burns, do not let
bare skin touch hot surfaces.
The trim around the heater outlet
becomes hot during heater
operation.
DANGER: High temperatures
may be generated under
certain abnormal conditions.
Do not partially or fully cover
or obstruct the front of this
heater.
③Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④Young children should be
supervised to ensure that they do
not play with the appliance.
⑤ The appliance is not intended
for use by young children
or inrmed persons without
supervision.
IMPORTANT INSTRUCTIONS
⑥Do not operate the unit after
it malfunctions. Disconnect power
at the service panel and contact
Dimplex Technical Service for
service 1-888-346-7539.
⑦ Do not use outdoors.
⑧Never locate replace where
it may fall into a bathtub or other
water container.
⑨ To disconnect the replace,
turn the controls off, then
disconnect the circuit at the main
disconnect panel.
⑩ Do not locate the heater
immediately below a xed socket-
outlet.
⑪Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible fire, do
not block air intakes or exhaust in
any manner.
⑬ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.

5
SAVE THESE INSTRUCTIONS
⑭Use this heater only as
described in this manual. Any
other use not recommended by
the manufacturer may cause re,
electric shock or injury to persons.
⑮Do not burn wood or other
materials in the electric replace.
⑯ Do not strike the replace
glass.
⑰ Always use a certied
electrician should new circuits be
required.
⑱ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
⑲When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
WARNING: Remote control
contains small batteries.
Keep away from children.
If swallowed, seek medical
attention immediately.
WARNING: Do not install
battery backwards, charge, put
in re or mix with used or other
battery types - may explode or
leak causing injury.
!NOTE: Changes or
modications not expressly
approved by the party
responsible for compliance
could void user's authority to
operate the equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICABLE PARTS INSIDE
IMPORTANT INSTRUCTIONS

6 www.dimplex.com
Quick Reference Guide

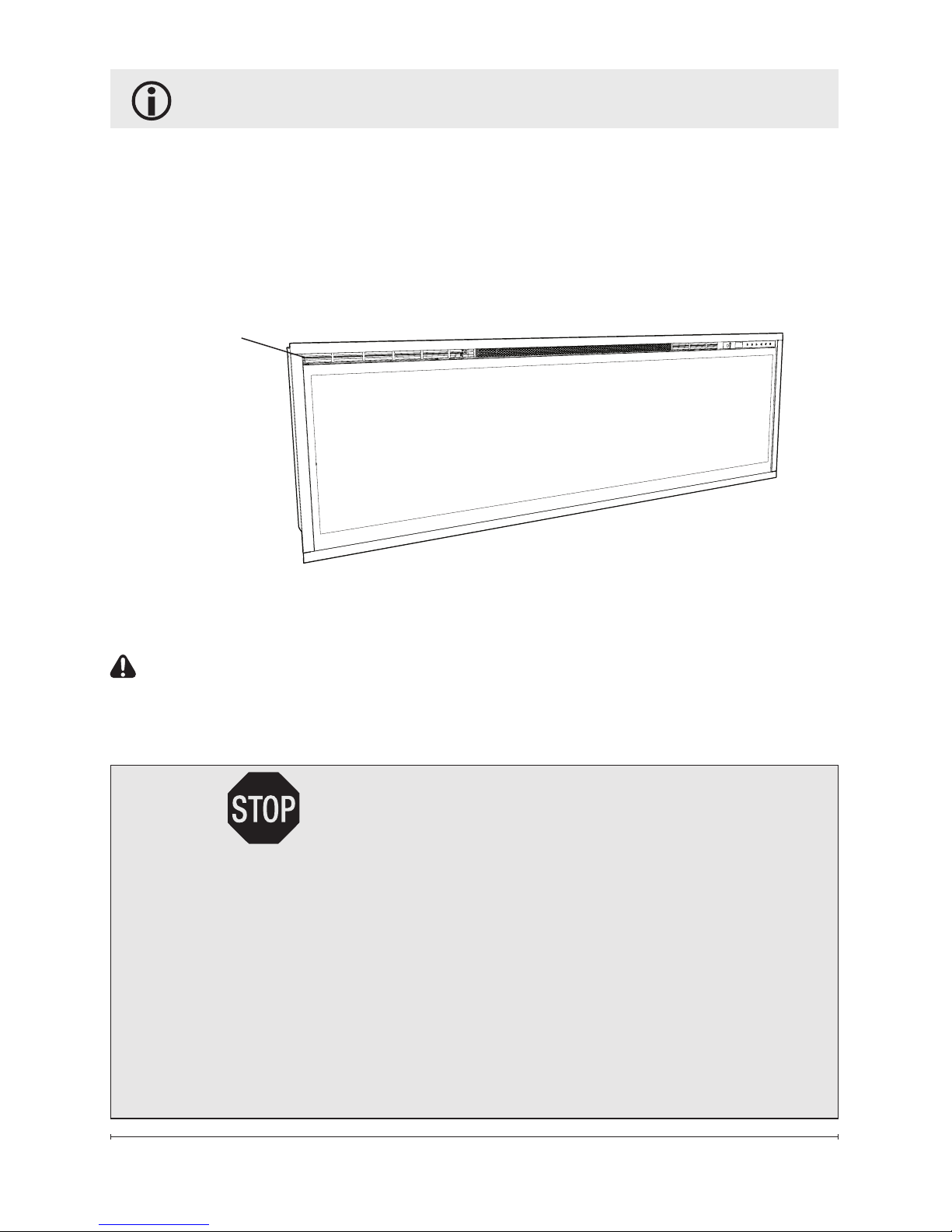

Figure 1
1. The electrical information
regarding your electric replace
can be found on the rating label
located on the top of the unit.
Please use our convenient online
registration page to record your
model and serial numbers for future
reference at:
www.dimplex.com/register
2. If you have any technical
questions or concerns regarding
the operation of your electric
replace, or require service
contact customer service at
1-888-346-7539.
3. For dimensions of your
replace, refer to Figure 1.
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
XLF60 60.31 in [1532 mm]
XLF60 61.41 in [1560 mm]

7
CAUTION: Ensure installation
does not allow replace to be
in direct contact with building
vapor barrier or insulation and
meets all local building code.
!
NOTE: A dedicated, properly
fused 15 Amp circuit is required,
rated for the appropriate voltage
(120V, 240V).
WARNING: Construction
and wiring must comply with
local building codes and other
applicable regulations to
reduce the risk of re, electric
shock and injury to persons.
WARNING: To reduce the risk
of re, electric shock or injury to
persons, always use a licensed
electrician.
WARNING: To reduce the
risk of re, do not store
or use gasoline or other
ammable vapors or liquids
in the vicinity of the heater.
1. Select a location that is
not susceptible to moisture
and is away from drapes,
furniture and high trafc.
2. Unpack the replace and
hardware from the box.
Fireplace Installation
!NOTE: Leave the front glass
and partially reective glass,
safely, in the box until the time
you are ready to install it.
3. Store the replace in a safe, dry
and dust free location until you
are ready to install the replace.
Framing
CAUTION: Two people will be
required for various steps of this
procedure.
This design of this unit allows
three options for installation:
partial recess, ush mounted or
sub-surface mounted.
2” x 6”
5 1/2" (14.0 cm)
16"
(40.6 cm)
2” x 4”
3 1/2" (9.0 cm)
XLF60: 60 5/8" (154.0 cm)
Figure 2

8 www.dimplex.com
Fireplace Installation (continued)
CAUTION: Sub-surface
mounting should be limited
to ½ in. (10 mm) to ensure
adequate air ow of heated air
out of the rebox area.
To frame the replace:
1. Prepare a wall with a framed
opening of 16 in. (40.6 cm)
high, 60 ⅝ in. (154.0 cm) wide,
with a bottom sill that is a
minimum of 3.5 in. (9.0 cm)
deep (Figure 2). The sill can
be constructed to support the
front of the unit to allow the
power supply wires to easily
be run behind or ush with the
back of the unit and a pass
thru hole drilled for electrical
wire routing.
WARNING: The top of the
replace is to be a minimum of
8 in (20.4 cm) from the ceiling.
!NOTE: It is recommended
that the bottom of the unit be
mounted between 30 in. (76.2
cm) and 40 in. (101.6 cm)
from the ground to maintain an
optimized viewing angle of the
ame.
WARNING: Do not attempt
to wire your own new circuits.
To reduce the risk of re,
electric shock or injury to
persons, always use a licensed
electrician.
WARNING: Ensure that the
circuit on which the replace is
to be installed has the power
cut off at the service panel
until installation is complete.
2. The unit is provided with an
installed ¾ in. (2.0 cm) trim.
Depending on the installation,
this trim can be removed by
removing the securing screws
and the 4 trim pieces.
3. Ensuring a minimum of 18 in.
(46.7 cm) of slack, route the
supply power wire through a
cable clamp (not included) and
in the opening in the back of the

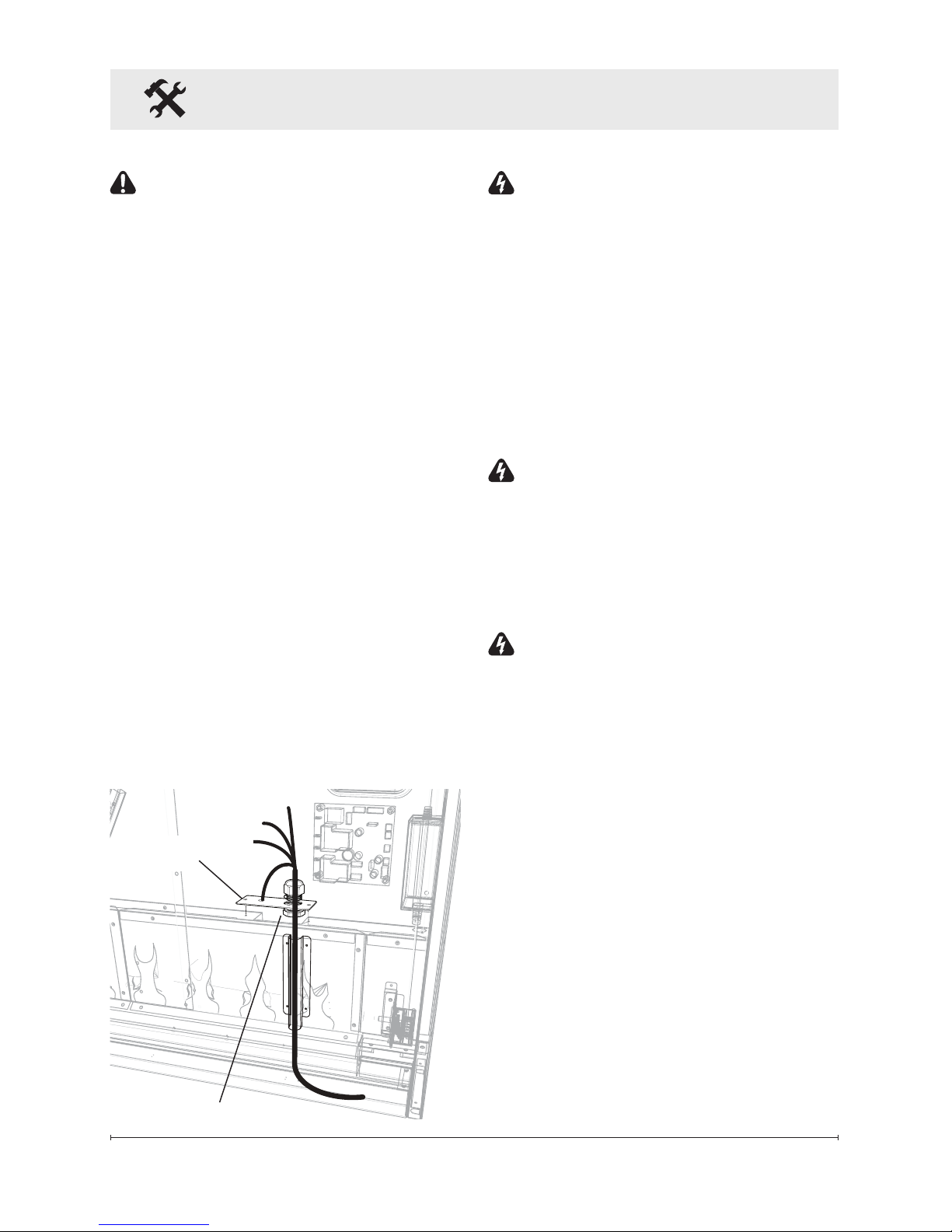

unit. (Figure 3)
Figure 3
Grounding
Screw
Cable Clamp

9
Fireplace Installation (continued)
4. Lift replace, from the bottom
and the handles located on the
back, and insert into opening to
the desired depth.
5. Using a bubble level (supplied)
ensure that the replace is level
within the framing. Adjust as
required.
6. Drive four supplied mounting
screws through the four
mounting holes located on the
inside surface of the replace
chassis, into wall studs

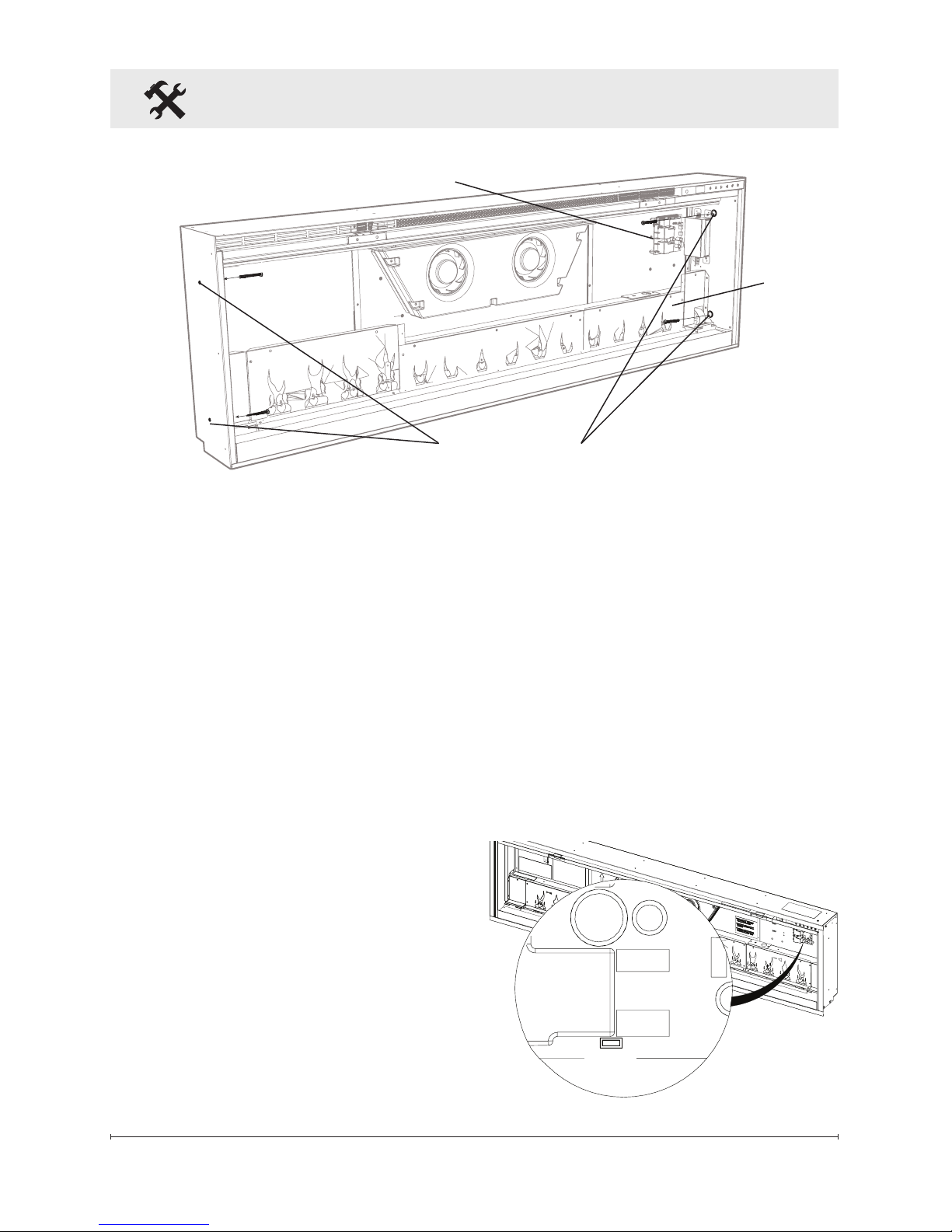

(Figure 4).
Permanent Heat Disable
The replace heater can be
permanently disabled by removing
the electronic jumper on the main
control board. Disable the heater
before any other installation takes
place.
Figure 4
Mounting Holes
To disable the heater:
1. Locate the main control board
(Figure 4).
2. Pull out the electronic jumper
(shunt). The marking beside the
jumper is "HT EN" (Figure 5).
Use two conductor, non-metallic
sheath cable with ground wire
(3 wires total) for the incoming
power supply.
HT EN
Figure 5
Flame
Panel
Main Control Board

10 www.dimplex.com
Fireplace Installation (continued)
Electrical
120V Installation - Direct
Wire
CAUTION: Use the appropriate
wire to meet local and national
electrical codes for rated power
consumption.
To 120V direct wire:
1. Cut the wire to an appropriate
length.
2. Connect the L wire from the
unit to the live wire from the
power supply with a wire nut.
3. Connect the N wire from the
unit to the neutral wire from the
power supply with a wire nut.
4. Connect the G wire from the
unit to the ground wire from the
power supply with a wire nut
or attach the grounding wire
to the cover with the provided
grounding screw, by placing the
wire in-between screw and lock
washer and tighten (Figure 3).
5. Ensure that all wires are secure
and do not protrude past the
ame panel, so as not to be
visible after nal assembly.
6. Continue to the nal assembly
instructions.
120V Installation - Wall
Switch
!NOTE: Use a single pole, single
throw (On/Off) wall switch that is
rated for a minimum of
15 amps.
CAUTION: Use the
appropriate wire to meet local
and national electrical codes
for rated power consumption.
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
BLACK – L1
WHITE – N
BLACK – L1
GROUND - G
WALL
SWITCH
GROUND - G
Figure 6

11
Fireplace Installation (continued)
Figure 7
Partially
Reective Glass
Partially Reective
Glass Bracket
Media Tray
To wire through a wall switch:
1. Cut the wire to an appropriate
length.
2. Connect the L wire from the
unit to the live wire from the
main power through the
wall switch, ensuring all live
connections are connected with
a wire nut.
3. Connect the N wire from the
unit to the neutral wire from the
power supply with a wire nut.
Glass
Openings
4. Connect the G wire from the
unit to the ground wire from the
power supply with a wire nut
or attach the grounding wire
to the cover with the provided
grounding screw, by placing the
wire in-between screw and lock
washer and tighten (Figure 3).
5. Ensure that all wires are secure
and do not protrude past the
ame panel, so as not to be
visible after nal assembly.
6. Continue to the nal assembly
instructions.

12 www.dimplex.com
Fireplace Installation (continued)
120V Installation - Plug Kit
WARNING: This heater is
not intended for use with an
extension cord. Plug the cord
directly into an ap propriate
wall receptacle.
To install a plug kit:
1. Locate the rear cover plate
about 12 in. (30.5 cm) from the
left side at the bottom. Remove
the 3 screws that hold the plate
(Figure 8).
2. Feed wire from plug kit into
opening and attached using the
using the 3 screws.
3. Connect the L1 wire from the
unit to the black wire of the plug
kit.
4. Connect the N wire from the
replace to the white wire from
the plug kit.
5. Connect ground wire from the
replace to the green wire from
the plug kit.
6. Ensure that all wire connections
are tight and that wires are
secured and do not protrude
past the ame panel, so as
not to be visible after nal
installation.
7. Continue to nal installation.
Figure 8

13
240V Installation
CAUTION: Use the appropriate
wire to meet local and national
electrical codes for rated power
consumption.
To 240V direct wire:
1. Connect the L1 wire from the
unit to the L1 wire from the
power supply with a wire nut.
2. Connect the L2 wire from the
unit to the L2 wire from the
power supply with a wire nut.
3. Connect the N wire from the
unit to the neutral wire from the
power supply.
4. Connect the G wire from the
unit to the ground wire from the
power supply with a wire nut
or attach the grounding wire
to the cover with the provided
grounding screw, by placing the
wire in-between screw and lock
washer and tighten (Figure 3).
5. Ensure that all wires are secure
and do not protrude past the
ame panel, so as not to be
visible after nal assembly.
6. Continue to the nal assembly
instructions.
Bathroom Use
If this unit is installed in a bathroom
it must be protected by a GFI
receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electrical shock this
unit is an electrical appliance
that is NOT watertight and must
be installed as to prevent water
from entering unit. This must be
installed away from showers, tubs,
etc. Never locate replace where
it may fall into a bathtub or other
water container.
Final Assembly
1. Locate and remove the screws
securing the partially reflective
glass bracket to the unit
(Figure 7), along the top of the
opening, and set bracket and
screws aside.
2. Remove the provided suction
cup from the inside cavity of the
unit.
3. Before installation ensure that
the front glass and the partially
reective glass are clean.
Particles can be removed by
dusting lightly with a clean dry
cloth. To remove ngerprints
Fireplace Installation (continued)

14 www.dimplex.com
or other marks, the glass
can be cleaned with a damp
cloth. Ensure that the glass
has completely dried before
installation.
4. Carefully secure the suction cup
to the partially reective glass,
reective side out, and place
into the openings on either side
of the unit.
5. Tip the glass into the unit and
using the removed screws
secure the glass into the unit
with the provided bracket
(Figure 9). Remove the
suction cup.
Fireplace Installation (continued)
6. Evenly space the large media
in the media tray along the back
of the media tray (for optimum
media effect), then carefully
pour and evenly distribute
the smaller media into the
Media Tray.
7. Carefully place the front glass
into the lip located at the bottom
of the opening of the rebox.
8. Tip the front glass into the
unit and secure using the
provided screws and Allen key
(Figure 10).
Figure 9

15
!
NOTE: Ensure that the suction
cup and Allen key are kept for
any future maintenance
or service.
9. Install the provided screw
covers (Figure 10) by placing
tabs of the screw cover between
sides of front glass bracket.
Figure 10
Fireplace Installation (continued)

16 www.dimplex.com
CUTOUTS THERMAL
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN FAN
CERAMIC ELEMENT
MAIN CONTROL BOARD
THERMISTOR
XLF60
M
Wiring Diagram
Figure 11

17
Operation
Remote Operation
The replace is supplied with an IR
multi-function remote control.
!NOTE: To operate correctly, the
remote control must be pointed
towards the front of the unit.
Controls
The unit can be controlled by
either the manual controls which
are located on the upper right of
the replace or the remote
(Figure 12 and 13).
A. Standby
Turns the unit On and Off.
Activated by pressing the
Standby button on the remote
or the unit.
• The unit will turn On with the
same functions that it was set
to when it was turned Off and
the intake temperature will be
indicated on the Display.
!NOTE: When any button is
pressed on the unit the intake
temperature will be displayed on
the Display for 7 seconds.
General Operation
WARNING: This electric
firebox must be properly
installed before it is used.
This rebox operates with
Comfort$averTM technology,
which automatically adjusts the
fan speed and heater wattage to
safely and precisely match the
requirements of the room based on
the thermostat setting. The heater
operates such that once the room
reaches the set point, the fan and
heater will continuously run at a low
level, to maintain the desired room
temperature. If the temperature in
the room rises signicantly, (e.g.,
sun coming through a window or a
central furnace turns on) the heater
will turn off and periodically turn
back on to circulate the air around
the unit, until the room temperature
drops and requires the heater to be
constantly on again.
!NOTE: The unit is designed so
that the fan will run continuously
while the heater is on.
!NOTE: The unit retains heat
after shutdown. When the
heat is turned OFF, there is a
2-minute, built in cool down
period before the fan shuts off.

18 www.dimplex.com

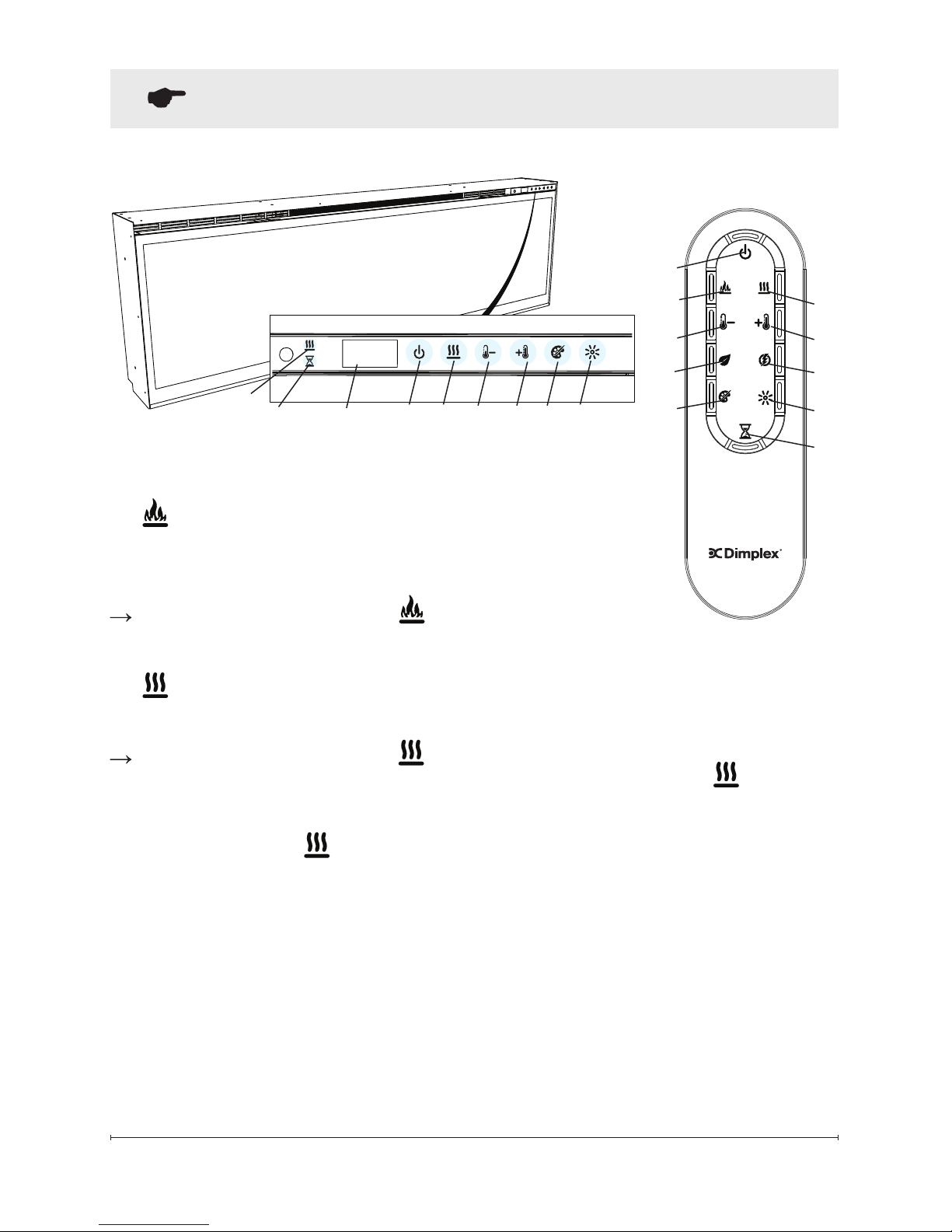

Figure 12
AC D E H
Display
Figure 13
A
D
BC
E
G
J
F
IHI
Operation (continued)
B. Flame Effects
Turns the Flame Effect On
and Off.
Activated by pressing the
button on the remote.
C. Heat ON/OFF
Turns the heater On and Off.
Activated by pressing the
button on the remote or the
unit.
• Indicated by the icon and the
set point temperature will ash
on the display, then the intake
temperature will be displayed
before turning off.
!
NOTE: After the heater is
switched off, there is a 2 minute
fan delay, where the fan will
continue running before turning
off.
!NOTE: The unit can be
operated in Heat Only Mode.
When the unit is only running
with the heater, the icon will
continuously be displayed on
the Display.
!NOTE: The heater may emit
a slight, harmless odor when
rst used. This odor is a normal
condition caused by initial
heating of internal heater parts
and will not occur again.
CJ

19
!NOTE: Holding the and
the buttons down for two
seconds, on the unit, will
change the temperature scale
from °C to °F, or vice versa.
F. Eco Operation
Runs the heater in a reduced
wattage range when activated.
Adjusted by pressing the
corresponding button on the
remote when the heater is on.
• Indicated by the Display and a
reduced fan speed.
G. Heat Boost
Turns the Heater Boost On and
Off. Runs the unit at the full rated
wattage.
Activated and adjusted by
repeatedly pressing the
corresponding button on
the remote.
• Indicated by the heater running
at full heat, for a user set
amount of time, to quickly heat
up a cold room/space. The
Heat Boost can be set for a
maximum of 20 minutes, in
5 minute increments.
D Temperature Down
Decreases the temperature setting.
Adjusted by repeatedly
pressing the corresponding
button on the remote.*
• Indicated by set point
temperature on the Display
decreasing and the speed of
the fan decreasing to reduce
the amount of heat being
projected into the room.
E. Temperature Up
Increases the temperature setting.
Adjusted by repeatedly
pressing the corresponding
button on the remote.*
• Indicated by the set point on
the Display increasing and the
speed of the fan increasing to
increase the amount of heat
being projected into the room.**
* The rst time the button
is pressed the current
temperature set point will be
displayed for 2 seconds.
** The temperature can be
adjusted from 5 °C to 37 °C
(41 °F to 99 °F).
Operation (continued)

20 www.dimplex.com
• Cycles through the different
preset light settings of the
unit, this includes different
combinations of colors of the
ame base and media lighting.
!NOTE: Two of the themes in
the cycle are a prism where the
unit cycles through a variety of
colors. Pressing the stops
the cycling and holds the unit on
the preferred color, indicated by
a solid circle. When the unit is
on prism, and is cycling through
the colors, a rotating circle will
be displayed.
I. Brightness
Changes the Brightness of the
lights in the unit.
Adjusted by repeatedly pressing
the corresponding button on the
remote or the unit.
• Indicated by the second digit
on the Display changing to
show: "H" (high), and "L" (low).
Pressing the T- and Brightness
buttons at the same time and
holding them for 2 seconds will lock
(LOC will be displayed) or unlock
(UL will be displayed) the manual
controls on the replace.
Disable Heat
If desired, depending on the
season, the heater on the unit can
be disabled. The function of the
remaining controls will continue
to function as outlined in this
manual.
Pressing the and buttons
on the unit at the same time and
holding for 2 seconds will disable
and enable the heater.
!NOTE: When the heater has
been disabled and any of the
heat related functions are used,
the Display will indicate "---".
If the Permanent Heat Disable
has been activated by removing
the jumper on the main PCB, the
display will indicate "H--".
H. Color Themes
Different presets of lighting color
combinations are available in
the unit.
Changed by repeatedly
pressing the corresponding
button on the remote or the
unit.
Operation (continued)
U
