Dimplex Corner Standing Stove User manual

PRACTICAL USER’S GUIDE
FOR THE CORNER STANDING STOVE
Valued Customer,
We are pleased that you have chosen to purchase an electric fireplace
manufactured by Dimplex North America Limited.
Quality checked by:
Serial Number _________________
Model Number _________________
CAT Number __________________
7207770100REV01

CONTENTS
PAGE 1 Important Instructions
PAGE 2 Model and Serial Number
Information
PAGE 3 Securing Cord
Stabilizing Strap
PAGE 4 Operation
PAGE5 Remote
PAGE 6 Maintenance
PAGE 8 Warranty

QUICK REFERENCE GUIDE FOR THE CORNER STANDING
STOVE
1. Before using the electric corner wall mounted fireplace verify:
• Are the circuit breakers for the unit on?
• Are the light bulbs loose? (to check, follow the instructions for
replacing the light bulbs under the maintenance section of this
manual)
2. The heater may emit a slight, harmless odor when first used. This
odor is a normal condition caused by the initial heating of internal
heater parts.
3. The information regarding the model of your unit can be found on the
rating plate located on the unit on the right side.
4. If you have any questions or concerns regarding the operation of your
fireplace, contact Dimplex customer service at 1-888-DIMPLEX (1-888-
346-7539).

IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons.
1. Read all instructions before using the corner wall mounted electric fireplace.
2. The heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. The trim around the heater outlet becomes hot during heater operation. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least
3 feet (0.9m) from the front of the unit.
3. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the unit is left operating and unattended.
4. Always unplug the corner wall mounted electric fireplace when not in use.
5. Do not operate with a damaged cord or plug, or if the heater has malfunctioned, or if the wall
mounted electric fireplace has been dropped or damaged in any manner. Return heater to
authorized service facility for examination, electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. The corner wall mounted electric fireplace is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may fall into a bathtub or other water
container.
8. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like.
Arrange cord away from traffic area and where it will not be tripped over.
9. To disconnect the unit, turn the controls off, then remove the plug from the outlet.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage to the heater.
11. To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft
surfaces, like a bed, where openings may become blocked.
12. All electrical heaters have hot and arching or sparking parts inside. Do not use in areas where
gasoline, paint, or flammable liquids are used or stored or where the unit will be exposed to
flammable vapors.
13. Do not modify the corner wall mounted electric fireplace. Use it only as described in this
manual. Any other use not recommended by the manufacturer may cause fire, electric shock or
injury to persons.
14. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than
the other). The plug will fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper
outlet. Do not change the plug in any way. Avoid the use of an extension cord. Extension
cords may overheat and cause a risk of fire. If you must use an extension cord, the cord must
be No. 16 AWG minimum size and rated no less than 1875 watts.
15. Do not burn wood or other materials in the corner wall mounted electric fireplace.
16. Do not strike the glass front.
17. Always use a certified electrician should new circuits or outlets be required.
18. Always use properly grounded, fused and polarized outlets.
19. Disconnect all power supply before performing any cleaning, maintenance or relocation of the
unit.
20. When transporting or storing the unit and cord, keep in a dry place, free from excessive
vibration and store so as to avoid damage.
NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to
the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to
the risk of fire, serious injury, illness or death. 1

Model Numbe
r
Serial Number
Model Number
Serial Number
Model Number
Serial Number
IMPORTANT INSTRUCTIONS

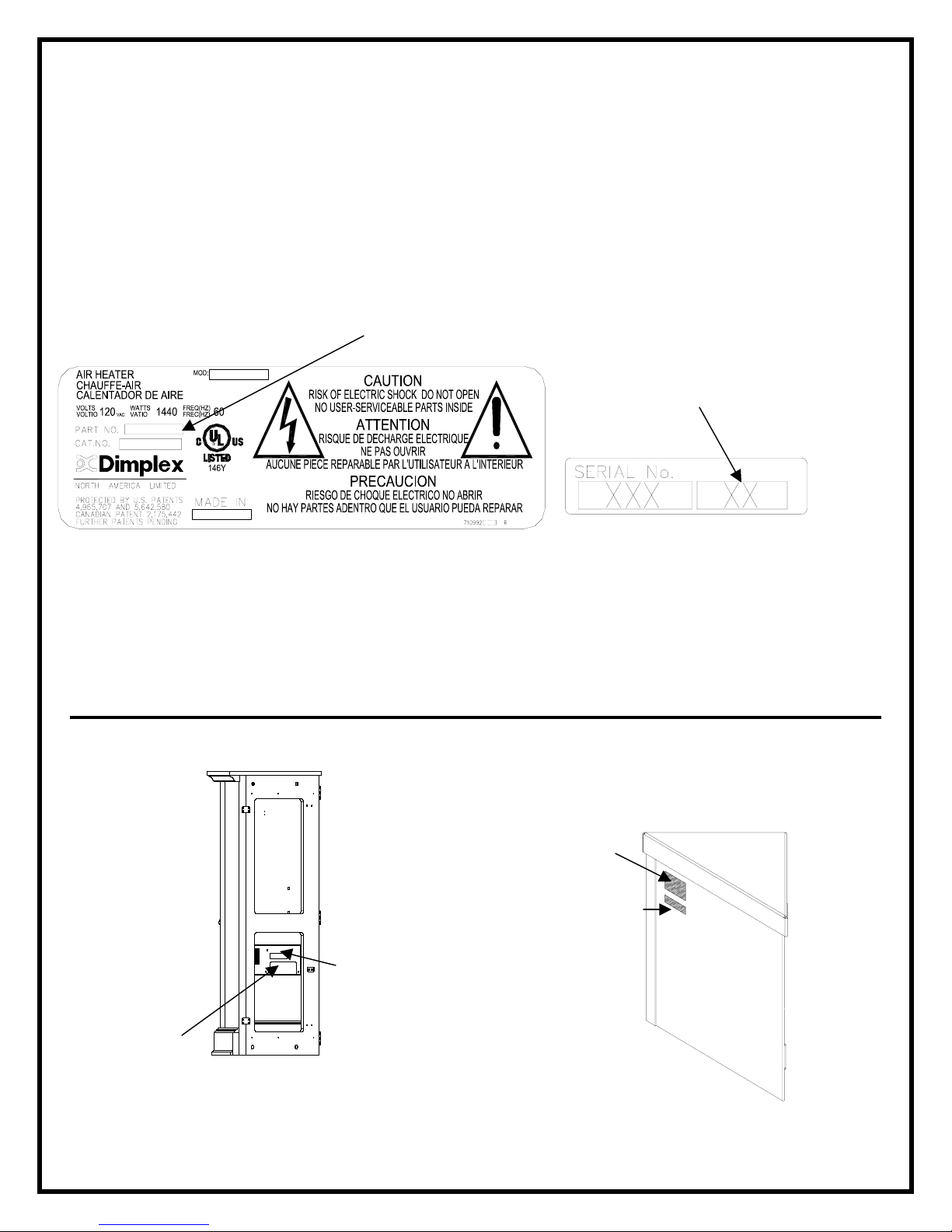

If you have any questions about out products please have the product model and serial
numbers available upon calling Dimplex customer service. To locate the model and serial
number labels see below. Record the Model Number, Serial Number, and CAT number on the
front cover of this manual for future reference.
MODEL AND SERIAL NUMBER
Carton
Firebox
2

NOTE
A 15amp, 120 volt circuit is required. A dedicated circuit is preferred but not essential in all
cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or the
fuse blows on a regular basis when the heater is operating. Additional appliances on the same
circuit may exceed the current rating of the circuit breaker.
WARNING
Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure
that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire,
electric shock or injury to persons.
Construction and electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of fire, electric shock and injury to persons.
Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric
shock or injury to persons, always use a licensed electrician.
SECURING CORD (VIEW FROM BACK)
SAFETY WALL STRAP
The Corner Standing Stove is designed to fit tightly into the corner of a room. This unit should
be as close to the wall as possible. This unit comes with a safety securing strap. It is
suggested that the safety strap be used if there are children in the vicinity of the Corner
Standing Stove.
SECURING INSTRUCTIONS

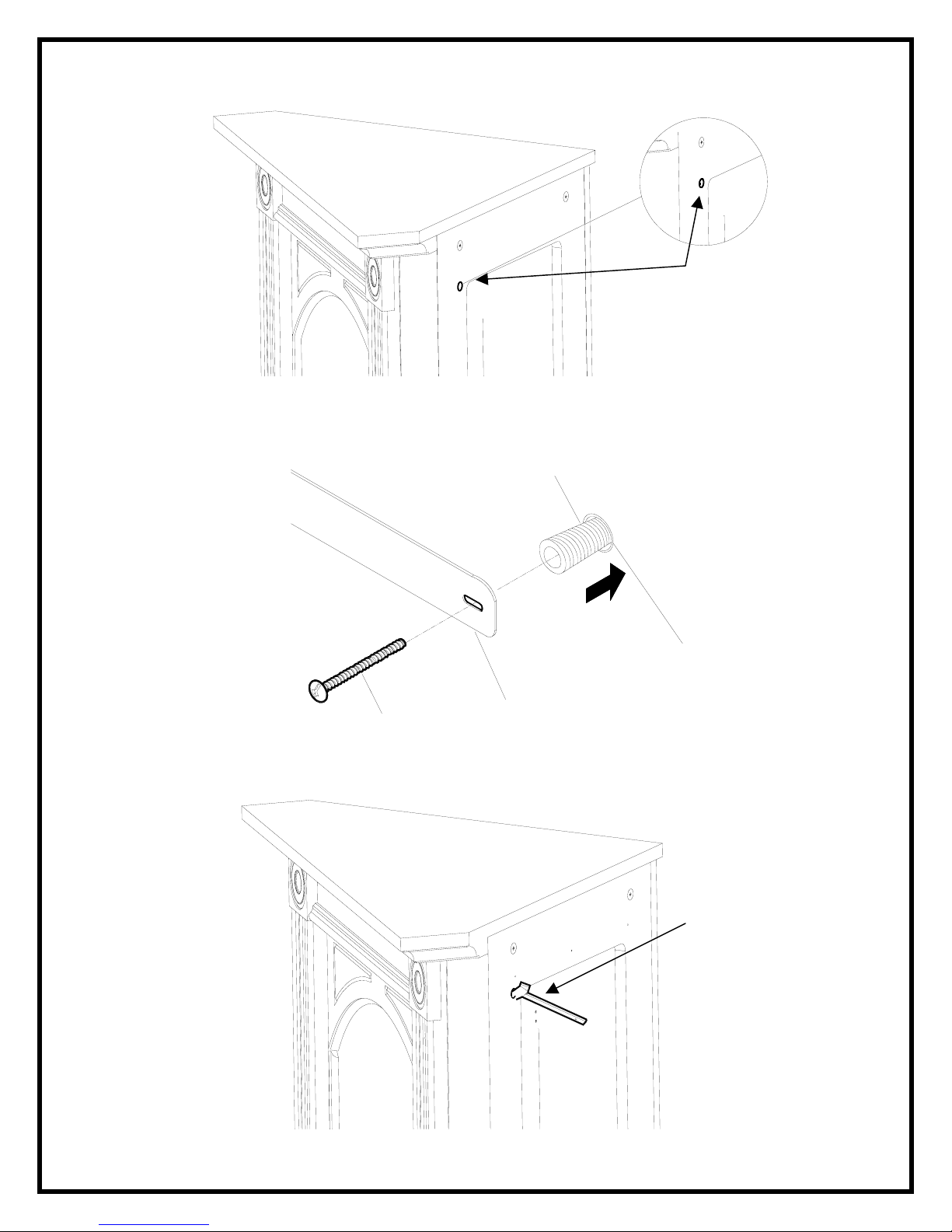

1. In the corner of the wall, measure up the wall 42”. From that point measure out to the
right or left 15”. Note: Keep as level as possible, mark location.
2. Drill a 1/8” diameter hole.
3. Insert the provided wall plug. (FIGURE 13)
4. Locate left or right side strap mounting hole (2 ¾” from the left or right front edge of
unit). (FIGURE 12)
5. Hold strap in your hand with looped end in your palm. Insert free end though support
hole and then through loop in the strap. (FIGURE 14)
6. Insert screw through pre-punched hole in strap and screw into wall anchor.
7. Push unit into corner.
FIGURE 11
Securing Strap
Power Cord
3

WALL ANCHOR
1/8” HOLE IN WALL
SAFETY STRAP
BOLT
SAFETY STRAP
SUPPORT HOLE
FIGURE 14
FIGURE 13
FIGURE 12
4

B
A
OPERATION – EMSC-W, EMSC-ESP, DCF7850W, DCF7850E

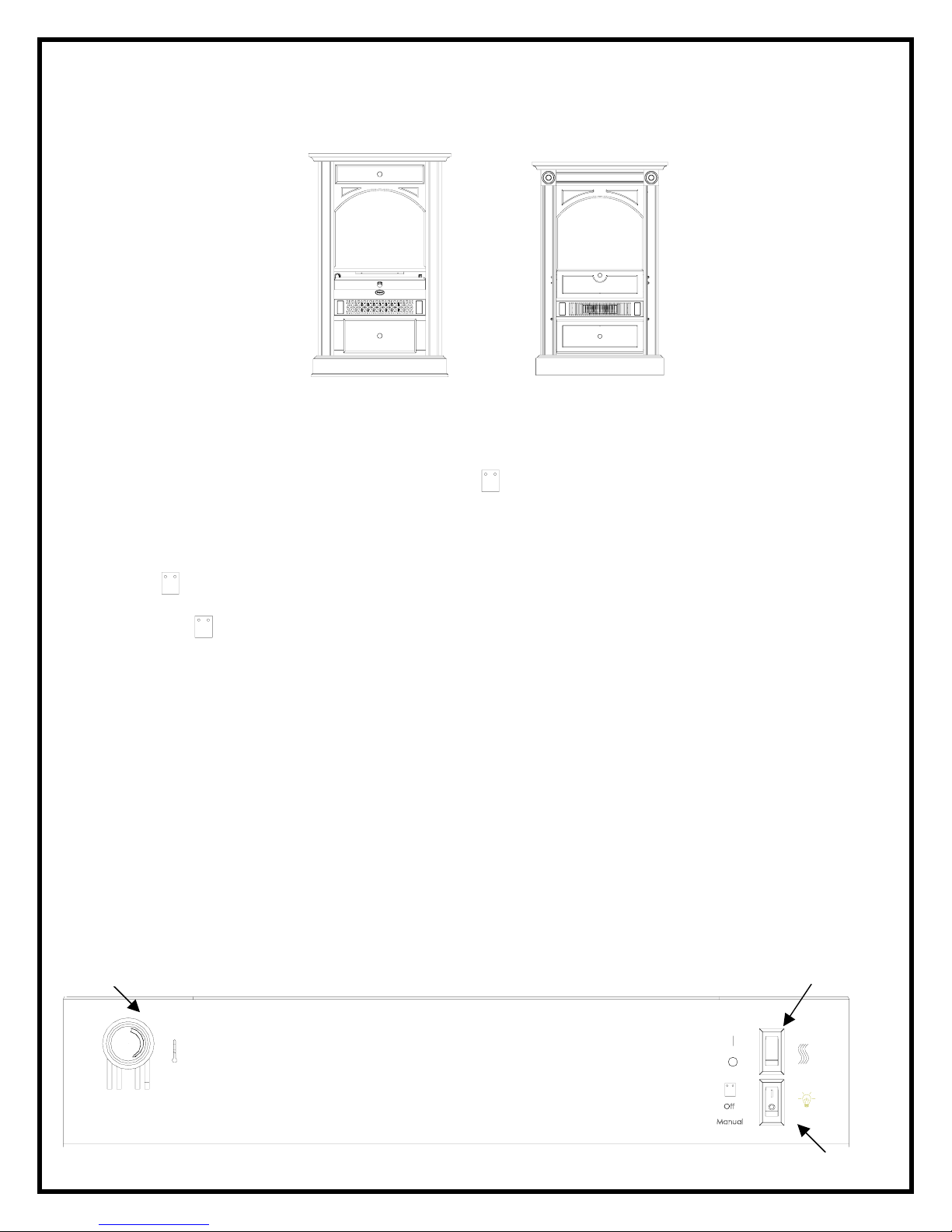

The controls are located inside the door panel on the lower side of the corner wall mounted
electric fireplace. (FIGURE 15)
A. MAIN ON/OFF SWITCH
The switch has two ON positions marked with and “Manual”.
The “Manual“ position is for manual operation. In this position the built-in remote control is by-
passed.
The position is for operating the unit with the provided remote control.
When in position the unit is operated with the ON and OFF buttons of the remote control.
When the switch is in the center position the unit is off.
B. HEATER ON SWITCH
The HEAT ON/OFF SWITCH supplies power to the heater fan and the heater element.
When the switch is in the ON position the heater operates if the thermostate calls for heat.
C. HEATER THERMOSTAT CONTROL
To adjust the temperature to your individual requirements, turn the thermostat control
clockwise all the way to turn on the heater. When the room reaches the desired
temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in
this position to maintain the room temperature at this setting. For additional heat, turn
clockwise until you hear the click again and the heater will turn on.
C
FIGURE 15 5
EWMSC-W
EWMSC-ESP DCF7850W DCF7850E

RESETTING THE TEMPERATURE CUTOFF SWITCH
Should the heater overheat, an automatic cut out will turn the heater off and it will not come
back on without being reset. It can be reset by switching the MAIN ON/OFF SWITCH to OFF
and waiting 5 minutes before switching the unit back on.
CAUTION
If you need to continuously reset the heater, unplug the unit and call Dimplex technical support
at 1-888-DIMPLEX (1-888-346-7539) Extension 4.
NOTE
The heater may emit a slight, harmless odor when first used. This odor is a normal condition
caused by initial heating of internal heater parts and will not occur again.
REMOTE OPERATION
The Fireplace is supplied with an integrated on/off remote control
Note: Ensure that the fireplace 3 position switch is set to the remote
Control setting. (Up position)
To operate, push the ON button to turn fireplace on, push the OFF button
to turn the fireplace off.
BATTERY REPLACEMENT
To repalce the battery, slide battery cover open on the hand held transmitter.
Correctly install one 12 volt (A23) battery in the battery holder.
Close the battery cover.
FIGURE 16
6
ON BUTTON
OFF BUTTON
BATTERY
BATTER COVER

MAINTENANCE
WARNING
Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire,
electric shock or damage to persons.
LIGHT BULB REPLACEMENT
Allow at least 5 minutes for light bulbs to cool before touching bulbs to avoid accidental burning
of skin.
Light bulbs need to be replaced when you notice a dark section of the flame or when the clarity
and detail of the log exterior disappears. There are two bulbs under the log set which generate
the flames and embers.
TOOL REQUIREMENTS
Phillips screw driver
HELPFUL HINTS
It is a good idea to replace all light bulbs at one time if they are close to the end of their rated
life. Group replacement will reduce the number of times you need to open the unit to replace
light bulbs.
LIGHT BULB REQUIREMENTS
Two (2) clear chandelier or candelabra bulbs
with an E-12 (small) socket base, 60 watt rating.
BULB REPLACEMENT
1. Unplug the unit from the outlet.
2. Remove the rear door from the left side of the unit
by unfastening one phillips screw. Set the
door and screw aside.
3. Reach inside opening to remove the bulb(s).
remove the nearest bulb before attempting
to remove the further bulb. Bulbs are unscrewed in
counter-clockwise direction.
4. Insert new bulb(s).
5. Replace rear door and fasten in place.
6. Plug in the corner wall mounted electric fireplace.
FIGURE 17
7

GLASS CLEANING
The front glass is cleaned in the factory during the assembly operation. During shipment,
installation, handling, etc., the front glass may collect dust particles, these can be removed by
dusting lightly with a clean dry cloth.
To remove fingerprints or other marks, the glass can be cleaned with a damp cloth. The glass
should be completely dried with a lint free cloth to prevent water spots. To prevent scratching,
do not use abrasive cleaners or spray liquids on the glass surface.
SURFACE CLEANING
To remove fingerprints or other marks, the exterior finish can be cleaned with a damp cloth
with a mild detergent. The surface should be completely dried with a lint free cloth to prevent
water spots.
To prevent scratching, do not use abrasive cleaners or spray liquids on any surface.
8

TWO YEAR LIMITED WARRANTY
Products to which this limited warranty applies
This limited warranty applies to the following models of your newly purchased Dimplex Corner
Standing Electric Stove. This limited warranty applies only to purchases made in any
province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or in any of
the 50 States of the USA (and the District of Columbia) except for Hawaii and Alaska. This
limited warranty applies to the original purchaser of the product only and is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited warranty and are the sole responsibility of the
owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories,
Hawaii, or Alaska are not covered by this limited warranty. Products purchased in these
States, provinces, or territories are sold AS IS without warranty or condition of any kind
(including, without limitation, any implied warranties or conditions of merchantability or fitness
for a particular purpose) and the entire risk of as to the quality and performance of the
products is with the purchaser, and in the event of a defect the purchaser assumes the entire
cost of all necessary servicing or repair.
What this limited warranty covers and for how long
Products, other than fireplace surrounds (mantels) and trims, covered by this limited warranty
have been tested and inspected prior to shipment and, subject to the provisions of this
warranty, Dimplex warrants such products to be free from defects in material and workmanship
for a period of 2 years from the date of the first purchase of such products.
Dimplex fireplace surrounds (mantels) and trims covered by this limited warranty have been
tested and inspected prior to shipment and, subject to the provisions of this warranty, Dimplex
warrants such products to be free from defects in material and workmanship for a period of 1
year from the date of first purchase of such products.
The limited 2 year warranty period for products other than fireplace surrounds (mantels) and
trims and the limited 1 year warranty period for fireplace surrounds (mantels) and trims also
applies to any implied warranties that may exist under applicable law. Some jurisdictions do
not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products that have been repaired (except by Dimplex or
its authorized service representatives) or otherwise altered. This limited warranty does further
not apply to defects resulting from misuse, abuse, accident, neglect, incorrect installation,
improper maintenance or handling, or operation with an incorrect power source.
What you must do to get service under this limited warranty
Defects must be brought to the attention of Dimplex Technical Service by contacting Dimplex
at 1-888-DIMPLEX (1-888-346-7539), or 1367 Industrial Road, Cambridge Ontario, Canada
N1R 7G8. Please have proof of purchase, catalogue/model and serial numbers available
when calling. Limited warranty service requires a proof of purchase of the product.
8

What Dimplex will do in the event of a defect
In the event a product or part covered by this limited warranty is proven to be defective in
material or workmanship during (i) the 2 year limited warranty period for products other than
fireplace surrounds (mantels) and trims, and (ii) the 1 year limited warranty period for
surrounds (mantels) and trims, you have the following rights:
 Dimplex will in its sole discretion either repair or replace such defective product or part
without charge. If Dimplex is unable to repair or replace such product or part, or if repair
or replacement is not commercially practicable or cannot be timely made, Dimplex may, in
lieu of repair or replacement, choose to refund the purchase price for such product or
part.
 Limited warranty service will be performed solely by dealers or service agents of
Dimplex authorized to provide limited warranty services.
 For products other than surrounds (mantels) and trims, this 2 year limited
warranty entitles the purchaser to on-site or in-home warranty services. Accordingly,
Dimplex will be responsible for all labour and transportation associated with repairing or
replacing the product or part except as follows: (i) charges which may be levied for travel
costs incurred to travel to the purchaser's site where the product is located if the
purchaser's site is beyond 30 miles (48 km) from the closest service depot of Dimplex's
dealer or service agent; and (ii) the purchaser is solely responsible for providing clear
access to all serviceable parts of the product.
 For surrounds (mantels) and trims, this 1 year limited warranty does not entitle the
purchaser to on-site or in-house warranty services. The purchaser is responsible for
removal and transportation of the surrounds (mantels) and trims (and any repaired or
replacement product or part) to and from the authorized dealer's or service agent's place
of business. On-site or in-home services for surrounds (mantels) and trims may be
performed at the purchaser's specific request and expense at Dimplex’s then-current
rates for such services. Dimplex will not be responsible for, and this limited warranty shall
not include, any expense incurred for installation or removal of the surrounds (mantels) or
trims or any part thereof (or any replacement product or part) including, without limitation,
all shipping costs and transportation costs to and from the authorized dealer's or service
agent's place of business and all labour costs. Such costs shall be the purchaser’s
responsibility.
What Dimplex and its dealers and service agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR
ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE ARISING OUT OF OR IN
CONNECTION WITH THE SALE, MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF DIMPLEX OR ITS DIRECTORS, OFFICERS, OR AGENTS HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES, COSTS OR DAMAGES, OR IF
SUCH LOSSES, COSTS, OR DAMAGES ARE FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIRECTORS, OR AGENTS BE LIABLE FOR ANY DIRECT
LOSSES, COSTS, OR DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE PURCHASER.
9

How State and Provincial law apply
This limited warranty gives you specific legal rights, and you may also have other rights
which vary from jurisdiction to jurisdiction. The provisions of the United Nations Convention
on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of
products covered by this limited warranty.
1-888-DIMPLEX
1-888-346-7539
App
roved for use in the United States and Canada
1367 Industrial Road
Cambridge, Ontario
Canada
,
N1R 7G8
10
