Dini Argeo DFWPM Series User manual

www.diniargeo.com
ENGLISH
USER MANUAL – v4
DFWPM SERIES
Portable repeater

DFWPM 3
INTRODUCTION
WARNINGS
General warnings 5
CHARACTERISTICS
Technical features 6
General functions 6
Powered by a rechargeable battery 6
HOW TO USE IT
PC power supply via a USB connector 7
Switching the system on 8
Switching the system off 9
How to identify the weighing scale displayed by the DFWPM (in multiple weighing scale systems) 9
How to repeat the single weighing scale or display the total weight 9
Calculating the tare in sum mode 9
The display 10
Features of the DFWPM keypad 10
DFWPM “USB” VERSION
Features of the keypad 11
SPECIFIC FUNCTIONS FOR THE DFWPM “USB” VERSION
How to save a weighing operation 12
How to calculate the total weight of the weighing operations performed and save it 12
MANAGING THE LIST OF WEIGHING OPERATIONS WITH THE WEIGHCONSOLE SOFTWARE
Download the list of weighing operations on a PC 13
Saving the list of weighing operations 14
Deleting the list of weighing operations 14
End the communication between the DFWPM “USB” and the PC. 15
MESSAGES OF THE INSTRUMENT DURING USE
NOTES
USER_MAN_ENG_DFWPM_v4
INDEX OF FUNCTIONS

DFWPM 4
!
5 0.0 5 0.0
...
1 0 0.0
USER_MAN_ENG_DFWPM_v4
INTRODUCTION
This publication, or any part of it, cannot be reproduced without the MANUFACTURER’s written authorisation.
The purpose of this manual is to inform the use about the various operating modes, the features of the keys and the indications on
the display of the “DFWPM” series portable wireless repeater.
Utmost attention was paid when drafting this manual; however, we appreciate anyone pointing out to us any unintentional errors
or inaccuracies.
• Remotely control one or more
weighing scales, repeating the re-
set, tare, operating mode, print and
switch-off functions;
• display the total weight of all con-
nected weighing scales, for exam-
ple when the object to be weighed is
very bulky and needs more weigh-
ing points to be weighed as a whole.
DFWPM is designed to:
• Repeat the weight and all the
status icons of a single weigh-
ing scale at a time (up to 4
weighing scales can be con-
nected).
• save each weighing operation
carried out, both for internal use
and for type-approved applica-
tions in relation to third parties;
• download the list of weighing op-
erations on the PC.
(“USB” version only)

DFWPM 5
USER_MAN_ENG_DFWPM_v4
General warnings
The instrument is covered by a warranty and MUST NOT BE OPENED BY THE USER for any reason whatsoever.
Any attempt to repair or modify the unit may expose the user to an electric shock hazard and will void any warranty condition.
Any issue with the unit or the system must be reported to the manufacturer or the retailer from which it was purchased. In any case
POWER OFF THE APPLIANCE AND DISCONNECT THE POWER SUPPLY before performing any operation.
The instrument is insulated between the hazardous voltage area and the parts that can be accessed by the user.
• Do not pour liquids on the indicator.
• Do not use solvents to clean the indicator.
• Do not expose the instrument to direct sunlight or heat sources.
Anything not expressly described in this manual is to be regarded as unlawful use of the appliance.
Do not use in an environment where there is an explosion hazard.
WARNINGS
The barred bin symbol on the product indicates that, at the end of its service life, the product must be handed over to suit-
able waste collection centres or returned to the retailer when purchasing a new equivalent product. Adequate separate
waste collection to subsequently direct the product towards recycling processes helps avoid potential adverse effects
on the environment and health and promotes the recycling of materials. Illegal product disposal by the user shall result
in the application of the administrative fined envisaged by law.

DFWPM 6
...
USER_MAN_ENG_DFWPM_v4

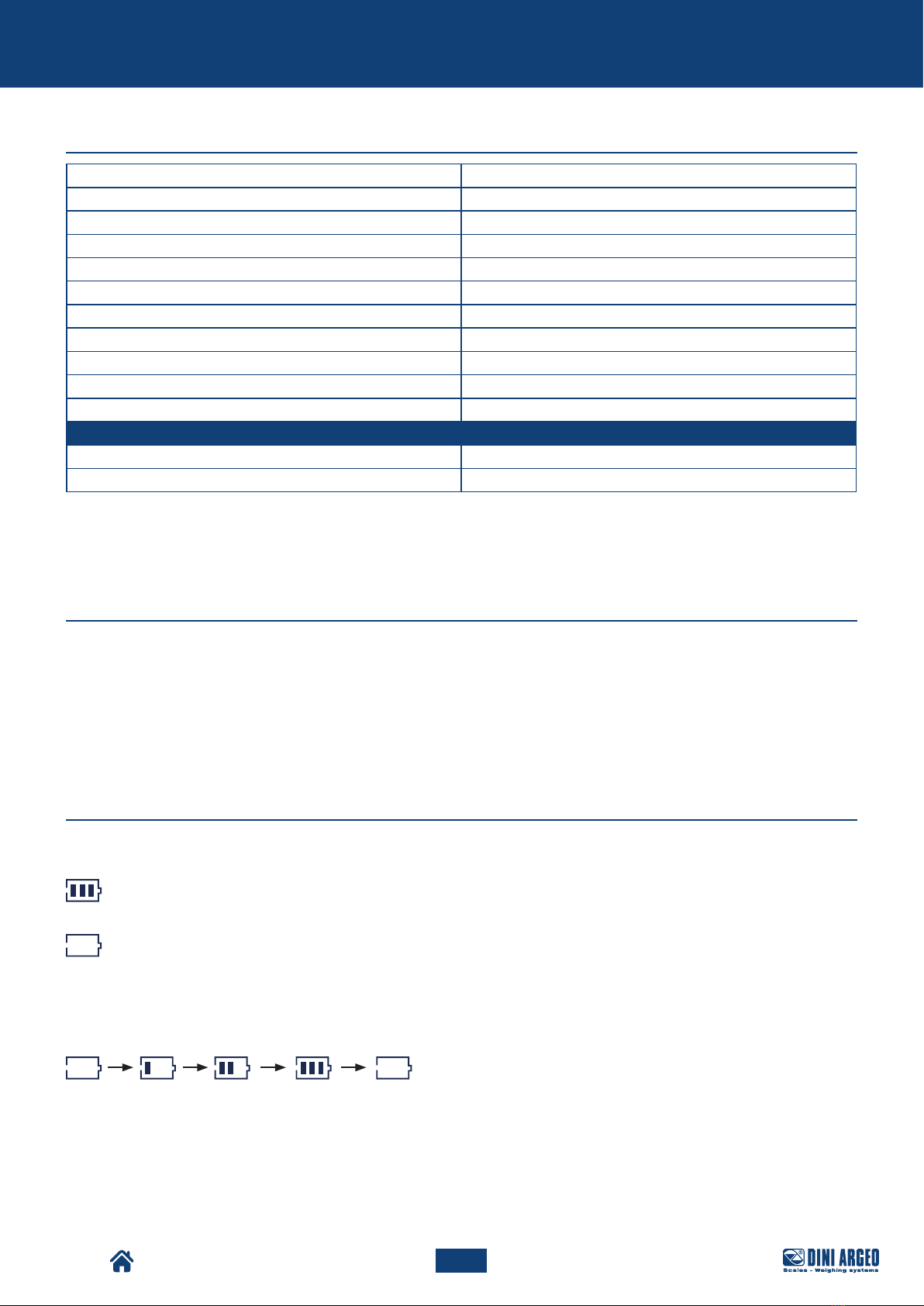

Technical features
CHARACTERISTICS
General functions
All DFWPM versions are equipped with:
• subtractive tare across the whole range;
• programmable auto-off from 1 to 255 minutes or unplugged;
• flat battery warning via display symbols and "low.bat" message on the display.
Power supply rechargeable internal battery
Full charge time 8h (with original charger, supplied)
Operating time about 40 hours
Operating temperature -10...+40°C
Wireless communication type radio frequency
Communication frequency 868MHz
Antenna built-in
Display 25 mm backlit LCD display with adjustable intensity
Keypad waterproof mechanical keypad with 5 buttons
Casing ABS
Overall protection rating IP65
USB version
USB port USB device 2.0
Connector mini DIN (connection cable not included in the supply)
Powered by a rechargeable battery
The LoW.bAt message comes before the instrument automatically turns off.
Indication of the internal battery charge level
Battery recharging indication
Battery charged
Flat battery

DFWPM 7
!
5 0.0 0
USER_MAN_ENG_DFWPM_v4

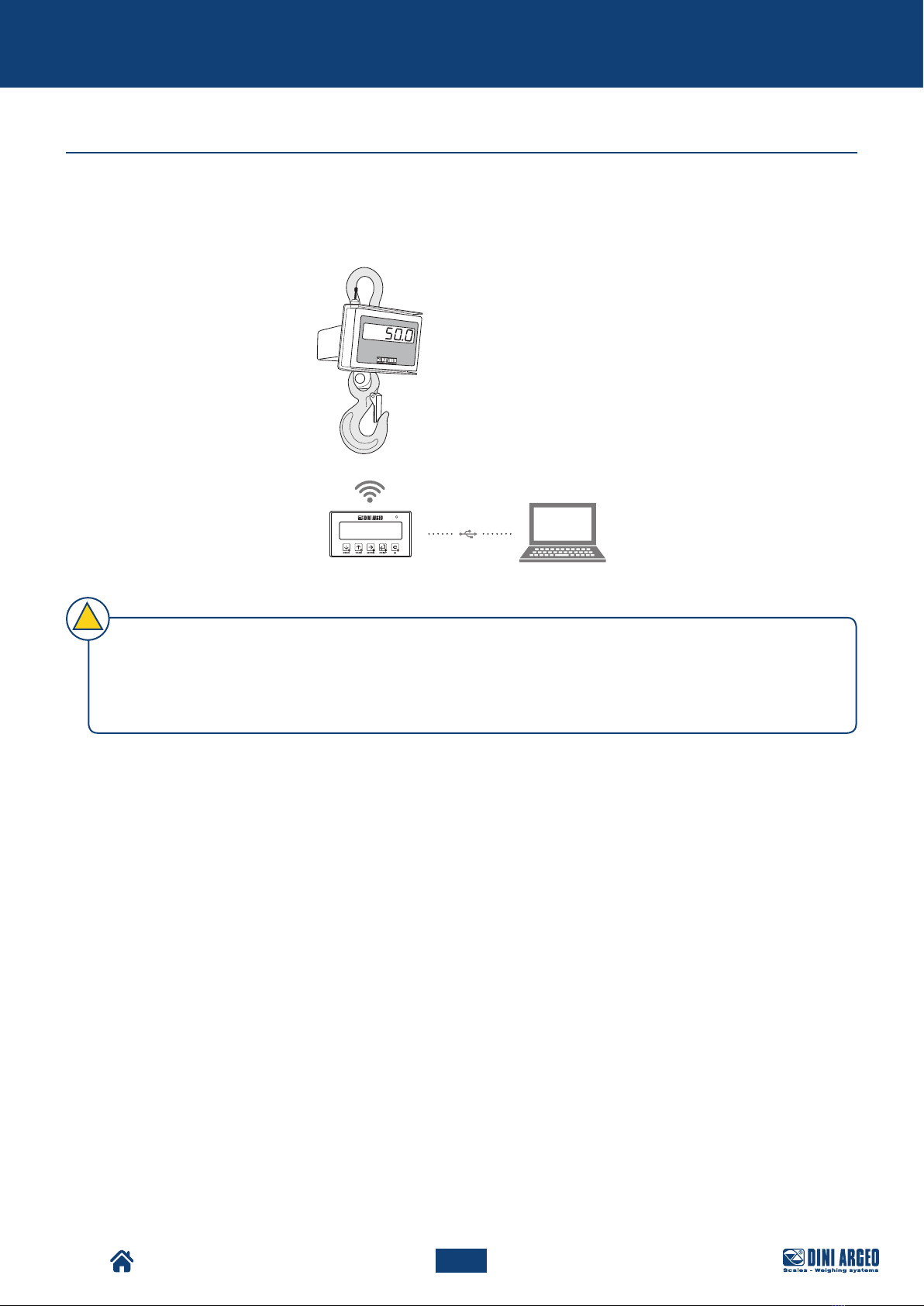

PC power supply via a USB connector
The DFWPM “USB” version can be used both as a mobile unit or as a fixed unit, permanently connected to the PC via a USB port.
The DFWPM “USB” can indeed be powered directly through the PC’s USB port and run as an RF/USB conversion module:
The power supply via the USB port excludes charging via a battery. Proceed as follows to charge the battery:
- Disconnect the USB cable
- Connect the battery charger to the DFWPM
- Connect the battery charger to the mains
HOW TO USE IT

DFWPM 8
!
i
5 0.0 0
150.00
USER_MAN_ENG_DFWPM_v4

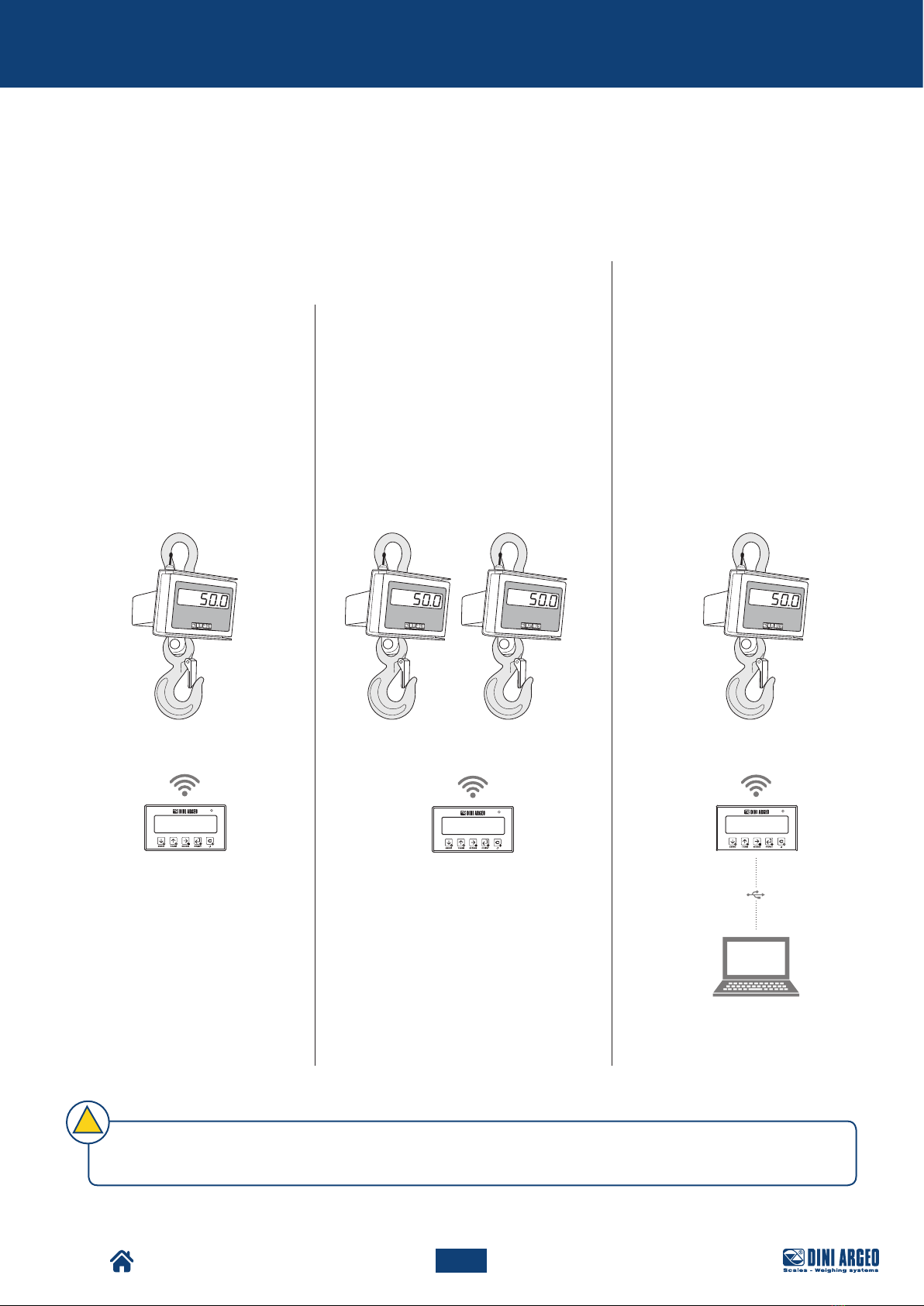

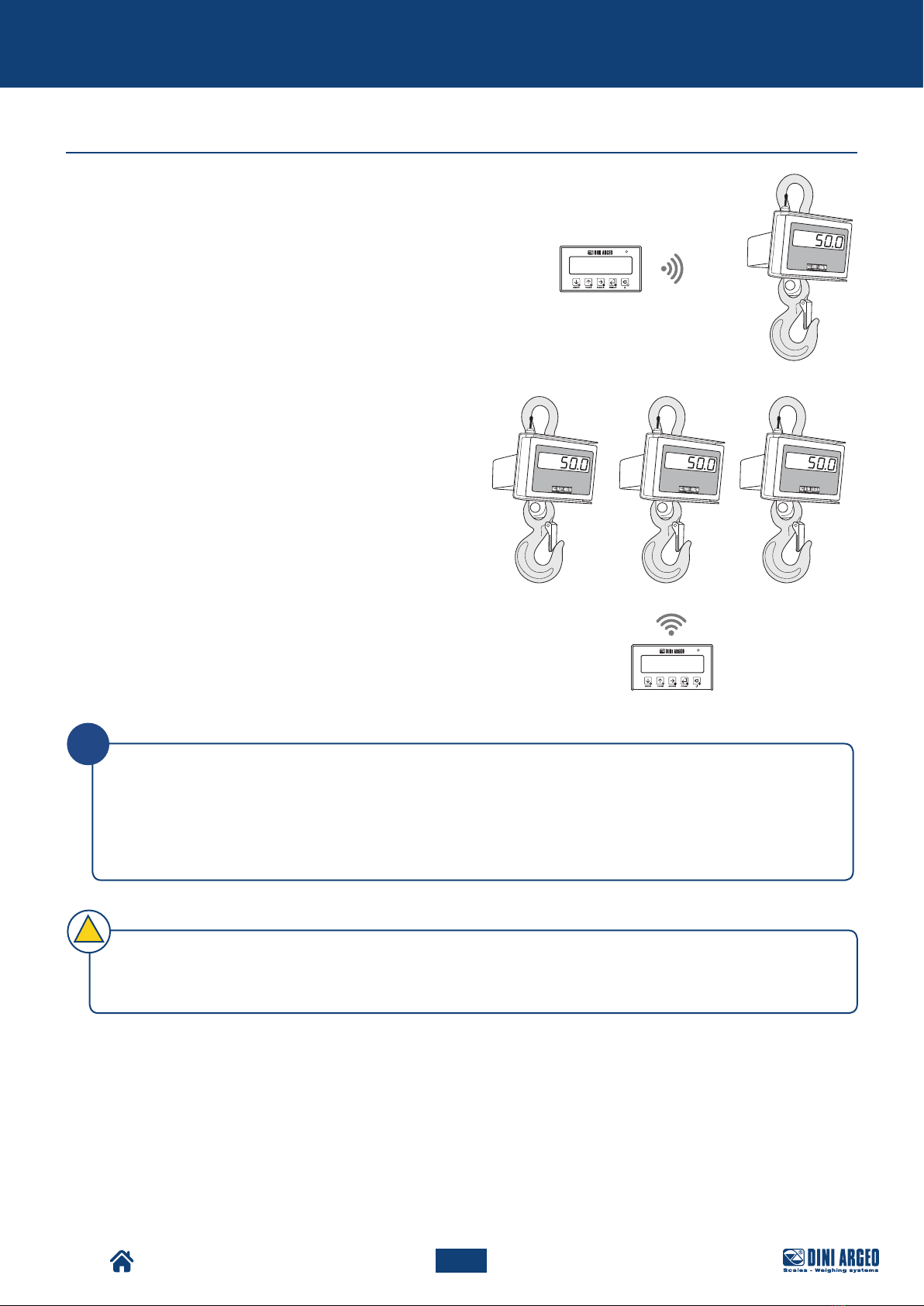

Switching the system on
Single weighing scale system
1. Switching on the weighing scale
2. Switching on the DFWPM
DFWPM connects itself automatically and displays the weight.
Multiple weighing scale system
1. Turn on all the weighing scales
2. Switching on the DFWPM
DFWPM connects itself automatically and displays the total weight.
HOW TO USE IT
One can also only use part of the available weighing scales, proceed as follows:
1. Turn on all the desired weighing scales
2. Turn on the DFWPM
DFWPM connects itself automatically and displays the weight of the first available platform.
Press and hold down the MODE key to switch to the display of the total weight of the connected weighing scales.
The “Eco n” message permanently shown on the display indicates that the DFWPM is trying to communicate with
weighing scale “n” without a reply.
Check whether the weighing scale is on. If the problem persists, contact the technical support service.

DFWPM 9
1 2 34
i
USER_MAN_ENG_DFWPM_v4

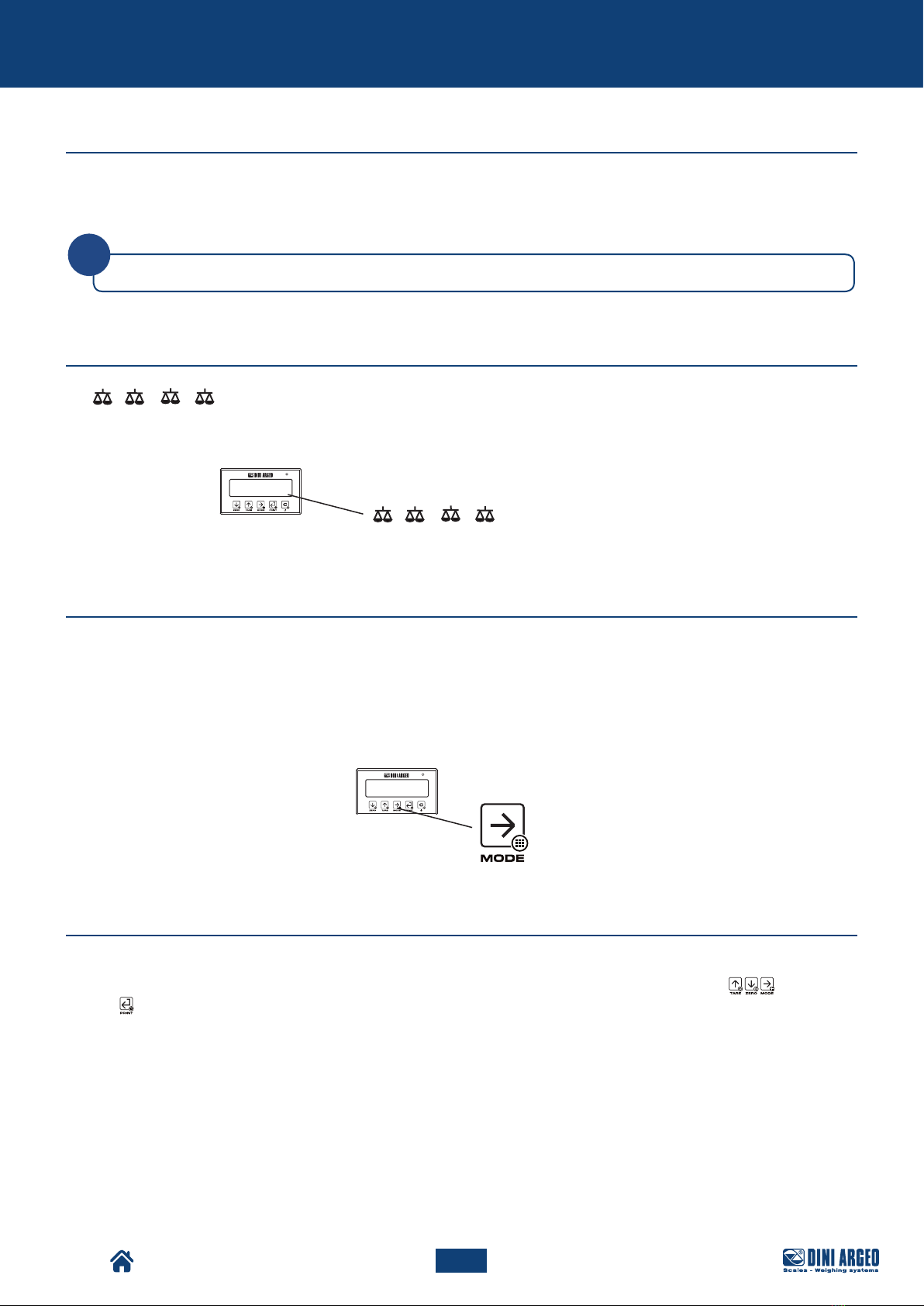

How to repeat the single weighing scale or display the total weight
If the DFWPM is connected to multiple weighing scales:
• Press the MODE key on the DFWPM to switch from one weighing scale to the next.
• Press and hold down the MODE key on the DFWPM for a long time to display the total weight on the connected weighing
scales.
The 1 2 34icons light up individually to repeatedly the weighing scales repeatedly or turn on at the same time to
indicate that the displayed weight is a sum.
HOW TO USE IT
How to identify the weighing scale displayed by the DFWPM (in multiple weighing scale systems)
Icons of the active weighing scales (individually, in total or various combinations)
Switching the system off
1. Switch off each weighing scale individually
2. Switch off DFWPM by pressing and holding down key Cfor a long time.
When DFWPM shows the message “ECo N”, it can be turned off by pressing and holding down key C.
Calculating the tare in sum mode
One can perform the manual or semi-automatic tare of the sum (in both cases, the PT symbol is activated on the LCD display).
Press TARE on the DFWPM and hold it down until the display shows “000000”: enter the tare value by using keys.
Use key to confirm. The value is subtracted from the weight and the light turns on.
If the entered value is not multiple of the minimum division of the weighing scale, it will be rounded up.

DFWPM 10
!
21
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
ABCDEFGHIJKLMNoPQRSTUVWXYZ
0 1 2 3 4 5 6 7 8 9
0123456789
i
USER_MAN_ENG_DFWPM_v4
(*): key repeated only if the DFWPM is connected to a single weighing scale.
The following table shows the keys repeated by the DFWPM, depending on the connected weighing scale:
The function of the keys of the connected weighing scale is described in the relative operating manual.
HOW TO USE IT
Features of the DFWPM keypad
TYPE OF WEIGHING SCALE
DFWPM 3590 keypad CPWE keypad DGT keypad DFW keypad
ZERO ZERO F6 ZERO ZERO
TARE TARE TARE TARE TARE
MODE (*) RIGHT ARROW F9 MODE MODE
ENTER / PRINT ENTER ENTER ENTER ENTER
C C C C
Number Symbol Description
(1) Battery level.
(2) Icons of the active weighing scales (individually, in total or various combinations).

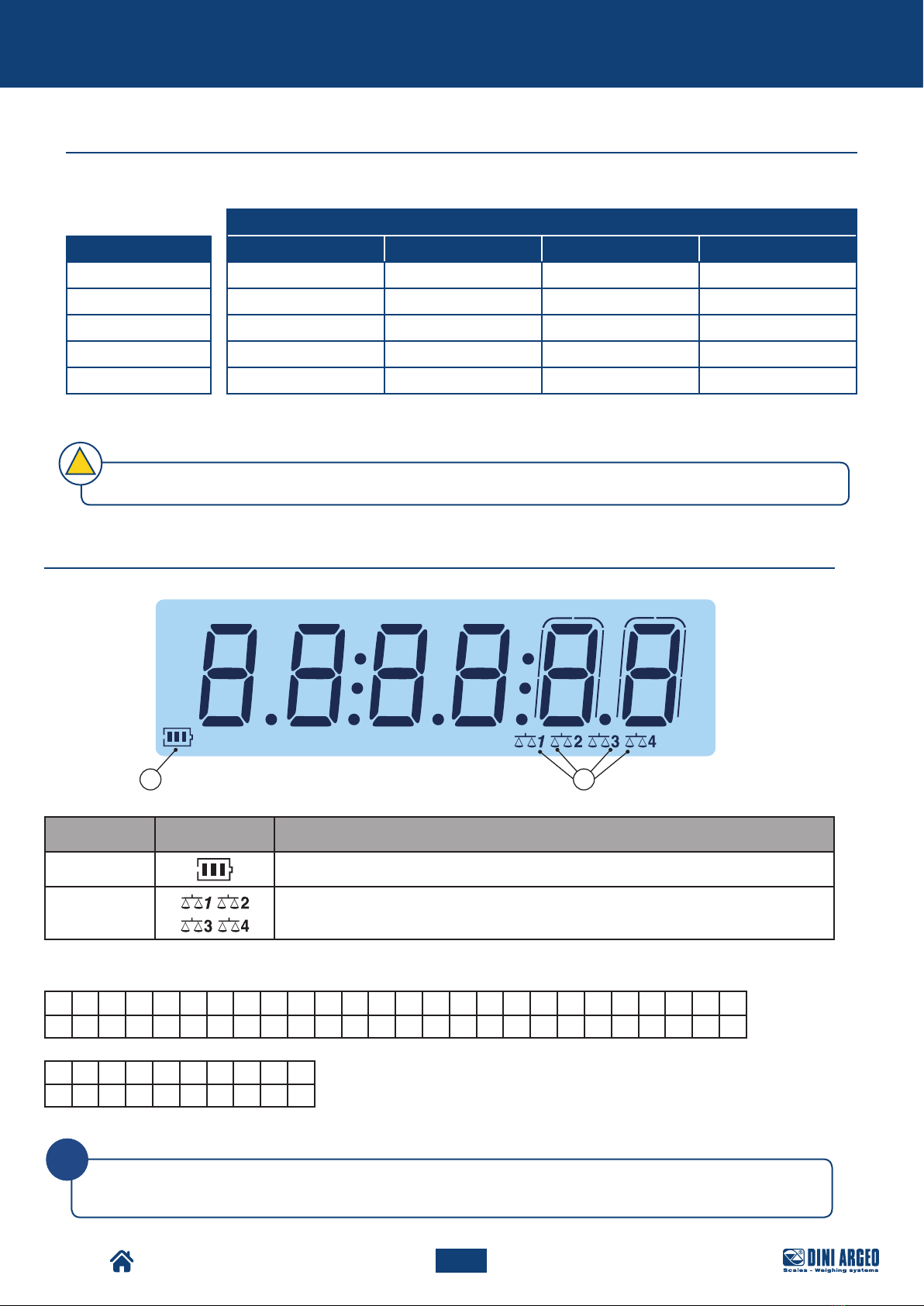

The display
LETTERS:
NUMBERS:
The display repeats any other active icons on the connected weighing scale. Refer to the operating manual of
the weighing scale for more information.

DFWPM 11
!
i
USER_MAN_ENG_DFWPM_v4
The following table shows the keys repeated by the DFWPM, depending on the connected weighing scale:
The function of the keys of the connected weighing scale is described in the relative operating manual.
DFWPM “USB” VERSION
Features of the keypad
TYPE OF WEIGHING SCALE
DFWPM “USB” 3590 keypad CPWE keypad DGT keypad DFW keypad
ZERO ZERO F6 ZERO ZERO
TARE TARE TARE TARE TARE
C C C C
SPECIFIC FUNCTIONS OF THE "MODE" AND "PRINT" KEYS
DFWPM “USB” Key pressed briefly Key pressed and held down - 3
seconds
Key pressed and held down - 5
seconds
MODE Selection of the weighing scale
to display
View of the total
weight of the connected scales
Numerical input of the weighing
scale to the displayed (*)
ENTER / PRINT Save weighing operation
Calculate and salve the
total weight of the weighing
operations performed (*)
Access to the "download" mode
of the weighing operations
The “USB” version allows you to save weighing operations in real time and download them on a PC via USB port for subsequent
processing.
The memory can contain up to 500 weighing operations for internal-use applications or 250 weighing operations in the version
type-approved for relationships with third parties (with Alibi memory).
The data saved at each weighing operation is:
• progressive weighing number
• number of the weighing scale used
• date and time
• gross weight
• tare weight (which is always zero).
• net weight (which is equal to the gross weight, even if the tare has been calculated)
• weighing operation code in the Alibi memory (if there is one)
• unit of measurement
(*) This function requires advanced configuration.

DFWPM 12
3 sec.
i
i
i
USER_MAN_ENG_DFWPM_v4

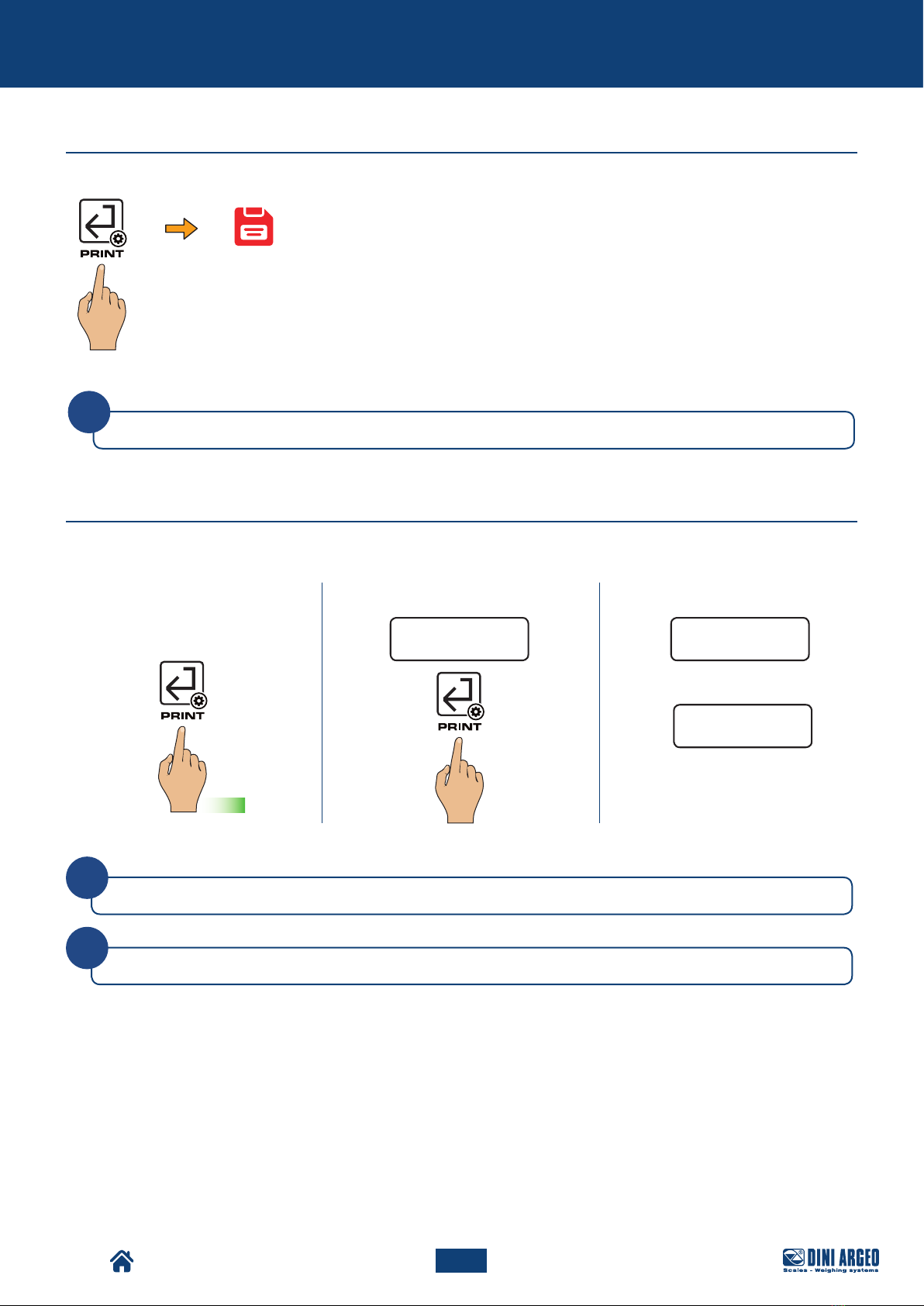

How to save a weighing operation
How to calculate the total weight of the weighing operations performed and save it
SPECIFIC FUNCTIONS FOR THE DFWPM “USB” VERSION
You can save the total weight of the weighing operations carried out and save it by proceeding as follows:
...
If the MASTER is showing the sum, the total weight will be saved.
This function requires advanced configuration.
Press C to cancel the saving stage.
The total weight will keep on flash-
ing on the display for 5 seconds.
a. b. Confirm by pressing PRINT. c.
Close? total
2500

DFWPM 13
i
5 sec.
USER_MAN_ENG_DFWPM_v4
The Alibi memory ID number appears only if the Alibi memory option is in place.
a. b. c.
pC.wait pC.Conn
1. Launch the Dini Argeo “WeighConsole” software.
Download the list of weighing operations on a PC
2. Enter the “download weighing operations” mode
3. “WeighConsole” loads and automatically displays the available weighing list.
The display shows “pc.wait” until
the communication between the
DFWPM “USB” and PC is active.
When the connection has been com-
pleted, the display shows “pc.Conn”.
MANAGING THE LIST OF WEIGHING OPERATIONS WITH THE WEIGHCONSOLE SOFTWARE

DFWPM 14
i

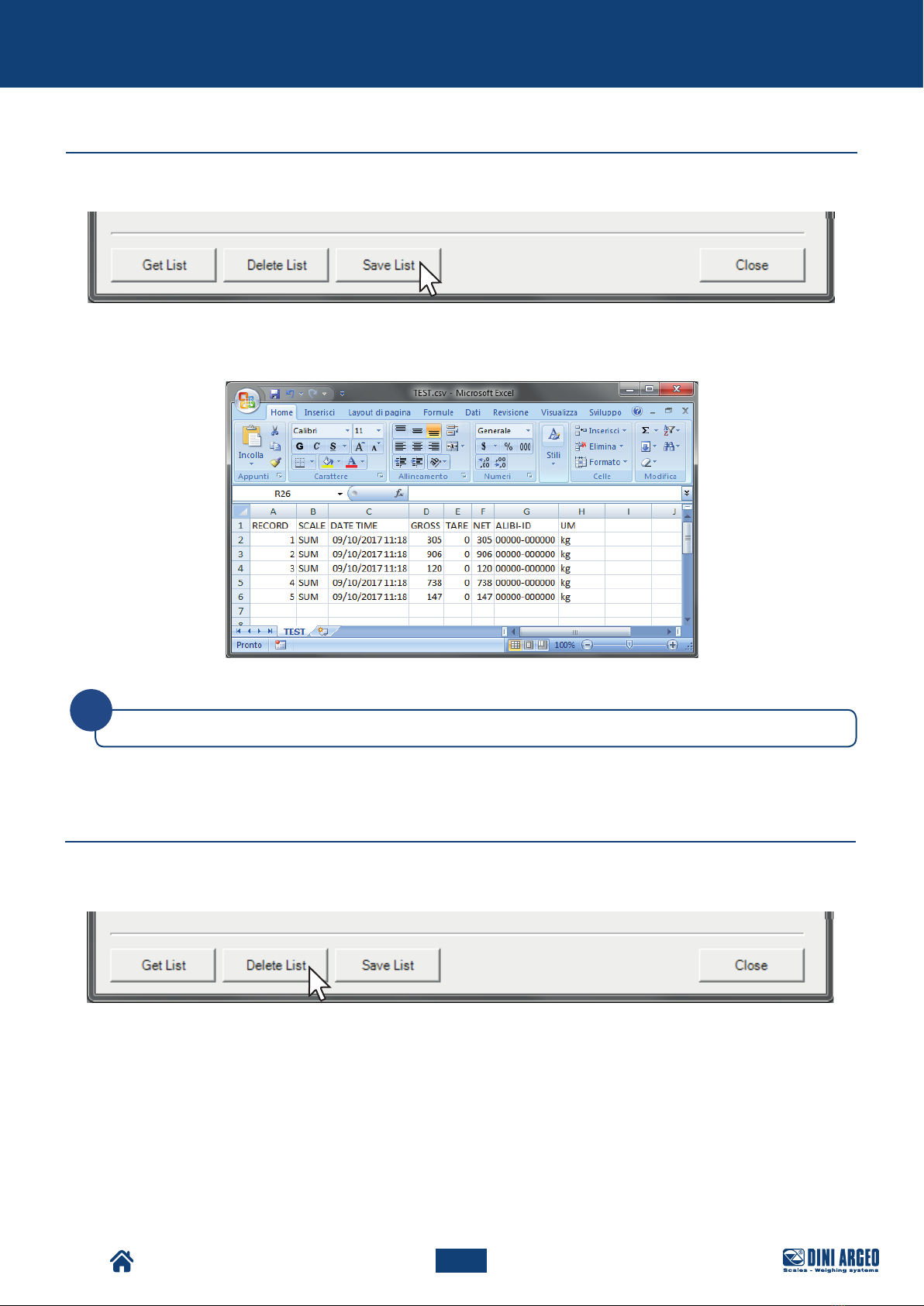

USER_MAN_ENG_DFWPM_v4
The Alibi memory ID number appears only if the Alibi memory option is in place.
The list can be saved by pressing the “Save List” key. The list is available as a .csv or a .xls file.
EXAMPLE:
.csv file
Saving the list of weighing operations
MANAGING THE LIST OF WEIGHING OPERATIONS WITH THE WEIGHCONSOLE SOFTWARE
Deleting the list of weighing operations
The list can be deleted by simply clicking “Delete List”.

DFWPM 15
USER_MAN_ENG_DFWPM_v4
1. Exit the “download weighing operations” mode
2. Close the “WeighConsole” program
End the communication between the DFWPM “USB” and the PC.
a. b.
2500.0
DFWPM “USB” reconnects itself to
the available weighing scales and
displays the weight.
MANAGING THE LIST OF WEIGHING OPERATIONS WITH THE WEIGHCONSOLE SOFTWARE

DFWPM 16
USER_MAN_ENG_DFWPM_v4
MESSAGES OF THE INSTRUMENT DURING USE
MESSAGE DESCRIPTION
eco.x Displayed for a moment if the master is able to connect to the slave X; if the connection
is not possible, the message remains fixed and the master emits a beeping signal.
MeM.xxx Displayed for a moment when the weight is saved.
PC.Wait The indicator is connecting to the PC.
eMPty Empty weighing operation list. The connection with the PC could not be established.
Del... Deletion of the list of weighing operations in progress.

17
DFWPM
USER_MAN_ENG_DFWPM_v4
NOTES

18
DFWPM
USER_MAN_ENG_DFWPM_v4
NOTES
This publication, or any part of it, cannot be reproduced without the Manufacturer’s written authorisation.All the information reported in this manual
is based on data available at the time of publication. The Manufacturer reserves the right to make changes to its products at any time, without prior
notice and without incurring in any penalty. We therefore recommend you always check if there are any updates.
The person responsible for using the weighing scale must ensure all the safety regulations in place in the country of use are applied, guarantee that
the appliance is used in keeping with its intended use and avoid any hazardous situation for the user.
The Manufacturer declines any responsibility deriving from any weighing errors.

19
DFWPM
USER_MAN_ENG_DFWPM_v4

HEAD OFFICE
Via Della Fisica, 20
41042 Spezzano di Fiorano, Modena - Italy
Tel. [phone] - Fax. [phone]
[e-mail]
SERVICE ASSISTANCE
Via Dell’Elettronica, 15
41042 Spezzano di Fiorano, Modena - Italy
Tel. [phone] - Fax. [phone]
[e-mail]
The information in this document is approximate and can be subject to variations without prior notice by Dini Argeo, with respect of the norms in force. The official technical data is available in the updated version on the www.diniargeo.com website or by contacting the Dini Argeo Customer Service.
Rev. 19.12.2017
Authorised assistance centre stamp
USER_MAN_ENG_DFWPM_v4
