PRODUCT INTRODUCTION
Product Name: Prime
Product Code: 5510
Thank you for selecting DIR, the leading salon and beauty Furniture company in the UK. The
Toya pedicure spa comes with four-wheel driven muted massage system which gives you
the experience of ultimate relaxation. Please take time to read this entire manual before
assembly and use. If you have any problems or have questions regarding your pedicure
spa, please contact our technical support on: [phone].

4
DIR
www.dirgroup.co.uk
WARRANTY
The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free
of defects in material and/or workmanship attributable to manufacture for one year from date of
buyer’s receipt of product. Damage resulting from improper handling after merchandise is received,
or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
For any other information please contact our support team:
Birmingham
B5 6LR
UK
-----------------------------
Tel:
[phone]
-----------------------------
Email:
[email protected]
DIR BIRMINGHAM
Unit 1 River Road
Business Park
33 River Road, Barking
Greater London
IG11 0DA
UK
------------------- ----------
Tel:
[phone]
--------- --------------------
Email:
[e-mail]
DIR LONDON
24 Woodward Ave.
Suite C
Queens, NY 11385
USA
------------------- ----------
Tel:
[phone]
[phone]
-------- ---------------------
Email:
[e-mail]
DIR NEW YORK
Konrad-Adenauer-Straße 25
50996 Köln
Germany
------------------------------
Tel:
+ 49 (0) 221/88888.128
------------------------------
Email:
[email protected]
DIR COLOGNE
Unit 5 Block E,
Riverview Business Park,
Nangor Road, Dublin 12
Republic of Ireland
------------------------------
Tel:
[phone]
------------------------------
Email:
[e-mail]
DIR IRELAND
66 Rea Street South

5
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Don t allow children to touch moveable part of this product.
Please use well-grounding power supply suited to this product.
Please pull out the plug after use or before cleaning to avoid injury or Damage to the product.
Please operate this product according to this manual instruction.
Don t use accessories which are not recommended.
Don t use this product outdoors.
Please read this manual instruction carefully before operation.
Any other usage that is not listed in this manual instruction is forbidden.
20 minutes of usage each time is recommended.
Please don t use it if the leather is broken or damaged.
Please don t use it if the cover or leather is damaged.
Please don t use it if the radiator hole is covered or blocked.
Please don t drop anything into this product.
Please don t fall asleep while using this product.
Please don t use it if drunk or feel unwell.
Please don t use it within one hour after having meal.
Please don t make the massage function too strong for avoiding Injury.
2. Environment for usage.
Please don t use it under high temperature and moist environment such as
bathroom.
Please don t use it immediately while the environmental temperature changes sharply.
Please don t use it under heavy-dusty or caustic environment.
Please don t use it where there is not enough space or not good ventilation.
3. People who are not suitable to use this product.
People who are suffering from osteoporosis are not suitable to use this product.
People who are suffering from heart disease or carrying electronic medical equipment such as heart pacemaker are not
suitable to use this product.
1.IMPORTANT SAFETY WARNING.

6
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
People who are suffering from fever are not suitable to use this product.
Pregnant women or women that are in menses period are not suitable to use thisproduct.
People who got injured or skin disease are not suitable to use this product.
Children under 14-year old or people mentally unbalanced without being supervised are not allowed to use this machine.
People who are told by doctor to have rest or people who feel unwell are not suitable to use this product.
People whose bodies are wet are forbidden to use this product.
4. Safety.
Check the voltage if it is suitable to the specification of this product.
Don t use wet hand to pull the plug.
Don t make water go inside this product to avoid electric shock or cause damage to this product.
Don t damage the wires or change the circuit of this product.
Don t use wet cloth to clean the electric parts such as switch and plug.
Be away from this product under power cut state to avoid injury if the power comeback suddenly.
Stop using this product while it works abnormal, and please consult local agent immediately.
Stop using this product if you feel unwell, and please consult health care doctor.
Children should be supervised to ensure that they do not play with the Appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its Service agent or similarly qualified persons in order to
avoid a hazard.
5. Maintenance.
This product should be maintained by certain appointed agents, users are prohibited to disassemble or maintain by themselves.
Please don t forget to cut the power after usage.
Don t use this product if the socket looses.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.

7
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Don t reserve this product under high temperature or near fire and avoid longtime direct sunshine.
Please clean this product by dry cloth. Don t use thinner, benzene or alcohol.
The mechanical components of this product are specially designed and made, it is not necessary to be specially maintained.
Don t use edged res to thrust this product.
Don t roll or pull this product above uneven ground, it should be lifted before moving.
Please use it intermittently; don t make this product work continuously for long.
6. Solution of ordinary malfunctions.
It is nature movement voice if the motor sounds while in usage.
If the controller can t work normally, please check the plug and socket if they are connected strongly and make sure the
switch is turned on.
If this product will be left unused for long, please curl up the wires and reserve this product in dry and dustless environment.
If the rated working time is over, the product will automatically activate the power-off button; If
this product works continuously for long, the temperature protector will make the product auto-
matically power-off, it should be used again after half an hour ’s rest.
If the detachable cord / supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a Hazard.

8
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

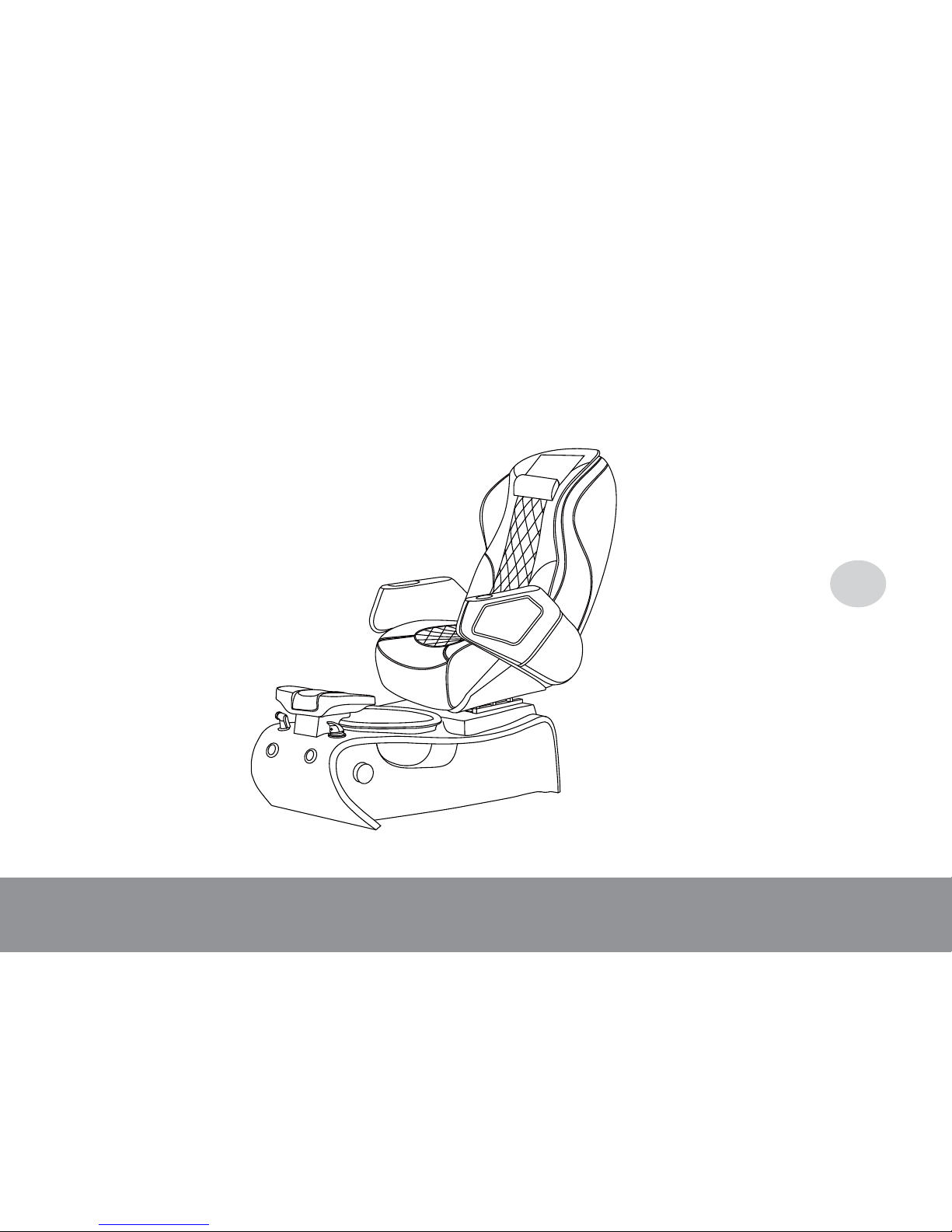

1.Detachable pillow pad
2.Controller
3.Armrest
4.Detachable seat cushion
5.The back covering
6.Back pad
7.Tray
Function
Designed with a four-wheel driven muted massage mechanism which can move
up and down in the backrest.
Programmed with five kinds of emulational massage functions of Shiatsu,
kneading, flapping, knocking and synchronous kneading and flapping.
Programmed with manual and automatic control modes for the upper body.
Under the automatic mode, it offers three automatic changed combinations of
massage function: . Under the manual mode, it offers three
options of overall, fixed and partial area. Under fixed state, the massage hands
can be moved up and down; Each massage function has five levels of speed
options; the width between the two massage hands can be adjustable in three
levels of wide, middle and narrow when it is under flapping, shiatsu or knocking
state.

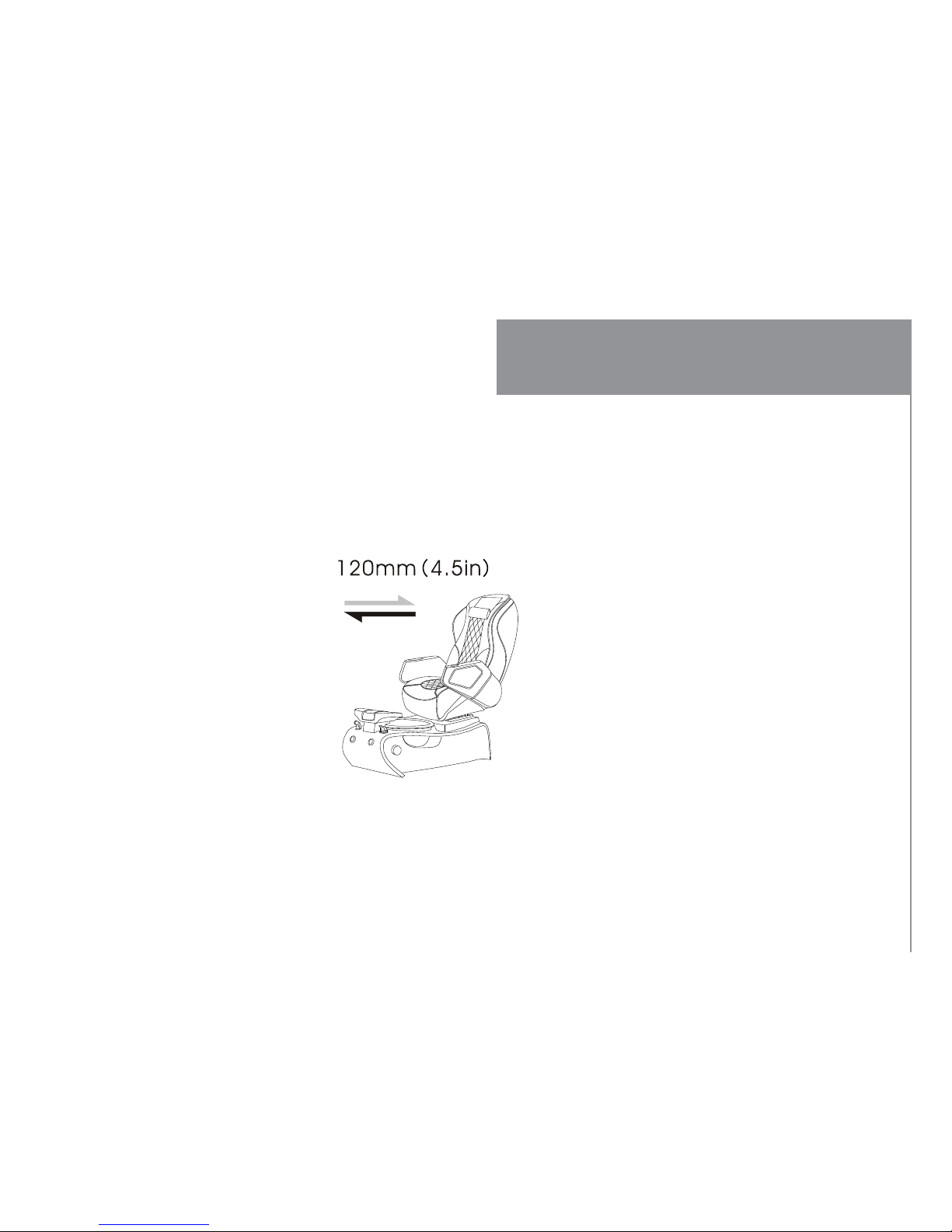

Seat frame forward and backward movement, backrest reclining and declining
movement.
Restoring the massage hands after turning off the machine.
lower, upper and full
1
3
4
2
5
6
7

9
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

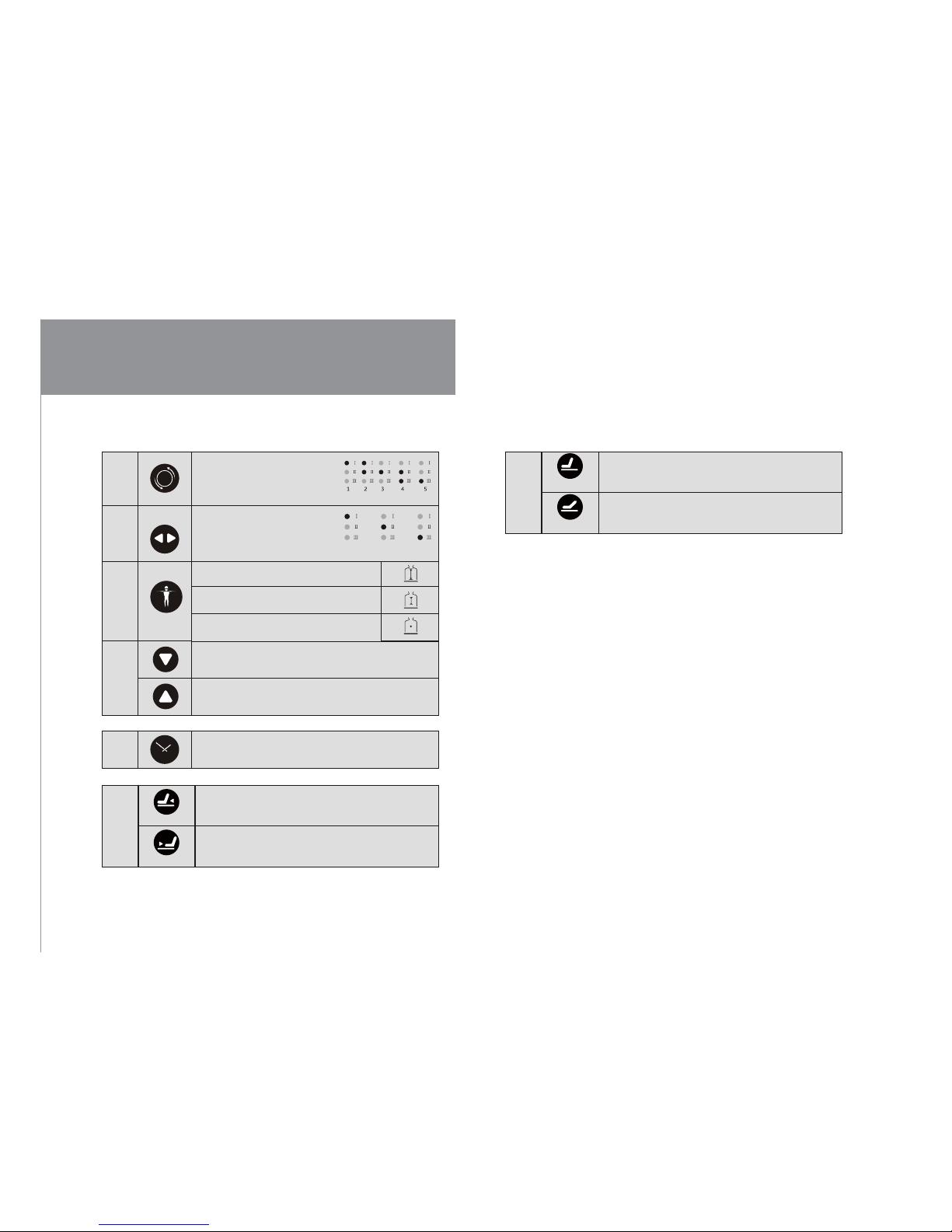

1.Controller operate
Button
Adjust massage balls
(2)Upper body manual massage
To start or stop massage of the upper body
Display status
Button
Method
Knead
Tap
Kneading
& Flapping
Knock
Speed
Speed, Width
Speed
Speed, Width
Speed, Width
Shiatsu
Adopt the various tactics to carry on automatic massage to
different position of the upper part of the body, the massage
position covers the whole upper part of the body.
To carrying on automatic massage around the neck
shoulder mainly
Carry on automatic massage around in carrying the waist
mainly
Button
Adjust massage balls
(1)Auto Massage
FunctionAdjust massage balls

10
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Back
Press this button continually and the backrest frame
will move upward, loose your finger and the movement
will stop.
Press this button continually and the backrest frame
will move downward, loose your finger and the
movement will stop.
Recline
Incline
(4)Adjust angle of backrest andfootrest
Seat
Press this button continually and the seat frame will
move forward, loose your finger and the movement
will stop.
Press this button continually and the seat frame will
move backward, loose your finger and the movement
will stop.
Forward
Backward
Width
Width:when massage treatment of flap-
ping,shiatsu,or knocking has been
chosen,press this button to adjust the
width of the massage hands,three opti-
ons,not available under auto
kneadingstate.
Speed
For speed and massage treatments sel-
ection.five speed options available.the
indicators are as follows(black stands
for on)
narrow mid wide
Upper body(overall) trip massage
Small area(partial) trip massage
Fixed position (fixed) massage
Back
Stretching
Position
When fixed massage has been chosen, press this button to
move the massage device downward to suit precise
massage points, not available under auto state.
When fixed massage has been chosen, press this button to
move the massage device upward to suit precise massage
pointsm, not available under auto state.
Three modes of timing: 10 mins, 20 mins and 30 mins.
Timing
(3)Other manual function

11
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
bottom frame
spa tub
flat washer
Strengthen the round head
square neck bolt
Locknut
2.Components install direction
Place the bottom frame of massage chair on the spa tub.
Make sure the holes of the bottom frame are aligned with the pre-drilled holes on
the spa tub.
Secure the massage chair onto spa tub by using provided hardware as shown in
the diagram below.

12
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

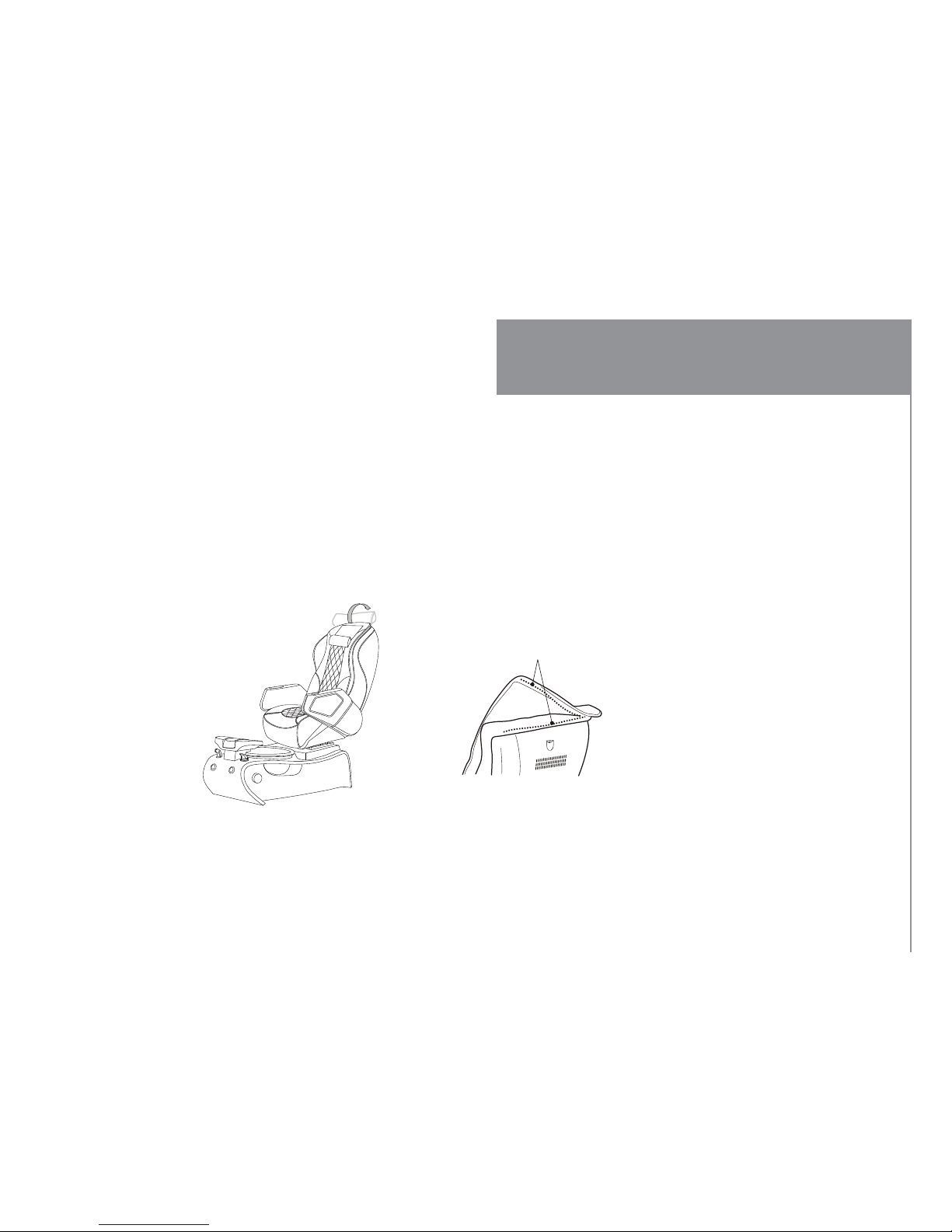

4.Instruction of backrest installation
(1).Put the back spindle in the slot of the installation base. (Note: the spindle must be in a certain angle then can be put in the slot)
3.armrest assembling instructions
(1)The hex head bolt (M10X40) goes through the hole of armrest mounting bolt
(2)Make the right position for the armrest turning mechanism, a screw hole, the seat positioning pin of armrest mounting and hex head
bolt, then tighten the bolt

13
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
(1) (2) 3
Caution
(2).Put the installation hole of the electro-motional rod in the backrest in order with the seat hole of the electro-motional rod
in the backrest.and then insert the peg
(1). The correct method of operation: before operating the controller, please make sure that the backrest electronic cylinder
is connected well with the pin that fixes the backrest.
(2). When the backrest electric cylinder is not connected with the pin that fixes the backrest, please hold the electronic
cylinder in case it touches the ground when operate the controller.
(3). When debugging and installation, before operating the controller, please make sure that the backrest electric cylinder is
connected well with the pin that fixes the backrest. Otherwise, after shutting down the switch, the front part of the electronic
cylinder will hit the board under the seat frame to cause bad distortion of the seat frame, and even make the rail go out of
the railway or damage the steel-ball railway.

14
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

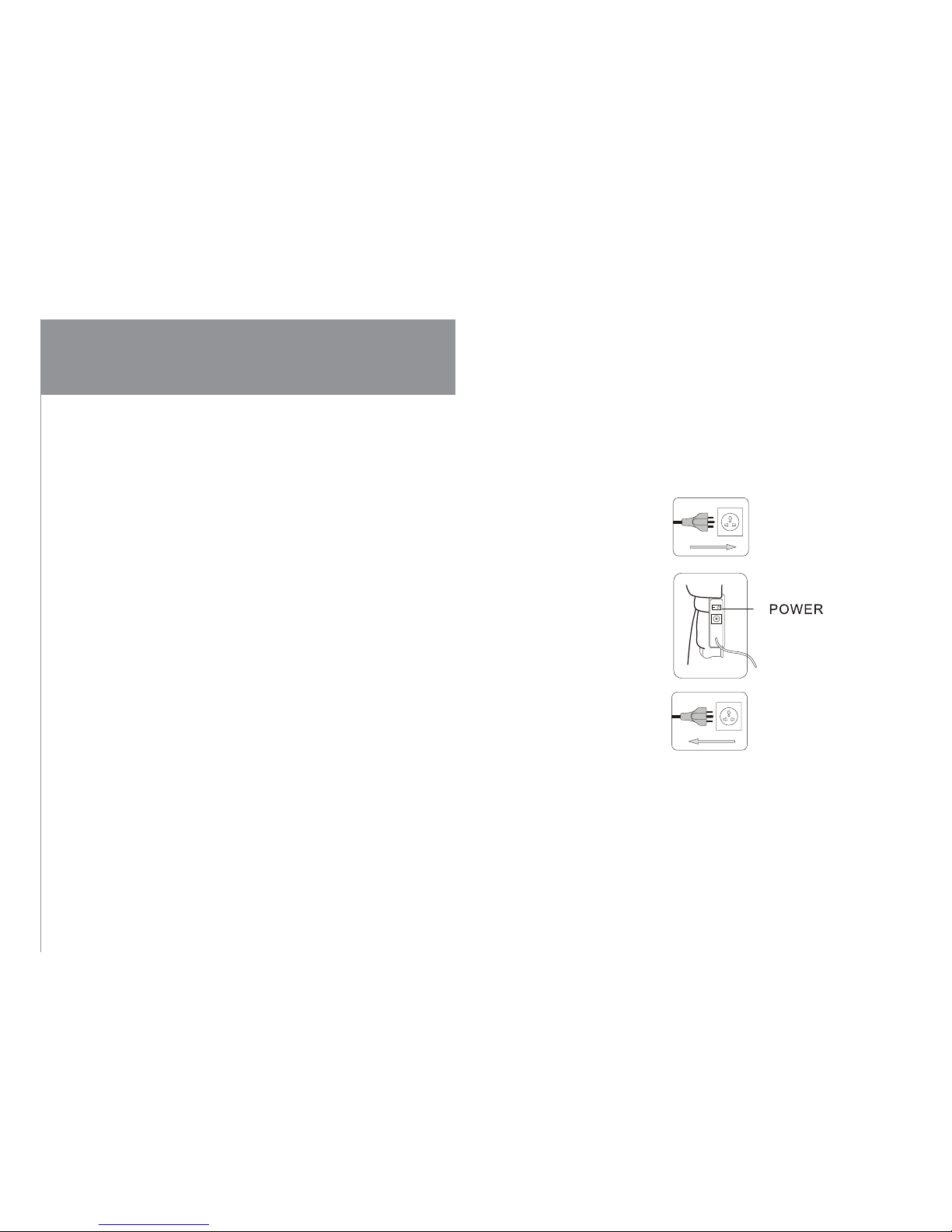

(1).insert the plug into the socket outlet.
(2).switch on the power button behind the armrest.
SWITCH ON POWER
MASSAGE
(1)Select relative massage according to the operation instructions of the control.
(1).stop overall massage.
(2).switch off the power button behind the armrest.
(3).pull the plug out of the socket outlet.
SWITCH OFF POWER
5.Operation sequence

15
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
The pillow pad and back cushion (recommended) reduces the kneading intensity of your neck and shoulder, but you can
decide to put it on or not according to your personal need.(1) Sticker connects the pillow pad and back cushion.
WARNING : IN CASE OF DANGER, DO NOT REMOVE THE CUSHION
(1)
6.Attaching or detaching the pillow pad and back cushion

16
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Backrest adjustment
press and hold the button on the controller,the backrest will recline backward slowly. Release the button,then the backrest
will be stopped upright press and hold the button on the controller,the backrest will move slowly
.
Loose the button,then the backrest will be stopped
WARNING: DO NOT EXERT ANY PRESSURE OTHER THAN YOUR OWN BODY ON THE BACK WHILE IT IS RISING.
7.To Adjust The Back Simultaneously
400mm (15.7in)
30

17
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
The flex fuction of seat frame could fix the different height of the people to adjust the massage place of the calf airbags,the maximum
distance moving forward and backward is 120mm.
8.To Adjust Seat Frame Separately
Power supply: 110-120V~ 60Hz
220-240V~ 50Hz/60Hz
Rated power: 160W
Safety structure: Class I

After an initial period of use, check all fastenings for any loosened screws etc. If found, please tightened appropriately
18
DIR
www.dirgroup.co.uk

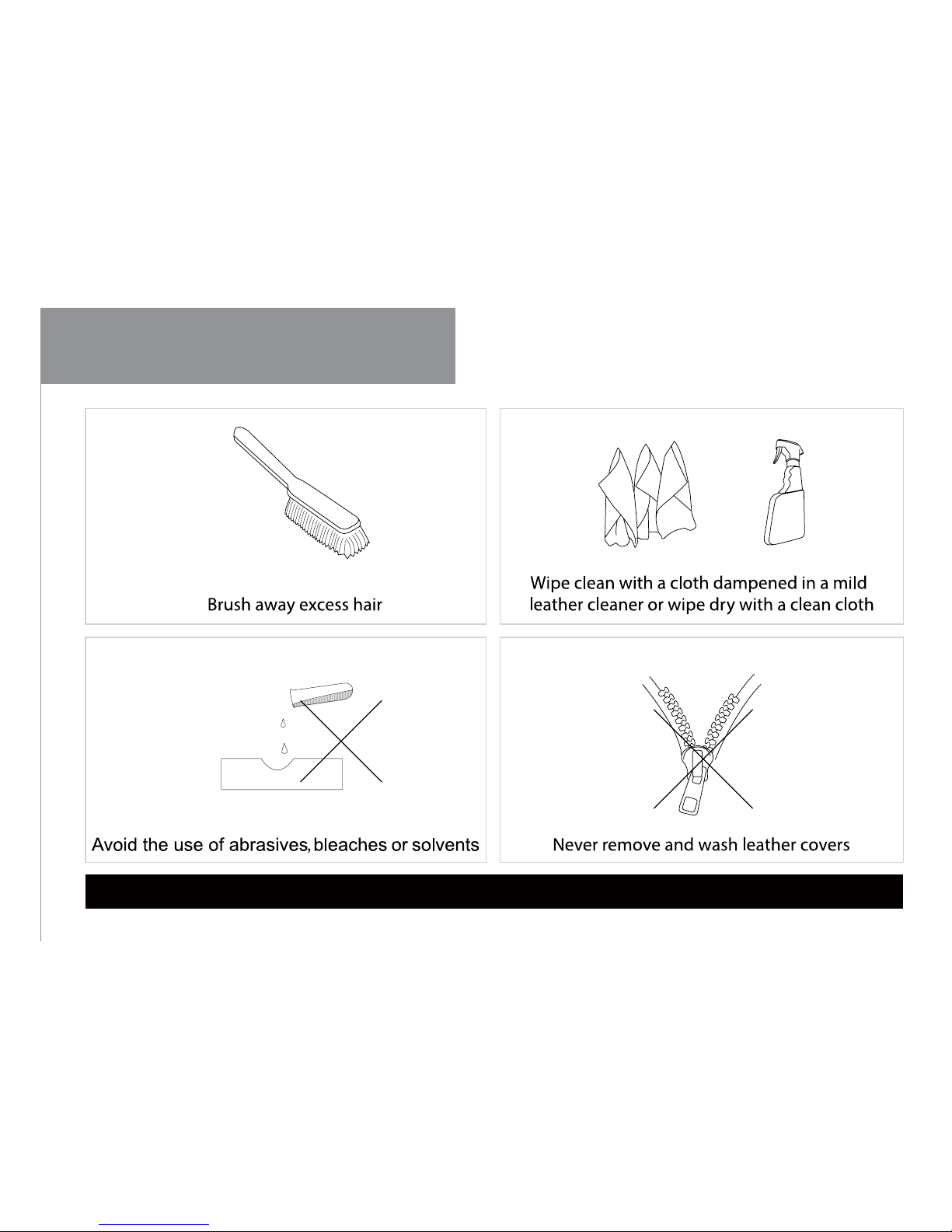

AFTERCARE INSTRUCTIONS

19
DIR
www.dirgroup.co.uk
CONTACT US
If you have any enquires regarding the product warranty, please contact our customer services team.
Sales: [phone]
Customer Service: [phone]
Fax: [phone]
Email: [email protected]
Website: www.dirgroup.co.uk
Unit 1 River Road Business Park
33 River Road, Barking
Greater London IG11 0DA
UK
Sales: [phone]
Fax: [phone]
Email: [email protected]
Website: www.dirgroup.co.uk
DIR BIRMINGHAM (HEADQUATERS)
DIR LONDON
24 Woodward Ave.
Suite C
Queens, NY 11385
USA
Sales: [phone]
[phone]
Fax: [phone]
Email: [email protected]
Website: www.dirsalonfurniture.com
Konrad-Adenauer-Straße 25
50996 Köln
Germany
Sales: + 49 (0) 221 / 88888.128
Fax: + 49 (0) 221 / 88888.122
Email: [email protected]
Website: www.dirgroup.de
DIR NEW YORK
DIR COLOGNE
Unit 5 Block E
Riverview Business Park
Nangor Road
Dublin 12
Republic of Ireland
Sales: [phone]
Email: [email protected]
Website: www.dirgroup.ie
DIR IRELAND
FOLLOW US
Birmingham
B5 6LR
UK
66 Rea Street South

7
