Hutech Massage Chair
User Manual
We sincerely thank you for buying the HUTECH Massage Chair Q9.
Please read and understand the manual before use.
In particular, make sure that you fully understand the precautions.
Contents
First-classed Premium Massage chair
!
Experience an optimized massage than you imagine
!
Features
Components
3D MassageAuto Body Scanning
Full Body L Frame
Dual Air pump
Auto Leg Length
Adjustment Zero-Gravity
3
D
Footrest
Foot Set
Seat Pad
Palvis Air
Arm Air
Arm Unit
Wheels
Remote Control
Head Unit
Backrest
Backrest Pad
Shoulder Unit
Shoulder Air
Label
Side Set
USB
port
DVD
port
Remote Control
socket
Electric CordPower
Switch
Fuse
Music
port
Speaker
Pillow Pad
';:5
Ŗʑᦶ
Hutech Q9 Massage Chair User Manual
)VUFDI
)VUFDI
Η
Power
This button is used to turn on /off Power.
Θ
Pause
This button temporarily stops all functions.
If it is pressed again, the machine returns back to normal.
Ι
Zero Gravity
Κ
Time Setting
This button is used to turn the time of massage.
The timer is set to 15 minutes.
If the button is pressed, 5 minutes are added. (max : 30min)
※There might be an error at massage time unexpectedly.
Λ
Auto Massage
If the button is pressed continuously, 5 kinds of auto programs
can be selectable.
Η
Power
Λ
Auto Massage
Ν
Foot Roller
Π
Music
Pause
Zero Gravity
Time Setting
Ξ
Calves Roller
Ο
Backrest /
Footrest Control
Μ
Heating
Ρ
Vibration
Τ
Intensive Care
Υ
Back Speed Control
Manual Massage
(Back)
Σ
Intensive Care Up /Down
⑯
Air Pressure Massage
⑰
Air Pressure
Intensity Control
LCD monitor
,OFBEJOH5BQQJOH
%VBM"DUJPO'JOHFSQSFTTJOH
Ŗʑᦶ
ᯱ࠺
ᯱ࠺
If the button is pressed, the backrest and footrest are adjusted to
provide the desired massage position. (3 steps)
A full-body care option which offers a light and soft massage
It helps users go to sleep in comfort.
[Automatic Program #1] Zero-gravity Massage
Hutech Q9 Massage Chair User Manual
How to Use the Remote Control
Remote Control Functions
)VUFDI
)VUFDI
It is good for relaxing full-body care comfortly with a light and
soft massage.
<"VUPNBUJD1SPHSBN>)FBMJOH.BTTBHF
stretches the entire body from head to legs in a dynamic and refreshing
manner. The contracting and stretching process relieves leg fatigue and
helps users have good posture.
[Automatic Program #4] Stretching Massage
A full-body care option which offers hip vibration and music playing
at the same time.
[Automatic Program #5] Music Massage
Makes comfortable position on upper body. The intensive shoulder
care function is effective in relaxing shoulder muscles.
[Automatic Program #3] Refreshing Massage

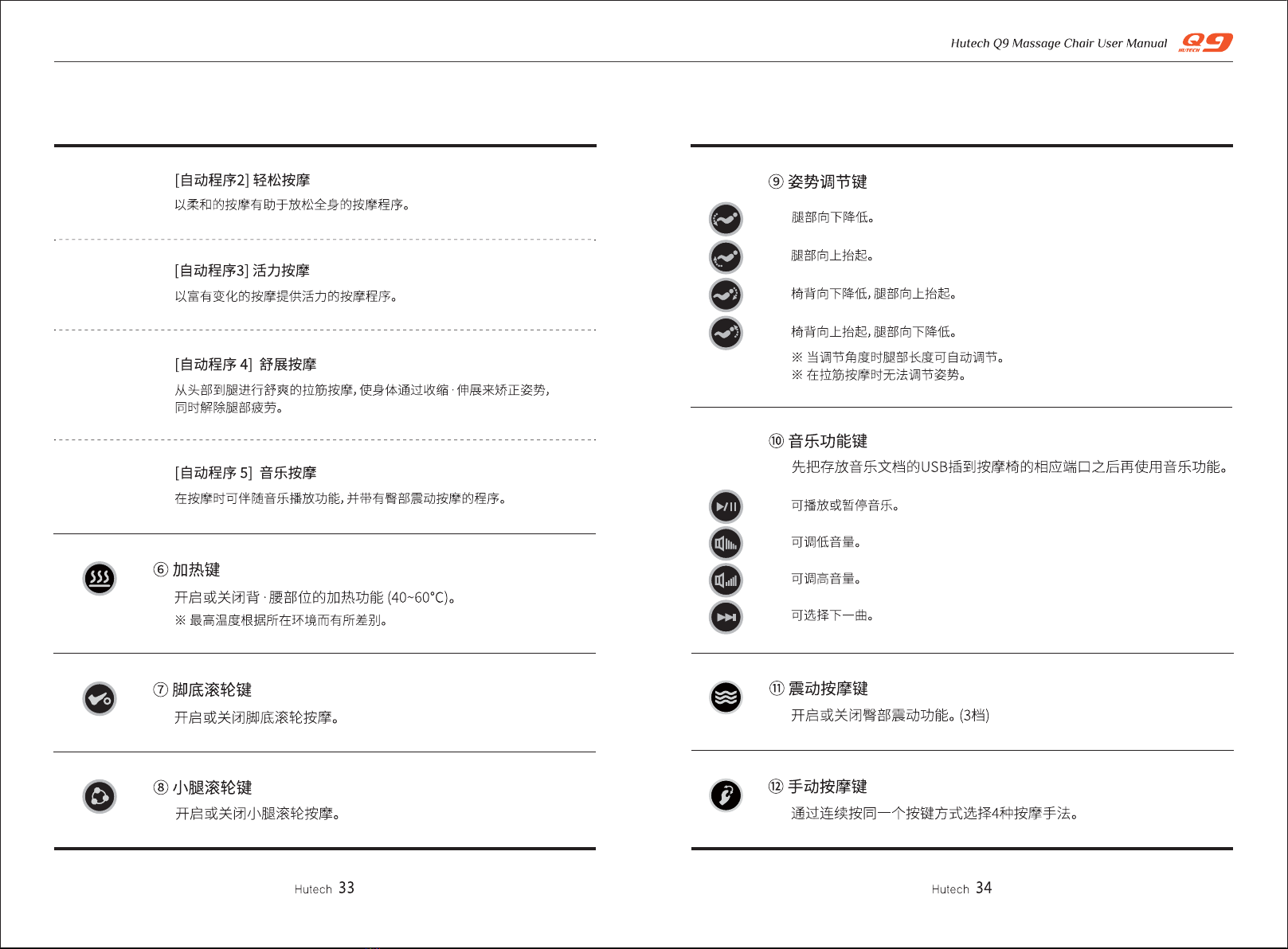

This button is used to select heating mode in back and waist.
(40 ~60℃)
Μ
Heating
This button is used to turn the foot roller on /off.
Ν
Foot Roller
Ξ
Calves Roller
This button is used to turn the calves roller on /off.
Once this button is pressed, the footrest goes down.
Once this button is pressed, the footrest goes up.
Once this button is pressed, the backrest goes down while the footrest
goes up.
Once this button is pressed, the backrest goes up while the footrest
goes down.
※It can be automatically adjusted to the leg again.
※It can't be adjusted when the stretching massage mode is running.
Ο
Backrest / Footrest Control
Π
Music
To use this function, save a MP3 file in the USB first. Then, insert
the USB into the USB port on the back of the massage chair.
If button is pressed the music can be played or paused.
This button is used to volume down the sound of MP3.
This button is used to volume up the sound of MP3.
This button is used to select the next song in the MP3.
Ρ
Vibration
This button is used to turn the hip vibration on /off. (3steps)
If the button is pressed continuously, 4 kinds of massage modes
can be selectable.
Kneading →Tapping →Dual Action →Finger Pressing
#BDL.BOVBM.BTTBHF
Hutech Q9 Massage Chair User Manual
)VUFDI
)VUFDI
öSleep mode : The LCD monitor is turned off, and the system goes into power-saving mode.
The speed of the back massage is adjustable.
Υ
Backrest Speed Control
If the button is pressed continuously, 5 kinds of air pressure areas
can be selectable.
footㆍcalves →pelvis →arm →shoulderㆍwaist →footㆍcalvesㆍpelvis →
footㆍcalvesㆍpelvisㆍarm →footㆍcalvesㆍpelvisㆍshoulderㆍwaist
Air Pressure
The intensity of air pressure is adjusted. (3 steps)
Σ
UpȵDown button
If the button is pressed continuously, 7 kinds of massage positions
can be selectable.
point →back →waist →hip →waistㆍback →waistㆍhip →whole
Τ
Intensive care button
Control the position of massage ball.
※Avaiable in Intensive care mode.
Air Pressure Intensity Control
2. Body scanning
3. Body scanning completed; ready to start
4. Paused
5. Adjustment of backrest and footrest positions
6. Set five massage options during the automatic massage
program
7. Playing music
8. Kneading, tapping, dual action and finger -pressing
from the left while the massage is in progress
9. Backrest position (UP /DOWN)
10. Welcome message
11. Massage speed control (3steps)
12. Air pressure massage intensity control (3steps)
13. Vibration intensity control (3steps)
14. Vibration massage is in progress
15. Heating
16. a. massage area displayed
b. Air pressure massage area
17. Time
1. Power ON and system ON displayed
Hutech Q9 Massage Chair User Manual

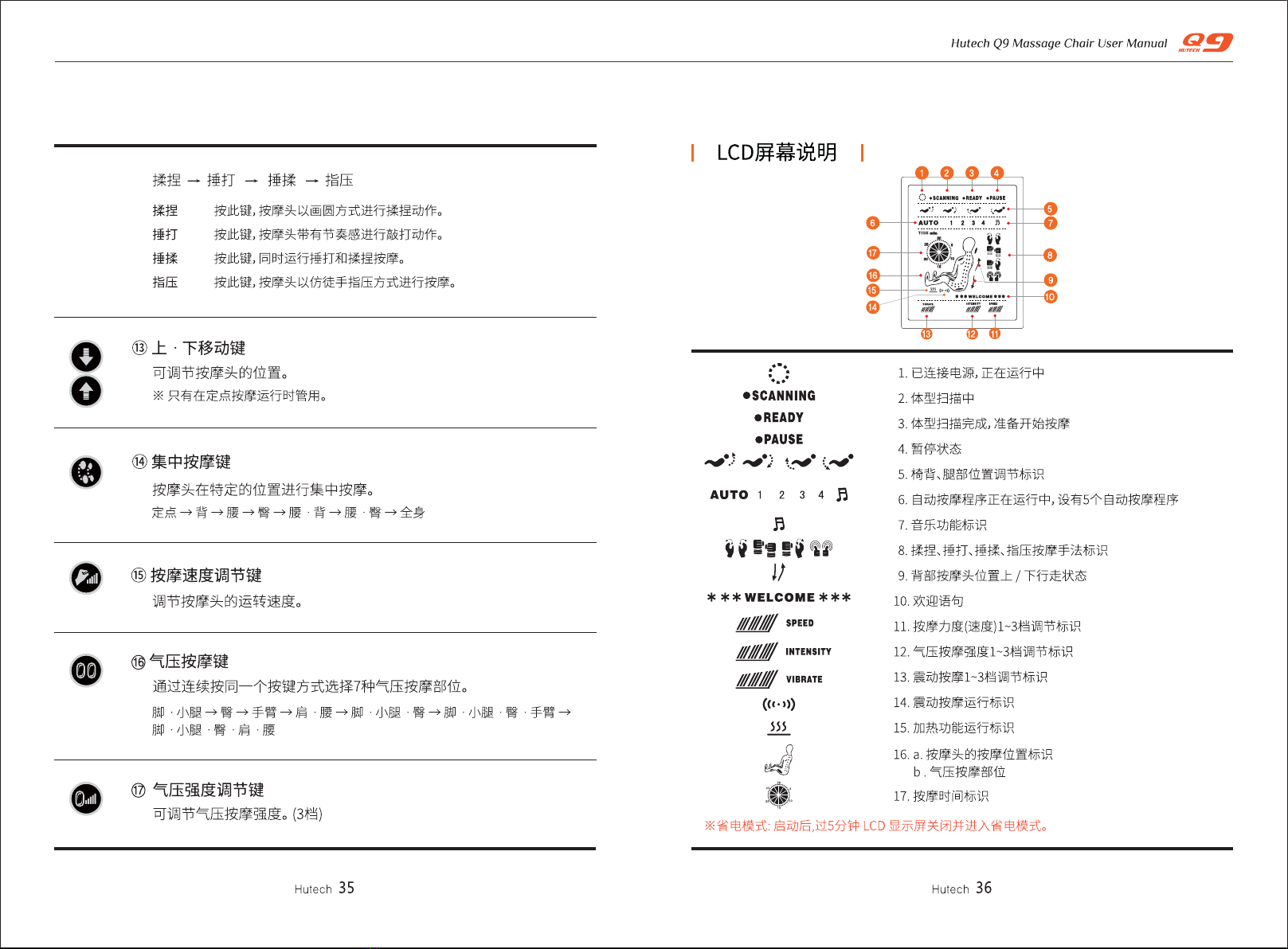

Description of LCD Monitor
Kneading
Tapping
Dual Action
Finger Pressing
If the button is pressed, Kneading massage is started like
round way.
If the button is pressed, Tapping massage is started rythmically.
If the button is pressed, Finger Pressing massage is started
like hand.
If the button is pressed, Tapping and Kneading massage is
started at the same time.
)VUFDI
)VUFDI
6TFGVM5JQT
1. Do NOT use the massage chair in a wet area.
This may result in an electric shock or other accidents.
2. Place the massage chair on an even surface.
3. The massage chair should have a safety space
at least 50cm in front and 60cm in back.
4. Keep out of direct sunlight or high temperatures.
This may discolor or damage the leather.
5. It is recommended to place the massage chair on
carpet to prevent the floor from being damaged.
Checkpoints before Use and Operational Procedures How to use
1) Pillow pad are well positioned
2) Power connection
3) Place the massage chair on an even surface
1Ensure the following massage chair
conditions before use.
2 Check surroundings and clear any
obstacles from around the massage chair.
3 Connect the power supply.
1) Connect the electric cord.
2) If [Power] is pressed in the back of the chair,
the power lamp will blink.
Automatic massage program
Manual massage program
The user can choose a massage mode and target
area.
This program is recommended for those who want
a simple massage.
Press the power button and select either automatic
massage or manual massage option.
The base time is set to ’15minutes.’
Press [ Power ].
To use this function, save an MP3 file in the USB first.
Then, insert the USB into the USB port on the back of
the massage chair.
Music function use
2
Use the remote control to select the desired
massage program.
If [Power] is pressed to stop the massage, massage
balls, backrest and footrest return to the original
position.
1) If not used the machine, press “OFF” button.
2) Turn off power switch and pull out plug.
3) If not use the machine for a long time,
please cover the machine using cloth because it is
covered with dust and it is having any bad effects.
Check point after using.
Switch off the power to stop the operation.
Checkpoints before use
Back Stand
Pillow Pad
Leg Set
DN
DN
DN
DN
Ŗʑᦶ
ᯱ࠺
Power Switch “OFF”
USB port
back side
Hutech Q9 Massage Chair User Manual
)VUFDI
)VUFDI
Moving
Switch off the power and unplug the power cord.
As shown in the figure, press the backrest and
put the system up so that the wheels touch the
ground. Move the system slowly. Once the
relocation is over, gently unload the system.
For safety, a massage chair should be moved
by two strong individuals.
Wind or fix the electric cord to a chair leg to prevent any damage during transportation.
Because parts can be broken by external impact, be careful when placing the massage
chair onto the ground. Use the machine on an even surface only.
If the machine is moved on a wooden floor using the wheels, the floor could be damaged.
Caution
Check if there are any obstacles or children near when adjusting backrest
and footrest angles before operation
※Make sure that you read the manual and follow the instructions before use.
※We shall NOT be responsible for any results caused by the violation of these regulations.
※The safety instructions are divided into Warning and Caution as follows.
Warning
Improper operation may threaten user safety.
Improper operation may harm the user or the machine.
Use prohibited
Disassembly prohibited Definite power supply control
Follow the instructions
Warning
Caution
Keep children or pets away from the massage chair. Failure to do so may
cause an accident.
Check the panel buttons and power switch before operation.
Do NOT allow children to climb the machine.
Be careful not to allow the electric cord to become entangled or
be pressed by a heavy object.
Use only the rated voltage (220V) to avoid fire or failure.
Plug the power supply into a grounded outlet only.
Do NOT pull on or peel the sheath off of the electric cord.
This may result in fire or electric shock.
NEVER randomly disassemble or remodel the machine. We shall NOT be
responsible for any results caused by the violation of this regulation.
If damage to the electric cord is suspected, contact us or the distributor for repair.
Keep the machine stable on an even surface at all times before use.
Check if the massage balls inside the backrest pad are well arranged before use.
The optimum massage time is 15 minutes. The massage time for the same body
part should NOT exceed 5 minutes.
If operated repeatedly, leave the machine idle for about 20 minutes before reuse.
Make sure that the power is off after use.
Keep the machine away from wet or dusty areas. Failure to do so may result
in a short circuit or mechanical failure.
Do NOT use the system in high temperatures.
Do NOT use the machine with a heater near, and keep out of direct sunlight
to prevent fire.
Do NOT use the system in a humid place. (ex: Bathroom, etc.)
(If the massage chair is used in a cold area, do NOT greatly increase indoor
temperature all at once. If the machine is relocated from a warm to a cold place,
it may not operate normally. In this case, leave the massage chair powered off
for about one hour.)
Check if there is any damage or defect to the machine before use. If any problem
is detected, stop the machine immediately and contract us or the distributor.
Caution
Safety Precautions
Hutech Q9 Massage Chair User Manual
)VUFDI
)VUFDI
Electricity Massager
HT -9670 (Hutech Q9 Massage Chair)
Artificial Leather etc.
250 W
220 ~240 V, 50 /60 Hz
15 min
117 kg
Product Name
Model No.
Cover Material
Size
Upright :1490(L) x830(W) x1260(H)mm
Reclined :1780(L) x830(W) x1020(H)mm
If the machine is not used for a long period of time, contact a professional to
find out if there are any defects in the product.
Children and the elderly should use the machine only in the presence of an assistant.
Do NOT use the massage chair if you fall under one of the following categories
(including children):
- Suffering from a physical or mental problem; lack of experience or knowledge
If individuals having these issues want to use the massage chair, use should take
place only with an assistant present.
- Suffering from spinal disease or having weak bones; Using an orthotic,
prosthetic or any other form of assistive device
Those in one of the following categories are also strictly prohibited from using the
massage chair:
Do NOT use the massage chair simultaneously with other medical equipment.
This may result in poor efficiency or bodily injury.
If you fall under one of the following categories, consult with your doctor before use:
Do NOT use the massage function for prolonged periods.
Do NOT apply too much force to the rollers.
Be careful to not get your hand or foot stuck in the machine.
Do NOT put heavy objects on the backrest, armrest or footrest. Do NOT sit on the
massage chair in an awkward position.
NEVER move the machine during use.
Do NOT use the machine right after a meal.
Do NOT fall asleep during use.
Do NOT use the machine after you consume alcohol. This may result in bodily injury.
Keep the electric cord away from water or dust.
If your body or hand is wet, do NOT operate the machine
Do NOT put your hand or foot on the remote control.
This may cause improper operation.
To prevent fire, do NOT use an electric pad or blanket with this device.
Do NOT use the massage chair with other electrical devices.
Be careful to not get any body parts or objects stuck in the machine.
This may result in bodily injury.
Check if there are any sharp objects (ex: Car keys, etc.) in your pocket before use.
GGG
With an adjunctive device transplanted in the body
GGG
Using a critical medical device such as an artificial heart/lung
GGG
Using a controlled heart device such as an artificial heart
GGG
Cancer patient; suffering from a heart problem or any other physical or mental problems
GGGGGGGGGG
GGG
Mental illness
GGGGGGGGGGGGGGGGGGGGGGGG
Pregnant or menstruating woman
GGG
Scars
GGG
GGG
Under medical treatment
GGGGG
Suffering from a chronic disease or serious illness
Power Consumption
Recommended
Time Duration
Weight
Rated Voltage

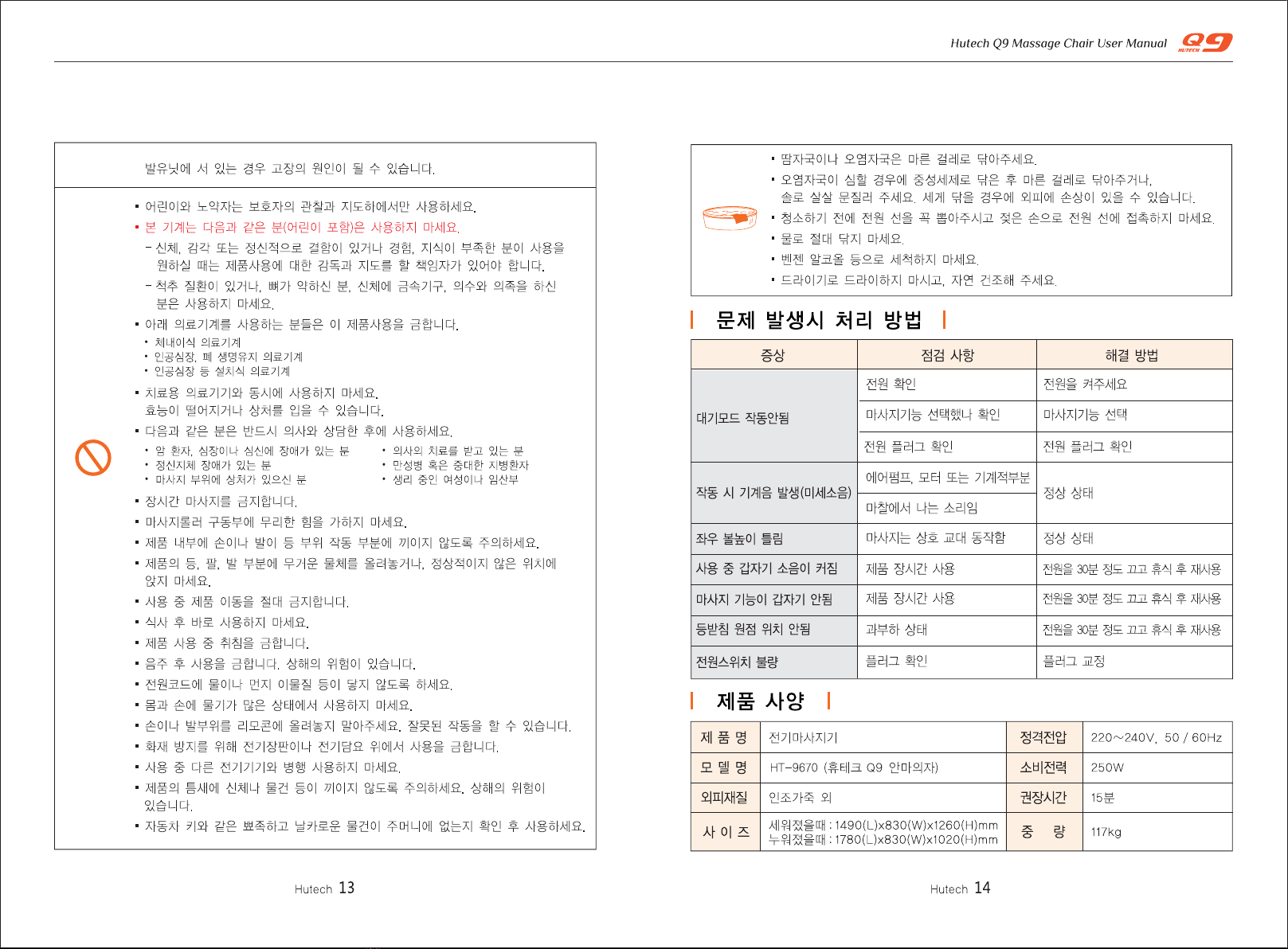

Problems and troubleshooting
Specification
‘Standby Mode’ out of order
Minor noise
Roller height imbalance (left and right)
Power switch out of order
Problems
Power supply
If a massage option is selected
Check on power receptacle
Air pump, motor and other
mechanical parts
Noise
Alternative operatiaon
Massage function out of order Length of use
Sudden increase in noise during operation Alternative operation
The backrest not returning
back to the original position Overload
Plug
Checkpoints
Switch on the power
Select a massage option
Check the power connection
Normal state
Normal state
Turn off the power.
After approximately
30 minutes later,
start the machine again.
Plug adjustment
Troubleshooting
Wipe sweat or pollution stains with a dry cloth.
If staining is severe, clean with a neutral detergent then wipe with a dry cloth.
Or, gently remove with a brush. If too much force is applied,
it may cause damage to the cover.
Unplug the power cord before the cleaning.
Do NOT allow the electric wire to come in contact with wet surfaces.
NEVER use water on or near this device.
Do NOT wash the system with chemical solvents such as benzene or alcohol.
Do NOT use a dryer to dry wet or damp sections. Allow to air-dry naturally.
Hutech Q9 Massage Chair User Manual
Table of contents
Other Hutech Massager manuals
