The Bure Rise & Go Double is a conventional, electrically operated Walker that is enhanced with a power rise
function. Not only does it act as a Walker, it also makes getting about in everyday life easier thanks to its smart
power rise function.
The Bure Rise & Go can be used by anyone who regularly uses a Walker. The user can remain active while the
power rise function is in use.
The product consists of a Walker and its associated harness and straps. The harness is available in different
sizes (S, M, L, XL) and is split at the rear to make remaining in the harness possible while using the WC. The
harness is secured to the two attachment straps (one each side), which are in turn attached to the Walker.
When the patient stands up the electric power rise function is employed and the smart attachment reduces the
distance between the patient and the Walker until the patient is standing upright.
The Walker can be used to advantage with a platform to facilitate patient transportation.
Bure Rise & Go DB

3
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB
1. Intended Use
Walkers are indoor, movable and portable assistive aids, which together with approved accessories are
intended to be used for transfer from sitting to standing positions, and walking training. Walkers are to be used
by persons with reduced muscular strength, who shall be able to stand and perform simple leg movements.
Walkers are to be used for leaning on when walking and standing during early mobilization training. Walkers
and accessories are intended for indoor use only in Home Healthcare environment and Professional Healthcare
facility environment.
2. Contraindications, Precautions and Warnings
Contraindications
• The device may not be used by patients above the maximum weight indicated on the label of the device.
Precautions
• Check that the device is used on a dry and flat surface.
• Check the device is correctly mounted/assembled before its first use.
• Check the device after every folding/disassembly after any transport.
• Check height adjustment and leg spreading motions and inspect the actuators’ or gas pistons’ full ranges.
• Activate the brakes whenever the device is not in use.
• Check the function of the brakes before use.
• Inspect the device regularly to detect any signs of damage. If there are any visible signs of damage,
contact Direct Healthcare Group Customer Service.
• In case of an electrical model of the device, check that the hand control does not show signs of wear
before every use.
• Check that the hand control markings are in accordance with the lifting functions.
• Check the battery status of an electrically operated model, before using the device.
• It is important to never leave the user alone during the transfer.
• Warranty applies only if repairs or alterations are made by personnel who are authorized by Direct
Healthcare Group.
• Ensure that there are no obstacles or people in the way of the device, when moving.
• Handle batteries with care. Do not drop.
• Use only batteries and cables that are intended for the device as instructed by the manufacturer.
• Verify that potential accessories that might be used are properly attached to the device before use.
• Low speed is recommended when moving with the device.
• Take care not to drive the device over thresholds with high speed or force. Approach the threshold with
lower speed and communicate the coming threshold to the user.
• Keep the instructions for use together with the product so that it can be used as a reference if necessary.

BURE RISE & GO DB
4DIRECTHEALTHCAREGROUP.COM
Warnings
• The caregiver must be able to read and understand the Manual/IFU of the product.
• It is important to only use approved accessories as stated in the manual/IFU to prevent unintended
detachment of components and subsequently a fall that may lead to patient injury.
• Use careful and gentle maneuvers when moving the device.
• Perform maintenance/service of the device, according to the instructions in the manual/IFU, at least once
every 12 months.
• Accessories must be properly attached. They should be tested in relation to the user’s needs and
functional ability.
• Special care must be taken when using strong electrical power sources such as diathermy and the like
so that diathermy cables are not placed on or near the device. In case of doubt consult with a Direct
Healthcare Group representative.
• When lifting the device, only use the denoted handholds. At least two people are required for lifting the
device
• Do not leave a user or patient unattended when the device is being used.
• Never move the lift by pulling on the actuator or gas piston.
• The device must not be lowered into water.
• The device must not be left or stored in a damp or humid environment.
• The device must not be cleaned using steam.
• The device must not be charged in a wet room.
• The device must not be used outdoors, only indoors.

5
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB
3a 3b
3c
4a
4b
3. Standing Up Using the Bure Rise & Go
Because standing up or transporting patients always entails risks we recommend that two
people are always present to assist the user at such times.

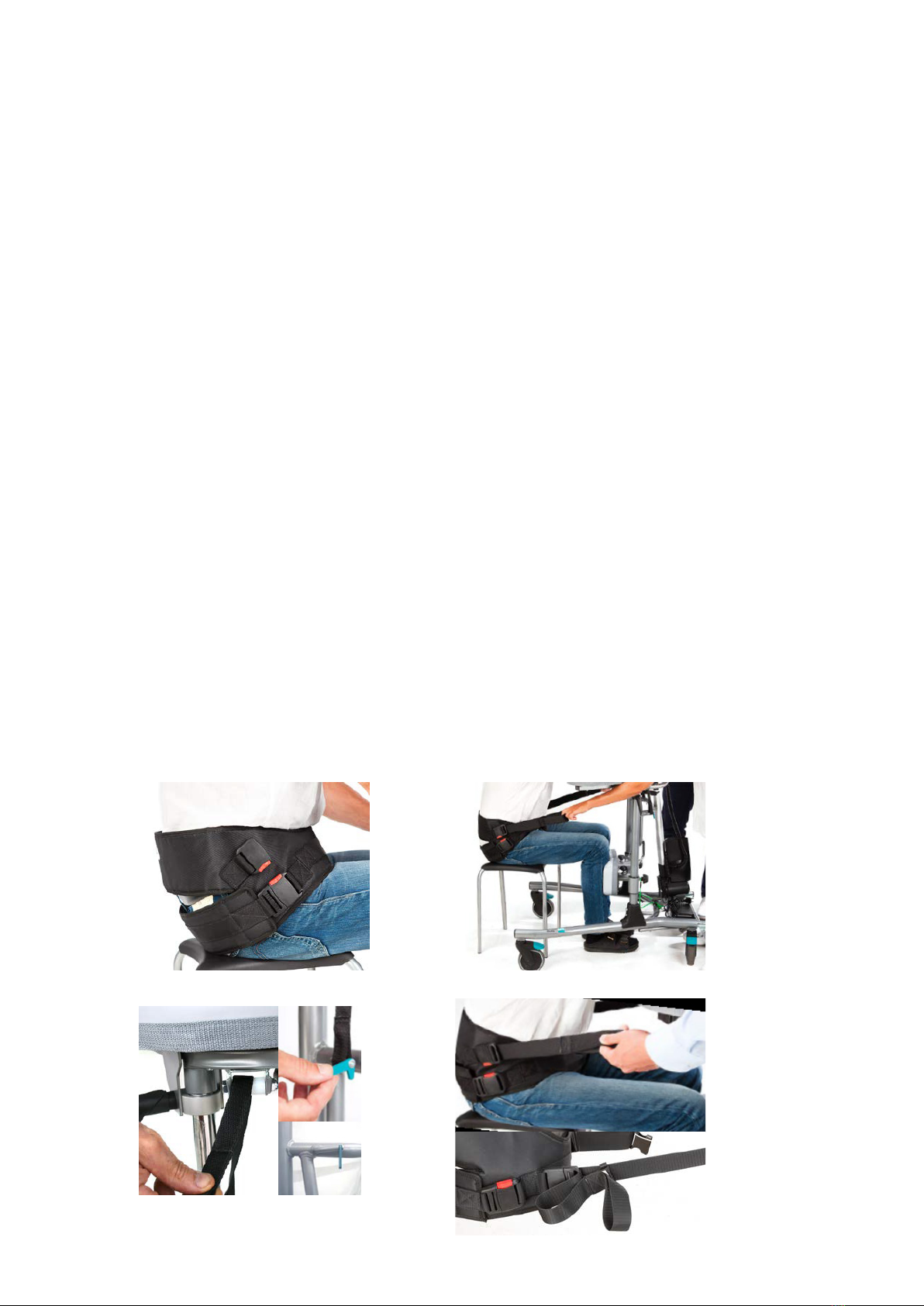

1. Fit the harness as low as possible across the hips and bottom with the broad upper part
around the hips and the narrow lower part around the bottom. Attach the strap with the
Velcro fastener and tighten it using the steplessly adjustable safety belt. Note that the lower
part of the harness attached around the patient’s bottom can be opened as required, e.g.
for visits to the WC
2. Place the user’s legs at a 90˚ angle with their feet on the floor or platform. Adjust the shin
supports to fit the user’s shins; remember to avoid pressure on the patellae and patellar
tendons. Refer to page 5 for shin support adjustment.
3. Thread both attachment belts through the Walker’s frame and the green locking devices.
Make sure the belts are threaded completely through the locking devices. NB: Check
especially that the belts are undamaged. Check that belts are not worn or frayed and that
the holder and straps are NOT bent or crooked. If the holder and belts are crooked (pic
3c-red line) it is a sign that the product has been overloaded, in which case the frame must
be replaced before further use.
4. Connect the power rise harness and attachment belts (that are secured to the Walker) and
tighten them using the loops; the belts must be taught on both sides. (see fig. 4a)
Note: Slide the loop back once the straps have been tightened – this prevents tangling
(see fig. 4b).
1 2

BURE RISE & GO DB
6DIRECTHEALTHCAREGROUP.COM
57
8 9
6
5. Swing the forearm supports to the side; the user must now grasp the handles WITHOUT
support for the forearms.
6. Lock at least two of the Walker’s castors (any two) and fold down the stirrup.
7. Perform the standing manoeuvre and check that the harness pulls evenly on both sides;
if not, adjust immediately. During the standing manoeuvre one carer must stand in front
of the user while applying their weight to the stirrup and maintaining eye contact with the
patient. The other carer may stand next to the patient.
8. In most cases the patient will not achieve a fully upright standing position; encourage the
patient to achieve a final upright posture independently or assist the patient by tightening
the adjustable harness straps.
9. Lower the Walker to its individually adjusted height and swing the forearm supports back
into position to provide support for the user. If a platform is not being used, swing the shin
supports away for increased walking room: refer to page 5, Shin support adjustment. The
harness may remain attached for enhanced safety, e.g. during transportation using the
platform.

7
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB

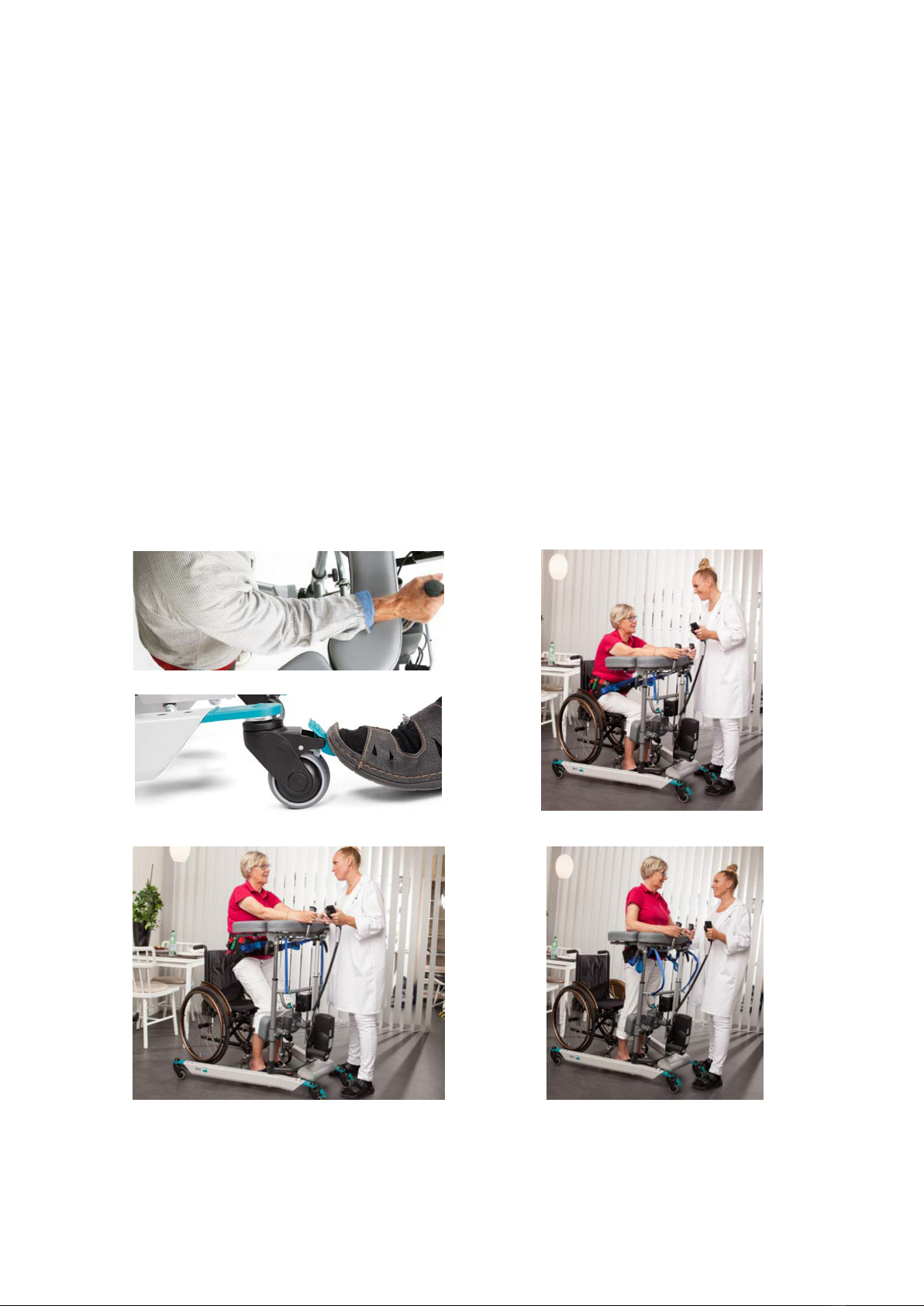

4. Raising/Lowering the Frame
Adjust the height with the aid of the remote control <UP> and <DOWN> arrows.
5. Adjusting the Handles
To adjust handles to the desired position, undo knob, adjust handle tighten knob.
6. Left and Right Adjustment of Armrests
The armrests can be adjusted sideways for optimal support: the whole arm can
be moved in or out and locked with the knob.
7. Locking/Unlocking Castors
Depress the foot brake to set it and lock the castor. To unlock, press down on the
protruding part of the brake.
8. Adjusting the Shin Supports
a - knob for height adjustment
b - knob for locking shin supports in forward position (when not in use)
9. Control Box Wiring

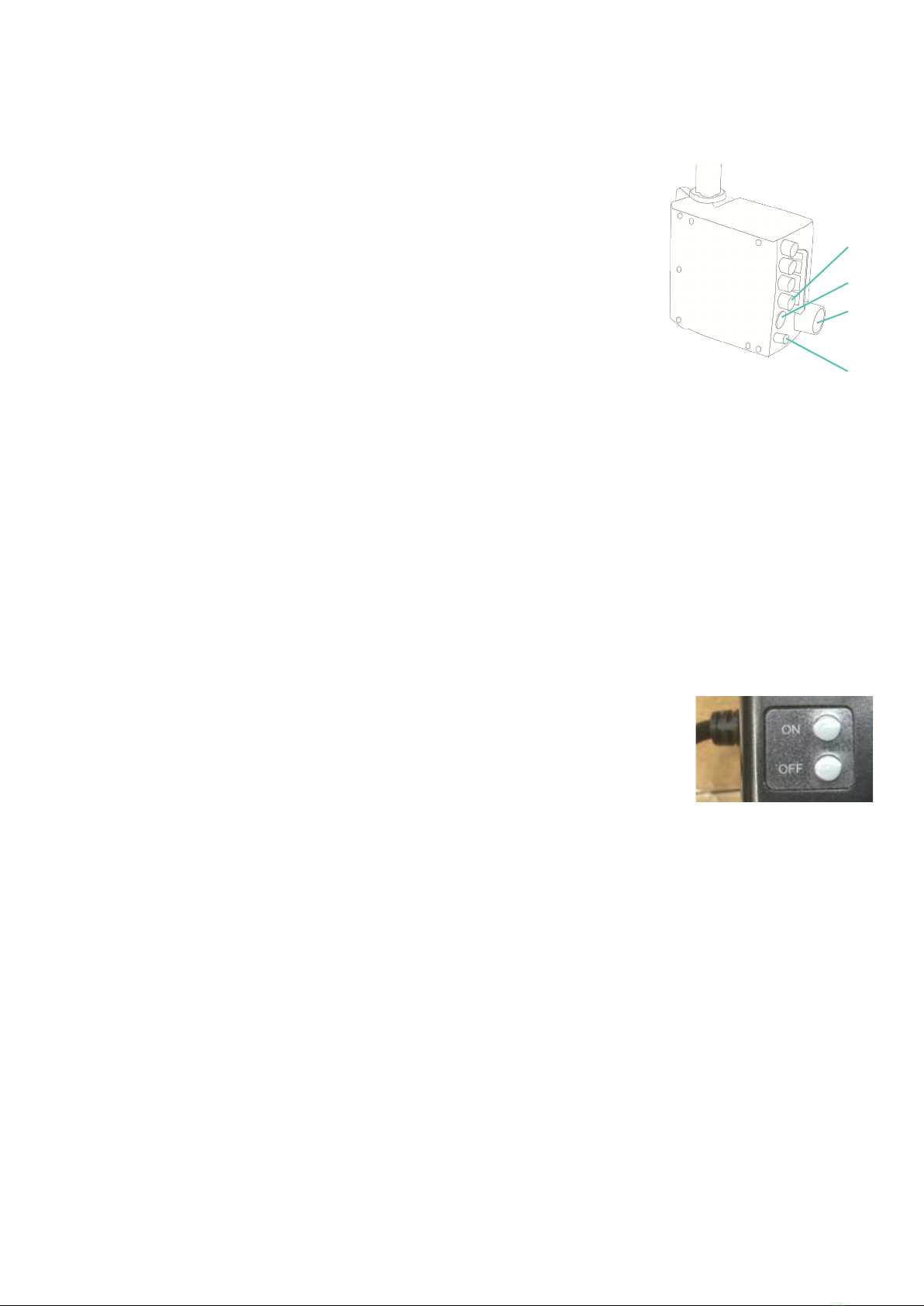

Remove the control box cover to make the connections as described below. Use
a screwdriver or similar; refer to the special labels on the control box.
NOTE! Make sure that plugs are connected to the correct sockets otherwise the
actuators can be damaged.
T-motion:
1. Socket for the raise/lower actuator. NOTE: Make sure that plugs are
connected to the correct sockets otherwise the actuators can be damaged.
2. Remote control socket.
3. Battery terminal socket.
4. Plug socket. NOTE: Plugs must ALWAYS be connected to the control box for
IP classification to be valid.
1
2
3
4
a
b

1
2
3
4
BURE RISE & GO DB
8DIRECTHEALTHCAREGROUP.COM
Linak:
1. Battery terminal socket
2. Plug socket
(NOTE: Plugs must always be connected to the control box for
IP classification to be valid.)
3. Remote control socket
4. Socket for the raise/lower actuatork
10. Battery Charging
• Connect plug to 230V wall socket. Charging begins automatically and the
battery LED flashes green.
• Make sure the battery is fully charged before using for the first time. It takes
around 25 h to fully charge the battery.
• We recommend that the battery plug be removed from the control box if the
product will be out of use for an extended period (more than one week) or if
the battery is switched off by means of the ON/OFF switch. This eliminates
the risk of disabling the battery as the control box always uses a small
quantity of electricity even when the Walker is not in use.
11. LED on Control Box and Battery
Control box – green light when power is available from battery/mains socket.
Battery:
• The LED flashes green during charging.
• ON/OFF: To use the product, press ON.
• The green lamp will begin to flash.
• Use the OFF button (hold down for 5 s) to switch off the battery if the product
will not be used for an extended period.
• The LED will shows a constant green light when the battery is fully charged.
• When the battery is in normal state/in operation, the LED flashes green at
REGULAR intervals, namely 0.5 s ON, 4 s OFF.
• When the battery requires charging (remaining charge <25%) the LED will
flash orange/red at REGULAR intervals, namely 0.5 s ON, 4 s OFF.
NOTE: The battery has an in-built device that automatically switches it off when
remaining charge is <20%. The LED is then extinguished. The battery must now
be fully charged before the electronics can be used again.

9
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB
12. Maintenance
Recommended at least once per year.
Check that Action
General
The Walker feels firm/free from play.
The Walker does not rattle during manoeuvres.
The Walker is level and all of its castors are in contact with the
floor.
The Walker is not dirty.
Clean with lukewarm soap solution or alcohol-based cleaning
agent (no petroleum products).
Arm rests
Arm rests are intact and clean.
Arm rest widening is functional.
Clean; replace if damaged.
Replace lock knob
Handle
Grips are not damaged/dirty.
Handle adjustment is functional
Clean with lukewarm soap solution (no petroleum products).
Replace handle grips.
Fit lock knobs/plates as required.
Battery
Check that the charging cable is connected to the control box.
Check that the remote control is connected to the control box.
Connect or fit new remote control as required.
Check that the battery, actuators and control box are not loose.
Fit new cable; this must always be connected to the
control box (IP65 classification).
Connect; replace with new remote control as required.
Refer to the wiring diagram in the Technical manual.
Tighten; replace with new fasteners as required.
Height adjustment
Raising and lowering are functional.
The Walker feels stable at maximum settings.
There is no play between the vertical frame and bottom frame.
Height adjustment clamps lock.
The electric actuator fitting must be free from play.
Height adjustment via remote control is functional. The
electric actuator must run smoothly at a constant speed.
Fit new guide sleeves (in frame) or end plugs (in chrome tubes) as
required.
Tighten all lock bolts.
Replace clamps.
Tighten the attachment fitting concerned; replace bolts/
lock nuts as necessary.
Check that the battery/remote control/actuator are
connected in accordance with the wiring diagram.
Charge the battery. Contact customer services.
Frame parts
There is no mechanical damage.
There are no scratches.
End plugs/lower frame fitted.
If damage is present, contact GATE’s customer services.
Touch up as necessary.
Fit new end plugs.
Castors/brakes
Castors roll easily/tread not damaged.
The castors are tightly fastened to the lower frame.
Castor brakes functional on all castors.
Handbrake functional.
Clean or replace castors (NOTE! Castors are always fixed to
the lower frame with thread locker or lock nuts. The castors are
sealed and we do not recommend their dismantling; instead,
replace the whole castor assembly.
Tighten the castor bolt and fit locking nut or use thread locker
(depends on model).
Replace castor assembly.
Adjust the brake or fit new castors.
Harness
Belts, seams and Velcro fasteners are whole/intact.
The Walker lockplate (green) is functional.
Holder, belts
Holder, belts not bent (see Figure s3).
Harness and attachment belts must be replaced
every three years.
Replace harness. Available in three sizes (S, M, & L)
Replace lockplate
A bent holder is a sign that the product has been overloaded. The
frame must be replaced before further use.
The action is then ”Check harness labeling. If the harness
production date is older than 3 years, the harness and belts must
be scrapped.

BURE RISE & GO DB
10 DIRECTHEALTHCAREGROUP.COM
13. General Maintenance Advice & Cleaning
• Before use, check that the holder and belts are not bent (see Figure s3).
• Before use, check that the harness is not more than 3 years old (see labeling).
• Wipe the Walker and its armrests clean as necessary; use soap solution/surface disinfectant.
• The product can be washed in washer/machine or similar since electronic components are sealed to IP65
classification. Please note that the product is not made out of stainless material – frequent use of water/
detergents may therefore shorten the life of the product.
• Replace damaged parts immediately; must be done by experienced personnel.
• The product is only intended for indoor use.

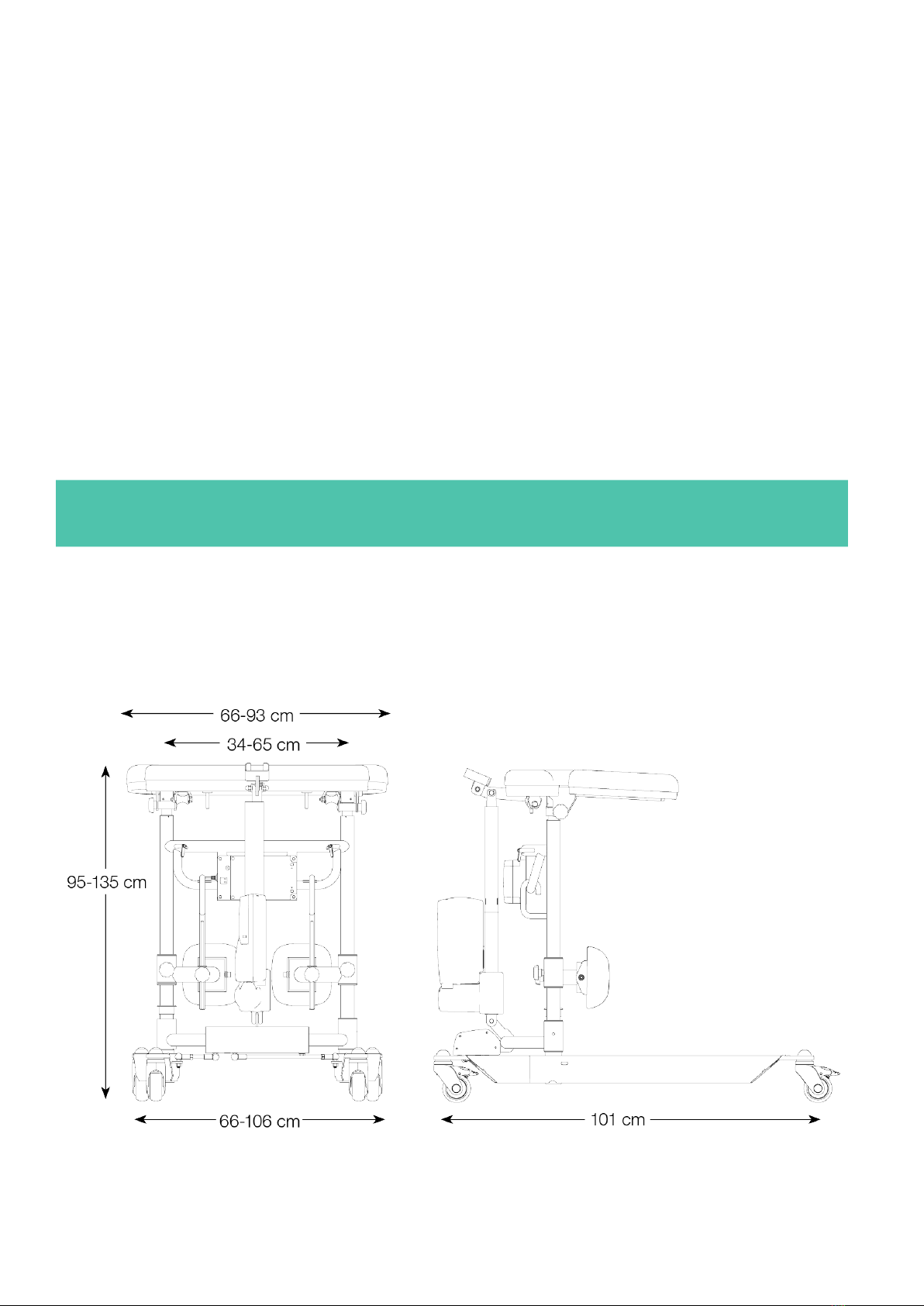

14. Technical Specifications
Dimensions apply to Walkers with 125 mm castors.
Part No. Product
width
Max user
weight
Length Height Weight Armrest/
Internal
dimensions
56-309 66-106 cm 150 kg 101 cm 95-135 cm 40 kg 34-65 cm

15. Recycling/Disposal
When the product is no longer usable it should be recycled in accordance with legislation and regulations
in the country concerned. All electrical parts including batteries must be removed and recycled as electrical
components. (Ask your local recycling station for further information about how the different materials in the
product (metals, plastics, electronics) should be recycled).
16. Warranty
We provide two years’ warranty for manufacturing faults (does not apply to wear parts).
For further information or enquiries please contact:
Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: [phone]
[e-mail]
www.directhealthcaregroup.comm
11
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB

BURE RISE & GO DB
12 DIRECTHEALTHCAREGROUP.COM
1
2a 2b

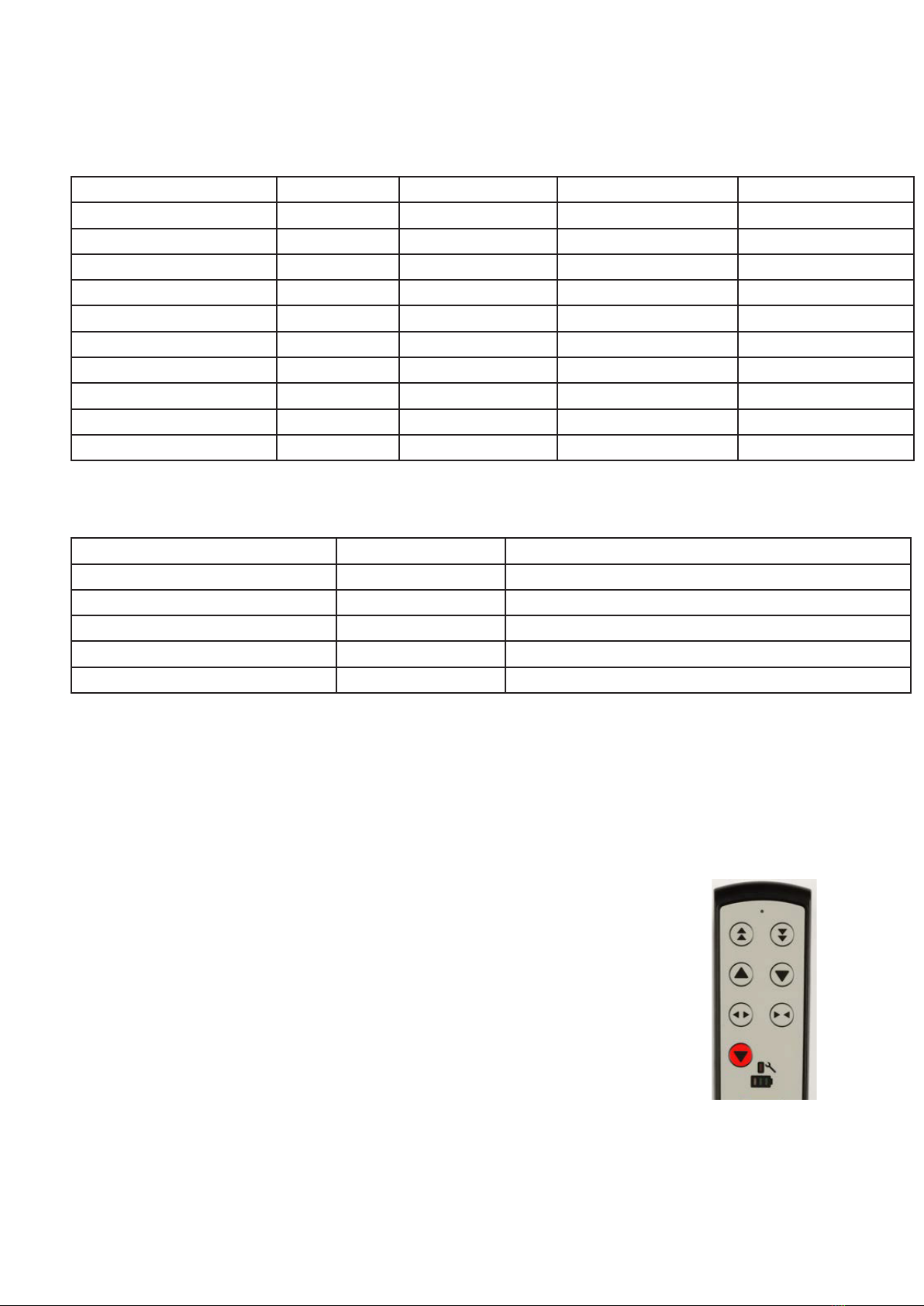

17. Electrical System - Technical Data (T-motion/Linak)
Actuator Lift Widening Lift Widening
Producer TiMotion TiMotion Linak Linak
Voltage 12V 24V 24 V 24 V
Push 2000N/1500N 1000N 1000N/1500N/2000N 1200 N
Pull 2000N/1500N 1000N 1000N/1500N/2000N 1200 N
Self-locking push 1000N 1000N 7A 3 A
Current 6.6 (+/-1,0)A 2.6 (+/-0,4)A 7A ut/7 A in 3A ut/3 A in
Colour Black Aluminium White White
Stroke 400mm 55mm 400 mm 55 mm
Mounting dim 605mm 167mm 606+/-2 mm 165 +/- 2 mm
Encapsulation IP66 IP66 IPX6 IPX6
IEC60601-1 3rd revision
Control box + Battery
Producer T-Motion Linak
Voltage 24V 230V/24V
Capacity 2.0AH 2,25 Ah
Encapsulation IP66 IPX6
Colour Black White
Electrical safety Class II Class II (Dubbel insulated)
IEC60601-1 3rd revision
18. Remote Control Plus
**1. Service indicator – flashes red after 11 months’ operation.
Constant light (red) after 12 months’ operation. The indicator is a reminder to review the maintenance
instruction (see Instructions for Use/Technical Manual. This should be done at least once every 12 months.
Reset: hold down buttons <2a> + <2b> for at least 30 seconds.
**The indicator will go out around 30 seconds after the remote control is
activated (battery conservation function).

13
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB
19. Parts List
1a 58-306-L Armrestpad left 14 58-302 Bearing (x2) Cross section
1b 58-305 Armrestpad center 15 58-353 Turn axle, beam
1c 58-306-R Armrestpad right 16 57-776
57-775
Cover, Wheel
Washer, wheel
2a 58-363 Frame/Armrest center 17 58-360 Cover, Wheelplate (PA)
2b 58-304-L/R Frame/Armrest center
(left/right)
18 58-354 Wheel mount beam
2c 57-352 Lock lever 19 57-051
57-319
57-049
Wheel 75mm
Wheel 100mm
Wheel 125mm
2d 58-301 Clamp aluminium 20 58-355-L
58-355-R
Bottom beam, left
Bottom beam, right
357-041-3 Holder, Remotecontrol (TH7) 21 Linking arm, right
458-376 Battery, TiMotion 22 Linking arm, left
558-377 Actuator, TiMotion 23 58-310-1 Hook (for knee support)
658-373
58-373-1
Controlbox 220V, TiMotion
Controlbox 110V, TiMotion
24 58-312 Knee support
758-351 Vertical frame 25 58-385 Holder/Knee support (only PUR)
858-311 Telescopic Innertube
incl. bronze bearing
26 58-308-1-L/R Hinged arm/knee support
(left/right)
958-358 Sideplate (2x) alu 27 57-710 Knob, hook adustment L=27
10 58-356 Aluprofile, widening 28 57-839 Knob, Hinged arm/knee, L=15
11 58-378 Actuator, widening (TiMotion) 29 58-302 Bushing, PA6
12 58-364 Circular plate 30 58-322 Strap blocker, green
13 58-352 Cross section
20. Accessories
Part no. Description
Manual brake, 2 handles
Manual brake, 1 handle
56-333-DB Standing plate, Short
56-383-DB Standing plate, Long
56-334 Dripstand, Chromed
56-334 Holder for Dripstand
56-336 Oxygen tube holder
56-337 Side support
56-338 Dripstand holder, Complete
56-387 Wheel w brake 75 mm

BURE RISE & GO DB
14 DIRECTHEALTHCAREGROUP.COM
56-358 Wheel w brake 100 mm
56-361 Wheel w brake 125 mm
57-365 Armrestpad center, PUR
57-365-L/R Armrestpad left/right, PUR
57-367 Kneepad, PUR
58-374-2 Remote Control (TH7)
56-062 Remote Control PLUS, DB (TH10)
58-320 (-1, -2, -3) Cable/EUR (-UK, -US, -AUS)
58-326 (-1, -2, -3) Coiled Cable/EUR (-UK, -US, -AUS)

15
DIRECTHEALTHCAREGROUP.COM
BURE RISE & GO DB
This product complies with the
requirements of the Medical Device
Regulation 2017/745
Visual Inspection
Medical Device Read the manual
Caution Product Code
Manufacturer information Batch Code
Type BF, according to the degree of
protection against electric shock
The device is intended for indoor use
WEEE Symbol
May not be discarded in domestic
waste
Class II Equipment
Duty Cycle:
2 min in active (ON) mode.
18 min in rest (OFF) mode.
21. Table of Symbols

Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: [phone]
[email protected]
www.directhealthcaregroup.com
Medical Device Class I. The product complies with the re-
quirements of the Medical Devices Regulation 2017/745.
Medical Device Class I
