Direct Healthcare Group SystemRoMedic Bure Rise and Go DB User manual

Bure Rise & Go DB
System
IFU no: 803 rev. 2 210820
SWL: 150 kg / 330 lbs
Instructions for use – English
Bruksanvisning – Svenska

Table of contents
English ............................................................................................... 3
Svenska............................................................................................11

56-309
56-309-AUS
56-309-B/0-PLUS
56-309-B/0-FKNW_R-PU
56-309-B/0-FKNW_R-PU-CH
56-309-B/0-FKHW_R-PU-CH
56-309-B/0-FKHW_R-PS-PU
56-309-B/0-PS-PU
56-309-B/0-PLUS-PU-TKN_R
56-309-B/0-PU
56-309-B/1-FKNW_R-PU
56-309-B/1-PU-CH
56-309-B/1-PLUS-PU
56-309-FKHW_R-PU
56-309-FKNW_R
56-309-FKNW_R-PLUS-RS-US
56-309-FKNW_R-RS-US
56-309-FR
56-309-PLUS
56-309-PLUS-PU
56-309-PLUS-PU-RS
56-309-PLUS-PUK-RS
56-309-PLUS-PU-UK
56-309-PU
56-309-PU-CH
56-309-PU-AUS
56-309-PU-UK
56-309-TKN_R
56-309-UK
56-309/100
56-309/75
56-309/75-AUS
56-309/75-B/0
56-309/75-B/0-PLUS
56-309/75-B/0-PS-PU-R
56-309/75-B/0-PS-PU-TKN_R
56-309/75-B/0-PU
56-309/75-FKN_R
56-309/75-FKNW_R
56-309/75-FKNW_R-PU
56-309/75-FKNW_R-PU-UK
56-309/75-Plus
56-309/75-PLUS-PU
56-309/75-PLUS-PU-UK
56-309/75-PU
56-309/75-PU-AUS
56-309/75-PU-UK
56-309/75-PU-US
56-309/75-TKN_R
56-309/75-UK
56-309/75-US-TRG
56-309L-UK
56-309L-PU
56-309L-PU-UK
56-309L-B/0-AUS
56-309L-B/0-PU-AUS
56-309L/75-B/0-PU-UK
56-309L/75-PU-UK
56-309L/75
56-309L/75-UK
3IFU
System
Product Overview

1. Intended use
2. Contraindications, Precautions and Warnings
Walkers are indoor, movable and portable assistive aids, which together with approved accessories are intended to
be used for transfer from sitting to standing positions, and walking training. Walkers are to be used by persons with
reduced muscular strength, who shall be able to stand and perform simple leg movements. Walkers are to be used
for leaning on when walking and standing during early mobilization training. Walkers and accessories are intended
for indoor use only in Home Healthcare environment and Professional Healthcare facility environment.
Contraindictions
The device may not be used by patients above the maximum weight indicated on the label of the device.
Precautions
Check that the device is used on flat surface.
Check the device is correctly mounted/assembled before its first use.
Check the device after every folding after any transport.
Check height adjustment and leg spreading motions and inspect the actuators’ or gas pistons’ full ranges.
Activate the brakes whenever the device is not in use.
Check the function of the brakes before use.
Inspect the device regularly to detect any signs of damage. If there are any visible signs of damage, contact
Direct Healthcare Group Customer Service.
In case of an electrical model of the device, check that the hand control does not show signs of wear before
every use.
Check that the hand control markings are in accordance with the lifting functions.
Check the battery status of an electrically operated model, before using the device.
It is important to never leave the user alone during the transfer.
Warranty applies only if repairs or alterations are made by personnel who are authorized by Direct Healthcare
Group.
Ensure that there are no obstacles or people in the way of the device, when moving.
Bure Rise & Go DB
System
Instructions for use - English
The Bure Rise & Go Double is a conventional, electrically operated Walker that is enhanced with a power rise
function. Not only does it act as a Walker, it also makes getting about in everyday life easier thanks to its smart
power rise function.
The Bure Rise & Go can be used by anyone who regularly uses a Walker. The user can remain active while the
power rise function is in use.
The product consists of a Walker and its associated harness and straps. The harness is available in different sizes
(S, M, L, XL) and is split at the rear to make remaining in the harness possible while using the WC. The harness is
secured to the two attachment straps (one each side), which are in turn attached to the Walker.
When the patient stands up the electric power rise function is employed and the smart attachment reduces the
distance between the patient and the Walker until the patient is standing upright.
The Walker can be used to advantage with a platform to facilitate patient transportation.
4IFU System

Handle batteries with care. Do not drop.
Use only batteries and cables that are intended for the device as instructed by the manufacturer.
Verify that potential accessories that might be used are properly attached to the device before use.
Low speed is recommended when moving with the device.
Take care not to drive the device over thresholds with high speed or force. Approach the threshold with lower
speed and communicate the coming threshold to the user.
Keep the instructions for use together with the product so that it can be used as a reference if necessary.
5
IFU
System
Warnings
The caregiver must be able to read and understand the Manual/IFU of the product.
It is important to use only approved accessories to prevent unintended detachment of components and
subsequently a fall that may lead to patient injury.
Use careful and gentle maneuvers when moving the device.
Perform maintenance/service of the device, according to the instructions in the manual/IFU, at least once every
12 months.
Accessories must be properly attached. They should be tested in relation to the user’s needs and functional
ability.
Special care must be taken when using strong electrical power sources such as diathermy and the like so that
diathermy cables are not placed on or near the device. In case of doubt consult with a Direct Healthcare Group
representative.
When lifting the device, only use the denoted handholds. At least two people are required for lifting the device.
Do not leave a care recipient unattended during a transfer.
Never move the lift by pulling on the actuator or gas piston.
The device must not be lowered into water.
The device must not be left or stored in a damp or humid environment.
The device must not be cleaned using steam.
The device must not be charged in a wet room.
The device must not be used outdoors, only indoors.

6IFU System
3. Standing Up Using the Bure Rise & Go
Because standing up or transporting patients always entails risks we recommend that two people are always
present to assist the user at such times.
1. Fit the harness as low as possible across the hips and bottom with the broad upper part around the hips and the
narrow lower part around the bottom. Attach the strap with the Velcro fastener and tighten it using the steplessly
adjustable safety belt. Note that the lower part of the harness attached around the patient’s bottom can be opened
as required, e.g. for visits to the WC.
2. Place the user’s legs at a 90˚ angle with their feet on the floor or platform. Adjust the shin supports to fit the
user’s shins; remember to avoid pressure on the patellae and patellar tendons. Refer to page 5 for shin support
adjustment.
3. Thread both attachment belts through the Walker’s frame and the green locking devices. Make sure the belts
are threaded completely through the locking devices. NB: Check especially that the belts are undamaged. Check
that belts are not worn or frayed and that the holder and straps are NOT bent or crooked. If the holder and belts
are crooked (pic 3c-red line) it is a sign that the product has been overloaded, in which case the frame must be
replaced before further use.
4. Connect the power rise harness and attachment belts (that are secured to the Walker) and tighten them using
the loops; the belts must be taught on both sides. (see fig. 4a)
Note: Slide the loop back once the straps have been tightened – this prevents tangling (see fig. 4b).
3a 3b
3c
4a
4b
1 2

7IFU
System
5. Swing the forearm supports to the side; the user must now grasp the handles WITHOUT support for the fore-
arms.
6. Lock at least two of the Walker’s castors (any two) and fold down the stirrup.
7. Perform the standing manoeuvre and check that the harness pulls evenly on both sides; if not, adjust immediate-
ly. During the standing manoeuvre one carer must stand in front of the user while applying their weight to the stirrup
and maintaining eye contact with the patient. The other carer may stand next to the patient.
8. In most cases the patient will not achieve a fully upright standing position; encourage the patient to achieve a
final upright posture independently or assist the patient by tightening the adjustable harness straps.
9. Lower the Walker to its individually adjusted height and swing the forearm supports back into position to provide
support for the user. If a platform is not being used, swing the shin supports away for increased walking room: refer
to page 5, Shin support adjustment. The harness may remain attached for enhanced safety, e.g. during transporta-
tion using the platform.
7
8 9
6
5

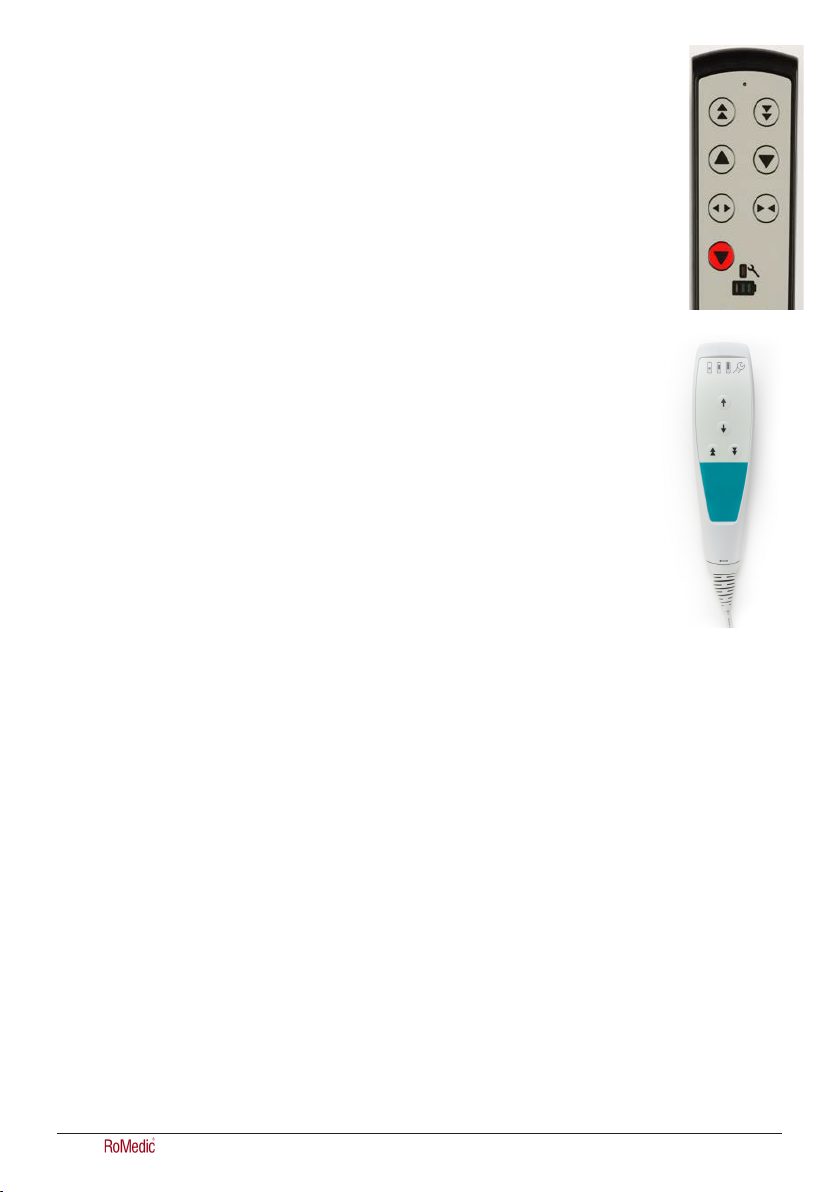

The desired height is adjusted with Arrow <UP> or Arrow <DOWN>.
Adjust bottom frame using <WIDER> arrow or <NARROWER> arrow.
On products with Linak it is possible to select normal or high speed (single
or double arrow).
Handset from Linak and TiMOTION Plus also have charge indicator / battery
(low, medium, high) and Service indicator (see further under “18 Hand
Control Plus”).

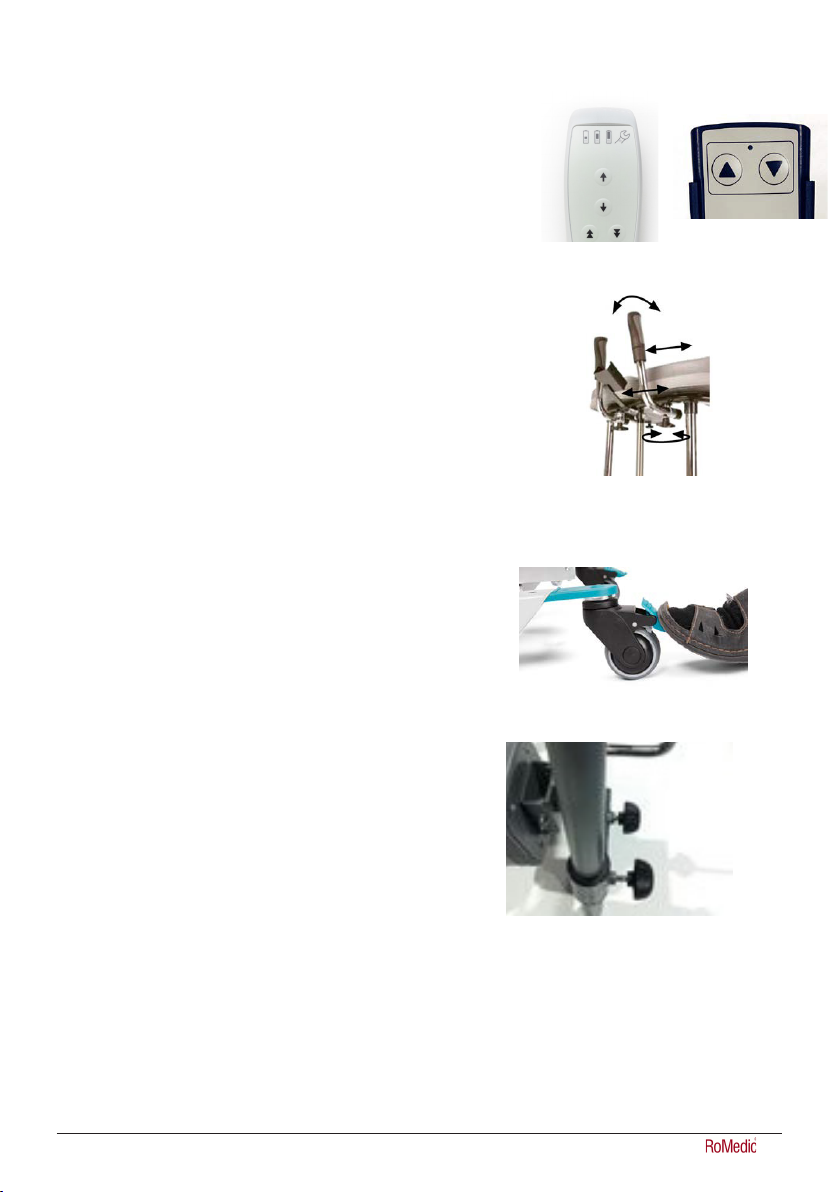

5. Adjusting the Handles
To adjust handles to the desired position; undo knob, adjust handle, tighten
knob.
4. Raising/Lowering the Frame
Linak TiMOTION
6. Left and Right Adjustment of Armrests
The armrests can be adjusted sideways for optimal support: the whole arm
can be moved in or out and locked with the knob.
7. Locking/Unlocking Castors
Depress the foot brake to set it and lock the castor. To
unlock, press down on the protruding part of the brake.
8IFU System
8. Adjusting the Shin Supports
a - knob for height adjustment.
b - knob for locking shin supports in forward position
(when not in use).Supportsit. a
b

10. Battery Charging
• Plug needs to connect to 230V wall socket. Charging starts automatically.
o TiMOTION: LED / battery flashes green.
o Linak: Full level battery indicator flashes yellow until the battery is fully charged.
• The battery is of the LiOn type and insensitive to how long / how often you charge the battery. Full charge on
discharged battery takes about 24 hours.
• TiMOTION: We recommend that the battery plug be removed from the control box if the product will be out
of use for an extended period (more than one week) or if the battery is switched off by means of the ON/
OFF switch. This eliminates the risk of disabling the battery as the control box always uses a small quantity of
electricity even when the Walker is not in use.
9
IFU
System
TiMOTION
Remove the control box cover to make the connections as described
below. Use a screwdriver or similar; refer to the special labels on the
control box.
NOTE: Make sure that plugs are connected to the correct sockets
otherwise the actuators can be damaged.
1. Socket for the height adjustment actuator.
2. Socket for the width adjustment actuator.
3. Hand control socket.
4. Battery terminal socket.
5. Plug socket (NOTE: Plugs must ALWAYS be connected to the control
box for IP classification to be valid).
Linak
The door on the control box can be opened with a thumb grip.
1. Socket for the width adjustment actuator.
2. Hand control socket.
3. Battery outlet.
4. Socket for actuator up / down.
5. Socket for plug.
9. Control Box Wiring
TiMOTION
1 2
3
4
5
2
3
4
5
Linak
1

11. LED on Control Box and Battery
TiMOTION
Control box – green light when power is available from battery/mains socket.
Battery:
• The LED flashes green during charging.
• ON/OFF: To use the product, press ON.
• The green lamp will begin to flash.
• Use the OFF button (hold down for 5 s) to switch off the battery if the product will
not be used for an extended period.
• The LED will shows a constant green light when the battery is fully charged.
• When the battery is in normal state/in operation, the LED flashes green at
REGULAR intervals, namely 0.5 s ON, 4 s OFF.
• When the battery requires charging (remaining charge <25%) the LED will flash
orange/red at REGULAR intervals, namely 0.5 s ON, 4 s OFF.
NOTE: The battery has an in-built device that automatically switches it off when
remaining charge is <20%. The LED is then extinguished. The battery must now be fully
charged before the electronics can be used again.
Linak
Control box - LED lights up yellow during operation, is off when the table is not in use.
When the control box is connected to the mains, the LED lights up green.
When driving / connected to the mains, the LED lights up yellow.
Battery:
• LED lights YELLOW during charging (at the same time as the charging indicator
on the hand control flashes yellow).
• The LED goes out when the battery is fully charged (the same applies to the
charge indicator on the hand control).
10 IFU System

11
IFU
System
12. Maintenance
Recommended at least once per year
Check that Action
General
The Walker feels firm/free from play.
The Walker does not rattle during manoeuvres.
The Walker is level and all of its castors are in contact
with the floor.
The Walker is not dirty.
Clean with lukewarm soap solution or alcohol-based
cleaning agent (no petroleum products).
Armrests
Armrests are intact and clean.
Armrest widening is functional.
Clean; replace if damaged.
Replace lock knob.
Handle
Grips are not damaged/dirty.
Handle adjustment is functional.
Clean with lukewarm soap solution (no petroleum
products).
Replace handle grips.
Fit lock screws/plates as required.
Battery
Check that the charging cable is connected to the
control box.
Check that the hand control is connected to the
control box.
Connect or fit new hand control as required.
Check that the battery, actuators and control box are
not loose.
Fit new charging cable; this must always be connected
to the control box (IP65 protection).
Connect or fit new hand control as required.
Refer to the wiring diagram in the Technical manual.
Tighten; replace with new fasteners as required.
Height adjustment
Raising and lowering are functional.
The Walker feels stable at maximum settings.
There is no play between the vertical frame and
bottom frame.
Height adjustment clamps lock.
The electric actuator fitting must be free from play.
Height adjustment via hand control is
functional. The electric actuator must run
smoothly at a constant speed.
Fit new guide sleeves (in frame) or end plugs (in chrome
tubes) as required.
Tighten all lock bolts.
Replace clamps.
Tighten the attachment fitting concerned; replace bolts/
lock nuts as necessary.
Check that the battery/hand control/ actuator are con-
nected in accordance with the wiring diagram.
Charge the battery. Contact customer services.
Frame parts
There is no mechanical damage.
There are no scratches.
End plugs/lower frame fitted
If damage is present, contact DHG customer services.
Touch up as necessary.
Fit new end plugs.
Castors/brakes
Castors roll easily/tread not damaged.
The castors are firmly fastened to the lower frame.
Castor brakes functional on all castors.
Handbrake functional.
Clean or replace castors (NOTE! Castors are always
fixed to the lower frame with thread locker or lock nuts.
The castors are sealed and we do not recommend their
dismantling; instead, replace the whole castor assembly.
Tighten the castor bolt and fit locking nut or use thread
locker (depends on model).
Replace castor assembly.
Adjust the brake or fit new castors.
Harness
Belts, seams and Velcro fasteners are whole/intact.
The Walker lockplate (green) is functional.
Replace harness. Available in three sizes (S, M, & L
Replace lockplate.
Holder, belts
Holder, belts not bent (see Figure s3).
Harness and attachment belts must be replaced
every three years.
A bent holder is a sign that the product has been over-
loaded. The frame must be replaced before further use.
The action is then ”Check harness labeling. If the har-
ness production date is older than 3 years, the harness
and belts must be scrapped.

13. General Maintenance Advice & Cleaning

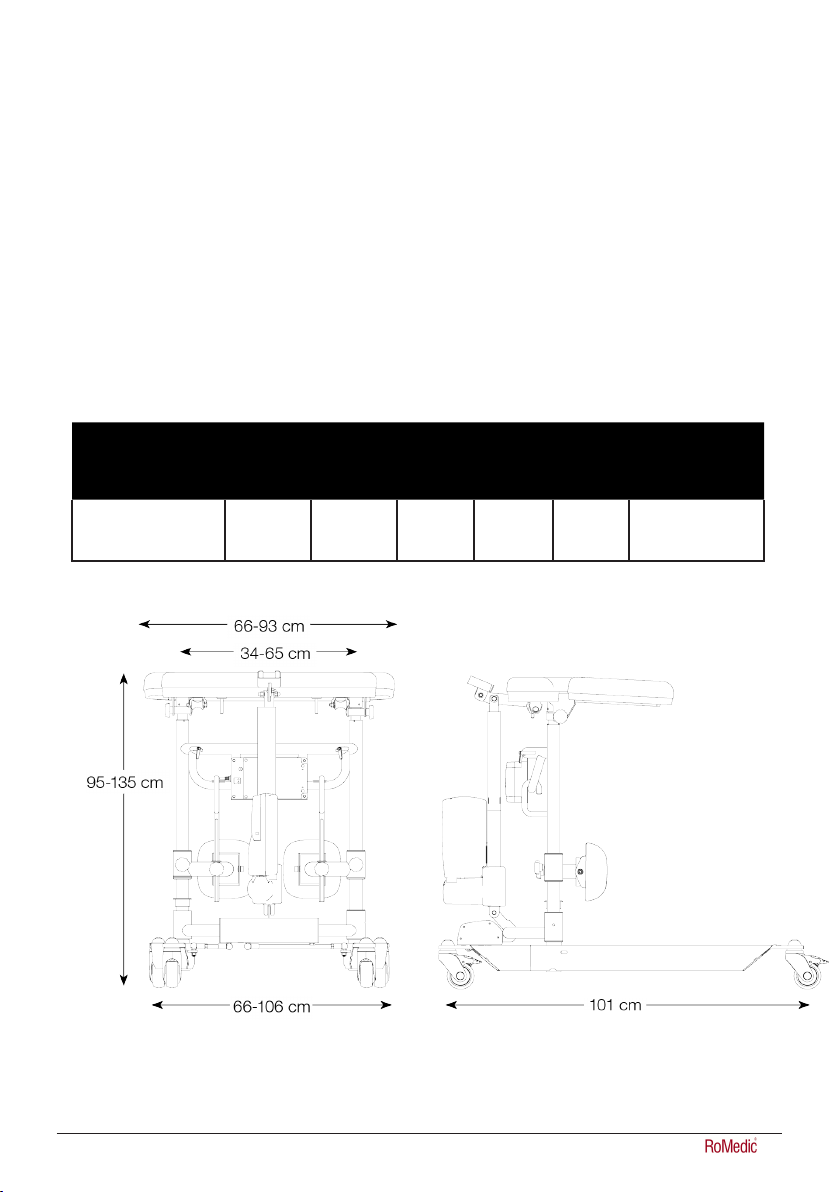

14. Technical Specifications
• Before use, check that the holder and belts are not bent (see Figure s3).
• Before use, check that the harness is not more than 3 years old (see labeling).
• Wipe the Walker and its armrests clean as necessary; use soap solution/surface disinfectant.
• The product can be washed in washer/machine or similar since electronic components are sealed to IP65
classification. Please note that the product is not made out of stainless material – frequent use of water/detergents
may therefore shorten the life of the product.
• Replace damaged parts immediately; must be done by experienced personnel.
• The product is only intended for indoor use.
• If the product is to be cleaned in a washing tunnel / washing cabin, use PU-cushions.
12 IFU System
Part No. Product
width
Max
user
weight
Length Height Weight Armrest/
internal
dimensions
56-309 66-106 cm 150 kg 101 cm 95-135
cm
40 kg 36-65 cm
Dimensions apply to Walkers with 125mm castors.

13
IFU
System
15. Recycling/Disposal
When the product is no longer usable it should be recycled in accordance with legislation and regulations in the
country concerned. All electrical parts including batteries must be removed and recycled as electrical components.
(Ask your local recycling station for further information about how the different materials in the product (metals,
plastics, electronics) should be recycled).
16. Warranty
We provide two years’ warranty for manufacturing faults (does not apply to wear parts).
For further information or enquiries please contact:
Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: [phone]
[e-mail]
www.directhealthcaregroup.com

17. Electrical System - Technical Data (TiMOTION/Linak)
Actuator Lift Widening Lift Widening
Producer TiMOTION TiMOTION Linak Linak
Voltage 12V 24V 24V 24V
Push 2000N/1500N 1000N 1000N/1500N/
2000N
1200N
Pull 2000N/1500N 1000N 1000N/1500N/
2000N
1200N
Self-locking push 1000N 1000N 7A 3A
Current 6.6 (+/-1,0)A 2.6 (+/-0,4)A 7A ut/7 A in 3A ut/3 A in
Colour Black Aluminium White White
Stroke 400mm 55mm 400mm 55mm
Mounting dim 605mm 167mm 606 +/-2 mm 165 +/-2 mm
Encapsulation IP66 UIP IPX6 IPX6
Control box + Battery
Producer TiMOTION Linak
Voltage 24V 230V/24V
Capacity 2.0AH 2,25 ah
Encapsulation IP66 IPx6
Colour BLACK White
Electrical safety ClassII ClassII (double insulated)
IEC60601-1 3rd revision
IEC60601-1 3rd revision
14 IFU System

15IFU
System
18. Hand Control Plus
TiMOTION
**1. Service indicator – flashes red after 11 months’ operation.
Constant light (red) after 12 months’ operation.
The indicator is a reminder to review the maintenance instruction (see Maintenance
Instructions). This should be done at least once every 12 months.
Reset: hold down buttons <2a> + <2b> for at least 30 seconds.
**The indicator will go out around 30 seconds after the hand control is
activated (battery conservation function).
Linak
The service indicator lights up solid yellow after about 12 months of use. The indicator is a
reminder to go through the Maintenance instruction (should be done once every 12 months).
Reset: Simultaneously hold down the buttons <Fast speed up> + <Fast speed down> for
about 10 seconds until the control box makes a beeping sound as an acknowledgment that
the reset has been done.
The service indicator flashes yellow when the actuator has been overloaded or if another
critical fault has occurred.
Reset: Simultaneously hold down the <Low Speed Up> + <Low Speed Down> buttons for
about 5 seconds until the Service indicator goes out.

16 IFU System
19. Parts List
1a 58-306-L Armrestpad left 14 58-302 Bearing (x2) Cross section
1b 58-305 Armrestpad center 15 58-353 Turn axle, beam
1c 58-306-R Armrestpad right 16 57-776
57-775
Cover, Wheel
Washer, wheel
2a 58-363 Frame/Armrest center 17 58-360 Cover, Wheelplate (PA)
2b 58-304-
L/R
Frame/Armrest center
(left/right)
18 58-354 Wheel mount beam
2c 57-352 Lock lever 19 57-051
57-319
57-049
Wheel 75mm
Wheel 100mm
Wheel 125mm
2d 58-301 Clamp aluminium 20 58-355-L
58-355-R
Bottom beam, left
Bottom beam, right
3 57-041-3
57-041-7
Holder, Hand control (TH7)
TiMOTION
Holder, Hand control Linak
21 Linking arm, right
4 58-376
58-402
Battery, TiMOTION
Battery, Linak
22 Linking arm, left
5 58-377
58-400
Actuator, TiMOTION
Actuator, Linak
23 58-310-1 Hook (for knee support)
6 58-373
58-373-1
58-397
Controlbox 220V, TiMOTION
Controlbox 110V, TiMOTION
Controlbox, Linak
24 58-312 Knee support
7 58-351 Vertical frame 25 58-385 Holder/Knee support (only
PUR)
8 58-311 Telescopic Innertube
incl. bronze bearing
26 58-308-1-
L/R
Hinged arm/knee support
(left/right)
9 58-358 Sideplate (2x) alu 27 57-710 Knob, hook adustment
L=27
10 58-356 Aluprofile, widening 28 57-839 Knob, Hinged arm/knee,
L=15
11 58-378
58-407
Actuator, widening (TiMO-
TION) Actuator, widening
(Linak)
29 58-302 Bushing, PA6
12 58-364 Circular plate 30 58-322 Strap blocker, green
13 58-352 Cross section

17IFU
System

20. Accessories
Art. Nr. Benämning
56-339-4-0 Manual brake, 2 handles
56-339-4-1 Manual brake, 1 handle
56-333-DB Standing plate, Short
56-383-DB Standing plate, Long
56-334 Dripstand, Chromed
56-334 Holder for Dripstand
56-336 Oxygen tube holder
56-337 Side support
56-338 Dripstand holder, Complete
56-387 Wheel w brake 75 mm
56-358 Wheel w brake 100 mm
56-361 Wheel w brake 125 mm
57-365 Armrestpad center, PUR
57-365-L/R Armrestpad left/right, PUR
57-367 Kneepad, PUR
58-374-2 Hand Control (TH7)
56-062 Hand Control PLUS, DB (TH10)
58-326 (-1, -2, -3) Coiled Cable/EUR (-UK, -US, -AUS)
58-411 Hand Control Linak, TiMOTION
58-406-EUR/UK/US/AUS Spiral Cable, grey 300mm, Linak
18 IFU System

21. Table of Symbols
19
IFU
System
This product complies with the require-
ments of the Medical Device Regulation
2017/745
Visual Inspection
Medical Device Read the manual
Caution Product Code
Manufacturer information Batch Code
Type BF, according to the degree of pro-
tection against electric shock
The device is intended for indoor use
WEEE Symbol
May not be discarded in domestic waste
Class II Equipment
Duty Cycle:
2 min in active (ON) mode.
18 min in rest (OFF) mode.

Simple solutions for great results
SystemRoMedic®is the name of Direct Healthcare Group’s unique easy transfer concept, the market’s widest and most
comprehensive range of clever, easy-to-use and safe transfer and lifting aids designed to make life easier, both for the
user and for the caregiver. SystemRoMedic®is a complete solution that provides for the majority of patient transfer or
manual handling requirements. From the simplest to the most complex scenarios, from the lightest to the heaviest. The
concept encompasses assistive devices for four different categories of transfers:
• Transfer, assistive devices for manual transfers of users between two locations.
• Positioning, assistive devices for manual repositioning of users within the same location.
• Support, assistive devices for mobility support e.g., during sit-to-stand or gait training.
• Lifting, assistive devices for manual and mechanical lifting of users.
Improved work environment, improved quality of care and cost savings
The philosophy behind SystemRoMedic®is focused on the prevention and reduction of occupational injuries while
allowing users to experience a greater sense of independence and dignity. Through a unique combination of training and
a complete range of efficient transfer aids, SystemRoMedic®offers improvement of both work environment and quality of
care and, at the same time, achieves significant cost savings.
Always make sure that you have the correct version of the manual
The most recent version of all manuals are available for downloading at/from our website;
www.directhealthcaregroup.com
For questions about the product and its use
Please contact your local Direct Healthcare Group and SystemRoMedic®representative. A complete list of all our
partners with their contact details can be found on our website; www.directhealthcaregroup.com.
System
Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: [phone]
[email protected]
www.directhealthcaregroup.com
Medical Device Class I. The product complies with the
requirements of the Medical Devices Regulation 2017/745.
Medical Device Class I
