DISCOVER 48-48-5120 User manual

1
AES BATTERY (12-PIN M12 A-CODE)
MAPPED TO LYNK GATEWAY DEVICES
(5-PIN M12 A-CODE)
805-0066 REV A
READ AND SAVETHESE INSTRUCTIONS

2
INTRODUCTION ........................................................................3
1. AUDIENCE, MESSAGES, WARNINGS, GENERAL SAFETY, PERSONAL PROTECTIVE EQUIPMENT ...3
1.1 Audience.................................................................3
1.2 Warning, Caution, Notice, and Note Messages..................................3
1.3 General Warnings .........................................................4
1.4 Safe Handling Procedures...................................................4
1.5 Personal Protective Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. DOCUMENTATION...................................................................5
3. CONNECTING THE LYNK COMMUNICATION GATEWAY TO THE AES BATTERY ..............6
3.1 AEbus Port on the AES 14-24-2800, 12-36-6700, and 12-48-6650 batteries ............6
3.2 LYNK Port on the LYNK Communication Gateway Device .........................7
3.3 Creating a Cable to Connect the AES Battery and the LYNK Communication Gateway
Device ...................................................................8

3
Introduction
This Application Note provides information about connecting an AES LiFePO4
battery’s 12-pin M12 A-Code AEbus port to a LYNK Communication Gateway
device’s 5-pin M12 A-Code LYNK port to support communication between batteries
and power conversion devices.
1. AUDIENCE, MESSAGES, WARNINGS, GENERAL SAFETY, PERSONAL
PROTECTIVE EQUIPMENT
1.1 Audience
Configuration, installation, service, and operating tasks should only be performed
by qualified personnel in consultation with local authorities having jurisdiction
and authorized dealers. Qualified personnel should have training, knowledge, and
experience in the:
• Installation of electrical equipment
• Application of applicable installation codes
• Analyzation and reduction of hazards involved in performing electrical work
• Installation and configuration of batteries
• Installation and configuration of systems activated by relays
1.2 Warning, Caution, Notice, and Note Messages
Messages in this manual are formatted according to this structure.
WARNING
Important information regarding hazardous conditions that may result in personal
injury or death.
CAUTION
Important information regarding hazardous conditions that may result in personal
injury.
NOTICE
Important information regarding conditions that may damage the equipment but
not result in personal injury.
NOTE
Ad hoc information concerning important procedures and features unrelated to
personal injury or equipment damage.

4
1.3 General Warnings
WARNING
ELECTRIC SHOCK AND FIRE HAZARD
• A lithium battery must be installed as specified.
• Do not disassemble or modify the battery.
• If the battery case has been damaged, do not touch exposed contents.
• There are no user-serviceable parts inside.
Failure to follow these instructions may result in death or serious injury.
WARNING
ELECTRIC SHOCK AND FIRE HAZARD
Do not lay tools or other metal parts on the battery or across the terminals.
Failure to follow these instructions may result in death or serious injury.
CAUTION
ELECTRIC SHOCK
• Do not touch the energized surfaces of any electrical component in the battery
system.
• Before servicing the battery, follow all procedures to fully de-energize the battery
system.
• Follow the “Safe Handling Procedures” below when working with the battery.
Failure to follow these instructions may result in injury.
1.4 Safe Handling Procedures
Before using the battery and any power electronics, please read all instructions and
cautionary markings on all components and appropriate sections of their manuals.
• Use personal protective equipment when working with batteries.
• Do not dispose of the battery in a fire.
• Promptly dispose of or recycle used batteries following local regulations.
• Do not disassemble, open, crush, bend, deform, puncture, or shred.
• Do not modify, re-manufacture, or attempt to insert foreign objects into the
battery, immerse or expose the battery to water, other liquids, fire, explosion, or
other hazards. If the user suspects damage to the battery due to water, heat, or
other reason, take it to a service center for inspection.
• Only use the battery for the system for which it is specified.
• Do not lift or carry the battery while in operation.
• When lifting a heavy battery, follow the appropriate standards.
• Only lift, move, or mount following local regulations.
• Take care when handling battery terminals and cabling.
• Only use the battery with a charging system that has been qualified for the
system. Using a battery or charger that does not meet specifications may present
a risk of fire, explosion, leakage, or other hazards.

5
• Do not short circuit a battery or allow metallic conductive objects to contact
battery terminals.
• Replace the battery only with another one qualified for the system. Using an
unqualified battery may present a risk of fire, explosion, leakage, or other
hazards.
• Avoid dropping the device or battery. If the device or battery is dropped,
especially on a hard surface, and the user suspects damage, take it to a service
center for inspection.
1.5 Personal Protective Equipment
When handling or working near a battery:
• Use Personal Protective Equipment, including clothing, glasses, insulated gloves,
and boots.
• Do not wear metal rings, watches, bracelets, or necklaces.
2. DOCUMENTATION
This Application Note provides information about connecting the AEbus port (M12
12-pin circular connector) of an AES LiFePO4 battery to the LYNK Port (M12 5-pin
circular connector) of a LYNK Communication Gateway device.
The following information applies to:
• 14-24-2800
• 12-36-6700
• 12-48-6650
• LYNK II Communication Gateway
• LYNK LITE Communication Gateway
Before installation and configuration, consult the relevant product documentation,
including Manuals, Application Notes, and Installation and Configuration Guides.
Discover Energy Systems Documentation
Visit discoverlithium.com for the most recent version of published documents,
including Discover Lithium battery user manuals, the LYNK II Installation and
Operation Manual (805-0033), and LYNK LITE Installation and Operation Manual
(805-0035).

6
3. CONNECTING THE LYNK COMMUNICATION GATEWAY TO THE AES
BATTERY
NOTICE
• Turn OFF all devices before connecting cables.
• Do not connect a CAT5 cable from the AEbus, LYNK, or Ethernet ports of LYNK
Communication Gateway devices to a WAN or MODEM port of a network router.
• Mixing the LYNK network with other networks may result in equipment malfunction
and damage.
NOTICE
Unless Discover Energy Systems specifies, power electronics must not be
connected directly to the LYNK or AEbus network.
Figure 1. AES LiFePO4Battery
3.1 AEbus Port on the AES 14-24-2800, 12-36-6700, and 12-48-6650 batteries
10
51211
4 6
73
82
1 9
Figure 2. 12-pin M12 A-Code Circular Male Connector

7

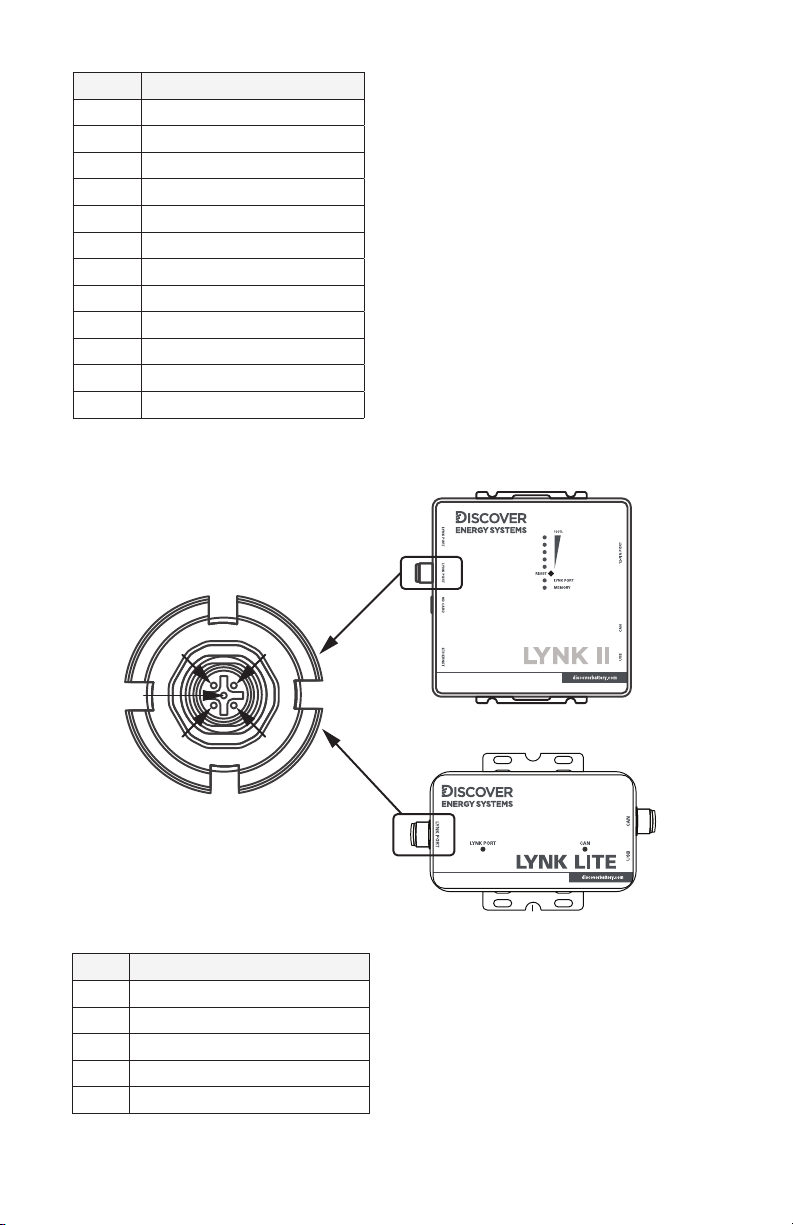

3.2 LYNK Port on the LYNK Communication Gateway Device
1
23
4
5
LYNK Port Front View
or
Figure 3. LYNK Communication Gateway 5-pin M12 A-Code Circular Male Connector
Pin Description
1(1) —
2LYNK Bus CAN Low
3LYNK Bus CAN High
4LYNK Bus +12 V
5LYNK Bus CAN GND
(1) Do not populate. Do not terminate to ground. Do not terminate to power. Do not terminate to CAN L or CAN H.
Pin Description
1 —
2 —
3AEbus CAN GND
4AEbus CAN High
5AEbus CAN Low
6 —
7 —
8 —
9 —
10 —
11 —
12 AEbus CAN +12V (1) (1) Hardware version 0.0.0.2

8

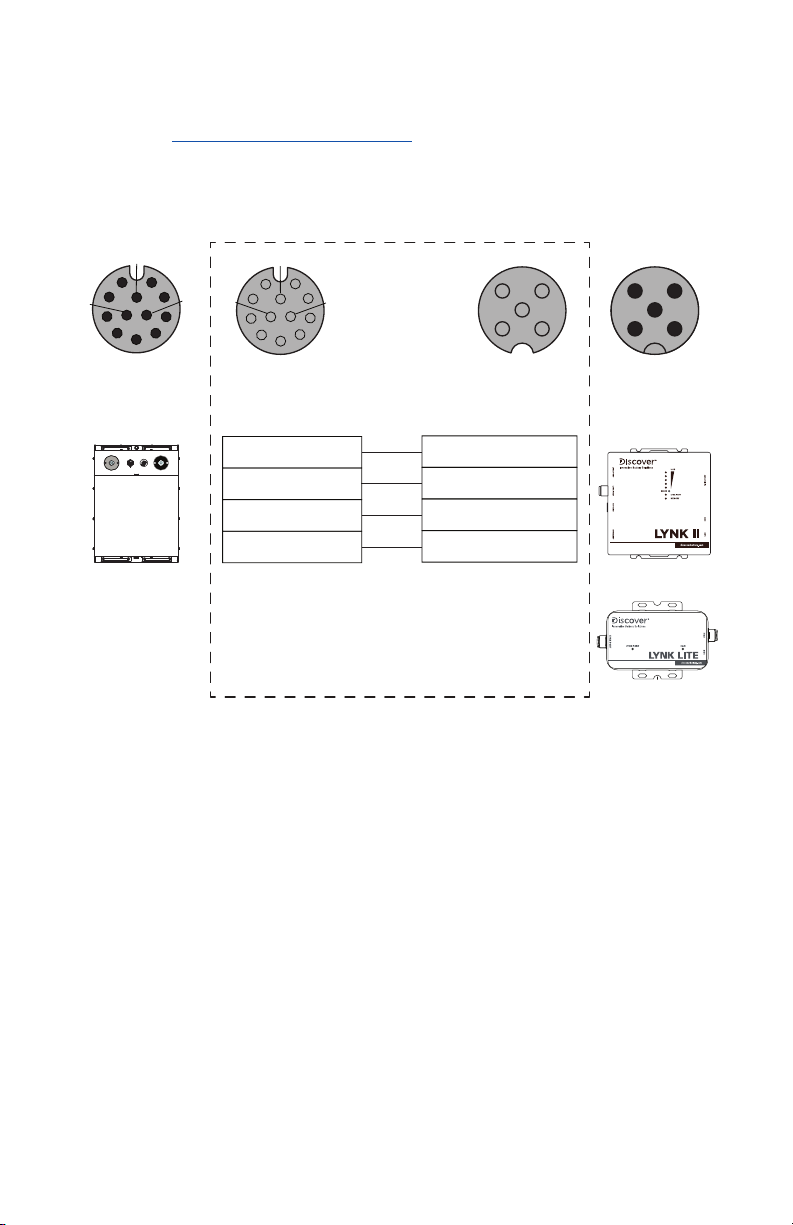

3.3 Creating a Cable to Connect the AES Battery and the LYNK Communication
Gateway Device
As shown in Figure 4. Cable Wiring Diagram, create a cable with M12 A-Code
receptacles to wire the pins from the 12-pin M12 A-Code male port on the AES
LiFePO4battery to the 5-pin M12 A-Code male port on the LYNK Communication
Gateway device. Isolate any pins that are not connected in the diagram.
M12 A-Code
5-pin
3 AEbus CAN GND
4 AEbus CAN High
5 AEbus CAN Low
12 AEbus +12 V
5 LYNK bus CAN GND
3 LYNK bus CAN High
2 LYNK bus CAN Low
4 LYNK bus +12 V
CABLE
male 12 Pin female 5 Pin female
21
3
4
5
6
7
male
M12 A-Code
12-pin
8
12
9
11
10
12
9
8
71
34
2
6
5
4
11
3
12
10
5
2
43
1
5
AES Battery LYNK II
or
LYNK LITE
Figure 4. Cable Wiring Diagram
