Remote Control
User Guide
Remote Control
User Guide

C-1
Accessing the System Wizard
Refer to page 12 for information
on System Wizard
Press MENU, select
Settings and then
System Wizard.
OR

C-2

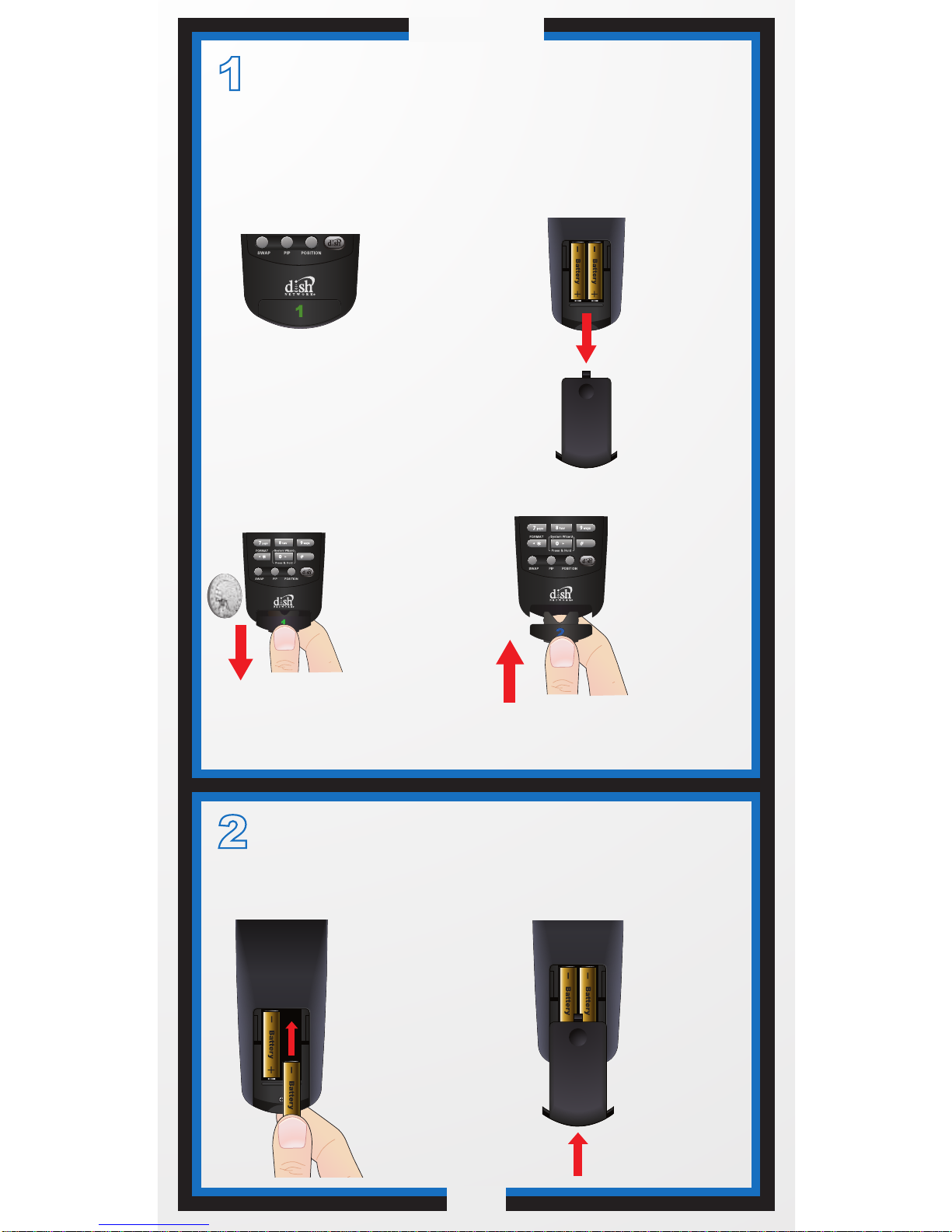

Separate the
key from the
remote by
inserting your
thumbnail or a
coin in the
crease.
Remove the
key by
grasping at
the bottom.
Insert the
key face up
and slide
into place.
Pull the
remote
battery
cover off.
Confirm
your
remote has
the green
number 1
key
installed.
Note: If you will be using the green TV1 key that comes
already installed in your remote, skip this step and
proceed with the next step (Insert the Batteries).
Verify the Key
1
Insert the Batteries
2
1
4
2
3
1Replace
the
remote
battery
cover.
Insert 4 AAA
batteries,
making sure
to match the
plus (+) ends
with the plus
markings on
the battery
case.
2
Quick Setup

C-3
Quick Setup
Confirm that your remote operates your
receiver by pressing remote buttons.
If this is not working, repeat step 5.
If the remote is still not linked to your
ViP922 receiver, see page 10 in this guide.
Making the Remote Work
With Your Receiver
3
6

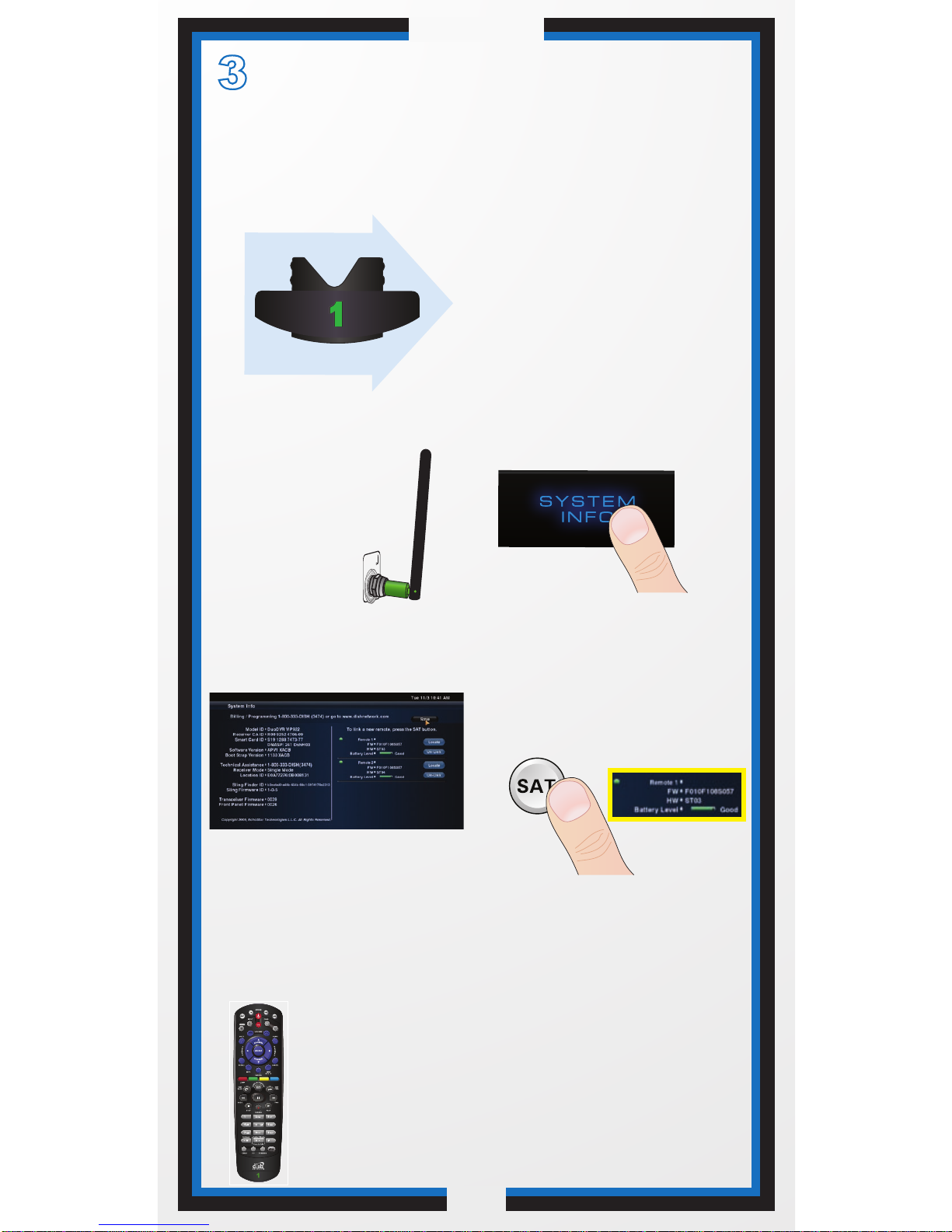

Turn your ViP922 receiver
and TV on, and select
SYSTEM INFO on the
receiver front panel.
Confirm that you
see the System
Information screen. Press and release SAT on
your remote. After a few
seconds, you will hear a tone,
and the remote will be listed
on the screen.
3
2
1
5
4
Verify this key is
installed,
and continue
with step 2.
Verify the
remote antenna
is installed on
the back of
the receiver.
REMOTE
ANTENNA

C-4
Quick Setup
Select TV Code and then follow the on-screen
instructions to enter your TV’s device code.

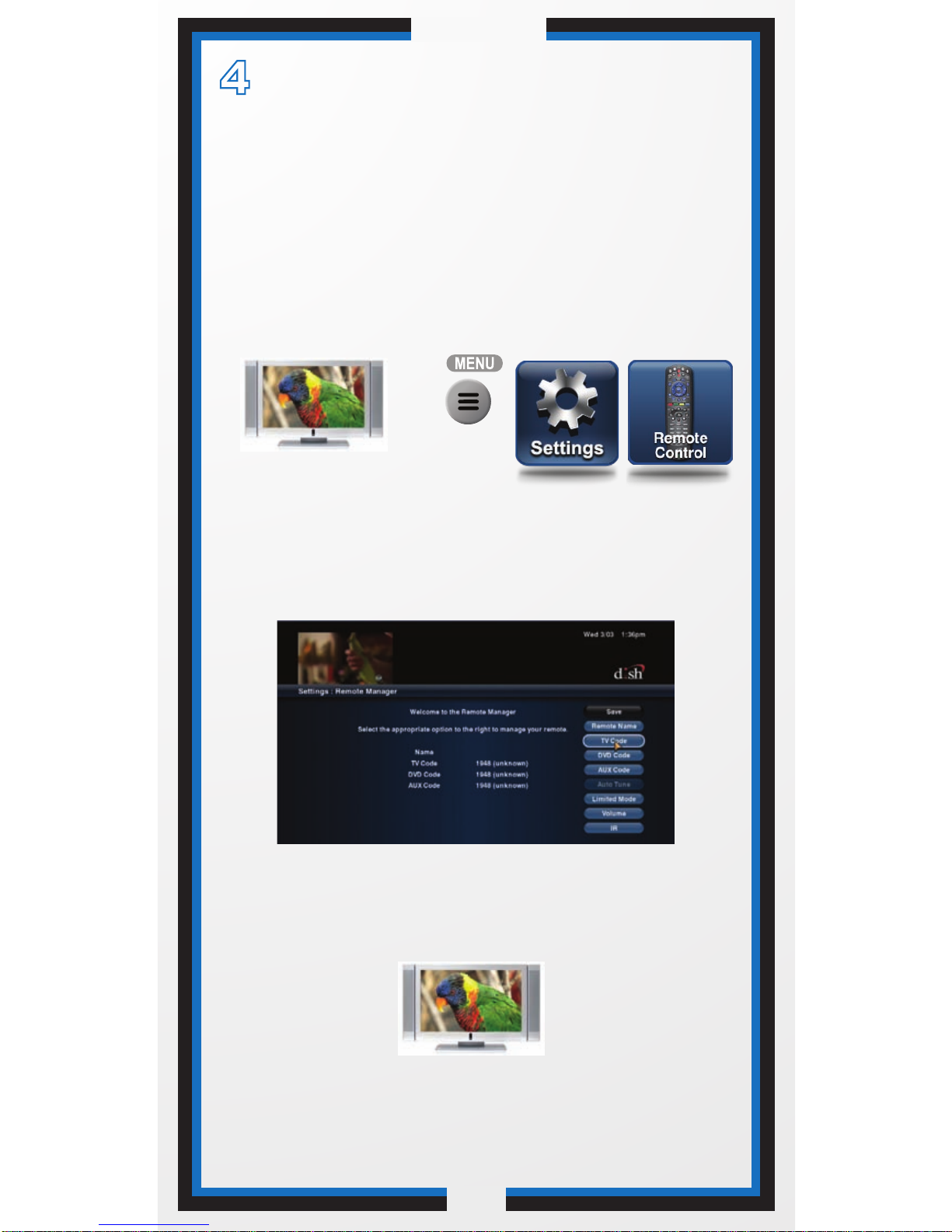

Set Up the Remote to
Control Your TV
1 2
3
4
To set up the remote control to operate a TV,
you can select a Device Code (see
instructions on page 3).
Your ViP922 DVR has a large database of
Device Codes for other equipment.
Press the POWER button to turn the TV on and
try other buttons to make sure the code works.
If you want to try another code, start over from
step 3.
Press MENU, select
Settings and then
Remote Control.
Turn your TV on.
4

Quick Setup/Operation
C-5
Placing Your Remote
in Limited Mode
Use the arrow button
to highlight Enabled and then select it.
2
3
Highlight and select Save.
1
Select the Limited Mode
option.
To take the remote out of Limited Mode, highlight
Disabled instead of Enabled in step 3.
Limited Mode locks out all the TV mode operations except
for TV power, Mute, and Volume. This prevents you from
accidentally tuning away from satellite programming.
Press MENU, select Settings
and then Remote Control.

Receiver Power & TV Power
Top button turns the receiver on/off,
Bottom button turns the TV on/off
Programming required (see C-4)
Input
Press once
for Input
Operation
Remote Operation
SAT Mode
SAT
Control TV volume
Programming required (see C-4)
Volume & Mute Buttons
To use the features described in this section, make
sure you are in SAT mode by pressing the SAT Mode button.
Note: Some features may not be available depending on your receiver model.
Page Buttons
Page up/down in
menus and Guide
Program Guide
Display current and
future satellite
program listings
Arrows/Select
Buttons
Channel up/down,
navigate through
menus and select
a desired option
Browse
See what is on other
channels while
watching TV
View Satellite
Programming
Exit out of any menu/
guide and go back to
viewing live TV
Number Buttons
Enter a channel
number to change
to that channel
System Wizard
Press and hold
to sync remote
and receiver data
Dish
Explore DISH On
Demand options
Receiver Menu
Access receiver
features and settings
Themes
Search for programs
using Themes
Recall
Go back to last
channel viewed
Info
Get info on programs
Search
Search for a program
Jump
Move cursor to
another screen area
Digital Video
Recorder (DVR)
Buttons
Pause live TV and
play or record
programming
Picture-In-Picture
(PIP) Buttons
Watch two separate
programs at once
(in Solo PIP Mode)
Format
Format the picture
to the desired width
to match the program
you are viewing
C-6
Press this
button for
SAT Mode

C-8
Operation
Remote Operation
TV Mode

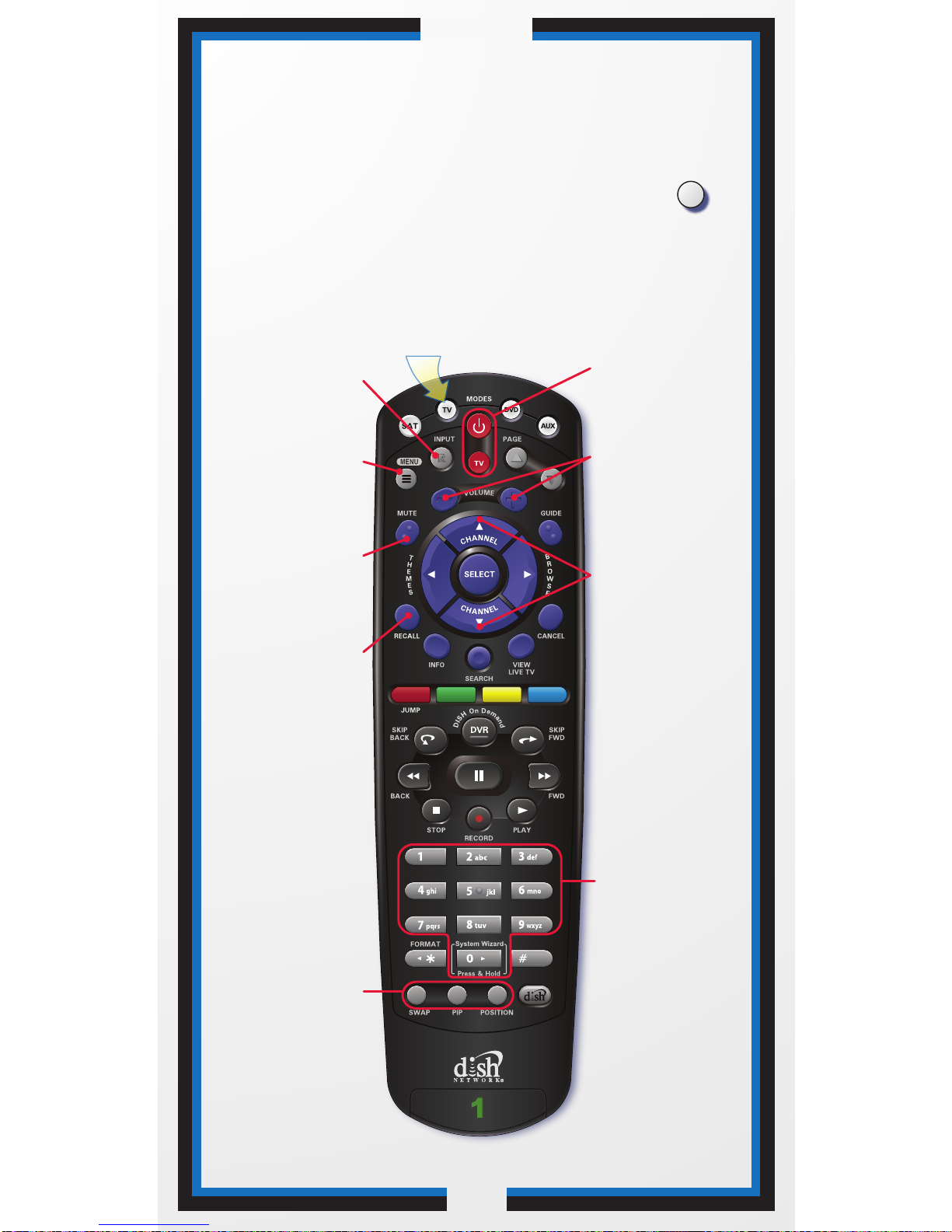

To use the features described in this section, make
sure you are in TV mode by pressing the TV Mode button.
Remote programming is required. See C-4 for instructions.
Note: If you have programmed the remote in Limited Mode (C-5),
only the TV Power, Mute and Volume buttons will control your TV.
TVTV
Note: Remote operation is different on DISH Network TVs.
See your DISH Network TV User's Guide for proper operation.
Press this
button for
TV Mode
Up/Down
Arrow Buttons
Channel up/down
on TV
Number Buttons
Enter a desired
channel number
on TV
TV Menu
Access menu
features available
on some TVs
Input
Switch between
TV inputs
Mute
Turn TV volume
on or off
Recall
Go back to last
TV channel viewed
Picture-In-Picture
(PIP) Buttons
Display PIP features
on some TVs with
PIP capabilities
C-7
Volume
Control TV
volume
Receiver Power
& TV Power
Turn the TV on/off
Programming required
(see C-4)
Programming required
(see C-4)

C-8
Operation
Remote Operation
DVD Mode
DVD
To use the features described in this section, make
sure you are in DVD mode by pressing the DVD Mode button.
You can use this mode to operate your VCR instead of a disc player.
Remote programming is required. See page 2 for instructions.
Press this
button for
DVD Mode
Input
Switch VCR between
its TV & VCR mode
DVD/VCR Power
& TV Power
Top button turns the
DVD player/VCR
power on and off,
Bottom button turns
the TV on and off
Number Buttons
Enter a channel
number for VCR or
a chapter title on
a DVD
Record
Record on a
videotape
Back
Rewind a videotape
or reverse a DVD
Stop
Stop playing a DVD,
stop playing or
recording a
videotape
Up/Down
Arrow Buttons
Channel up/down
on VCR
Pause
Pause a videotape
or DVD
FWD
Forward a videotape
or DVD
Play
Play a videotape
or DVD

Table of Contents
Quick Setup
Verifying the Key................................................................... C-2
Inserting the Batteries........................................................... C-2
Linking Your Remote Control................................................ C-3
Operation
Setting Up the Remote to Control Your TV........................... C-4
Placing Your Remote in Limited Mode.................................. C-5
Remote Operation in SAT/TV/DVD Modes................... C-6, 7, 8
Remote Control Overview.........................................................1
Using this Guide .......................................................................1
Remote Control Modes............................................................. 1
How the Remote Communicates.............................................. 2
Setting Up for Other Equipment................................................2
Combination Equipment (for example, TV/DVD)......................2
Setting Up the Remote to Work With Your Equipment ............. 3
Entering Equipment Codes....................................................... 5
Switching Between TV and Amplifier Volume Control..............8
Viewing Equipment Codes........................................................ 9
Avoiding RF Interference.......................................................... 9
Remote Button Shortcuts........................................................ 10
Locating a Lost Remote...........................................................11
Using the System Wizard ........................................................11
Troubleshooting......................................................................13
Limited Warranty..................................................................... 15

1
REMOTE CONTROL OVERVIEW
Use this full-function remote control to operate the DISH Network
ViP® 922 SlingLoaded™ DVR receiver. Also, you can program this
remote control to operate most popular brands of audio/video
equipment like a TV, a DVD/BD player (or VCR), or an audio receiver/
amplifier. See Setting Up the Remote to Work With Your Equipment on
page 3.
Note: This remote control may support features not used by your
receiver. Also, new features may be added by future software updates.
USING THIS GUIDE
This guide makes it easy to set up and use your remote control. By now
you’ve noticed that the cover contains information on quick setup and
remote control operation.
The rest of the guide contains in-depth information to help you get the
most from your remote control, including controlling other equipment
like TVs, audio devices, and DVD/BD players or VCRs.
REMOTE CONTROL MODES
Use the remote control’s mode buttons to set the remote to the correct
mode for the equipment. Be sure to program the remote control to
operate the other equipment as described starting on page 2.
To change the mode, press and release the button for the equipment
you want to control. The mode button lights up (green for SAT mode,
red for TV or AUX mode) for about three seconds to show you’ve set
the remote to that device mode.
Great Idea: Whenever you finish using
other equipment (TV, DVD/VCR, etc.), be
sure to put the remote back in SAT mode.

2
If you program the remote control to operate other equipment, refer to
page C-6 and the following for remote-control operation instructions:
•POWER, INPUT, MUTE, and VOLUME remote buttons are
used to control your TV when it is programmed in TV mode.
•The same buttons your DVR uses when in SAT mode are used to
control a DVD/BD player (or VCR) when this equipment is
programmed in DVD mode (or alternatively, in AUX mode).
•SELECT, MUTE, VOLUME, and POWER remote buttons may
be used to control your stereo equipment (for example, when an
audio receiver or amplifier is programmed in AUX mode).
HOW THE REMOTE COMMUNICATES
All remote controls used with ViP922 receivers use radio frequency
(RF) signals to control the receiver and IR signals to control any other
equipment you have programmed.
•Make sure that the RF remote antenna for the ViP922 is attached
correctly to the receiver’s back panel REMOTE ANTENNA input so
it can receive the RF remote signals.
•RF signals travel relatively long distances and can go through
walls and other solid objects. For example, the TV2 remote can
control the receiver from any area of the house. Link only the
remote(s) you are using with your ViP922 receiver (see page 10).
•IR signals, used in TV, DVD, and AUX device modes, travel up
to 40 feet in a straight line of sight, and cannot go through walls
or other solid objects. Point the remote directly at the equipment
you want to control with no objects blocking the signal path.
SETTING UPFOR OTHER EQUIPMENT
The following section contains detailed instructions on how to set up
this remote control to operate a TV and other audio/video equipment
you may have (such as a DVD/BD player or VCR, audio receiver or
amplifier). You can program the remote control by completing the
tasks described in Setting Up the Remote to Work With Your Equipment
on page 3.
COMBINATION EQUIPMENT (FOR EXAMPLE, TV/DVD)
When setting up the remote control to operate combination equipment,
such as a TV with built-in DVD or VCR, program the remote control in
one mode, and then repeat the procedure in the other device mode. For
example, to program the remote control to operate a TV/DVD player

3
(or TV/VCR), follow the instructions to program the remote to operate
the TV using its code, and then repeat those instructions for the DVD/
BD player or VCR in AUX mode using its code. Press the TV mode
button to use the combination device’s TV functions, or the AUX mode
button to use DVD/BD (or VCR) functions.
SETTING UPTHE REMOTE TO WORK WITH YOUR
EQUIPMENT
You can set up the remote control to operate other equipment using the
following steps and the modes as shown on page 1.
Instructions Additional Information
1Turn your equipment on. Use your equipment’s front
panel buttons or its own
original remote control.
2Press POWER on your
ViP922 DVR front panel or
linked remote and access
Remote Control settings.
Press MENU and select the
Settings tile. Then from the
Settings screen, select Remote
Control.
3Select the TV Code, DVD
Code, or AUX Code
option, as applicable. You
can also change which
device controls volume and
mute functions. Switching
Between TV and Amplifier
Volume Control on page 8
Select TV Code to program the
remote to control your TV
when in TV mode. Select DVD
Code to program the remote to
control a disc player, or select
AUX Code to program the
remote to control another audio
device when in AUX mode.
4If you know the brand
name of your device, but
not its code, then select the
Look Up Code option
and continue with step 5.
If you know the four-digit
code for your device, select
the Enter Code option
and follow the steps for
Entering Equipment Codes
on page 5.
Your ViP922 DVR receiver’s
software maintains a database
of device codes for controlling
many types and brands of
equipment. Updates to the
software may add more device
codes to this database. Note that
the three-digit device codes
used by other DISH Network
remote controls cannot be used.

4
5Scroll the Sort By: (or
Aux Device:) list to
position the option you
wish to select within the
blue highlight bar. Then
highlight your device’s
name in the Brand: list
and select Next.
If the brand is not listed, see
Entering Equipment Codes on
page 5. If there is no equipment
code for your device right now,
you can check to see if one has
been added after your receiver’s
next scheduled software update.
6The next screen displays
the number of device codes
available for the selected
brand, and which code is
ready for you to test.
There may only be two or three
device codes for your specific
equipment, or there may be
dozens of codes available for
certain brands.
7Press and release the mode
button for the device you
are setting up (TV,DVD, or
AUX).
If you are setting up a TV, you
can remain in SAT mode and
press the TVPOWERbutton in
step 8.
8Press POWER to turn off
your equipment. If your
equipment turns off,
continue with step 9. If it
does not turn off, press and
release the SAT button to
switch modes. Then select
No on screen and repeat
steps 7 and 8 for the next
code.
If the code you selected works,
your equipment should turn off.
If the code you selected does
not work, test each code until
one turns off your equipment.
If you do not want to continue
testing codes but know your
device’s model, you can select
Enter Model and use the on-
screen alphanumeric keyboard
to search the database for all or
part of the model name/number.
9While still in the same
device mode (TV, DVD, or
AUX), turn the equipment
back on and try some other
buttons to make sure they
work. When you are done,
press and release the SAT
button to switch modes.
For example, sometimes the
remote’s POWER button
works when other buttons do
not. Also, note that more than
one code may work to turn your
equipment on or off Choose the
code that best allows you to
control your equipment.
Instructions Additional Information

5
ENTERING EQUIPMENT CODES
10 If the code worked for
other buttons, select Yes
and continue with step 11.
If the code did not work,
select No and repeat steps
6 through 9 for the next
code for your brand.
Choose the code that provides
the remote with support for the
most device functions. If you
wish to verify the support of
volume and mute functions, go
to step 13.
11 On the Home screen,
confirm that the device’s
brand name you found in
step 5 is in parentheses
after a four-digit code.
You can program the remote to
control your TV in TV mode
and other devices in DVD and
AUX modes. Repeat these
instructions for each mode.
12 OPTIONAL—For setting
up a TV2 remote: Select
Auto Tune from the
Remote Control settings
screen to manage this
feature. NOTE: This is not
an active feature.
Auto Tune is a feature to help
keep a TV2 tuned to satellite
programming. When enabled,
pressing the SAT button on a
linked TV2 remote tunes that
TV automatically to a specified
channel or input (source).
13 If you wish to change the
device used to control
audio volume: Select the
Volume option from the
Remote Control settings
screen and follow the steps
in Switching Between TV
and Amplifier Volume Con-
trol on page 8.
If you have connected your
ViP922 DVR receiver’s audio
output(s) to an audio amplifier
or A/V receiver, then you may
want to change which device
controls volume and mute from
the default of the TV to one of
these AUX devices you have
programmed in AUX mode.
Instructions Additional Information
1Turn your equipment on. Use your equipment’s front
panel buttons or its own
original remote control.
Instructions Additional Information

6
2Turn on your ViP922 DVR
and access Remote Control
settings using a linked
remote.
Press MENU, select the
Settings tile. Then from the
Settings screen, select Remote
Control.
3Select the TV Code, DVD
Code, or AUX Code
option on the Remote
Control settings screen.
Select TV Code in order to
program the remote to control
your TV when in TV mode.
Select AUX Code to program
the remote to control an
auxiliary device, such as an
audio amplifier or DVD player,
when in AUX mode.
4For programming in AUX
mode only: Scroll the Aux
Device: list to select and
highlight your equipment
type. Then select Next.
The remote’s AUX mode can
be programmed to control any
one of several different types of
equipment, including an audio
amplifier or receiver, DVD/BD
player, or even a second TV.
5Select the Enter Code
option. Select this option if you know your device’s four-digit code. If
you do not know the code, use
the Look Up option instead, as
described in Setting Up the
Remote to Work With Your
Equipment on page 3.
6Use the on-screen keypad to
enter the four-digit code for
your equipment. Then select
Continue.
If the device code you entered
is not in the equipment
database, a message will be
displayed. Check that you
entered your device code
correctly, and if not, try again.
7Backonthe RemoteControl
settings screen, confirm that
the four-digit code you
entered appears for the
programmed device (TV,
DVD, or AUX).
For most four-digit codes you
entered manually, the device’s
brand name (in parentheses) is
displayed as unknown. See
Setting Up for Other Equipment
on page 2.
Instructions Additional Information

7
8Press and release the mode
button for the device you are
setting up (TV, DVD, or
AUX).
If you are setting up a TV, you
can remain in SAT mode and
press the TV POWER button in
step 9.
9Press the POWER button.
If your equipment does not
turn off, then press and
release the SAT button to
switch modes, and try
entering the code again.
If the device code you entered
works, then your equipment
should turn off. Continue with
step 10.
10 While still in the same
mode (TV, DVD, or AUX),
turn the equipment back on
and try some other buttons
to make sure they work.
Sometimes POWER works
when other buttons don’t, and
more than one code may work
to turn equipment on or off.
Choose the best device code.
11 If necessary, repeat these
instructions until you have
entered the best code for
controlling your device.
If you do not want to enter
codes manually, use the Look
Up option described in Setting
Up the Remote to Work With
Your Equipment on page 3. In
addition to looking up
equipment by brand name to
find corresponding device
codes, you can also enter a
device’s model name/number
using an on-screen keyboard to
search for it in the database.
12 If other remote buttons
work to control your
equipment, you have
finished setting up this
device mode.
You can program the remote to
control your TV in TV mode, a
disc player in DVD mode, and
an audio amplifier or A/V
receiver in AUX mode. Repeat
these instructions, as needed for
each mode you want to use.
Instructions Additional Information

8
SWITCHING BETWEEN TV AND AMPLIFIER VOLUME
CONTROL
If a remote control used with the ViP922 DVR has been set up to
operate a TV, then MUTE and VOLUME +/- buttons adjust the TV’s
volume. To use the remote to adjust the volume of your remote-
controllable audio equipment instead of adjusting your TV’s volume,
use the steps in the left column of the following table. To switch back
to controlling the TV’s volume, use the steps in the right column.
Control Audio Amplifier Volume Control TV Volume
1Press MENU, select the
Settings tile, and then
select Remote Control.
1Press MENU, select the
Settings tile, and then
select Remote Control.
2Select Volume.2Select Volume.
3Under Control Volume For:
use the down arrow key to
highlight the AUX option.
3Under Control Volume For:
use the up arrow key to
highlight the TV option.
4Highlight and select the on-
screen option to Save this
setting.
4Highlight and select the on-
screen option to Save this
setting.
MAKE SURE THE REMOTE
CONTROLS THE AMPLIFIER’S
VOLUME IN OTHER MODES:
MAKE SURE THE REMOTE
CONTROLS THE TV’SVOLUME
IN OTHER MODES:
5Press the SAT mode
button. 5Press the SAT mode button.
6Press the plus (+) and
minus (-) sides of the
VOLUME button.
6Press the plus (+) and
minus (-) sides of the
VOLUME button.
7Your amplifier’s volume
changes and the AUXmode
button lights instead of the
TV mode button.
7Your TV’s volume changes
and the TV mode button
lights instead of the AUX
mode button.
