Remote Control Signals: UHF or IR
2 104333
ABOUT THE REMOTE CONTROL
The remote control gives you easy access to all the features of a
DISH NetworkTM satellite TV system. You can set up the remote
to control up to three devices other than the satellite TV receiver.
The three devices may include a TV, a VCR, a DVD player, a cable TV
box, a tuner, or an audio amplifier.
REMOTE CONTROL SIGNALS: UHF OR IR
•The remote control uses Ultra-High Frequency (UHF) radio
signals to control the satellite TV receiver. UHF signals travel
long distances (100 feet or more) and go through walls and other
solid objects. Because UHF signals travel so far, the receiver
may respond to signals from other nearby remote controls.
To handle this problem, see Changing the Remote Control
Address on page16. If this does not work, see Installing an
Attenuator on page17.
•To use the remote to control the receiver, youmust attach the
UHF antenna to the receiver back panelUHF Remote Antenna
connection.
Note: To be able to use the remote control over the longest
possible distance, place the antenna straight up. Donot let the
antenna touch anything.
•The remote control uses Infra-Red (IR) light signals to control
devices other than the receiver. IR signals travel only short
distances (40 feet or less), and cannot go through walls or other
solid objects. You must point the remote control directly
at the device, with no objects blocking the line of sight.

Installing Batteries in the Remote Control
104333 3
INSTALLING BATTERIES IN THE
REMOTE CONTROL
The remote control comes with AAA batteries,
packaged separately. When you replace old batteries,
you should replace all of the batteries. Use batteries
of the same grade, for example, alkaline or carbon
zinc, and do not mix batteries of different grades.
Alkaline batteries provide longer battery life.

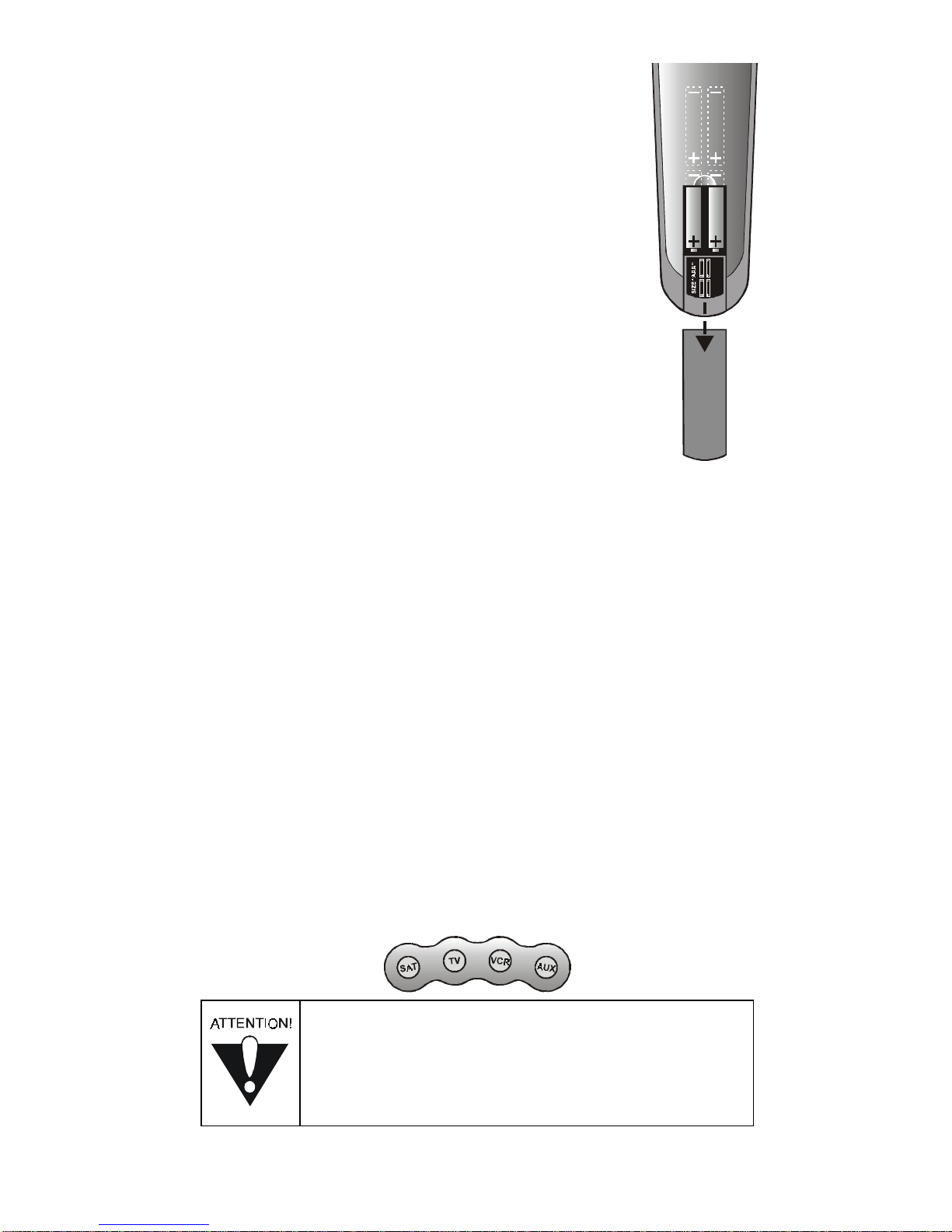

1.Press down on the slot in the battery cover
(on the back of the remote control) and slide
the cover off.
2.Insert the new batteries, making sure to match
the plus (“+”) ends with the plus markings
on the battery case.
3.Replace the battery cover by sliding the cover
back up into place.
REMOTE CONTROL MODES
To use the remote to control a device such as the satellite receiver or a
TV, you must first set up the remote to control the device,and then set
the remote to the right mode for that device.
1. Set up the remote to control the device. See Controlling a Device
on pag e15 for instructions.
2.Use the remote control mode buttons,SAT (satellite receiver),
TV, VCR (for a VCR or a DVD player), andAUX (“auxiliary,”
for a cable TV box, a tuner, or an audio amplifier) to set the
remote to the right mode for the device. To change the mode
setting, press the button for the device that you want the remote
to control. The mode button’s back light turns ON to show that
the remote is set to that mode.
The following sections describe how to use the
remote control buttons. Each section describesonly
the buttons that work inone remote control mode,
for example SAT mode or TV mode.

SAT (Satellite Receiver) Mode
4 104333
USING THE REMOTE CONTROL BUTTONS
SAT (SATELLITE RECEIVER) MODE
SAT MODE BUTTON
The remote control already is set up to control the satellite receiver.
But, you must press the SAT mode button to set the remote toSAT
mode. The SAT mode button’s back light turns ON to show that the
remote is set to SAT mode. Make sure to keep the remote inSAT
mode to use the buttons as described in this section.
AUX MODE BUTTON
Set up the remote to control the television and donot setup the remote
in AUX mode. If you do this, then with the remote in SAT mode you
can press the AUX mode button to turn the television ON or OFF.
This allows you to turn the TV on or off without leaving SAT mode.
TV/VIDEO BUTTON
If you connect the receiver using only its back panel RF or VHF
connections, use this button to switch the receiver between the satellite
signal (routed into the receiver’s Satellite In input) and another video
signal such as cable or broadcast TV antenna input (routed into the
receiver’s TV Antenna Cable In input).
MENU BUTTON
Press this button to open theMain Menu.
Some of the features described below may not
apply to your satellite receiver. See the receiver
User Guide for details about the receiver’s features.
If a remote control button is not described in this
section, it does not work in SAT mode.

SAT (Satellite Receiver) Mode
104333 5
POWER BUTTON
Press this button to turn the receiver ON or OFF. The greenPower
light on the receiver front panel lights up to show that the receiver
is ON, and goes out to show that the receiver is OFF.
PAGE UPAND PAGE DOWN (ARROW) BUTTONS
Press the Page Up button or the Page Down button to scan, page
by page, through the Program Guide, a Themes menu,
a Favorite List, an Event Timers list, or a list of channels.
MUTE BUTTON
Press this button to turn off the sound. Press it again to restore
the sound.
VOLUME BUTTON
Press the left-hand, minus (-) side of this button to lower the sound
volume. Press the right-hand, plus (+) side of this button to raise the
sound volume.
GUIDE BUTTON
Press this button to open theProgram Guide. When the Program
Guide is open, press this button to switch among Favorite Lists.
SELECT BUTTON
Press this button to select a highlighted option or program in a menu.

SAT (Satellite Receiver) Mode
6 104333
UP/DOWN/LEFT/RIGHT
(ARROW) BUTTONS
•When using a menu, press these buttons to move the highlight
to an option.
•When watching a program, press the Right button to open the
Browse Banner or the Up or Down button to change channels.
•When the Browse Banner is open, press the Up or Down
button to see the Browse Banner for the next channel.
•When a menu offers a list of choices (different from menu
options), press the Up or Down button to see more choices.
•When the Program Guide is open, press these buttons to move
the highlight among the programs.
•To enter a number in a menu, highlight the place where you need
to enter the number. Then, press the Up or Down button
to increase or decrease the number in the highlighted field.
Or, you may use the Number Buttons.
•When the Browse Banner is open, press the Right or Left
button to display the current program or the next program on a
channel.
•When watching a program, press the Left button to open the
Themes menu.
RECALL BUTTON
Press this button to return to the last channel you were watching.
Press it again to switch between the last two channels that you
watched.

SAT (Satellite Receiver) Mode
104333 7
INFORMATION (INFO) BUTTON
•Press this button for more information when the
Program Guide or the Browse Banner is open, or when
watching a program.
•When a menu is open that includes aHelp option, press this
button to see help information for that menu.
•Highlight a program in a Themes list and then press this button
for more information on that program.
•When the receiver is OFF, press this button to display the
Important System Information menu.
VIEW BUTTON
•Press this button to return to watching a program.
•If you are watching a program, press this button to briefly display
the Program Banner.
•While using any menu, press this button to cancel a procedure
and return to watching a program.
CANCEL BUTTON
Press this button to cancel a procedure and to return to the previous
menu or to watching a program.
SYSTEM INFORMATION (SYS INFO) BUTTON
Press this button to display the Important System Information
menu.

TV (Television) Mode
8 104333
NUMBER BUTTONS
•When watching a program or with theProgram Guide open,
use these buttons to enter a channel number to change to that
channel.
•When the Program Guide is open, enter a number of hours
using these buttons, and then press the Right or Left arrow
button to skip the display backward or forward by that number
of hours.
•Use these buttons to enter menu option numbers. For an option
that has a number, you may do thisinstead of highlighting the
option and then pressing the Select button.
•Use these buttons to enter numbers in a menu. To do this,
first highlight the place where you need to enter the number.
Next, press a number button (or, you can use theUp/Down
arrow buttons to enter the number). Then, move the highlight
to the place for the next number that you need to enter, or press
the Select button if you are done entering numbers.
POUND BUTTON
Use this button in Changing the Remote Control Address on pag e16.
TV (TELEVISION) MODE
Some of the features described below may not
apply to the TV. See your TV owner’s manual
for details about the TV’s features. If a remote
control button is not described in this section, it
does not work in TV mode.

TV (Television) Mode
104333 9
TV MODE BUTTON
To use the remote to operate a television, you must first set up the
remote to control the television. See Controlling a Device on page 15.
Then, you must press the TV mode button to set the remote toTV
mode. The TV mode button’s back light turns ON to show that the
remote is set to TV mode. Make sure to keep the remote inTV mode
to use the buttons as described in this section.
TV/VIDEO BUTTON
If the TV has video input options, use this button to switch the TV
among those options.
POWER BUTTON
Press this button to turn the television ON or OFF.
MUTE BUTTON
Press this button to turn off the sound. Press it again to restore
the sound.
VOLUME BUTTON
Press the left-hand, minus (-) side of this button to lower the sound
volume. Press the right-hand, plus (+) side of this button to raise
the sound volume.
SELECT BUTTON
The Select button works as the Enter button for a TV.

VCR (VideoCassette Recorder) Mode
10 104333
UP/DOWN (ARROW) BUTTONS
Use the Up/Down arrow buttons to change channels on the TV.
RECALL BUTTON
Press this button to return to the last channel you were watching.
Press it again to switch between the last two channels that you
watched.
NUMBER BUTTONS
Use these buttons to enter numbers in a menu.
VCR (VIDEOCASSETTE RECORDER) MODE
VCR MODE BUTTON
To use the remote to operate a VCR, you must first set up the remote
to control the VCR. See Controlling a Device on pag e15. Then, you
must press the VCR mode button to set the remote toVCR mode.
The VCR mode button’s back light turns ON to show that the remote
is set to VCR mode. Make sure to keep the remote inVCR mode
to use the buttons as described in this section.
Some of the features described below may not
apply to the VCR. See your VCR owner’s manual
for details about the VCR’s features. If a remote
control button is not described in this section,
it does not work in VCR mode.

VCR (VideoCassette Recorder) Mode
104333 11
MUTE BUTTON
Press this button to turn off the sound. Press it again to restore
the sound.
VOLUME BUTTON
Press the left-hand, minus (-) side of this button to lower the sound
volume. Press the right-hand, plus (+) side of this button to raise
the sound volume.
SELECT BUTTON
The Select button works as the Play button. Press this button
to play or to resume playing a videotape.
UP/DOWN/LEFT/RIGHT
(ARROW) BUTTONS
•The Up arrow button works as theStop button.
Press this button to stop a videotape.
•The Down arrow button works as thePause button.
Press this button to pause a videotape. Press this button or the
Select button (Play) to restart the tape.
•The Left arrow button works as the Rewind button.
Press this button to rewind a videotape.
•The Right arrow button works as the Fast Forward button.
Press this button to forward a videotape.
You must set the remote control to VCR mode
to set it up to control a DVD player. You must set
the remote control to VCR mode to use it to control
a DVD player.

AUX (Auxiliary) Mode for Cable TV Box
12 104333
NUMBER BUTTONS
Use these buttons to enter numbers in a menu.
AUX (AUXILIARY) MODE FOR CABLE TV BOX
AUX MODE BUTTON
To use the remote to operate a cable TV box, you must first set up the
remote to control the cable box. See Controlling a Device on page 15.
Then, you must press the AUX mode button to set the remote to AUX
mode. The AUX mode button’s back light turns ON to show that the
remote is set to AUX mode. Make sure to keep the remote in AUX
mode to use the buttons as described in this section.
MUTE BUTTON
Press this button to turn off the sound. Press it again to restore
the sound.
VOLUME BUTTON
Press the left-hand, minus (-) side of this button to lower the sound
volume. Press the right-hand, plus (+) side of this button to raise
the sound volume.
Some of the features described below may not
apply to the cable TV box. See your cable box
owner’s manual fordetails aboutthe box’s features.
If a remote control button is not described in this
section, it does not work for a cable TV box.

AUX (Auxiliary) Mode for Tuner or Amplifier
104333 13
SELECT BUTTON
The Select button works as the Enter button for the cable box.
UP/DOWN (ARROW) BUTTONS
Use the Up/Down arrow buttons to change channels on the cable box.
RECALL BUTTON
Press this button to return to the last channel you were watching.
Press it again to switch between the last two channels that you
watched.
NUMBER BUTTONS
Use these buttons to enter numbers in a menu.
STAR BUTTON
Use this button to set up the remote control inAUX mode.
AUX (AUXILIARY) MODE FOR TUNER OR AMPLIFIER
Some of the features described below may not
apply to the tuner or amplifier. See the device
owner’s manual for details about the device’s
features. If a remote control button isnot described
in this section, it does not work for a tuner or
amplifier.

AUX (Auxiliary) Mode for Tuner or Amplifier
14 104333
AUX MODE BUTTON
To use the remote to operate a tuner or amplifier, you must first set up
the remote to control the device. See Controlling a Deviceon page 15.
Then, you must press the AUX mode button to set the remote
to AUX mode. The AUX mode button’s back light turns ON to show
that the remote is set to AUX mode. Make sure to keep the remote
in AUX mode to use the buttons as described in this section.
MUTE BUTTON
Press this button to turn off the sound. Press it again to restore
the sound.
VOLUME BUTTON
Press the left-hand, minus (-) side of this button to lower the sound
volume. Press the right-hand, plus (+) side of this button to raise
the sound volume.
SELECT BUTTON
This button works as the Input Select button for a tuner or amplifier.
UP/DOWN (ARROW) BUTTONS
Use these buttons to change channels on the tuner or amplifier.
STAR BUTTON
Use this button to set up the remote control inAUX mode.

Controlling a Device
104333 15
REMOTE CONTROL PROCEDURES
CONTROLLING ADEVICE
This section explains how to set up the remote to control a device,
such as a satellite TV receiver, a TV, a VCR, a cable TV box, a tuner,
or an amplifier.
Note: The remote already is set up to control the receiver. But, if the
receiver has its own volume control, then when you first install it, it is
set up so that the remote cannot control the receiver sound volume.
If you want to set up the receiver so that the remotecan control the
receiver volume, see Receiver Volume Control on pag e18.
1.Turn ON the device you want the remote to control, using the
device’s buttons or the remote control that came with the device.
2.Find the brand name of the device in the tables that start
on page 22. If the brand is not listed, seeDoing the Device Code
Scan on pag e20.
3.Press and hold the mode button for the device
that you want the remote to control, for about
three seconds. When all the other mode button
backlights come on, release the mode button. For example
4. Use the number buttons to enter the code
for the device.
Note: For the AUX mode, you must enter
a 4-digit code. The first digit is the code for the
device, as follows:
0 is for a second TV, 1 is for a second VCR, and
2 is for an audio amplifier or cable TV box.
5. Press and release the Pound (#) button. If the
code is valid, the mode button backlight blinks
three times.
6.Test if the code works for the device by pressing
the Power button. If the code works, the device
should turn OFF.
7.Turn the device back ON and try some other buttons to make
sure they work. Sometimes, the Power button may work when
other buttons do not. If the code works for other buttons,
stop here.

Changing the Remote Control Address
16 104333
CHANGING THE REMOTE CONTROL ADDRESS
Note: Do not change the address of the remote unless absolutely
necessary, because the remote cannot control the receiver if the two
devices have different addresses. If you start doing this procedure and
then do not press any button for 20 seconds, the remote will end the
procedure. Just start over again.
Note: This procedure shows examples of menu options. The options
that you see may differ.
8.If the code you entered does not work, repeat steps 3 through 7
using another code from the tables.
9.If you have tried all of the codes listed for the device without
success, or if you cannot find the device brand name in the
tables, see Device Code Scan on pag e20.
1.Display the Important System Information menu.
Note the Remote Address shown on this menu.
To do this:
Either: Press the System Information
button.
or: a) Press the Menu button.
b) Select the System Setup option.
Note: This step does not apply
to some receivers.
c) Select the Installation option.
d) Select the System Info option.
or:
2.Press and hold the SAT mode button about three
seconds, until all the mode button backlights
come on, and then release the SAT button.
3.Use the number buttons to enter a number
from 1 to 15. The SAT mode button backlight
will blink off after you enter each digit, and then
come on again.

Installing an Attenuator
104333 17
INSTALLING AN ATTENUATOR
Unwanted UHF signals may block signals from the remote control
to the receiver. To prevent such blockage, you can install a 10 dB
attenuator. This will help keep out other UHF signals, but also reduce
the distance at which you can use the remote control.
4.Press the Pound (#) button. If the address you
entered is valid for the remote control, the SAT
mode button backlight flashes three times.
5.Press the Record button.
The Remote Address on the Important
System Information menu should match
the one that you entered.
6.To check the address, press and hold the SAT
mode button for three seconds. Then, press the
Pound (#) button twice. The SATmode button
backlight flashes the same number of times
as the address.
7.Press the Select button.
1.Remove the UHF antenna
from the UHF Remote
Antenna connection on the
receiver back panel.
2.Attach a 10 dB attenuator to the
UHF Remote Antenna
connection.
3.Attach the UHF antenna to the
attenuator.

Controlling Sound Volume
18 104333
CONTROLLING SOUND VOLUME
RECEIVER VOLUME CONTROL
The receiver may have its own volume control. When you first install
such a receiver, it is set up so that the remote cannot control the
receiver sound volume. You can set up the receiver so that the remote
can control the receiver sound volume.
Note: You should use the receiver remote to control the sound
volume for normal viewing. But, if you are recording a program using
a VCR, and you change the sound volume using the receiver remote,
the volume recorded also will change. So, you may want to set up the
receiver so that only the TV remote can control the sound volume.
Then, when you use the TV remote to change the volume, the volume
recorded will not change. When you are finished recording, make sure
to change the receiver setup back so that the receiver remotecan
control the sound volume.
To change the way sound volume is controlled, do the following:
Note: This procedure shows examples of menu options. The options
that you see may differ.
1.Use the TV remote control to make sure that the TV sound
volume is not turned down or muted.
Note: If you turn down or mute the TV sound volume using the
TV remote, the receiver remote cannot restore the volume even
if the receiver is set up so that the remote should be able to do so.
2.Press the Menu button.
3.Select the System Setup option.
4.Select the Volume Control option.
Note: If the System Setup menu does not
display this option, the receiver doesnot have
its own volume control.
5.Select the TV remote volume control or the
DISH remote volume control option.
6.Select the Save option.
7.If you are setting up the remote control for the first time, see
Controlling a Device on pag e15. In step 4 of that procedure,
use code 222 in TV mode to set up the remote to control the
receiver, including the receiver sound volume.

Controlling Sound Volume
104333 19
TV OR AMPLIFIER VOLUME CONTROL
If you set up the remote to control a television, theMute and Volume
buttons - in any mode - control the TV volume. This applieswhether
or not the receiver has its own volume control. This does not apply if
you use the AUX mode to control a device that has a volume setting.
If you want to control a device that has a volume setting, using any
remote mode, do the following:
To switch back to TV volume control, do the following:
1.Press and hold theAUX mode button for three
seconds, then release it.
2.Press the Pound (#) button.
3.Press the plus (+) side of theVolume button.
4.Press the 0number button.
5.Press the Pound (#) button. The AUX mode
button backlight blinks three times.
1.Press and hold theTV mode button for three
seconds, then release it.
2.Press the Pound (#) button.
3.Press the plus (+) side of theVolume button.
4.Press the 0number button.
5.Press the Pound (#) button. The AUX mode
button backlight blinks three times.

Doing the Device Code Scan
20 104333
DOING THE DEVICE CODE SCAN
If a device is not listed in the tables or if the listed codes do not work,
you can scan through all the codes, testing each one. Remember that
the remote may not control some devices.
1.Press and hold the mode button for the device,
for about three seconds. When all the other
mode button backlights come on, release the
button. It will flash to show that the remote is
ready for address setting.
For example
2.For AUX mode only, use the number buttons to
enter a number as follows: 0 is for a second TV,
1 is for a second VCR, and 2 is for an audio
amplifier or cable TV box. Then, press theStar
(*) button.
3.Press the Power button.
4.Press the Up or Down arrow button to set the
remote to the next code. The Down arrow
button scans backward, and theUp arrow button
scans forward. Press the button again
to continue scanning.
5. When the remote reaches the correct code,
the device turns OFF. If this happens, press the
Pound (#) button to store the code in the
remote. If the code is valid, the matching mode
light blinks three times.
6.Press the Power button to turn the device
back ON.
7.Try some other remote control buttons to make sure that you
have the right code.
