Divis HD-SDI Series User manual

V X.XX.X
Digital Video Security System
Digital Video Recorder
www.DiViSdvr.com
DiViS DVR.com
*All contents of this document may change without prior notice, and actual product appearance may differ from
depicted herein.

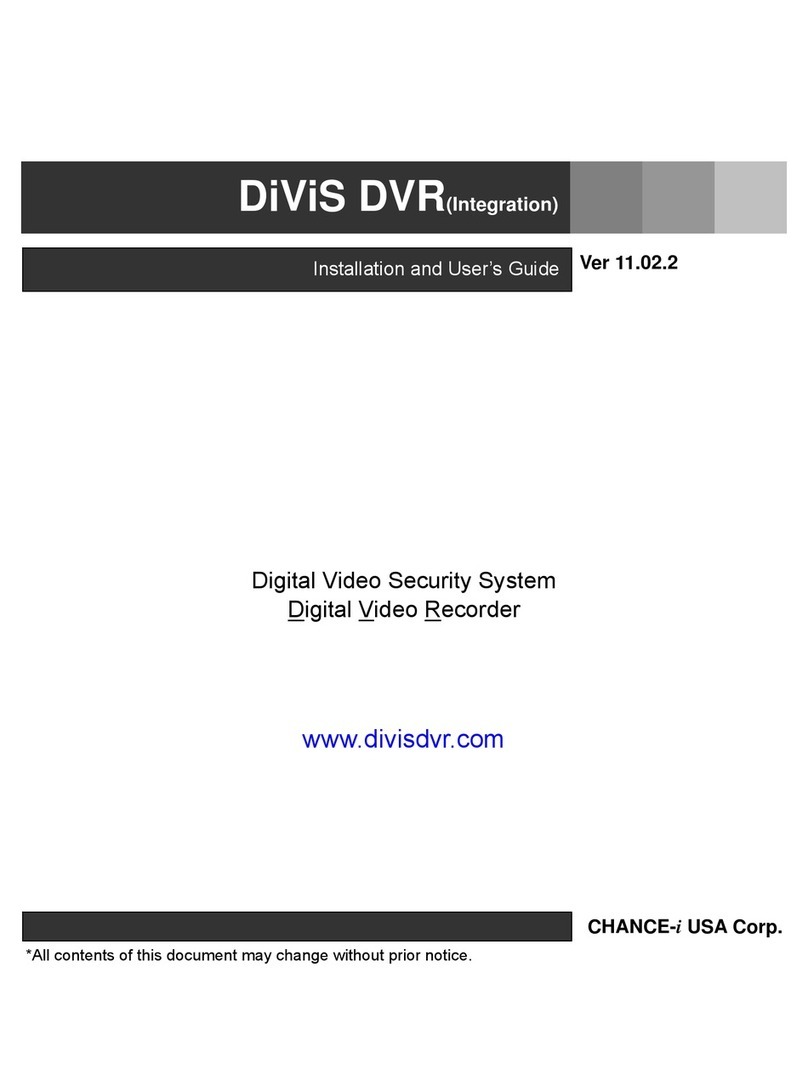

DiViS DVR(Integration)
Installation and User’s Guide
HD-SDI & HSD1 Series

2
DiViS
www.DiViSdvr.com
1. Specification 4
2. Installation Notes 6
3. Driver Installation 7
3-1. HD-SDI, D1, H.264
Series 7
4. Program Installation 9
5. Configuration 14
5-1. Disk Tool 15
5-2. User Admin 16
5-3. System 17
5-4. Camera 24
5-4-1. General 24
5-4-2. Scheduling 25
5-4-3. Color & Motion 27
5-5. Sensor 30
5-6. Backup 31
5-7. Event Setup 33
6. Main 36
7. Search 39
8. Utility 45
8-1. Backup 45
8-2. Backup Viewer 47
8-3. Auth Tool 47
8-4. AVI Viewer 48
8-5. Log Viewer 49
9. POS, Access Control 50
Appendix
1. DVR Management 51
2. DB Tool 53
3. Direct Web 55
4. Tribrid DVR
(HD-SDI +D1 series +
IP Web Camera) 57
5. Tribrid DVR
(HD-SDI + H.264 series
+ IP Web Camera ) 57
Index

3
DiViS
www.DiViSdvr.com
DVR (Digital Video Recorder) technology replaces the use of existing analog technology, like
VHS tapes and VCR’s, by being able to store images in digital formats that are superior in both
convenience and quality.
One of the many problems with analog tapes is the limited searching capabilities they provide.
Searching for a certain event or time period in an analog tape is both tedious and inefficient.
Now, with the introduction of DVR, it has become easier, among other things, to find the
images you want: simply enter the time and date into the computer and data is retrieved in
seconds. No more mundane searches or manual tracking of tapes.
With VCRs, preservation of recorded data, especially sensitive recordings, was difficult to
do. DVR provides several options (DAT, CD, DVDs) in permanently preserving large amounts
of data in digital formats, maintaining the integrity of the video for far longer periods than any
analog tape.
The DVR also works in conjunction with sensors to operate security systems: relays can close
shutters or ring sirens when motion sensors are triggered, for instance. In addition, our DVR
makes it possible to modify DiViS DVR settings and retrieve recorded data remotely through a
network or the Internet.
Reliability, convenience in searching and storing, and flexibility to meet various demands for
surveillance systems are what make us proud in offering the next generation of DVRs.
Various features briefly introduced here are just some of the features of a constantly evolving
technology. We are always striving to innovate and create new ideas to meet demands from all
areas of the globe.
Please contact us through the LiveChat service for any technical questions.
Website: https://divisdvr.com
Introduction

4
DiViS
www.DiViSdvr.com
· 1~32 Camera Inputs / Output
Up to 32 camera inputs are available on screen for digital handling.
Normal input condition: 75 Ohm, 1 Volt ( p-p )
· 1~16 Sensor Inputs
Up to 16 sensors can be linked to the system.
External DC 12 Volt power must be provided to the sensor input from outside.
· 1~4 Digital Outputs (Relay Outputs)
Digital Outputs can be used to activate alarm response devices, such as shutters and sirens. These outputs
can be activated by sensors and motion detection.
· Sound Recording and Two-Way Communication Capabilities
Sound can be recorded with video images. Two-way communication is possible between DiViS main and DiViS
Net or Web, while sound is being recorded.
*Note: Sound recording must be made with an amplified microphone for HS or HE series.
· Display Features (w/ Multi-Viewing)
Multi-Viewing display feature allows up to 16 different camera shots to be displayed onscreen at the same time.
Other display features include enlarging all displayed cameras or just one.
· PAN/TILT/ZOOM/FOCUS Capabilities
Each connected camera can be manipulated through the DiViS main program as long as each camera
supports such capabilities. This feature can be controlled remotely.
· Auto Rebooting System
When DiViS detects an error or malfunction within the system, it will automatically reboot the system in order to
correct it.
· Motion Detection and Sensor Trigger
Detection features make it possible to utilize more efficient recording methods, such as recording only when
movement is detected.
1. S
p
ecification

5
DiViS
www.DiViSdvr.com
· Scheduled Recording
Scheduling allows the administrator to record images only during designated time periods, if so desired. Every
combination of scheduling is available in DiViS program.
· Manual and Auto Backup
Data can be preserved through various formats (DAT, CD, or DVD) and data from specific cameras and/or time
periods can be specifically isolated for backup in various formats as well. Much like scheduled recording,
backup of data can be scheduled as well.
· Digitalized Video Search
Digital playback features include advanced search features, such as searching by text data, and image
extracting, which allows portions of existing video to be isolated and saved as a separate file.
· Network Support (TCP/IP, LAN, Modem Protocol Support)
DiViS supports network access, which allows administrators to login to DVR main program from DiViS-Net or
Direct Web and remotely access all the features that are provided locally.
· Integration with Text data from External Devices
Data from external devices (POS, Access Control, ATM, etc) can be recorded with DVR video images. Our
advanced search features allow users to search the local data using information from external devices when an
event occurs. This guarantees high level of integrity and security.
Specification
Feature HDH Series HS Series, HE Series
HD-SDI Camera Input 1~16 Port --
Analog Camera Input -- 1~32Port(NTSC/PAL)
Sound Input 2 Port 1~32 Port
Sensor Input 16 Port
Relay Output 4 Port
HDMI Output --
Composite Output -- 1~4Port (NTSC/PAL, Switching)
Image Format H/W H.264
Recording Mode Watch, Normal, Motion Detection, Sensor, Scheduled Recording
Remote Control Full remote control PSTN, ISDN,ADSL, LAN and TCP/IP
Back-up DAT, CD, DVD
PAN/TILT/ZOOM/FOCUS RS-232/422/485 Interface
* Please contact your vendor for more detailed information.

6
DiViS
www.DiViSdvr.com
· Recommend to use Intel Chipset motherboard. For detailed compatible motherboard list, please refer to System
Information.
i) 12004HDH & 24008HDH: Intel H55, P55 Chipset Main Board or higher
ii) 48016HDH: Sandy Bridge Main Board or above (H61, H67, Z68)
· Minimum of Intel Core i3 CPU recommended.
i) Recommend to use Intel Ivy Bridge Chipset with Intel Core i7 for best results.
ii) 48016HDH: Minimum of i5 CPU recommended.
· Recommend to use memory of 4GB (2GB x2) or higher.
· Must use Intel Onboard Graphic.
i) Must be an Onboard Graphic higher than Intel Sandy Bridge Chipset.
· Recommend to use 1TB (32MB Cache or higher) or larger hard disk.
i) Use a hard drive with more space when storing data for a long period of time without backing up.
ii) 48016HDH: Recommend 64MB Cache or higher hard disk.
· Support Windows 7. Under Windows 7, User Account Control (UAC) and Action Center Setting must be turned
off.
· Recommend to install WMV codec provided. This codec is also available from Microsoft website. Installation of
the codec greatly improves efficiency of creating AVI format files.
· Disable System Standby mode, screen saver, and all the energy saving features.
i) There may be problems due to System Standby mode, screen saver, and energy saving features.
* Due to the rapid changes of motherboards and video cards, some components with listed
specifications may not work properly. Please contact technical support for the list of tested
motherboards.
2. Installation Notes

7
DiViS
www.DiViSdvr.com
3-1. HD-SDI, D1, H.264 Series
Open Driver folder and run “Installer.exe”. (If O/S is 64bit, run Installer64.exe”)
Click “Next”
Click “Install”
3. Driver Installation

8
DiViS
www.DiViSdvr.com
The following chart is a device list for each model.
Model Device List
HD-SDI series DVR HDH Driver
D1 series DVR HS Driver
H.264 series Live H264 Capture Device
Click “Install this driver software anyway” when a Windows Security message pops up. Depending on the type of
board, the number of times the message pops up differs.
Once installation is completed, click “Reboot” to restart the system. It is required to reboot the system to complete
installation of drivers.

9
DiViS
www.DiViSdvr.com
Run “Setup.exe”.
(Choose the language of the software to be installed.)
Click “Next”.
Click “Install” to install Microsoft Visual C++ 2008 Package. If this package was installed before, this installation
screen will not appear.
4. Pro
g
ram Installation

10 DiViS
www.DiViSdvr.com
Click “Next”.
The last letters of version indicates the type of board.
i.e.) HDH – HDH, HS – HS, HE – HE
ㆍAnyone who uses this computer [all users] : Allows all administrators to use the DVR software if there are
multiple Windows user accounts available on the system – it is not accessible through limited user accounts.
ㆍOnly for me[User Account Name] : Only current user account can use the DVR software.
Click “Next”.

11 DiViS
www.DiViSdvr.com
Click “Next” after selecting a folder to install the program.
Choose the proper media format (NTSC or PAL) and continue by clicking “Next.”
(It doesn’t matter which one is chosen for HD because it uses digital signals.)

12 DiViS
www.DiViSdvr.com
• USERNAME: Enter username for Top Admin.
• PASSWORD: Enter password for Top Admin.
• Confirm P/W: Re-enter the password.
Note: Once the Top Admin user is created, it cannot be modified from User Admin Setup. To change the
username or password of Top Admin, please refer to Appendix 1. DVR Management.
Click “OK” when everything is set.
Choose “Yes, I want to restart my computer now” and click “Finish” to restart system.

13 DiViS
www.DiViSdvr.com
Setup will install a Program group into the Windows Start menu for easy access to the various DiViS DVR
programs.
DVR Main: DiViS DVR Main
DVR Search: DiViS DVR Search
DVR Setting: DiViS DVR Setting
Utility
Auth Tool: A program for discerning whether a stored original image (jpg file) has been altered.
AVI Viewer: Viewer for saved video file in MP4 format.
Backup: Data backup program.
Backup Viewer: Allows viewing of data that has been stored as backup.
Log Viewer: Log data viewer program.
Whenever the DVR Main program is exited (to either search for
data or modify settings), a login prompt similar to the following will
appear in order to ensure that only authorized users have access
to DiViS DVR controls and to add a measure of extra security to
the system.

14 DiViS
www.DiViSdvr.com
Run DiViS DVR Setting.
• Disk tool: Creates a DiViS DB file system. DiViS will create its own file system to store large amount of DVR
data safely in its own dedicated disk space.
Note: No database changes can be made while DiViS DVR Main Program is operating.
• System: Sets system related settings, including network connection options, initial set of screen, sounds,
automatic rebooting, etc.
• Camera: Sets up the cameras, recording schedule, motion detection, digital output, etc.
Note: Camera cannot be enabled while DVR Main is operating. Turn off DVR Main first and run DVR
Setting to enable cameras.
• Sensor: Sets up the sensors and link options.
• Backup: Sets up the automatic and manual backup.
• User admin: Sets up and manages authorized users.
• Pos: Sets up POS. For more details, refer to “DiViS POS Setting Manual.”
5. Confi
g
uration

15 DiViS
www.DiViSdvr.com
5-1. Disk Tool
• Total volume: Total number of allocated volumes (volume).
• Current volume: Index of current volume where data is being stored.
• Limit of saving days: The limit cannot exceed the number of days recordable on the system as determined by
the allocated volumes.
• Total: Total Disk space (MB).
• Used Disk: Total physical space already used (MB).
• Usable Disk: Physical space still available in the logical drive (MB).
• Max Volume: Number of volumes available on current hard drives (volume).
• Used Volume: Number of volumes dedicated to DVR recordings (volume).
• Add Volume: Temporarily adds more dedicated space to DVR recordings – will not be finalized until “Create
Volume” is clicked.
• Delete Volume: Deletes all database volumes in selected hard drive.
• Clear Volume: Deletes all stored data on all hard drives dedicated to DVR recordings.
• Create Volume: Creates the number of volumes specified in “Add Volume.”
Highlight the desired Hard Disk Drive (HDD) from the HDD list on the bottom half of the screen and enter in a
number of volumes to assign from the HDD to DiViS DVR system in the “Add Volume” section and click “Add.”
After making sure that the correct number of desired volumes appears under the “Volume Size” column of the
HDD list, click “Create Volume” to finalize the allocation process.
What is a Volume? Volume is the unit used by the DiViS DB system. 1 volume is equivalent to 64MB of physical HD space. All image data
is recorded in volume units. When assigned Volumes are full, the program will continue recording by overwriting volumes that contain the
oldest previously recorded data. It is recommended that important data be backed up prior to the start of the overwriting process.

16 DiViS
www.DiViSdvr.com
5-2. User Admin
• Username: Enter username.
• Password: Enter password.
• Confirm password: Re-enter the password.
• Default user: “Default user” will be assumed by the program to be using the DVR main whenever it is loaded.
• Security level: Set security limitations for each user.
• Authority: Assign detailed authorities to a user.
- Use Windows Key: Enables the use of keyboard commands, such as Start or Task Manager, which are
disabled by default at the start of DiViS DVR Main.
• Notify Login: Set duration of login time for a user when the user connects to the main by remote-client
(triggered by event notification).
To create a new user, click on an empty row on the user list, assign username and password, adjust Security
Level and Authority, and press “Add” button to finish the registration.
To modify an existing user, select a user from the user list, change desired option(s), and click “Modify” to apply
change(s).
To delete a user, select the user in the list first and then click “Delete”.
All changes will only be applied if “Save & Close” or “Apply” button is clicked.
Note: Top Admin User cannot be modified or deleted from this section. Please refer to Appendix 1. DVR
Management.

17 DiViS
www.DiViSdvr.com
5-3. System
• Site Information
- Site Name: Enter name for DiViS DVR system. The name is used when sending e-mails.
- Site Location: Enter location of DiViS DVR system.
- DVR Information Backup: Allows users to import/export setting values. Click “Properties” to set up.
Note: The settings can only be used with the same type of board and version of the software.
-- Backup Path: Choose a location to export current setting to local system.
--- Click “Backup” after entering a location and file name to export.
-- Restore Path: Import an already existing setting from local system.
--- Click “Restore” after selecting an exported setting to import.

18 DiViS
www.DiViSdvr.com
• Startup
- Auto Startup: Enable automatic startup of DVR Main Program upon system startup.
Properties:
-- Use Auto Logon: Select to logon to Windows automatically on system startup (if there are multiple
user accounts available on the system).
--- User Account Name: Select a user account which will be used to logon to Windows
automatically (only administrators can be selected, and you cannot login
with any other user accounts if you have selected “Only User” during
installation process).
--- User Account Password: Enter the password of the selected user account. Leave it blank if the
account does not have a password.
-- Delay Time: Allows users to delay (in seconds) the execution of DVR Main program.
- Enable hardware watchdog (Auto recovery): If enabled, the watchdog will reboot the entire system if it
becomes unstable or encounters errors.
- Schedule auto reboot of DVR: If enabled, a schedule to reboot the
entire system automatically can be set by clicking “Properties.” This
reboot is independent from the watchdog functionality.
Note: “Auto Startup” option must be enabled in order to run DVR
Main automatically on system startup.
- Startup Event Notify: If enabled, email notification will be sent out upon the program startup.
Using reserved parameters, it is possible to send starting time (“$$2”) and assigned IP
address (“$$3”). Refer to Chapter 5-7. Event Setup for more details.

19 DiViS
www.DiViSdvr.com
• Log Write: Record Log files (log can be viewed with Log Viewer in Utility).
- System log: Time information of Main, Search, Setting
start/end.
- Sensor log: Log for sensor detection.
- Motion log: Log for motion detection.
- User log: Log information of User login.
- Loss log: Log for Video Loss.
- Disk log: Log for last recorded time and disk full warning.
- Log File Size: Sets up log file size.
• Screen: Initial setting for main program.
- Initial screen: Number of camera shots that will be displayed when DVR Main is loaded.
- Normal, Large, Full: Size of the camera shots displayed when system is started.
- TV-out auto switching interval: The amount of time each camera shot will be displayed intermittently
through the Composite-Out port.
-- Normal: Displays the current camera shots of the monitor.
-- 1 View: Sequential switching of each camera.
-- 4 View: Sequential switching of 4 cameras.
- PC Screen auto switching interval: It sets the time interval between one split screen shot and the next, and
it only applies when the “Auto Switching” button is activated.
• Auxiliary Functions
- Sound recording: This option allows camera images to be recorded with sound.
Press “Properties” button to set sound configurations. (Systems with H.264 series do not have this option
available.)
-- Installed Audio Devices: If there is a sound device, up to 2 channels of
sound recording can be enabled.
-- Select Channel: Choose number of sound channels.

20 DiViS
www.DiViSdvr.com
Note:
1. The system requires Direct X 8.0 or higher for sound recording (already installed in Windows 7).
2. In order to use two channel sound recording for a single sound card, use the included audio cable
and plug it into the sound card’s “Line In” port. Amplified microphones must be used in each audio
cable input
3. Sound communication with remote client can be done 1 channel at a time.
- Use e-mail: Select this function to receive email notifications from the system. Click “Properties” to set up.
-- Method
--- No SMTP: Find outgoing mail server (SMTP) automatically.
--- SMTP/No Login: Use this option if your mail server is SMTP Server without Login process.
--- SMTP/Login/No RSA: Use SMTP server login without RSA encryption on ID/Password.
--- SMTP/Login/RSA: Use SMTP server login with RSA encryption on ID/Password.
--- SMTP/Login/RSA/MD5: Use SMTP server login with RSA encryption and MD5 (Message Digest 5
algorithm) on ID/Password.
-- SSL: Click to check only if the email server is using an encrypted connection (SSL).
SSL option becomes available when "SMTP/LOGIN/RSA" is selected for the method.
-- SMTP Server: Enter SMTP Server address.
-- Port: Check and modify the port for SMTP server. Port option becomes available when
SMTP/LOGIN/RSA" is selected for the method.
-- User: Enter SMTP Server login User.
-- Password: Enter SMTP Server login Password.
-- From Address: The designated email address of the system.
-- To Address: The email addresses of the people who will receive email notifications from the system.
Multiple email address can be assigned, separated by a semicolon (;), limited up to 50
characters.
-- Test: Test the email by sending a testing email.
Other manuals for HD-SDI Series
1
This manual suits for next models
1
Table of contents
Other Divis DVR manuals

Divis
Divis ACAP Series User manual

Divis
Divis H.264 Series Manual

Divis
Divis ACAP Series Manual

Divis
Divis CHD12004H User manual

Divis
Divis MPG48016AMX Assembly instructions

Divis
Divis DVR User manual

Divis
Divis 120N16 User manual

Divis
Divis DVR User manual

Divis
Divis D1 Series Manual

Divis
Divis D1 Series User manual
Popular DVR manuals by other brands

Goclever
Goclever GCDVRXTP4K quick start guide

Dish Network
Dish Network Hopper Activationand setup guide

Safestmonster
Safestmonster HC115 user manual

PSA Products
PSA Products Pinkerton quick start guide

Scientific Atlanta
Scientific Atlanta 8240HDC quick guide

United Technologies
United Technologies TVR-1204C-500 quick start guide
