DJI RSC 2 Quick Start Guide

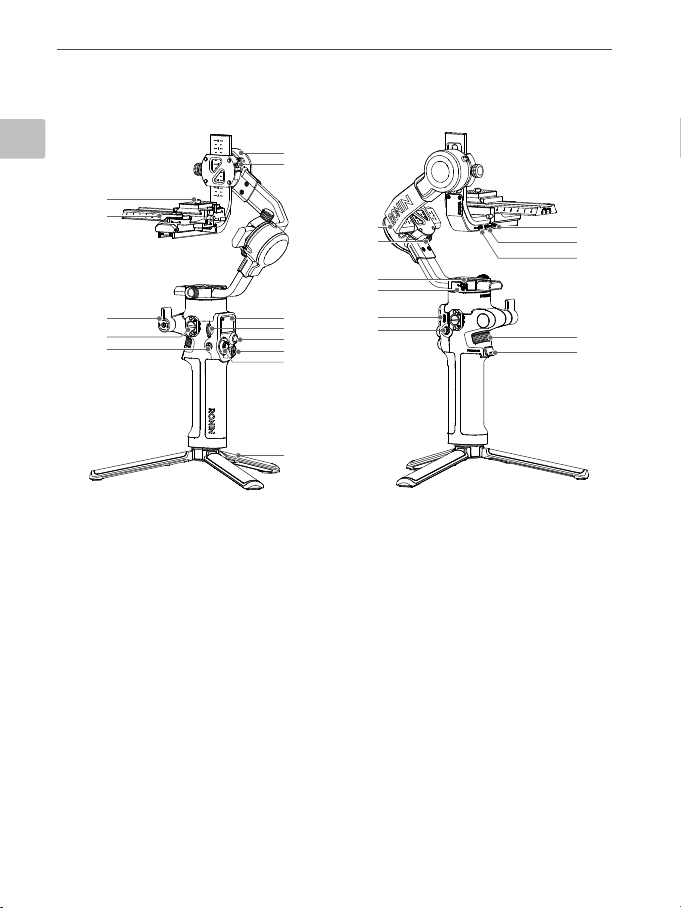

DJI RSC 2 Overview
1. Tilt Motor
2. Tilt Lock
3. Screen
4. Side Dial
5. Camera Control Button
6. M Button
7. Joystick
8. Extended Grip/Tripod
9. Back Button
10. M4/NATO Port
11. Lock Knob
12. Lower Quick-Release Plate
13. Upper Quick-Release Plate
14. Image Transmission/Focus Motor Port
(USB-C)
15. Focus Motor Port (USB-C)
16. RSS Camera Control Port (USB-C)
17. Front Dial
18. Trigger
19. Power Button
20. Power Port (USB-C)
21. Pan Lock
22. Pan Motor
23. Roll Lock
24. Roll Motor
1
9
10
11
2
12
13
3
5
6
7
4
14
19
20
21
22
23
24
17
18
15
16
8

EN
©2020 DJI OSMO All Rights Reserved.
3
DJI RSC 2 Quick Start Guide

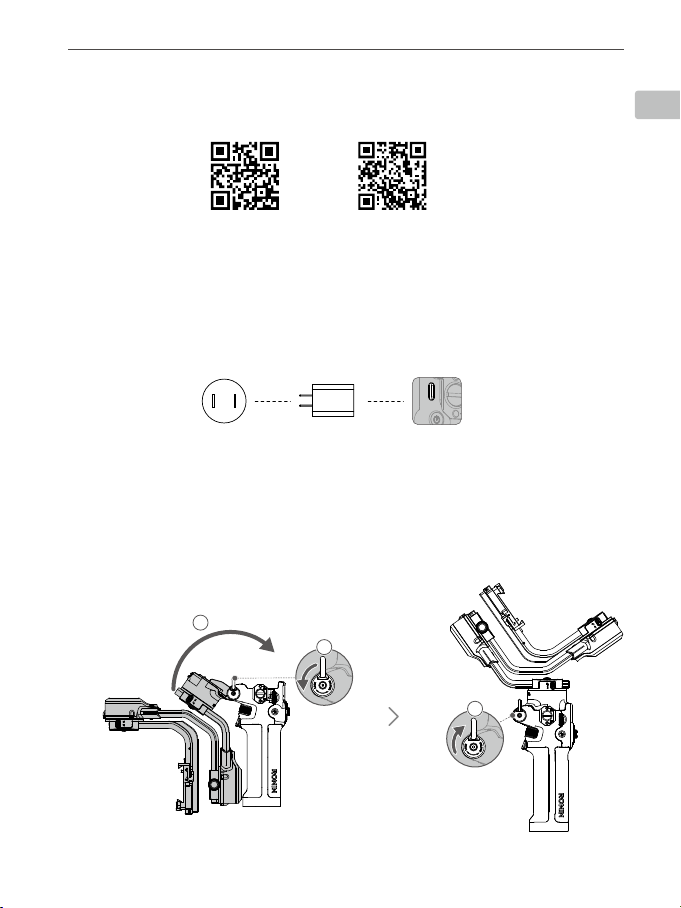

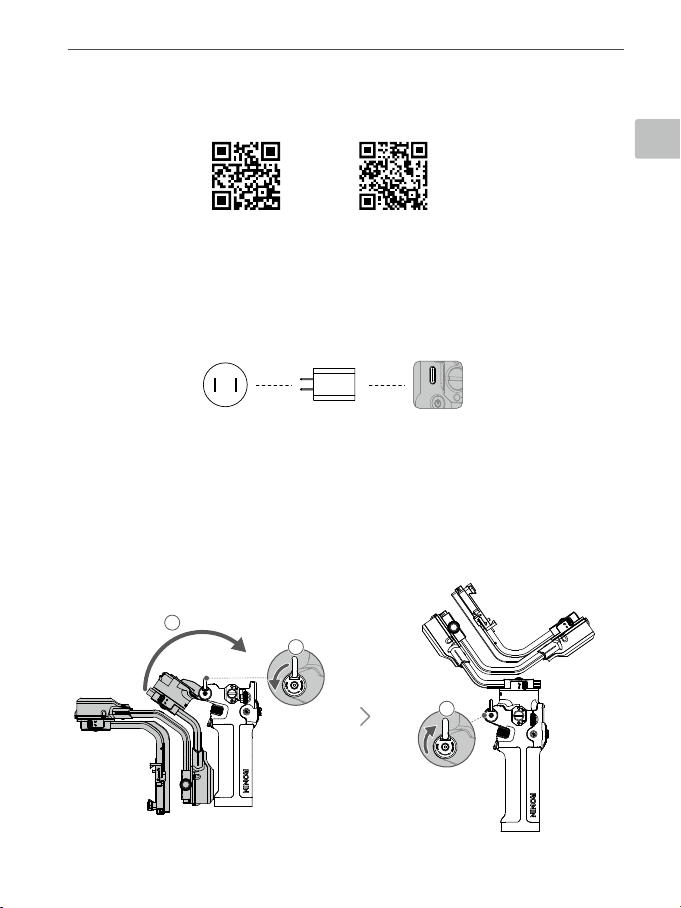

Getting Started
A. Downloading the DJI RONINTM App and Watching the Tutorials
B. Charging the Battery
Before using for the rst time, charge DJI RSC 2 through the power port using a charging
cable (included) and a USB adapter (not included). It is recommended to use a QC 2.0 or
PD (max. 18 W) USB adapter. Check the battery level on the screen.
C. Unfolding the Gimbal
Loosen the lock knob to the unlocked position, unfold the gimbal as shown, and tighten
the lock knob to the locked position.
Ronin App Tutorials
2
1
3
USB Power
Adapter
Power Outlet
100 - 240 V
Power Port

EN
4
©2020 DJI OSMO All Rights Reserved.
DJI RSC 2 Quick Start Guide
Tilt Lock

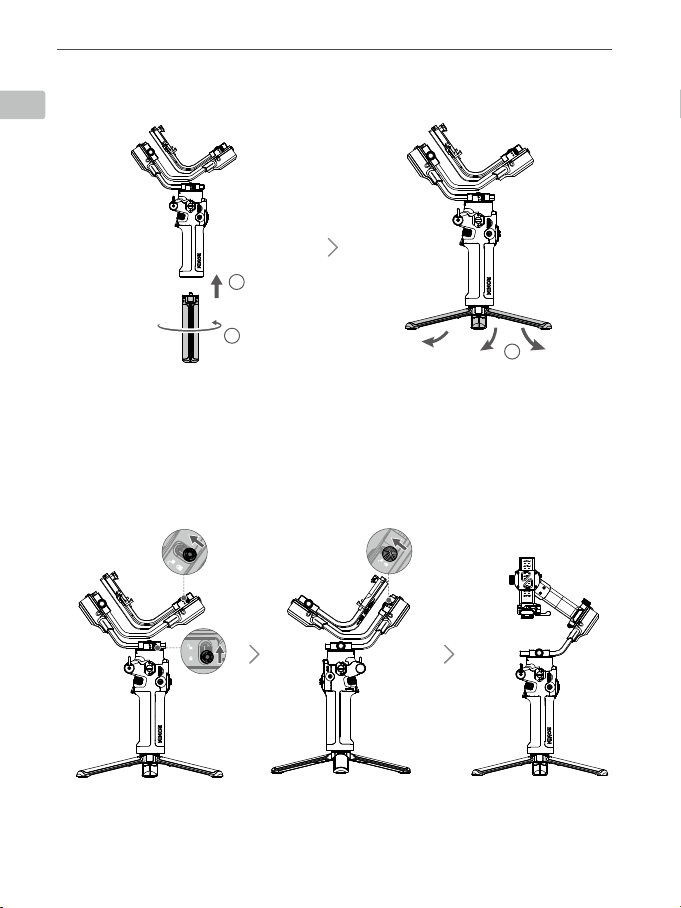

D. Attaching the Extended Grip/Tripod
E. Unlocking and Locking the Gimbal
To unlock the gimbal, toggle the tilt, roll, and pan lock levers to the unlocked position.
Adjust the gimbal position as shown and toggle the three locks to the locked position.
Pan Lock
Roll Lock
1
2
3

EN
©2020 DJI OSMO All Rights Reserved.
5
DJI RSC 2 Quick Start Guide
F. Powering On/O and Entering/Exiting Sleep Mode
Press and hold the power button to turn DJI RSC 2 on or o. Tap or press twice to enter
or exit sleep mode.
G. Activating DJI RSC 2
DJI RSC 2 needs to be activated through the Ronin app before using
for the rst time.
1. Press and hold the power button to power on the gimbal.
2. Enable Bluetooth on your mobile device and launch the Ronin app.
Note that a DJI account is required to launch the Ronin app. Once
detected in the list of Bluetooth devices, select DJI RSC 2 and input
the default Bluetooth password: 12345678. Make sure you are
connected to the internet and follow the on-screen instructions to
activate DJI RSC 2.
Mounting the Camera
Make sure to prepare the camera before mounting it to DJI RSC 2. Remove the lens cap and
check that the battery and memory card are inserted in the camera. Make sure DJI RSC 2 is
powered o or in sleep mode before mounting the camera.

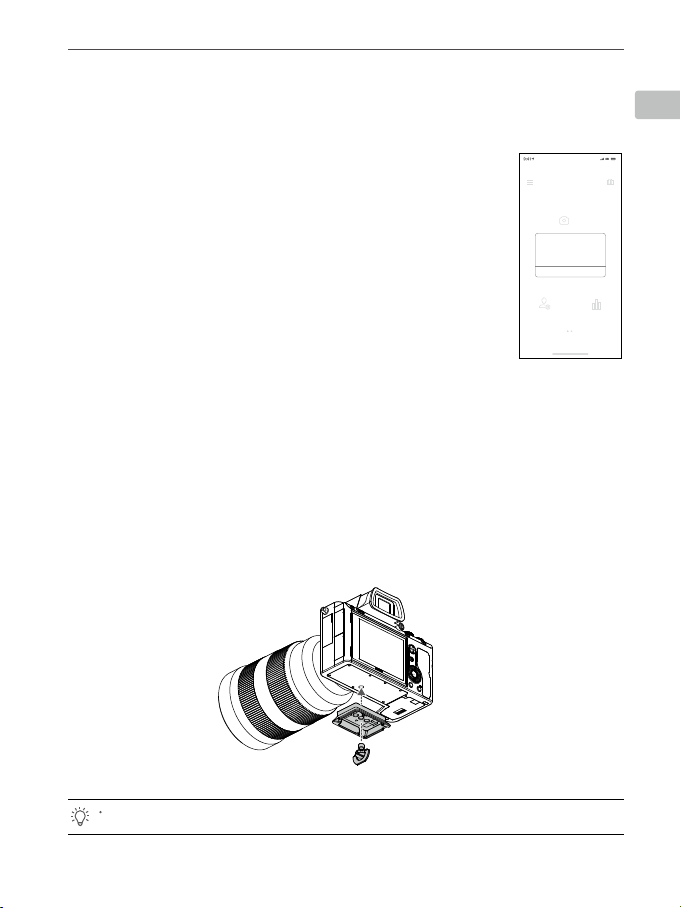

1. Attach the Upper Quick-Release Plate
The camera lens and the arrow on the bottom of the upper quick-release plate must face
the same direction. Attach the upper quick-release plate to the camera by tightening the
screw.
A camera riser is required when using a focus motor or a small camera with a large lens, such as a
Sony A6400 with the Sony FE 24-70 f2.8 GM lens.
DJI RSC 2
Creat
User Profile Status
Device Activation
Activation is required prior to using the
device. To do so, information regarding
your device and DJI account will be
uploaded to DJI. Please agree and
proceed to activation.
Agree and activate

EN
6
©2020 DJI OSMO All Rights Reserved.
DJI RSC 2 Quick Start Guide

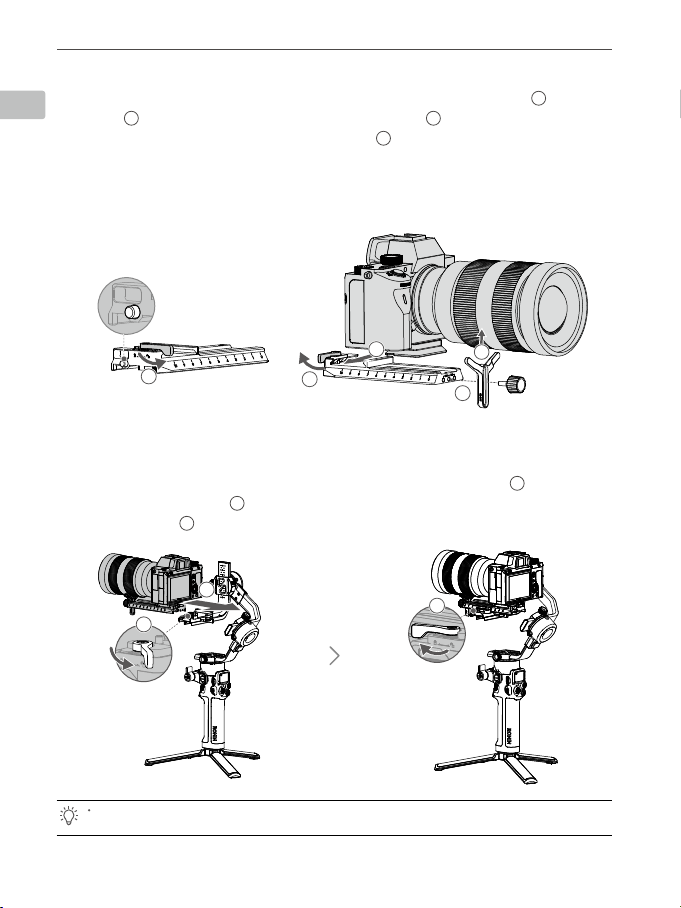

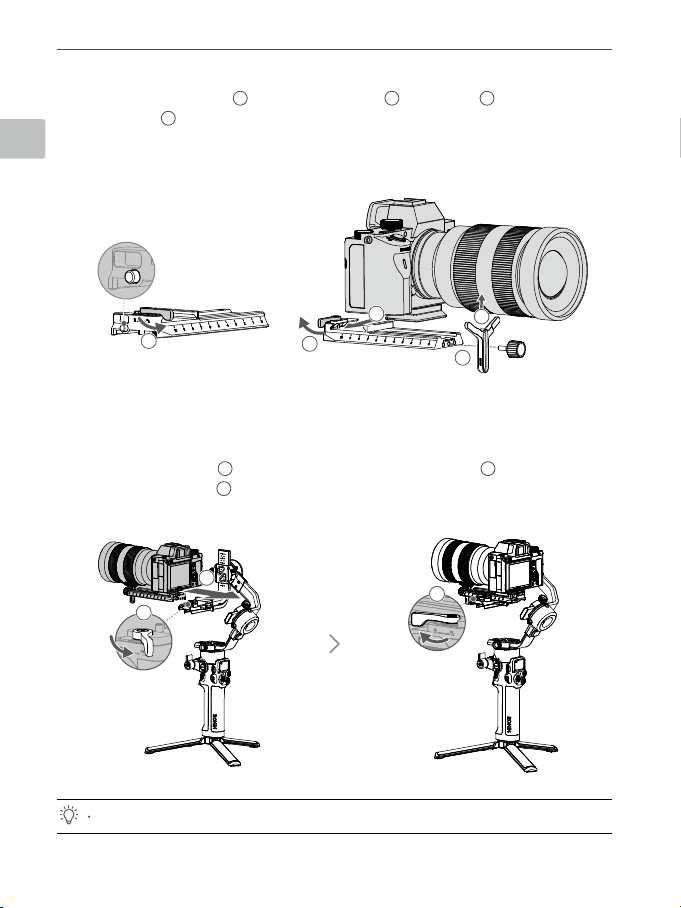

2. Attach the Lower Quick-Release Plate and Lens Support
Toggle the lever on the lower quick-release plate to the unlocked position 1, insert the
camera 2, and toggle the lever to the locked position 3after it is engaged. Attach
the lens support to the lower quick-release plate 4. It is recommended to use the lens
support* when using a long or heavy lens.
To remove the camera from the lower quick-release plate, toggle the lever to the unlocked
position and remove the camera while pressing the safety lock beside the lever.
3. Attach the Camera to the Gimbal
Toggle the lever on the camera mounting plate to the unlocked position 1and insert the
lower quick-release plate 2. Toggle the lever to the locked position once the camera is
roughly balanced 3.
1
2
3
4
5
1
2
3
* The Lens-Fastening Strap (not included) is required to use SuperSmooth mode.
The position of the camera mounting plate can be adjusted by toggling the lever on the bottom as
desired.
Safety Lock

EN
©2020 DJI OSMO All Rights Reserved.
7
DJI RSC 2 Quick Start Guide

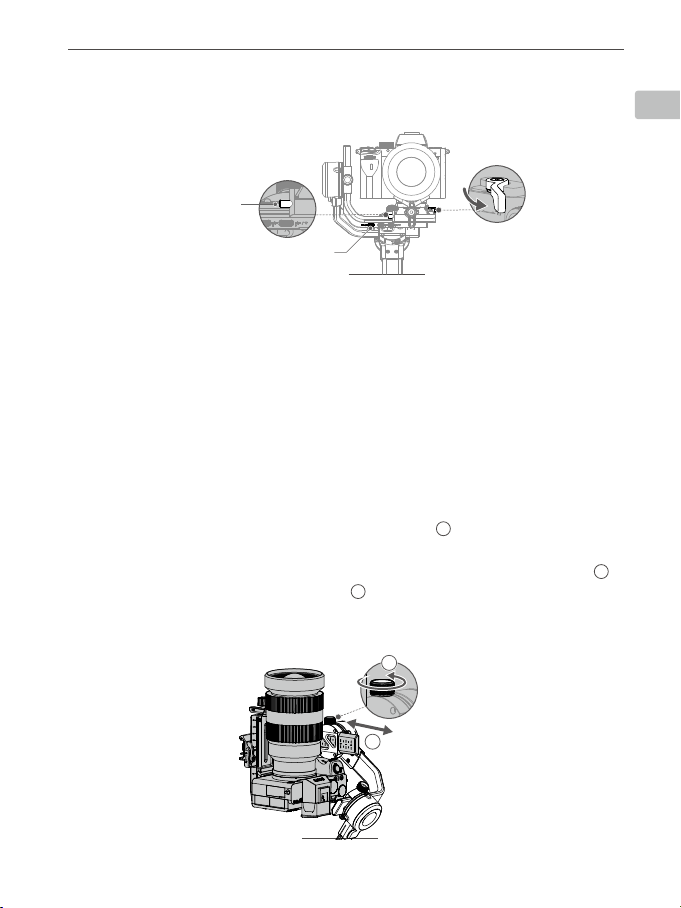

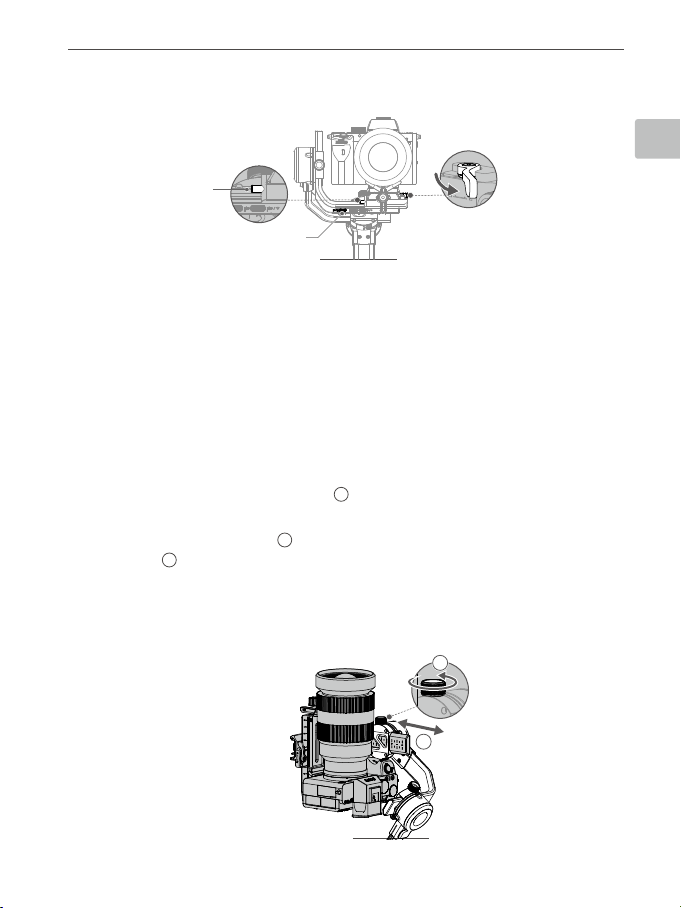

To remove the lower quick-release plate from the gimbal, toggle the lever on the camera
mounting plate to the unlocked position and remove the lower quick-release plate while
pressing the safety lock on the mounting plate.
Balancing
Balancing is required before shooting. Before balancing, make sure to power on the camera
if using an optical zoom lens and to select the focal length if using a varifocal lens. Make sure
DJI RSC 2 is powered o or in sleep mode before balancing.
1. Balancing the Vertical Tilt
a. Unlock the tilt axis and loosen the mounting plate knob 1.
b. Rotate the tilt axis so that the camera lens is pointing upward. Check to make sure
the camera is not top or bottom-heavy. If top-heavy, move the camera backward 2. If
bottom-heavy, move the camera forward 2.
c. Tighten the mounting plate knob while holding the camera upward. The vertical tilt is
balanced when the camera is steady while pointing upward.
4. Connect the Camera Control Cable
Choose the proper camera control cable according to the camera type. Plug one end of
the cable into the camera and plug the other end into the RSS camera control port of the
gimbal as shown above.
1
2
Lever
Safety Lock
RSS Camera Control Port

EN
8
©2020 DJI OSMO All Rights Reserved.
DJI RSC 2 Quick Start Guide
3. Balancing the Roll Axis
a. Unlock the roll axis. Loosen the knob on the roll arm 1.
b. Check the direction in which the roll motor swings. If the camera rotates to the left,
move the camera to the right 2. If the camera rotates to the right, move the camera to
the left 2.
c. Tighten the knob. The roll axis is balanced when the camera is steady.
d. Lock the roll axis.
2. Balancing Depth for the Tilt Axis
a. Rotate the tilt axis so that the camera lens is pointing forward. Toggle the lever to the
unlocked position 1.
b. Check to make sure the camera is not front or back-heavy. If front-heavy, move the
camera backward 2. If back-heavy, move the camera forward 2.
c. Toggle the lever to the locked position. The tilt axis is balanced when the camera is
steady while tilted up or down by 45°.
d. Lock the tilt axis.
1
2
1
2

EN
©2020 DJI OSMO All Rights Reserved.
9
DJI RSC 2 Quick Start Guide
4. Balancing the Pan Axis
a. Unlock the pan axis. Loosen the knob 1.
b. While holding the grip, tilt DJI RSC 2 forward, and rotate the pan arm until parallel with
you.
c. Check the movement of the pan axis. If the camera lens rotates to the left, push the pan axis
to the right 2. If the camera lens rotates to the right, push the pan axis to the left 2.
d. Tighten the knob. The pan axis is balanced if the camera is steady when rotating the
pan while tilting the grip.
Operation
After balancing, make sure the three axes are unlocked before powering on DJI RSC 2.
Screen Operation
Press the side dial to enter the menu, turn the side dial to scroll through the options, and
press conrm to select. Press the back button to go back to the previous menu.
2
1
Auto-Tune: after balancing, DJI RSC 2 must be auto-tuned before it can be used.
Press the side dial and select Auto Tune. Press the side dial again to begin.
Follow Mode Settings: tap to select follow mode and speed. The tilt motor controls the
tilt axis to follow, pan motor controls the pan axis to follow, and roll motor controls the
roll axis to follow.
Follow Mode
PF: pan follow, where only the pan axis follows the movement of the grip.
PTF: pan and tilt follow, where both the pan and tilt axes follow the movement of the
grip.
FPV: pan, tilt, and roll follow, where all three axes follow the movement of the grip.
