15K Pack HV Installation Manual Page 1 of 20
Installation Manual
Lithium Battery Pack
SOLUNA 15K Pack HV
DLG Energy (Shanghai) Co., Ltd.
June 2020 Version V1.1

15K Pack HV Installation Manual Page 2 of 20
About this manual
This manual describes how to install the DLG Energy (Shanghai) Co.,Ltd of Soluna 15K
PACK HV. Read this manual before you attempt to install the product, and follow the
instructions throughout the installation process.
If you are uncertain about any of the requirements, recommendations, or safety
procedures described in this manual, contact DLG Energy (Shanghai) Co.,Ltd
immediately for advice and clarification.
The information included in this manual is accurate at the time of publication.
however, with regards to the product design and technical specification updates, our
company reserves the right to make changes at any time without prior notice. e. In
addition, the illustrations in this manual are meant to help explain system configuration
concepts and installation instructions. The illustrated items may differ from the actual
items at the installation location.
Please search the products sections of the websites www.soluna.com.au or
www.solunabattery.com to confirm that you are reading the latest version of the
Installation Manual. Please search for the Australian version.
Version Information
Version
Date
Content
Author
V1.0
May 2020
First edition
Henry
V1.1
June 2020
Changed the contact details to
solunabattery.com
Henry

15K Pack HV Installation Manual Page 3 of 20
Table of Contents
About this manual ..................................................................................................................2
1. Safety precautions..............................................................................................................4
Warning Sign..........................................................................................................................4
Safety instructions..................................................................................................................5
General safety precautions.................................................................................................5
Risks of explosion...............................................................................................................5
Risks of fire.........................................................................................................................5
Risks of electric shock ........................................................................................................5
Risks of damage to the battery pack...................................................................................5
Battery handling guide............................................................................................................5
Response to emergencysituations.........................................................................................6
Leaking batteries ................................................................................................................6
Inhalation............................................................................................................................6
Eye contact.........................................................................................................................6
Skin contact........................................................................................................................6
Ingestion.............................................................................................................................6
Fire.....................................................................................................................................6
Wet batteries ......................................................................................................................7
Damaged batteries .............................................................................................................7
Qualified installers..................................................................................................................7
2. Product Introduction............................................................................................................8
Features.................................................................................................................................8
Application .............................................................................................................................8
Outline Dimension..................................................................................................................9
Technical data......................................................................................................................10
Physical Characteristics....................................................................................................10
Appearance..........................................................................................................................11
Wring port ............................................................................................................................13
CAN communication interface definition (CAN 1 & CAN 2)...................................................14
CAN1 port (for external communication) .......................................................................14
CAN2 port (for internal communication)............................................................................14
3 Installation ........................................................................................................................15
Unpacking the package.........................................................................................................15
Packing lists.........................................................................................................................16
Installation materials.............................................................................................................16
Installation location...............................................................................................................16
Installation tools ...................................................................................................................17
Safety gear...........................................................................................................................18
Wiring specification ..............................................................................................................18
4. How to operate Soluna 15K PACK HV..............................................................................19
5. Troubleshooting................................................................................................................20
6. Contact us ........................................................................................................................20

15K Pack HV Installation Manual Page 4 of 20
1. Safety precautions

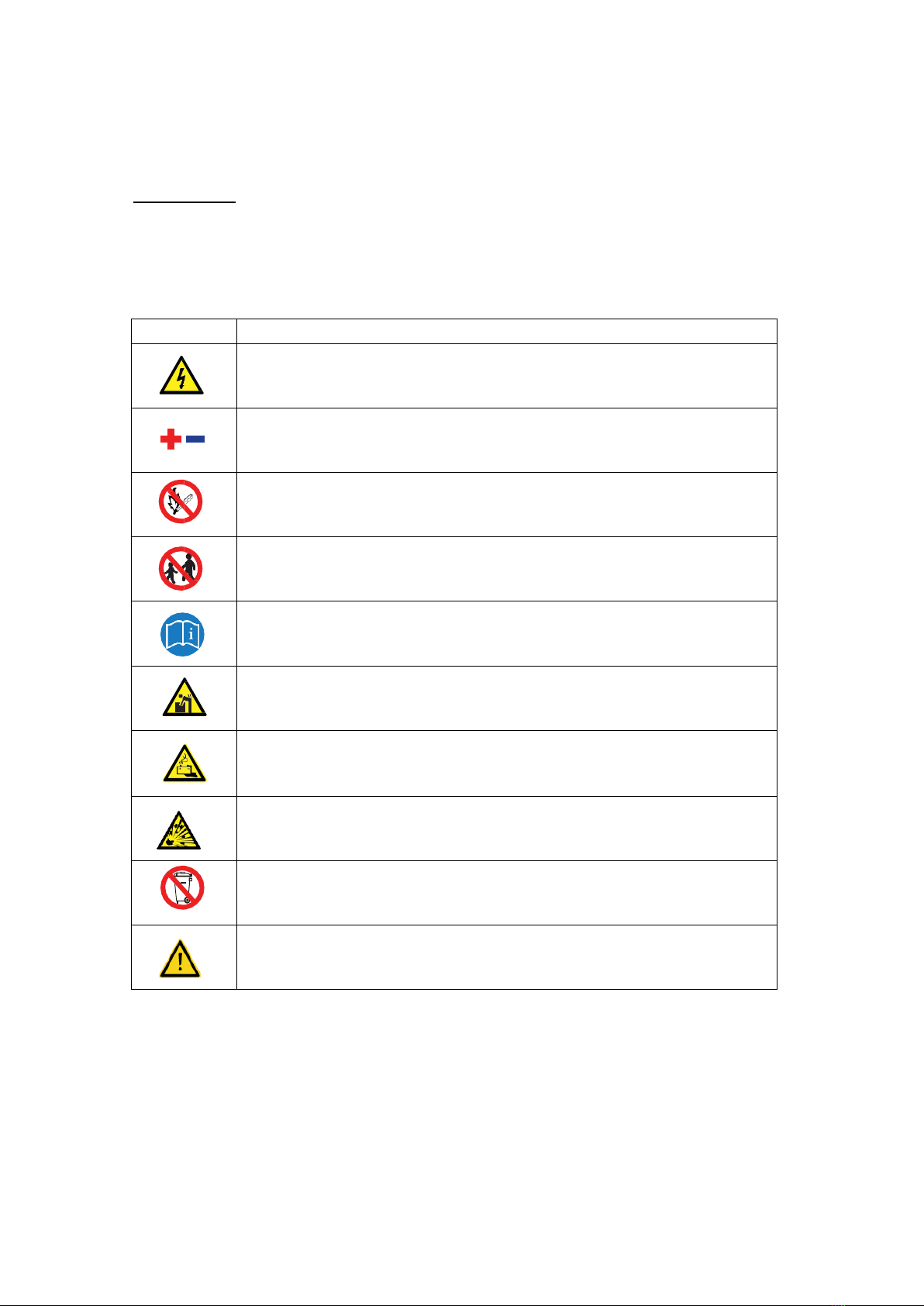

Warning Sign
Warning signs are used to warn you about the conditions that may cause severe injury
or damage to the device. They instruct you to exercise caution to prevent danger. The
following table describes the warning signs used in this manual.
Sign
Description
This battery pack contains high voltage which can cause electric shock
resulting in severe injury.
Make sure that the battery polarity is connected correctly.
Keep the battery pack away from open flame or ignition sources
Keep the battery pack away from children.
Read the manual before installing and operating the battery pack.
The battery pack is heavy enough to cause severe injury
The battery pack may leak corrosive electrolyte.
The battery pack may explode.
The battery pack should not be disposed with household waste at the end
of its working life.
Physical injury or damage to the devices may occur if related
requirements are not followed

15K Pack HV Installation Manual Page 5 of 20
Safety instructions
For safety reasons, installers are responsible for familiarizing themselves with the
contents of this manual and all warnings before performing installation.
General safety precautions
Failure to observe the precautions described in this section can cause
serious injury to persons or damage to property, observe the following
precautions
Risks of explosion
•Do not subject the battery pack to strong impacts.
•Do not crush or puncture the battery pack.
•Do not dispose of the battery pack in afire.
Risks of fire
•Do not expose the battery pack to temperatures in excess of60°C.
•Do not place the battery pack near a heat source, such as afireplace.
•Do not expose the battery pack to direct sunlight.
•Do not allow the battery connectors to touch conductive objects such as wires.
Risks of electric shock
•Do not disassemble the battery pack.
•Do not touch the battery pack with wet hands.
•Do not expose the battery pack to moisture or liquids.
•Keep the battery pack away from children andanimals.
Risks of damage to the battery pack
Do not allow the battery pack to come in contact withliquids.
Do not subject the battery pack to high pressures.
Do not place any objects on top of the batterypack.
Battery handling guide
•Use the battery pack only as directed.
•Do not use the battery pack if it is defective, appears cracked, broken or
otherwise damaged, or fails to operate broken or otherwise damaged, or fails
tooperate.

15K Pack HV Installation Manual Page 6 of 20
•Do not attempt to open, disassemble, repair, tamper with, or modify the battery
pack. The battery pack is not user serviceable.
•Toprotect the battery pack and its components from damage when trans-
porting, handle with care.
•Do not impact, pull, drag or step on the battery pack.
•Do not subject it to any strong force.
•Do not insert foreign objects into any part of the batterypack.
•Do not use cleaning solvents to clean the battery pack.
Response to emergency situations
The Soluna 15K PACK HV battery pack comprises multiple batteries that are designed to
prevent hazards resulting from failures. However,DLG cannot guarantee their absolute
safety.
Leaking batteries
If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas.
Electrolyte iscorrosive and contactmaycause skin irritation and chemical burns. If one is
exposed to the leaked substance, do these actions:
Inhalation
Evacuate the contaminated area, and seek medical attention immediately.
Eye contact
Rinse eyes with flowing water for 15 minutes, and seek medical attention immediately.
Skin contact
Wash the affected area thoroughly with soap and water, and seek medical attention
immediately.
Ingestion
Induce vomiting, and seek medical attention immediately.
Fire
In case there is a fire, always have an ABC or carbon dioxide extinguisher.
The battery pack may catch fire when heated above 150°C.
If a fire breaks out where the battery pack is installed, do these actions:
•Extinguish the fire before the battery pack catches fire.
•If it is impossible to extinguish thefire but you havetime, movethe battery pack to a
safe area before it catchesfire.
•If the battery pack has caught fire, do not try to extinguish the fire. Evacuate people
immediately.

15K Pack HV Installation Manual Page 7 of 20
If the battery catches fire, it will produce noxious and poisonous gases. Do not
approach.
Wet batteries
If the battery pack is wetorsubmerged in water,do not try to access it. Contact DLG or
your distributor for technical assistance.
Damaged batteries
Damaged batteries are dangerous and must be handled with extreme caution. They are
not fit for use and may pose a danger to people or property.
If the battery pack seems to be damaged, pack it in its original container, and then
return it to DLG or your distributor.
Damaged batteries may leak electrolyte or produce flammable gas. If
you suspect such damage, immediately contact DLG for advice and
information.
Qualified installers
This manual and the tasks and procedures described herein are intended for use by
skilled workers only. A skilled worker is defined as a trained and qualified electrician or
installer who has all of the following skills and experience:
●Knowledge of the functional principles and operation of on-gridsystems.
●Knowledge of the dangers and risks associated with installing and using electrical
devices and acceptable mitigation methods.
●Knowledge of the installation of electricaldevices
●Knowledge of and adherence to this manual and all safety precautions and best
practices.

15K Pack HV Installation Manual Page 8 of 20
2. Product Introduction
The Soluna 15K PACK HV is an NCM lithium battery product with a BMS (Battery
Management System). It is a high-voltage battery module with CAN communication,
under-voltage, over-voltage, over-current, over-temperature, under-temperature
protection functions. It has the characteristics of high energy density, long life, safety
and reliability and so on, and It is your trustworthy green environmental product
Features
●Excellent safety performance.
●Long cycle life.
●Support for CAN-communication.
●High energy density
●Excellent battery management system
Application
●Back-up power
●Micro-grid
●Home Energy Storage system

15K Pack HV Installation Manual Page 9 of 20
Outline Dimension
Depth
Width
Figure 2.1 outline dimension
Width
654±2
mm
Depth
227±2
mm
Height
1205±3
mm
Weight
148
kg

15K Pack HV Installation Manual Page 10 of 20
Technical data
Physical Characteristics
Width
654±2mm
Depth
227±2mm
Height
1205±3mm
Weight
148kg
Electrical Characteristics
Battery type
NCM
Total Energy Capacity
15 kWh
Usable Energy Capacity
12 kWh
Battery Capacity
36.6 Ah
Voltage Range
350~478V
Nominal Voltage
410V
Charge Voltage (CV)
478V
Discharge Voltage
342V
Charge/Discharge Current (Nominal)
15A/15A
Max. Charge/Discharge Current
30A/30A
Charge/Discharge Power (Nominal)
6 kW
Max .Charge/Discharge Power
10 kW
DOD
80%
Cycle life
≥3600
Battery Pack Round-Trip Efficiency
>95%
DC Disconnect
Contactor Fuse
BMS
Power consumption
≤100mA (work), ≤0.1mA (sleep)
Monitoring parameters
System Voltage, System Current Cell Voltage, Cell temp
Communication
CAN
Operating Conditions
Operating Temperature
-10~45 ℃
Operating Temperature (Recommended)
15~30 ℃
Storage Temperature
-20~60 ℃
Humidity
5%~95%
Altitude
Max. 2,000 m
Cooling Strategy
Natural Convection
Reliability & Certification
Certificates
Cell：UL1642 Battery：IEC62619 & UL1973
Hazardous Materials Classification
Class 9
Transportation
UN38.3
Ingress Rating
IP54

15K Pack HV Installation Manual Page 11 of 20
Appearance

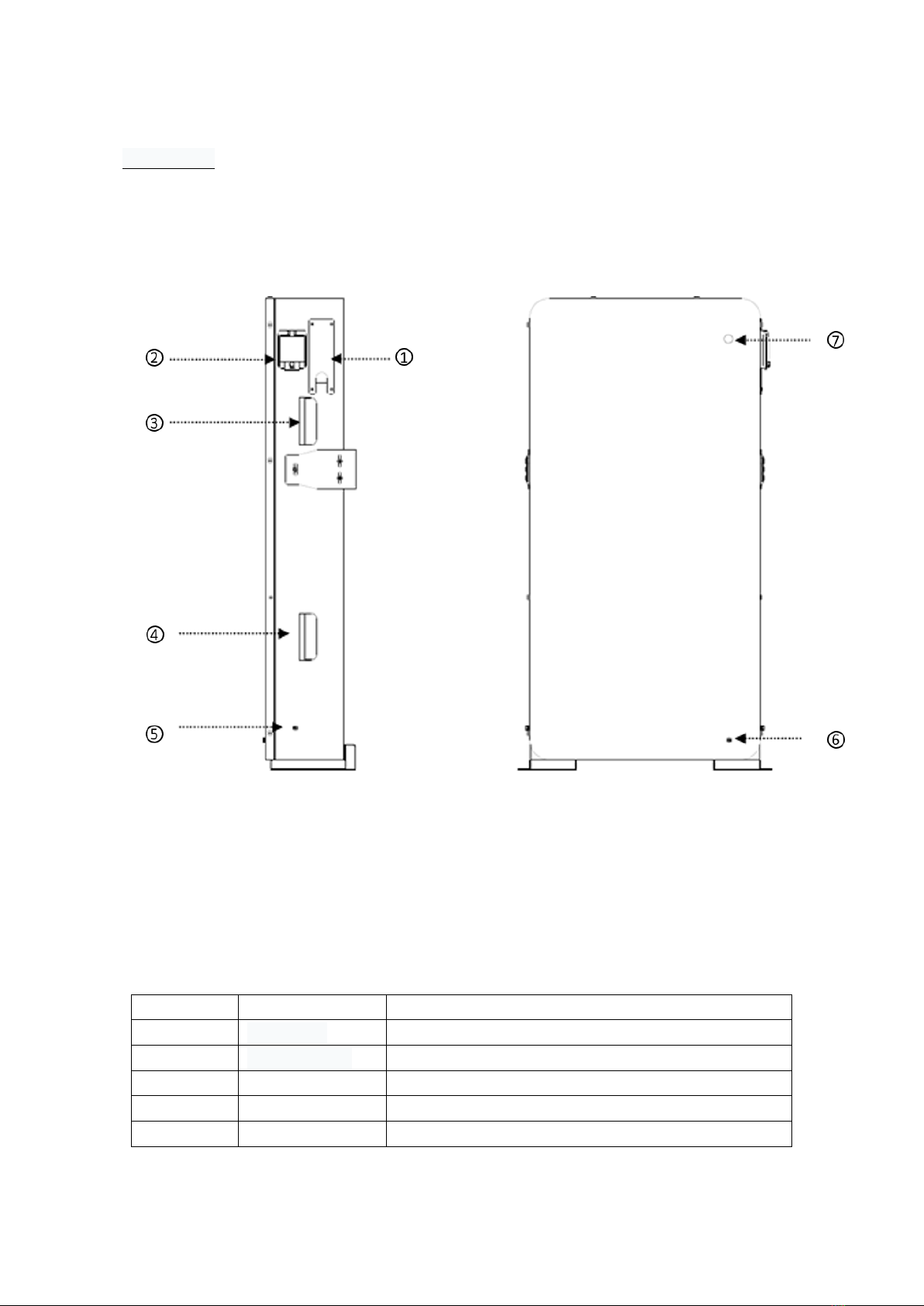

Figure 2.2 Appearance
Number
Name
Remark
①
Cable entry
②
Power ON/OFF
③
Upper handle
④
Lower handle
⑤
Grounding

15K Pack HV Installation Manual Page 12 of 20
⑥
Grounding
⑦
Power light

15K Pack HV Installation Manual Page 13 of 20
Wring port
User can see the wiring port of Soluna 15K PACK HV after the cover cap opened, please
see the below picture in details.
Figure 2.3 wiring port
Number
Name
Remark
①
CAN1 port
For external communication (inverter)
②
CAN2 port
For internal communication (BMS)
③
Battery ‘+’
④
Battery ‘-‘

15K Pack HV Installation Manual Page 14 of 20
CAN communication interface definition (CAN 1 & CAN 2)
Figure 2.4 CAN interface definition
CAN1 port (for external communication)
1
2
3
4
5
6
7
8
—
—
—
CAN1H
CAN1L
—
—
—
CAN2 port (for internal communication)
1
2
3
4
5
6
7
8
—
—
—
—
—
—
CAN2H
CAN2L
Remark
CAN1H/CAN1L using for external communication
CAN2H/CAN2L using for internal communication

15K Pack HV Installation Manual Page 15 of 20
3 Installation
The battery pack is too heavy for one to carry. Make sure that two or more
persons are available。
Unpacking the package
Please see the below figure for the packing box of Soluna 15K PACK HV.
Figure 3.1 Packing box
Remove the nails from the wooden case with a claw hammer and open
the wooden case, then, remove the wooden board .
①
②
③
Number
Name
Remark
①
Wooden board
②
Soluna 15K PACK HV
③
Accessory Box

15K Pack HV Installation Manual Page 16 of 20
Pull out the battery pack and stand it upright. Check if the battery pack is damaged.
All the other items are contained in a box in one corner of the carton. Takethemout
and check if anyitem ismissing.
Keep the carton for future storage or transportation
Packing lists
The following table lists the numbers of each item included. If anything is damaged or
missing, contact DLG or your distributor.
Item
Name
Qty (pcs)
Remark
1
Soluna 15K PACK HV
1
2
PE wire
1
3
Inner-hexagon wrench(3.0)
1
4
Inner-hexagon wrench(4.0)
1
5
Inner-hexagon screw (M4)
4
6
Inner-hexagon screw （M6）
2
7
Phillips screw（M6）
8
8
Expansion screw
8
9
CAN communication wire
1
Installation materials
These installation materials shall be prepared by installers.
•Charging cables
Installation location
We recommend that Soluna 15K PACK HV is used in Soluna Home energy storage
systems, if not, please Make sure that the installation location meets the following
conditions:
●The building is designed to withstand earthquakes.
●The location is far away from the sea, to avoid salt water andhumidity.
●The floor is flat and level.
●There are no flammable or explosive materials nearby.
●The ambient temperature is between 15 and 30°C.
●The temperature and humidity remain at a constant level.
●There is minimal dust and dirt in thearea.
●There are no corrosive gases present, including ammonia and acidvapor.

15K Pack HV Installation Manual Page 17 of 20
If the ambient temperature is outside the operating range, the battery
pack stops operating to protect itself. The optimal temperature range for
the battery pack to operate is 15°C to 30°C. Frequent exposure to harsh
temperatures may deteriorate the performance and lifetime of
the battery pack.

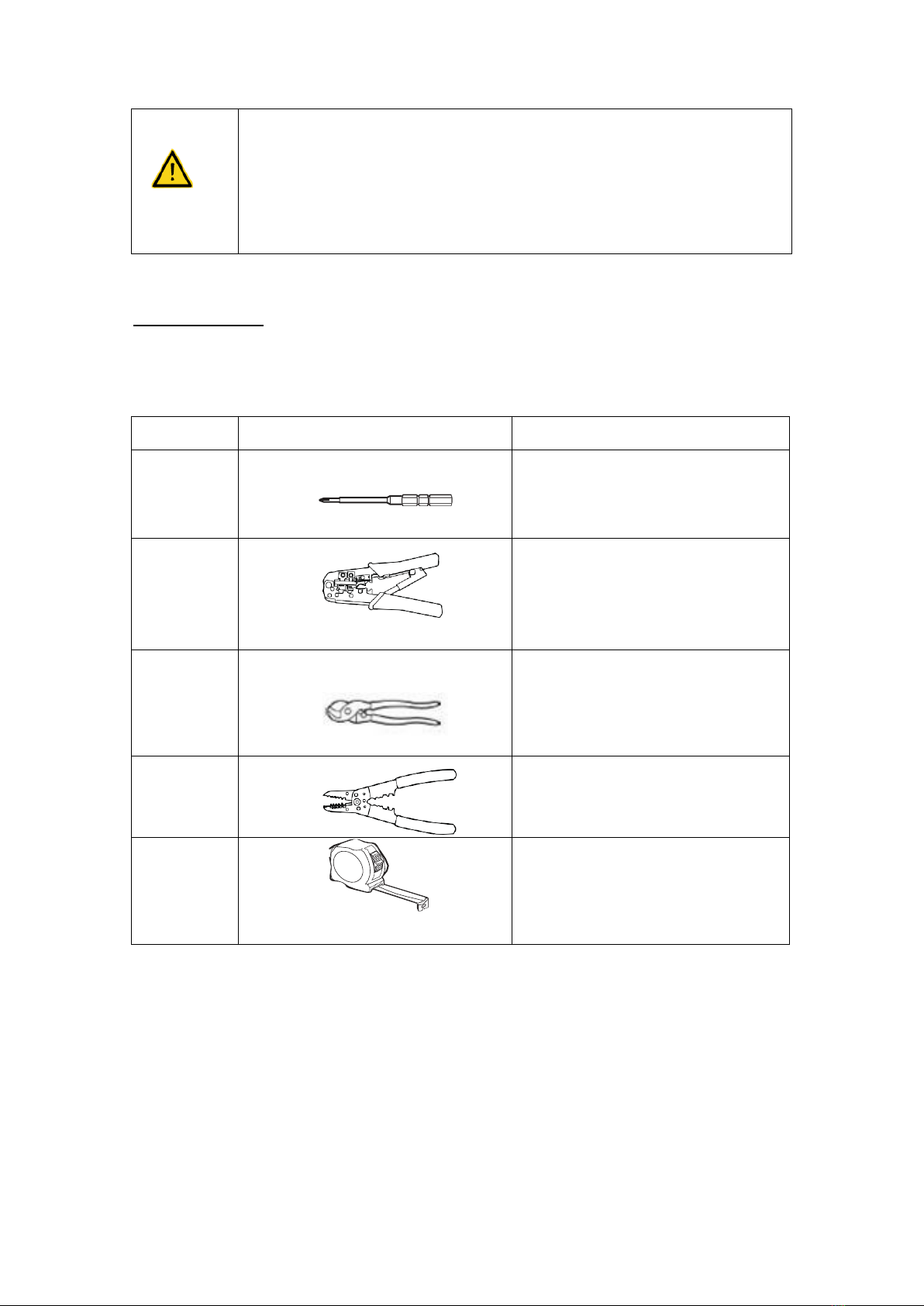

Installation tools
The following tools are required to install the battery pack:
Item
Name
1
Phillips-screwdriver bit
2
Network crimper
3
Wire cutters
4
Wire stripper
5
Tape measure
Use properly insulated tools to prevent accidental electric shock or short circuits. Use
adjustable tools and measuring instruments that are certified for precision and
accuracy.

15K Pack HV Installation Manual Page 18 of 20
Safety gear
Wear the following safety gear when dealing with the battery pack. Installers must
meet the relevant requirements of international standards, such as IEC 60364, or the
domestic legislation.
Item
Name
1
Insulated gloves
2
Safety goggles
3
Safety shoes
Wiring specification
In order to standardize the wiring specification of Soluna 15K PACK HV, the following
requirements are required for connecting wires of Soluna 15K PACK HV.
Battery wire
Communication cable
It is recommended to use 8AWG of conductor
with double insulation
It is recommended to use Standard
communication cable with shielding
function

15K Pack HV Installation Manual Page 19 of 20
4. How to operate Soluna 15K PACK HV
Step: please see below information for details.
1.Connect the inverter and battery module with communication wire.

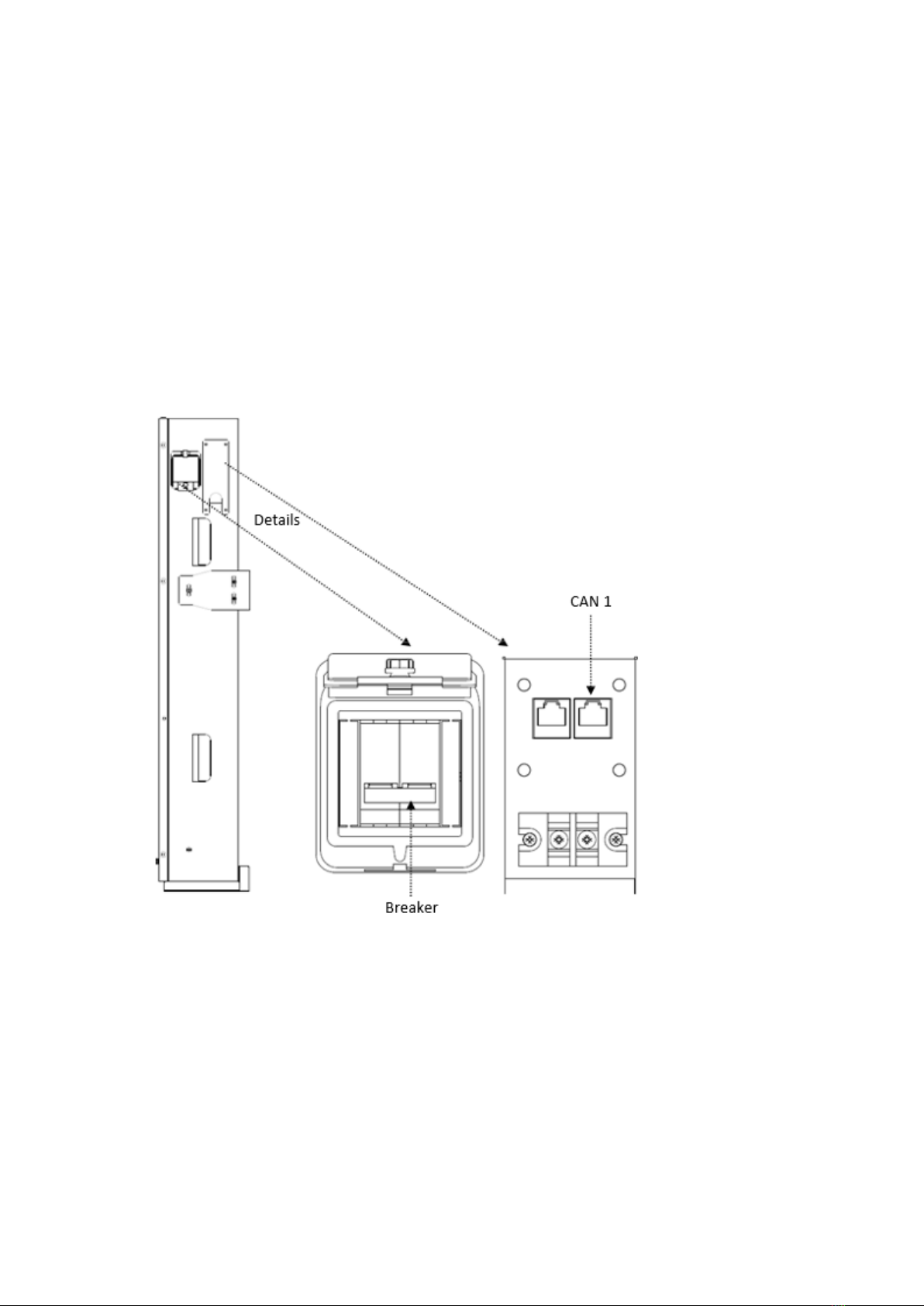

2.Turn on the breaker , the breaker is on the right side of Soluna 15KPack
Please see below figure for details.
Remark:
CAN1 is connected to inverter for communication

15K Pack HV Installation Manual Page 20 of 20
5. Troubleshooting
Check the indicators on the front to determine the state of the battery pack.
A warning state is triggered when a condition, such as with voltage or current or
temperature, is beyond design limitations.
The battery pack’s BMS periodically reports its operating state to the inverter. when the
battery pack falls outside prescribed limits, it enters a warning state. When a warning is
reported, the inverter immediately stops operation. Use the monitoring software on
the inverter to identify what caused the warning. The possible warning messages are as
follows:
•Battery Over Voltage
•Battery Under Voltage
• Battery Over Temperature
• Battery Under Temperature
• Battery Discharge Over Current
•Battery Charge Over Current
The abnormal state is cleared when the battery pack recovers normal operation.
6. Contact us
If any questions, please contact us.
DLG Energy (Shanghai) Co.,Ltd
Add: No.3492 Jinqian Road, Shanghai, China 201406
Tel: [phone] ext 8102
Email: [e-mail]
Web: www.solunabattery.com
