DLO Deluxe HomeDock Deluxe User manual

DLO | HomeDock Deluxe™
USER MANUAL

| 3
Contents
Getting Started 4
Setting Up HomeDock Deluxe 6
Connecting Your iPod 8
HomeDock Deluxe Modes 9
On-Screen Music Navigation 10
HomeDock DeluxeSettings 13
Playing and Controlling Music 14
Playing Photo Slideshows 16
Watching iPod Videos 18
Using with PC or Mac 20
Troubleshooting & Tips 21
Tech Specs 23
Warranty 24
2 | DLO HOMEDOCK DELUXE USER MANUAL
©2006 Digital Lifestyle Outfitters
HomeDock Deluxe, Digital Lifestyle Outfitters and
DLO logo are trademarks of Digital Lifestyle Outfitters.
iPod is a registered trademark of Apple Computer, Inc.
All Rights Reserved
Printed in Taiwan
M99765-060224B

| 54 | DLO HOMEDOCK DELUXE USER MANUAL
Getting Started
Congratulations on your purchase of the DLO HomeDock Deluxe Dock for iPod
with On-Screen Navigation, the iPod dock that lets you enjoy your iPod’s
music, photos and videos in your living room. Connecting HomeDock Deluxe
to your home entertainment center is a snap. We’ll get you started in three
easy steps.
STEP 1 - ASSEMBLE YOUR HOMEDOCK DELUXE
Attach the HomeDock Deluxe iPod Support Stand and make the proper power,
audio and video connections to your Home Entertainment Center. See page 6.
STEP 2 - CONNECT YOUR IPOD AND ADJUST HOMEDOCK DELUXE STAND
Adjust the HomeDock Deluxe Stand to fit your particular iPod. See page 8.
STEP 3 - SELECT YOUR MUSIC, A PHOTO SLIDESHOW OR VIDEO AND PLAY
Turn on HomeDock Deluxe, select some music, pictures or a video on your
iPod and press Play. To use On-Screen Music Navigation,press the Mode but-
ton (page 15 )on the top-left of your HomeDock Deluxe remote control.
NOTE: The current Apple iPods do not allow on-screen navigation of photos or
videos - only music. However, you still can start and control the playback of
photos and videos with your HomeDock Deluxe. To select and play photo
slideshows and videos, be sure to set your HomeDock Deluxe to iPod Mode.
Your HomeDock Deluxe arrives in iPod Mode. This mode allows you to select
music, photos and videos directly from your iPod, then control all basic trans-
port functions (like Play/Pause, Fast Forward, Reverse, etc.) with the
HomeDock Deluxe remote control from the couch.
18
1
2
3
4
5
7
6
ENTER
HOMEDOCK DELUXE
ENTER
HOMEDOCK DELUXE
POWER
turn HomeDock Deluxe on or off
NEXT VIDEO
HOMEDOCK DELUXE
2ADJUSTMENT SCREW
IPOD SUPPORT STAND
4REMOTE CONTROL
5MINI-TO-RCA CABLE
6AV CABLE
7AC POWER ADAPTER
8POWERSTATUS LIGHT
PLAY/PAUSE VIDEO
M E VIDEO AUDIO BACKLIGHT
t
EVIOUS VIDEO
SHUFFLE
v playlist shuffle
REPEAT
toggle between off,repeat single
video and repeat all videos
IPOD MENU UP
ENTER
H
VOLUME
I D MENU DOWN
MODE
s h to iPod Mode
to view videos
VIDEO
POWER
turn HomeDock Deluxe on or off
NEXT PICTURE
PLAY/PAUSE SLIDESHOW
M ESHOWMUSIC BACKLIGHT
temporarily turns the
iPod backlight on
P OUS PICTURE
IPOD MENU UP
ENTER
HOMEDOCK DELUXE
VOLUME
I D MENU DOWN
MODE
s h to iPod Mode
to view pictures
PICTURES
P
3
18
1
2
3
4
5
7
6
ENTER
HOMEDOCK DELUXE
POWER
turn HomeDock Deluxe on or off
NEXT VIDEO
HOMEDOCK DELUXE
2ADJUSTMENT SCREW
IPOD SUPPORT STAND
4REMOTE CONTROL
5MINI-TO-RCA CABLE
6AV CABLE
7AC POWER ADAPTER
8POWERSTATUS LIGHT
PLAY/PAUSE VIDEO
MUTE VIDEO AUDIO BACKLIGHT
temporarily turns the iPod
backlight on
PREVIOUS VIDEO
SHUFFLE
video playlist shuffle
REPEAT
toggle between off,repeat single
video and repeat all videos
IPOD MENU UP
ENTER
HOMEDOCK DELUXE
VOLUME
IPOD MENU DOWN
MODE
switch to iPod Mode
to view videos
VIDEO
P
NEXT PICTURE
PLAY/PAUSE SLIDESHOW
M TE SLIDESHOWMUSIC BACKLIGHT
temporarily turns the
iPod backlight on
PREVIOUS PICTURE
HOMEDOCK DELUXE
3
To use O
On n- -S Sc cr re ee en nM Mu us si ic cN Na av vi ig ga at ti io on n, switch your HomeDock Deluxe to O On n- -S Sc cr re ee en n
Music Navigation Mode by simply pushing the Mode button on the top-left of your
HomeDock Deluxe remote control. For more information on HomeDock Deluxe
Modes, please carefully read page 9.

| 7
BASIC CONNECTION OF HOMEDOCK DELUXE TO YOUR HOME STEREO AND TV
1. Plug the included AC power adapter into the back of the HomeDock
Deluxe base, and the other end into any available AC power outlet.
2. Plug the included A/V Cable into the back of the HomeDock Deluxe base.
Be sure to match the color on the A/V plugs (red, white and yellow) with
the corresponding jack color or input type.
3. Plug the other end of the A/V Cable into the corresponding jacks of any
available input on your home stereo receiver and/or TV. White plug-Left
audio, Red plug-Right audio and Yellow plug-Video.
NOTE: S-Video can be used for even better video performance (S-Video
cable is sold separately).
4. Using your HomeDock Deluxe Remote Control, turn on your HomeDock
Deluxe. Also turn on your home stereo and/or TV to then select the cor-
rect input for the HomeDock Deluxe.
USING HOMEDOCK DELUXE WITH POWERED SPEAKERS
1. Plug the included AC power adapter into the back of the HomeDock
Deluxe base, then into any available AC power outlet.
2. Connect the included RCA-to-mini Audio Adapter to the Left and Right
Outputs on the back of your HomeDock Deluxe.
3. Using a mini-to-mini cable (included with most powered speakers), con-
nect your HomeDock Deluxe to the Input on the powered speakers.
4. Using your HomeDock Deluxe Remote Control, turn on your HomeDock
Deluxe. Also turn on your powered speakers.
6 | DLO HOMEDOCK DELUXE USER MANUAL
Setting Up HomeDock Deluxe
ASSEMBLING YOUR DLO HOMEDOCK DELUXE
1. Remove the adjustment screw on top of the Dock
2. Fit the iPod Support Stand into the cavity on top of the HomeDock Deluxe.
NOTE: Be sure to line up the Support Stand’s cutout slot with the adjust-
ment screw on the Dock.
3. Tighten the Support Stand’s adjustment screw to secure the Stand in
place. Do not over-tighten the screw.
CONNECTING HOMEDOCK DELUXE
There are several different ways you can connect HomeDock Deluxe to your
existing Home Entertainment Center. Generally we recommend you connect
the L and R Audio Out to your stereo directly, and Video Out directly to your TV.
But it’s perfectly fine to connect Audio and Video to your TV. HomeDock Deluxe
works great connected solely to your home stereo, although you wouldn’t be
able to use On-Screen Navigation. If you want use your Homedock Deluxe in
On-Screen Navigation Mode or to select and view videos from your iPod, you
need to hook it up to your TV.
18
1
2
3
4
5
7
6
ENTER
NTSC/PAL S-VIDEO VIDEO AUDIO 10V DC USB
HOMEDOCK DELUXE
ENTER
HOMEDOCK DELUXE
POWER
turn HomeDock Deluxe on or off
NEXT VIDEO
HOMEDOCK DELUXE
2ADJUSTMENT SCREW
IPOD SUPPORT STAND
4REMOTE CONTROL
5MINI-TO-RCA CABLE
6AV CABLE
7AC POWER ADAPTER
8POWER STATUS LIGHT
PLAY/PAUSE VIDEO
MUTE VIDEO AUDIO BACKLIGHT
temporarily turns the iPod
backlight on
PREVIOUS VIDEO
SHUFFLE
video playlist shuffle
REPEAT
toggle between off, repeat single
video and repeat all videos
IPOD MENU UP
ENTER
HOMEDOCK DELUXE
VOLUME
IPOD MENU DOWN
MODE
switch to iPod Mode
to view videos
VIDEO
POWER
turn HomeDock Deluxe on or off
NEXT PICTURE
PLAY/PAUSE SLIDESHOW
MUTE SLIDESHOW MUSIC BACKLIGHT
temporarily turns the
iPod backlight on
PREVIOUS PICTURE
IPOD MENU UP
ENTER
HOMEDOCK DELUXE
VOLUME
IPOD MENU DOWN
MODE
switch to iPod Mode
to view pictures
PICTURES
POWER
turn HomeDock Deluxe on or off
NEXT/FAST FORWARD
press and hold to fast forward
PLAY/PAUSE MUSIC
MUTE BACKLIGHT
temporarily turns the iPod
backlight on/screen saver shortcut
PREVIOUS/REWIND
press and hold to rewind
SHUFFLE
toggle between off, song
shuffle and album shuffle
NEXT MUSIC PLAYLIST
iPod Mode only
REPEAT
iPod Mode only
RIGHT NAV ARROW/SELECT
UP NAV ARROW
PREVIOUS MUSIC PLAYLIST
iPod Mode only
ENTER
HOMEDOCK DELUXE
VOLUME
DOWN NAV ARROW
LEFT NAV ARROW
MODE
toggle between iPod Mode and
On-Screen Navigation Mode
MUSIC
3

| 9
HomeDock Deluxe Modes
HomeDock Deluxe has two distinct modes: On-Screen Navigation Mode and
iPod Mode. It’s very important to understand the differences in the two.
NOTE: Your HomeDock Deluxe arrives in iPod Mode. To toggle between iPod
Mode and On-Screen Navigation Mode, simply push the Mode button on the
top-left of your HomeDock Deluxe remote control.
ON-SCREEN NAVIGATION MODE
Use On-Screen Navigation Mode when:
• HomeDock Deluxe is connected to a TV
• you want to view and select your iPod’s music from your TV screen
• you wish to see iPod’s currently playing song and information

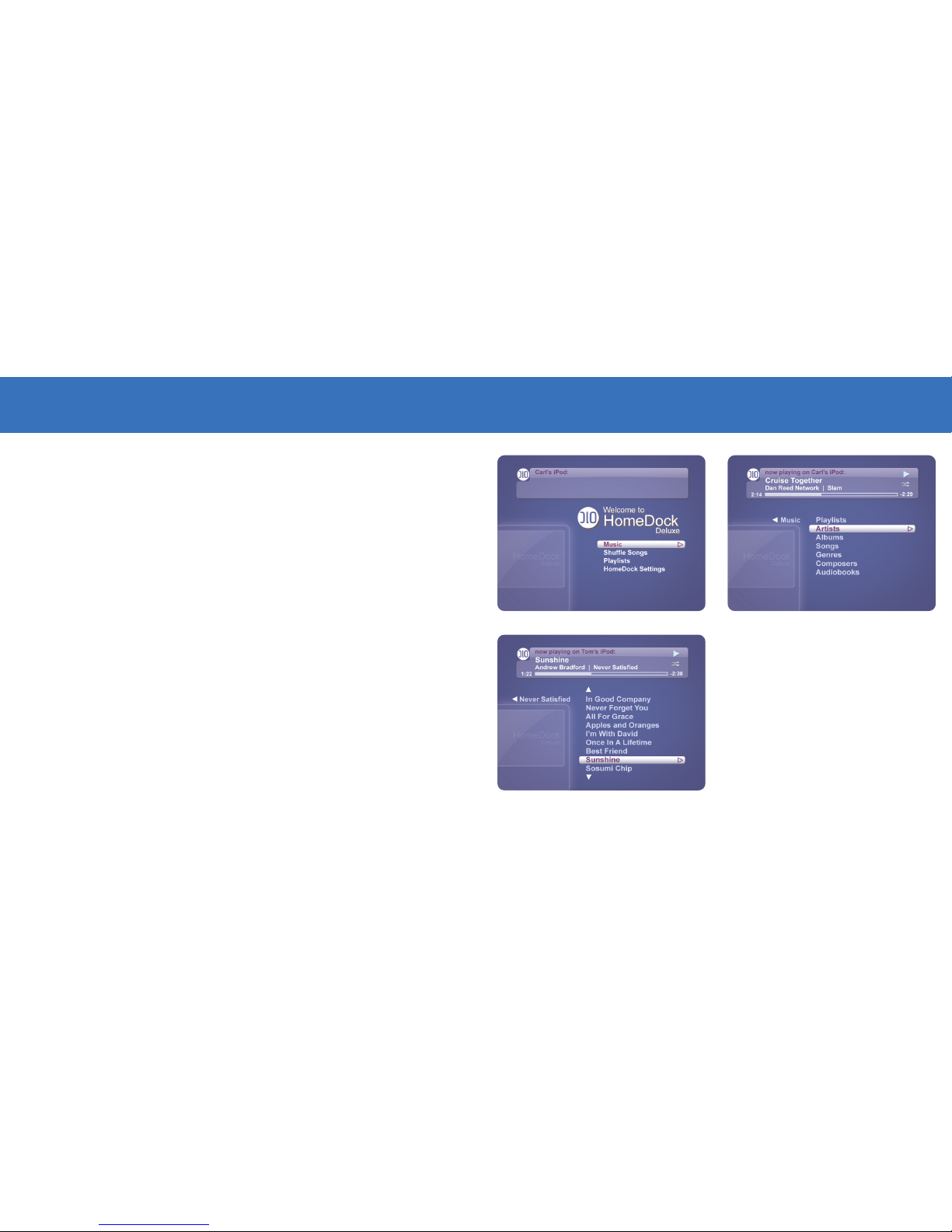

On-Screen Navigation Mode allows you to view, navigate and select your iPod’s
music on your TV screen. You can change display settings, view currently play-
ing song info, view songs by category, or use iPod’s song info as a screensaver.
IPOD MODE
Use iPod Mode when:
• you want to view iPod photo slideshows or iPod videos from your iPod
• you’re using HomeDock Deluxe connected to your stereo (but not your TV)
• you want to play iPod’s music without turning on your TV
iPod Mode lets you browse and select music, pictures and video directly on
your iPod. You can navigate iPod’s menu screens via the arrow buttons on the
HomeDock Deluxe’s remote control or directly on the iPod itself while docked
on top of your HomeDock Deluxe.
8 | DLO HOMEDOCK DELUXE USER MANUAL
Connecting Your iPod

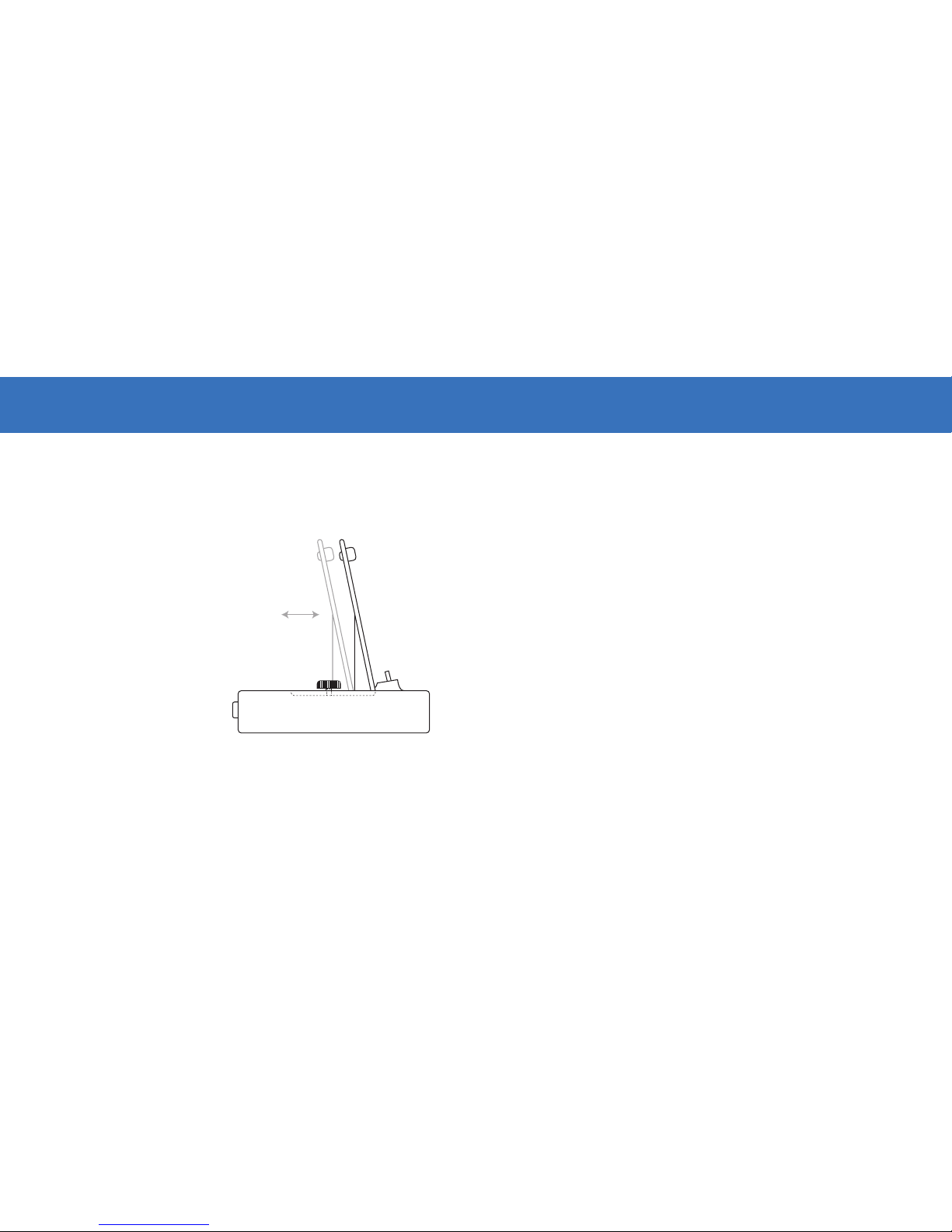

ADJUSTING HOMEDOCK DELUXE TO FIT YOUR IPOD
The HomeDock Deluxe can fit any dockable iPod. It can even be used with
many iPod cases left on. The first time you use your iPod, and if you ever use
another size iPod, you should adjust the HomeDock’s Support Stand to
accommodate your particular iPod. Follow these steps to do so.
1. Loosen the Support Stand Screw and
slide the Support Stand as far back
as it can go.
2. Connect your iPod by carefully low-
ering it onto the iPod dock connec-
tor of the HomeDock Deluxe.
3. Slide the Support Stand toward the
iPod until the iPod is gently resting
against the Support Stand Pad. The
back of the iPod should be parallel
with the Support Stand and not
leaning more forward or backward.
4. Tighten the Support Stand Screw
to keep in in place.
18
1
2
3
4
5
7
6
ENTER
NTSC/PAL S-VIDEO VIDEO AUDIO 10V DC USB
HOMEDOCK DELUXE
ENTER
HOMEDOCK DELUXE
POWER
turn HomeDock Deluxe on or off
NEXT VIDEO
HOMEDOCK DELUXE
2ADJUSTMENT SCREW
IPOD SUPPORT STAND
4REMOTE CONTROL
5MINI-TO-RCA CABLE
6AV CABLE
7AC POWER ADAPTER
8POWER STATUS LIGHT
PLAY/PAUSE VIDEO
MUTE VIDEO AUDIO BACKLIGHT
temporarily turns the iPod
backlight on
PREVIOUS VIDEO
SHUFFLE
video playlist shuffle
REPEAT
toggle between off, repeat single
video and repeat all videos
IPOD MENU UP
ENTER
HOMEDOCK DELUXE
VOLUME
IPOD MENU DOWN
MODE
switch to iPod Mode
to view videos
VIDEO
POWER
turn HomeDock Deluxe on or off
NEXT PICTURE
PLAY/PAUSE SLIDESHOW
MUTE SLIDESHOW MUSIC BACKLIGHT
temporarily turns the
iPod backlight on
PREVIOUS PICTURE
IPOD MENU UP
ENTER
HOMEDOCK DELUXE
VOLUME
IPOD MENU DOWN
MODE
switch to iPod Mode
to view pictures
PICTURES
POWER
turn HomeDock Deluxe on or off
NEXT/FAS T FORWARD
press and hold to fast forward
PLAY/PAUSE MUSIC
MUTE BACKLIGHT
temporarily turns the iPod
backlight on/screen saver shortcut
PREVIOUS/REWIND
press and hold to rewind
SHUFFLE
toggle between off, song
shuffle and album shuffle
NEXT MUSIC PLAYLIST
iPod Mode only
REPEAT
iPod Mode only
RIGHT NAV ARROW/SELECT
UP NAV ARROW
PREVIOUS MUSIC PLAYLIST
iPod Mode only
ENTER
HOMEDOCK DELUXE
VOLUME
DOWN NAV ARROW
LEFT NAV ARROW
MODE
toggle between iPod Mode and
On-Screen Navigation Mode
MUSIC
3
