DMC HCE136B User manual

HCE136B
BATTERY POWERED CRIMP TOOL DATASHEET
________________________________________________________________________________________________
HCE136B-DS ©2012 Daniels Manufacturing Corp., All Rights Reserved Page 1 of 6 REV. C 6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: [phone] Fax: [phone] Email: [e-mail]
Description

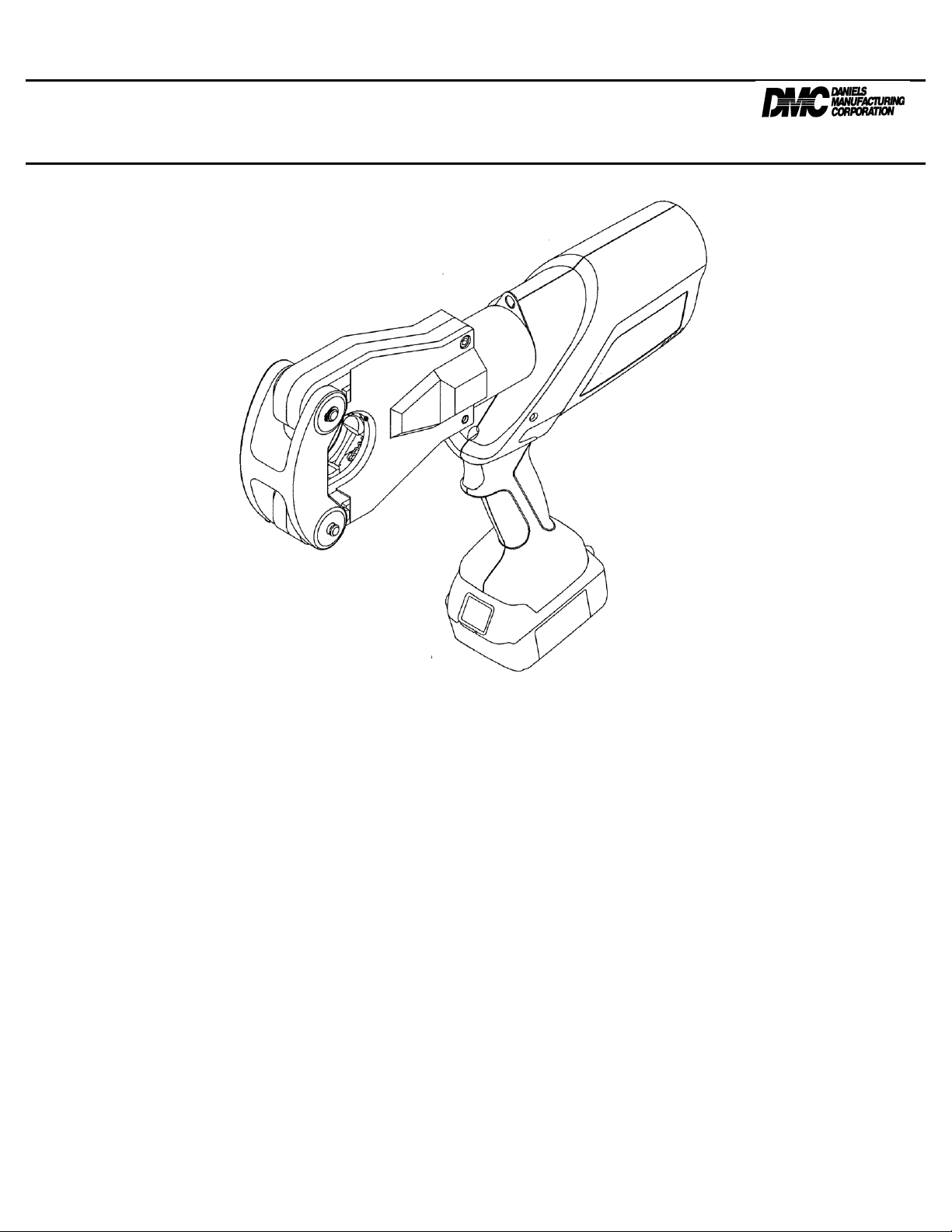

The HCE136B Battery Powered Crimp Tool is a hand held,
self contained crimp tool intended to crimp copper and
aluminum lug terminals & splices.
Safety
Safety is essential in the use and maintenance of DMC tools
and equipment. This manual and any markings on the tool
provide information for avoiding hazards and unsafe practices
related to the use of this tool. Observe all of the safety
information provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with the
safe operation and maintenance procedures for the following
DMC tool:
HCE136B Battery Powered Crimp Tool
Keep this manual available to all personnel. Replacement
manuals are available upon request at no charge.
All specifications are nominal and may change as
design improvements occur. DMC shall not be liable
for damages resulting from misapplication or misuse
of its products.
KEEP THIS MANUAL

HCE136B
BATTERY POWERED CRIMP TOOL DATASHEET
________________________________________________________________________________________________
HCE136B-DS ©2012 Daniels Manufacturing Corp., All Rights Reserved Page 2 of 6 REV. C 6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: [phone] Fax: [phone] Email: [e-mail]
Important Safety Information

HCE136B
BATTERY POWERED CRIMP TOOL DATASHEET
________________________________________________________________________________________________
HCE136B-DS ©2012 Daniels Manufacturing Corp., All Rights Reserved Page 3 of 6 REV. C 6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: [phone] Fax: [phone] Email: [e-mail]
DO NOT REMOVE TOOL HEAD
DO NOT OPERATE TOOL
WITHOUT HEAD INSTALLED
Important Safety Information
Specifications
Crimp Tool
Length=14.87” (377.7mm)
Width=2.87” (72.9mm)
Height=12.25” (311mm)
Mass/Weight (with battery)=11.58 lb (5.25 kg)
Hydraulic Oil = Shell Tellus®T 15
Operating Temp = 5°F –122°F (-15°C –50°C)
Crimp Capacities
Crimp Force=6.2 tons (55 kN)
#8 –750 KCMIL Copper Lugs & Splices
#8 –750 KCMIL Aluminum Lugs & Splices
Battery
Operating Voltage=18VDC
Charging Time= <45 minutes

HCE136B
BATTERY POWERED CRIMP TOOL DATASHEET
________________________________________________________________________________________________
HCE136B-DS ©2012 Daniels Manufacturing Corp., All Rights Reserved Page 4 of 6 REV. C 6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: [phone] Fax: [phone] Email: [e-mail]

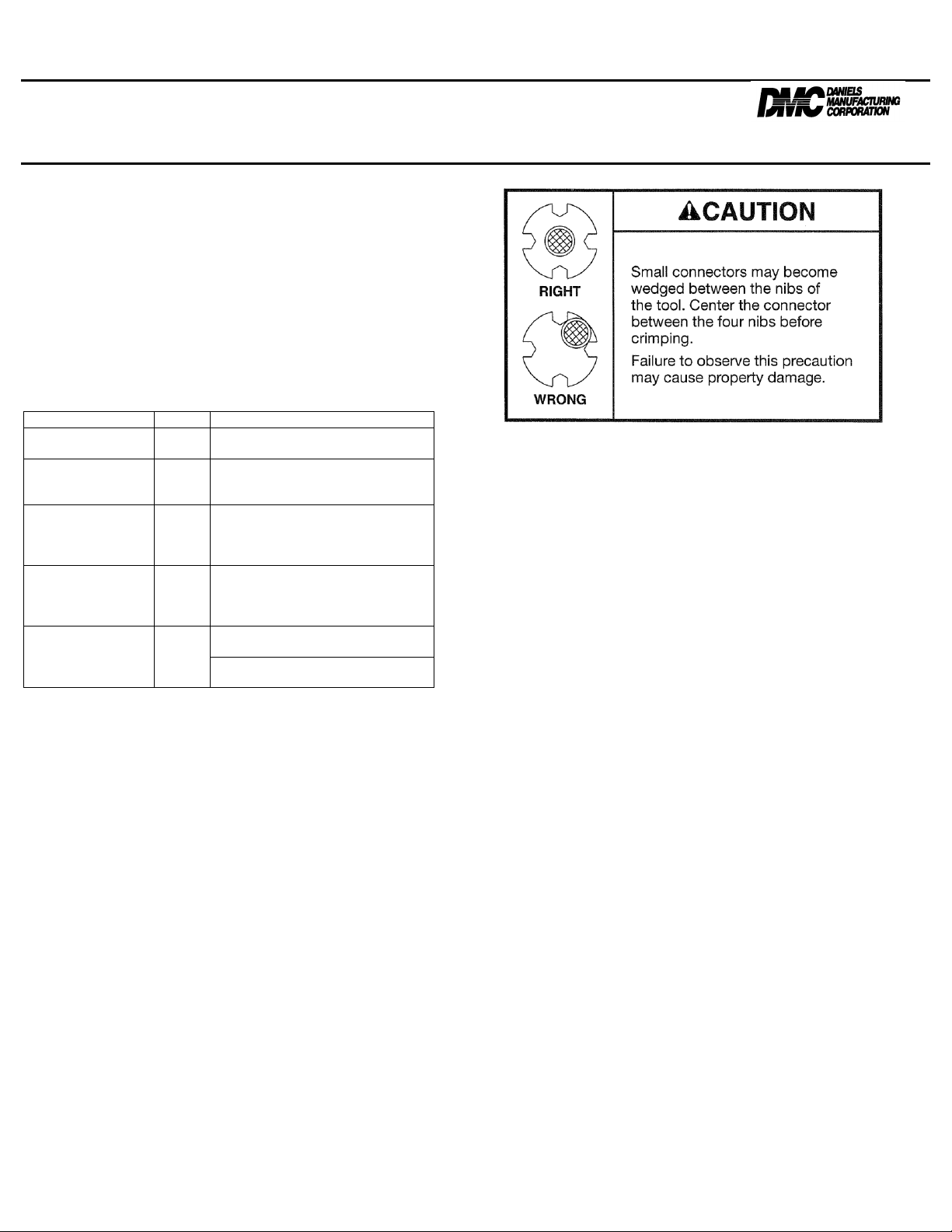

Operation
LED Work Light (White)
This LED automatically turns on when the trigger is pulled. It
remains on for 10 seconds after the trigger is released.
LED Indicator (Red)
This tool is equipped with a special circuit board
incorporating several important features to inform the user
about the current status of the unit. The Red LED on the
side of the tool signals in the following cases:
What Happens…
Signal
What it Means…
Flashing for 2
seconds
••
Battery is inserted in tool
Constant light for 20
seconds at end of
cycle
____
Battery charge is below 17V at
beginning of cycle
Tool will not start,
and constant light
for 20 seconds when
trigger is released
____
Battery charge is below 16V at
beginning of cycle
Tool will stop, and
constant light for 20
seconds after trigger
is released
____
Battery voltage drops below 13V
during cycle
Tool will stop, and
flashing light for 20
seconds when
trigger is released
••••
Motor current exceeds 20A during
cycle
Circuit has become too hot
Pressure Sensor
This tool is equipped with a pressure sensor that alerts the
user of an incomplete crimp.
If the tool is manually retracted before completion of
a crimp, the red LED and audible beep will be active
for 2 seconds.
If the tool is unable to reach the required crimp
force, the red LED, work light, and an audible beep
will pulse until after the trigger is released.
Preparing Cable
Follow the lug/connector manufacturer’s instructions for
appropriate cable strip length, and contact/wire assembly.
Crimping Cable
1. Insert the properly assembled connector into the
crimping head.
2. Pull the trigger to make the crimp.
3. Hold the trigger down until crimping tool achieves
pressure relief, which is accompanied by an audible
“pop”.
4. The tool cylinder & indenters retract automatically.
5. Remove the crimped cable/connector.
Note: If it is necessary to retract the tool push rod before a
crimp cycle is completed, push and hold the Retract
Button. Pushing and holding the Retract Button will result
in the complete retraction of the push rod.
Maintenance
Each Operating Day
Before Use:
1. Inspect indenters for wear or damage such as
cracks, gouges, or chips.
2. Inspect the tool for damage or leaks. If damage is
detected, return the tool to the DMC repair center for
inspection.
After Use:
1. Wipe all tool surfaces clean with a damp cloth and
mild detergent.
2. Charge the battery.
3. Fully retract the tool push rod.
4. Place the tool in the carrying case.
5. Store in a cool dry place.

HCE136B
BATTERY POWERED CRIMP TOOL DATASHEET
________________________________________________________________________________________________
HCE136B-DS ©2012 Daniels Manufacturing Corp., All Rights Reserved Page 5 of 6 REV. C 6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: [phone] Fax: [phone] Email: [e-mail]
Monthly
1. Thoroughly clean all surfaces.
2. Oil the push rod outer surface.
Annually or after 10,000 Crimps
1. Return the tool to the DMC repair center for
inspection & calibration.
Trouble Shooting
Before You Begin
1. Make sure that the battery is charged. Recheck the
battery after several minutes to make sure the
battery is holding its charge.
2. Use a nonflammable contact cleaner or pencil eraser
to clean the electrical contacts on the battery and
crimp tool.
3. Reinstall the battery and check the tool again.
Problem Probable Cause Probable Remedy
Tool is inoperative Dirt, contaminants, etc, Clean tool.
in ram area of tool.
Crimping tool battery Reform contacts.
contacts damaged.
Tool components worn or Return tool to DMC.
damaged.
Jaws stop during Oil level is low. Return tool to DMC.
operation.
Air in hydraulic system. Pull trigger and hold
emergency release
button simultaneously.
Hold for approximately
10 seconds.
Tool loses oil. Damaged internal seal. Return tool to DMC.
Battery Charger Operating Instructions
Operating Environment
The charger is designed for use in dry areas. All ventilation
slots must be kept free. If possible, keep away from heat
sources and out of direct sunlight as ambient temperatures in
excess of 95°F (35°C) may increase charging times
significantly.
AC Connection
Before connecting the charger, check that the AC supply
voltage is the same as what is indicated on the charger.
Specifications
Frequency=50Hz to 60Hz
Output Voltage=7.2 to 18VDC
Weight=2.28 lb (1.03 kg)
Safety Instructions
The charger is designed only for Li-ion and Ni-MH batteries
with voltages ranging from 7.2VDC to 18VDC and capacities
from 1.3Ah to 3.0Ah.
1. Before you use the charger, check the power cord,
extension cable and connectors for any signs of
damage or aging.
2. Do not open up batteries or the charger. Do not
puncture or expose to heat as there is RISK OF
EXPLOSION.
3. Only store in dry areas. Protect from moisture and
dampness.
4. Do not use if the charger is defective and never
insert defective batteries.
5. Observe the symbols on the charger’s rating plate.
6. Do not throw old batteries into the fire or dispose of
as domestic waste.
7. Keep metal objects that could cause shorts away
from the charger.
8. Do not dismantle the charger or batteries.
Operation
Green LED
If the charger is connected to the AC line the green LED will
flash repeatedly until a battery is installed for charging.
Charging a Battery
When a battery is inserted on to the charger the LED will
illuminate RED and stay on while charging occurs.
When charging is complete, the LED will turn from RED to
GREEN and stay on.
If you leave the battery on the charger after it is charged,
the charger will switch to its trickle charge mode for 24
hours.

HCE136B
BATTERY POWERED CRIMP TOOL DATASHEET
________________________________________________________________________________________________
HCE136B-DS ©2012 Daniels Manufacturing Corp., All Rights Reserved Page 6 of 6 REV. C 6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: [phone] Fax: [phone] Email: [e-mail]
Other conditions indicated by the charger LED
Flashing Red -Charger is overheated. Unplug the charger,
and allow it to cool down.
Flashing Red, with Flashing Green-This indicates a
defective battery.
DMC offers complete refurbishing and recalibration services.
DMC specially engineers and manufactures complete tool kits
to satisfy individual customer requirements, such as total
aircraft support general shop maintenance or production, on
board ship and vehicle service, etc.
Limitation of Liability
DANIELS MANUFACTURING CORPORATION IS NOT LIABLE
FOR CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY
NATURE OR KIND RESULTING FROM THE USE, OR MISUSE,
OF ANY OF ITS PRODUCTS. OWNERS AND USERS OF DMC
PRODUCTS ASSUME FULL RESPONSIBILTY FOR
INSTRUCTING THEIR EMPLOYEES IN THE PROPER AND
SAFE USE OF SUCH PRODUCTS.
Limited Warranty
DMC (Daniels Manufacturing Corporation) warrants each new
product sold by it to be free from defects in material and
workmanship under normal use and service. DMC’s
obligation under this warranty is limited to the free correction
or, at DMC’s option, the refund of the purchase price of any
such product which proves defective in normal service within
ninety (90) days after delivery to the first user, provided that
the product is returned to DMC with all transportation
charges prepaid and which shall appear to DMC’s satisfaction,
after DMC’s inspection, to have been defective in material
and workmanship, it being understood that DMC products are
not consumer products. This warranty shall not cover any
damage to any product which, in the opinion of DMC, was
caused by normal wear, misuse, improper operation,
tampering, neglect or accident. This warranty is in lieu of all
other warranties express or implied. No warranty, express or
implied, is made or authorized to be made or assumed with
respect to products of Daniels Manufacturing Corporation
other than those herein set forth.
