doble PHENIX 6CB User manual

VERSION 1.3 4/28/23
USER’S MANUAL
AC DIELECTRIC TEST SET
TYPE 6CB
MODEL NUMBER
6CB50/10-3
PHENIX TECHNOLOGIES
A Division of Doble Technologies
75 Speicher Drive
Accident, MD 21520
Phone [phone]
Fax [phone]
E-mail: [e-mail]
Copyright © Phenix Technologies

TABLE OF CONTENTS
DESCRIPTION
SECTION NUMBER
DANGER - SAFETY PRECAUTIONS
1
TECHNICAL SPECIFICATIONS
2
UNCRATING PROCEDURE
3
CONTROLS AND INDICATORS
4
OPERATING INSTRUCTIONS
5
INITIAL SETUP
6
TESTING PROCEDURE
7
DIELECTRIC TEST SYSTEM SOFTWARE
8
CALIBRATION
9
TROUBLESHOOTING
10
MECHANICAL MAINTENANCE
11
VACUUM AND OIL FILL PROCEDURE
12
CHECKING OIL PURITY
13
MAINTENANCE SCHEDULE
14
TRANSPORTING OF EQUIPMENT
15
STORAGE OF EQUIPMENT
16
CIRCUIT DIAGRAM SYMBOLS
17
ELECTRICAL SCHEMATICS
18
PARTS ORDERING INFORMATION
19
PARTS LIST
20
RECOMMENDED SPARE PARTS
21
RETURNED MATERIAL
22
CUSTOMER COMMENTS
23

SECTION 1: DANGER - SAFETY PRECAUTIONS 1-1
WARNING!!!
Complete Grounding of this unit is necessary for the
safe operation of this equipment. Disconnect inputs
before ungrounding this equipment

SECTION 1: DANGER - SAFETY PRECAUTIONS 1-2
GENERAL SAFETY PRECAUTIONS
This equipment is capable of providing POTENTIALLY LETHAL VOLTAGES! Improper operation
or test practices may result in injury or death to the operator or surrounding personnel.
The operation of High Voltage test equipment should only be performed by personnel familiar with
HIGH VOLTAGE testing and safety procedures. The operator of this equipment must be aware of
all hazards associated with High Voltage testing. The operator is responsible for himself and
others in close proximity of the testing area.
Some General Safety Practices for working with High Voltage Test Equipment have been listed
below for your reference.
•Become familiar with your instrument before performing an actual test.
•Know your work area, check that all circuits are de-energized and locked out.
•Never work alone; always work with another qualified worker.
•Mark off entire work area with barriers and warning tape.
•Make all personnel aware of your testing activities.
•Be aware of dangerous conditions that may arise from energizing a test specimen.
•Never modify test equipment; modifications to equipment could introduce an unknown
hazard or hinder a designed-in safety feature.
•DO NOT operate damaged equipment. Remove power, and do not use the equipment
until safe operation can be verified by service-trained personnel.
Phenix Technologies, Inc. assumes no liability for unsafe or improper use of test equipment.

SECTION 2: TECHNICAL SPECIFICATIONS 2-1
MODEL: 6CB50/10-3
Dielectric Test Sets are designed to measure the dielectric strength that an insulating material can
withstand before an insulation breakdown occurs at rated power frequencies.
INPUT
(Refer to Unit Serial Tag)
110
-
120
Volts AC
16
Amps AC
50/
60
Hz
1
Phase
OR
220-240 Volts AC 8 Amps AC 50/60 Hz 1 Phase
OUTPUT
Tap #1: Side Polished Ball
10.
0
KVAC
300
mA (Max)
Tap #2: Top High Voltage Spinning
50
.0
KVAC
60
mA (Max)
DUTY
5MIN. ON/ 15MIN. OFF @ 3kVA
1
5MIN
. ON/ 1HR. OFF
@
2kVA
1HR ON/ 1HR OFF @ 1.5kVA
DISTORTION
Less than 5% at full load
IMPEDANCE
Less than 15% at rated current
PD RATING
<10 pC
ENVIRONMENTAL OPERATING CONDITIONS:
TEMPERATURE: 0 - 40 degrees Celsius
HUMDITY:
95%
ALTITUDE: Sea level to 3000 feet
COOLING TYPE
ONAN (Oil-Natural/Air-Natural Convection)
REMOTE CONNECTION TYPE (IF PURCHASED)
Wi-Fi via Wireless Access Point

SECTION 2: TECHNICAL SPECIFICATIONS 2-2
METERING
Output Voltmeter:
Instrument Type:
HMI
Meter Type: Peak/(Square root of 2)
Accuracy: ± (0.8% of Reading + 0.2% of Range) + LSD (10-100% of range)
Range:
0
-
10k
V,
50k
V
Total Currentmeter:
Instrument Type: HMI
Meter Type:
True RMS
Accuracy: ± (0.8% of Reading + 0.2% of Range) + LSD (10-100% of range)
Range: 0-60mA, 300mA
Specimen Currentmeter:
Instrument Type: HMI
Meter Type: True RMS
Accuracy: ± (0.8% of Reading + 0.2% of Range) + LSD (10-100% of range)
Range: : 0-200µA, 2mA, 20mA, 200mA
D
IMENSIONS
Controls:
17.00
"L x
21.00
"W x
14.00
"H x 52.0lbs.
539.75mmL x 425.45mmW x 349.25mmH x 23.6kg
High Voltage Tank:
20.00"L x 14.00"W x 18.00"H x 80.0lbs.
508.00
mmL x
355.60
mmW x
457.2
0mmH x
36
kg

SECTION 3: UNCRATING PROCEDURE 3-1
GENERAL PROCEDURE
1. Exercise care in removing shipping materials to avoid injury to personnel or damage to the unit.
Items in this shipment are large and heavy. Phenix Technologies recommends that 2 persons be
assigned to this task.
2. Perform visual inspection to determine if unit was damaged during shipment. If there are any
signs of physical damage (such as dents, scratches, oil leaks), contact the factory before
proceeding.
For questions or information regarding operation of the Test Set, please refer to the appropriate sections
of this manual. Further information is also available from:
Phenix Technologies’ Service Department
75 Speicher Drive
Accident, Maryland 21520
Phone [phone]
Fax [phone]
E-mail: [e-mail]

SECTION 4: CONTROLS AND INDICATORS 4-1
Control Panel
1. Ground Stud
Ground connection point for tying to high voltage cylinder ground.
2. Main Power Circuit Breaker
This is the main circuit breaker for the system. It provides a input overload protection for the
system and functions as the main on/off switch for the unit.
3. CON101 Main Input Power Connection
This connector is used to provide power to the system. Connect the provided input power cable
to test facility power.
4. CON102 TO HV TRANSFORMER
Power output connection to high voltage transformer. The power interconnect cable connects
here.
5. TX1
Connection for metering interconnect cable. This is the metering and return connection. Do not
attempt to operate high voltage unit without this cable connected at both ends.
2
1
3
5
4
6
7
8
9
10
11
12

SECTION 4: CONTROLS AND INDICATORS 4-2
6. Security/Warning Circuit
Security Circuit - Provided for user connection of external interlock or auxiliary safety control
device such as emergency off switch, gate switch, foot switch, dead man switch, etc. Included
plug has shorting jumper installed to complete circuit. Jumper must be removed, and cable
connected to user supplied device by user if desired to use this provision. Only non-energized
switch or dry relay contact devices may be used. This is a series circuit that must remain closed
for high voltage to be activated.
Warning Circuit – Provides power to external warning light circuits. Voltage is provided to
different pins depending if HV is no or not. Reference included schematic to see what pins are
powered. Unit can be operated without use of this feature.
Security circuit and warning light accessories are available from Phenix Technologies that use
this connector. The accessories are able to be “daisy chained” together so that multiple
accessories can be used at once. The available accessories include flashing lights, foot
switches, and Green\Red-light pole with E-Stop switch.
7. Emergency Stop switch
Press under emergency conditions. Output will be de-energized. Button will stay down when
pressed, twist to release.
8. HV ON switch/lamp
Momentary switch turns high voltage on when pressed. HV ON lamp illuminates red when high
voltage is on.
9. HV OFF switch/lamp
Momentary switch turns high voltage off when pressed. HV Off lamp illuminates green when all
pre-conditions required for high voltage activation are met.
Conditions required for HV Off lamp illumination are:
 Power applied to unit and Main Power Breaker on, HMI illuminated.
 External Interlock circuit series loop must not be open.
 Emergency Off must not be pressed.
 Regulator position must be at zero. (Zero Start.)
 Overloads (if any) must be reset.
10. External USB Port
This standard female USB port allows for (optional) external data logging via USB drive. A
device must first be connected before data logging can be enabled. CAUTION: This port is not
isolated and requires the use of an external isolator if connection is made to a device with an
earth ground
11. Infinity Dial
This dial is used to manually control the regulator voltage by controlling the regulator swing arm
when the manual test mode is selected. It is speed sensitive and has no physical stop-limit.
Rotate counterclockwise to decrease the voltage output, and clockwise to increase the voltage
output.

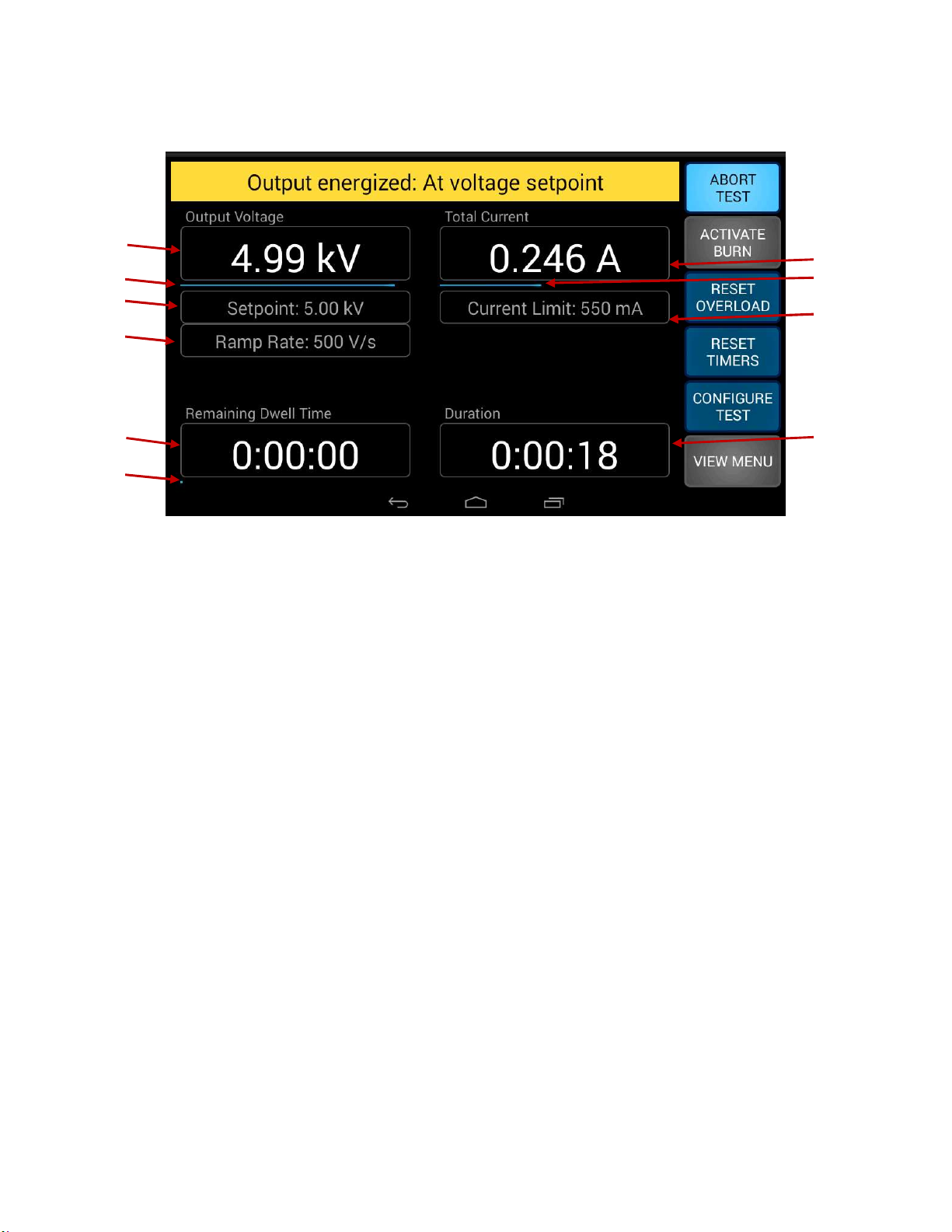

12. Human Machine Interface (HMI)
This touchscreen display controls status and test parameter information.

SECTION 4: CONTROLS AND INDICATORS 4-3
High Voltage Transformer
1. XFRM Input
Input power connection to high voltage cylinders from control/regulator box.
2. Ground Stud
Main ground point for unit. Connection to facility ground. Ground all other unit pieces to this point.
This must be grounded at all times.
3. CM Connections
Connection points for current metering. See INITIAL SETUP section for connection details.
4. TX1
Metering connection between high voltage cylinder and control/regulator box.
5. Tap #2 (Top Spinning)
50kV output connection.
6. Tap #1 (Side Tap)
10kV output connection.
1
2
3
4
5
6
