2Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions
Dolphin Hybrid RS1 Suction Pool Cleaner
Operating Instructions
❙ The Dolphin Hybrid RS1 Suction Cleaner
The Dolphin Hybrid Cleaner is powered by the pool pump. For successful cleaning results, make
sure that you connect the cleaner properly to the pool system.
Follow the instructions in this booklet for easy, efficient, and safe operation.
❙ Parts
The Dolphin Hybrid Cleaner kit includes:
1
Dolphin Hybrid Cleaner
2
Hose Sections (1.17m/3.83ft x 10)
3
Flow Indicator
4
90° Adapter
5
Float
6
Skimmer Adapter
7
Automatic Safety Valve
8
Leaf Canister (optional)
For proper operation, the hose must be long
enough to reach from its pool connection to
the most distant edge of the pool, plus two
extra sections (Drawing A). If needed, you
can purchase additional hose sections from
your supplier. Replacement parts are also
available.
1
5
7
3
4
6
2
8
min max
(Optional)
Skimmer
Pool
Two extra
hose sections
A

Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions 3
❙ Warnings
• Do not enter the pool while the cleaner is working.
• Maytronics is not responsible for any damage to the external pump.
❙ Specifications
• Wight – 4.5 kg / 9.9lb
• Hose length – 10 Hoses of 1.17m / 3.83ft
• Required water flow – 5-8m
3
❙ Water conditions
• Chlorine – Max 4ppm
• pH – 7.0-7.8
• NaCl – Max – 5000ppm
• Temperature – 6-34°C / 43-93°F
NOTE:
An optional Leaf Canister is also available for purchase from your supplier.
The Leaf Canister traps leaves and other large debris, preventing blockage of the
pool filter system. For maximum energy, backwash savings and environmentally
friendly operation, we recommend using the Leaf Canister.
❙ Pool Preparation
To prepare the pool for cleaning:
1
Remove any large
objects that might
interfere with the
cleaner’s operation.
2
Make sure that the
water level reaches
the skimmers.
3
Backwash the pool
filter and make sure
that suction pressure
is sufficient, as
recommended by the pump manufacturer.
❙ Setup
Connect the Hose
The Dolphin Hybrid Cleaner connects to the pump of your pool, either by a built-in dedicated
suction line or through one of the pool skimmers.
Connect the Hose Sections in the pool under water.
1
Switch the pool pump OFF.
2
Insert the flexible Skimmer Adapter (only if needed) into the suction line opening and make sure
to connect the Automatic Safety Valve. (Allows water flow into the pump in case the Cleaner is
blocked by a forgien object).
CAUTION
Connecting to Skimmer Connecting to Suction Line
First
Hose
Section
Safety Valve
Suction
Line
Skimmer
Adapter
First
Hose
Section
Safety Valve
Skimmer
Adapter
Suction Line
B

4Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions
3
If connecting to a
skimmer, choose
the skimmer located
closest to the center
of the longest pool
wall.
4
Remove the skimmer
basket and push the
male end of a Hose
Section into the
Safety Valve, using a
twisting motion.
5
If using a shallow skimmer, connect the 90° Adapter to the automatic Safety Valve before
connecting the Hose Section to ensure proper suction flow
(Drawing C).
6
Continue connecting additional sections until the hose is long enough to reach from its pool
connection to the most distant edge of the pool, plus two extra sections.
7
Make sure to add the Float 40 cm (1.30 Ft) above the Dolphin Hybrid Cleaner on the last Hose
Section (Drawing F).
8
Install the optional Leaf Canister between the first and second Hose Sections under water, as
well.
CAUTION
Air trapped in the hose can damage your pump!
Check Flow
The Dolphin Hybrid Cleaner operates on the suction power of the pool system. Satisfactory flow is
important to ensure proper cleaning and to prevent damage to the Dolphin Hybrid Cleaner.
NOTE:
Make sure to stop operation of the pool drain while the Dolphin Hybrid Cleaner
is working.
To make sure that flow is satisfactory:
1
Completely immerse the hose in the water and remove any
trapped air.
2
Connect the Flow Indicator to the
free end of the hose, under water
level.
3
Switch the pool pump ON.
4
Check the Flow Indicator (Drawing
D). Make sure that the indicator
is between MIN. and MAX. If the
indicator is not in the satisfactory
range, there may be air trapped in
the hose. Wait approximately two
minutes while the pump continues
to operate to remove any trapped
air.
5
If the indicator remains outside the satisfactory range, correct unsatisfactory flow according to
the instructions in the following table. After each action, check flow with the Flow Indicator. If
flow is still unsatisfactory, proceed to the next action.
minmax
minmax
Indicator
D
Deep Skimmer Shalow Skimmer
Hose
Safety Valve
Hose
Skimmer Adapter Skimmer Adapter
Safety Valve
90° Adapter
Vacum
Chamber
Vacum
Chamber
C

Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions 5
CAUTION
Operating above the MAX. may damage the Dolphin Hybrid Cleaner.
Table 1: Flow Indicator
Flow Indication Action
In satisfactory range
Connect the Dolphin Hybrid Cleaner and begin the cleaning process.
Below MIN.
To correct the flow do one or more of the following:
• Make sure that the water level of the pool reaches the skimmer.
• Check that the hose is not twisted or bent near the pool connection.
If it is, use the 90° Adapter.
• Close unused skimmers or main drain. Make sure that the skimmer used
for the Dolphin Hybrid Cleaner is fully opened.
• Remove trapped air from the hose and Dolphin Hybrid Cleaner.
• Tighten connections between Hose Sections.
• Backwash the main filter and clean the skimmer and pump basket.
Above MAX.
• Open unused skimmers partially (if closed).
• If the Dolphin Hybrid Cleaner is connected to a dedicated suction line,
adjust its control valve on the pool pump.
• If the Dolphin Hybrid Cleaner is connected to a skimmer, reduce the
suction on the pool pump.
Connect the Dolphin Hybrid Cleaner
1
Make sure that the pool pump is switched OFF.
2

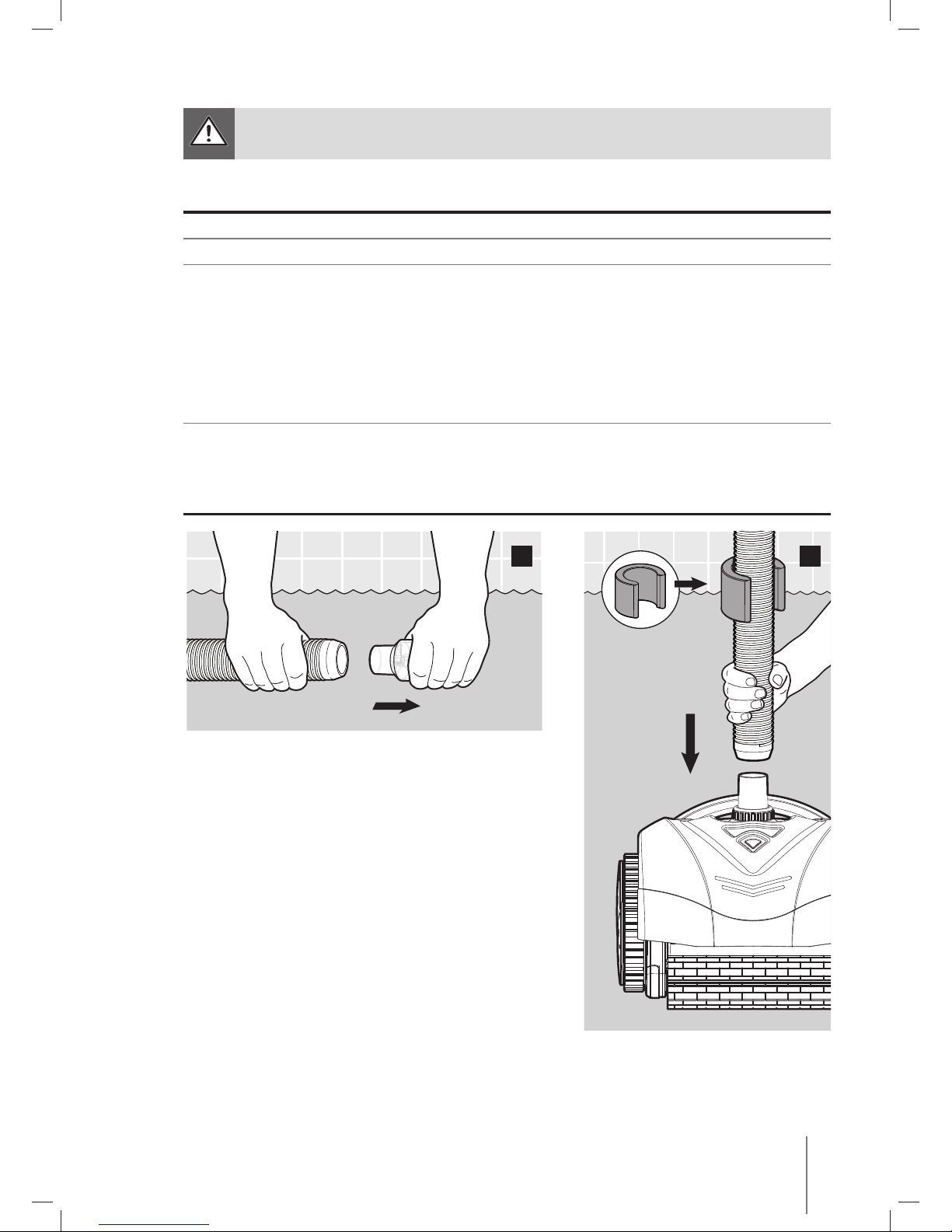

Disconnect the Flow Indicator (Drawing E).
3
Make sure the Float is connected on the hose 40 cm
(1.30 ft) above the Dolphin Hybrid Cleaner.
4
Make sure that the hose is entirely under the water
level and is filled with water.
5
Hold the Dolphin Hybrid Cleaner by the handle and
put it in the water. Turn the Dolphin Hybrid Cleaner
upside down to remove any trapped air.
6
Connect the hose end to the Dolphin Hybrid Cleaner
(Drawing F). Make sure that the hose is firmly
connected. Ensure that there is a small space between
the locknut and the pipe.
7
Realese the Dolphin Hybrid Cleaner in the pool.
Restart the pump
minmax
E
3
6
F

6Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions
❙ Cleaning Process
The Dolphin Hybrid Cleaner continues to clean
your pool as long as the pool pump is operating.
The time required to cover all pool surfaces depends
on the pool size. In general, 1-2 hours are sufficient.
During operation, refer to the indicator lights
(Drawing G) on the cleaner to make sure that the
Dolphin Hybrid Cleaner is functioning properly
(see table below).
Table 2: Indicator Lights
Light Indication
Red (2 sec.) Start of operation
Blue — slow blinking Proper functioning — The Dolphin Hybrid Cleaner is moving forward.
Blue — fast blinking Proper functioning — The Dolphin Hybrid Cleaner is making a turn.
Blue and red (2 sec.) Proper functioning — The Dolphin Hybrid Cleaner identifies a wall.
Red — blinking • Insufficient flow — To correct unsatisfactory flow, refer to Table 1.
• Use the Troubleshooting Guide (Table 3).
❙ Clean the Leaf Canister
1
Make sure the pump is OFF.
2
Disconnect the Leaf Canister and hold the
adjacent Hose Section.
3
Open the lid by turning it anticlockwise
4
Remove the filter.
5
Clean out leaf and other debris (Drawing H).
6
Rinse the filter.
7
Return the filter and lid.
8
Connect the Leaf Canister and hose
sections under the water. Make sure to
remove trapped air from the Leaf Canister.
9
Turn the pump ON.
Canister
Leaf & debris
Filter
Canister
Lid
I
H
G

Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions 7
❙ Removal from the Pool and Storage
When you choose to remove the
Dolphin Hybrid Cleaner from the
pool:
1
Ensure to switch the pool
pump OFF.
2
Disconnect the Skimmer
Adapter from the suction line
opening.
3
Disconnect the Safety Valve.
4
Disconnect the Hose Sections,
pulling them slowly one-by-
one out of the pool.
5
When you reach the section
connected to the Dolphin
Hybrid Cleaner, grasp the
Dolphin Hybrid Cleaner handle
and remove the Dolphin Hybrid Cleaner from the pool (Drawing J).
CAUTION
Remove the Dolphin Hybrid Cleaner from the pool only by its handle!
6
Store the Dolphin Hybrid Cleaner and Hose Sections
out of direct sunlight. Do not store the Dolphin Hybrid
Cleaner where it will be exposed to excessive heat or
frost. Make sure that Hose Sections are in a straight
position (Drawing K).
7
For longer life of the equipment, it is recommended
to rinse the
Dolphin Hybrid Cleaner and parts with tap
water.
8
Reopen all skimmers.
❙ Troubleshooting
The Dolphin Hybrid Cleaner is designed to operate with a minimum of user maintenance.
If a problem does occur, try to determine the cause. Often, the solution is already part of the
standard operating instructions in this booklet. If you cannot solve the problem easily, contact your
supplier.
K
J

8Dolphin Hybrid RS1 - Suction Pool Cleaner |Operating Instructions
L
M
N
The following are typical problems that might occur and possible solutions.
Table 3: Troubleshooting
Symptom Possible Solutions
The Cleaner does not move or moves slowly
(without indicator light)
• Correct insufficient flow. (Refer to Table 1).
• Remove the service opening cover on the Cleaner bottom
(Drawing L) and clean out any trapped debris (Drawing M).
• If a track slipped off the wheels, return it. If this occurs
frequently, purchase replacement tracks from your supplier.
• Contact your supplier for repair.
The Cleaner moves on the back wheels only • Connect additional Hose Sections.
• Correct excessive flow. (Refer to Table 1).
The Cleaner moves on the front wheels only
• Make sure that the Float is in the correct position. (Refer to
“Connect the Cleaner” on page 5).
• Remove the Float from the last Hose Section.
The Cleaner gets stuck on the pool drain • Make sure to stop operation of the pool drain while the
Cleaner is working.
The hose is twisted
1. Turn the pump OFF.
2. Remove the Cleaner from the pool.
3. Open the swivel and clean it (Drawing N).
4. Close the swivel properly and make sure the swivel moves freely.
The Cleaner is turning in circles • The suction is below MIN. (Refer to Table 1).
If does not help, contact your supplier.
Air bubbles at the exit of the water from the
jets, or a noise of air suction
1. Ensure that the hoses are firmly fastened.
2. Ensure that the Leaf Canister lid is firmly closed.

by www.maytronics.com
Dolphin Hybrid RS1 - Suction Pool Cleaner
Dolphin_Hybrid_cover.indd 4Dolphin_Hybrid_cover.indd 4 5/8/12 9:18 AM5/8/12 9:18 AM

Dolphin_Hybrid_cover.indd 3Dolphin_Hybrid_cover.indd 3 5/8/12 9:18 AM5/8/12 9:18 AM
