DOMENA PS4500 User manual

!
PROFESSIONAL
STEAM IRON
WITH DETACHED BOILER
UNDER PRESSURE

GENERAL WARNINGS
Read carefully the following instructions as they provide important information
concerning how to install, use and care for this appliance. After removing the
appliance from its packaging, ensure that it is in perfect condition. In case
of doubt, do not use this appliance and ask qualified person. All the parts of
the packaging (plastic bags, foam polystyrene, nails etc.) must be kept out
of the reach of children as they are potentially dangerous.
Before you plug in this appliance, ensure that the technical features on the
rating plate correspond to the main electrical circuit in your home. In case
plug and socket do not correspond, ask qualified person to change the
plug. The person must also verify that the cross section of wires inside the
plug corresponds to the power consumption of the appliance. In general,
we do not advise the use of adaptors, multiple sockets and/or extension
cords. In case it is absolutely necessary to use them, you must apply only
single or multiple adaptors and extension cords which conform to the
existing safety standards.
You should check the maximum power indicated on the single adaptor,
multiple socket and/or extension cord, which must be within the limits
of power consumption indicated on the appliance. This appliance must
be used only for the purpose it was destined to. Any other use must be
considered improper and therefore dangerous. The manufacturer cannot
be held responsible for any damages and claims deriving from improper,
wrong or unreasonable use. The use of any electrical appliance requires
conformity to important safeguards, in particular: 1. Do not touch the
appliance with wet or damp feet or hands 2. Do not use the appliance with
bare feet 3. Do not use without paying extra care when using extension
cords in bathrooms or showers 4. Do not remove the plug from the mains
by pulling the cord or the appliance 5. Do not leave the appliance outdoors
(rain, sun, etc.) 6. The appliance is not intended for use by young children
or infirm persons without supervision.
Always unplug from the mains after use or when cleaning and repairing.
In case the appliance does not operate correctly, turn it off immediately
and do not tamper with it. For repairs, consult only an after sales service
that is authorized by the distributor and only original spare parts must
be used. The lack of conformity to the above mentioned points might
endanger the safety of this appliance. If you wish to discord this appliance,
we recommend you to cut the electrical cord, after unplugging it from the
mains. We recommend never to leave the appliance or its parts, in the
reach of children because this could be dangerous.
SPECIFIC WARNINGS
The installation of this appliance must follow the instructions of the
manufacturer. A wrong installation could cause damage to people, animals

or things for which the manufacturer cannot be held responsible. In case the
appliance has an earth connection, the electrical safety is ensured only when
the appliance is correctly connected to an efficient earthing installation in
conformity with the existing safety standards. It is necessary to verify this
important safety requirement and in case of doubt, to require an accurate
check-up of the installation by a qualified person. The manufacturer cannot
be held responsible for any damages caused by the lack of an earthing
installation. Ensure that the power of the electrical installation and of the
mains corresponds to the maximum power indicated on the rating plate. In
case of doubt, refer to qualified person.
To avoid dangerous overheating of the appliance, we recommend you to
unroll the electrical cord completely. Do not leave the appliance plugged in
while not in use. Do not obstruct the ventilation/dissipation slots. Keep the
appliance at a reasonable distance from walls, objects, etc. The electrical
cord and plug of this appliance must not be substituted by the user. In case
the electrical cord is damaged or has to be replaced, please contact an
after sales service that is authorized by the distributor.
WARNING! FOR YOUR SAFETY, IF YOU WOULD LIKE TO IRON WITH
STEAM, WE RECOMMEND YOU TO FOLLOW THE INSTRUCTIONS
HERE BELOW:
• it is definitely necessary to wait the boiler switch light to turn off before
ironing, in case it will not turn off, or in case it will remain always turned
off, please switch off the product and refer to an authorized after sales
center.
• a right functioning foresee that the boiler switch light turns off after 20-25
minutes that the product has been switched on. During the steam ironing,
the boiler switch light will turn off and on cyclically which means the
regular creation of steam inside the boiler.
• the low water warning light (5), has to light up only when the water in
the boiler is finished and the iron does not make any steam. In the case
that eventually it will light up during normal steam output, please switch
off the product and refer to an authorized after sales center since this
functioning seems to be anomalous
• in case that during the normal functioning, steam is coming out from the
filling cap (1), please switch off the product and refer to an authorized
after sales center
• please ensure yourself that the iron is placed on a stable surface during
your ironing and also during its resting
• when you are reposing your iron on its iron rest mat, please ensure that
the iron rest mat is located on a stable surface
• the product should not be used if the iron has fallen down, if it leaks, if
there are any other visible damages.

• the filling cap (1) has to be checked/substituted in case it falls down during
the ironing. It has to be replaced every 3 months for professional use
and every 30 months for household use maximum to guarantee the
• this product has been studied for household and professional use.
• Your product has been planned for the use of drinkable or demineralised
water. (avoid using distilled water)
• the manufacturer declines all responsibilities for damages occurred by
a wrong use, undone maintenance or for different purposes as the ones
foreseen in this instruction manual
• the product has been tested in the factory before being shipped.
WARNING!!!
WHEN THE PRODUCT IS SWITCHED ON, THE BOILER IS ALWAYS
UNDER PRESSURE, WE RECOMMEND LEAVING THE PRODUCT IN
FUNCTION WITHOUT IRONING, ONLY FOR A SHORT TIME.
• NEVER UNSCREW THE FILLING CAP (1) as long as the boiler is under
pressure. Turn off the boiler switch and drain by pushing the steam key
(a) of the steam iron until steam dries up.
• Keep ventilation slots free from dust
• Never drop or insert any object into ventilation slots
• Make sure that the electrical cable does not touch any hot surface
• Do not operate where aerosol (spray) products are being used or where
oxygen is being administered
• To disconnect, turn all controls to the off position (the lights on the
switches will be switched off) then remove plug from the mains
• When you are using the iron, make sure that it is put on a firm base and
not left standing on inflammable material.
• Never put away your steam iron as long as it is hot. There is no need for
emptying the tank unless you intend to leave it unused for a long period
of time.
CAUTION
Prior to ironing on delicates fabrics, test a hidden surface (for example a
flap). We will not assume any responsibility in case of non-adherence to
this recommendation.
Your steam station has been planned for the use of normal tap drinkable
or demineralised water. Anyway, in order to extend the life of the machine
we recommend to use: 50% tap drinkable water and 50% distilled/demine-
PROFESSIONAL PRESSING
Your new appliance is a real steam product for a household and professional
use. Thanks to the powerful steam generator, your ironing will be greatly
safety of the product.
ralised water.

facilitated, as you can adapt and control the temperature, the production
and the flow of the steam.
There is no need to press with the iron as the penetrating steam does nearly
everything.
• Ordinary laundry - Thanks to the high pressure, the laundry is ironed
faster and better than ever, even if there are several layers.
• Wool, velvet - Guide the iron 2 cm above the fabric, depressing the steam
key (a). The power of steam smoothes away creases and revitalizes the
fabric.
• Vertical smoothing - Suits, dresses and curtains are smoothed, renewed
and put into shape again (vertically) while they are hanging.
You will soon appreciate the safe and easy use of your steam station. Do
read the instruction manual thoroughly and keep safe, so that, you can
refer to it when you need to remind yourself of the steam station numerous
functions.
The manufacturer reserves the right to modify, without notice, the design
and the accessories of this product, according to its technical evolution.
HOW TO USE YOUR STEAM GENERATOR
1. Place your appliance horizontally and conveniently situated on the
support of your ironing board or any other stable surface nearby
2. Turn the filling cap (1) anticlockwise to unscrew.
3. Fill the tank with the water quantity indicated in the “Technical Features”.
4. Screw on the filling cap (1) clockwise (do not close too tightly).
5. Plug in the appliance to the mains
6. Turn on the boiler switch (3)
7. Turn on the steam/iron switch (4)
8. Select the thermostat button (b) to the required temperature.
(Attention: in order to obtain higher performances during the ironing, we
suggest not to select the thermostat button (b) under the steam symbol).
9. It takes about 20 to 25 minutes to attain correct pressure for an optimal
ironing. The boiler switch light (3) on the steam generator will then turn
off. Before ironing, release the air in the pipe onto a cloth in order to
release any condensation droplets. At each depression on the steam
key (a), the steam rushes through the openings under the tip of the
iron.
10. Only slight depressions of the steam key (a) are needed
ATTENTION! For your safety, if you want to iron with steam, it is definitely
necessary to wait for the boiler switch light to turn off once before ironing.
- Low water warning light (5)
It lights up when the water in the boiler is finished. Now see under “Filling
the tank”.

a
b4
3
6
8
5
2
1
7
A
S
e
c
c
o
/
D
r
y
V
a
p
o
r
e
/
S
t
e
a
m
S
p
e
n
t
o
/
O
f
f
N
y
l
o
n
/
N
y
l
o
n
R
a
y
o
n
/
R
a
y
o
n
S
e
t
a
/
S
i
l
k
L
a
n
a
/
W
o
o
l
C
o
t
o
n
e
/
C
o
t
t
o
n
L
i
n
o
/
L
i
n
e
n
CAUTION
ATTENTION
HOT / CHAUD

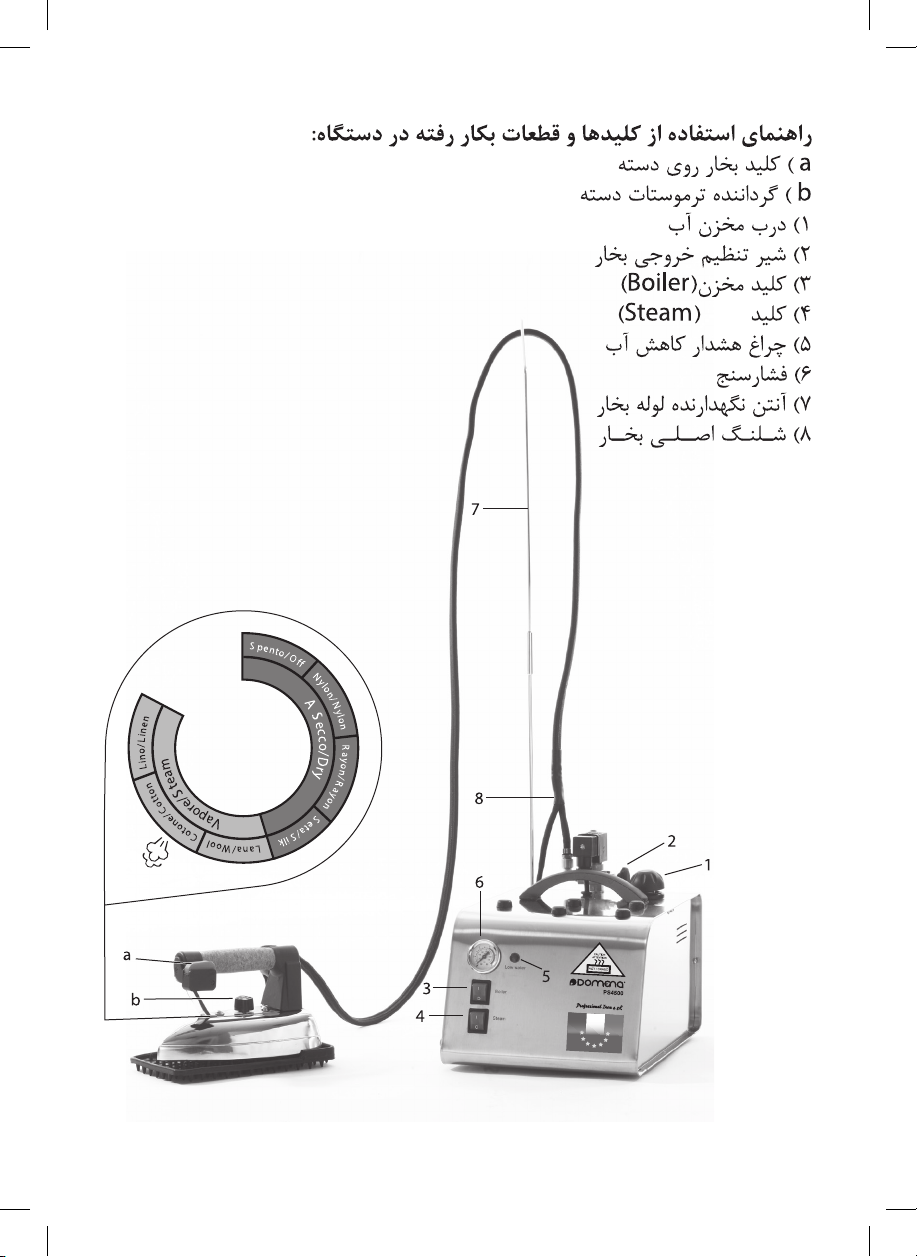

a) Steam key
b) Thermostat button
1) Filling cap/ Overpressure device
2) Steam delivery adjustment
3) Boiler switch
4) Steam/iron switch
5) Low water warning light
6) Pressure gauge
7) Steam hose holder
8) Steam hose holder extension

- Steam delivery adjustment (2)
With the steam delivery adjustment (2), it is possible to select the steam
quantity that you wish, during your ironing:
Rotating steam delivery adjustment clockwise you will have lower steam
output while rotating it anticlockwise you will have higher steam output.
- Pressure gauge (6)
With the professional pressure gauge (6) you have under constant control
the pressure of the boiler.
DRY IRONING
For a light ironing without steam:
Select the thermostat button (b) to the position which corresponds to
the fabric you wish to iron. Turn on the steam/iron switch (4) and after
aproximately 3 minutes the iron has reached the right temperature
Do not press the steam key (a) when you are ironing without steam.
STEAM IRONING
See under “HOW TO USE YOUR STEAM GENERATOR”
• Damp steam - You can iron any fabric with damp steam as long as you
turn the thermostat button (b) to WOOL setting.
• Dry steam - With the iron temperature at the COTTON setting, ironing
will be more efficient.
• For delicate fabrics, press the steam key (a) before placing the iron on
the fabric.
• The silk/nylon settings must not be used for steam ironing. These settings
are designed only for dry ironing.
• Place the iron down flat on the silicone mat on the steam generator. Never
leave the hot iron unattended!
IRONING TIPS
Wool: just vaporize, do not pull the fabric or jersey
Silk: just vaporize, then steam smoothly
Velvet: iron quickly and lightly from the wrong side, using little steam, or
vaporize first, then iron from the right side, hardly touching the fabric.
FILLING THE TANK
If your steam station needs to be refilled while in use, fill the tank as follows:
• leave the steam/iron switch (4) on
• turn off the boiler switch (3)
• press the steam key (a) in order to release the remaining steam onto a
cloth, turn off the steam/iron switch (4)
• unplug the appliance from the mains

• unscrew carefully the filling cap (1)
• wait 2 to 3 minutes, then slowly fill with warm water. Screw on the filling
cap (1), plug in the appliance to the mains, turn on the boiler switch (3)
and the steam/iron switch (4) and wait for the boiler switch light (3) to
turn off.
• The steam station is once again ready for use.
STEAM DECOMPRESSION
When your ironing is done:
• leave the steam/iron switch (4) on
• turn off the boiler switch (3)
• Thoroughly drain any remaining steam onto a cloth by pressing the
steam key (a) of the iron.
MAINTENANCE
When you use the steam station with tap drinkable water, descaling is
necessary in regular intervals, in order to maintain proper functioning for a
long time. The frequency of descaling depends on both, the hardness of the
water and the frequency of use. For an average hardness of the water (25°
- 30° french) and normal household use, we recommend regular rinsing of
the heating tank in order to eliminate any residue. Depending on the water
used, descaling may be needed once or twice a year for household use and
once or twice a month for professional use.
ATTENTION! BEFORE PREOCEEDING WITH THE MAINTENANCE, THE
PRODUCT HAS TO BE COLD, NOT CONNECTED TO THE MAINS, AND
MUST NOT HAVE BEEN USED FOR AT LEAST 8 HOURS.
- Unscrew and remove the filling cap (1) and eliminate possible water
residue from the boiler.
- Dissolve completely the contents of two sachets in 1 L of water and pour
the solution into the boiler carefully
- Leave the solution in the boiler for one night with the filling cap (1) open.
- Empty completely the boiler and rinse 5/6 times with water in order to
eliminate possible residues of scale.
ADVICE! Drain the first steam onto a cloth and not directly on the fabric to
be ironed, since there could be still some residues of scale.
ATTENTION!!! DO NOT USE ANY CHEMICALS RATHER THAN WHAT
SUGGESTED ABOVE!

MAINTENANCE OF THE IRON
Minor remains of starch or other products might stick to the aluminum alloy
plate. In such case just rub lengthwise with a soft, damp, non - metallic
cleaning pad.
BUBBLING SOUNDS
In case you should hear sounds from the boiler, turn off the boiler switch (3)
and steam/iron switch (4), unplug the appliance from the mains, unscrew
carefully the filling cap (1) to let out the air pressure. Then screw on the
filling cap (1) and turn on the boiler switch (3) and the steam/iron switch
(4).
TECHNICAL FEATURES
MODEL PS4500
Voltage
230V~50Hz
1450 W +
850 W
Boiler Water Capacity 3,5 l
Boiler Volume 4,5 l
Steam Pressure 350kPa (3,5bar)
The symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact
your local city office, your household waste disposal service
or the shop where you purchased the product.

- Distributed by

/
/
/

ﻪﺘﺳﺩ
ﻪﺘﺳﺩ
77
7
7
7 7
10

ﻪﺘﺳﺩ
ﻪﺘﺳﺩ
7
7
7
7
7
7
7

7
7
7
7

7
7
7
7
7
7
7

ﻪﺘﺳﺩ
7

7
7
7
7
7
7
7
7
7

ﺘﺳﺳﺘﺳﺩ
