Dometic Saneo B User manual

Operating instructions

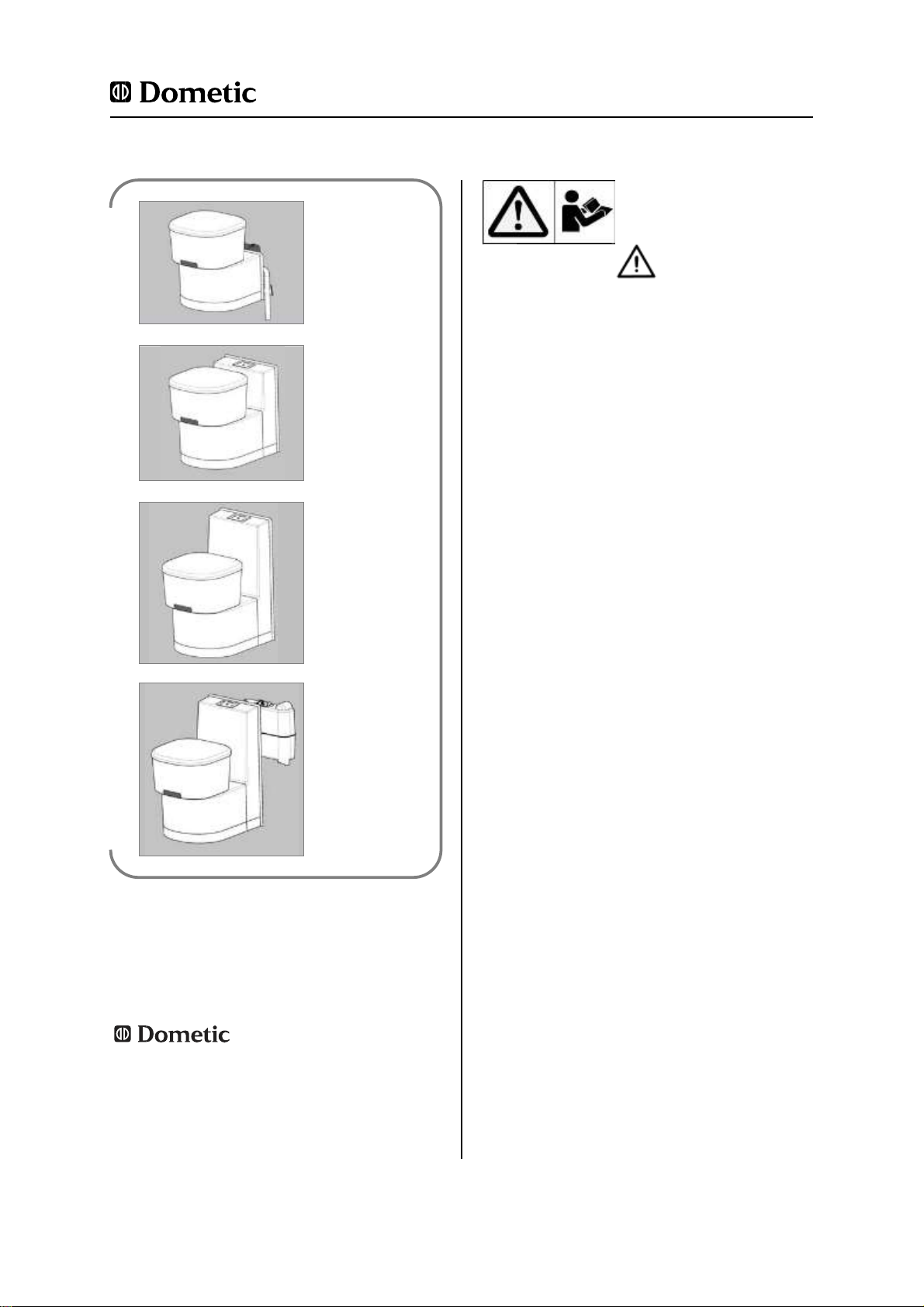

Cassette toilet for recreation vehicles
Dometic Saneo ®B
Dometic Saneo ®C
Dometic Saneo
®BS Dometic
Saneo ®CS
Dometic Saneo
®BLP Dometic
Saneo ®CLP
Dometic Saneo
®BW Dometic
Saneo ®CW
Record for future reference:
Model number
.............................................
Product number
.............................................
Serial number
.............................................

2
10 R - 047317
N 1 EN
MBA 01/2015
CAUTION!
CAUTION!

3
For your safety
Saneo B
Saneo C
Saneo BS
Saneo CS
Saneo BW
Saneo CW
Saneo BLP
Saneo CLP
©
Dometic GmbH -2014- Subject to change without prior notice
Dometic GmbH
In der Steinwiese 16
D-57074 Siegen
www.dometic.com

4
Store these sanitary additives so that they are out of the reach of children.
Cleaning agents for the toilet must not contain chlorine or alcohol! Do not shake the
cassette tank violently.
Do not clean the inside of the cassette tank with a high pressure cleaner.
Do not attach the cassette tank to a bicycle or any other vehicle for the transport.
Do not use anti-freeze agents. Such agents can damage the sanitation system.
Table of contents
1.0 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Guide to these operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Copyright protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Explanation of symbols used in this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Limitation of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.6 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.7 Customer services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.8 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.9 Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.10 Dometic sanitary additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.11 Environmental notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.0 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 User's responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Use of sanitary additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Working upon and checking the toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.0 Description of model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Model identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

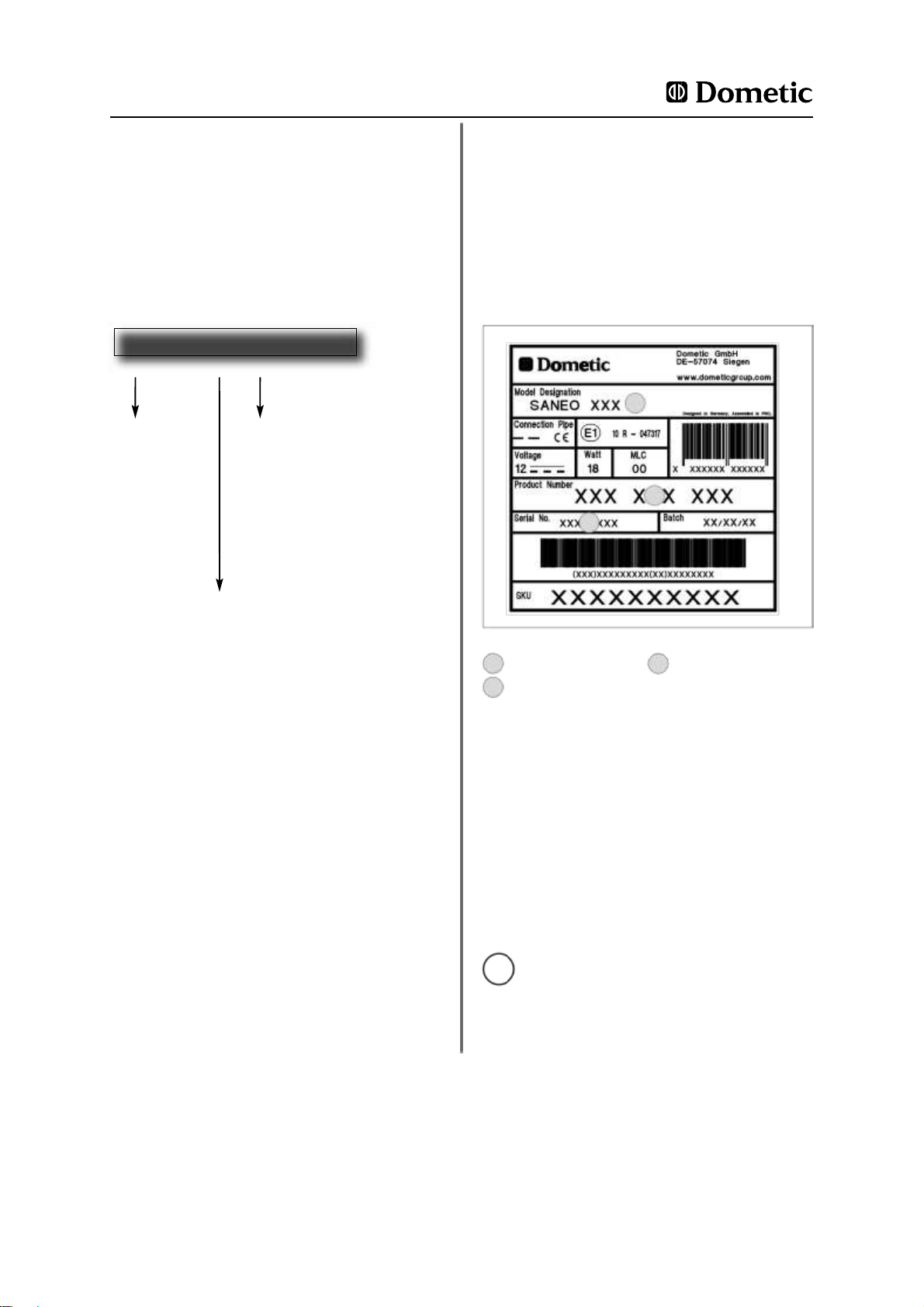

3.2 Toilet identification label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Explanation of toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.0 Using the toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5

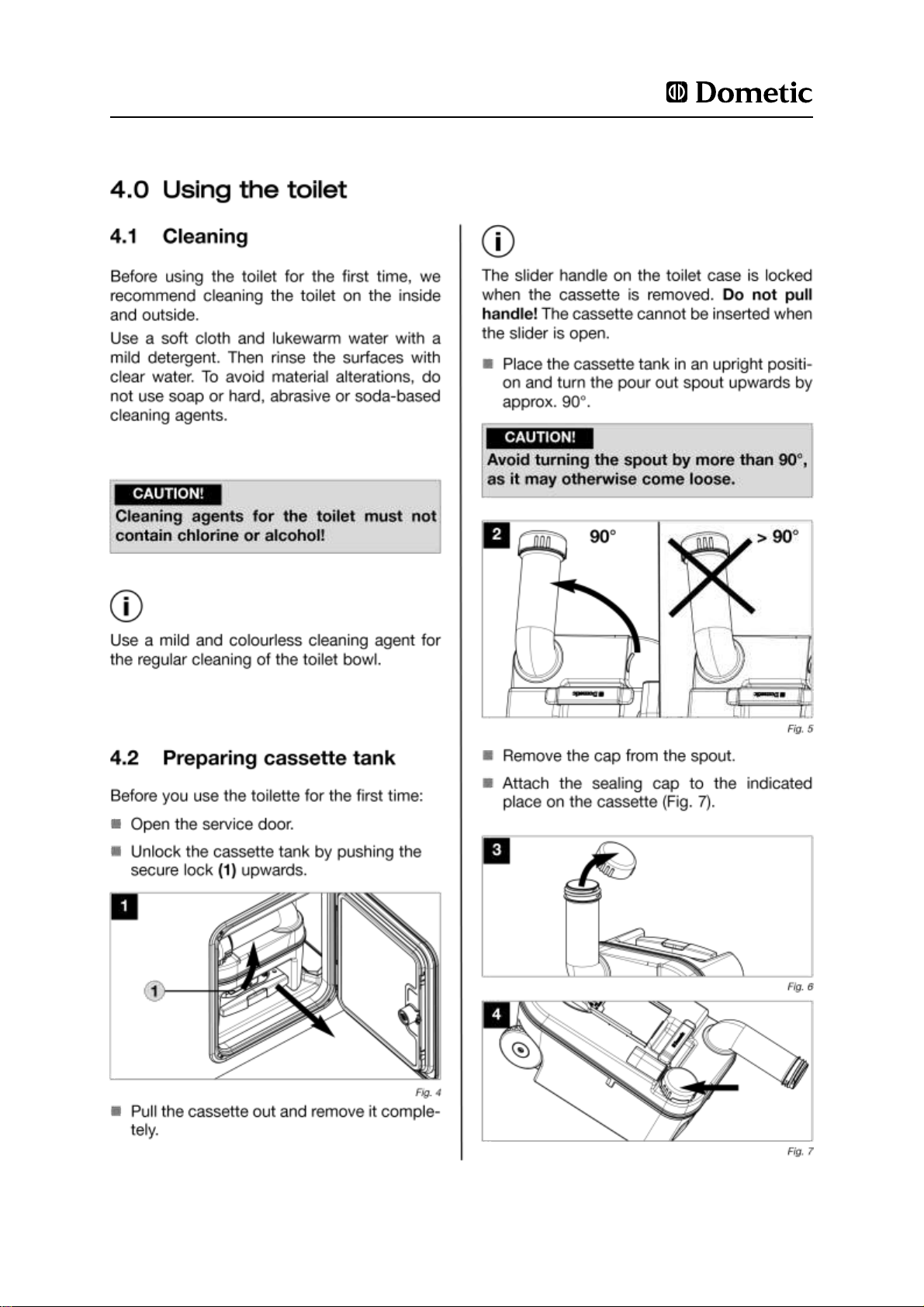

4.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Preparing cassette tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.3 Filling fresh water tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

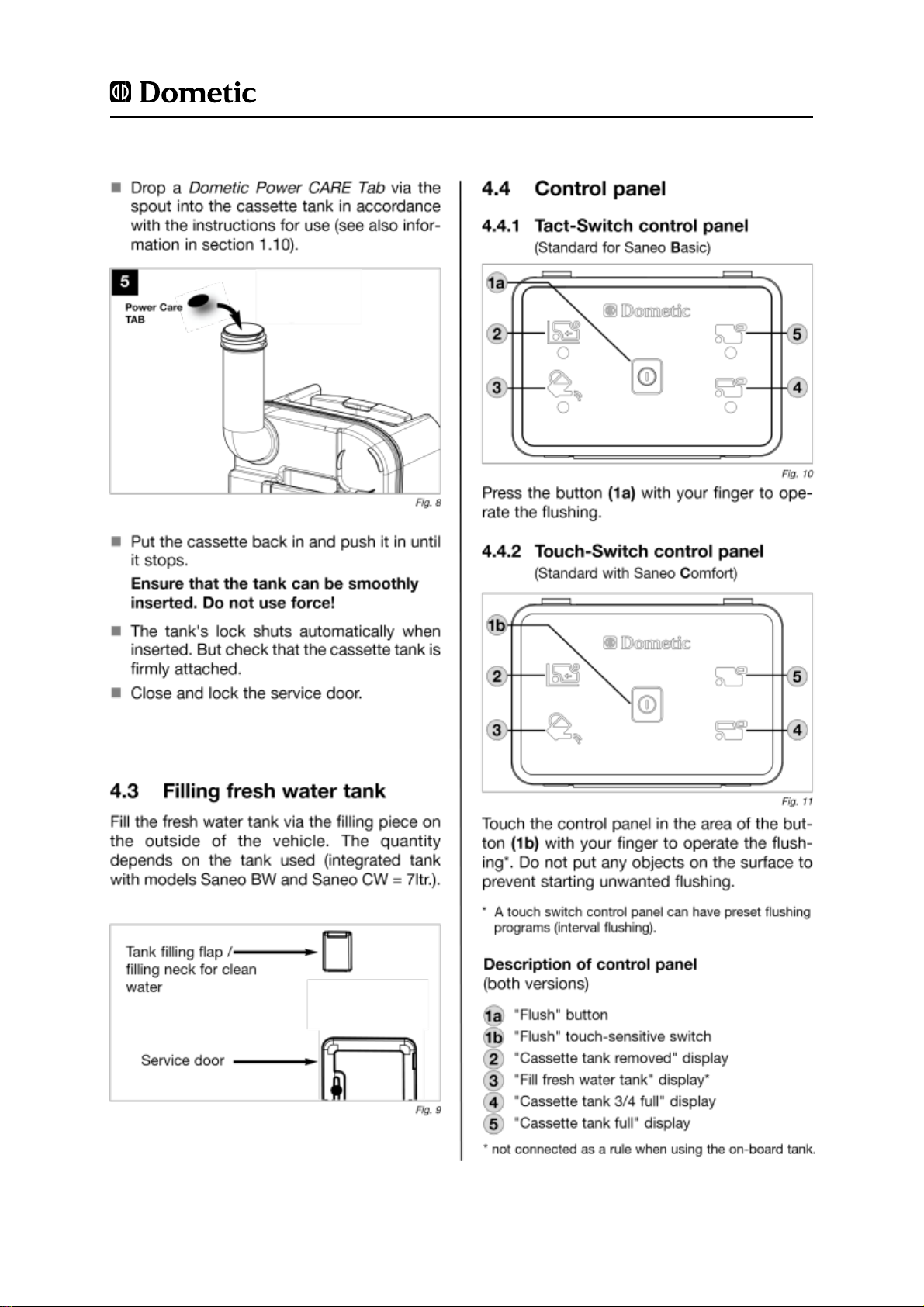

4.4 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.4.1 Tact-Switch control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.4.2 Touch-Switch control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.5 Using the toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.6 Emptying the cassette tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.7 Positioning the toilet seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.8 Winter operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.9 Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

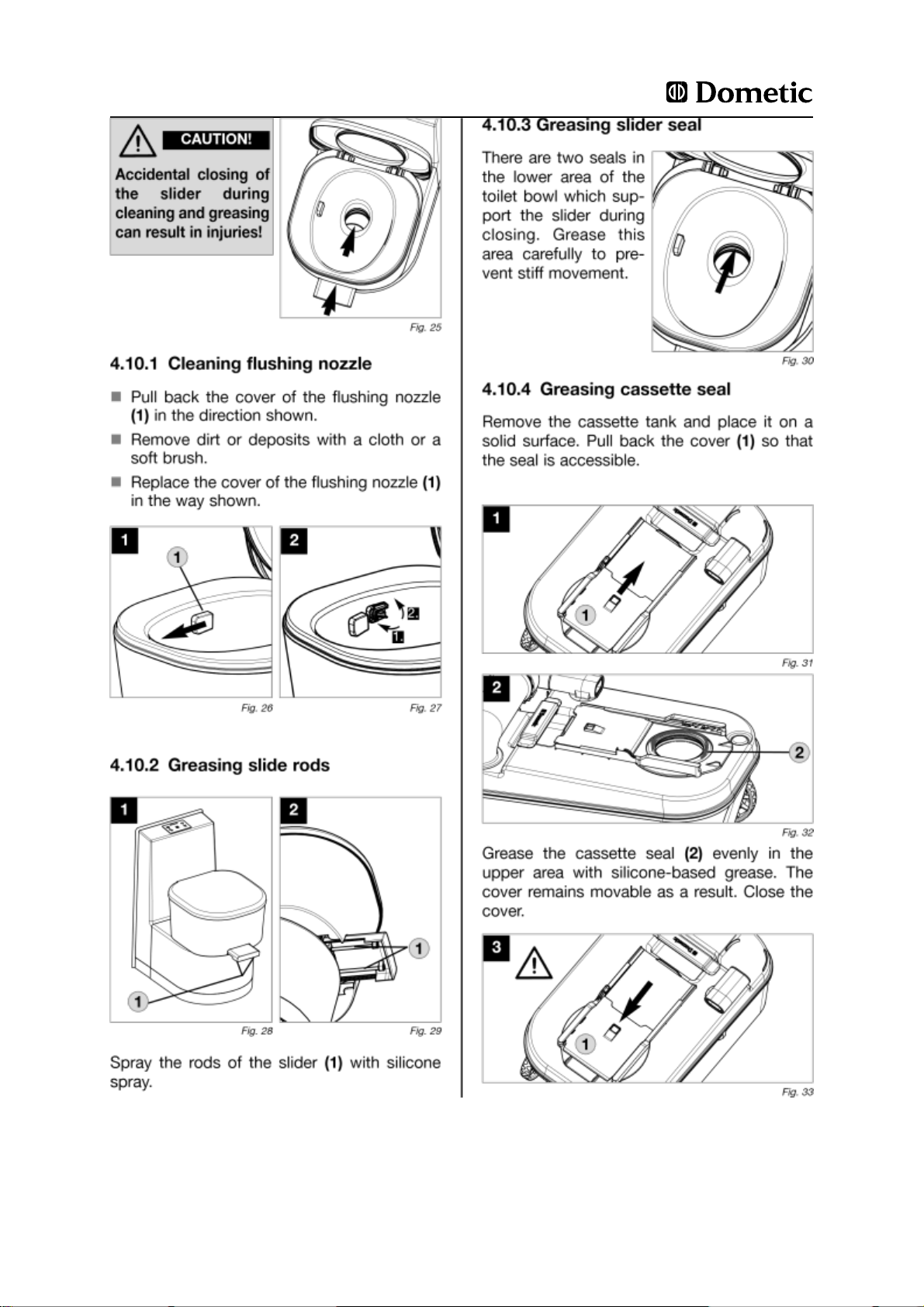

4.10.1 Cleaning flushing nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.10.2 Greasing slide rods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.10.3 Greasing slider seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.10.4 Greasing cassette seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

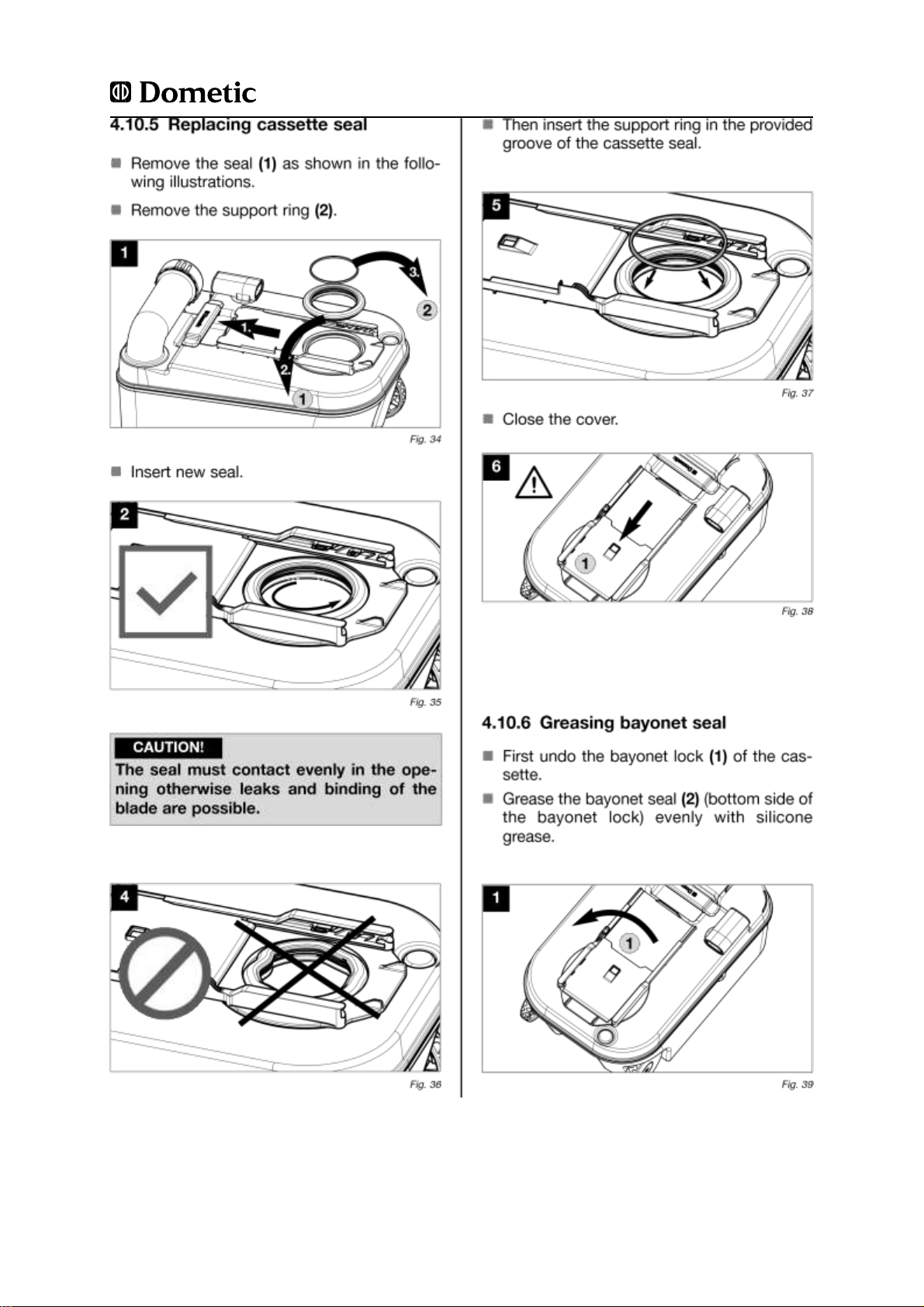

4.10.5 Replacing cassette seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.10.6 Greasing bayonet seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.10.7 Replacing bayonet seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.10.8 Greasing O-ring of the cassette ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.11 Exchanging the fuse on the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.12 Replacing wheels on the cassette tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.13 Retrofitting / replacing automatic closure system (Autoclose) . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.14 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
General
1.0 General
1.1 Introduction
You have made an excellent choice in
selecting this Dometic cassette toilet. We are
sure that you will be satisfied with your new
sanitation system in all respects. This toilet
meets high quality standards and guarantees
the efficient utilisation of resources and
energy throughout its entire life cycle, during
manufacture, in use and when being disposed
of.

6
1.2 Information on this manual
Before operating the toilet read and
understand the contents of this manual.
These instructions provide you with the
necessary guidance for the proper use of the
toilet. Observe the safety instructions in
particular. Observing the instructions and
handling recommendations is important for
dealing with the toilet safely and for protecting
you from injury and the toilet from damage.
You must understand what you have read
before you carry out a task..
Keep this manual in a safe place close to the
toilet so it may be referred to at any time.
1.3 Copyright protection
Theinformation,textsand illustrationsin these
instructions are copyright protected and are
subject to industrial property rights. No part of
these instructions may be reproduced, copied
or utilised in any other way without written
authorisation by Dometic GmbH, Siegen.
1.4 Explanation of symbols used
in this manual
Warning notices
Warning notices are identified by symbols. A
supplementary text gives you an explanation
of the degree of danger.
Observe these warning notices rigorously.
You will thus protect yourself and other
people from injury, and the sanitation
system from damage.
CAUTION!
CAUTION indicates a potentially hazardous
situation which may result in minor or
moderate injury if the given instructions are not
adhered to.
CAUTION!
CAUTION (used without the safety alert symbol)
indicates a potentially hazardous situation
which may result in damage to the appliance if
the given instructions are not adhered to.
Environmental tip
ENVIRONMENTAL TIP gives you useful
guidance for saving energy and disposal of the
sanitation system.
Information
i
INFORMATION gives you supplementary and
useful guidance when dealing with your toilet.
General

7
1.5 Limitation of liability
All information and guidance in these operating
instructions were prepared after taking into
consideration the applicable standards and
regulations as well as the current state of the
art. Dometic reserves the right to make
changes at any time which are deemed to be in
theinterestof improvingthe productand safety.
Dometic will assume no liability for damage in
the case of :
non-observation of the operating
instructions
application not in accordance with the
regulations or provisions
use of non-original spare parts
modifications and interferences to the
appliance
1.6 Warranty
Warranty arrangements are in accordance with
EC Directive 44/1999/CE and the normal
conditions applicable for the country
concerned. For warranty or other maintenance,
please contact our customer services
department. Any malfunction due to improper
use is not covered by the warranty. The
warranty does not cover any modifications to
the appliance or the use of non-original
Dometic parts. The warranty does not apply if
the installation and operating instructions are
not adhered to and no liability shall be
entertained.
1.7 Customer services
Dometic offers a customer services network
throughout Europe. Find your authorised
customer service centre by on the internet
www.dometic.com.
When contacting Dometic Customer Services,
please state the model, product number and
serial number together with the MLC code, if
applicable. You will find this information on the
toilet identification label. We recommend that
you note these details in the field provided on
the front page of this operation manual.
General 1.10 Dometic sanitary additives
In the "Dometic CARE" series, Dometic offers
premium sanitary additives for your toilet.
1.8
Spare parts
Spare parts
can be ordered throughout
Europe from our customer services depart-
ment.
Information about
sanitation accessories
and
products
can be found on the World Wide
Web at :

http://www.my-caravanning.com

http://www.dometic.com
Dometic
products comply with the specified
characteristics according to the respective
European Union Directives.
The current Declaration of Conformity can also
be requested directly from Dometic GmbH,
Siegen.
1.9
Declaration of conformity

8
These products help to make using the toilet
more comfortable and hygienic and are
available at specialist dealers.
1
2
3
Fig.1
Dometic POWER CARE TABS 1
Highlyeffectiveenvironmentallyfriendlytab for
the waste holding tank. Breaks down waste
into liquid and prevents unpleasant odours:
- Powerful and reasonably-priced
- Packed in soluble film
- Just 1 tab per full tank
- For all portable toilets
- space-saving packaging- Content: 16 tabs.
Dometic GREEN CARE TABS 2
Highlyeffectiveenvironmentallyfriendlytab for
the waste holding tank. Breaks down waste
into liquid and prevents unpleasant odours:
- Powerful and environmentally-friendly
- Packed in soluble film
- Just 1 tab per full tank
- For all portable toilets
- space-saving packaging
- Content: 16 tabs.
- platzsparende Verpackung- Menge pro
Dose: 16 Stück.
Dometic COMFORT CARE3
Special toilet paper for mobile toilets with the
comforts of home.
- fast-soluble to prevent blockages
- 2-ply
- extra soft
- facilitates the discharge of the waste
holdingtank
- Content: 4 pcs .
1.11 Environmental notices
Use of sanitary additives
Please observe the usage notes on the
packaging when using sanitary additives.
Disposal
In order to ensure that the recyclable
packaging materials are re-used, they should
be sent to the customary local collection
system. The appliance should be transferred
to a suitable waste disposal company that will
ensure re-use of the recyclable components
and proper disposal of the rest.
2.0 Safety instructions
CAUTION!
Store thesesanitary additives so thatthey
are out of the reach of children.

9
2.1 Intended use
This toilet is designed for installation in
recreation vehicles such as caravans or
motorhomes.
The toilet is designed for a maximum
person weight of 130 kg.
2.2 User's responsibility
Anyone operating the sanitation system must
be familiar with the safe handling and
understand the advice in these operating
instructions. Children may only operate the
sanitation system if they have been made
aware of how to operate it safely and the
dangers attending incorrect operation.
2.3 Use of sanitary additives
Before using sanitary means when using and
cleaning the toilet, observe the usage notes on
the packaging.
Conventional toilet paper can clog the
toilet. Use Dometic Comfort CARE, a
special, quickly dissolving toilet paper.
Safety instructions
2.4 Working upon and checking
toilet
Leave maintenance and service work to
specialist staff.
Exceptions
Regular greasing of the seals mentioned in
the item Maintenance.
Removal of the cassette seal.
CAUTION!
Prevent accidental closing of the toilet
slide during cleaning and greasing. Risk
of injury !
i
i

10
Description of model
3.0 Description of model
3.1 Model identification
B = Basic with plastic bowl
C = Comfort with ceramic bowl
The Saneo cassette toilet consists of a
toilet which is installed fixed in the vehicle
and a removable, mobile cassette as a
faeces tank. The cassette can be
accessed from the outside through a door.
Depending on the model, the toilet
receives the flush water from a tank
integrated in the model or from a fresh
water tank installed in the vehicle.
The following models are available:
Saneo B, Saneo C : free-standing, without
water tank, without console
Saneo BS, Saneo CS : free-standing,
without water tank, with console
Saneo BW, Saneo CW : free-standing,
with water tank in console
Saneo BLP, Saneo CLP : free-standing,
without water tank, with low profile console
3.2 Toilet identification label
The identification label contains all important
details. You can read off from this the model
identification, the product number and the
serial number. You will need these details
whenever you contact the customer services
centre or when ordering spare parts. You will
find the identification label within the cassette
housing after removing the cassette.
1
2
3
Example Fig.2
1 Model number 3 Serial number
2 Product number
3.3 Technical data
Supply voltage : 12 V DC Current
consumption : max. 2 A with internal water
pump, max. 10 A with external pump.
Dimensions : s. details in installation manual
Operating temperature : 0°C up to + 50°C
Capacity: :
Cassette tank ............................................16l
Fresh water tank (optional) .......................... 7l
i
Required pump output at the inlet of the
toilet: min. 5.5 l/min, max. 12 l/min
(recommended 7-8 l/min).
Description of model
Saneo B L P
S = free-standing without
flush water tank,with
console
W = free-standing with
integrated flush
water tank
LP = Low Profile, low con-
sole
Model range
Model version
Example:

11
3.4 Description of components

1
2
Using the toilet

1
3
Using the toilet

1
4
Using the toilet
Slight resistance when closing the slider is
noticeable from a distance of approx. 10 mm
from the case.
The slideris closedif the sliderhandle (3) does
not protrude beyond the toilet case [2].
Otherwise the cassette tank cannot be
removed.
When the cassette is 3/4 full, the toilet may
only be used with the blade open.
On a slope (e.g. extended inclination of the
vehicle), the cassette must not be more
than 3/4 full. An overflow through the
ventilation is possible.
4.6 Emptying the cassette tank
Empty the cassette tank when the level
indicator LED lights up.
Remove the cassette tank as described in
section Preparing cassette tank .
The cassette tank is provided with wheels
and a pull-out handle.To unlock the handle,
push in the button (1, Fig. 17) in middle of
the handle. Pull out the handle until it stops.
Take the tank to the nearest indicated
disposal point.

1
5
Using the toilet
with one hand while you hold the tank on
the case (3) with the other hand so that you
can press the vent button (1) during the
emptying.
4
Fig.20
The vent button should only be pressed
once the emptying spout is pointing
downwards. The tank empties evenlyand
without squirting.
After emptying, flush the cassette tank
thoroughly with water. Then make the tank
operational again as described in section
Preparing cassette tank, before inserting it
in the toilet.
Clean coarse dirt from the wheels of the
cassette tank to prevent scratches in the
cassette case.
CAUTION!

1
6
Using the toilet
level
indicator.
Do not clean the inside of the cassette
tank with a high pressure cleaner. This
can damage the float for the filling
1
2
3
4
CAUTION!
Do not use anti-freeze agents. Such
agents can damage the sanitation
system.

17
Using the toilet
4.7 Positioning the toilet seat
Thetoppartof thetoiletcanberotatedby 180°
(continuous) from the home position, 90° in
each case in both directions. A limit stop
prevents the top part impacting on the
console.
Fig.21 Fig.22
Fig.23 Fig.24
4.8 Winter operation
You can continue to use the cassette also in
winter, as long as the toilet and the cassette
are situated in a frost-protected location.
If this is not the case, empty the fresh water
tank, the cassette tank and the water pipes of
fresh water supply. This prevents damage due
to frost (see Decommissioning).
4.9 Decommissioning
If you wish to decommission the toilet for long
periods of time, empty the fresh water tank
and the water supply system fully.
Clean the toilet thoroughly.
Press the flush button until there is no
remaining water left in the pipes.
Switch off the power supply for the toilet.
Then empty the cassette tank and rinse it
thoroughly. Clean the cassette. To allow
the tank to dry, do not place the cap back
on the emptying spout of the waste tank.
Clean and grease all seals and moving
parts of the toilet and of the cassette tank
(see Maintenance) and repeat this action
before putting back into operation.
4.10 Maintenance
Clean the toilet bowl regularly.
Information about sanitation accessories
and products can be found on the World
Wide Web at : http://www.my-
caravanning.com
Clean and grease all seals on the toilet and
cassette tank regularly. In the case of frequent
use, perform this action monthly or after
emptying the cassette 3 - 5 times. Use
siliconebased grease or spray.
We recommend : grease : OKS® 1110
spray : OKS® 1111
The cassette slider must always be
greased for comfortable use and better
handling.
i

18
Using the toilet

19
Using the toilet

20
Using the toilet
